Model # RGS-366 Official DCS gas range

Here are the diagrams and repair parts for Official DCS RGS-366 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

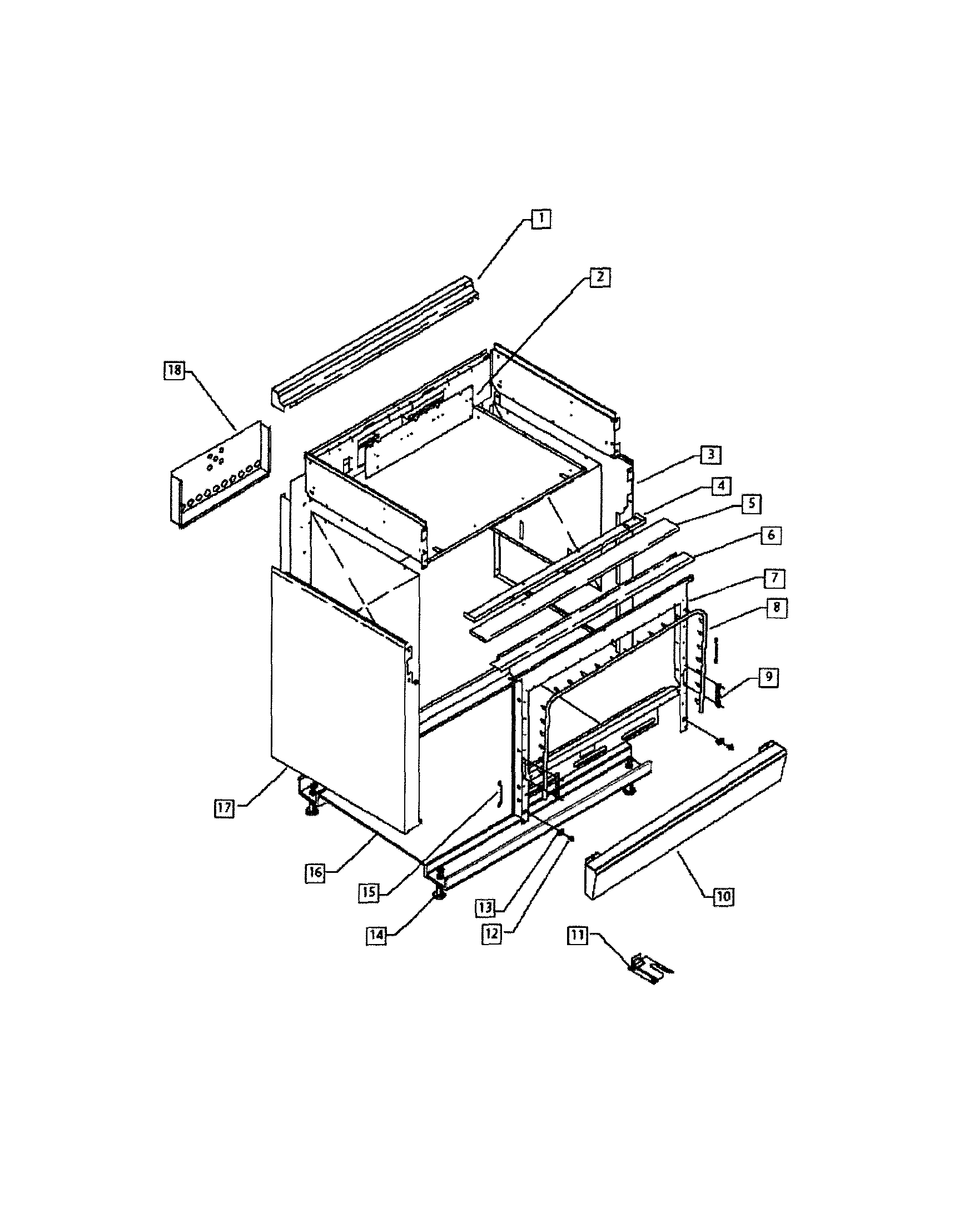

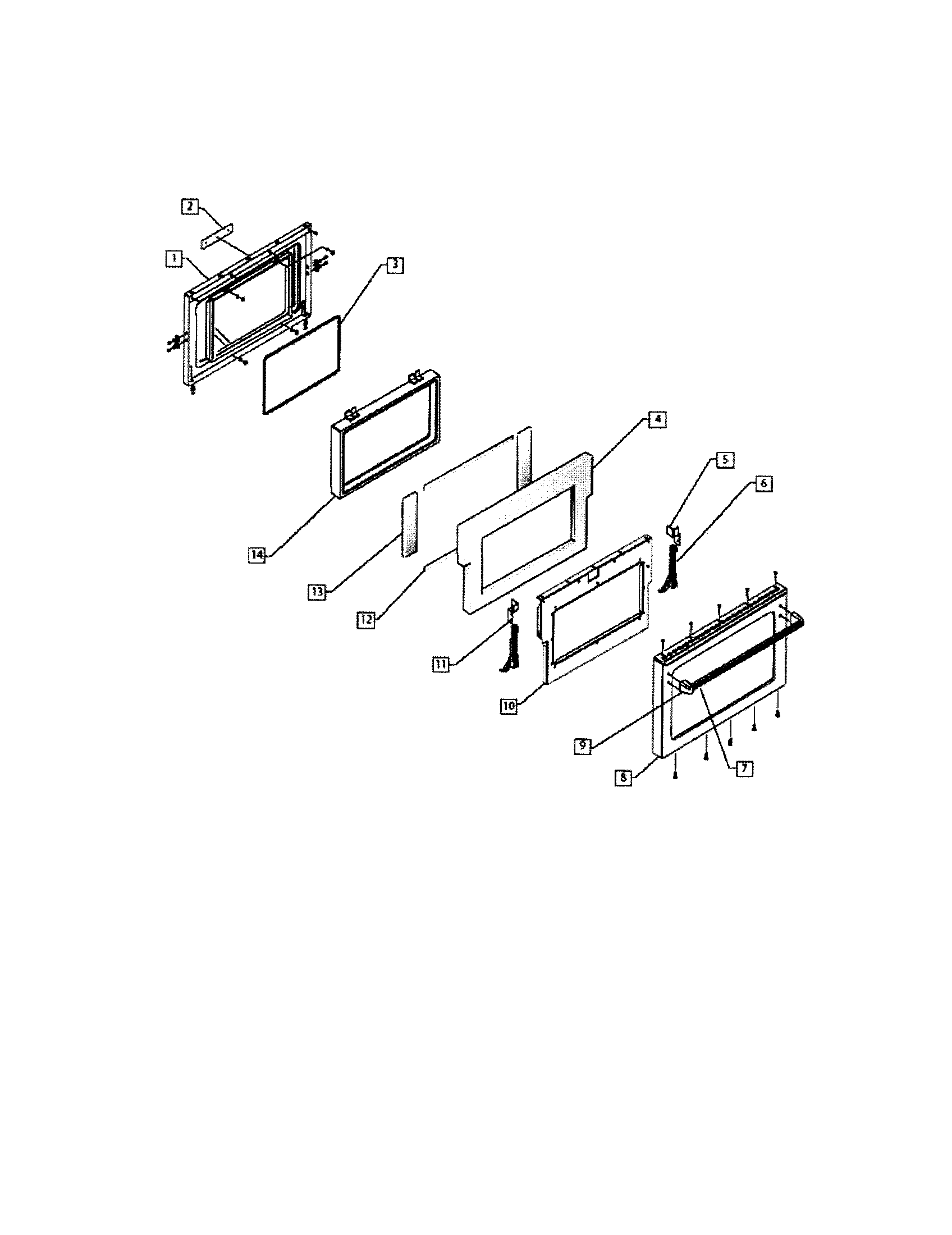

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |

Igniter Switch 211804
#17

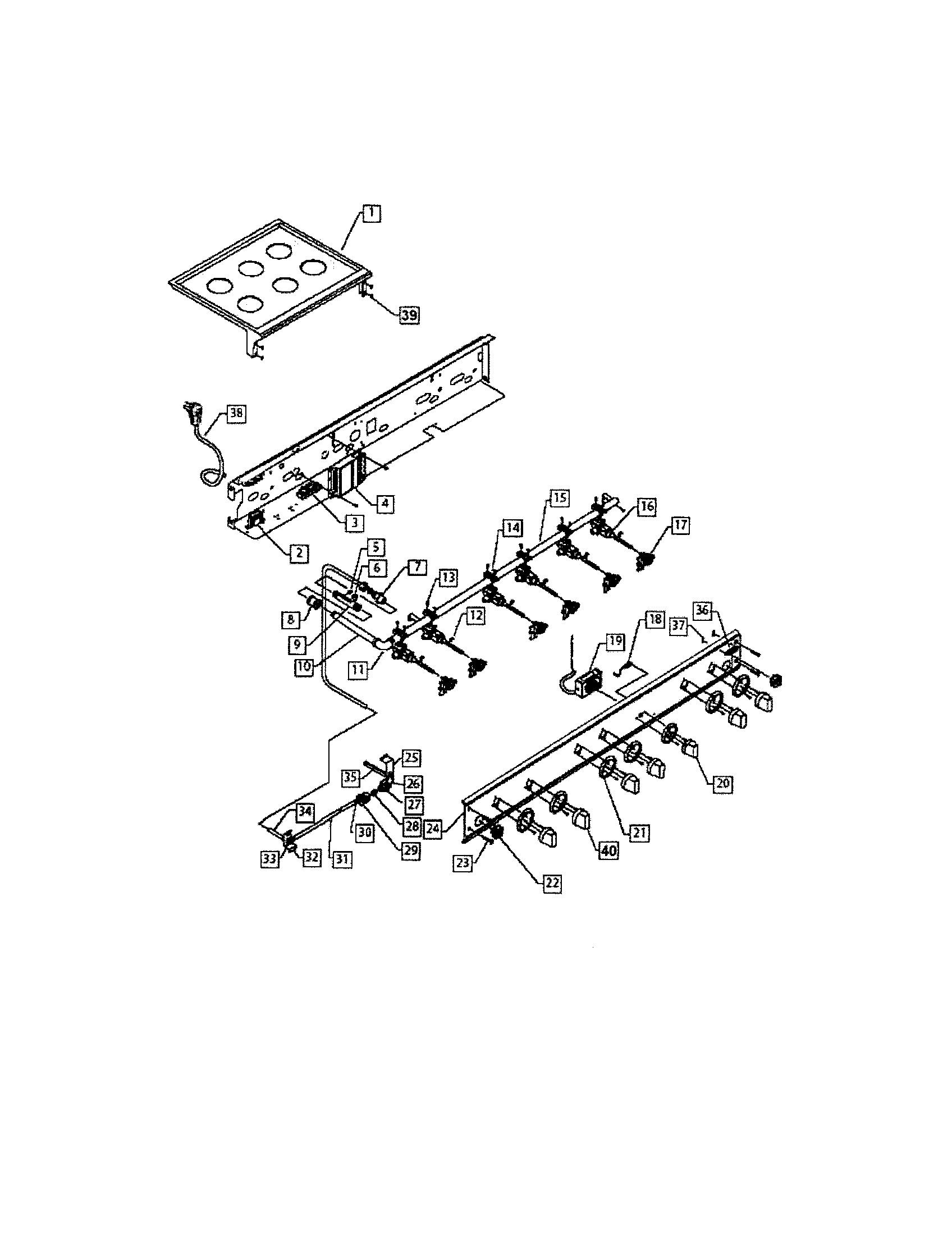

Manifold diagram

Igniter switch

Part #211804

Replaced by #211804P

?
Manufacturer substitution
This part replaces 211804. Substitute parts can look different from the original.
BEST SELLER
$12.90
13% OFF Phone Price : $14.90
In Stock
Range Oven Gas Valve 210782
#28

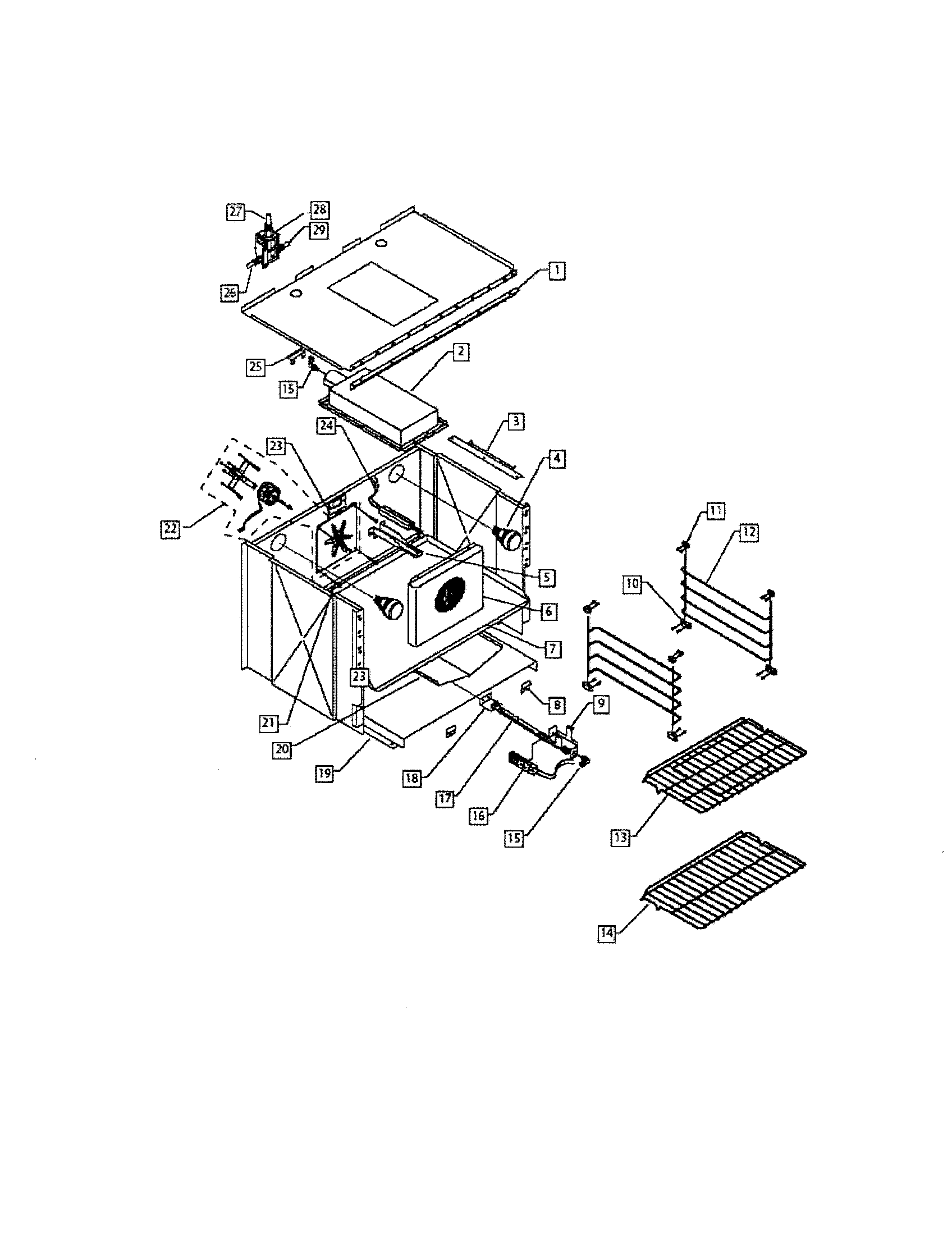

Oven diagram

Range oven gas valve

Part #210782

Replaced by #210782P

?
Manufacturer substitution
This part replaces 210782. Substitute parts can look different from the original.
$198.90
5% OFF Phone Price : $208.90
In Stock
Bake Igniter 211541
#16

Oven diagram

Bake igniter

Part #211541

Replaced by #211541P

?
Manufacturer substitution
This part replaces 211541. Substitute parts can look different from the original.
$174.71
5% OFF Phone Price : $184.71
In Stock
Fisher & Paykel Range Oven Light Assembly 211689
#4

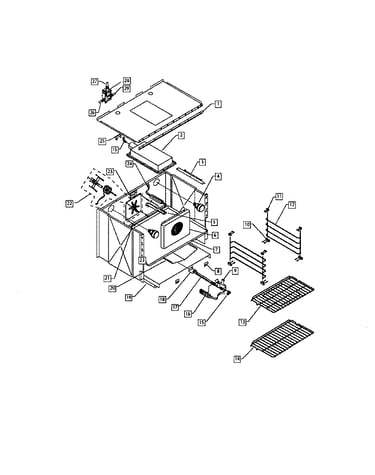

Oven diagram

Fisher & paykel range oven light assembly

Part #211689

$54.34
8% OFF Phone Price : $59.34
In Stock
Fisher & Paykel Range Oven Convection Fan 215798
#22

Oven diagram

Fisher & paykel range oven convection fan

Part #215798

$443.05
$10.00 OFF Phone Price : $453.05
In Stock
Fisher & Paykel Range Gas Tubing 216877
#12

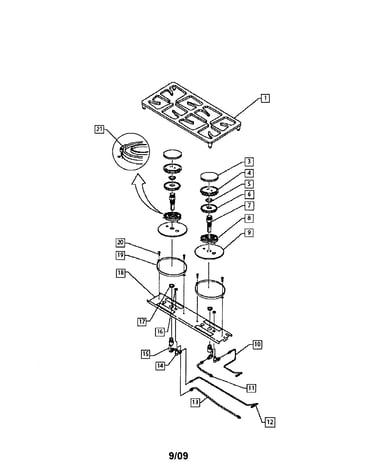

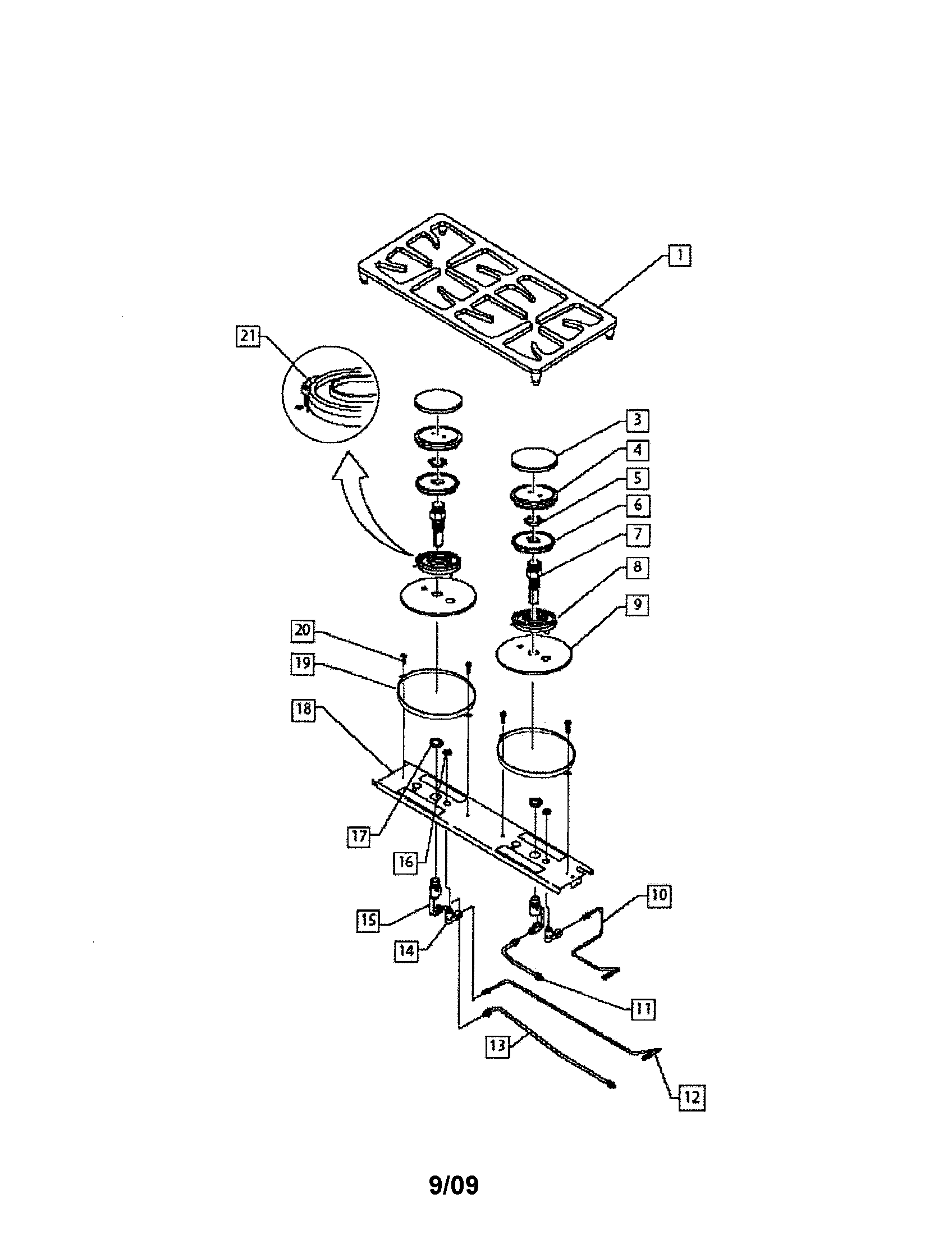

Burner diagram

Fisher & paykel range gas tubing

Part #216877

$18.09
10% OFF Phone Price : $20.09
In Stock
Range Oven Light Rocker Switch 211625
#22

Manifold diagram

Range oven light rocker switch

Part #211625

This item is not returnable
$43.19
10% OFF Phone Price : $48.19
In Stock
Range Surface Burner Supply Tube, Rear 216876
#13

Burner diagram

Range surface burner supply tube, rear

Part #216876

This item is not returnable
In Stock
Range Surface Burner Cap 210608
#3

Burner diagram

Range surface burner cap

Part #210608

Replaced by #210608P

?
Manufacturer substitution
This part replaces 210608. Substitute parts can look different from the original.
$34.67
13% OFF Phone Price : $39.67
In Stock
Tubing 216874
#11

Burner diagram

Tubing

Part #216874

Replaced by #216874P

?
Manufacturer substitution
This part replaces 216874. Substitute parts can look different from the original.
This item is not returnable
$18.82
10% OFF Phone Price : $20.82
In Stock
