Kenmore 11026132410 washer Parts

For Kenmore washer model 11026132410, we recommend unplugging the washer, turning off the water, then removing and flushing the drain hose to clear lint, coins, or sludge. If the hose is clear but draining is still slow, the drain pump or pump filter may be restricted. See the 11026132410 use & care manual for drain and “long drain” troubleshooting steps.

Step-by-step: unclog the drain hose

1. Power off safely: Unplug the washer.
2. Prevent spills: Place towels and a shallow pan under the hose connection.
3. Remove the hose:
   • Detach the hose from the home standpipe/laundry tub.
   • If needed, detach the hose from the washer outlet.
4. Clear the blockage:
   • Run hot water through the hose.
   • Use a flexible brush or a straightened coat hanger carefully (avoid puncturing the hose).
   • For buildup, soak the hose end in hot water with a small amount of vinegar, then flush.
5. Reinstall correctly: Make sure the hose is not kinked and is secured.

Quick checks that matter on this model

• Keep the drain hose inserted no more than about 4.5 in. into the standpipe to help prevent siphoning and drain errors.
• Confirm the standpipe/drain itself is not clogged.
• Avoid overusing detergent; excess suds can slow draining.

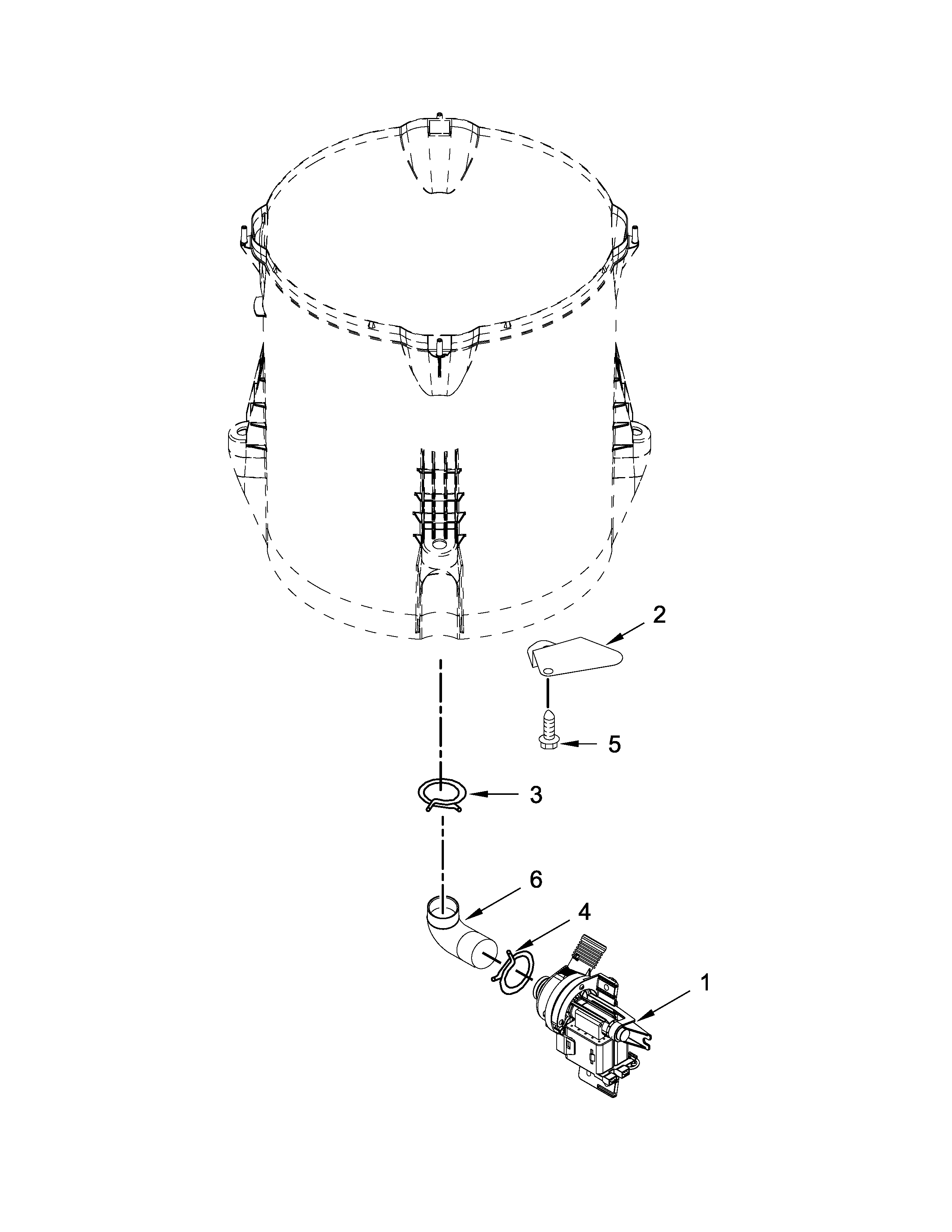

When it’s not the hose: pump and filter restrictions

If the hose is clear but the washer still drains slowly (or shows a long-drain style symptom), check the pump area for debris.

Common parts involved:

• Washer drain pump WPW10581874
• Washer drain pump clean-out filter WPW10215093

Symptoms and likely causes

Symptom	Most common cause	Next step
Slow drain, gurgling	Partial hose clog or standpipe restriction	Flush hose and check home drain
Won’t drain, humming	Pump jammed	Inspect pump/filter area
Intermittent drain	Kinked hose or small item shifting	Re-route hose, check pockets

Why it matters

A restricted drain hose can cause poor spin performance (clothes stay wet), longer cycle times, and repeated drain faults. Clearing the restriction early helps protect the drain pump and reduces odor-causing residue.

Last updated: January 2026

To reset your Kenmore top-load washer model 11026132410, unplug the washer (or turn off the breaker) for 5 minutes, then restore power and try starting a cycle again. This power reset clears many temporary control glitches.

Quick reset steps (recommended)

• Press Power/Cancel once to stop the current cycle.
• Unplug the washer from the outlet.
• Wait at least 5 minutes (this lets the control fully power down).
• Plug the washer back in.
• Select a cycle and touch and hold Start/Pause/Unlock Lid to restart.

For control-panel behavior and cycle-start steps specific to this washer, follow the 11026132410 use & care manual.

If the washer still won’t start after a reset

These checks are common on the Kenmore 11026132410 low-water, HE top-load design:

• Lid not locking: Make sure the lid is fully closed and nothing is pressing on the lid.
• Paused cycle: Touch Start/Pause/Unlock Lid once, then touch and hold to resume.
• Suds issue: Using non-HE detergent or too much HE detergent can cause the washer to pause.
• Power issue: Confirm the outlet has power and the breaker is not tripped.
• Water supply issue: Verify both hot and cold faucets are on and hoses are not kinked.

If the lid won’t lock or the washer stops mid-cycle, the lid lock can be a likely suspect; the compatible replacement for this model is the washer lid lock assembly W10810403.

What “reset” does (and doesn’t) do

Action	What it helps with	What it won’t fix
5-minute power reset	Temporary control glitches, stuck cycle state	Broken lid lock, failed drain pump, wiring issues
Restarting a cycle	Paused cycle, user-interface confusion	Persistent error codes that return immediately

Why it matters

A proper reset is the fastest safe first step because it restores the washer’s control to a known state without disassembly; it can save time before you move on to troubleshooting parts like the lid lock.

Last updated: January 2026

The Kenmore washer model 11026132410 is a top-loading, high-efficiency, low-water washer. Its washer capacity is 5.0 cu. ft. (as listed for this model). For loading guidance and cycle choices that affect how much you can wash at once, use the 11026132410 use & care manual.

What “big” can mean for model 11026132410

Customers usually mean one of these:

• Capacity (cu. ft.): how much the tub can hold
• Physical dimensions: cabinet size and clearance needs
• Load size guidance: how full to load for best cleaning
• Water level behavior: HE low-water washers do not fill like older agitator models

How to load this 5.0 cu. ft. HE top-load washer

This model uses a low-water washplate system with automatic load sensing, so proper loading matters as much as capacity.

• Load items in loose heaps evenly around the washplate
• Do not tightly pack; items need room to move
• Expect some items to be above the water line during wash
• Use Deep Fill when washing large or bulky loads that need more water
• Use only HE detergent; too much suds can cause longer cycles and poor rinsing

Quick reference

What you want to confirm	Best source for 11026132410	Why it matters
Capacity and cycle guidance	11026132410 use & care manual	Helps match load size to the right cycle and options
Installation clearances and hookups	11026132410 installation instructions	Helps ensure the washer fits and drains correctly

Why it matters

Even with a 5.0 cu. ft. capacity, overpacking or uneven loading can cause poor cleaning and off-balance spinning, which can make the washer feel “too small” in real-world use.

Last updated: January 2026

Kenmore washer lifespan varies widely by usage and maintenance, and Kenmore model 11026132410 does not list an “expected service life” in the manufacturer literature we have for this model. Many owners plan around a decade of use, but real-world results can be shorter or longer.

What we can confirm for model 11026132410

This is a Kenmore top-loading high efficiency, low-water washer that relies on correct loading and HE detergent use for best performance. The manufacturer focuses on care and operating practices rather than a fixed lifespan; see the maintenance and troubleshooting sections in the 11026132410 use & care manual.

Biggest factors that influence how long it lasts

These items tend to have the biggest impact on wear, odors, and performance over time:

• Using HE detergent only and measuring correctly (helps prevent excess suds and residue)
• Loading items in loose heaps evenly around the washplate (reduces off-balance stress)
• Running the Clean Washer cycle about every 30 washes
• Leaving the lid open between uses to help the tub dry
• Keeping the washer level and installed correctly (reduces vibration)

“End of life” vs fixable problems

Many symptoms people associate with an “old washer” can also be caused by correctable issues (loading, detergent, drain setup, hoses). Use this quick guide:

Symptom	Often caused by	Usually worth checking first
Off-balance, vibration	Uneven load, leveling	Load distribution, leveling feet
Long drain / “drn”	Drain hose setup, clogs	Drain hose height, obstructions
Odors	Residue, closed lid	Clean Washer cycle, lid left open
Won’t start / lid won’t lock	Lid lock problem	Lid closed, error codes, lid lock

If you’re troubleshooting a lid that won’t lock or unlock, the washer lid lock assembly W10810403 is a common component involved on this model.

Why it matters

A realistic lifespan expectation helps you decide whether to maintain, repair, or replace. On HE low-water designs like the 11026132410, detergent choice, loading habits, and routine cleaning often make the biggest difference in long-term reliability.

Last updated: January 2026
