Craftsman 917289070 tractor Parts

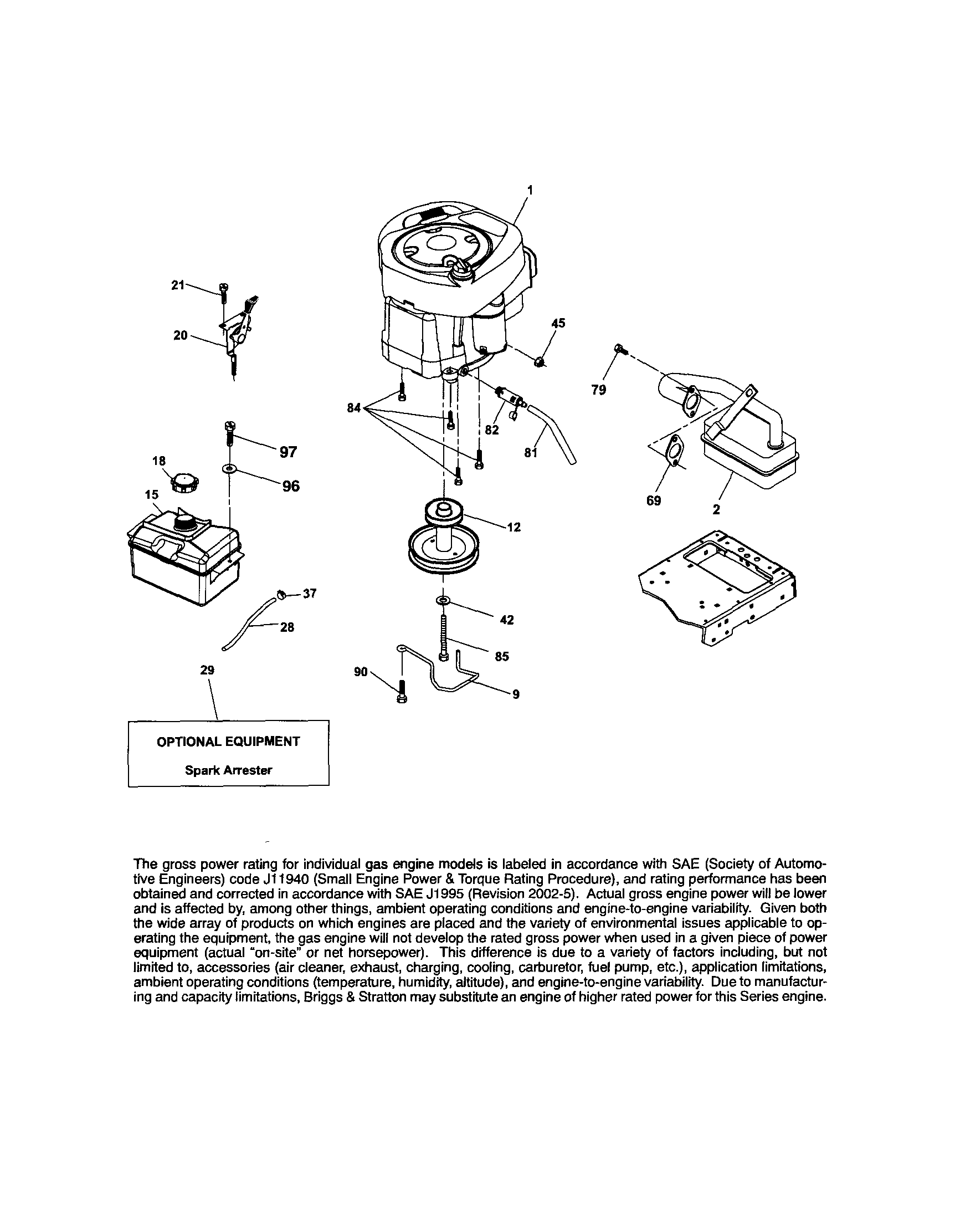

On the Craftsman 917289070 lawn tractor, the engine is a complete system made up of fuel, air, ignition, lubrication, and starting components that work together to create power. For model-specific operating and maintenance details, use the 917289070 operator's manual.

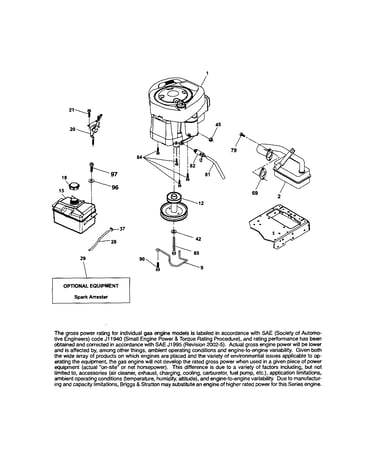

Core engine systems (what you will typically find)

Most riding mower engines like the one used on the Craftsman 917289070 include these major groups:

• Fuel system: fuel tank, fuel cap, fuel line, in-line fuel filter, carburetor
• Air intake: air filter (air cleaner), intake housing, air screen

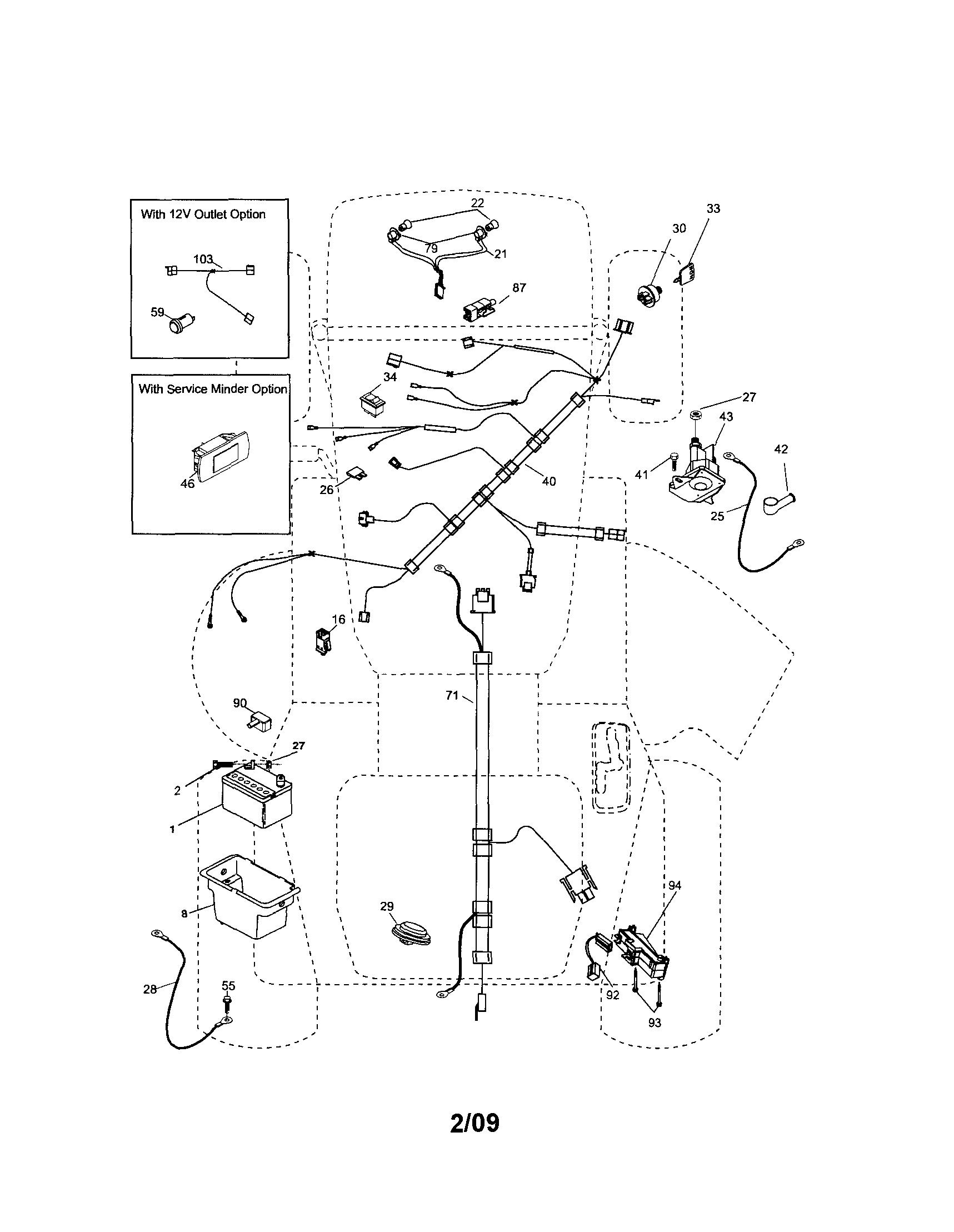

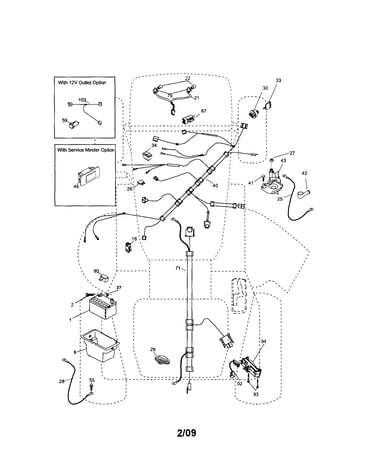

• Ignition: spark plug, ignition coil, flywheel, ignition switch and wiring
• Lubrication: crankcase, oil fill/dipstick, oil drain, oil filter (if equipped)

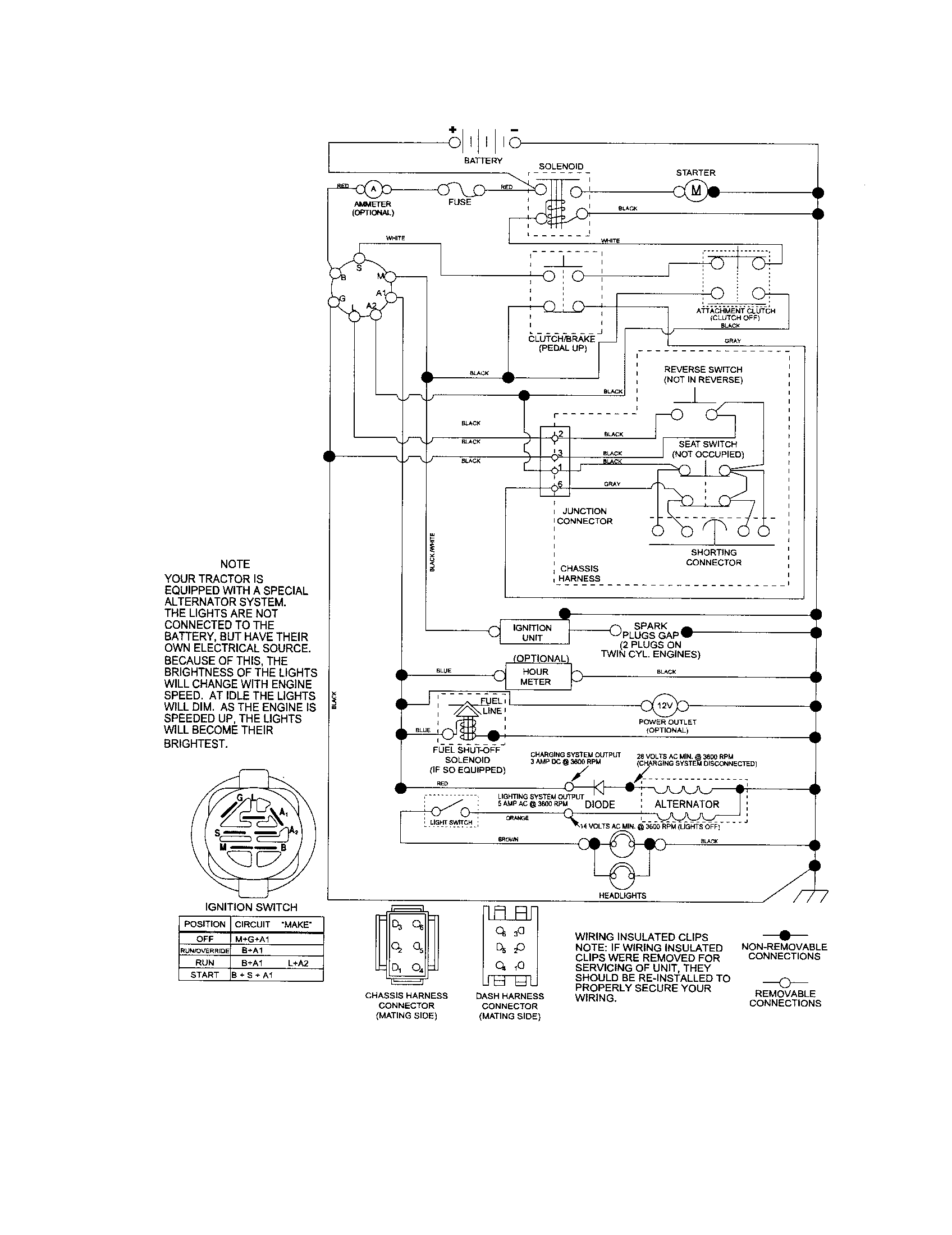

• Starting/charging: starter, starter solenoid, battery, charging circuit
• Exhaust: muffler, muffler guard (and spark arrester if equipped)

Parts on this model you may replace most often

For the Craftsman 917289070, these are common “service” items that affect engine performance and starting:

• Fuel cap (helps prevent fuel leaks and contamination)
• Fuel tank (stores fuel and feeds the fuel system)
• Muffler (controls exhaust flow and noise)
• Ignition switch (controls starting and run/stop circuits)

If you’re chasing a fuel smell or leak, start by inspecting the fuel cap assembly 581075501 and the lawn mower fuel tank 581289901 for cracks, damaged seals, or loose connections.

Quick reference: engine part groups and symptoms

System	Common symptom	What to check first
Fuel	Hard start, stalls	Fresh fuel, fuel cap seal, fuel filter direction
Air	Runs rich, lacks power	Air filter cleanliness, air screen debris
Ignition	No start, misfire	Spark plug condition, coil gap, wiring connections
Lubrication	Overheats, smokes	Oil level, correct oil type, leaks

Why it matters

Knowing which system a part belongs to helps you troubleshoot faster. For example, “won’t start” is often fuel freshness, air restriction, or an ignition issue, while “loses power” can point to airflow, fuel flow, or overheating.

Last updated: January 2026

The most common issues we see on the Craftsman 917289070 front-engine lawn tractor involve the mower deck (belt, blades, and pulleys), starting and electrical problems, and drive or steering wear. Many of these problems trace back to normal wear items and simple adjustments listed in the owner's manual.

Common problems and what they usually point to

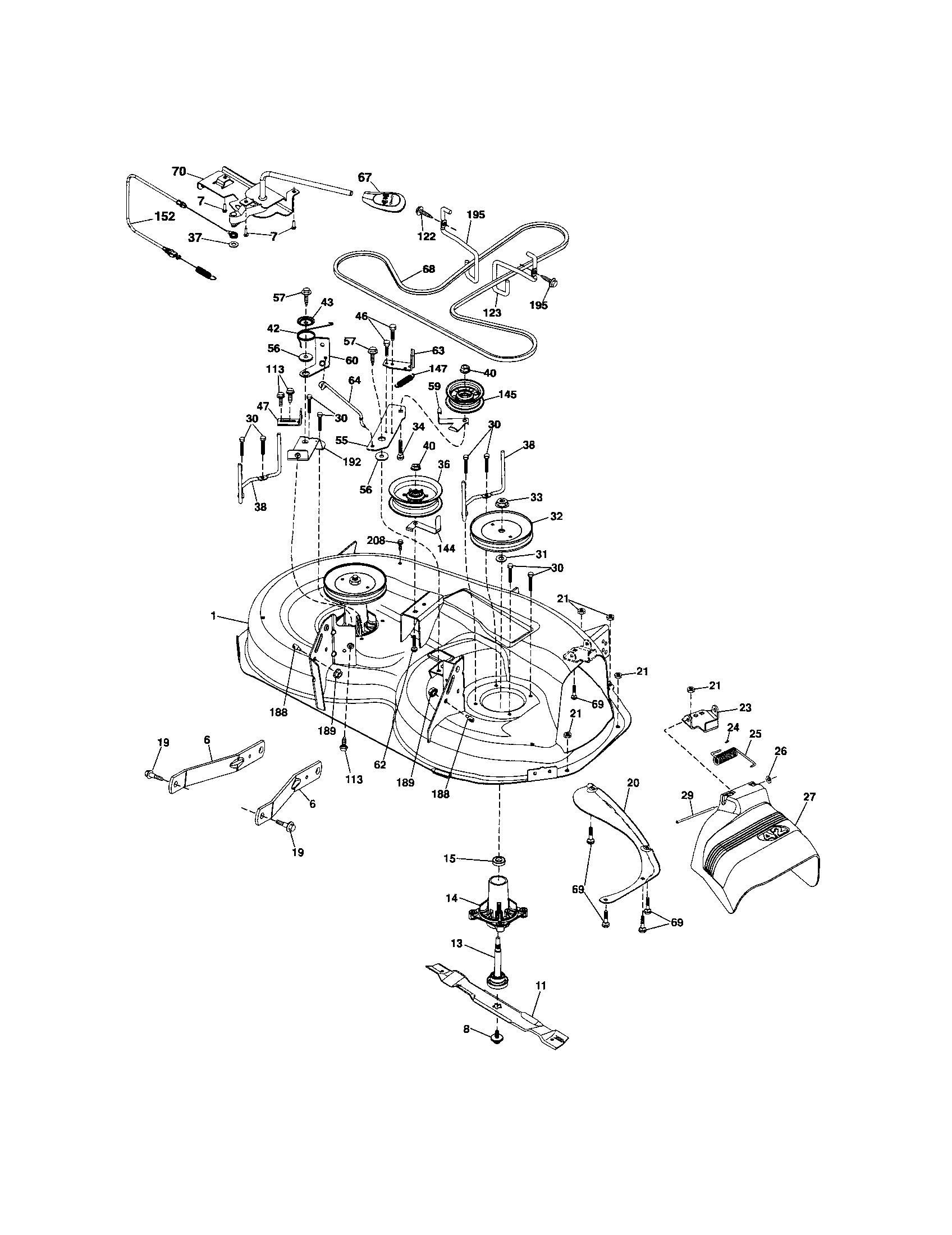

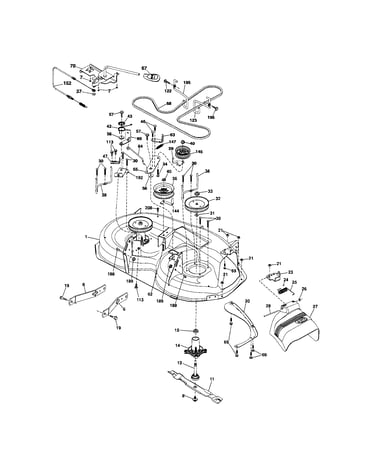

• Deck will not engage or cuts unevenly: worn deck belt, damaged blade, loose mandrel, or a failing idler pulley.
• Excess vibration while mowing: bent blade, debris wrapped around spindles, or a worn mandrel housing.
• Tractor will not crank or clicks once: weak battery connections, bad solenoid, or wiring issues.

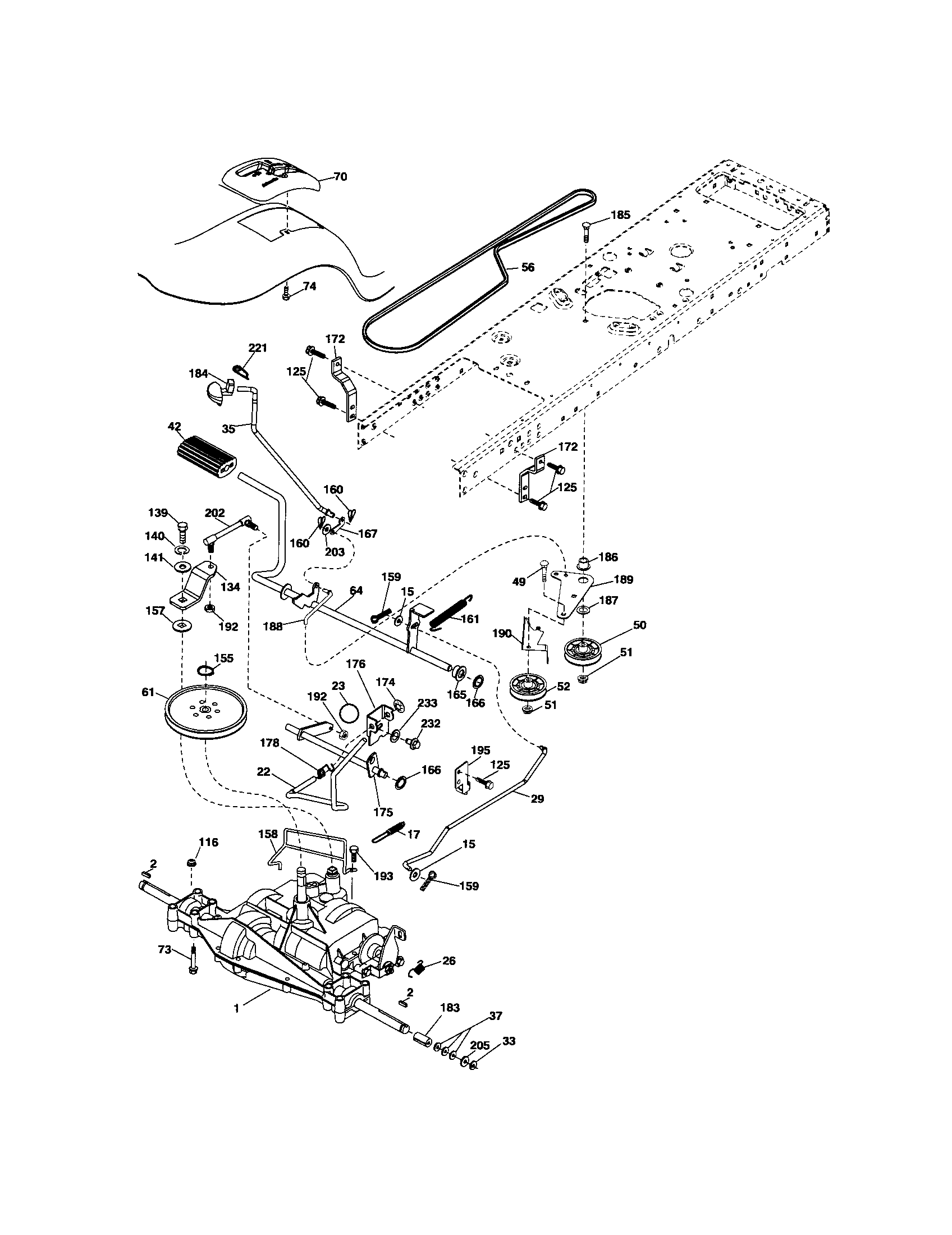

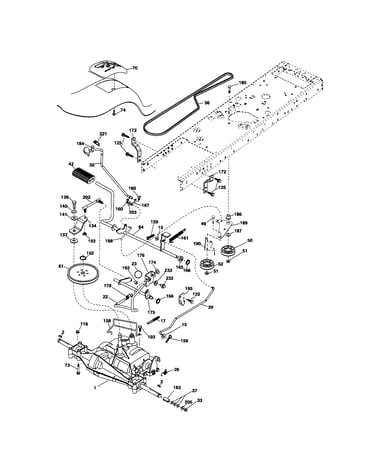

• Tractor moves poorly or slips: worn ground drive belt or idler pulley, incorrect belt routing.

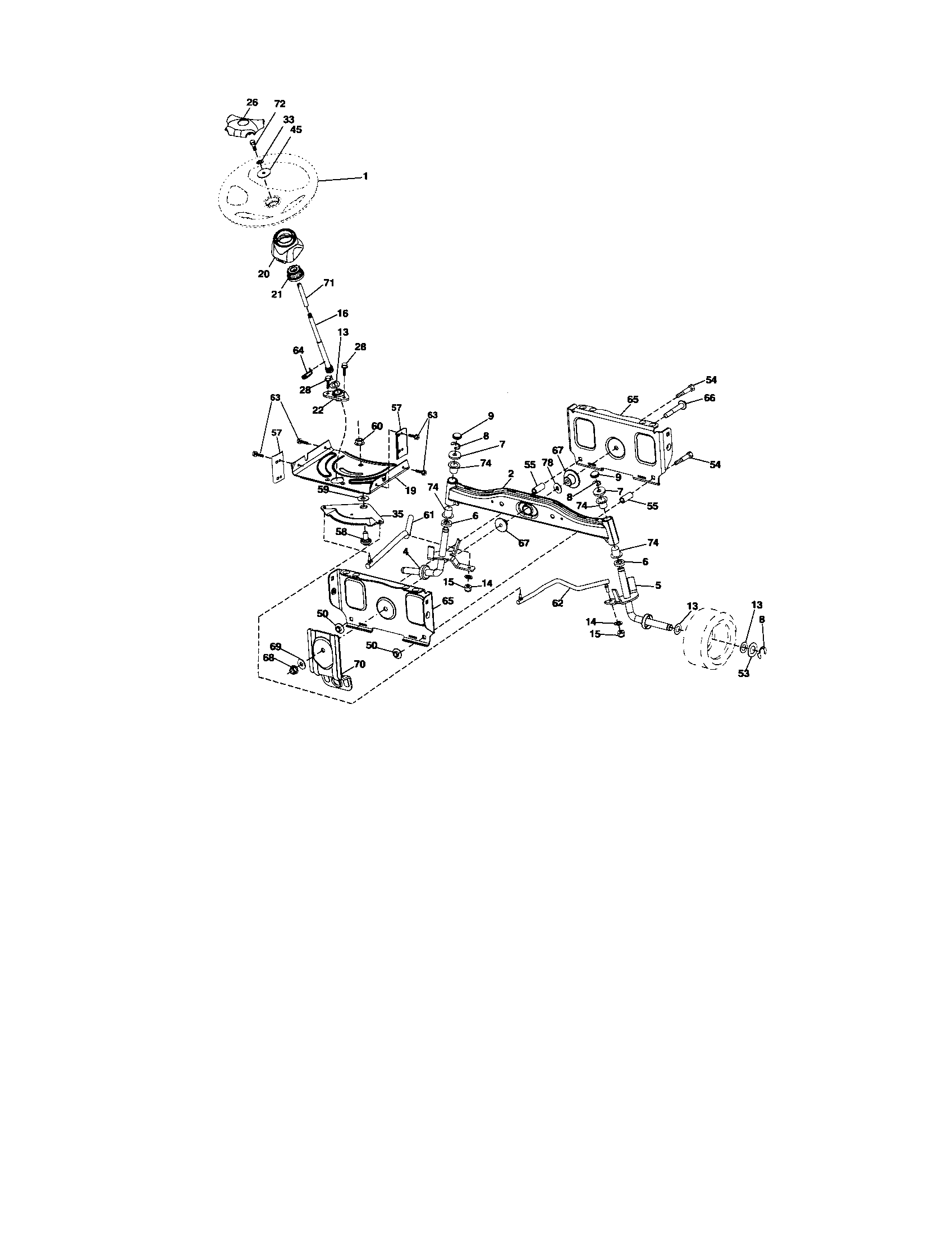

• Steering feels loose or wanders: worn drag link, axle/bracing wear, or loose fasteners.

Parts that commonly wear on this model

These are frequent wear items for the 917289070 and are often involved in the symptoms above:

• Husqvarna lawn tractor ground drive belt, 1/2 x 97-1/2-in 532194346
• Husqvarna lawn tractor belt, 1/2 x 101-1/6-in 592855001
• Lawn tractor blade idler pulley 532177968
• Husqvarna lawn tractor ground drive idler pulley 532194327
• Lawn tractor starter solenoid 582042802

Quick checks before you replace anything

1. Park on level ground, set the parking brake, remove the key, and let hot parts cool.
2. Inspect belts for glazing, cracks, fraying, or a stretched fit.
3. Check blade condition and tightness; replace bent or heavily nicked blades.
4. Spin pulleys by hand (engine off); roughness or wobble indicates a worn bearing.
5. Clean and tighten battery terminals; confirm cables are not corroded or loose.

Symptom-to-likely-cause guide

Symptom	Most likely area	Typical fix
Deck won’t stay engaged	Deck belt or idler	Replace belt, inspect idler pulley
Uneven cut	Blades or deck hardware	Replace blade, check mandrels
Single click, no crank	Starting circuit	Test/replace solenoid, clean connections
Slipping drive	Drive belt system	Replace drive belt, verify routing

Why it matters

Catching belt, blade, and pulley wear early prevents bigger failures like damaged mandrels, thrown belts, and poor cut quality. It also reduces strain on the engine and drive system.

Last updated: March 2026

Your Craftsman tractor’s model number is printed on the product identification label (model and serial tag) attached to the tractor. Once you locate it, match the full number exactly (for example, 917.28907) to ensure you get the correct parts and diagrams for model 917289070.

Where to look on the tractor

Check these common label locations on Craftsman riding lawn tractors:

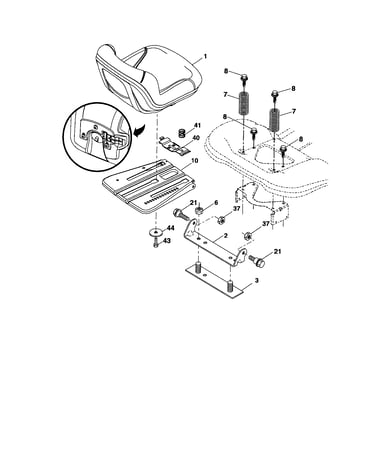

• Under the seat pan (lift the seat and look on the frame or fender pan)
• On the rear fender area near the seat
• On the frame rail near the engine compartment
• Near the transaxle or rear frame crossmember
• Under the hood on the chassis (less common)

If the label is dirty or faded, wipe it with a damp rag; avoid harsh solvents that can remove the printing.

What the model number should look like

In the documentation for this tractor, the model is shown as 917.28907 (sometimes printed with a dot). When searching parts, you typically enter it without punctuation as 917289070.

You see on the tag	You use for parts lookup	Why it differs
917.28907	917289070	Some tags omit the last digit; parts systems often use the full 9-digit format
917289070	917289070	Exact match; best for ordering

Why it matters for parts fit

Using the exact model number ensures the diagrams and part listings match your tractor’s configuration (deck size, drive system, and hardware). That prevents ordering the wrong belt, blade, pulley, or electrical part.

If the tag is missing

Use the tractor’s features to narrow it down, then confirm by comparing diagrams:

• Deck size (this model is commonly a 42-inch mower deck)
• Transmission type (often a 6-speed transaxle)
• Engine horsepower rating listed in the manual
• Serial number (if present) to confirm production variation

For the official identification details and safety information, use the owner's manual.

Last updated: March 2026
