Craftsman
Front-Engine Lawn Tractor

Model # 917275350 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 917275350 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

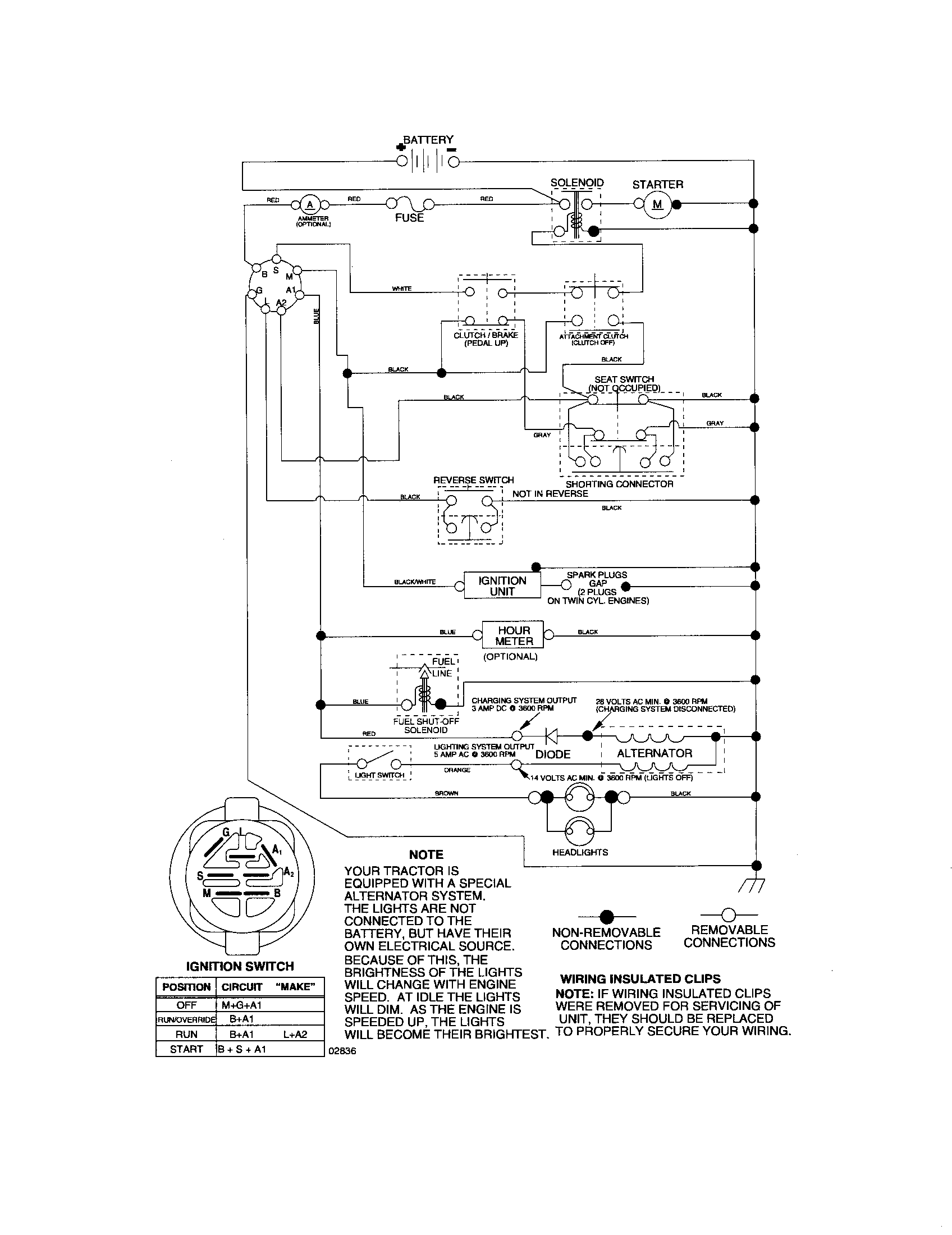

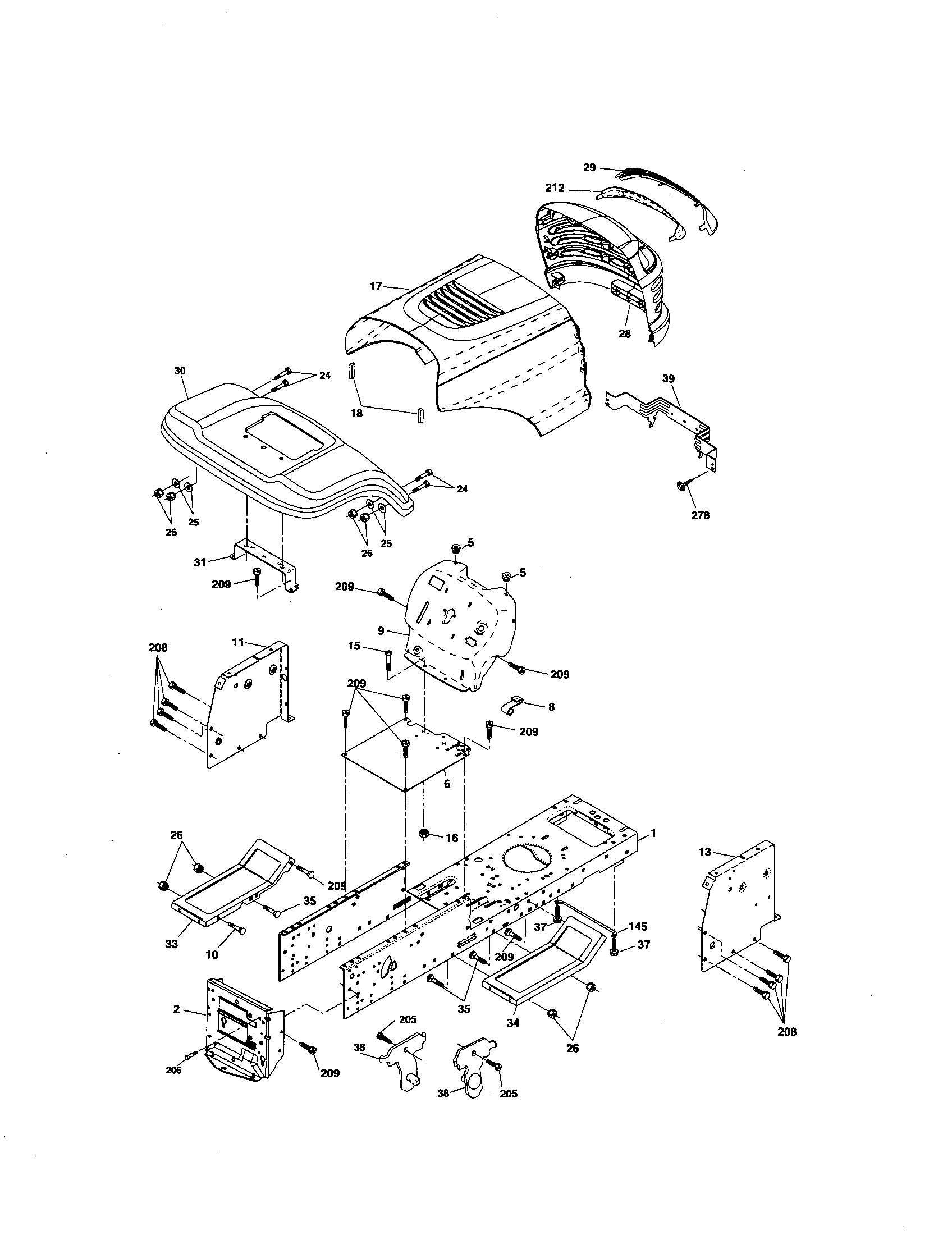

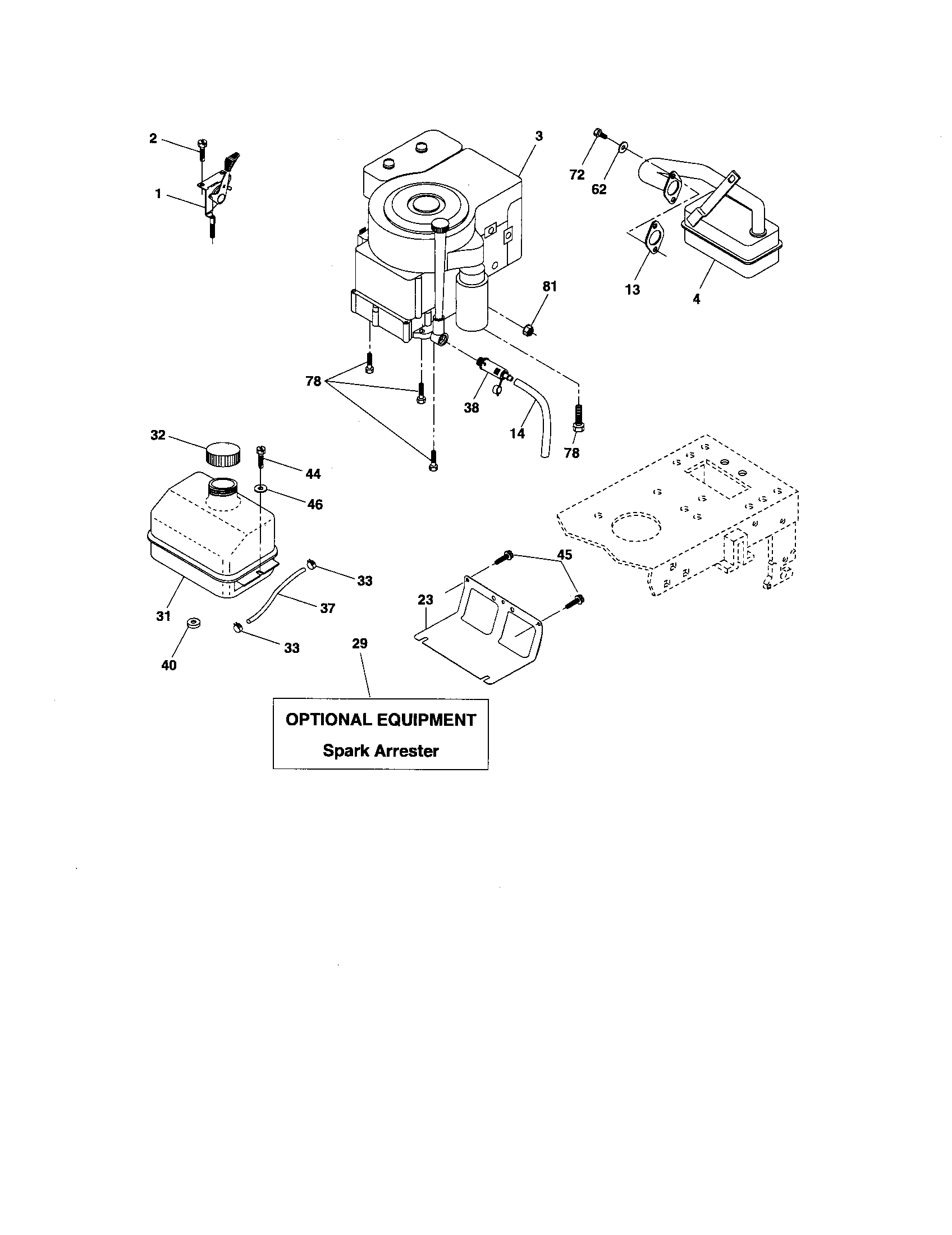

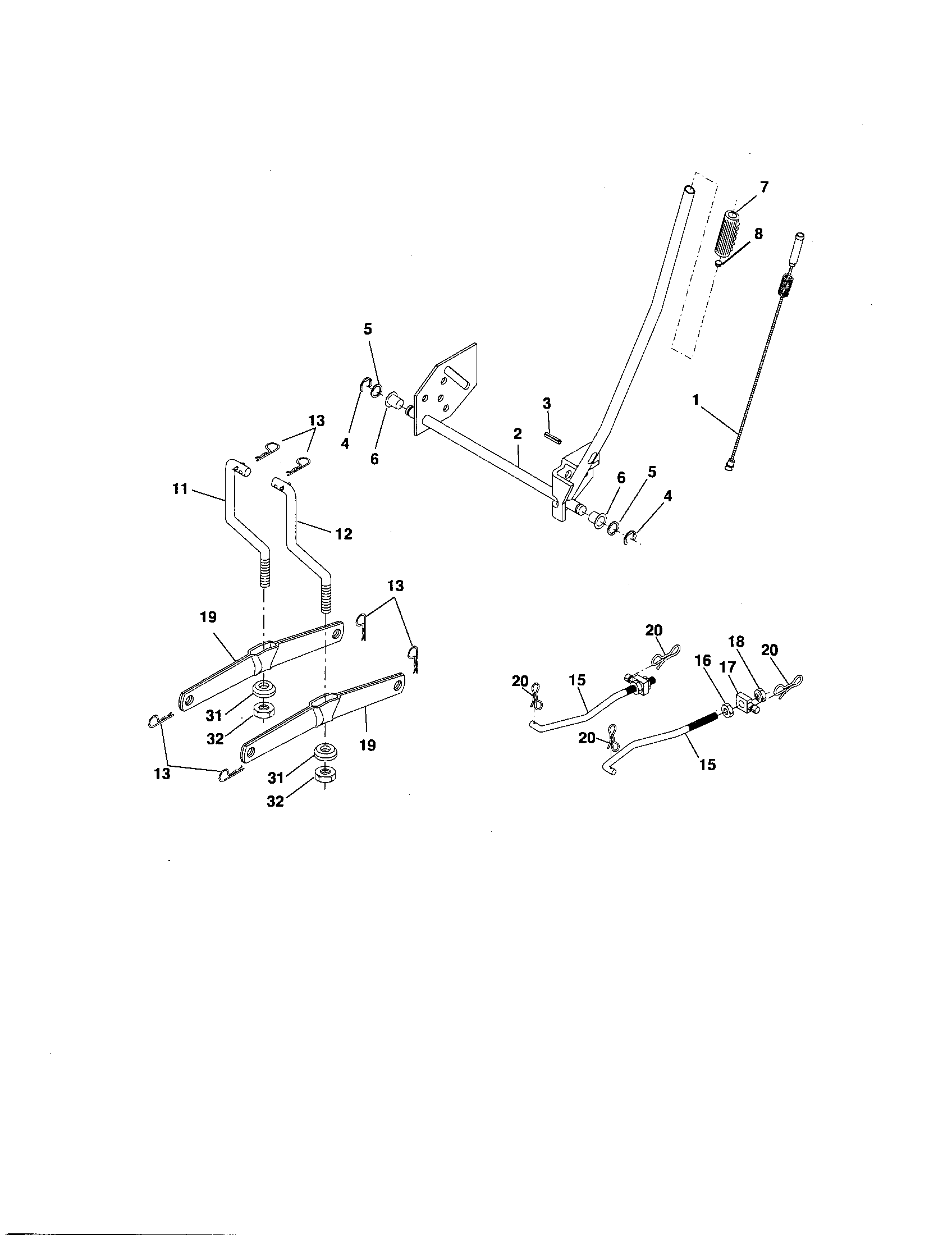

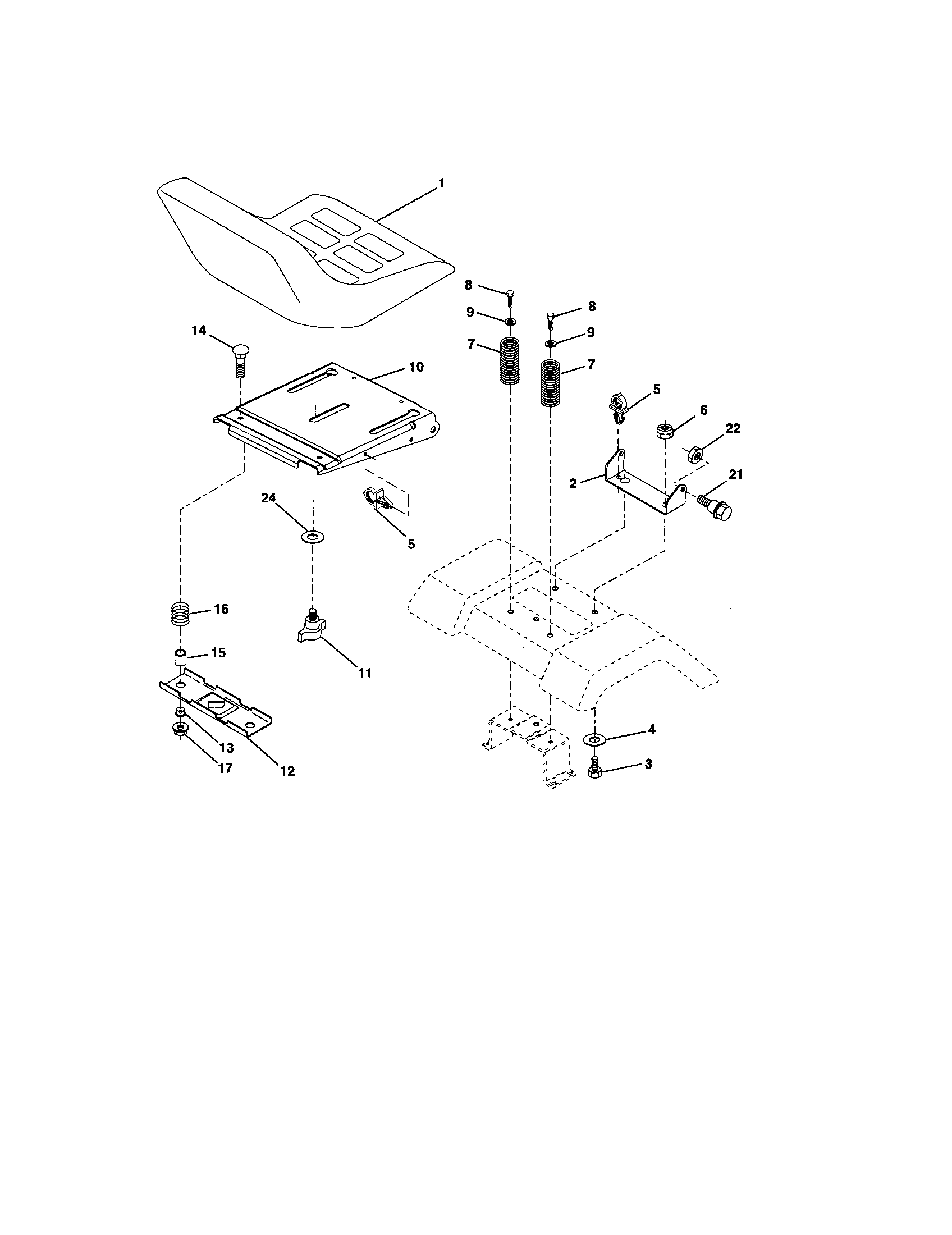

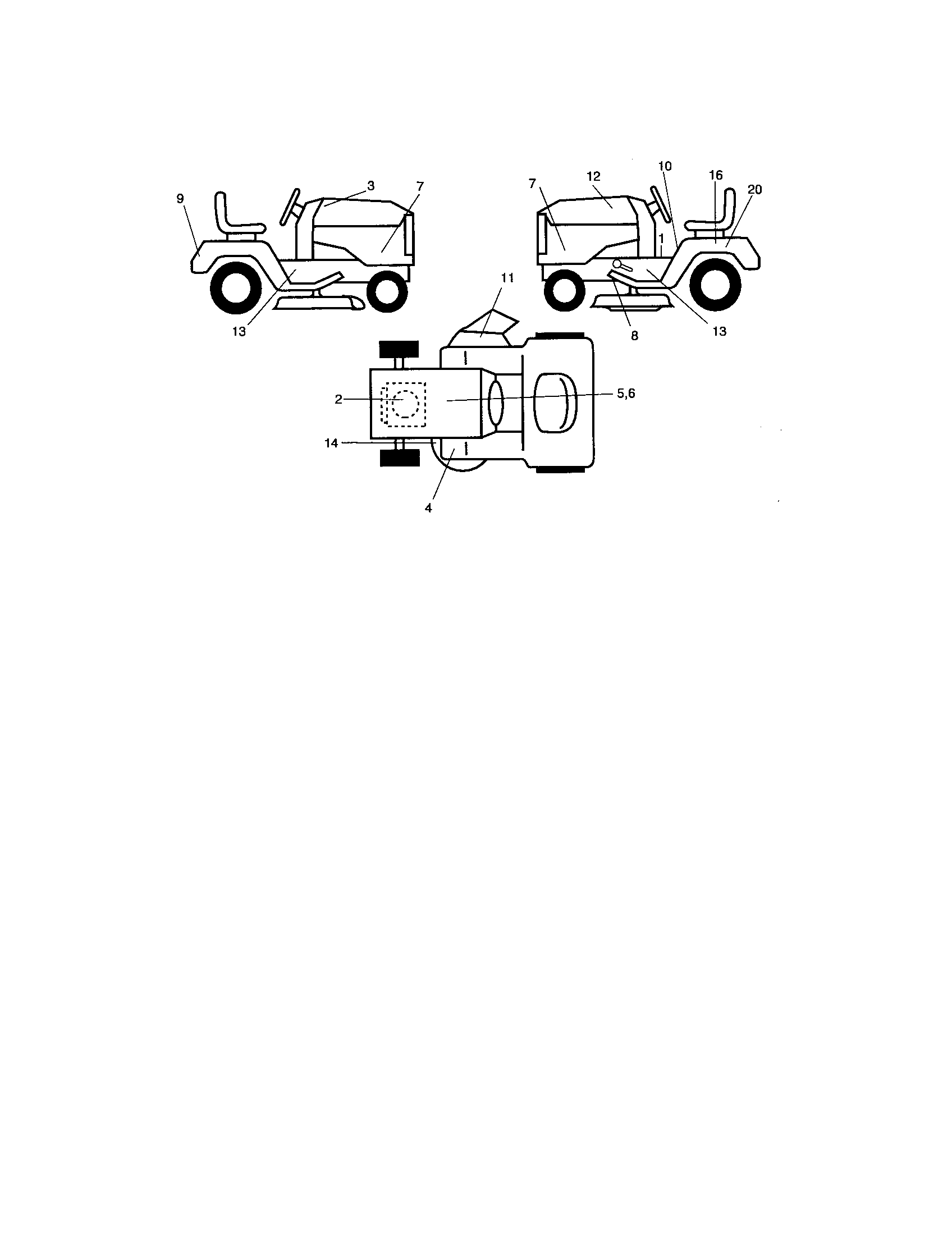

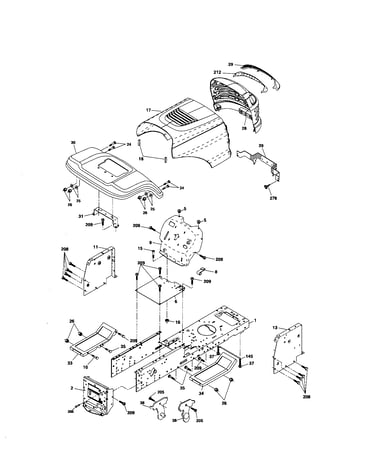

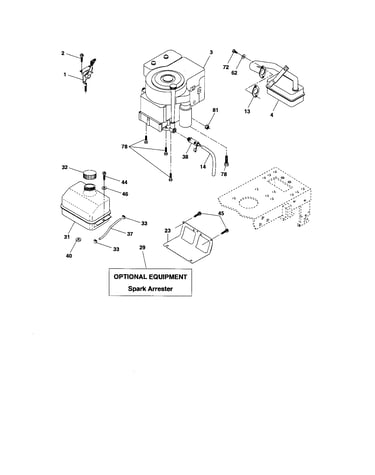

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 461 parts  |

Lawn Tractor Mandrel Housing 187281
#14

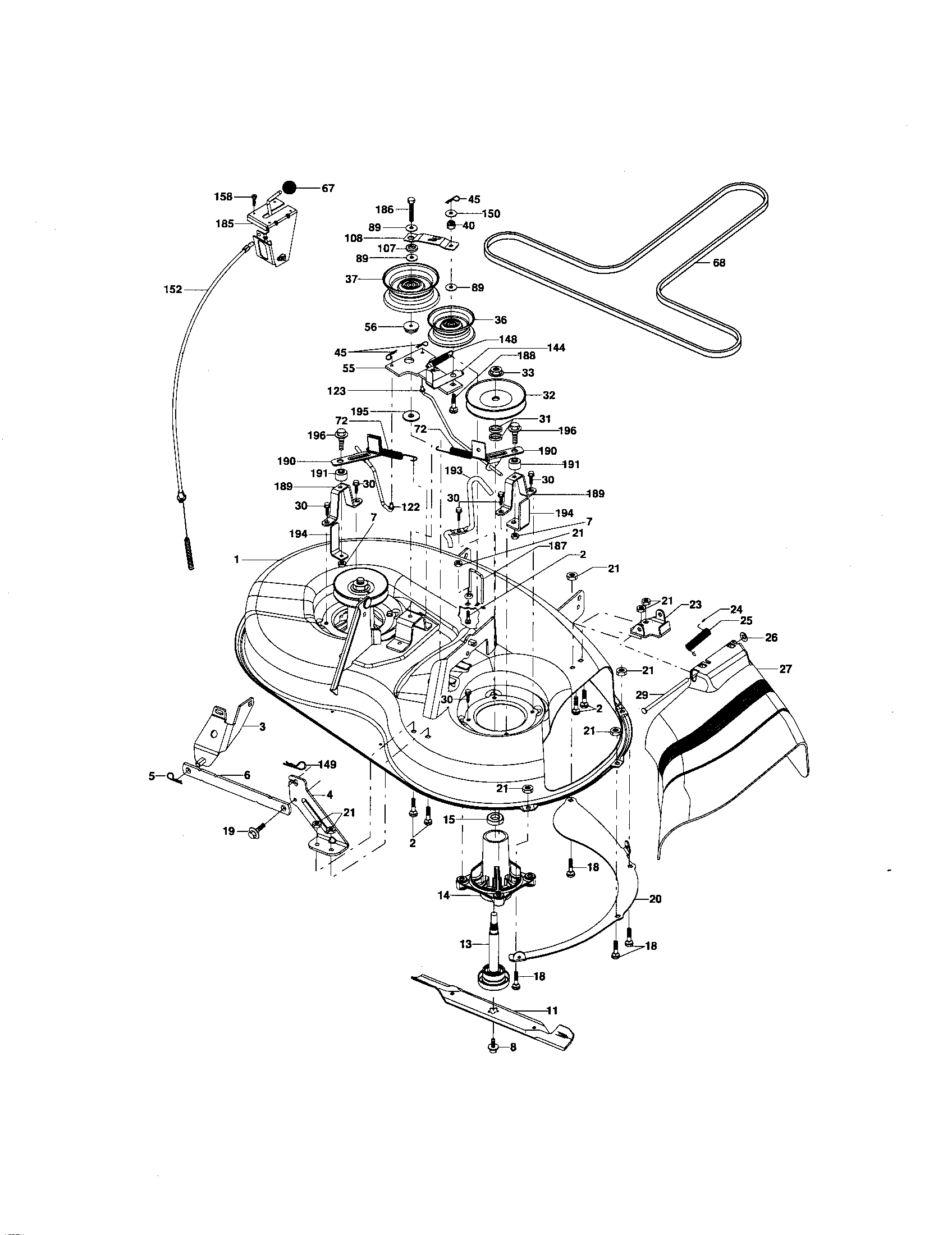

Mower deck diagram

Lawn tractor mandrel housing

Part #187281

Replaced by #587819701

?
Manufacturer substitution
This part replaces 187281. Substitute parts can look different from the original.
BEST SELLER
$41.15
22% OFF MSRP : $52.50
In Stock
Lawn Tractor Mandrel Assembly 192870

#NI08

All parts diagram

Lawn tractor mandrel assembly

Part #192870

Replaced by #587819701

?
Manufacturer substitution
This part replaces 192870. Substitute parts can look different from the original.
BEST SELLER
$41.15
22% OFF MSRP : $52.50
In Stock
Lawn Tractor Mandrel Shaft Assembly 192872
#13

Mower deck diagram

Lawn tractor mandrel shaft assembly

Part #192872

Replaced by #587819701

?
Manufacturer substitution
This part replaces 192872. Substitute parts can look different from the original.
BEST SELLER
$41.15
22% OFF MSRP : $52.50
In Stock
Lawn Tractor Bolt 173984
#30

Mower deck diagram

Lawn tractor bolt

Part #173984

Replaced by #584953901

?
Manufacturer substitution
This part replaces 173984. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.70
21% OFF Phone Price : $4.70
In Stock
Lawn Tractor Axle Flange Bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, P-1246, P-1622) 9040H
#7

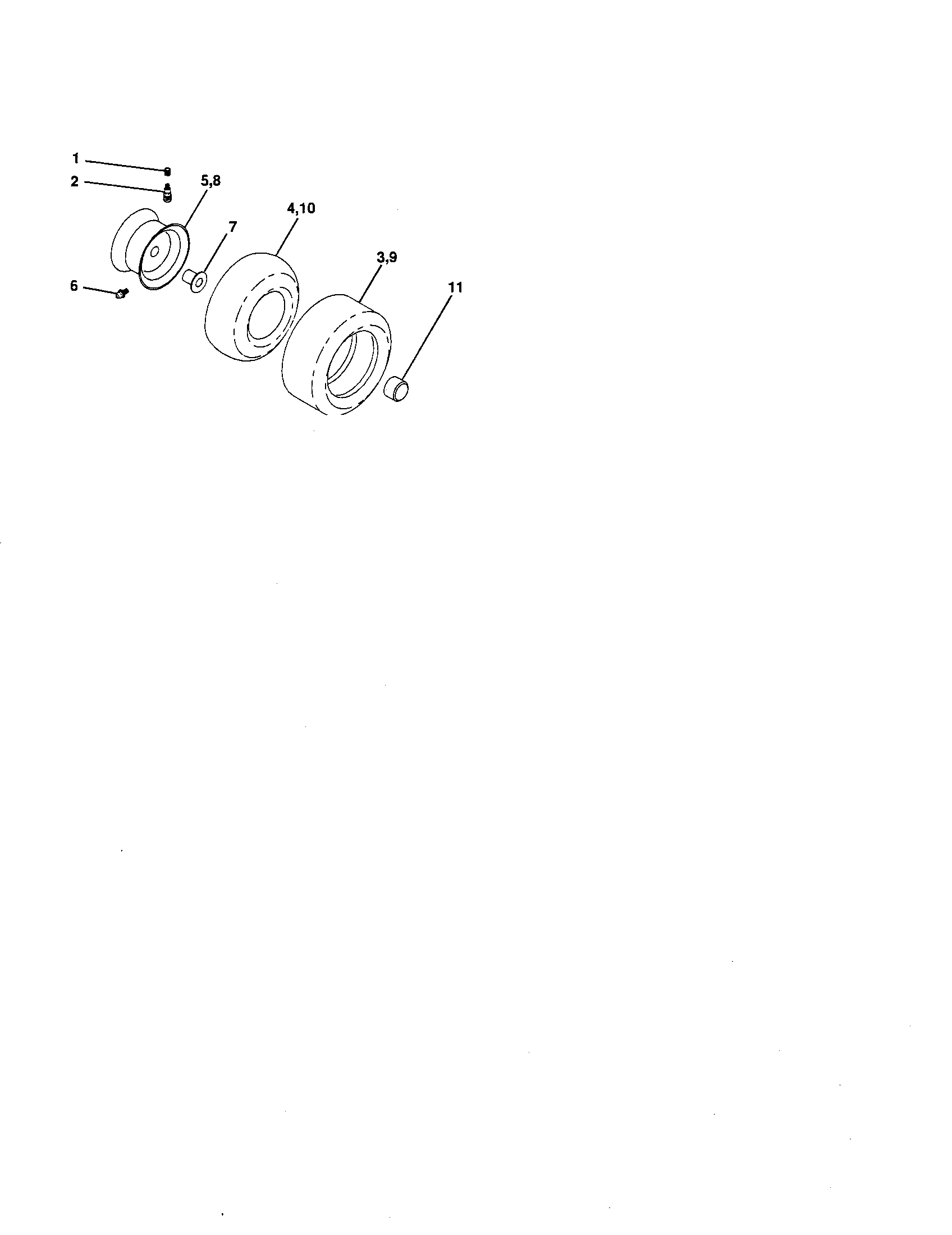

Wheels and tires diagram

Lawn tractor axle flange bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, p-1246, p-1622)

Part #9040H

BEST SELLER
This item is not returnable
$6.16
59% OFF MSRP : $15.00
In Stock
Lock Nut 73900600
#120

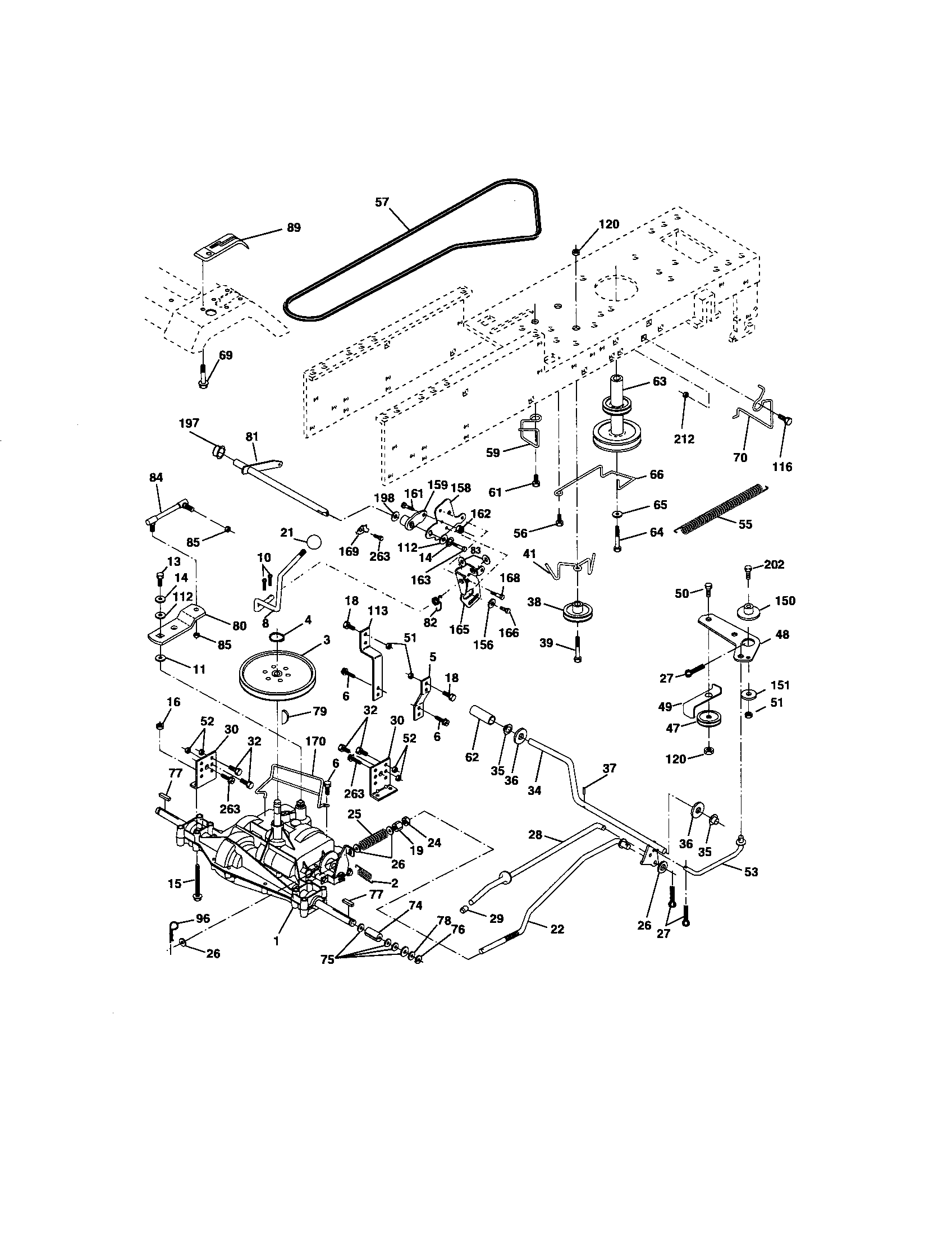

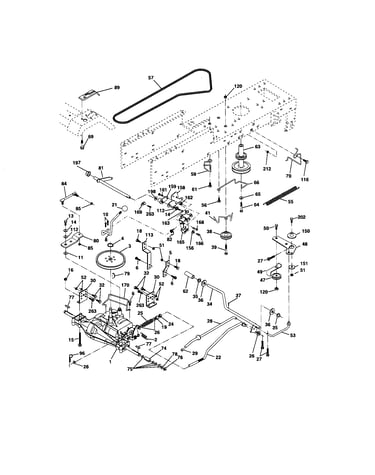

Ground drive diagram

Lock nut

Part #73900600

Replaced by #532409149

?
Manufacturer substitution
This part replaces 73900600. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.88
17% OFF Phone Price : $5.88
In Stock
Hex Flange Lock Nut 145212
Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.88
17% OFF Phone Price : $5.88
In Stock
V-belt 160855
#57

Ground drive diagram

V-belt

Part #160855

Replaced by #532138255

?
Manufacturer substitution
This part replaces 160855. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$30.89
14% OFF Phone Price : $35.89
In Stock
Lawn Tractor Starter Solenoid 192507
#43

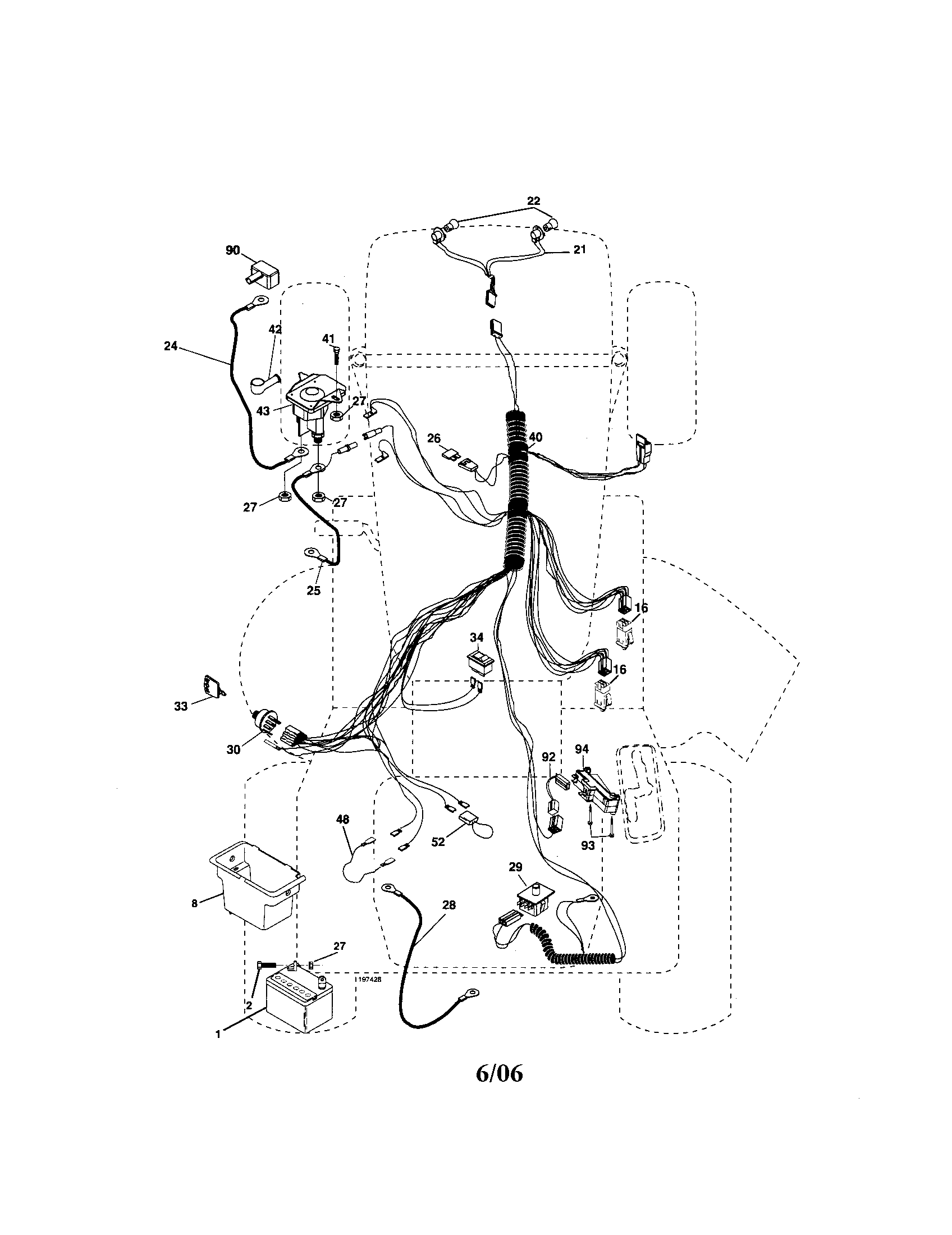

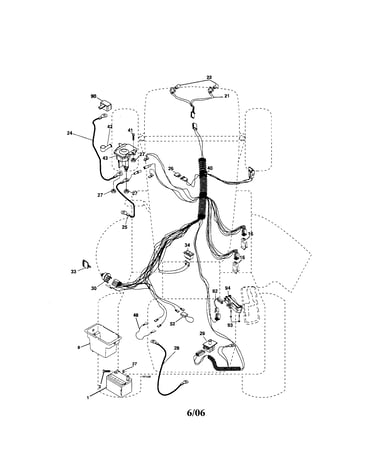

Electrical diagram

Lawn tractor starter solenoid

Part #192507

Replaced by #582042802

?
Manufacturer substitution
This part replaces 192507. Substitute parts can look different from the original.
BEST SELLER
$15.99
11% OFF Phone Price : $17.99
In Stock
Lawn Tractor Ring Clip (replaces 5022p, 53212000029, 812000029, 8120000-29) 12000029
#8

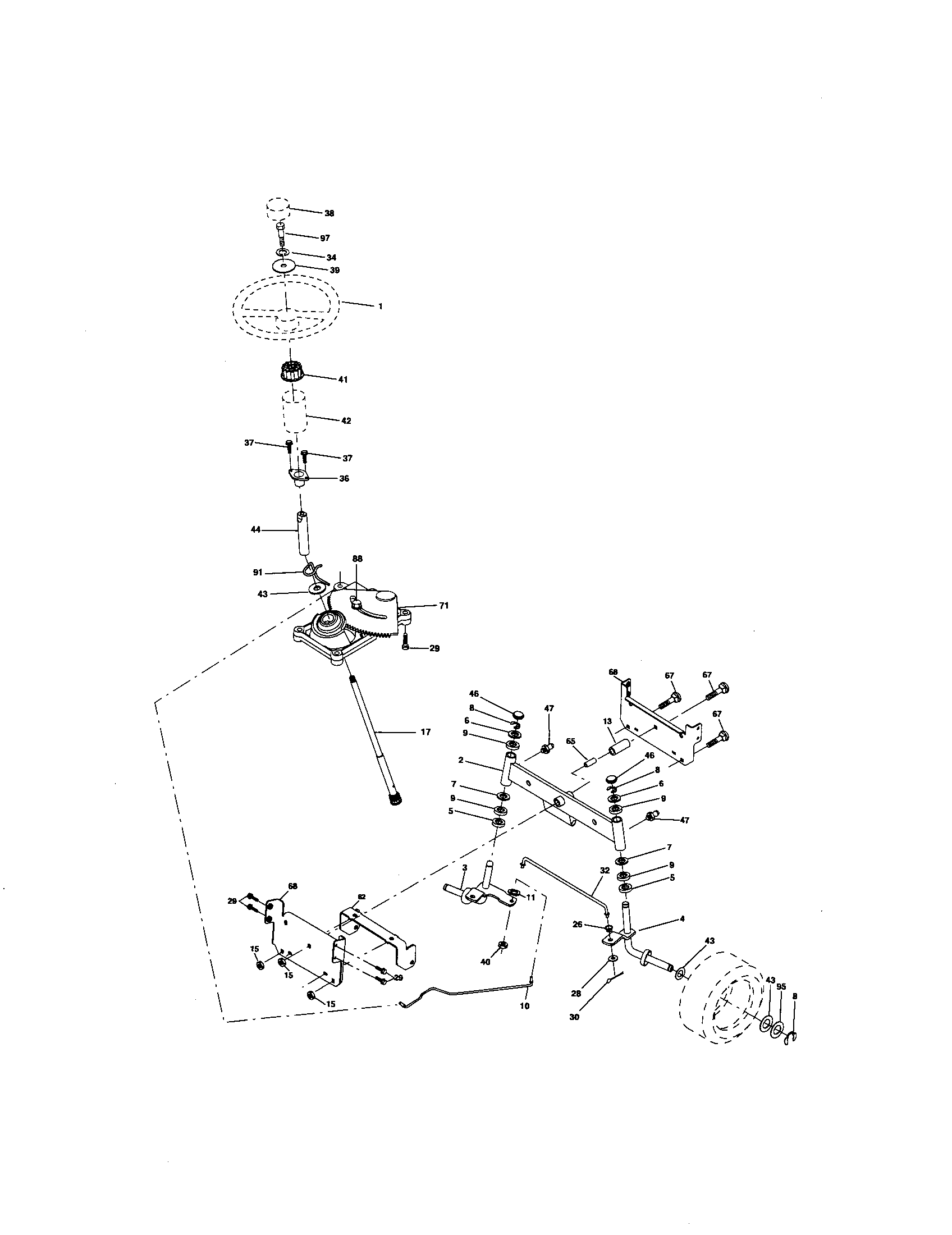

Steering assembly diagram

Lawn tractor ring clip (replaces 5022p, 53212000029, 812000029, 8120000-29)

Part #12000029

BEST SELLER
This item is not returnable
$3.29
23% OFF Phone Price : $4.29
In Stock
