Kenmore 11062342511 electric dryer Parts

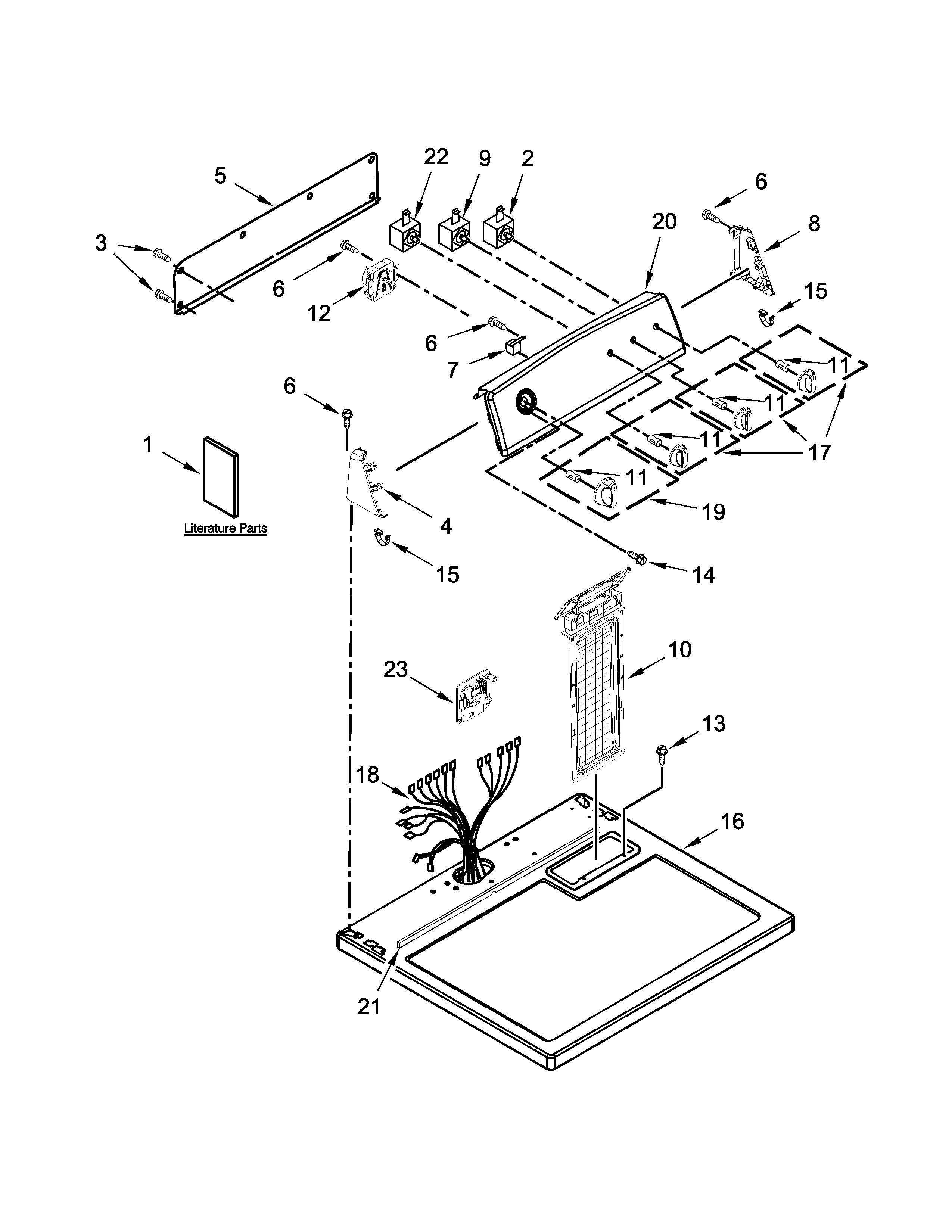

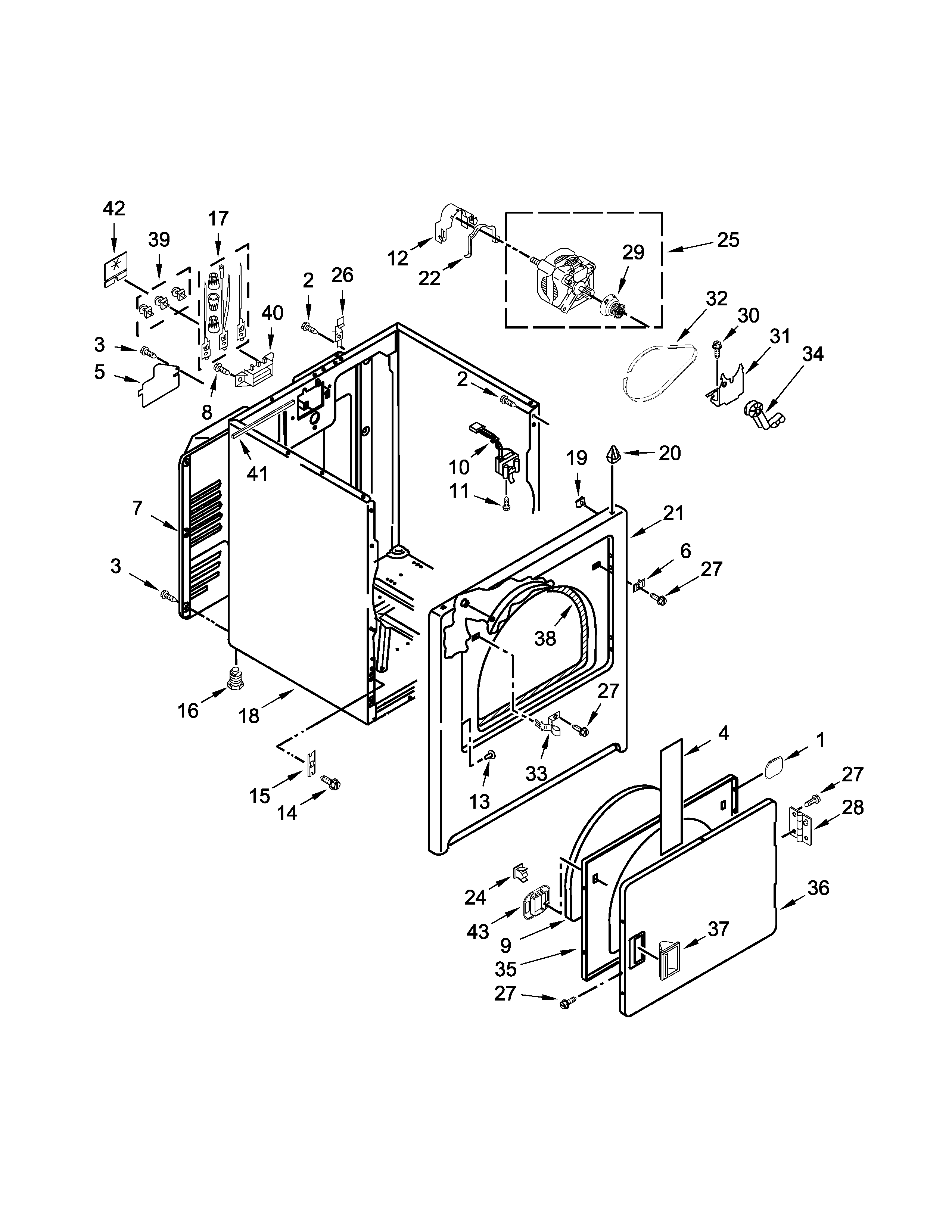

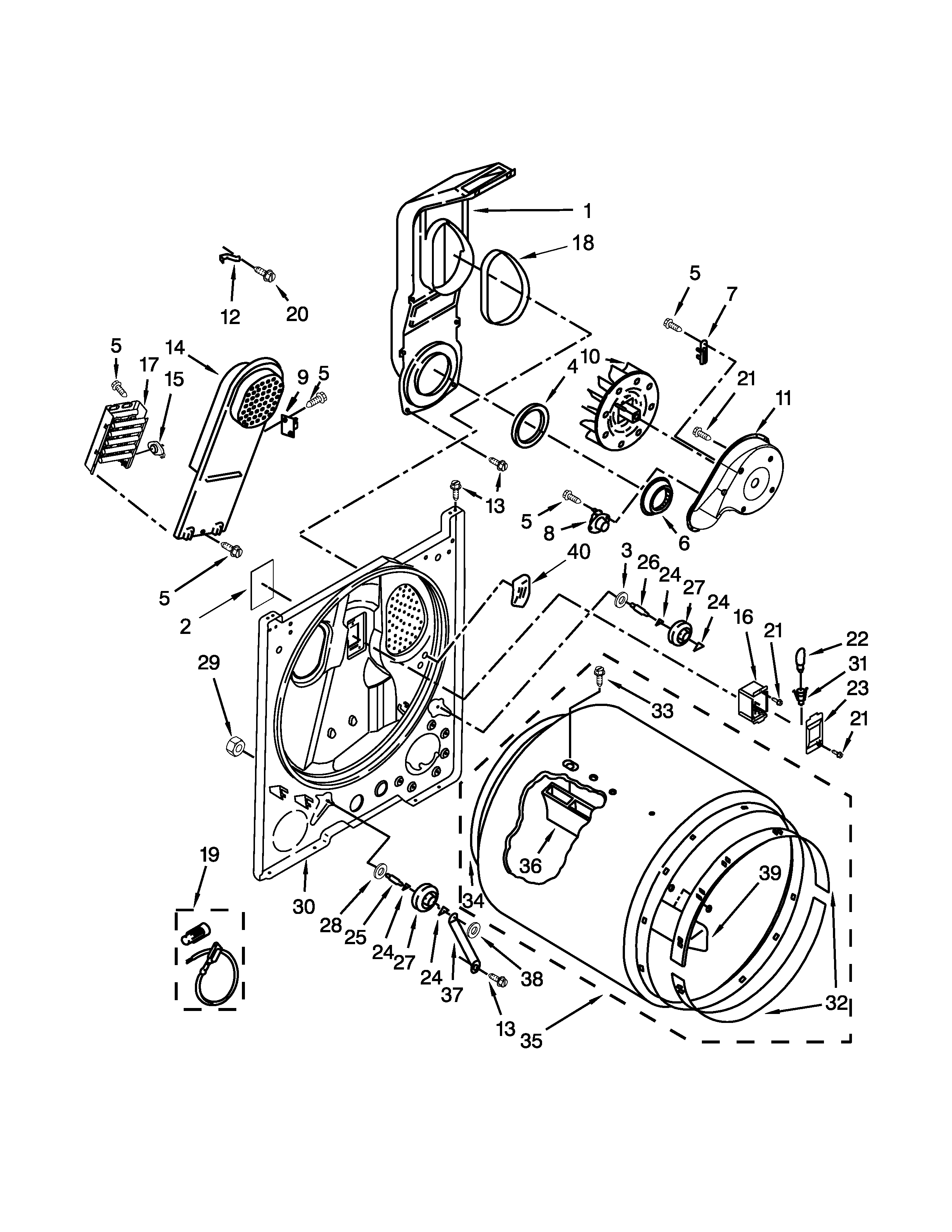

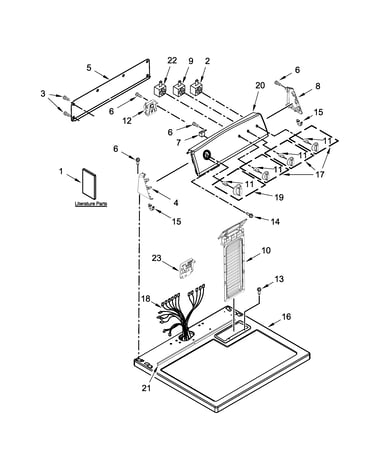

For Kenmore dryer model 11062342511, the model number is printed on the appliance’s model/serial label. On this style of Kenmore electric dryer, you’ll typically find that label in the door opening (door jamb) or on the back of the cabinet near the top. For diagrams and label references, use the 11062342511 use & care manual.

Where to look on model 11062342511

Check these common label locations first:

• Inside the dryer door opening on the cabinet frame (door jamb)
• On the back panel near the top edge
• Along the inside edge of the front panel (visible with the door open)
• Occasionally behind the lower access panel (if your unit has one)

What the model/serial label looks like

Most Kenmore labels include:

• Model number (for example, 11062342511)
• Serial number (unique to your dryer)
• Electrical ratings (volts/amps) and sometimes a manufacturing code

What you need	Why it matters
Model number	Ensures parts and diagrams match your exact dryer
Serial number	Helps confirm production series and compatible revisions

Tips to avoid mix-ups

Use these quick checks so you record the correct number:

• Copy the full number exactly; don’t drop digits
• Watch for similar-looking characters (0 vs O, 1 vs I)
• If the label shows a shorter “model” like 62342, use the full 110-prefix model when ordering parts

Why it matters

Kenmore model numbers determine the correct parts list, wiring, and installation specs. Using the exact model number helps prevent ordering the wrong belt, door switch, or heating component.

Last updated: January 2026

On the Kenmore dryer model 11062342511, PF stands for Power Failure. It means the dryer’s cycle was interrupted because the dryer lost electrical power (even briefly) and then power returned.

What to do when you see PF

• Press Pause/Cancel (if your model has it) to clear the display.
• Re-select your drying cycle and press Push to Start to restart.
• Check that the dryer is plugged in firmly and the outlet is not loose.
• Reset the home breaker (or replace fuses) if the dryer lost power.
• Avoid using an extension cord; dryers should be connected directly.

For control-panel basics and cycle-start steps, see the 11062342511 use & care manual.

Common causes of a PF message

PF is usually not a failed dryer part. It is most often caused by a power interruption such as:

• A brief outage or power flicker
• A tripped circuit breaker or blown fuse
• A loose power cord connection at the outlet
• A household wiring or outlet issue

Quick check table

What you notice	Most likely cause	What we recommend
PF appears once, then dryer runs normally	Brief power flicker	Clear PF and restart cycle
PF keeps returning mid-cycle	Unstable power or loose connection	Check outlet, cord fit, breaker
Dryer runs but has no heat (electric models)	One breaker tripped or one fuse blown	Reset both breakers or replace both fuses

Why it matters

A PF message helps protect your laundry and the dryer by stopping the cycle when power is interrupted. If PF happens repeatedly, fixing the power supply issue can prevent long dry times, no-heat symptoms, and nuisance shutdowns.

Last updated: January 2026

For Kenmore dryer model 11062342511, the closest thing to a “hard reset” is a simple power cycle: turn the dryer off, disconnect power briefly, then restore power and try starting a cycle again. This can clear a temporary control glitch.

Power-cycle reset steps (model 11062342511)

• Turn the cycle selector to OFF.
• Unplug the dryer; if you can’t access the plug, switch the dryer breaker OFF.
• Wait about 1 minute.
• Restore power.
• Select a cycle and press PUSH to START.

If it still won’t start

A power cycle won’t fix a failed component or a power supply issue. The 11062342511 use and care guide points to these common checks:

• Confirm the door is fully closed.
• Check the home power supply; electric dryers typically use 2 household fuses or circuit breakers.
• If the dryer overheated from restricted venting, a safety device may have opened and the dryer may not heat.

Quick symptom-to-part guide (model 11062342511)

Symptom	What to check first	Part that may be involved
No response at all	Door fully closed, power at outlet	Dryer door switch WP3406107
Runs but no heat	House fuses/breaker, venting restriction	Dryer thermal cut-off fuse kit 279816
Long dry times	Lint screen, vent length, crushed vent	Vent inspection and cleaning

Why it matters

Power cycling is a fast first step that can rule out a temporary control issue before you spend time troubleshooting wiring, switches, or heating safety devices. For model-specific operating and troubleshooting tips, use the 11062342511 use & care manual.
