Craftsman 944609040 lawn tractor Parts

On the Craftsman lawn tractor model 944609040, the engine identification is found on the engine itself, typically stamped on the blower housing. Use that engine model and type information when ordering tune-up parts or troubleshooting starting and running problems; see the 944609040 owner's manual.

Where to look on the engine

Check these common locations first (clean the area so the stamp is readable):

• Blower housing (most common location on this tractor)
• Sheet metal near the muffler area
• Near the air cleaner housing
• On an engine label plate or stamped pad on the shroud

What numbers to write down

For accurate parts matching, record the full set of identifiers:

• Engine model number
• Type number (or spec number)
• Code/date (if present)
• Your tractor model number: 944609040 (usually on the tractor model plate under the seat)

Quick example (what it can look like)

The manual for this tractor shows an example engine identification format that includes an engine model and type number.

Item you need	Example format shown in manual	Why it matters
Tractor model number	944609040	Matches chassis, deck, and drive parts
Engine model number	287707	Matches engine-specific parts
Engine type number	1255-E1	Narrows to the exact engine build

Why it matters

The same Craftsman tractor model can use engines with different builds over time. Using the engine model and type number prevents ordering the wrong ignition parts, fuel system parts, or maintenance items and speeds up troubleshooting.

Ordering parts

Once you have the engine numbers, you can order tractor and deck parts from the parts list for model 944609040, or search by model number on Sears PartsDirect.

Last updated: February 2026

For your Craftsman lawn tractor model 944609040, the fastest way to find the right replacement parts is to match your model number and then confirm the part name and number in the parts diagrams and the owner's manual. This prevents ordering the wrong blade, belt, tire, or steering part.

Step-by-step: how we find the correct parts

• Locate the tractor model plate under the seat and confirm the model number is 944609040.
• Use the parts list and diagrams for 944609040 to identify the exact component and reference number.
• Cross-check the part description against the owner's manual repair parts sections.
• If you are replacing a wear item (blade, belt, tire), compare size and style to what is installed now.
• Order using the part ID and description to avoid mix-ups between similar-looking parts.

Common parts customers replace on model 944609040

These are examples of parts available for this model that people commonly search for:

• Mower blades: lawn tractor 42-in deck high-lift blade 532138971 or husqvarna lawn tractor mulching blade, 21-in 532134149
• Deck drive belt: lawn tractor drive belt 532144200
• Deck spindle parts: husqvarna lawn tractor mandrel assembly 532130794

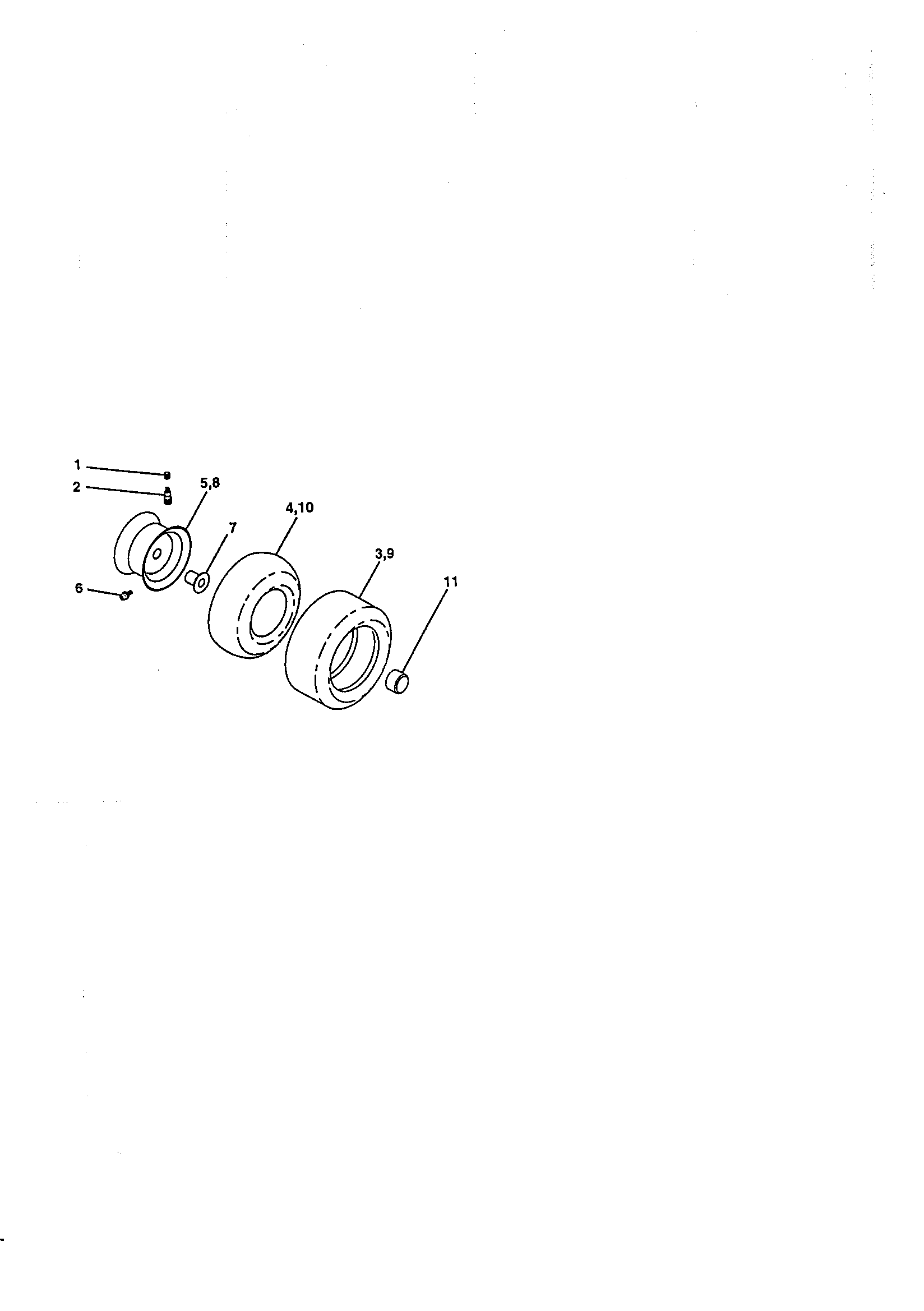

• Wheels and tires: rim 532106732 or tire 532122073

Quick reference: what information to collect before ordering

What to collect	Where to find it	Why it matters
Tractor model number (944609040)	Model plate under the seat	Ensures diagrams match your tractor
Engine model and type	Engine blower housing	Helps match engine-specific parts
Part number and description	Diagrams and manual	Prevents ordering a similar but incorrect part

Why it matters

Craftsman tractors often share deck sizes and hardware across multiple models, so a blade, mandrel, or belt that looks close can still be wrong. Using the model number plus the diagram callouts keeps fit and performance correct (cut quality, belt tracking, and safe discharge).

If you want to search beyond the parts listed for this model, we also recommend using Sears PartsDirect and searching by 944609040.

Last updated: February 2026

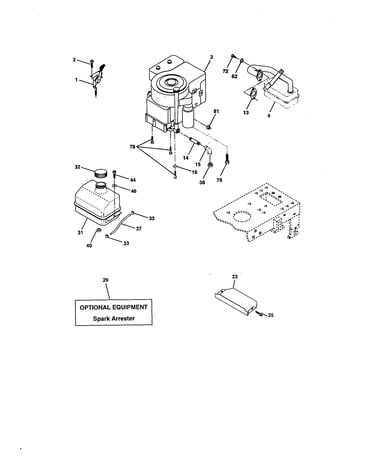

The Craftsman lawn tractor model 944609040 uses a 14.5 HP electric-start engine (as listed in the tractor’s documentation). For the exact engine make, model, and tune-up specifications, use the engine section in the 944609040 owner's manual.

What we can confirm for model 944609040

From the documentation for this specific Craftsman riding mower, we can rely on these identifiers:

• Horsepower class: 14.5 HP
• Starting system: electric start
• Mower deck size: 42-inch mower deck
• Transmission type: 6-speed transaxle
• Product type: front-engine lawn tractor

How to identify the exact engine on your tractor

Many riding mowers in this class were built with engines that have a separate engine ID tag. Use these quick checks:

• Look for an engine model/type/code label on the blower housing, valve cover, or near the starter
• Record the engine model number and spec number (both matter for parts)
• Match the engine label to the engine parts diagrams listed in the 944609040 owner's manual
• If the mower has been repowered, use the engine label, not the tractor model, to source engine-specific parts

Common engine-related symptoms and what they point to

If you are asking because the mower will not start or runs poorly, these are the most common causes:

• Clicks but will not crank: weak battery, bad connections, starter circuit issue
• Cranks but will not start: stale fuel, dirty carburetor, fouled spark plug
• Starts then dies: fuel restriction, safety interlock problem, choke misadjustment
• Runs rough under load: clogged air filter, dull blades, deck buildup

What you observe	Most likely area to check first	Why it matters
No crank, just a click	Battery and cables	Low voltage cannot spin the starter
Cranks normally, no start	Fuel and ignition	Spark and fuel must both be present
Cuts poorly, engine bogs	Deck/blades	Excess load makes the engine struggle

Why it matters

The tractor model 944609040 helps you get the correct chassis and deck parts, but the engine ID label is what ensures you get the correct ignition, fuel, and tune-up parts for the engine actually installed.

Parts that affect engine load (and performance)

A struggling engine is often caused by extra cutting resistance. If your deck components are worn, replacing them can restore performance:

• Lawn tractor 42-in deck high-lift blade 532138971
• Husqvarna lawn tractor mulching blade, 21-in 532134149
• Lawn tractor drive belt 532144200

For additional parts lookups by model number, we also support search on Sears PartsDirect.

Last updated: February 2026

Common problems on a Craftsman riding mower like model 944609040 are no-start or hard-start conditions (fuel, spark, battery, safety switches), poor cutting (deck level, blades, buildup), and blades not rotating (belt, idlers, mandrels). Use the 944609040 owner's manual troubleshooting chart to match symptoms to the fastest fix.

Most common symptoms and likely causes

• Engine will not start: stale/dirty fuel, dirty air filter, bad spark plug, weak/dead battery, dirty fuel filter, carburetor out of adjustment, loose/damaged wiring, or safety interlock issues.
• Runs rough or stalls: dirty air filter, low/dirty oil, water in fuel, dirty fuel filter, clogged muffler or screens, carburetor out of adjustment.
• Blades will not rotate: worn/damaged mower drive belt, frozen idler pulley, frozen blade mandrel, or an obstruction in the clutch mechanism.
• Poor cut or uneven cut: worn/bent/loose blade, deck not level, grass buildup under the deck, bent blade mandrel, or uneven tire pressure.
• Poor grass discharge: mowing too fast, wet grass, engine speed too slow, improper blades, deck vent holes clogged around mandrels.

Quick checks we recommend first

• Depress the clutch/brake fully; disengage the attachment clutch before starting.
• Set throttle to FAST for mowing; slow engine speed reduces discharge.
• Check tire pressure side-to-side; uneven pressure causes uneven cut.
• Clean packed grass from under the deck (disconnect the spark plug wire first).

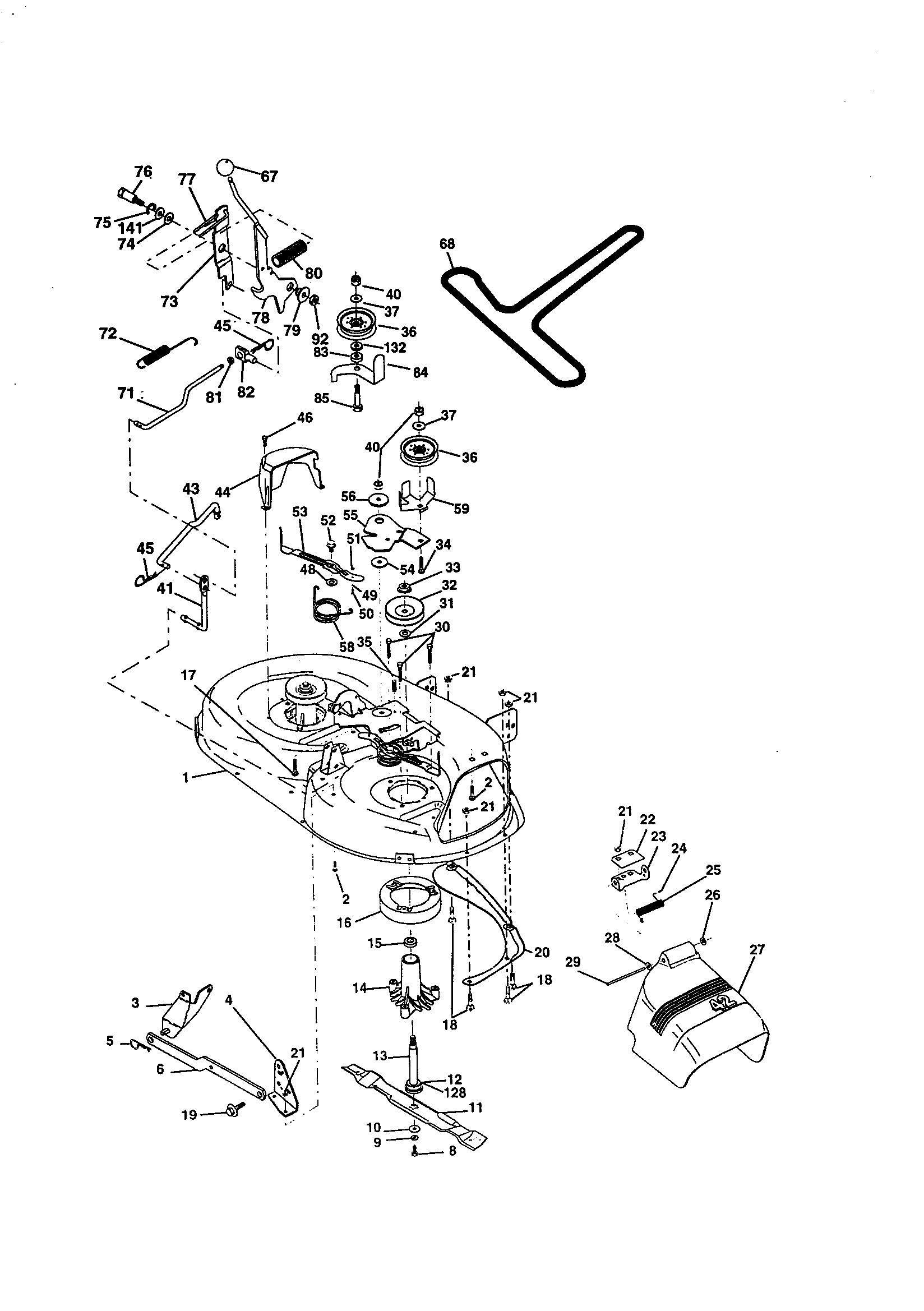

Common deck-drive wear items for this model

Symptom	Likely wear item	Example part
Blades slip or do not spin	Deck drive belt	Lawn tractor drive belt 532144200
Ragged cut or vibration	Blade	Lawn tractor 42-in deck high-lift blade 532138971
Deck noise, poor cut	Mandrel	Husqvarna lawn tractor mandrel assembly 532130794

Why it matters

On the 944609040, many “engine” complaints trace back to maintenance or safety interlocks; many “bad cut” complaints come from deck level, blade condition, and belt or mandrel wear. Correcting the root cause prevents repeat failures.

For additional parts beyond the list for this model, search by model number on Sears PartsDirect.

Last updated: February 2026

Yes, replacing the engine on your Craftsman 944609040 lawn tractor is worth it when the deck, steering, and drive system are in good shape and the engine swap costs clearly less than replacing the tractor. It is not worth it when multiple major systems are worn out at the same time.

Quick decision checklist

• Deck is structurally solid (no rust-through, cracks, or bent hangers)
• Steering and transaxle drive feel normal (no constant slipping or severe play)
• Cut quality issues are fixable with normal deck service (leveling, cleaning, blades)
• You can handle routine maintenance (oil, filters, spark plug)
• The problem is truly engine failure, not a starting or fuel issue

Rule out common “bad engine” symptoms first

The troubleshooting and maintenance guidance for this tractor includes several items that often restore starting and running:

• Battery and cables: clean and tighten terminals
• Fuel delivery: replace the in-line fuel filter once each season; use fresh gasoline
• Ignition: replace the spark plug each mowing season or every 100 hours
• Overheating prevention: clean engine cooling fins and air screen
• Safety interlocks and wiring: seat, brake, and attachment circuits can prevent starting or keep the engine running

Use the model-specific procedures in the 944609040 owner’s manual.

Cost comparison framework

Option	Best when	What you gain
Engine replacement	Tractor chassis, deck, and drivetrain are solid	More years of service from a known machine
Targeted repairs	Symptoms match fuel, ignition, belt, or blade issues	Lowest cost path to mowing again
Replace tractor	Deck/drivetrain/steering also need major work	Fastest reset, highest cost

Parts that often beat an engine swap (when the issue is the deck)

• Lawn tractor drive belt 532144200 (worn belt can stop blades from rotating)
• Lawn tractor 42-in deck high-lift blade 532138971 (improves lift and discharge)
• Husqvarna lawn tractor mandrel assembly 532130794 (addresses noisy or seized spindle issues)

Why it matters

An engine swap only pays off if the rest of the Craftsman 944609040 is worth saving; otherwise you can spend engine money and still have poor cutting or drive performance.

You can order replacement parts for Craftsman 944609040 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026
