Craftsman 917289281 tractor Parts

For Craftsman model 917289281, the most direct way to get help with replacement parts is to use the parts diagrams and parts list for this tractor, then contact Sears PartsDirect support if you need help confirming fitment or completing an order. For model-specific part identification and procedures, use the 917289281 owner's manual.

Best ways to get the right part the first time

When you contact support (or when you shop for parts), we recommend having these details ready:

• Model number: 917289281
• Product type: front-engine lawn tractor
• A short symptom description (for example: “mower blades will not rotate”)
• The part name you suspect (belt, blade, mandrel, solenoid)
• Any part number you see on the old part (if readable)

Common parts customers ask about for this tractor

If you are calling because you need a replacement part, these are some frequently requested items for this model:

What you need	What it affects	Example part for this model
Blade drive belt	Blades engaging and cutting	Husqvarna lawn tractor blade drive belt 584453101

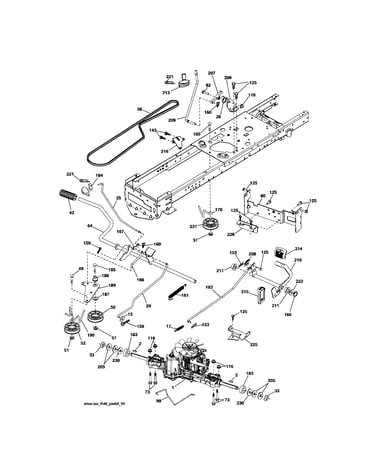

Ground drive belt	Tractor movement	Lawn tractor ground drive or blade drive belt, 1/2 x 92-2/5-in 592855201
Starter solenoid	No-crank or click-no-start	Lawn tractor starter solenoid 582042802

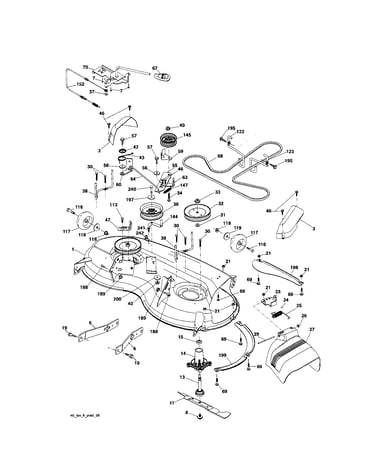

Deck/mandrel parts	Vibration, uneven cut, blade wobble	Lawn tractor mandrel housing 587819701

Why it matters

Using the correct model number and the tractor’s diagrams helps match the right belt, blade, mandrel, or electrical part; that prevents delays and reduces the chance of ordering the wrong part.

Last updated: March 2026

The Craftsman 917289281 front-engine lawn tractor holds 60 oz of engine oil without an oil filter and 64 oz with an oil filter. Use the oil type and fill procedure listed in the 917289281 owner's manual to avoid overfilling.

Oil capacity details (917289281)

• Without filter: 60 oz (1.875 qt)
• With filter: 64 oz (2.0 qt)
• Typical oil type: SAE 30 above 32°F; SAE 5W30 below 32°F (per the manual)

Setup	Capacity (oz)	Capacity (qt)
Oil change, no filter	60	1.875
Oil change, with filter	64	2.0

How we recommend filling it

• Park on a level surface and let the engine cool.
• Add oil slowly, stopping to check the dipstick often.
• Bring the level to the full mark; do not overfill.
• After starting the engine briefly, shut it off and recheck the level.

Why it matters

Correct oil capacity helps protect the engine from low-oil wear and prevents foaming, smoking, and seal leaks that can happen when the crankcase is overfilled.

Last updated: February 2026

The model number for this Craftsman front-engine lawn tractor is 917289281. You’ll find the model identification on the tractor’s ID label, and the matching operating details and maintenance information are listed in the 917289281 owner's manual.

Where to find the model number on the tractor

Most Craftsman riding mowers and tractors list the model number on an ID label in one of these common spots:

• Under the seat (seat pan or fender area)
• On the frame near the rear wheels
• Under the hood near the engine compartment
• Along the left or right side of the frame rail

Model number vs. manual “Model No.” formatting

In some Craftsman manuals, the cover may show a shortened “Model No.” (for example, a 5-digit format used for the series). For parts lookup and ordering, use the full Sears model number shown on the tractor’s ID label.

What you’re looking at	What it’s used for	What to use here
Tractor ID label	Parts diagrams, correct replacement parts	917289281
Manual cover “Model No.”	Operator information for the series	Use the manual that matches 917289281

Why it matters

Using the exact model number 917289281 ensures you get the right Craftsman parts for your specific deck, belts, and electrical system. Even small model-number differences can change belt routing, blade style, or wiring connections.

Related parts customers commonly match by model

When you confirm the model number, these are examples of parts that are commonly selected by exact model fit:

• Deck mandrel components such as the lawn tractor mandrel housing 587819701
• Blade drive belt options such as the husqvarna lawn tractor blade drive belt 584453101
• Starting circuit parts such as the lawn tractor starter solenoid 582042802

Last updated: February 2026

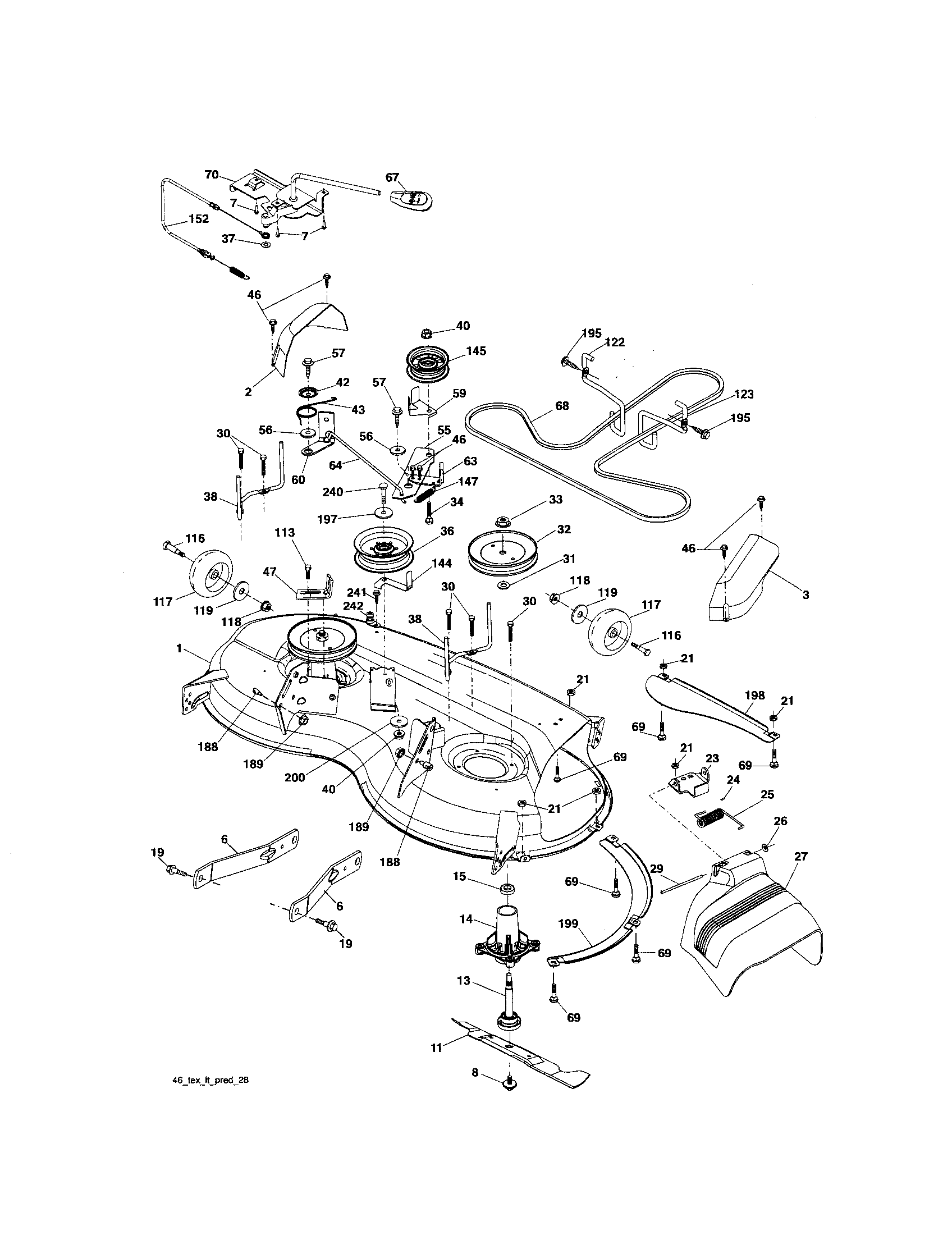

A 42-inch Craftsman deck belt size depends on the exact deck and pulley layout; many 42-inch decks use a 1/2-inch class belt, but the length varies by design. For Craftsman model 917289281, we match the belt to the deck actually installed on your tractor using the routing and replacement section in the 917289281 owner's manual.

Identify which belt you need (deck vs drive)

On riding mowers, “belt size” can mean two different belts:

• Blade drive (deck) belt: turns the blades and mandrels

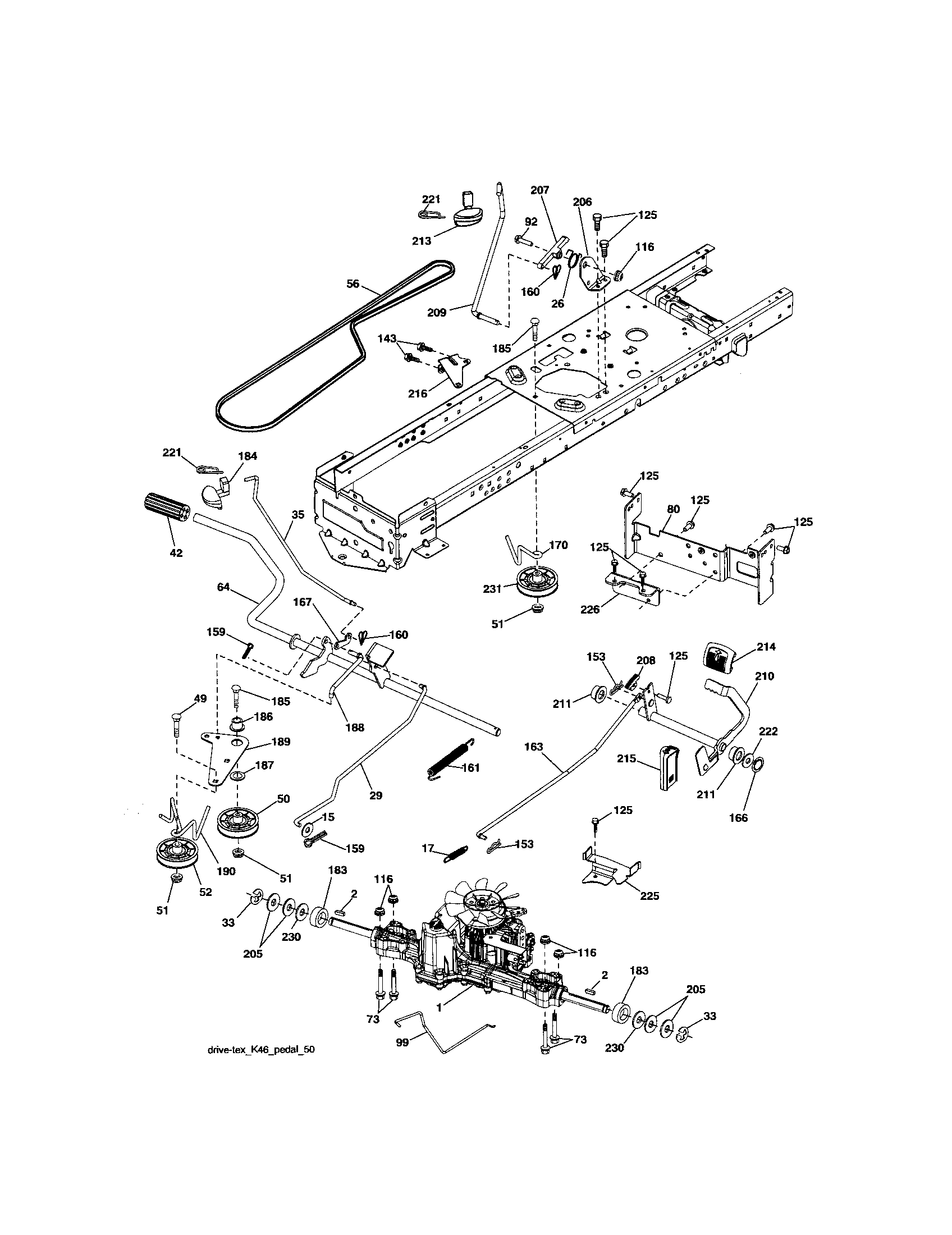

• Motion (ground drive) belt: drives the tractor forward and reverse
• Belt length changes with deck size (42-inch vs 46-inch), idler locations, and pulley diameters

Model 917289281: use the deck routing and replacement procedure

Your Craftsman 917289281 manual includes steps for replacing the mower blade drive belt and motion drive belt, plus guidance to keep the belt seated in pulley grooves and inside belt guides. Use that routing to ensure you order the correct belt for your specific deck.

If you are replacing the blade drive belt, a model-matched belt we commonly see listed for this tractor is the lawn tractor blade drive belt 584453101 (part number 405143). Compare it to the belt you remove and the routing decal on the tractor.

Quick ways to confirm the correct belt size

• Check the deck label for deck size (42-inch and 46-inch decks use different belts)
• Read the numbers printed on the old belt (often includes a size or OEM reference)
• Inspect idler and mandrel pulleys; a binding pulley ruins belts quickly
• Verify belt keepers are not bent into the belt path

Common belt types and what changes the size

Belt type	Where it runs	What changes the size most
Blade drive (deck) belt	Deck pulleys and idlers	Deck size and idler layout
Motion/ground drive belt	Engine to transaxle	Transaxle and pulley setup

Why it matters

A belt that is the wrong length slips, jumps off, or overloads idlers and mandrels. Matching the belt to the correct deck and routing keeps blade speed consistent and prevents repeat failures.

Last updated: February 2026

The model number 917289281 identifies the Craftsman tractor series and configuration; the exact build year comes from the serial number/date code on the tractor’s ID label, not from the model number alone. Use the identification and specifications section in the 917289281 owner's manual to confirm the correct label location and details.

How to find the build year on your tractor

Use the product identification label, then decode the serial or date code printed on it.

• Locate the ID label (commonly under the seat, on the frame near the rear wheels, or under the hood)
• Record the model number and the full serial number exactly as shown
• Look for a date code embedded in the serial (some labels include a 6-digit date)
• If your label shows a 6-digit date code, read it as MMDDYY (month, day, year)
• Use the decoded year when matching parts diagrams and ordering maintenance items

Common 6-digit date-code example

Many Craftsman-built riding mowers use a 6-digit date code on the serial tag.

Code format	What it means	Example	Result
MMDDYY	Month, day, year	072811	July 28, 2011
MMDDYY	Month, day, year	031510	March 15, 2010

Why it matters

The build year helps us match the correct parts and revisions for your Craftsman tractor, especially for deck and drive components. For example, belt routing and deck hardware can vary; confirming the year helps ensure the right belt and pulley parts are selected, such as the mandrel pulley 532195945 used in the mower deck assembly.

Last updated: February 2026

For Craftsman model 917289281 front-engine lawn tractor replacement parts, we recommend starting with Sears PartsDirect because you can match parts to your exact model and diagrams. You can also buy Craftsman parts through Craftsman-authorized channels and major retailers; always confirm fit using the full model number.

Best ways to find the right part fast

• Use the full model number 917289281 (not just the series) when searching.
• Look up the part by diagram location and description in the 917289281 owner's manual.
• If you already have it, search by the manufacturer part number (for example 187281).
• Compare the part name carefully (belt vs blade belt vs ground drive belt).
• Replace related wear items together when it makes sense (belt keepers, idler pulleys, blades).

Common parts customers replace on this tractor

These are examples of model-matched parts we commonly see customers order for the 917289281:

What you’re fixing	Example part (model-matched)	What it does
Deck spindle noise or wobble	Lawn tractor mandrel housing 587819701	Supports the blade spindle/mandrel assembly
Blade belt slipping or squealing	Husqvarna lawn tractor blade drive belt 584453101	Transfers power to the mower deck blades
No-crank or intermittent starting	Lawn tractor starter solenoid 582042802	Switches battery power to the starter

Where to buy Craftsman parts (what to expect)

Source type	Best for	Tip
Sears PartsDirect	Model-verified parts and diagrams	Match by model number and diagram callouts
Craftsman-authorized parts channels	OEM availability	Search by model and part number
Major retailers and outdoor power dealers	Common maintenance items	Confirm exact size and application before buying

Why it matters

Riding mower and tractor parts often look similar across brands and deck sizes. Using the exact model number 917289281 helps prevent ordering the wrong belt length, blade style, or electrical part, which saves time and avoids repeat repairs.

Last updated: February 2026
