To hard reset a Kenmore dishwasher model 66513032K114, we typically power-cycle the unit: turn off power at the breaker (or unplug it) for about 1 minute, then restore power and start a new cycle. For model-specific reset sequences, use the 66513032K114 owner's manual.

Quick hard reset steps (power-cycle)

• Turn the dishwasher OFF.
• Switch OFF the dishwasher circuit breaker (or unplug the power cord if accessible).
• Wait 60 seconds.
• Restore power.
• Close the door fully, then select a cycle and press Start/Resume.
• If the control panel is unresponsive, repeat the power-cycle once.

If you need to cancel and drain instead of a full reset

Many Kenmore dishwashers will clear a stuck cycle by canceling and draining.

What you want to do	What to try	What you should hear/see
Stop the current cycle	Press Cancel/Drain (or Cancel)	Drain pump runs for 1 to 2 minutes
Clear a control glitch	Power-cycle (breaker off 1 minute)	Lights return to normal state
Fix “won’t drain” symptoms	Check drain path and pump	Water evacuates quickly

When a “reset” does not fix the problem

A hard reset clears many control glitches, but it will not fix a mechanical issue. Check these common causes:

• Door not fully latched (cycle will not start)
• Tripped breaker or loose power connection
• Clogged filter or standing water in the sump
• Kinked or blocked drain hose
• Failed drain pump

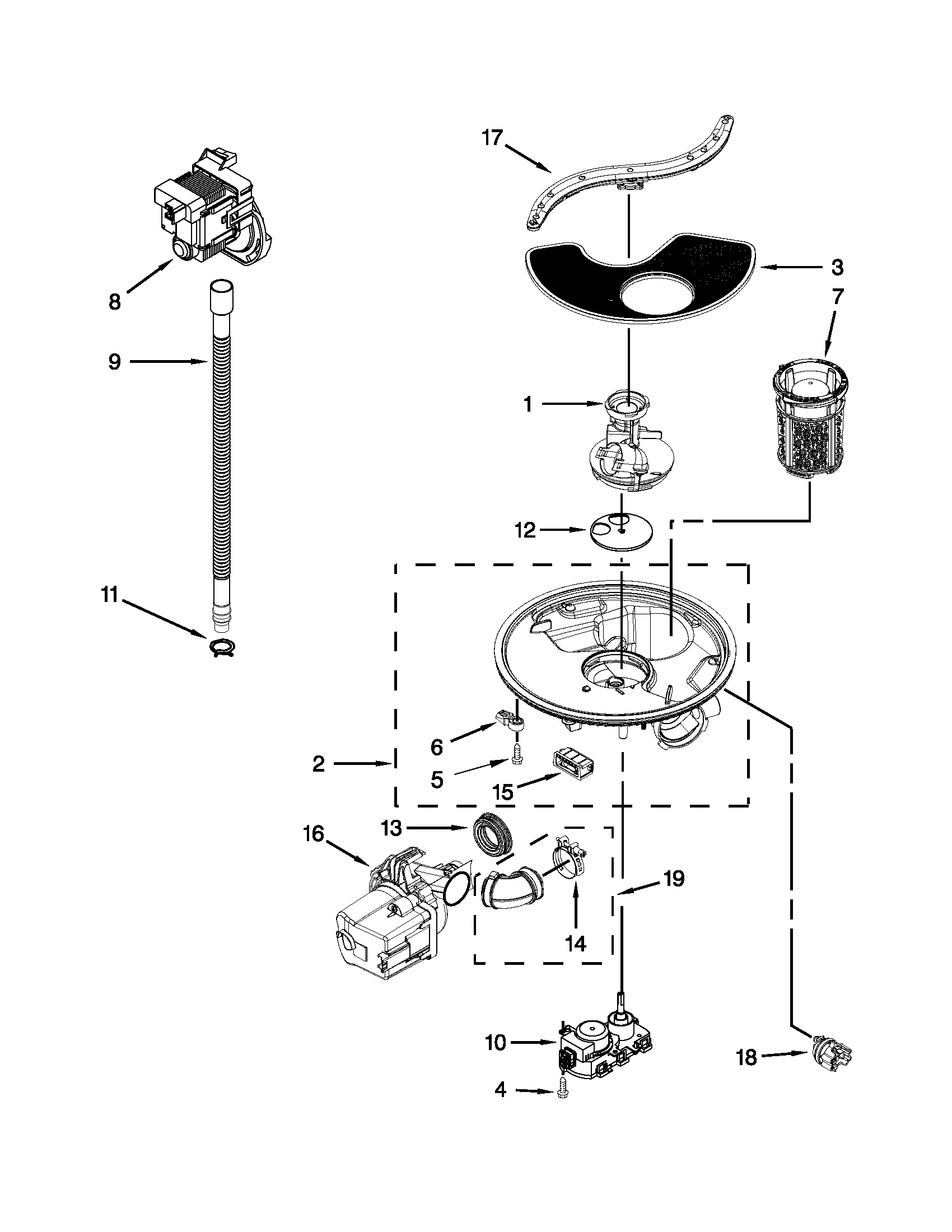

If the dishwasher still will not drain after canceling, the drain system is the next place to look. The dishwasher drain pump WPW10348269 is the component that pushes water out through the drain hose.

Why it matters

Resetting restores the electronic control to a known state, which helps after a power flicker, a paused cycle, or a keypad glitch. If symptoms return immediately, troubleshooting the drain, door latch, or control circuit saves time and prevents repeat shutdowns.

Last updated: January 2026

On Kenmore dishwasher model 66513032K114, an E15 code means the leak-protection system thinks there is water in the base pan, so the safety float switch has activated and the dishwasher may run the drain pump or stop to prevent flooding.

What to do first (safe, quick checks)

• Turn off power at the breaker, then turn off the water supply valve.
• If you see standing water inside the tub, cancel the cycle and let it drain.
• Pull the toe-kick/access panel and look for obvious drips, wet insulation, or a wet floor.
• Check that the dishwasher is level and not tilted forward (tilt can send water toward the base pan).
• If the unit recently moved or was installed, confirm the drain hose routing and water line placement per the installation guide.

Common causes of E15 on this model type

E15 is usually triggered by a real leak or by water being pushed where it should not go.

Likely cause	What you may notice	What to inspect
Drain issue or backflow	Water returns to tub, gurgling	Drain hose loop/high loop, sink/disposer connection
Overfilling	Too much water level, poor wash	Water inlet valve and float area
Internal leak at pump/sump	Water under unit, intermittent E15	Hoses, clamps, sump seals
Excess suds	Foam in tub, leaks at door/vents	Detergent type/amount, rinse aid setting

Parts that are often involved

If you confirm a leak or a fill/drain problem, these are common repair paths for 66513032K114:

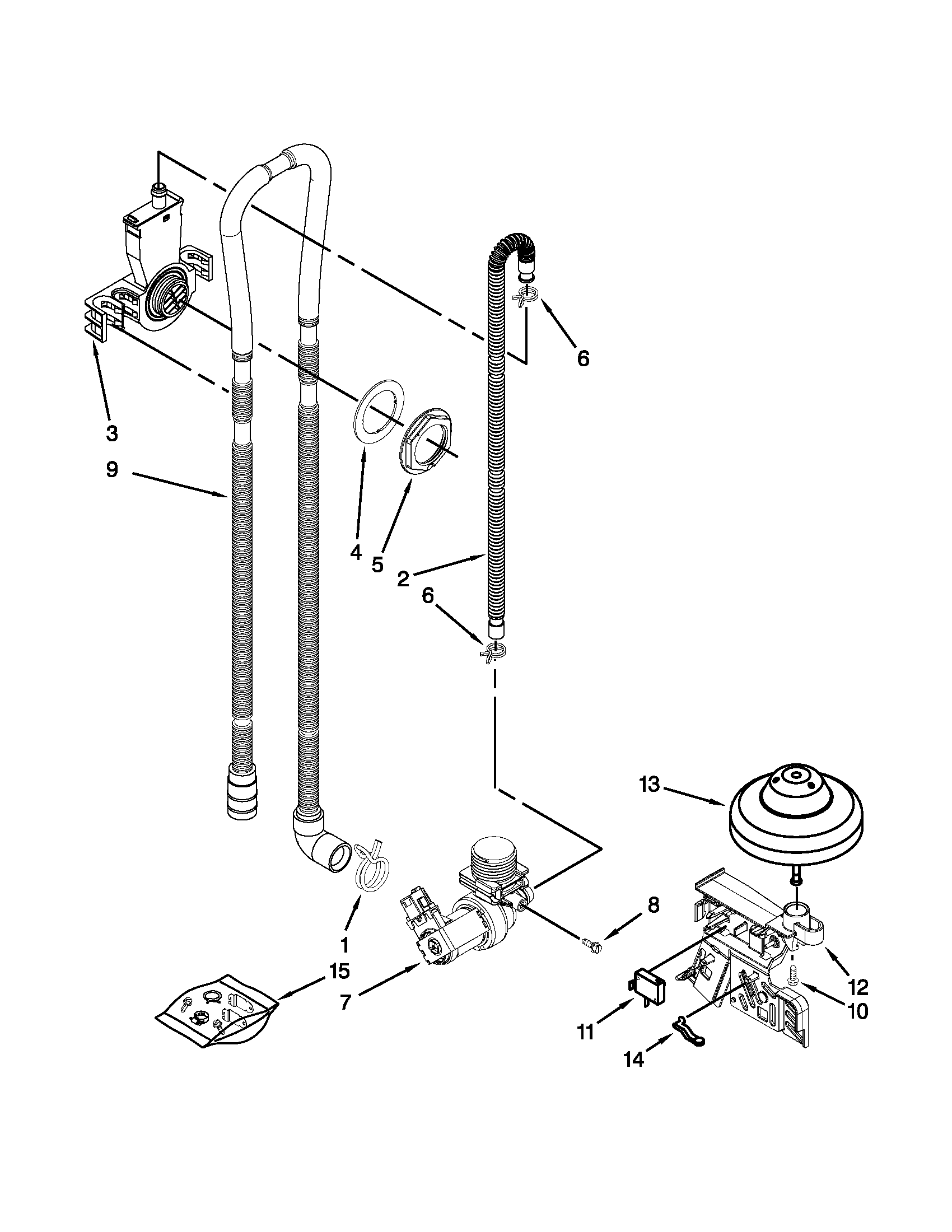

• Replace a leaking dishwasher water inlet valve WPW10327249 if it overfills or seeps.
• Replace a weak or noisy dishwasher drain pump WPW10348269 if it cannot clear water properly.
• Inspect the drain hose for splits or loose connections; this model has drain hose options such as 8269144A and WPW10545278.

Why it matters

E15 is a protective shutdown; clearing the code without fixing the moisture in the base pan usually brings the error back and can lead to repeated draining, incomplete cycles, and water damage under the dishwasher.

Last updated: January 2026

The average lifespan of the Kenmore 66513032K114 undercounter dishwasher is 10 years with normal use and basic maintenance. Keeping filters clean, using rinse aid, and fixing small leaks or draining issues early helps this model reach its full service life.

What affects lifespan most

• Water quality (hard water speeds up mineral buildup)
• Filter and spray arm cleanliness (clogs strain the pump and reduce cleaning)
• Drying heat and ventilation (poor venting can leave moisture and odors)
• Loading habits (overloading blocks spray and increases wear)
• Early repair of drain and fill problems (prevents motor and control stress)

Maintenance that extends life

Use these habits for Kenmore dishwashers like model 66513032K114:

• Clean the filter regularly; replace it if damaged (see dishwasher filter W10872845).

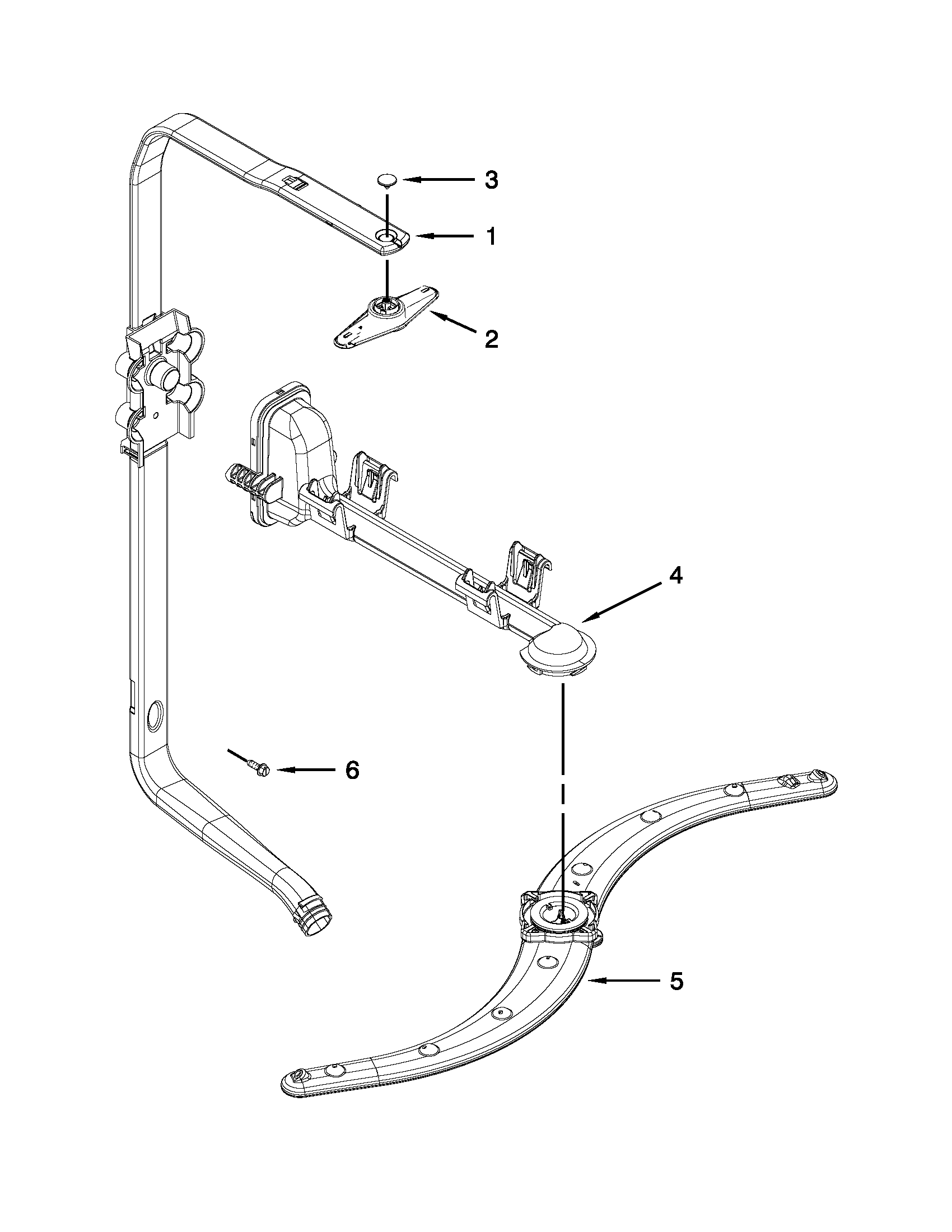

• Check and clear the spray arm holes; replace a cracked arm (see dishwasher spray arm WPW10327455).
• Use rinse aid for better drying and to reduce hard-water deposits (recommended in the installation guide).
• Keep the drain path clear and verify the drain hose routing is not kinked.
• Address slow draining quickly; a weak drain pump can shorten overall life.

Common “end-of-life” symptoms and likely causes

Symptom	What it often points to	Example part on this model

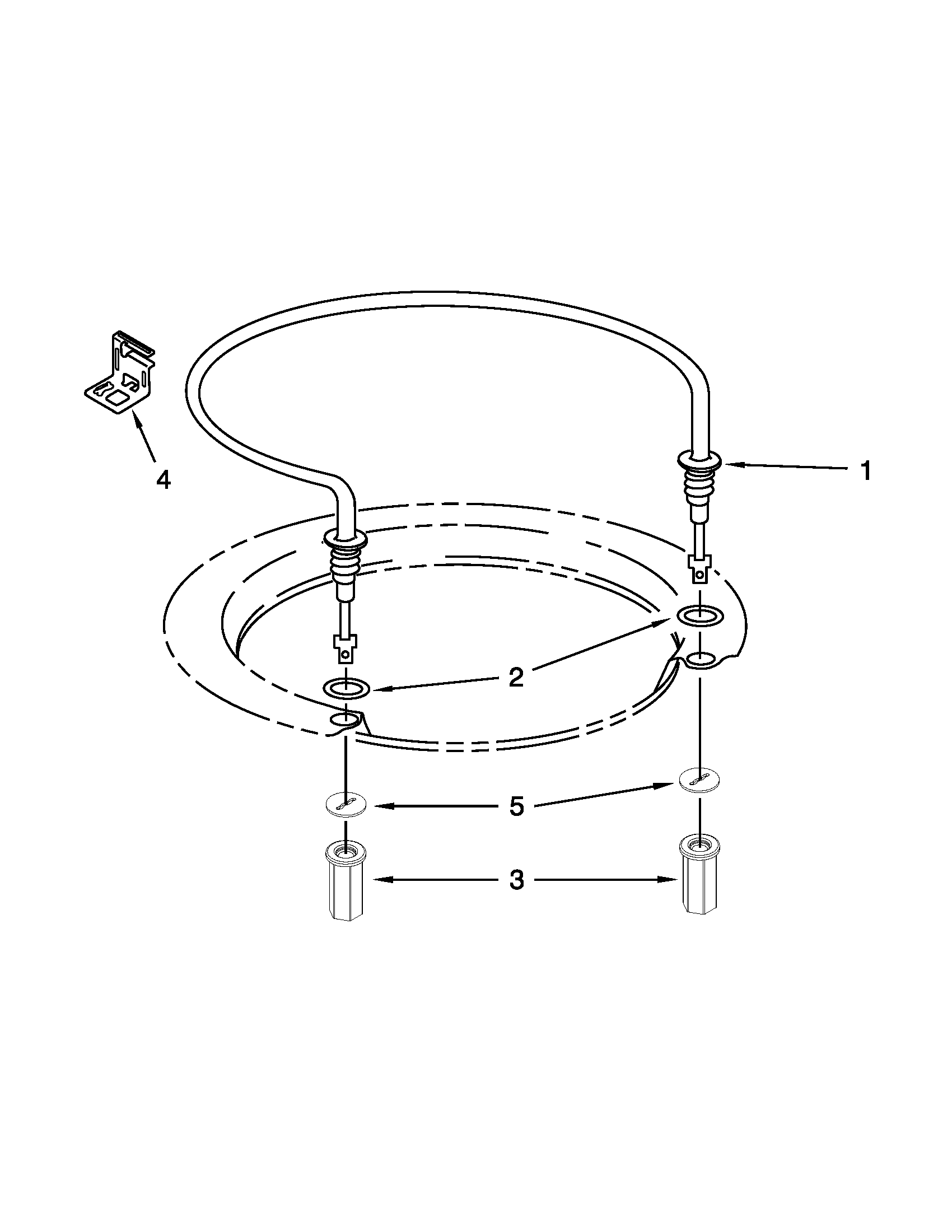

Not drying well	Heating or venting issue	Dishwasher heating element W10518394, dishwasher vent assembly WPW10428211
Won’t drain or drains slowly	Drain restriction or failing pump	Dishwasher drain pump WPW10348269, dishwasher drain hose
Poor wash performance	Clogged filter, spray issue, circulation problem	Dishwasher filter W10872845, dishwasher pump motor assembly W11032770

Why it matters

A dishwasher that is struggling to fill, heat, circulate, or drain runs longer cycles and puts extra load on the motor, seals, and electronic control. Simple upkeep and timely part replacement typically cost less than replacing the dishwasher.
