Kenmore 11064992300 electric dryer Parts

For your Kenmore electric dryer model 11064992300, we match the correct replacement part by using the model number and then locating the part on the parts diagram and parts list. The model and serial label is located at the top inside the dryer door well (inside the door opening). See the 11064992300 owner's manual.

The fastest way to get the right part number is to confirm the model number from the appliance label first.

• Open the dryer door.
• Look along the top inside edge of the door opening (door well).
• Find the model number and serial number on the label.
• Write them down exactly (all digits matter).
• Use that model number to identify the correct part on the parts list.

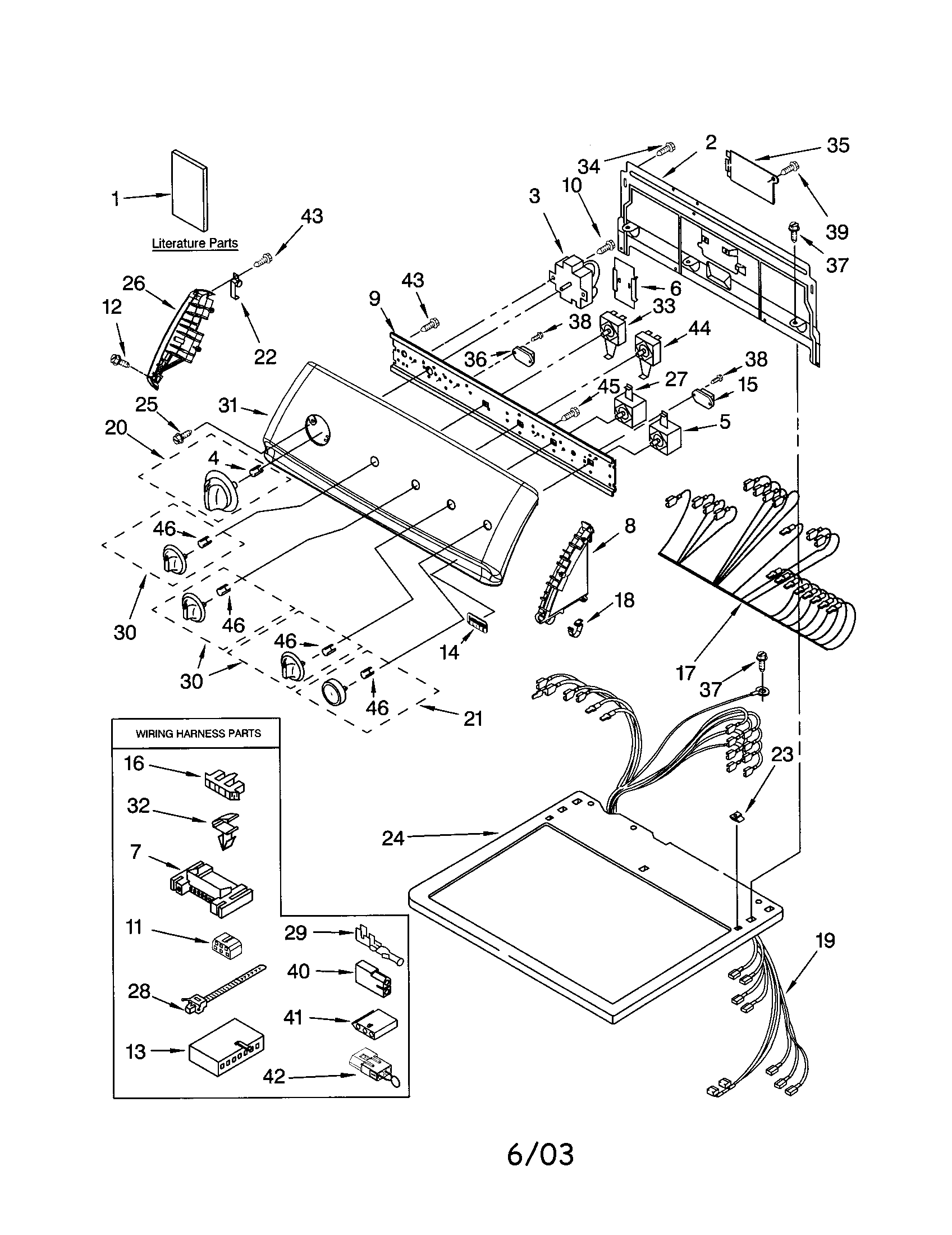

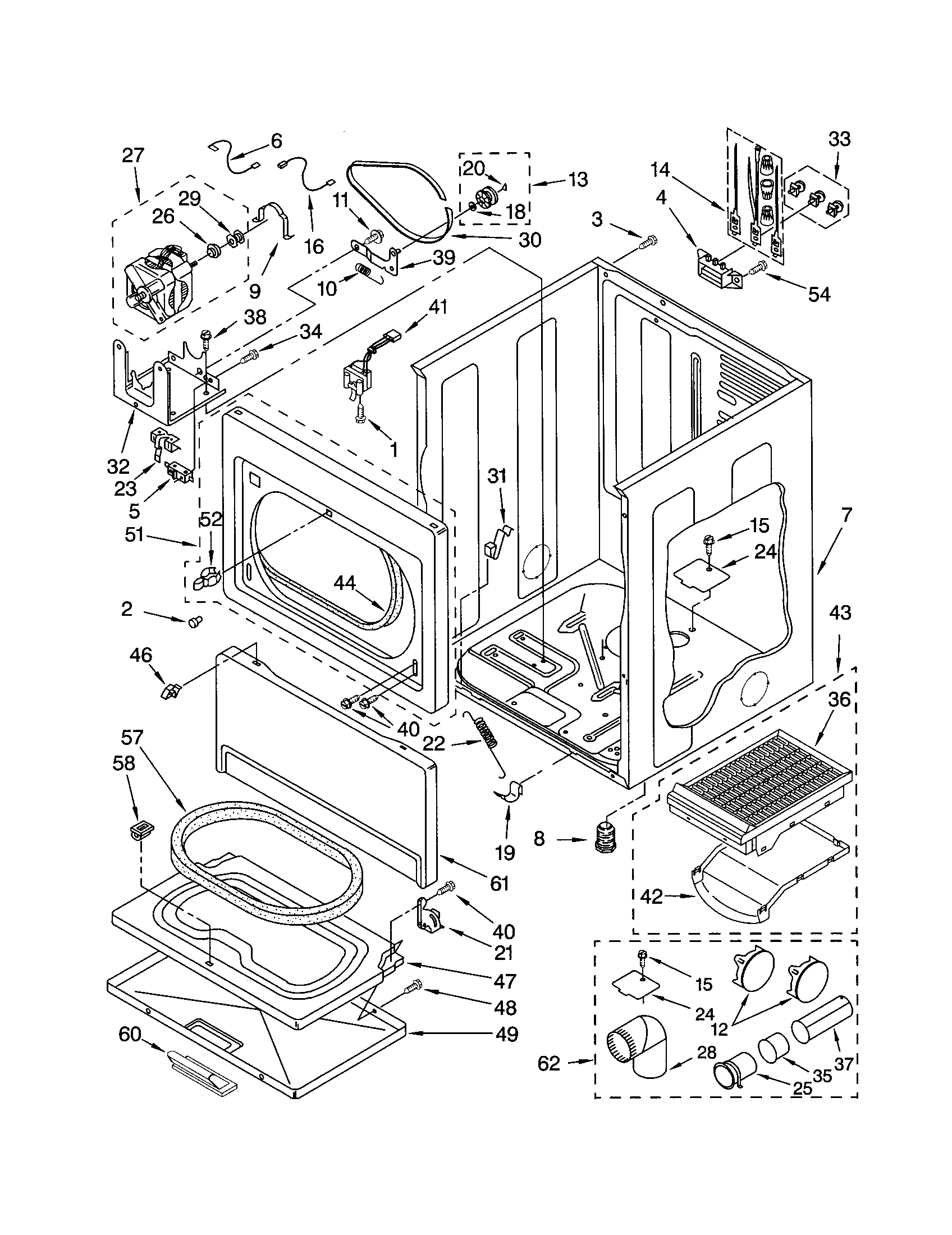

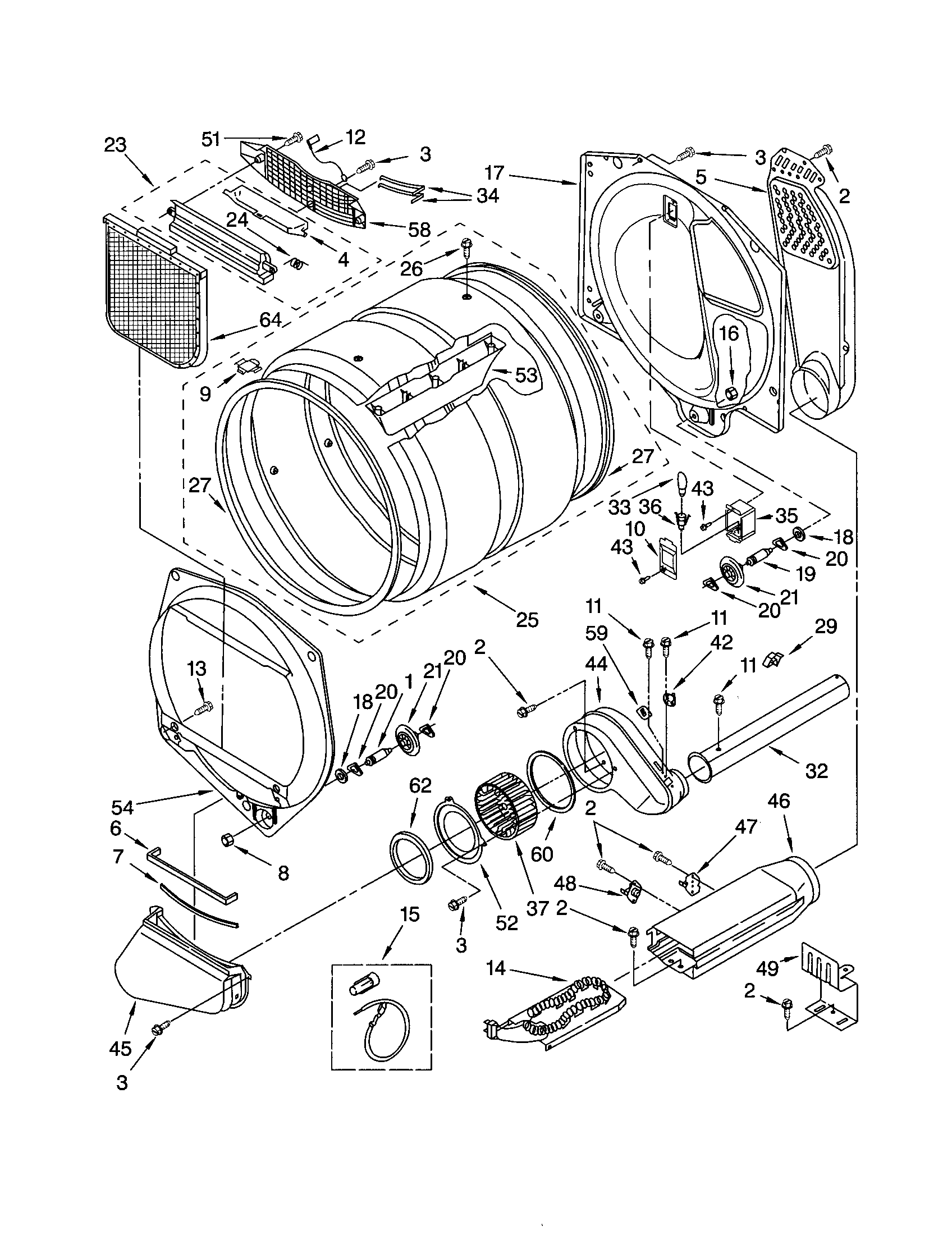

Once you have the model number, use the parts diagram to pinpoint the exact component and its identifier.

If you are troubleshooting heat, noise, or a no-start issue, these are frequent replacements for model 11064992300:

• Dryer heating element WP3387747 (no heat, weak heat)
• Dryer door switch WP3406107 (won’t start when door is closed)
• Support WPW10314173 (thumping or squealing as the drum turns)
• Dryer idler pulley 279640 (squeal, belt not tensioned)

Kenmore model numbers often have multiple revisions that use different parts. Confirming the model number from the door-well label prevents ordering a look-alike part that will not fit, especially for electrical items like a heating element or timer.

Last updated: February 2026

Your Kenmore dryer’s model number is printed on the model and serial number label; on model 11064992300, it’s located at the top inside the dryer door well. Once you have that full number, we can match the correct parts, wiring, and installation requirements.

Check these common label locations (start with the door opening):

• Top inside the dryer door well (most common for Kenmore 110-series)
• Inside the door opening on the cabinet frame
• Back panel of the dryer cabinet
• Near the lint screen housing (varies by design)

Kenmore model numbers are usually a long string of numbers (sometimes with a prefix). For this dryer, the full model is 11064992300. Using the complete model number helps us select the right heating, drum, and control parts.

• Write down the full model number exactly as shown (all digits)
• Record the serial number too; it’s often on the same label
• If the label is worn, use a flashlight and take a close-up photo for clarity

Kenmore dryers can look similar across series, but parts like the heating element, door switch, and drum support system can differ by model. Matching the exact model number prevents ordering the wrong replacement part.

For the official label location and how to record it, use the 11064992300 owner’s manual.

Last updated: February 2026

Most Kenmore electric dryers like model 11064992300 are full-size units that measure about 27 inches wide, 27 to 29 inches deep, and 43 to 44 inches tall. For the exact cabinet dimensions and clearance requirements for your specific dryer, use the 11064992300 owner's manual.

These are the measurements we see most often for a standard 27-inch Kenmore (Whirlpool-built) electric dryer.

• Width: ~27 in.
• Height: ~43 to 44 in.
• Depth (cabinet): ~27 to 29 in.
• Depth (with door open): often 45 in. or more
• Recommended space behind dryer: enough for the vent and power cord without kinking

Even when the cabinet is standard size, tight laundry closets usually fail because the vent path needs room. The installation guidance for this model family emphasizes keeping venting within allowed lengths and using the straightest run possible.

• Side or bottom exhaust adds an internal 90° turn; count that as one extra elbow.
• Avoid screws or duct tape inside the duct; use clamps to seal joints.
• Longer or kinked venting increases drying time and energy use.

Knowing the cabinet size helps you confirm fit, but planning for door swing, vent routing, and electrical connection space prevents overheating, poor airflow, and long dry times.

Last updated: February 2026
