GE GSHS5KGXGCSS refrigerator - x series Parts

For the GE GSHS5KGXGCSS side-by-side refrigerator, we recommend setting the fresh food (refrigerator) section to 37°F and the freezer section to 0°F. After changing settings, allow about 24 hours for temperatures to stabilize.

Use the temperature controls to adjust the SET temperature; the display may also show the actual temperature, which can vary slightly with door openings and room conditions. For control details and features like TurboCool, see the GSHS5KGXGCSS owner’s manual.

• Set the refrigerator compartment to 37°F.
• Set the freezer compartment to 0°F.
• Wait 24 hours after any adjustment before judging results.
• Keep doors closed as much as possible during the stabilization period.
• Avoid blocking air vents (louvers) inside the compartments with food packages.

If the display and your food temperatures do not match after 24 hours, these checks usually help:

• Confirm the doors are sealing and closing fully.
• Make sure the refrigerator is not overpacked; airflow matters.
• Check that the condenser area is reasonably clean.
• If you suspect a sensing issue, a failed temperature sensor can cause incorrect cycling; the compatible part for this model is the GE profile refrigerator temperature sensor WR55X10025.

Correct settings help prevent food spoilage in the fresh food section and reduce freezer burn in the freezer. They also support steady ice maker performance and reduce unnecessary compressor run time.

Last updated: January 2026

For the GE GSHS5KGXGCSS side-by-side refrigerator, the most common service issues we see are cooling problems (warm fridge or freezer) and ice maker or dispenser complaints. These usually trace back to airflow restrictions, dirty condenser coils, defrost system faults, or water supply and filtration issues.

• Fridge warm, freezer OK: airflow blockage, evaporator fan issue, or a sensor/control problem
• Freezer warm, fridge warm: dirty condenser coils, condenser fan issue, sealed system/compressor concerns
• Ice maker not making ice or slow ice: low water flow, frozen fill tube, or ice maker failure
• Water dispenser slow: clogged filter or a weak/blocked water supply
• Frost buildup on freezer back wall: defrost heater/thermostat problem

For model-specific operating details (temperature controls, ice maker basics, and troubleshooting), use the GSHS5KGXGCSS owner’s manual.

• Confirm the controls are set correctly and allow 24 hours for temperatures to stabilize after changes.
• Make sure vents are not blocked by food packages (airflow matters on side-by-side designs).
• Clean dust from the condenser area; restricted airflow can cause long run times and poor cooling.
• If ice or water is slow, verify the household shutoff valve is fully open and the supply line is not kinked.
• If the unit has been newly installed or water was recently turned off, purge air by dispensing water for a couple minutes.

If your symptoms match, these are frequent fixes for the GSHS5KGXGCSS:

Cooling and ice maker problems often start small (slower ice, slightly warmer temps) but can lead to food spoilage, heavy frost, and extra wear on the compressor if airflow and heat removal are not corrected early.

Last updated: January 2026

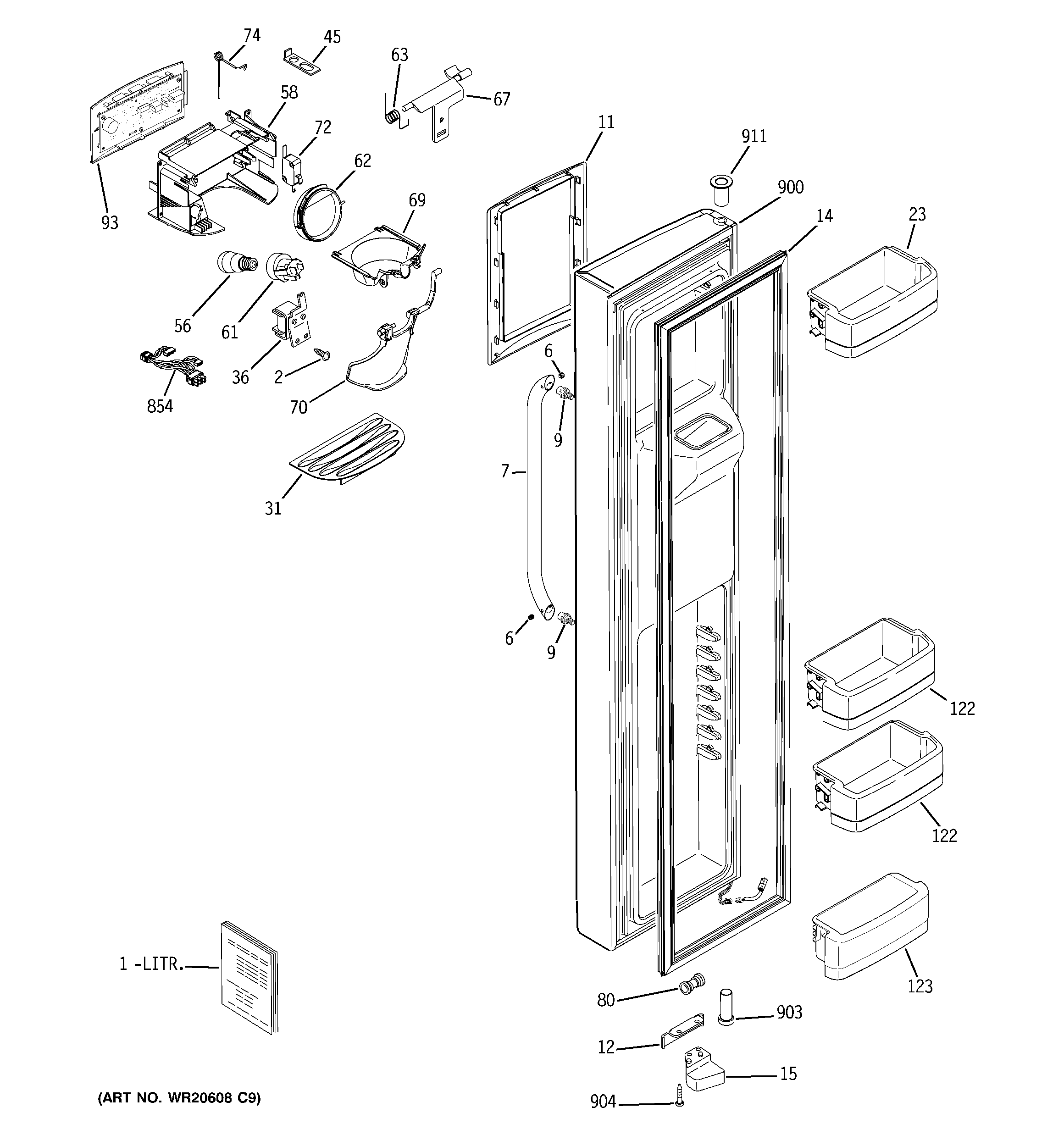

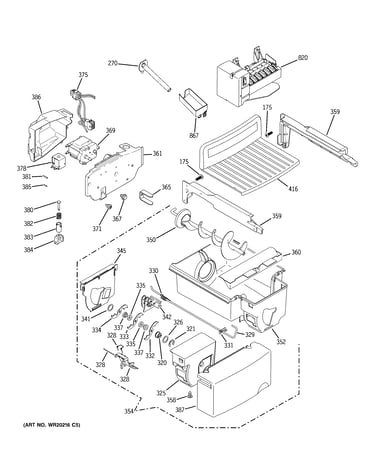

If your GE GSHS5KGXGCSS side-by-side refrigerator is making ice but not dispensing it, the most common causes are a jammed ice chute, a mis-seated ice bin/auger, or a failed dispenser-side drive component. We recommend clearing the chute first, then checking the bin and auger drive.

• Confirm the dispenser is not locked (hold the LOCK pad for 3 seconds to toggle).
• Try both CUBED and CRUSHED; a partial jam can affect one mode more than the other.
• Remove the ice bin, break up clumped ice, and reinstall it firmly.
• Clear the chute: if ice is blocking it, push it through with a wooden spoon (never use fingers).
• Make sure items in the freezer door area are not interfering with the bin or chute.

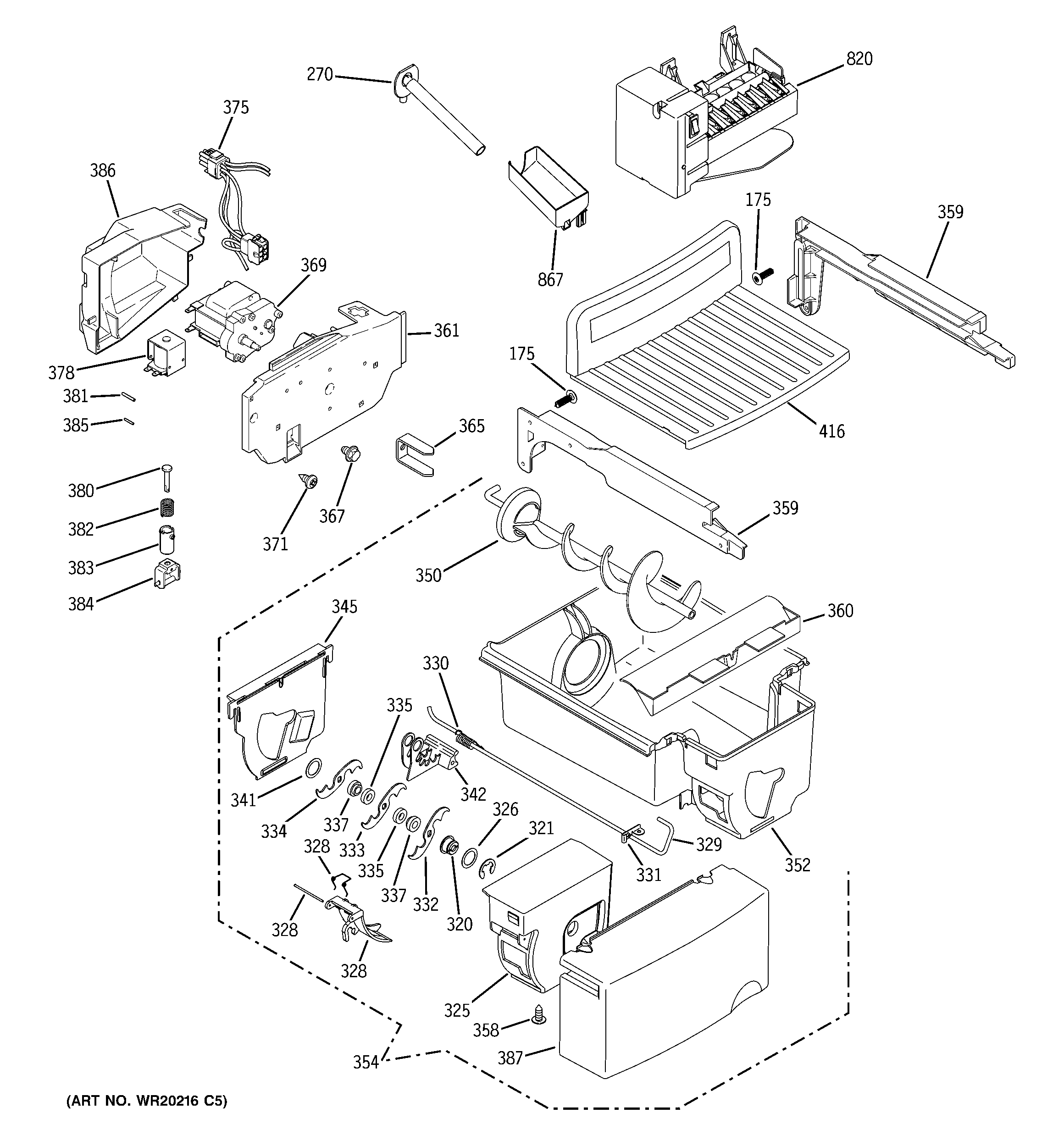

If you hear the motor hum but no ice moves, the auger drive parts are the next suspects.

• Auger not turning or slipping: inspect the auger and coupler for cracks or rounding.
• No motor sound when pressing the lever: suspect the dispenser switch or wiring.
• Chute door not opening or frosting shut: the chute door mechanism can stick, letting warm air in and freezing the opening.

A dispenser that will not dispense ice is often a simple blockage, but repeated jams can strip the auger coupler or overload the auger motor. Fixing the root cause helps prevent repeat failures and keeps ice tasting better by reducing warm-air intrusion.

For operating tips like clearing chute blockages, using the dispenser lock, and handling the tilt-out ice bin, follow the instructions in the GSHS5KGXGCSS owner’s manual.

Last updated: January 2026

To reset the GE GSHS5KGXGCSS side-by-side refrigerator, unplug it (or switch off the breaker) for about 30 seconds, then restore power. This power-cycle resets the control board and display; allow up to 24 hours for temperatures to fully stabilize.

• Unplug the refrigerator from the wall outlet (preferred), or turn off the circuit breaker.
• Wait 30 seconds.
• Plug it back in (or turn the breaker on).
• Confirm the display and interior lights come back on.
• Let the unit run; normal cooling recovery can take several hours.

On this model family, the dispenser panel typically has a FILTER RESET function. After replacing the filter, press and hold the filter reset pad for about 3 seconds to clear the reminder (see the GSHS5KGXGCSS owner’s manual).

If the refrigerator still will not cool, a reset will not fix a failed component. Common checks we use on GE side-by-side units include:

• Make sure temperature controls are not set to OFF
• Verify doors are sealing and closing fully
• Listen for the evaporator fan running
• Check for heavy frost buildup on the evaporator cover
• Confirm condenser area is clean and airflow is not blocked

If troubleshooting points to a specific failure, these model-compatible parts are often involved:

• GE profile refrigerator temperature sensor WR55X10025 (reports compartment temperature to the control)

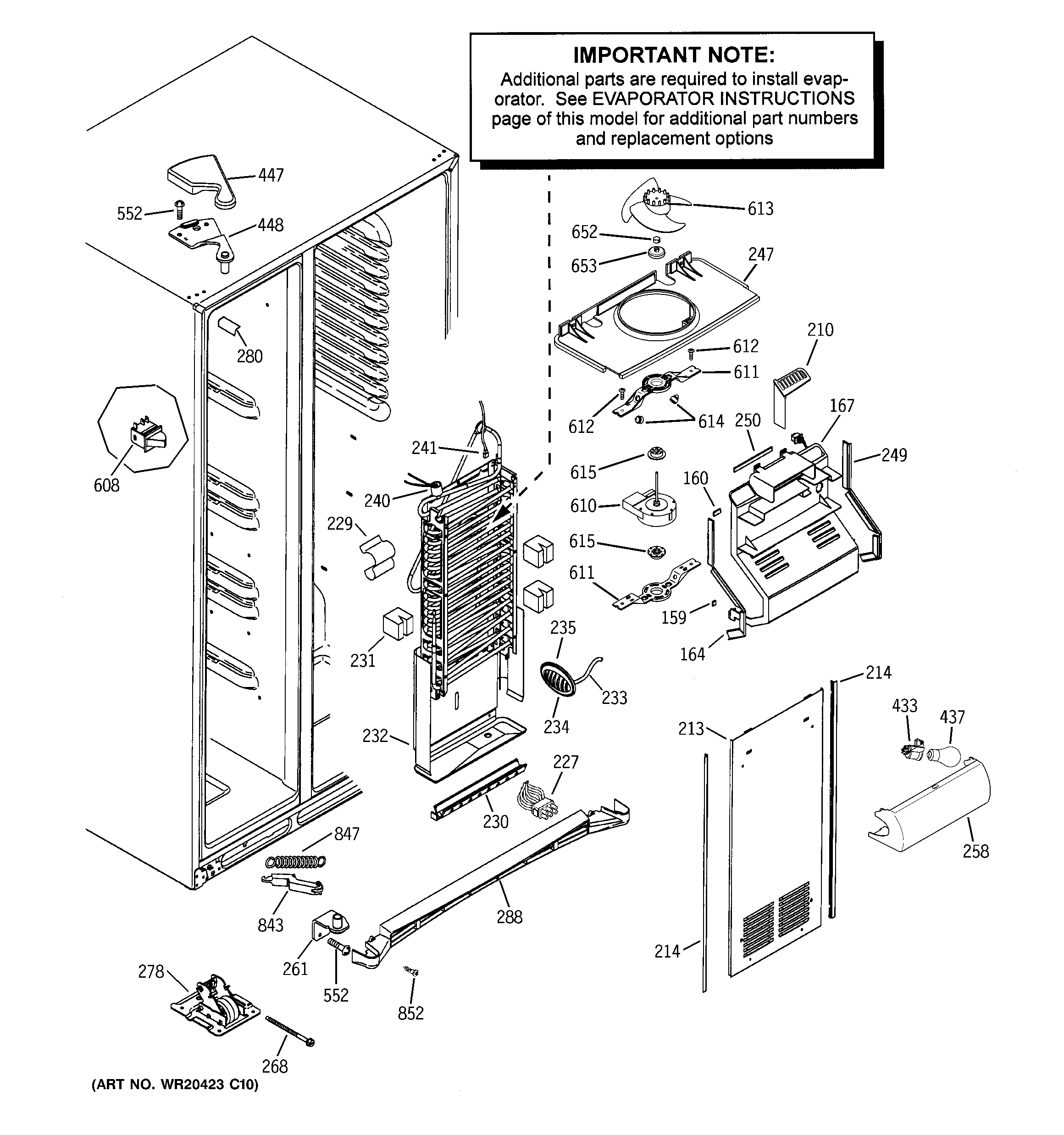

• Refrigerator evaporator fan motor WR60X10307 (moves cold air through the compartments)
• Refrigerator defrost heater WR51X10055 (melts frost during defrost cycles)

A proper reset clears temporary control glitches without changing your temperature settings. If symptoms return quickly, it usually indicates an airflow, defrost, or sensor issue that needs diagnosis rather than repeated resets.

Last updated: January 2026
