Kenmore 66512093K210 undercounter dishwasher Parts

For a Kenmore dishwasher model 66512093K210, a hard reset is typically done by canceling the current cycle and power-cycling the unit so the control clears and restarts cleanly. Use the exact button sequence and timing in the 66512093K210 owner's manual for your control panel.

Quick hard reset steps (most Kenmore dishwashers)

• Press Cancel/Drain (or Cancel) once; wait for the drain to finish.
• Turn OFF power at the breaker (or unplug) for 3 minutes.
• Restore power.
• Start a normal cycle and let it run 2 to 3 minutes to confirm the dishwasher fills and washes.
• If the control is unresponsive, repeat the power-off step for 5 minutes.

If the buttons are lit but the dishwasher will not start

These checks fix the most common “won’t start” symptoms after a reset:

• Make sure the door is fully latched; a weak latch can prevent starting.
• Confirm the control lock is off (some models require holding a key for 3 seconds).
• Verify the dishwasher has water supply turned on under the sink.
• Check for a stuck drain condition (standing water can keep some models from advancing).

What a reset does (and does not) do

Action	What it accomplishes	What it will not fix
Cancel/Drain	Stops the cycle and drains water	Broken pump, clogged hose, failed valve
Power cycle	Reboots the electronic control	Heating, leaking, or mechanical failures

Why it matters

A proper hard reset clears a “hung” cycle and restores normal control operation. If the dishwasher still will not run after a reset, the issue is usually a door latch problem, a drain restriction, or a failed component such as the Dishwasher electronic control W10482988.

Last updated: January 2026

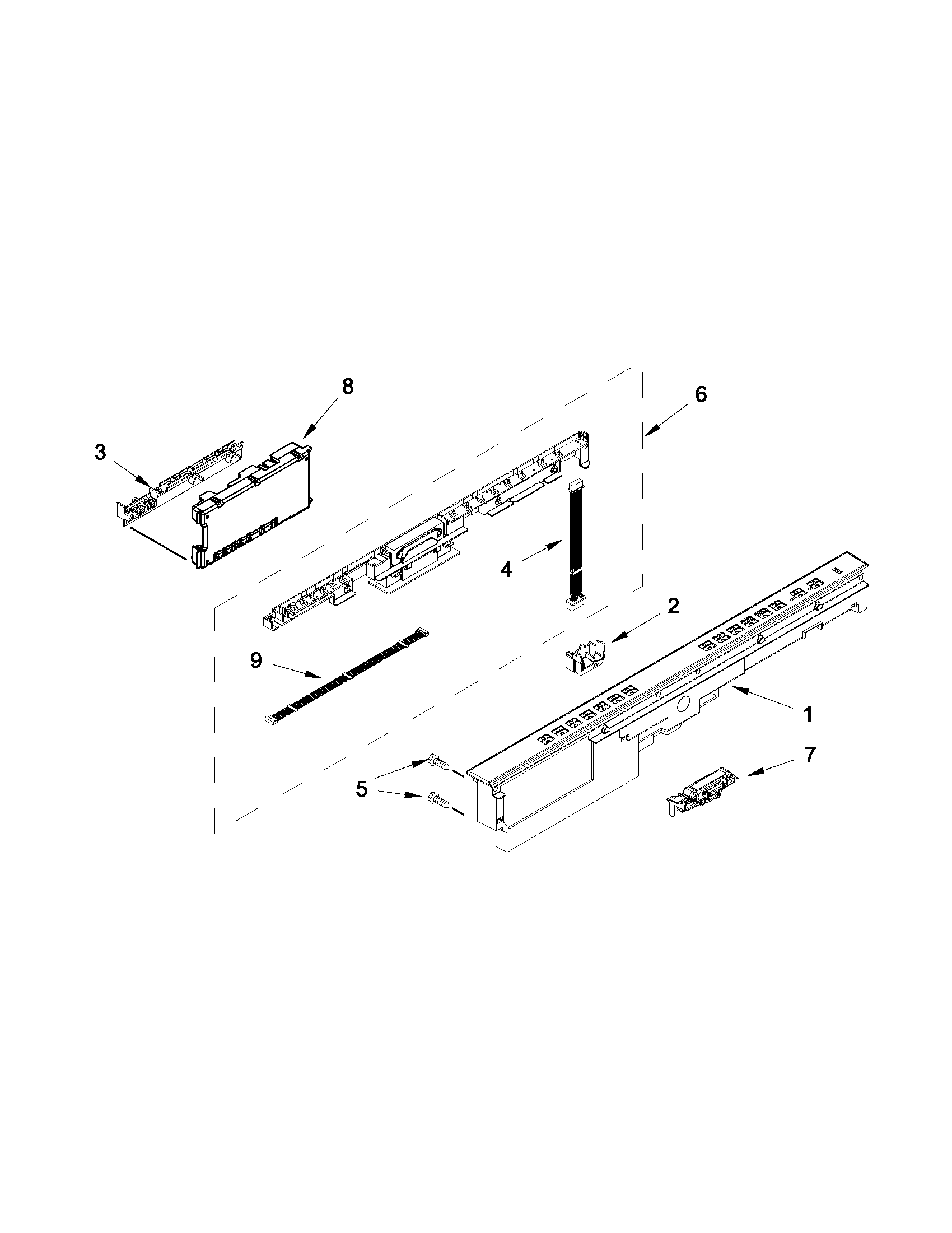

On Kenmore dishwasher model 66512093K210, error code F2E2 means the control is not communicating correctly between the user interface (keypad/console) and the main electronic control. This is typically caused by a stuck key, a loose wiring connection, or a failing control component.

What to try first (quick reset and checks)

• Press Cancel/Drain (or Cancel) and let the dishwasher attempt to drain.
• Turn power off at the breaker for 1 minute, then restore power.
• Check for a stuck button on the console (a key that feels jammed or won’t click normally).
• If the unit powers on but won’t respond to selections, focus on the console/user interface side.
• If the display is blank or erratic, focus on the main control and wiring.

For model-specific console behavior and any diagnostic steps, follow the 66512093K210 owner's manual.

Common causes of F2E2 on this model

Likely cause	What you’ll notice	Typical fix
Stuck key on keypad	Beeping, won’t accept selections	Free the key; replace console if needed
Loose or corroded connector	Intermittent operation	Reseat connectors; inspect pins
Damaged wire harness	Random resets, dead keys	Repair/replace harness
Failed electronic control	No response or repeated code	Replace control

Safe troubleshooting steps (power off first)

• Shut off power at the breaker; do not work with live voltage.

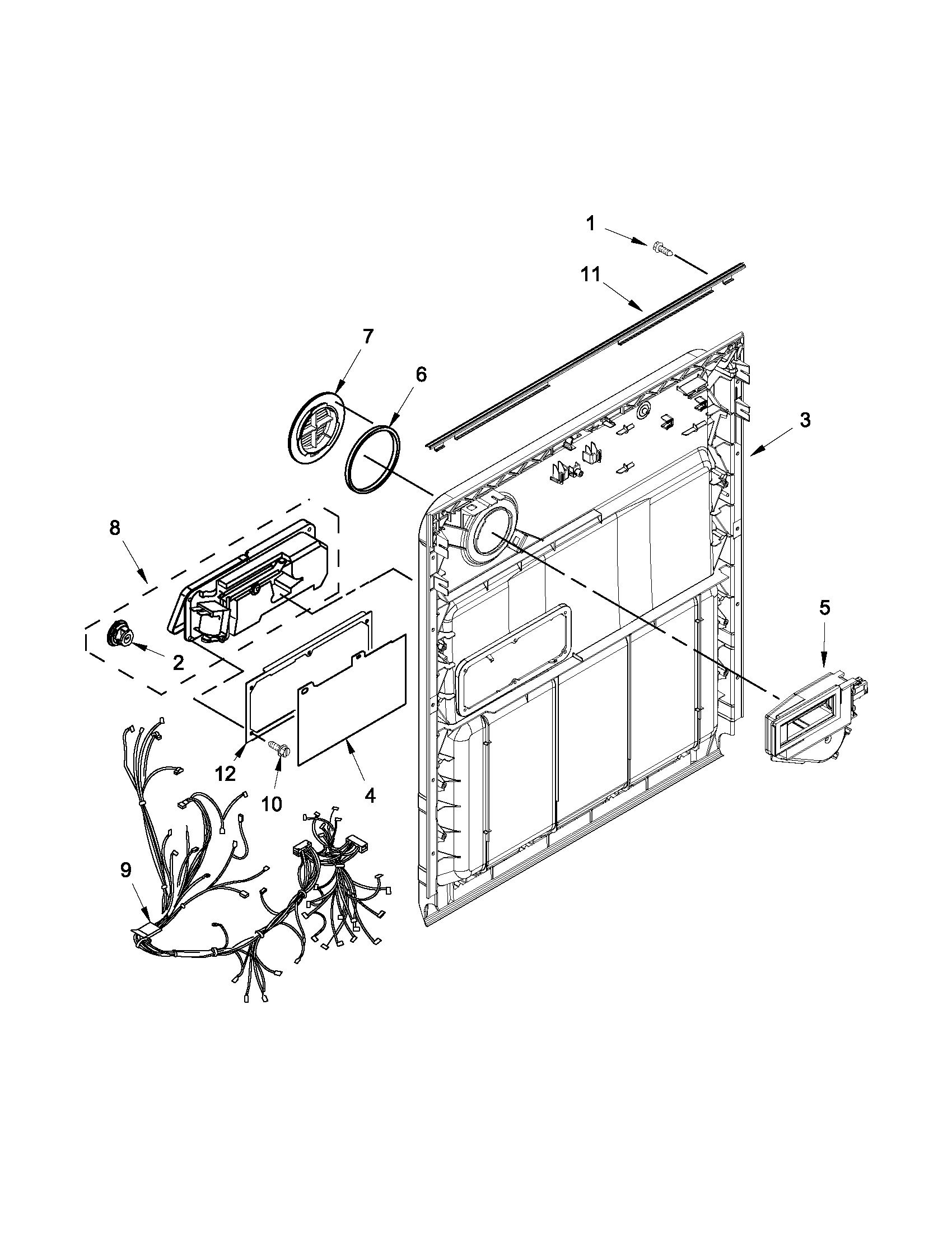

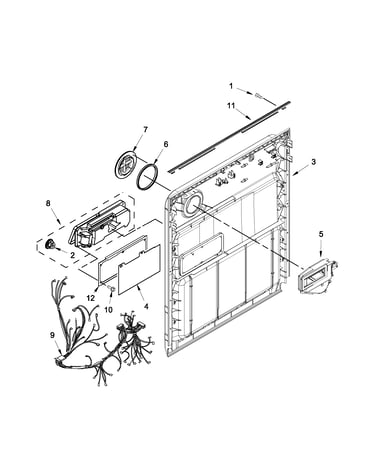

• Remove the inner door panel and inspect the ribbon/plug connections between the console and control.
• Look for moisture tracks, corrosion, or a partially backed-out connector.
• If wiring checks out, the most common repair path is replacing the main control or the user interface, depending on symptoms.

If you’re tracing wiring or checking continuity, use the how to use a multimeter to test electrical parts video as a guide.

Why it matters

When the user interface and main control can’t “talk,” the dishwasher may not start, may stop mid-cycle, or may drain unexpectedly. Fixing the communication issue restores normal cycle selection, washing, and drying performance.

Last updated: January 2026

Standing water in your Kenmore dishwasher model 66512093K210 usually means the unit did not drain at the end of the cycle. We remove the water safely first, then check the drain path (filter, hose routing, and drain pump) so the problem does not come right back.

Step 1: Remove the standing water safely

• Turn off power to the dishwasher at the breaker (or unplug it).
• Put towels under the door area to catch spills.
• Scoop water out with a cup, then soak up the rest with towels or a sponge.
• If the water is dirty, remove food debris as you bail it out.

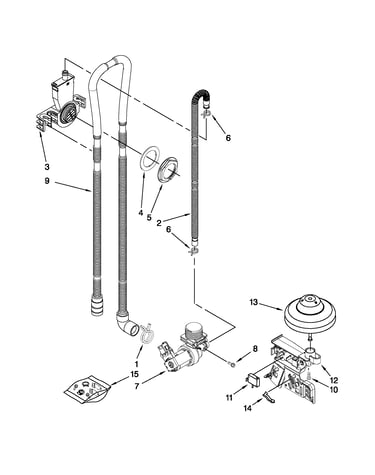

Step 2: Fix the most common causes of poor draining

• Clean the filter area: A clogged filter or sump area is the most common reason water stays behind. If your filter is damaged or will not clean up, replace it with the correct filter for this model (for example, dishwasher filter W10872845 or dishwasher filter WPW10463906).

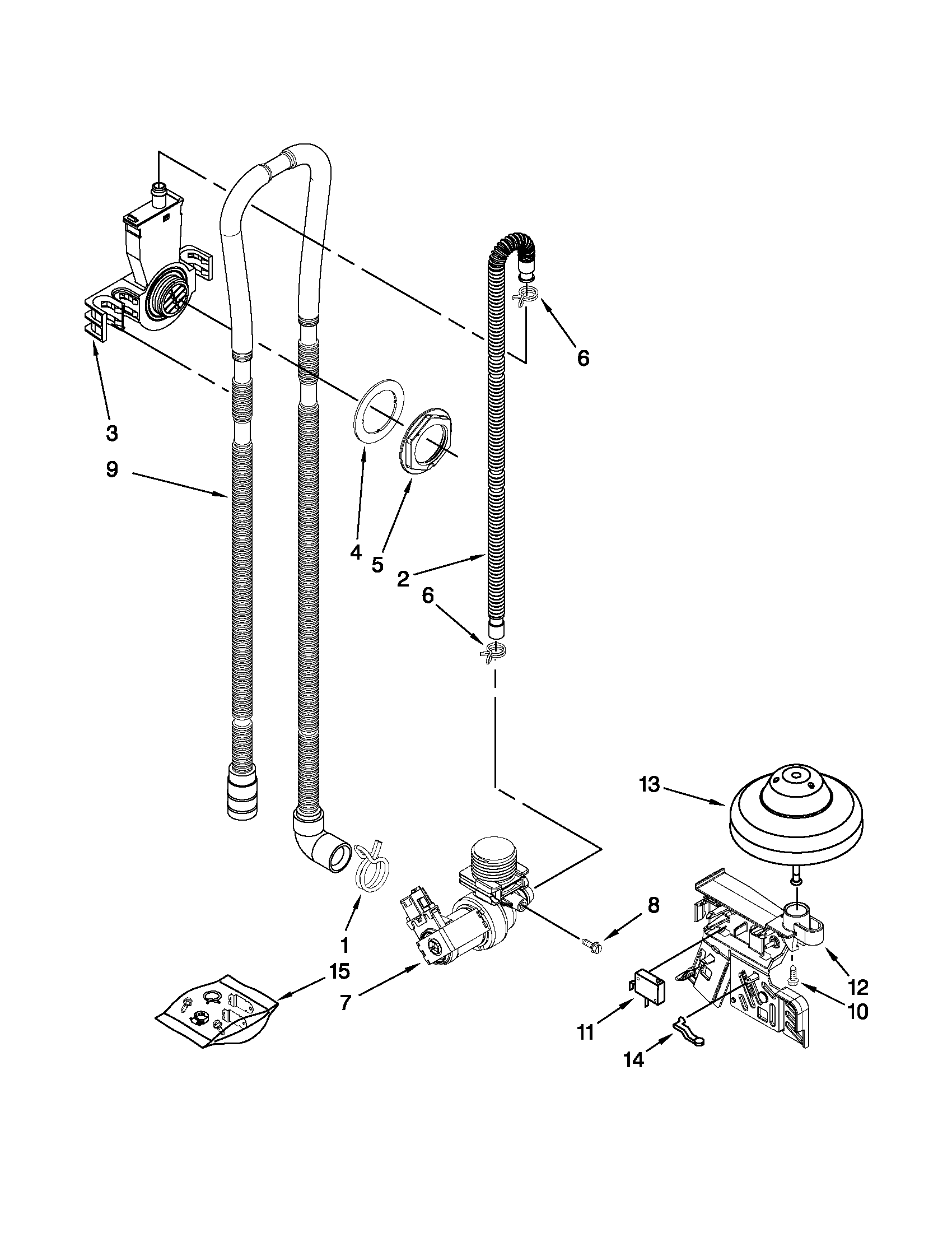

• Check the drain hose routing: The drain hose should be routed correctly and not kinked or pinched. During installation, the drain hose is routed through the cabinet opening and connected at the sink or disposer; using a new hose is recommended. Confirm the hose is not crushed behind the dishwasher.
• Look for a blocked drain connection: If the dishwasher drains into a garbage disposer, make sure the disposer inlet is open (the knockout plug must be removed on new disposer installs).

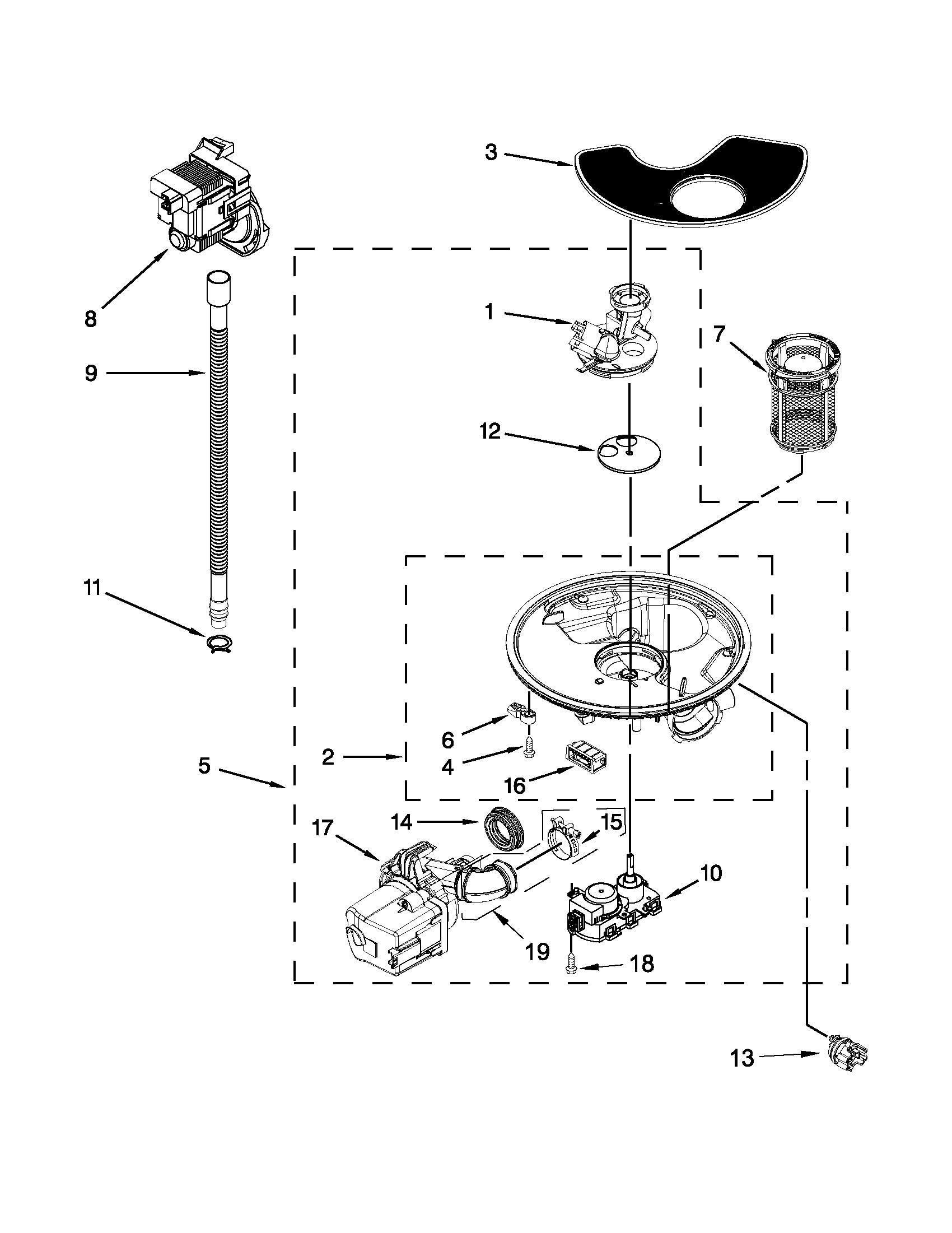

• Test the drain pump: If you hear humming but little or no draining, the pump may be jammed or failing. The correct replacement for this model is the dishwasher drain pump WPW10348269.

Quick symptom-to-part guide

What you notice	Most likely area	Common fix
Water remains, lots of debris	Filter/sump	Clean or replace filter
Water remains, hose looks crushed	Drain hose routing	Re-route/replace hose
Hums but does not drain	Drain pump	Clear jam or replace pump

Why it matters

Standing water can cause odors, redeposit food soil on dishes, and strain the drain pump. Restoring proper draining protects the pump and helps your Kenmore dishwasher clean and dry better.

Helpful reference

Use the 66512093K210 installation guide to confirm correct drain hose routing and connection practices (including using a new drain hose and avoiding kinks/pinches when sliding the dishwasher into the cabinet opening).

Last updated: January 2026

On the Kenmore 66512093K210 dishwasher, an F4E1 service code points to a wash motor or circulation problem (the dishwasher is not moving water through the spray system correctly). Fixes typically involve checking for a blockage first, then testing the wash motor circuit and replacing the failed component.

What to check first (fast, no-parts steps)

• Turn off power at the breaker for 1 minute, then restore power and try a quick cycle.
• Cancel and drain; confirm the unit drains fully (standing water can mimic wash issues).

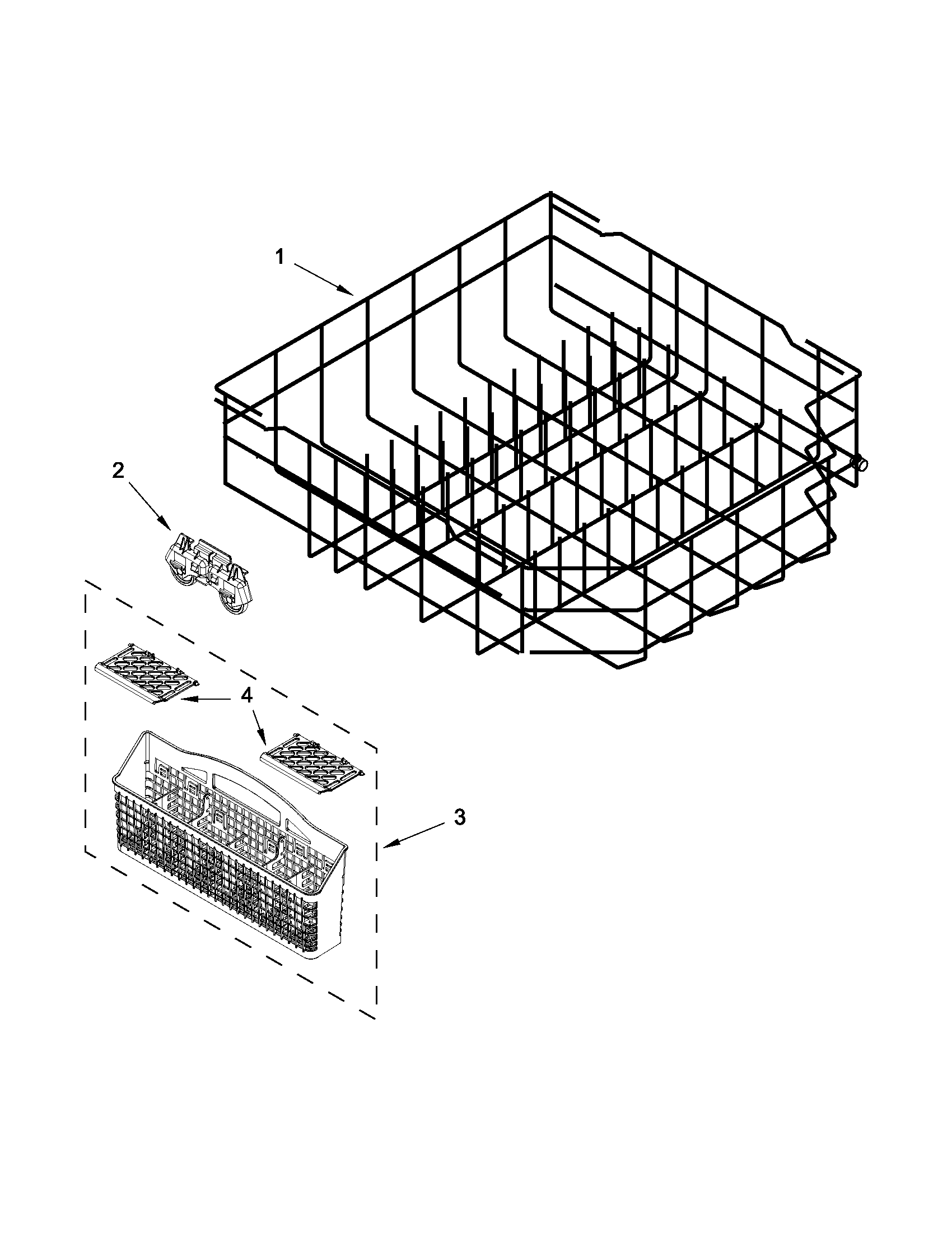

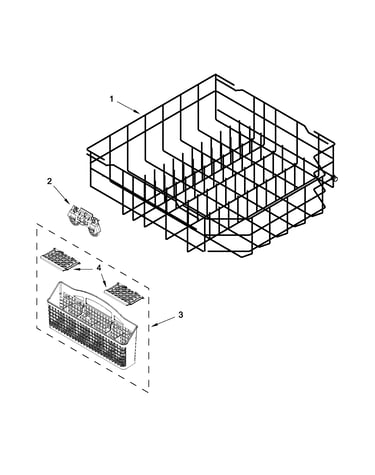

• Remove the lower rack and inspect the sump area for debris (glass, labels, food).
• Clean the filters so water can circulate properly.

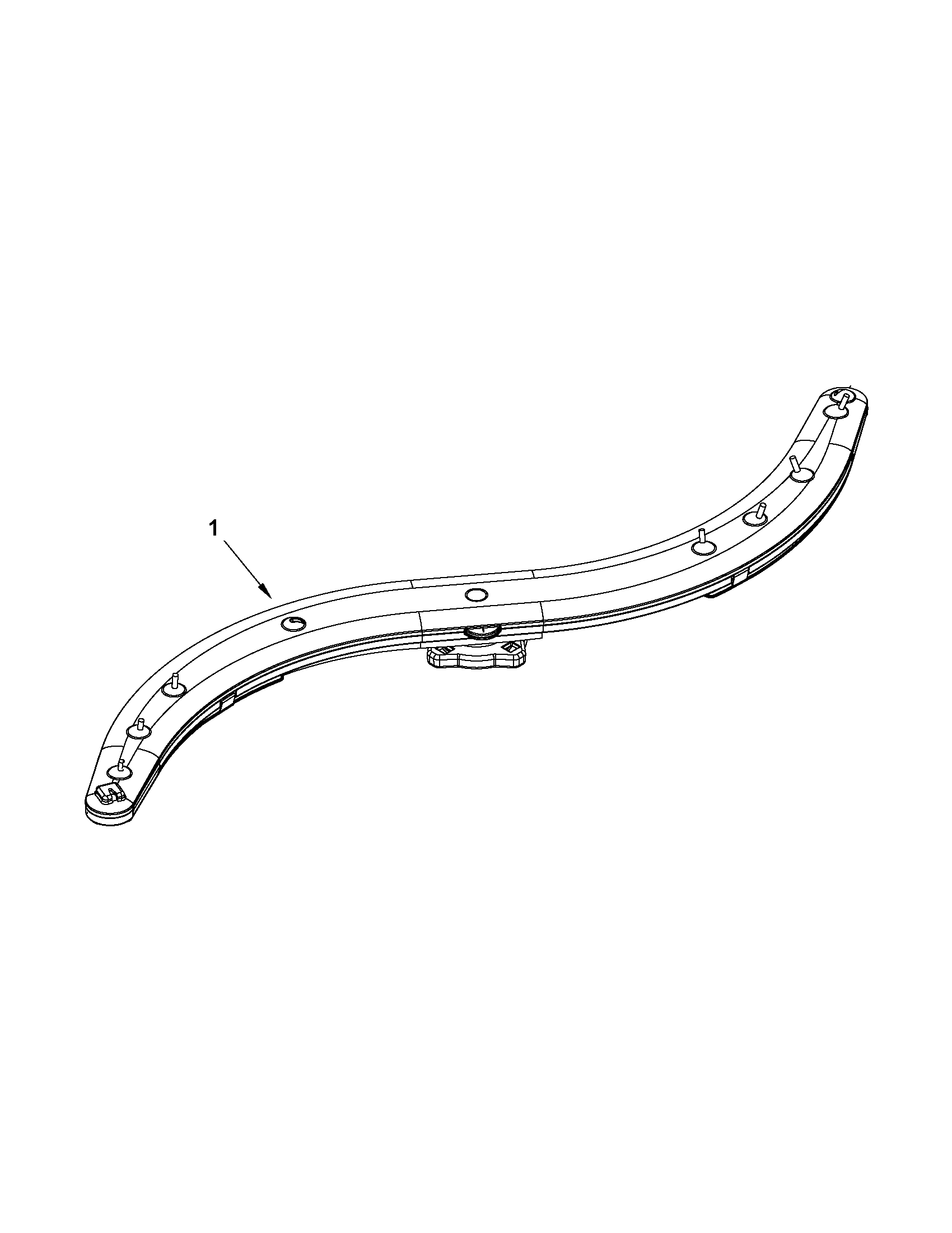

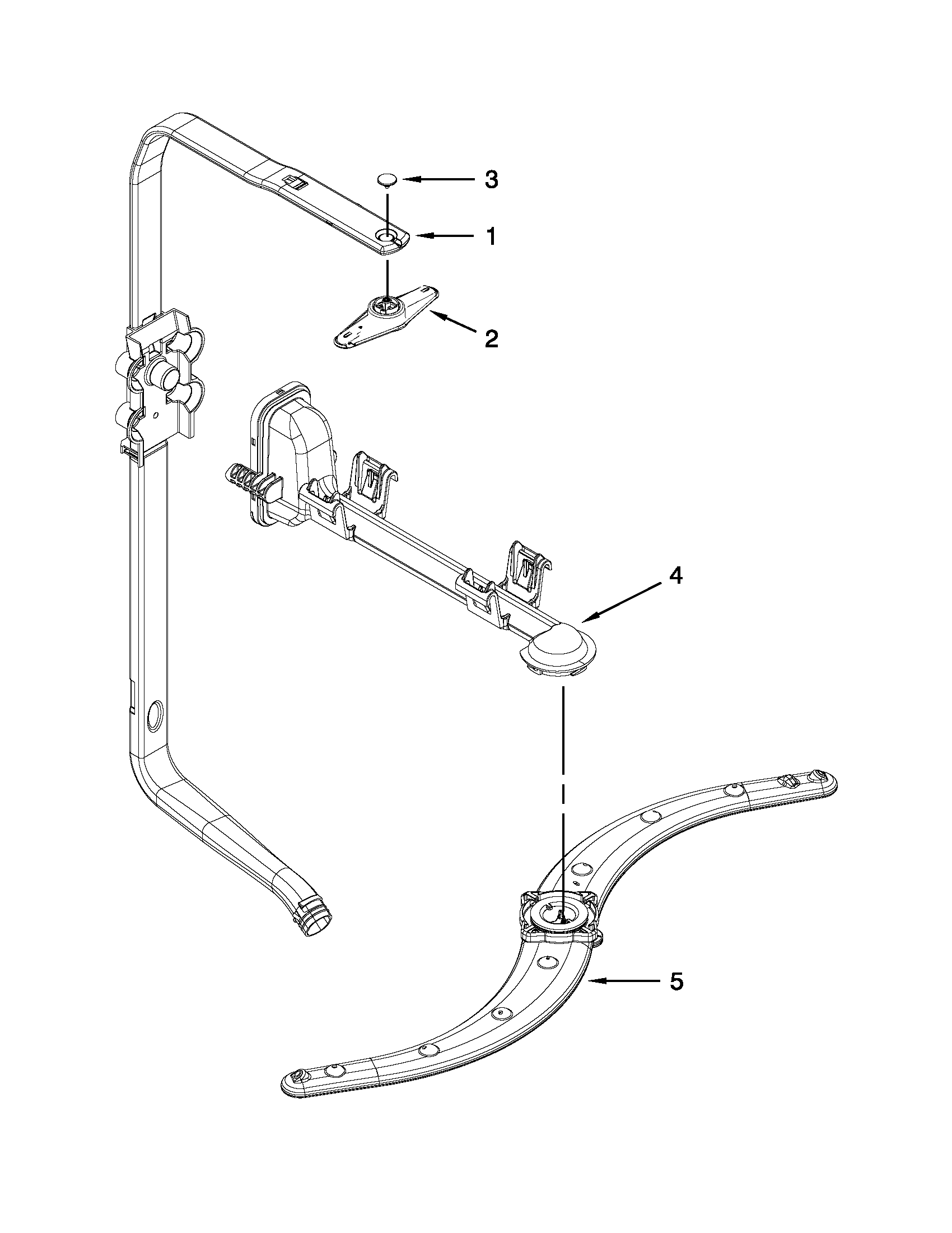

• Verify the spray arms spin freely and the holes are not clogged.

Parts that commonly relate to F4E1 symptoms

If the dishwasher fills and drains but does not wash (no strong spray sound, dishes stay dirty), these parts are the most common suspects for this model family:

Symptom you notice	Most likely area	Example part for this model
Fills, then quiet, poor/no spray	Wash circulation system	Dishwasher pump motor assembly W11032770
Intermittent wash pressure, odd routing	Diverter system	Dishwasher diverter motor W10537869
Poor circulation after cleaning, leaks at sump	Sump sealing/circulation path	Dishwasher sump and seal assembly WPW10455268

Reset and verification

After correcting the cause (clearing a blockage or replacing a failed motor-related part), run a short cycle and confirm:

• You hear a steady wash motor sound during the wash portion.
• Water is spraying strongly inside the tub.
• The code does not return.

For model-specific diagnostics, wiring checks, and the correct key sequence for your control panel style, follow the steps in the 66512093K210 installation guide.

Why it matters

An F4E1 condition usually means the dishwasher is not circulating water; continuing to run cycles can leave detergent undissolved, cause poor cleaning, and strain the pump and motor system.

Last updated: January 2026
