Maytag MFD2561HEB refrigerator

Maytag MFD2561HEB refrigerator Parts

Here are the diagrams and repair parts for Maytag MFD2561HEB refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for MFD2561HEB Refrigerators

  • Whirlpool Everydrop 4 Refrigerator Water Filter for Maytag MFD2561HEB - Part EDR4RXD1

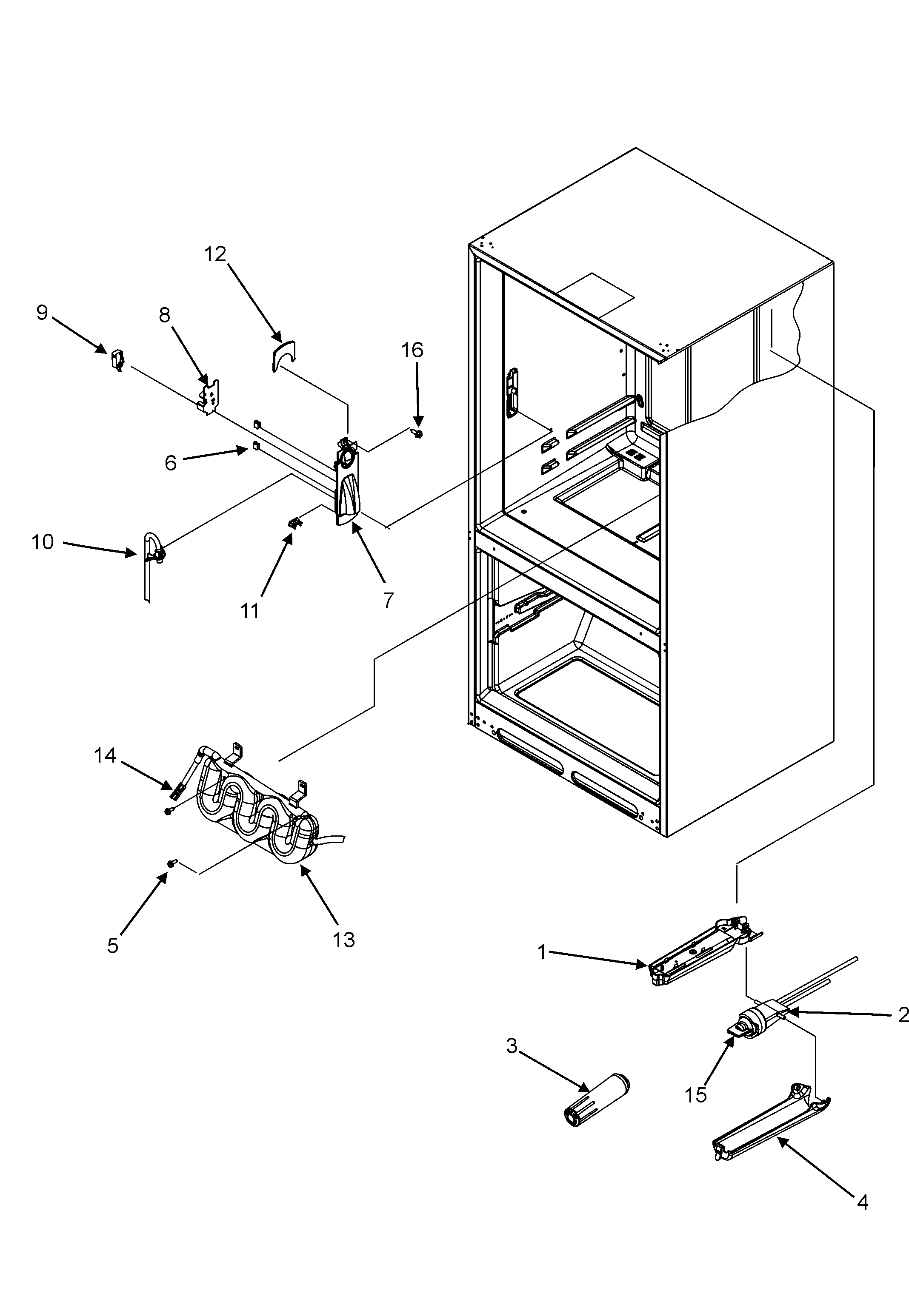

    Water dispenser/filter diagram

    Refrigerator Water Filter

    Part #67003591

    Replaced by #EDR4RXD1

    Info Icon
    Manufacturer substitution
    This part replaces 67003591. Substitute parts can look different from the original.
    Get free shipping with Automatic Reorder
    In Stock
    $61.63
    9% OFF Phone Price : $67.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Ice Maker (d7824706q) for Maytag MFD2561HEB - Part D7824706Q

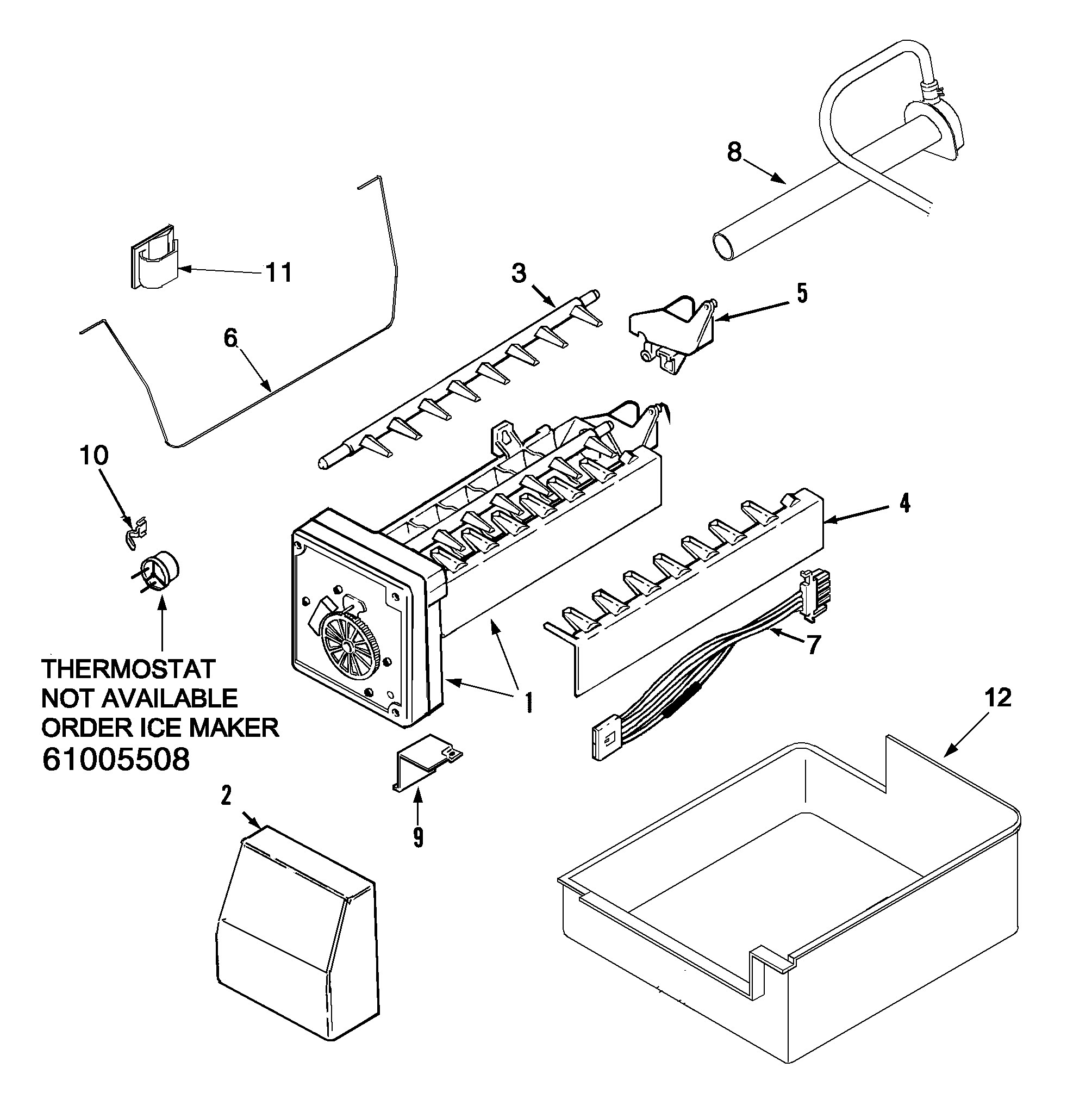

    Ice maker diagram

    Refrigerator Ice Maker

    Part #61005508

    Replaced by #D7824706Q

    Info Icon
    Manufacturer substitution
    This part replaces 61005508. Substitute parts can look different from the original.
    In Stock
    $101.86
    11% OFF Phone Price : $113.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Pantry Drawer End Cap Set for Maytag MFD2561HEB - Part W10874836

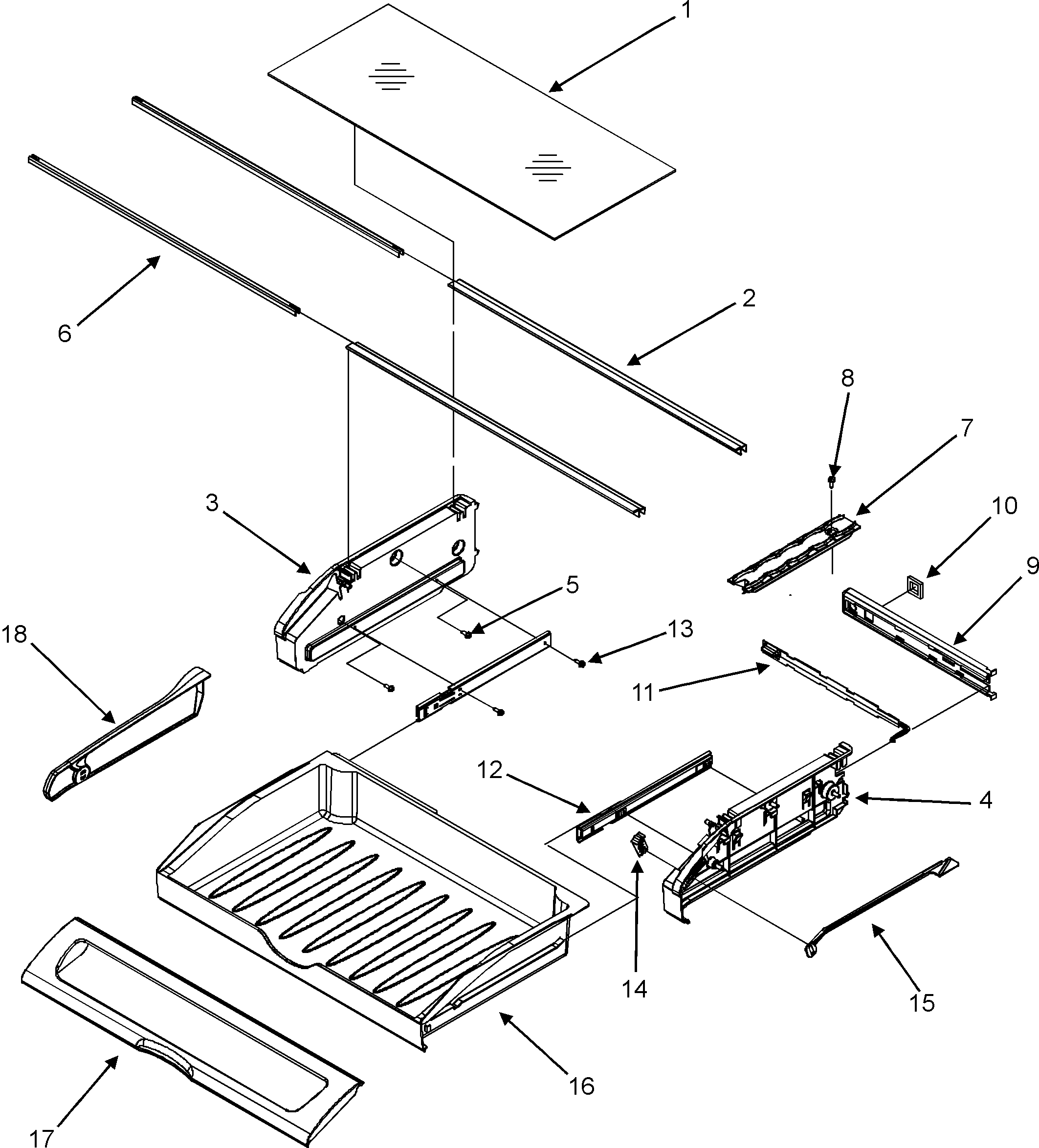

    Pantry assembly diagram

    Refrigerator Pan End Cap

    Part #67002757

    Replaced by #W10874836

    Info Icon
    Manufacturer substitution
    This part replaces 67002757. Substitute parts can look different from the original.
    In Stock
    $29.45
    17% OFF Phone Price : $35.45Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Pantry Drawer End Cap Set for Maytag MFD2561HEB - Part W10874836

    Pantry assembly diagram

    Refrigerator Pan End Cap

    Part #67003281

    Replaced by #W10874836

    Info Icon
    Manufacturer substitution
    This part replaces 67003281. Substitute parts can look different from the original.
    In Stock
    $29.45
    17% OFF Phone Price : $35.45Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Blade for Maytag MFD2561HEB - Part WP2169142

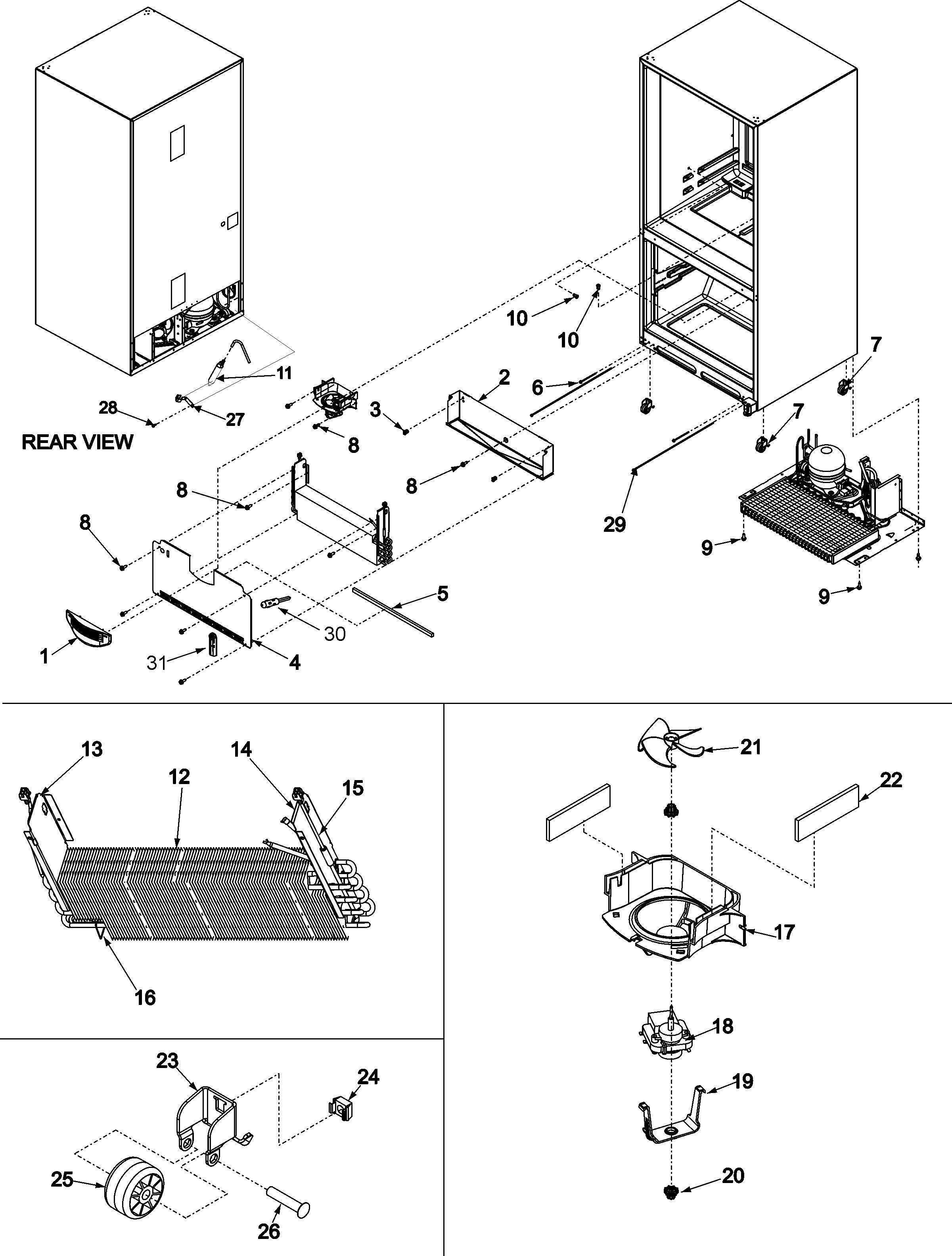

    Evaporator area & rollers diagram

    Refrigerator Evaporator Fan Blade

    Part #12217201

    Replaced by #WP2169142

    Info Icon
    Manufacturer substitution
    This part replaces 12217201. Substitute parts can look different from the original.
    In Stock
    $24.25
    20% OFF Phone Price : $30.25Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Door Switch for Maytag MFD2561HEB - Part W11384469

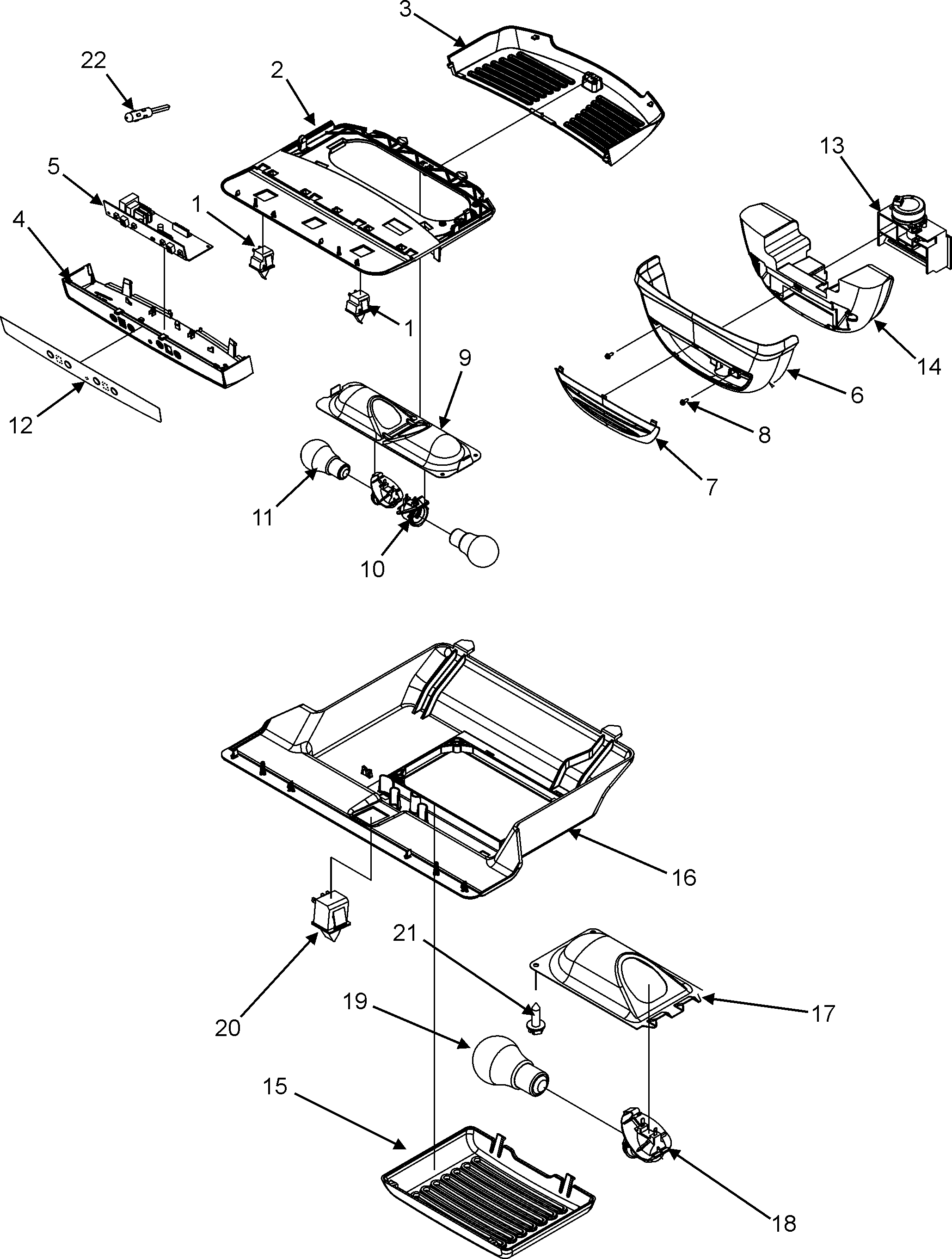

    Controls diagram

    Refrigerator Light Switch

    Part #C3680310

    Replaced by #W11384469

    Info Icon
    Manufacturer substitution
    This part replaces C3680310. Substitute parts can look different from the original.
    In Stock
    $25.13
    19% OFF Phone Price : $31.13Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Crisper Drawer Slide Rail for Maytag MFD2561HEB - Part WPW10326469

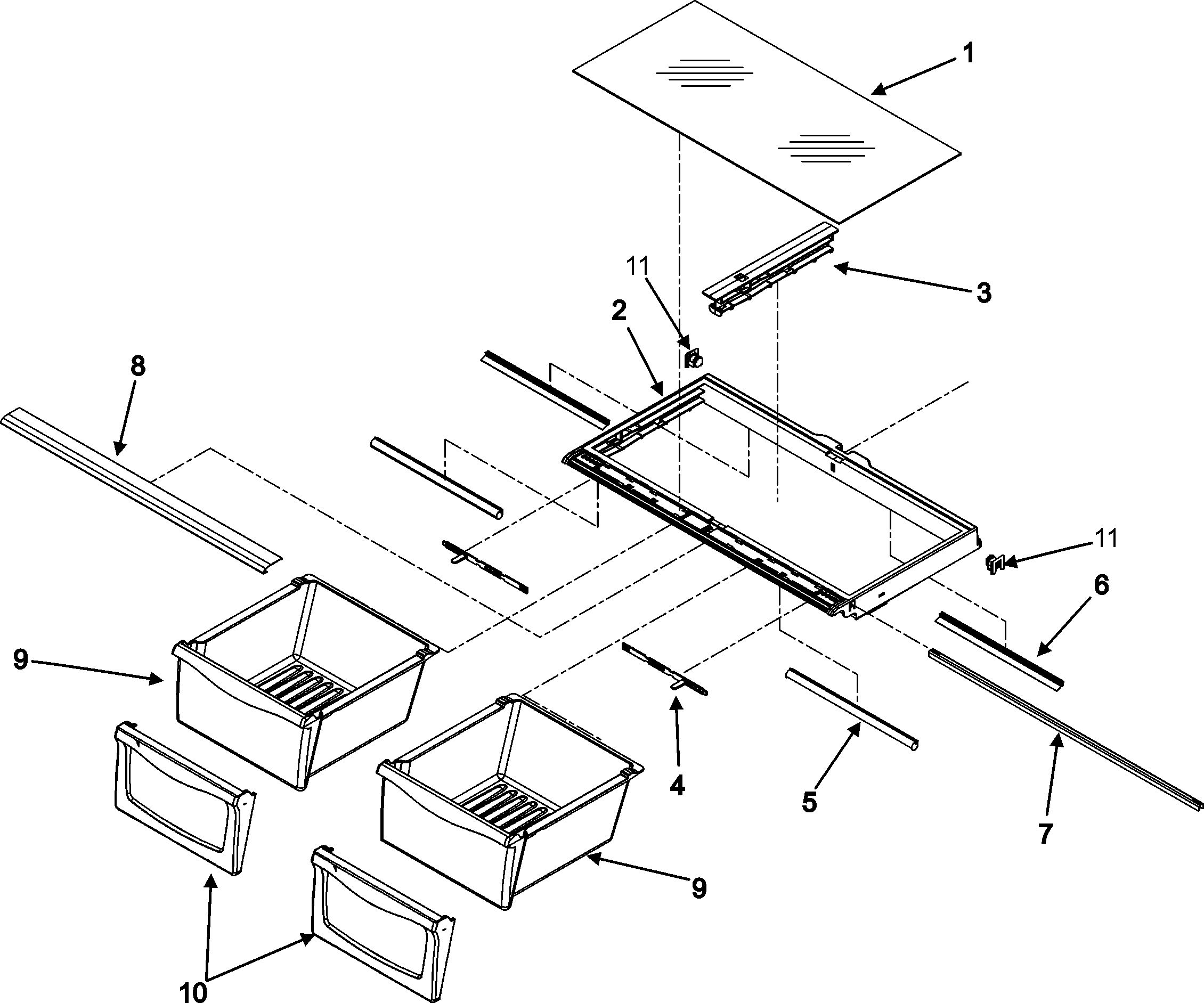

    Crisper assembly diagram

    Refrigerator Crisper Drawer Support Rail, Center

    Part #67004514

    Replaced by #WPW10326469

    Info Icon
    Manufacturer substitution
    This part replaces 67004514. Substitute parts can look different from the original.
    In Stock
    $17.88
    10% OFF Phone Price : $19.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Compressor Overload And Start Relay for Maytag MFD2561HEB - Part W10613606

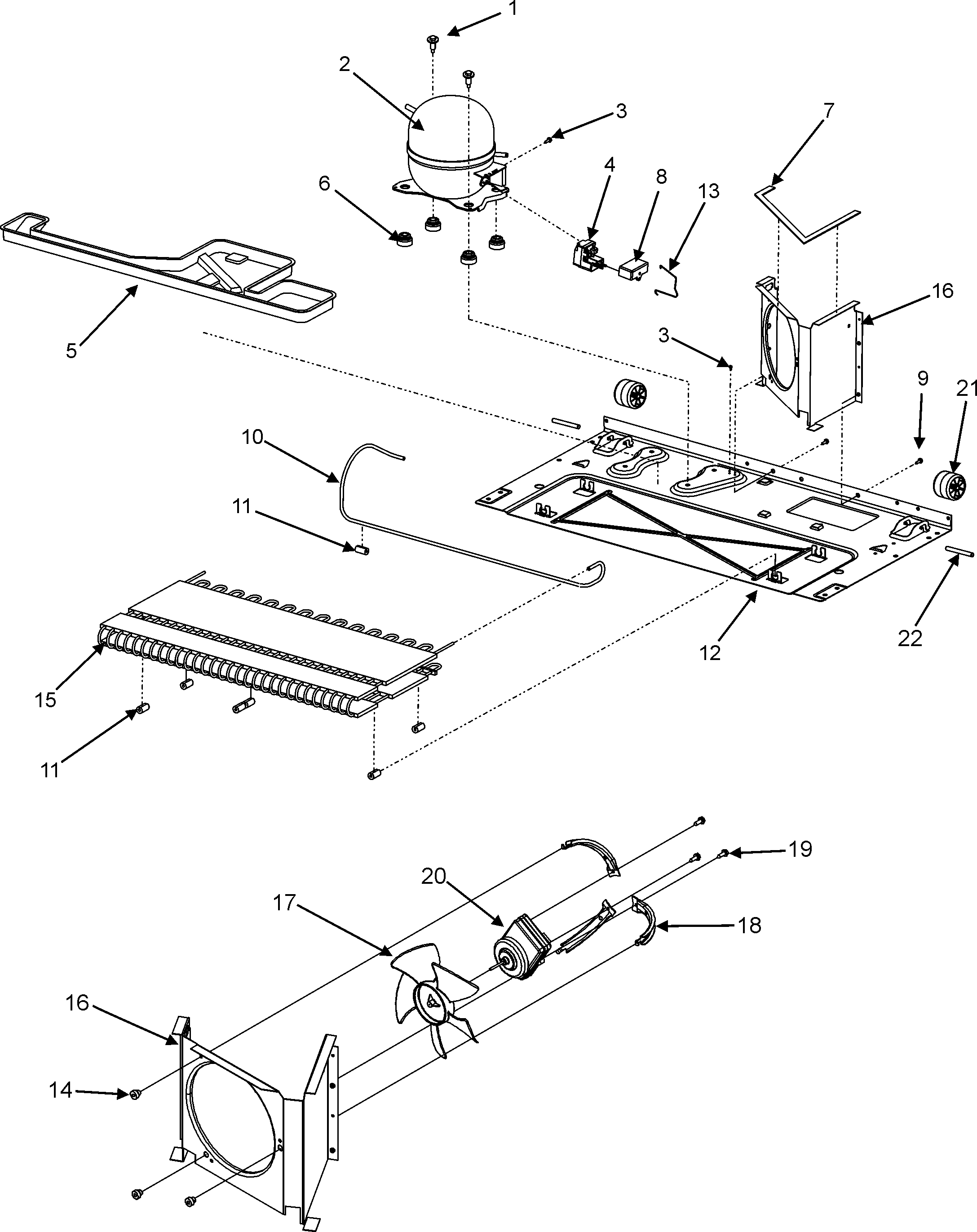

    Compressor diagram

    Refrigerator Overload Release

    Part #67003764

    Replaced by #W10613606

    Info Icon
    Manufacturer substitution
    This part replaces 67003764. Substitute parts can look different from the original.
    In Stock
    $52.97
    10% OFF Phone Price : $58.97Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Pantry Drawer Door for Maytag MFD2561HEB - Part W10827015

    Pantry assembly diagram

    Pantry Lid

    Part #67004643

    Replaced by #W10827015

    Info Icon
    Manufacturer substitution
    This part replaces 67004643. Substitute parts can look different from the original.
    In Stock
    $123.00
    9% OFF Phone Price : $135.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor for Maytag MFD2561HEB - Part W10160407

    Compressor diagram

    Refrigerator Compressor

    Part #67003762

    Replaced by #W10160407

    Info Icon
    Manufacturer substitution
    This part replaces 67003762. Substitute parts can look different from the original.
    In Stock
    $508.47
    Minus Item
    Qty
    Plus Item

Maytag Refrigerator MFD2561HEB FAQs

A Maytag refrigerator typically lasts 13 years on average. For your Maytag MFD2561HEB bottom-mount refrigerator, good airflow, clean condenser coils, and tight door seals help it reach that expected service life; see the maintenance guidance in the owner's manual.

Typical lifespan and what to expect

Most full-size household refrigerators, including Maytag bottom-mount models like MFD2561HEB, fall into this range:

Appliance type Typical lifespan
Standard household refrigerator 13 years
With excellent maintenance and stable power 15 years
With poor ventilation or dirty coils 10 to 12 years

What shortens (or extends) refrigerator life

These are the biggest real-world factors we see:

  • Dirty condenser coils make the compressor run hotter and longer
  • Worn or dirty door gaskets cause warm air leaks and longer run times
  • Overcrowding reduces air circulation and slows cooling
  • Frequent door opening increases run time and frost/moisture load
  • Warm room location (sunlight, near heat vents, near ovens) increases workload
  • Poor leveling can prevent doors from sealing consistently

Maintenance that helps you hit the 13-year average

The MFD2561HEB manual emphasizes efficiency habits that also reduce wear:

  • Clean the condenser coils about every 3 months
  • Clean door gaskets about every 3 months so they seal properly
  • Keep the freezer about two-thirds full for efficient operation
  • Avoid adding large amounts of warm food at once
  • Do not use shelf liners that block airflow

Why it matters

A refrigerator’s most expensive components (like the compressor and sealed system) last longer when the unit can shed heat and maintain temperature without running constantly. Simple upkeep, especially coil and gasket care, directly reduces run time and stress.

Last updated: February 2026

A bottom-freezer design (like the Maytag MFD2561HEB) is usually the better everyday choice because the fresh-food section sits at eye level, so you access the items you use most without bending. A top-freezer can be slightly more energy-efficient, but convenience typically favors a bottom-mount.

Quick comparison

Layout Best for Typical tradeoffs
Bottom freezer (bottom-mount) Frequent fresh-food access More bending for frozen foods; freezer drawers can be heavier when full
Top freezer Simple layout and value More bending for fresh foods; less convenient for daily use
Side-by-side Narrow door swing, balanced access Narrower shelves; less room for wide items

What matters most in real use

  • If you use the refrigerator section far more than the freezer, a bottom-mount saves time and back strain.
  • If you batch-cook and use frozen foods daily, a top-freezer can feel more convenient.
  • If your kitchen is tight, door swing and drawer clearance can matter as much as the layout.

Efficiency tips that help either style

Your MFD2561HEB will run best when airflow and temperatures are managed well. We recommend:

  • Keep the freezer about 0°F (-18°C) and allow 24 hours after control changes for temperatures to stabilize.
  • Avoid overcrowding shelves; blocked airflow makes the refrigerator run longer.
  • Keep the freezer at least two-thirds full for steadier temperatures.
  • Organize items so the door stays open for less time.
  • Follow the clearance guidance in the owner's manual so the machine compartment can ventilate properly.

Why it matters

Freezer placement is mostly about ergonomics and how your household uses food. Temperature stability and good airflow have a bigger impact on performance than whether the freezer is on top or bottom.

Last updated: February 2026

A bottom-freezer design like the Maytag MFD2561HEB puts fresh food at eye level, but it also means you typically bend more to reach frozen items and may need to lift heavier foods up from a lower drawer. For model-specific use and care details, check the owner's manual.

Common disadvantages you may notice

  • More bending for freezer access: Lower baskets and drawers require crouching to see and reach items.
  • Heavier lifting from a low position: Bulk frozen foods (meat, bags of ice, large boxes) can be awkward to lift out.
  • Freezer organization can be trickier: Deep drawers can hide items unless you use bins or labels.
  • Upfront cost can be higher: Bottom-mount designs often cost more than basic top-freezer models.
  • More time with the freezer open: Digging through drawers can let warm air in, which can increase run time.

Practical ways to reduce the downsides

  • Keep “daily-use” frozen items in the upper basket; store bulk items in the lower basket.
  • Use small bins to group foods (breakfast, vegetables, snacks) so you are not searching with the door open.
  • Avoid overpacking; good airflow helps cooling efficiency.
  • Make sure the refrigerator is level so doors and drawers close smoothly (leveling guidance is in the manual).

Bottom freezer vs. top freezer (quick comparison)

Feature Bottom freezer Top freezer
Fresh food access Easier (less bending) More bending
Frozen food access More bending Easier
Handling heavy frozen items Harder (lift up) Easier
Typical price Often higher Often lower

Why it matters

If the freezer is harder to access, it is common to keep the door open longer while searching. Longer door-open time and warm kitchen conditions can make a refrigerator run more frequently, so organization and quick access help day-to-day performance.

Last updated: February 2026

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…
