CONFIRM THE PART FITS

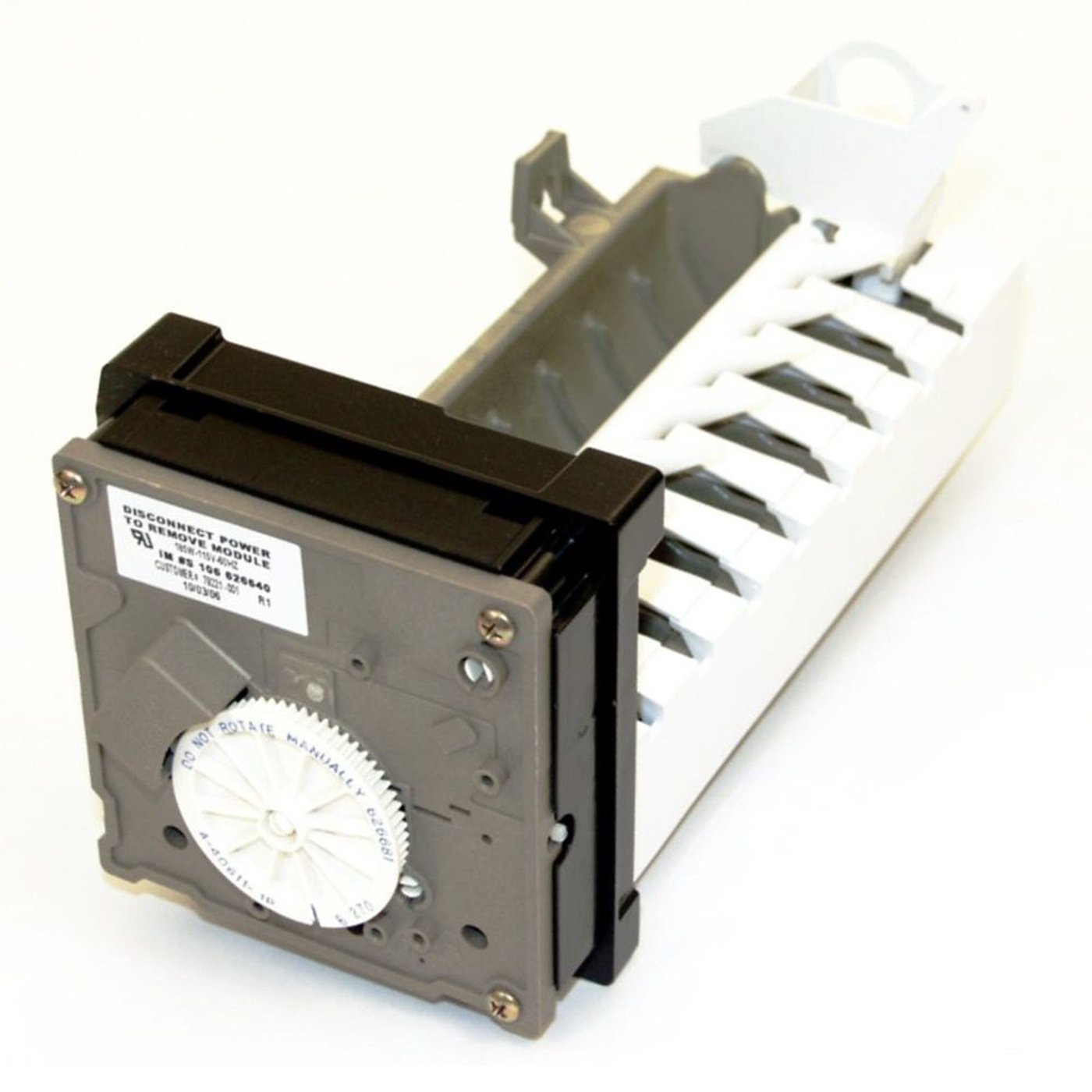

Refrigerator Ice Maker D7824706Q
Part #D7824706Q
Part Information
This ice maker (part number D7824706Q) is for refrigerators.
Ice maker D7824706Q includes the ice mold and the control device. The ice maker receives water from the water inlet valve and then holds the water in the ice mold until the water freezes solid. It then automatically ejects the ice and refills to continue the process until the ice storage bin is full.
Safely store any food that could deteriorate while the power is off and unplug the refrigerator when installing this part. Wear work gloves to protect your hands.
Ice maker D7824706Q replaces earlier part numbers 0312578, 10563707, 67001263, 8170937, D7767601, D7824701, D7824702, D7824703, D7824704, D7824705, D7824705Q, D7824706, D782706Q, R0156628, R0156669, R0167201, R0194462, W10122519, W10190978, Y0056599, Y689724, YR0161061.
Frequently Used Together
Top models using the same part
Model Name | Model Number | Diagram Name |
---|---|---|
Model #BS24Y9DB Maytag refrigerator | BS24Y9DB | Ice maker |
Model #RCE244RDA/DS86A Maytag refrigerator | RCE244RDA/DS86A | Ice maker & bin |
Model #RCE224RDA Maytag refrigerator | RCE224RDA | Ice maker & bin |
Model #RC224PDK/DS33A Magic Chef refrigerator | RC224PDK/DS33A | Ice maker & bin (rc224pda/ds33a) (rc224pdk/ds34a) (rc224pdv/ds32a) |
Model #RC224RDA/DS35A Magic Chef refrigerator | RC224RDA/DS35A | Ice maker & bin (rc224rda/ds37a) (rc224rda/ds37b) (rc224rdk/ds35a) (rc224rdv/ds36a) (rc224rdv/ds36b) |
Model #RC224RDA/DS36A Magic Chef refrigerator | RC224RDA/DS36A | Ice maker & bin (rc224rda/ds37a) (rc224rda/ds37b) (rc224rdk/ds35a) (rc224rdv/ds36a) (rc224rdv/ds36b) |
Model #RC244RDV/DS83A Magic Chef refrigerator | RC244RDV/DS83A | Ice maker & bin (rc244rda/ds84a) (rc244rda/ds84b) (rc244rdv/ds83a) (rc244rdv/ds83b) |
Model #RC224RDV/DS36B Magic Chef refrigerator | RC224RDV/DS36B | Ice maker & bin (rc224rda/ds37a) (rc224rda/ds37b) (rc224rdk/ds35a) (rc224rdv/ds36a) (rc224rdv/ds36b) |
Model #RC224PDA/DS34A Magic Chef refrigerator | RC224PDA/DS34A | Ice maker & bin (rc224pda/ds33a) (rc224pdk/ds34a) (rc224pdv/ds32a) |
Model #MTB2155GRQ Maytag top-mount refrigerator | MTB2155GRQ | Optional ice maker kit-uki1500axx |
Reviews
Exact replacement
First replacement after eighteen years was easy
Stan r, South east Kansas
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Yes, I would recommend this to a friend
Almost a complete ice-maker
There were a number of pieces that I had to migrate from the old ice-maker (the shut-off bale, the front cover, and the water intake funnel.) I thought I was ordering a "complete icemaker". Close, but no cigar. It worked fine after I got it put together and installed.
John D, Rochester, NY
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
I hope I'm wrong.
Not sure what to say. I took it out of the box and to me it looked like it was re boxed from a return. It had Greasy fingerprints on it. The good thing is it's making ice. One thing to remember is it takes awhile to start making ice. The thermostat inside icemaker hast to get cold enough before it starts to make a ice.
G e, Angles Camp Ca
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Kenmore icemaker
Helpful assistant. Quick shipping. Correct part sent.
Dolly, Florida
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Easy to install
It was easy to install and once we got the water line changed it immediately began to work flawlessly.
Jerry, Lake Charles
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
I now have efficient ice making.
It was the correct part and it was in fact easy to install, and I am not an appliance repair man, never actually "worked" on a refrigerator, though I have mechanic experience. Three screws and a plug, took mere minutes.
Rustler, Phoenix
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Yes, I would recommend this to a friend
Took much longer to get than install
It took about half an hour to install. A few parts had to be transferred from the original. The ice cube shut off bar, a wire guide, and the front guard. Slipped right in.
hershel, Botswana
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Sucked
Took 8 months to get here Tried to cancel order first 2weeks after I ordered it
Shut u, Georgia
Did you find this review helpful?
- Ease of Installation
- Very Difficult
- Duration of Installation
- More than 2 hours
