Whirlpool EB9SHKXVQ03 refrigerator Parts

On a Whirlpool EB9SHKXVQ03 bottom-mount refrigerator, the most expensive single part is typically the sealed-system compressor; it is a high-cost component and usually the priciest repair when it fails. Electronic controls can also be expensive, but the compressor is most often the top-cost replacement.

What’s usually the costliest on this model

For this Whirlpool refrigerator, these parts tend to sit at the top of the price range:

• Compressor: the core of the sealed cooling system (often the highest-cost part)
• Electronic control board: manages temperatures, defrost, and fan operation
• Major sealed-system components (not always sold as simple DIY parts): refrigerant-related repairs typically add labor and complexity

You can confirm your model’s component locations and service cautions in the owner's manual.

Quick comparison of common high-cost parts

Part type	What it does	Why it gets expensive
Compressor	Pumps refrigerant to move heat out of the cabinet	Sealed-system work is complex and labor-heavy
Electronic control	Runs cooling logic, defrost timing, and outputs	Higher part cost; diagnosis can be tricky
Ice maker	Produces ice and cycles water fill	Moderate-to-high part cost, but usually less than sealed system

Parts on this model that are often “big-ticket”

If you’re pricing repairs for EB9SHKXVQ03, these are commonly among the higher-priced replacements available for this model:

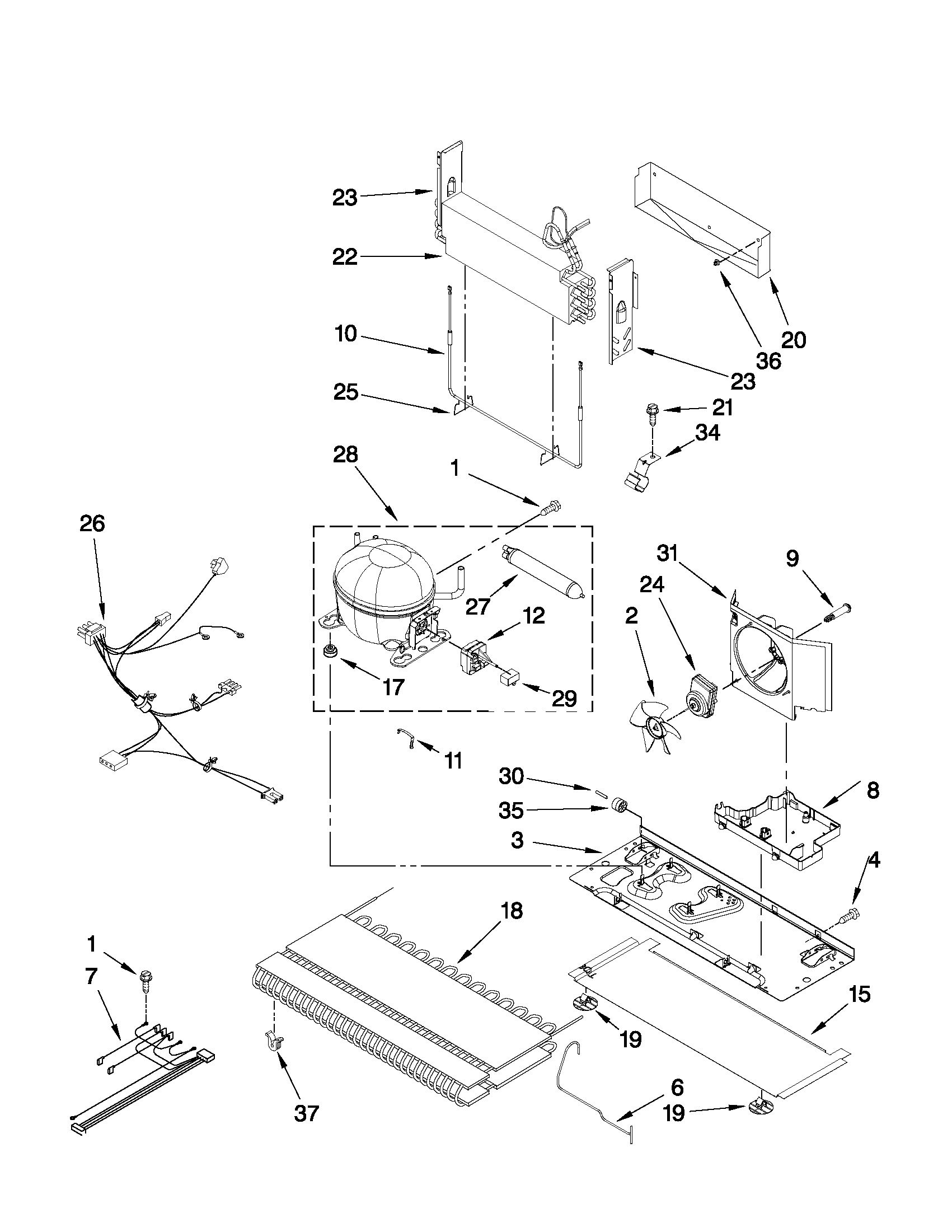

• Refrigerator compressor W10233960
• Refrigerator electronic control WPW10503278
• Refrigerator ice maker D7824706Q

Why it matters

When the compressor or other sealed-system components fail, the repair is not just the part price; it also involves specialized diagnosis and labor. By comparison, items like a thermostat, fan motor, or water inlet valve are usually more straightforward and lower cost.

Last updated: February 2026

The most common Whirlpool refrigerator problem is a cooling complaint (food section too warm, freezer too warm, or temperatures that swing). On the Whirlpool EB9SHKXVQ03, the most frequent root causes are airflow restrictions, dirty condenser coils, door seal leaks, and fan or control issues that keep the compressor and fans running longer than normal (see the owner's manual).

Most common symptoms we see

• Refrigerator section warms up while the freezer seems OK
• Freezer warms up and ice production slows or stops
• Unit runs “all the time” after heavy use or warm-room conditions
• Unusual noises (buzzing, pulsating, hissing, sizzling, popping, or water-running sounds)
• Water under the refrigerator from a drain issue

Quick checks that fix many “not cooling” calls

1. Confirm power and controls: Make sure the unit is plugged into a grounded 3-prong outlet and the controls are turned on.
2. Give it time after changes: After installation or temperature adjustments, allow 24 hours for temperatures to stabilize.
3. Improve airflow: Do not block vents with food packages; keep the freezer packed neatly so air can circulate.
4. Clean condenser coils: Dusty coils commonly cause warm temps and long run times.
5. Check door sealing: Look for gaps, torn gasket areas, or doors not closing fully.

Normal vs. problem noises (fast guide)

Sound	Often normal?	Common cause
Buzzing	Yes	Water valve filling ice maker
Pulsating	Yes	Fans/compressor adjusting
Hissing/rattling	Often	Refrigerant flow, water lines, items on top
Sizzling/gurgling	Yes	Defrost water hitting heater
Water running	Yes	Defrost meltwater draining

When a part is the likely culprit

If cleaning coils and checking door closure do not help, these model-relevant parts often come into play:

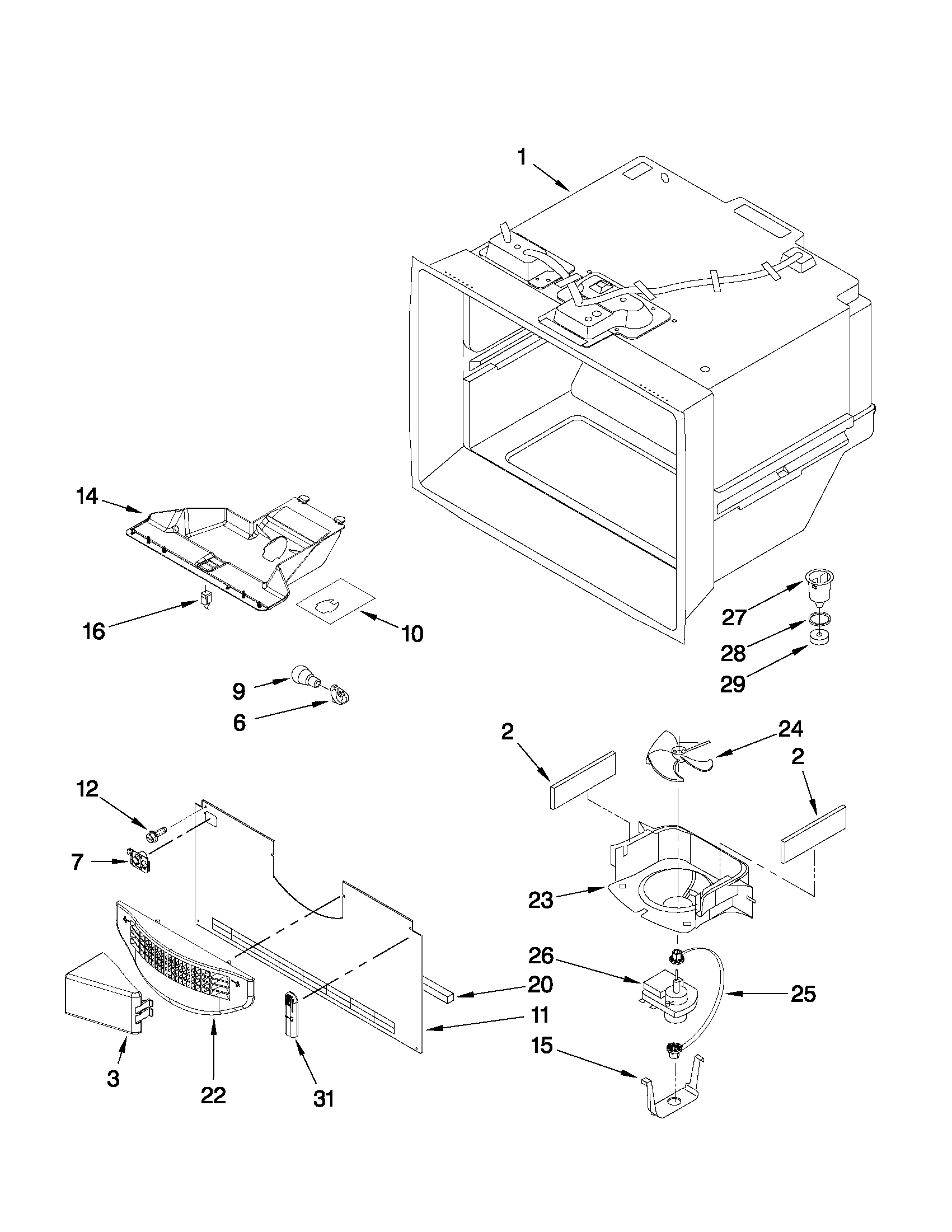

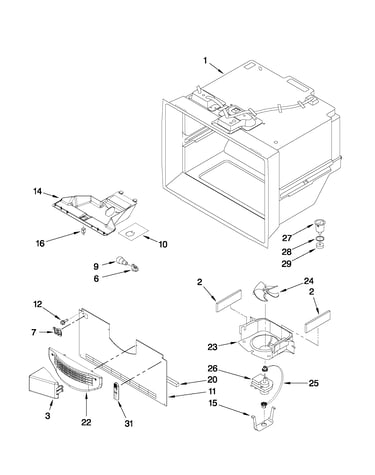

• Evaporator airflow issues: refrigerator evaporator fan motor WPW10128551 and refrigerator evaporator fan blade WP2169142

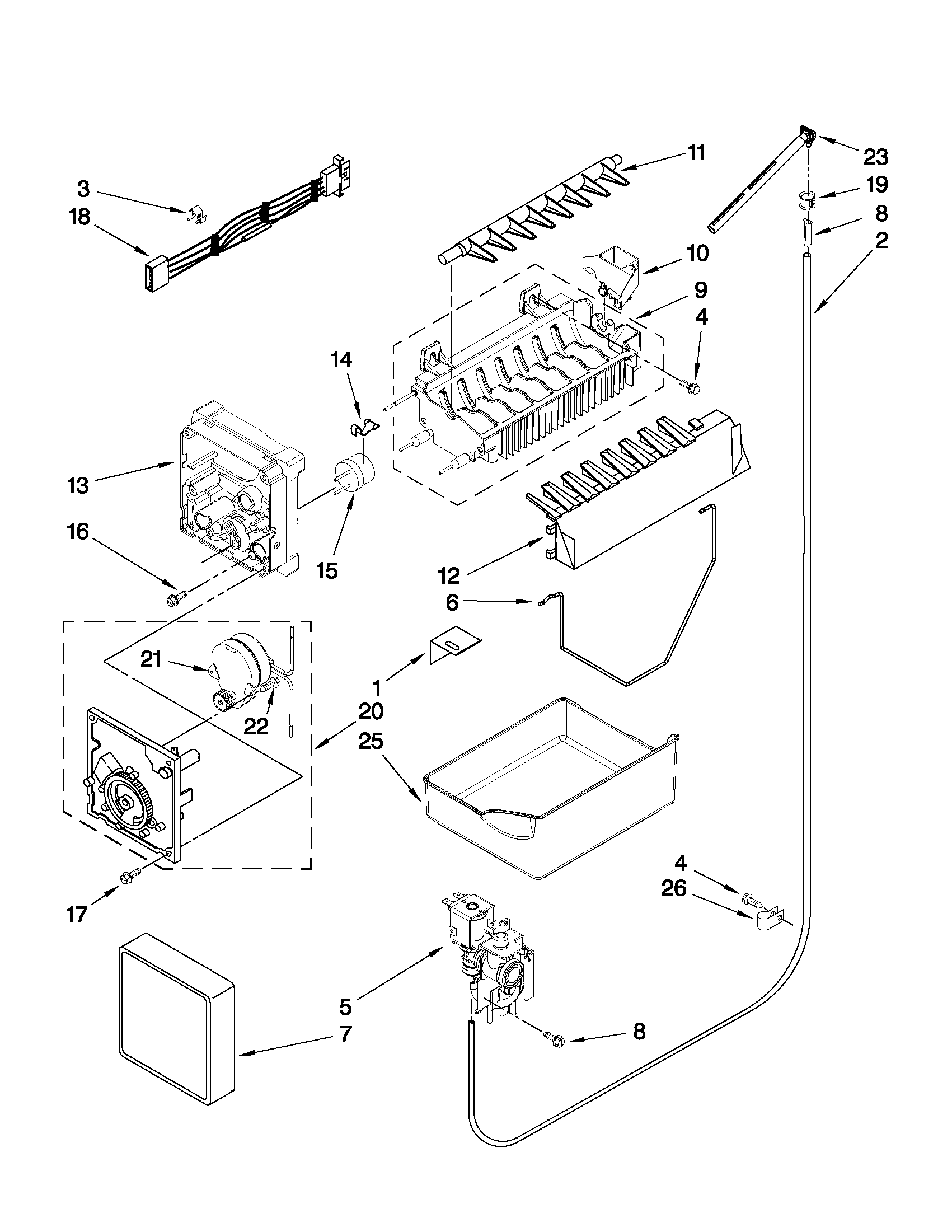

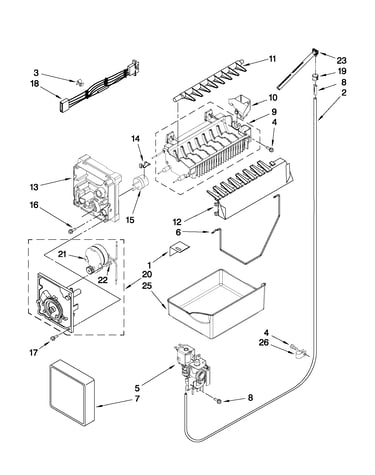

• Ice maker complaints (no ice, slow ice): refrigerator ice maker D7824706Q
• Water supply problems (no water to ice maker): refrigerator water inlet valve assembly WP2315576
• Temperature control or erratic operation: refrigerator electronic control WPW10503278

Why it matters

Cooling problems are usually airflow, heat removal, or door sealing issues. Fixing those early prevents food spoilage, reduces run time, and avoids unnecessary replacement of high-cost components like the compressor.

Last updated: February 2026

For your Whirlpool refrigerator model EB9SHKXVQ03, the fastest way to get the correct part number is to first confirm the model and serial number from the ID label inside the fresh food compartment, then use that exact model to match parts by name and diagram. See the owner's manual for the label location.

Where to find the model and serial label

On EB9SHKXVQ03, the model and serial number label is located on the inside wall of the refrigerator (fresh food) compartment.

What to do

• Open the refrigerator door and look along the inside side walls (often near the crisper area).
• Write down the full model number (EB9SHKXVQ03) and the serial number.
• Take a clear photo of the label; it helps avoid mix-ups with similar Whirlpool models.
• Use the model number to match parts by section (ice maker, controls, fans, doors).
• When ordering, match both the part name and the part ID to your symptom.

How to match the right part number once you have the model

After you confirm the model, choose the part by function and symptom, then verify it matches your refrigerator’s configuration (ice maker, water line, door color, etc.).

If you’re fixing this issue	Common part to check on EB9SHKXVQ03	What the part does
No ice or ice maker not cycling	Refrigerator ice maker D7824706Q	Produces and harvests ice cubes
No water to dispenser or ice maker	Refrigerator water inlet valve assembly WP2315576	Opens to send water to the dispenser/ice maker
Warm fridge, noisy, or poor airflow	Refrigerator evaporator fan motor WPW10128551	Circulates cold air through the compartments
Intermittent temps or dead display	Refrigerator electronic control WPW10503278	Manages cooling and system operation

Why it matters

Whirlpool often uses multiple part revisions across similar-looking refrigerators. Using the exact EB9SHKXVQ03 model from the inside label prevents ordering a part that fits a different series, wiring harness, or ice maker style.

Last updated: February 2026

In a Whirlpool bottom-mount refrigerator like model EB9SHKXVQ03, the most commonly replaced parts are the ones that affect cooling, airflow, and door sealing: door gaskets, fan motors/blades, water inlet valves, ice maker components, and controls. These parts wear over time and can cause warm temps, noise, leaks, or ice issues.

Common refrigerator parts that get replaced most often

• Door gasket: Fixes warm temperatures, moisture buildup, and doors that do not close well.
• Evaporator fan motor and fan blade: Restores airflow through the fresh food section; helps prevent warm spots and unusual fan noise.
• Condenser fan motor: Helps the compressor run efficiently; can reduce overheating and long run times.
• Water inlet valve: Addresses ice maker not filling, dispenser issues, or buzzing when the valve opens.
• Ice maker assembly parts: Fixes no ice, small cubes, or ice ejection problems.
• Electronic control: Helps resolve inconsistent cooling or control-related failures.

Model-specific examples for EB9SHKXVQ03

Here are common replacements that match parts available for this model:

Symptom you notice	Part that often fixes it	Example part on this model
Warm fridge, weak airflow, rattling from freezer area	Evaporator fan motor or blade	Refrigerator evaporator fan motor WPW10128551, refrigerator evaporator fan blade WP2169142
Ice maker not filling, buzzing during fill	Water inlet valve	Refrigerator water inlet valve assembly WP2315576
No ice production or poor ice harvest	Ice maker	Refrigerator ice maker D7824706Q
Intermittent cooling or control issues	Electronic control	Refrigerator electronic control WPW10503278

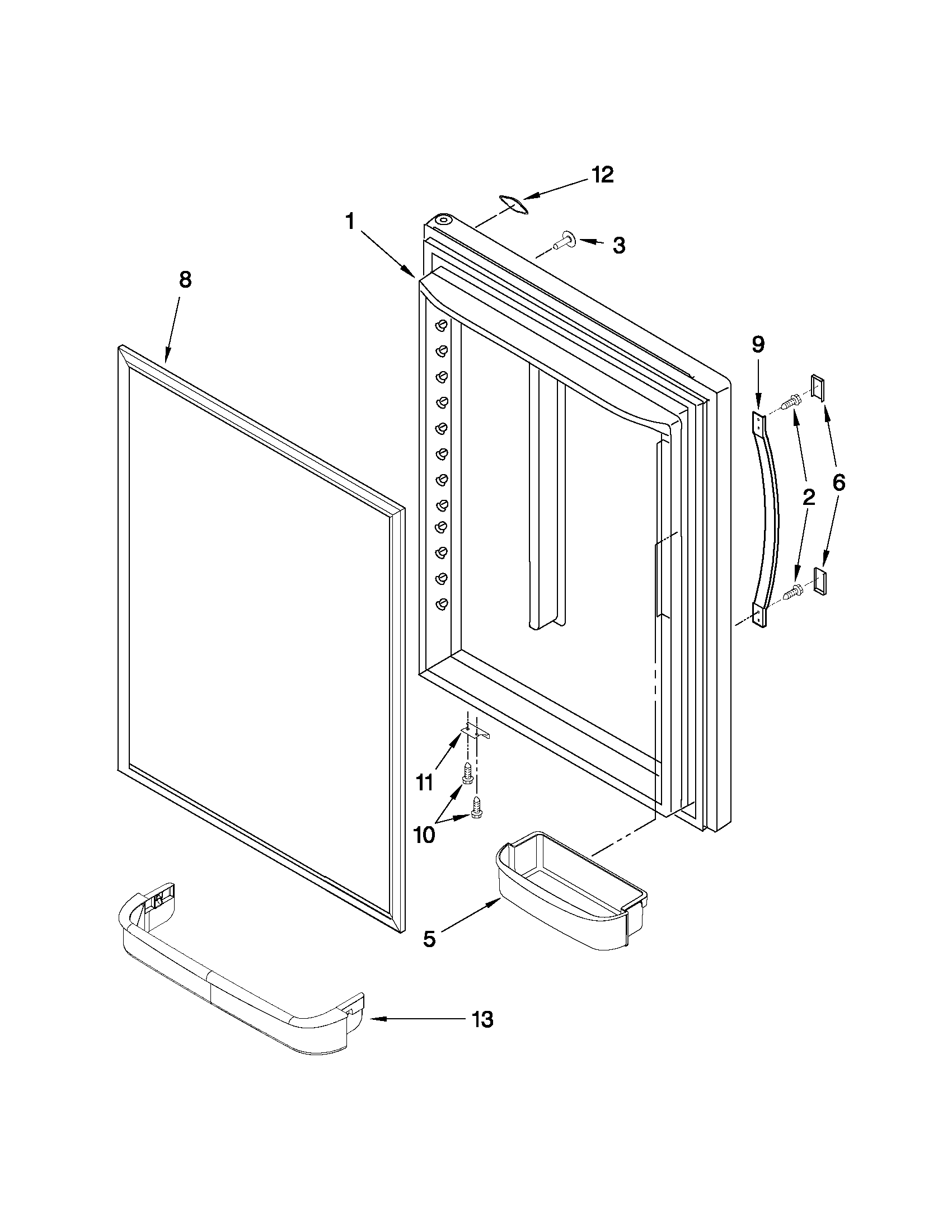

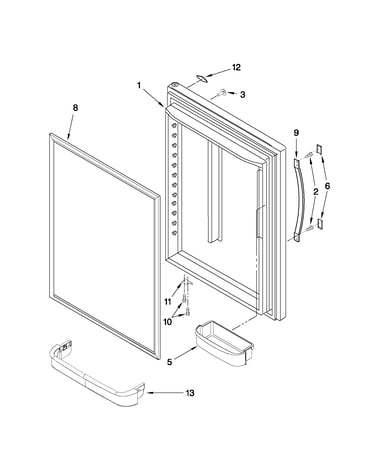

Doors hard to open or not sealing well	Door gasket care or replacement	Refrigerator door gasket (white) WPW10443309

Why it matters

These parts directly impact temperature stability, energy use, and food safety. For example, the manual notes that a refrigerator may run longer when doors are opened often or left open, and that sticky gaskets can make doors difficult to open; keeping seals clean and airflow strong prevents many “warm fridge” complaints.

Quick checks before you buy a part

• Confirm the doors close fully and nothing is blocking shelves or bins.
• Clean sticky gaskets with mild soap and warm water; rinse and dry.
• Vacuum condenser coils when dusty (often every other month in dusty homes).
• Listen for fan noise changes (rattling, grinding, or no fan sound).
• If you have ice or water issues, verify the household water supply is on and the line is not kinked.

For model-specific diagrams, troubleshooting, and maintenance steps, use the owner's manual.
