Samsung
Side-By-Side Refrigerator

Model # RS25J500DSG/AA-01 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RS25J500DSG-AA-01 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 216 parts  |

Refrigerator Power Cord 3903-000796
#25

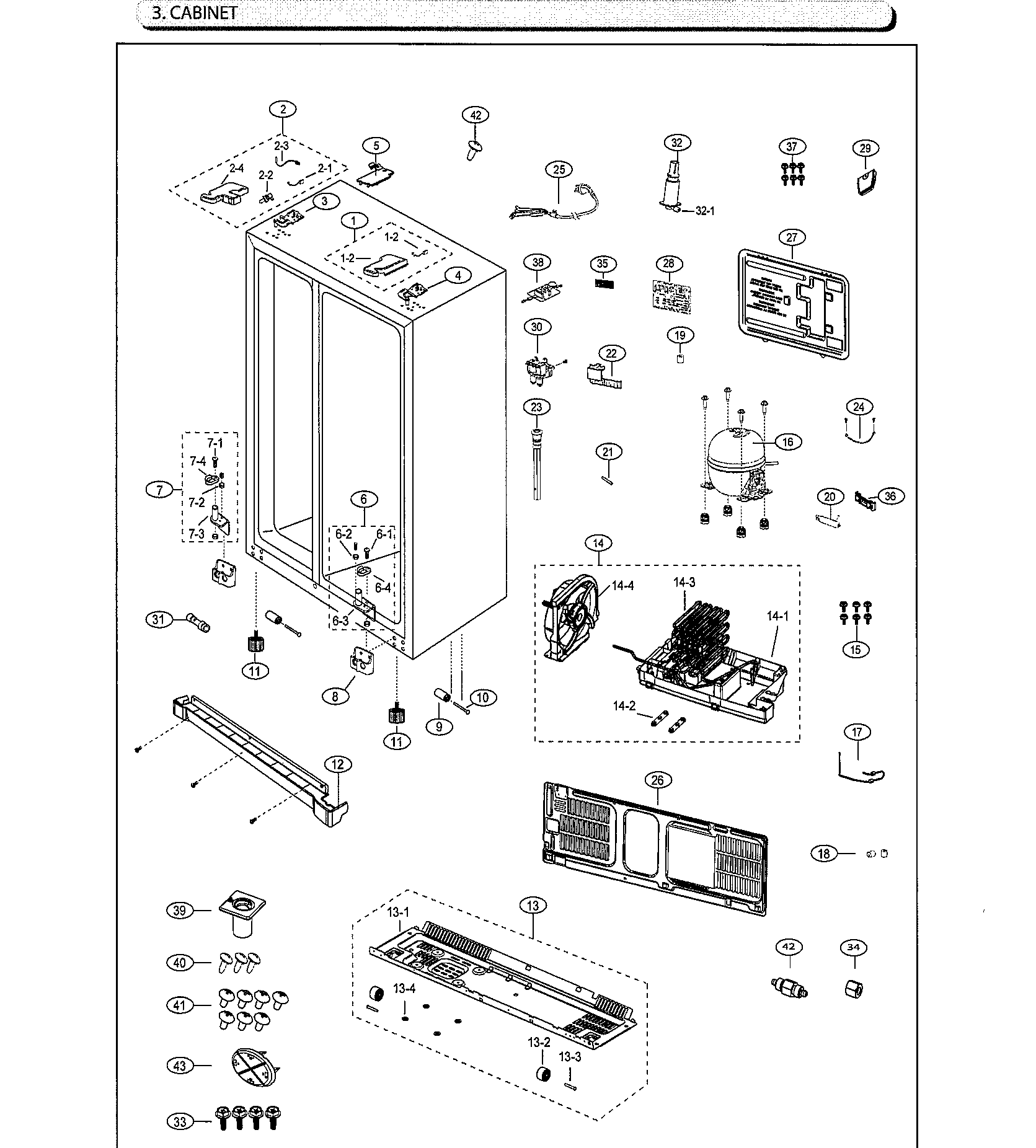

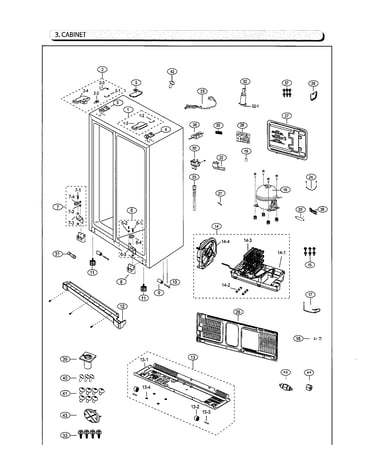

Cabinet diagram

Refrigerator power cord

Part #3903-000796

Replaced by #3903-001003

?
Manufacturer substitution
This part replaces 3903-000796. Substitute parts can look different from the original.
BEST SELLER
$47.14
10% OFF Phone Price : $52.14
In Stock
Refrigerator Roller DA61-04703A
#13-2

Cabinet diagram

Refrigerator roller

Part #DA61-04703A

BEST SELLER
$8.43
11% OFF Phone Price : $9.43
In Stock
Refrigerator Crisper Drawer (replaces Da61-05547c, Da97-08692a) DA97-08692B
Refrigerator crisper drawer (replaces da61-05547c, da97-08692a)

Part #DA97-08692B

BEST SELLER
$146.32
6% OFF Phone Price : $156.32
In Stock
Case-veg L DA61-05547C
#5-1

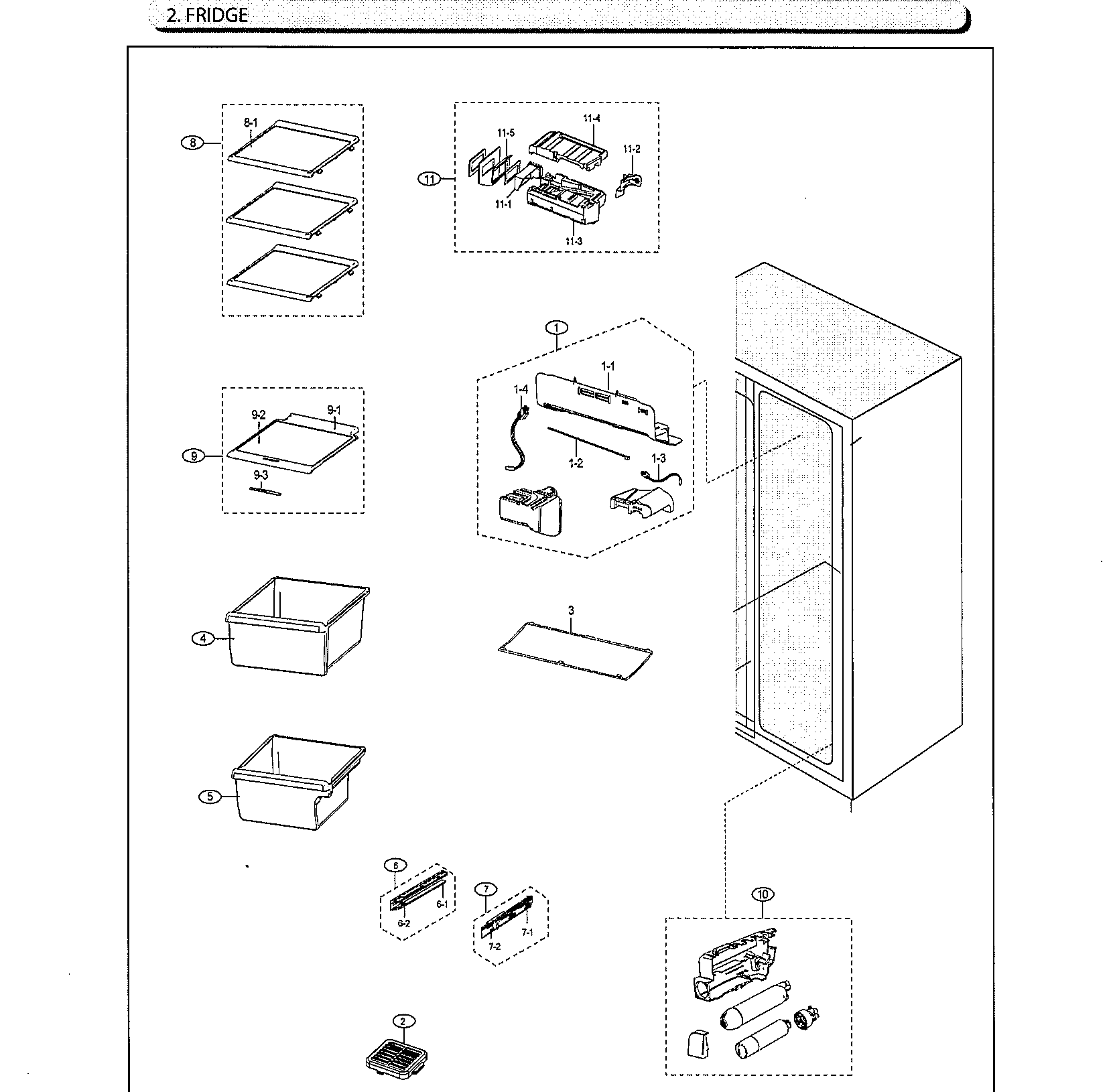

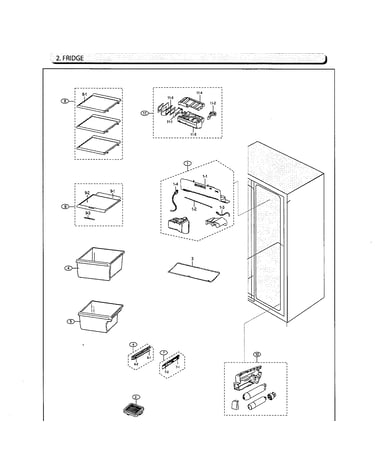

Fridge diagram

Case-veg l

Part #DA61-05547C

Replaced by #DA97-08692B

?
Manufacturer substitution
This part replaces DA61-05547C. Substitute parts can look different from the original.
BEST SELLER
$146.32
6% OFF Phone Price : $156.32
In Stock
Refrigerator Roller Wheel Axle Pin DA61-01920A
#10

Cabinet diagram

Refrigerator roller wheel axle pin

Part #DA61-01920A

BEST SELLER
This item is not returnable
$4.38
19% OFF Phone Price : $5.38
In Stock
Refrigerator Temperature Sensor (replaces Da32-10105y) DA32-10105V
#1-3

Fridge diagram

Refrigerator temperature sensor (replaces da32-10105y)

Part #DA32-10105V

BEST SELLER
This item is not returnable
$13.99
13% OFF Phone Price : $15.99
In Stock
Refrigerator Ice Maker Thermostat Cover DA63-02183A
#10-6

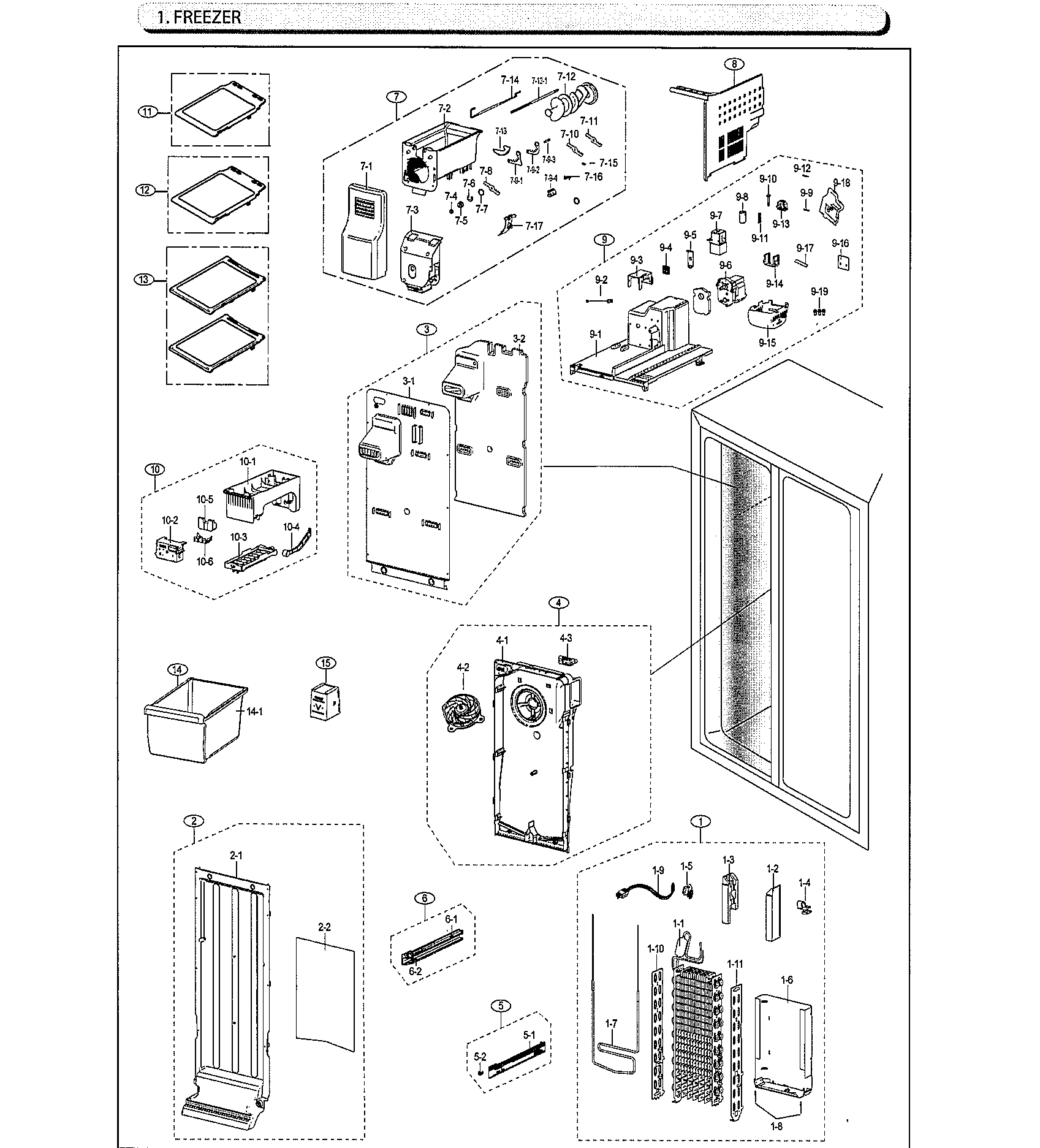

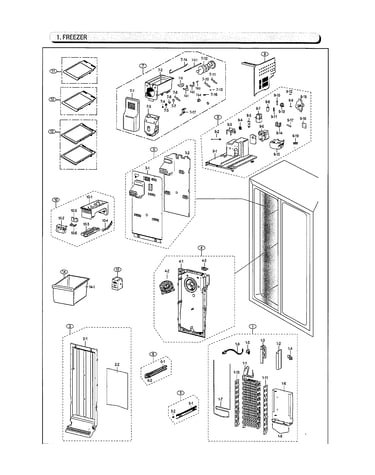

Freezer diagram

Refrigerator ice maker thermostat cover

Part #DA63-02183A

This item is not returnable
$5.49
15% OFF Phone Price : $6.49
In Stock
Refrigerator Door Bin (replaces Da63-05211a) DA97-12939A
#5

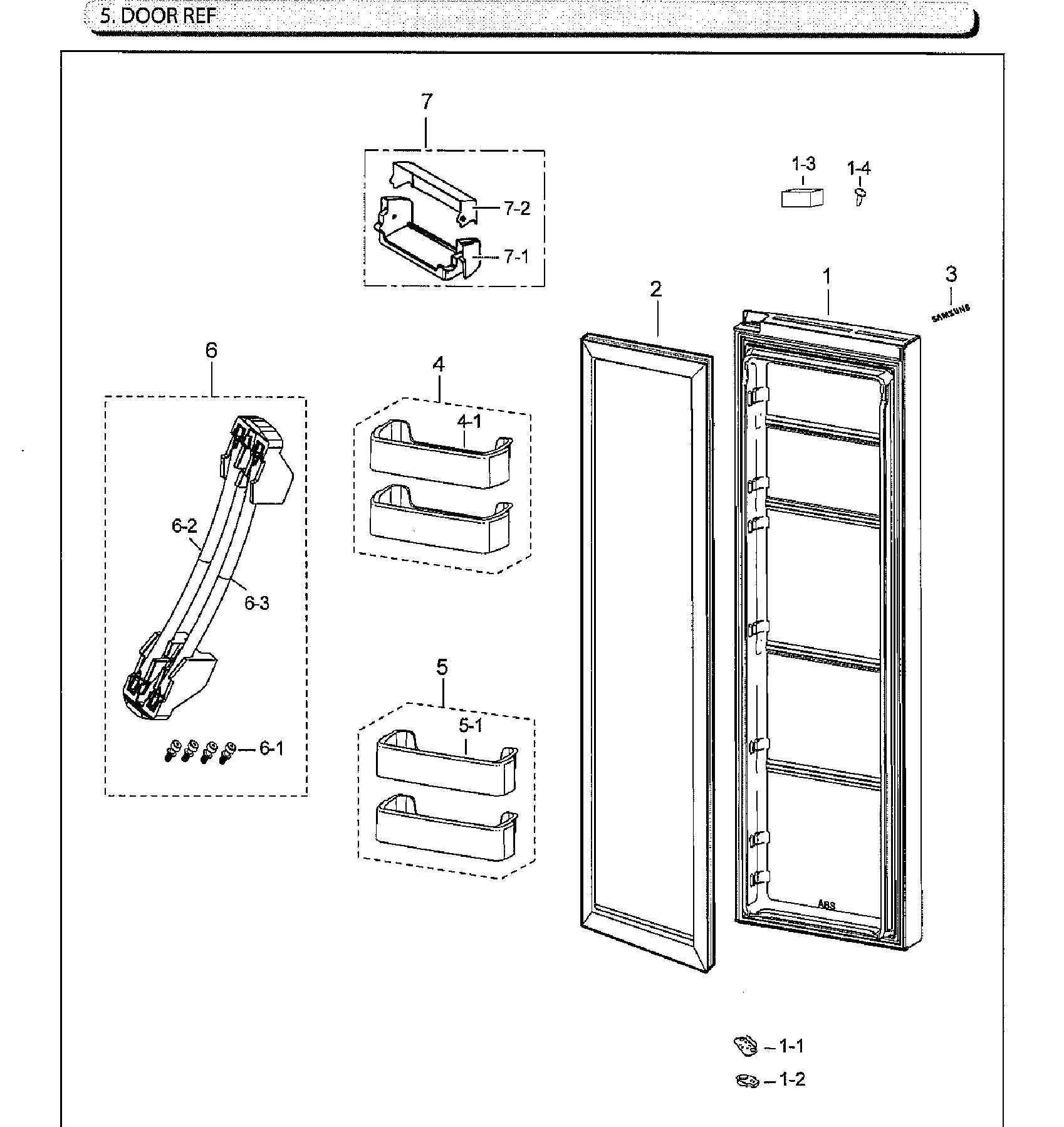

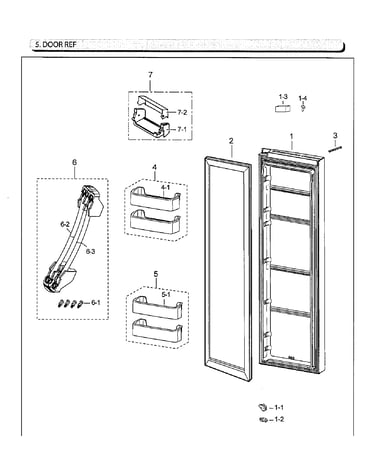

Fridge door diagram

Refrigerator door bin (replaces da63-05211a)

Part #DA97-12939A

$25.19
17% OFF Phone Price : $30.19
In Stock
Refrigerator Dispenser Lever Spring DA61-06033B
#3-5

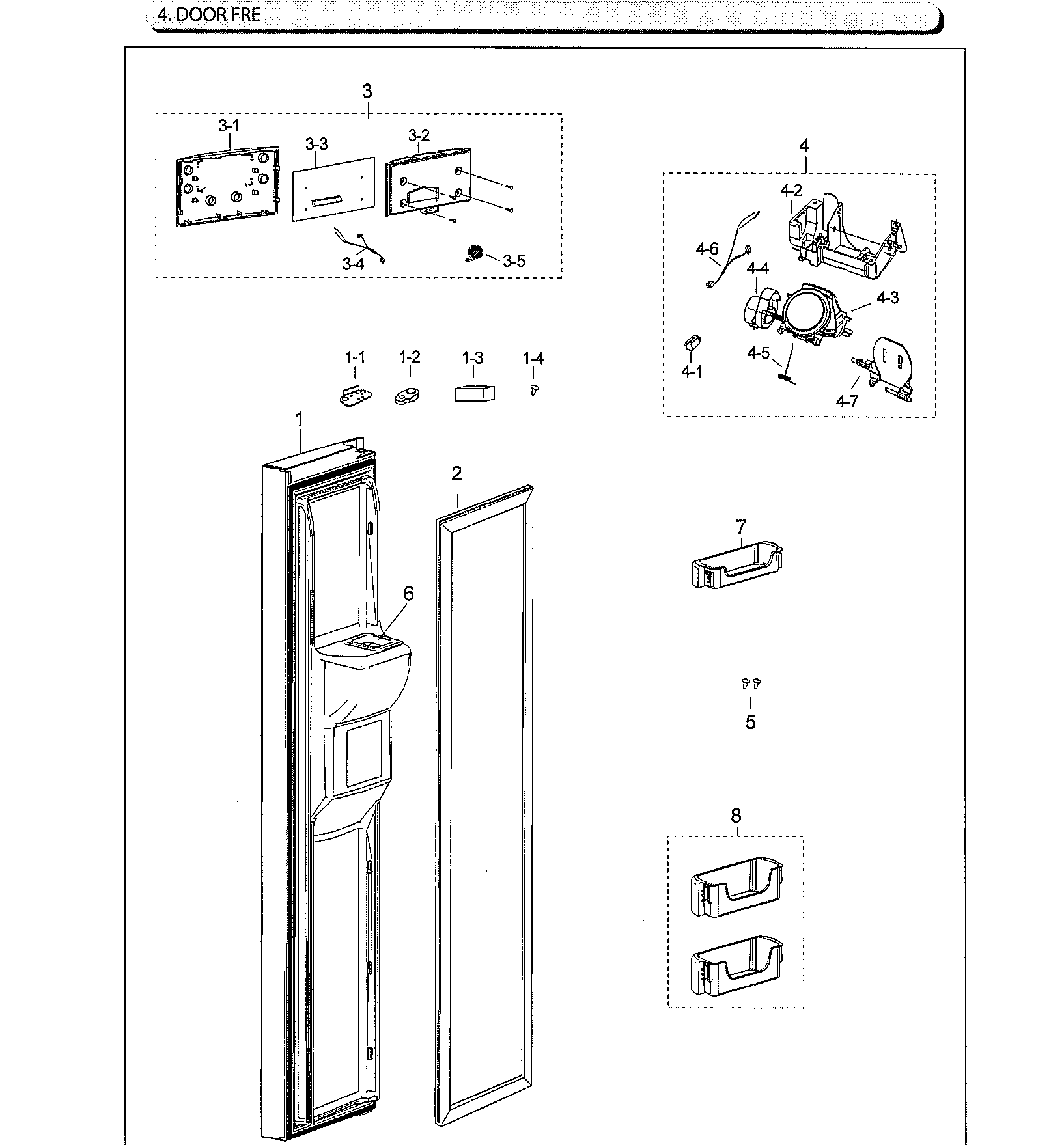

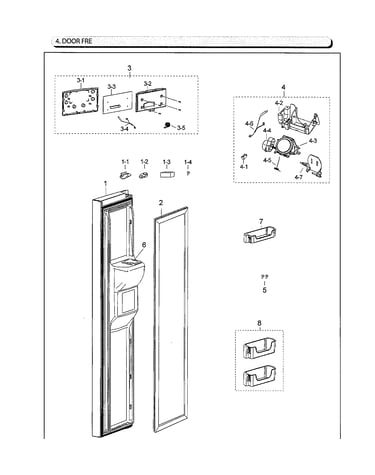

Freezer door diagram

Refrigerator dispenser lever spring

Part #DA61-06033B

This item is not returnable
In Stock
Refrigerator Door Bin (replaces Da63-05210a) DA97-12924A
#4

Fridge door diagram

Refrigerator door bin (replaces da63-05210a)

Part #DA97-12924A

$59.61
8% OFF Phone Price : $64.61
In Stock
