If the Start/Resume button on your Kenmore dishwasher model 66513269K112 is not starting a cycle, the most common causes are the door not latching fully, a missed Start/Resume timing step (door must be closed within 3 seconds), or a power supply issue. Use the checks below to pinpoint the failure.

Quick checks that fix most “won’t start” issues

• Close and latch the door firmly, then press Start/Resume and close the door within 3 seconds (otherwise the Start/Resume light can flash until you press it again).
• Reset power: turn the dishwasher off at the breaker (or unplug it) for about 5 minutes, then restore power.
• Confirm the cycle is selected correctly and you are not stuck between selections.
• Check the home electrical supply: breaker not tripped and fuse not blown.
• Verify the water supply valve is turned on.

What to check next (in order)

1. Door latch and door switch: If the control thinks the door is open, it will not start.

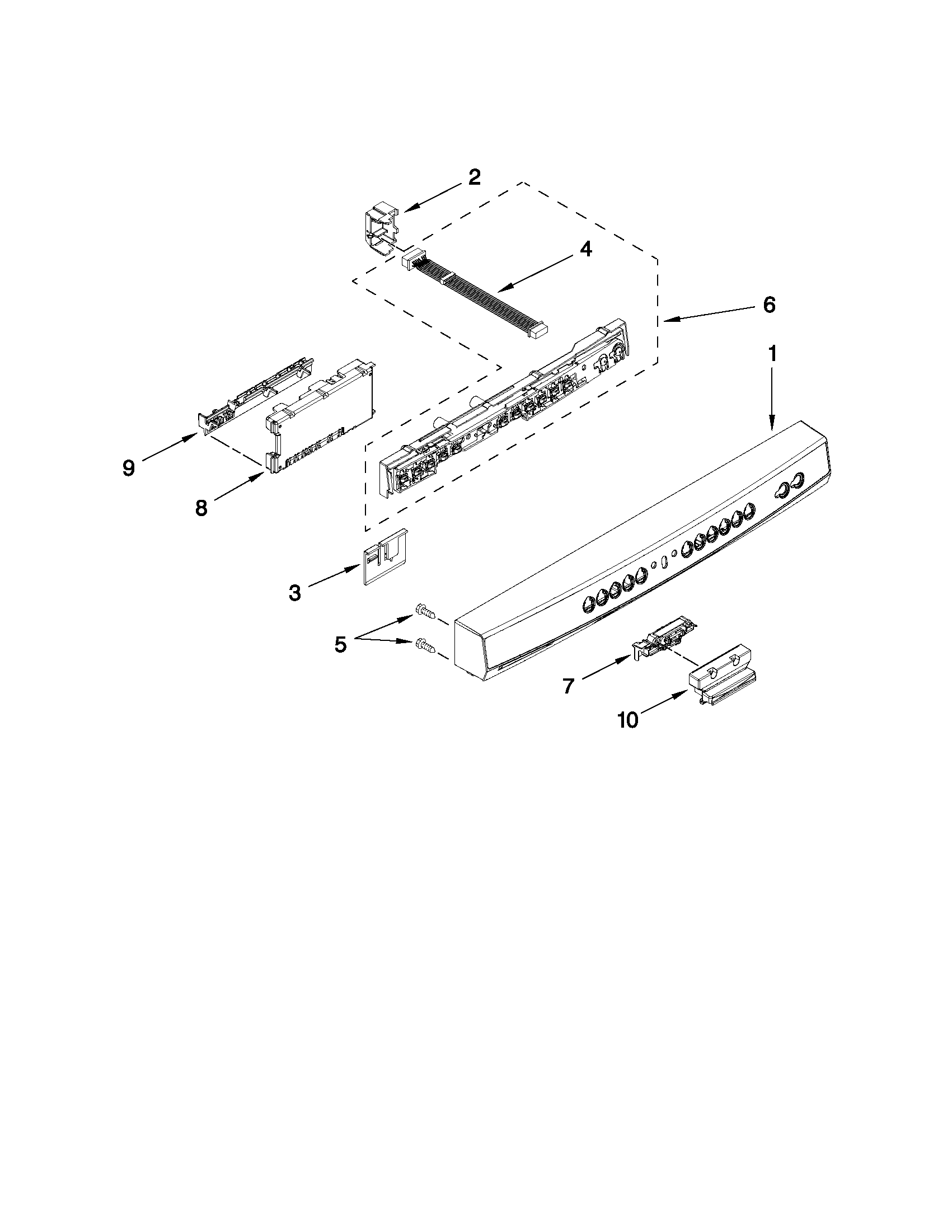

2. Console or keypad response: If other keys do not respond consistently, the console or control may be at fault.
3. Control board connections: Loose wiring at the control can prevent Start/Resume from registering.

Symptoms and likely causes

What you notice	Most likely cause	What we recommend
Start/Resume light flashes after pressing Start	Door not closed within 3 seconds	Re-press Start/Resume and close door promptly
No response from Start/Resume, other buttons work	Door latch switch issue or Start key circuit issue	Inspect latch engagement; check wiring
Lights work but unit will not run any cycle	Door not latched, power issue, or control problem	Verify latch, breaker, then control connections

Why it matters

Your dishwasher uses the door latch circuit as a safety interlock. If the latch is not fully engaged or the Start/Resume step is not completed correctly, the control prevents the motor and fill valve from running to avoid leaks and unsafe operation.

For model-specific operating steps and Start/Resume behavior, follow the 66513269K112 installation guide.

Last updated: January 2026

To identify your Kenmore dishwasher model, open the door and look for the model/serial tag on the tub rim or inner door area. For this unit, the model number you want to match when ordering parts is 66513269K112; confirm it against the tag and the 66513269K112 owner's manual.

Where to look on the dishwasher

Check these common label locations first (in order):

• Along the top edge of the tub opening (the rim you see with the door open)
• On the left or right side wall of the tub near the front
• On the inner door frame (near the latch area)
• Near the bottom edge of the door (sometimes partially hidden by the door gasket)

What the model number looks like (and why it matters)

Kenmore model numbers are typically a long string of numbers and letters. You need the full model number (not just “Kenmore” or “Elite”) to get the correct dishwasher parts, diagrams, and installation details.

Quick ID checklist

• Match the model number exactly: 66513269K112
• Write down the serial number too (helps with production variations)
• If the tag is worn, use a flashlight and take a photo at an angle

Model number vs. serial number

Item	What it tells you	Used for
Model number	Exact design and parts fit	Ordering parts, diagrams, manuals
Serial number	Production run details	Confirming revisions, service history

If the label is missing or unreadable

Use these practical workarounds:

• Check your purchase receipt or warranty paperwork
• Look for a tech sheet stored behind the toe panel on many dishwashers
• Compare visible features (control panel style, rack layout) to diagrams in the installation guide

Why it matters

Dishwasher parts like a water inlet valve, drain pump, or rack adjuster can look similar across Kenmore models, but mounting points and electrical connectors can differ. Using the exact model number prevents wrong-part returns and repeat repairs.

Last updated: January 2026

To hard reset your Kenmore dishwasher model 66513269K112, we recommend doing a control reset first (power cycle), then a keypad reset sequence if your console supports it. A proper reset clears a stuck cycle, restores normal draining, and reboots the electronic control.

Reset methods that work most often

• Power reset (most reliable): Turn the dishwasher off at the breaker for 1 minute, then restore power.
• Keypad reset (if your model has these keys): Press Heated Dry, then High Temp; repeat the same two keys once more (a common sequence is 4 total presses alternating). Close the door and wait about 3 minutes.
• Cancel/Drain reset: Press Cancel/Drain (or Cancel) and let the unit run the drain portion.

Step-by-step: power reset (recommended)

1. Turn OFF the dishwasher circuit breaker.
2. Wait 60 seconds.
3. Turn the breaker ON.
4. Start a short cycle and listen for fill and wash.

If it still will not clear the cycle

A “reset” will not fix a mechanical drain or fill problem. Check these common causes:

• Standing water in the tub (possible drain restriction)
• Kinked or improperly routed drain hose
• Clogged inlet screen or low water supply
• Door not latching consistently
• Control panel keys not responding

Quick symptom guide

What you see	What it usually points to	What to check next
Won’t drain after reset	Drain path or pump issue	Drain hose routing, disposer knockout, pump operation
Won’t fill after reset	Water supply or inlet valve	Shutoff valve open, inlet screen, fill sound
Door drops or won’t stay balanced	Door spring tension issue	Spring/tensioner position on both sides

Why it matters

Resetting the control is the fastest way to clear a software lockup, but repeated “stuck” cycles often indicate a drain, fill, or door-tension issue that needs correction to prevent poor cleaning and water left in the tub.

Helpful references for this model

• Use the 66513269K112 installation guide for door spring tension adjustment and safe power reconnection steps.

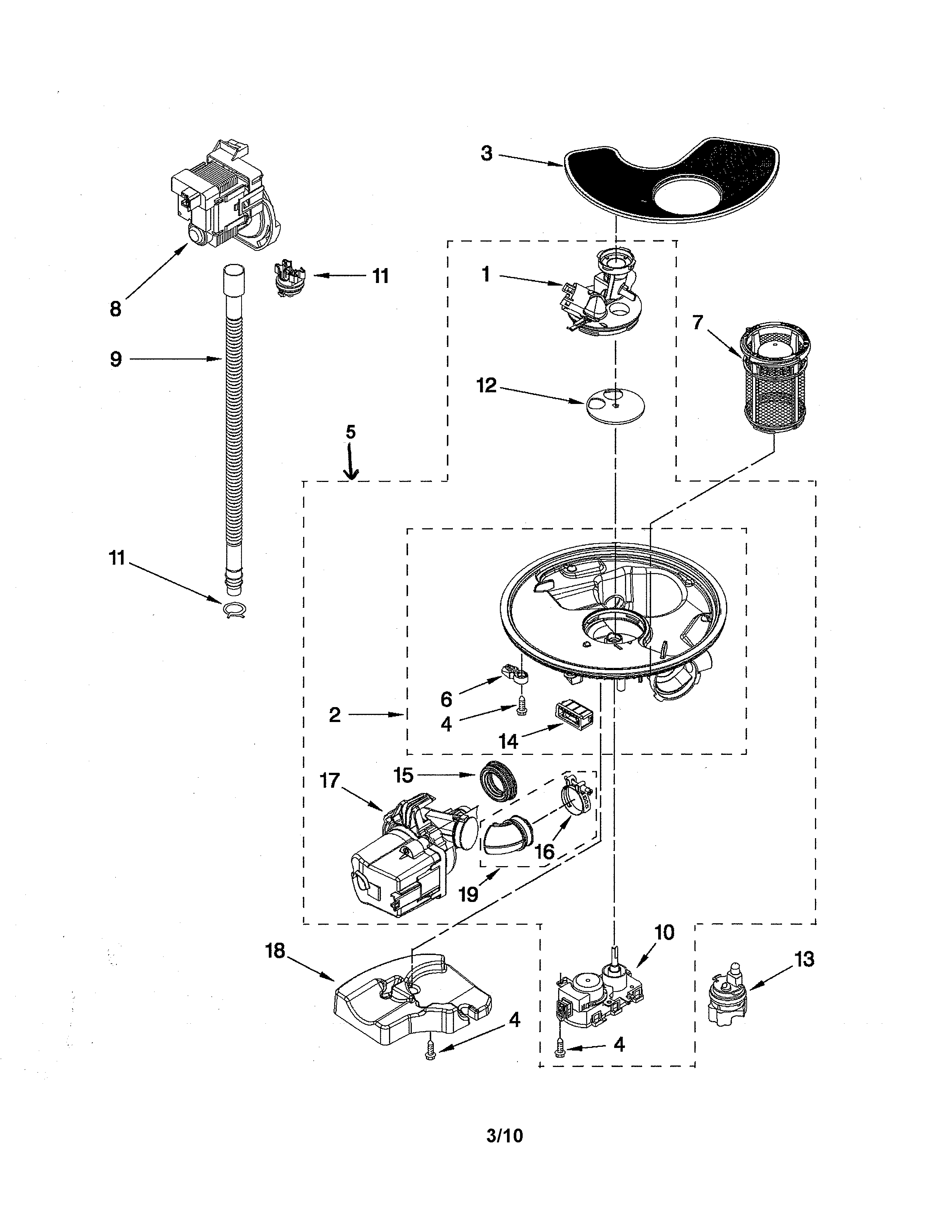

• If you suspect a drain problem, the dishwasher drain pump WPW10348269 is a common component involved in draining issues.

Last updated: January 2026

Common problems we see with the Kenmore 66513269K112 dishwasher include poor draining, weak cleaning from clogged spray paths, door balance issues (door drops or won’t stay open), and drying problems when rinse aid is low. Many symptoms trace back to water supply, drainage routing, or a worn pump, valve, or rack hardware; see the 66513269K112 installation guide for setup checks that prevent repeat issues.

Most common symptoms and what they usually point to

• Won’t start or seems dead: tripped breaker, blown fuse, door not fully latched, cycle not set correctly.
• No water or low fill: water supply shut off, kinked supply line, inlet valve restriction.
• Not draining or standing water: drain hose routing issue, blockage, failing drain pump.
• Poor wash results: clogged spray arm holes, overloaded racks, low water temperature, circulation issues.
• Door falls open or slams shut: door spring tension needs adjustment.
• Wet dishes: rinse aid empty, heater or heating circuit issue.

Quick checks we recommend first (fast, no parts)

1. Confirm the water supply is fully on and the door closes tightly and latches.
2. Run the shortest cycle; after about 2 minutes, open the door and verify there is water in the bottom of the tub.
3. Inspect drain hose routing: water line should be on the left side of the opening and the drain hose near the center (during install, hoses can shift).
4. Clean the spray arm holes and filters (food debris is a top cause of weak cleaning).
5. If the door closes or falls open under its own weight, adjust door spring tension using the 3-position tensioner holes.

Parts that commonly solve these problems on model 66513269K112

Symptom	Likely part area	Example part for this model

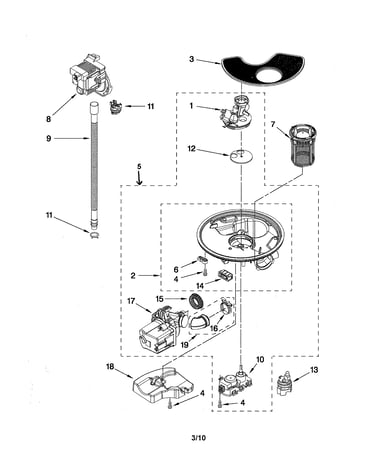

Standing water, slow drain	Drain system	Dishwasher drain pump WPW10348269

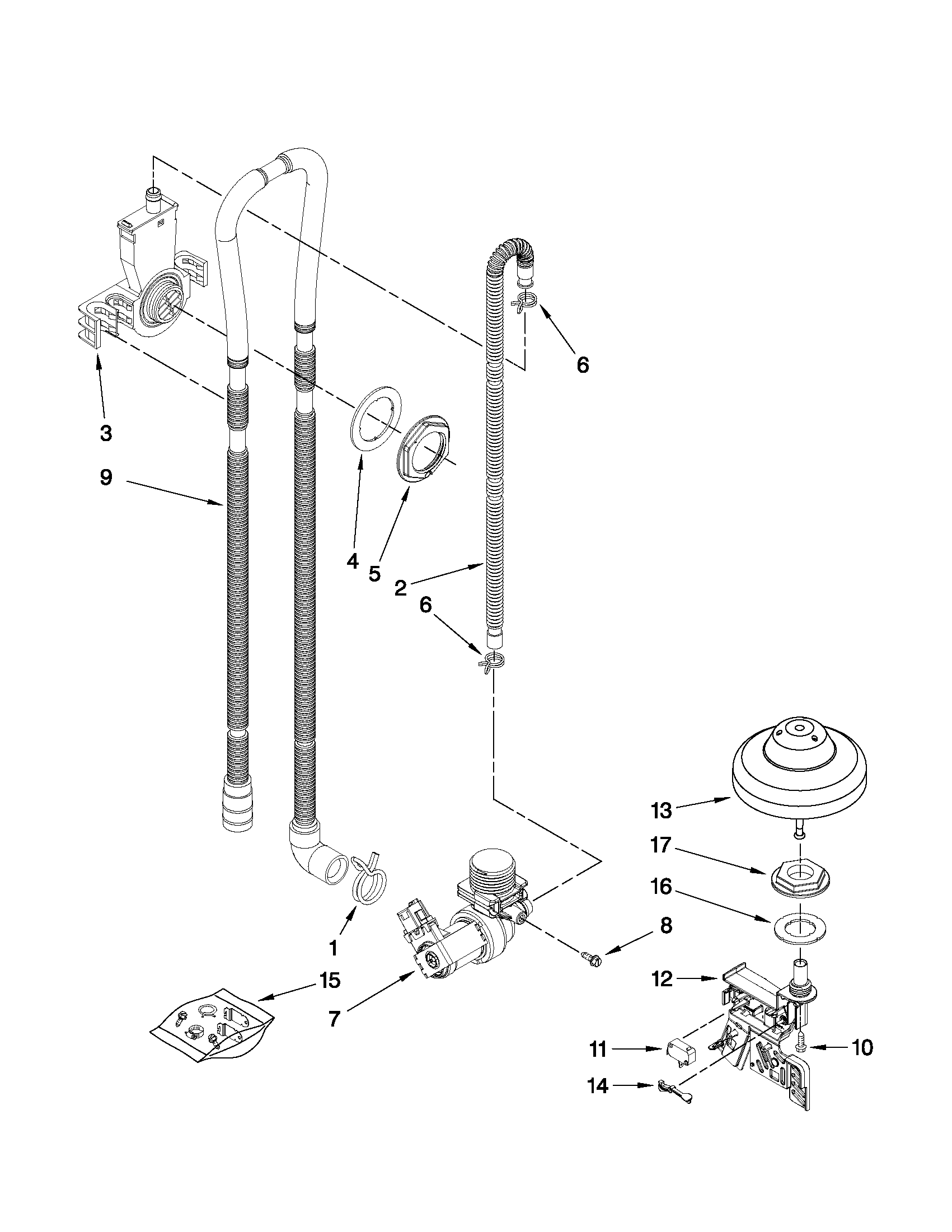

No fill or weak fill	Water inlet	Dishwasher water inlet valve W11175771

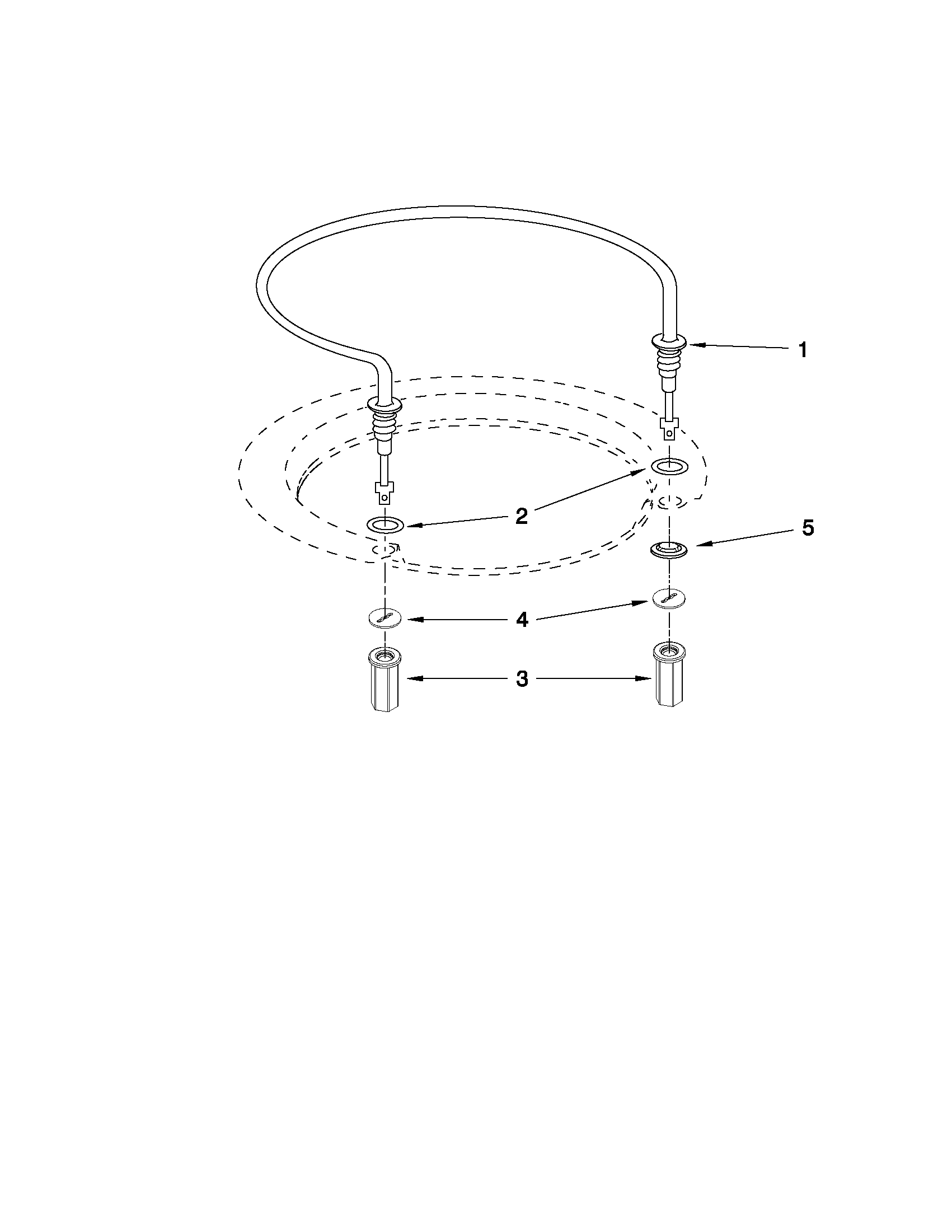

Poor drying, lukewarm water	Heating circuit	Dishwasher heater W10703867

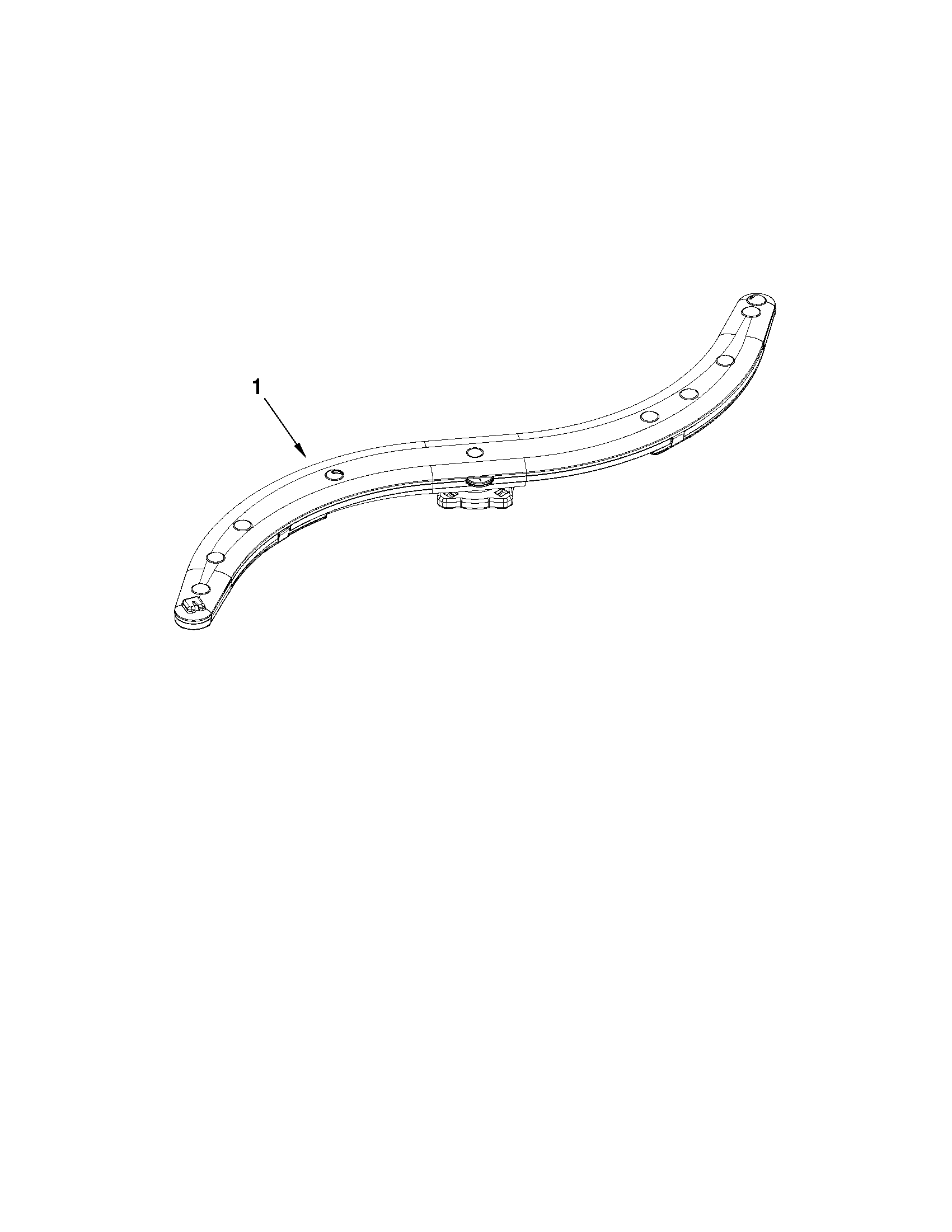

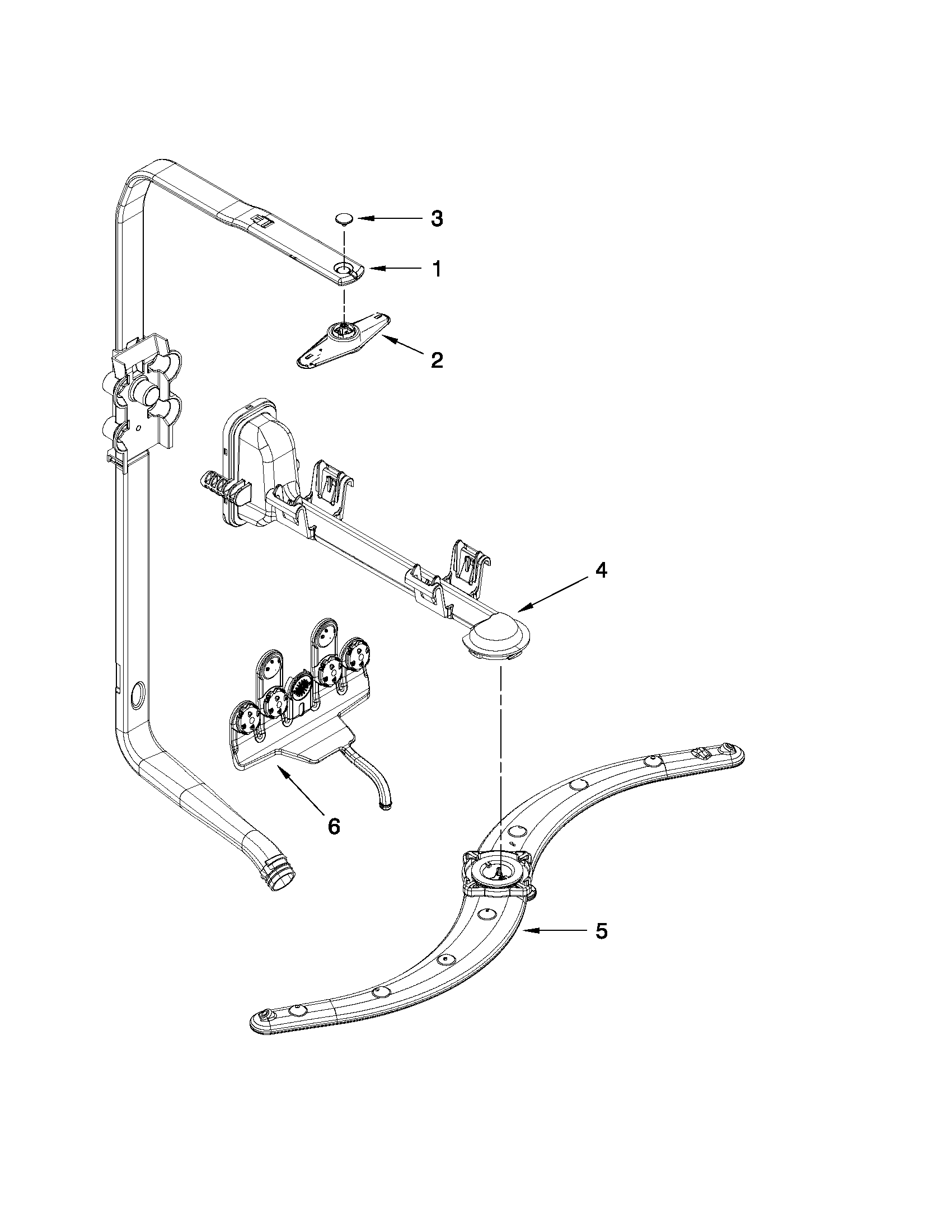

Weak spray, poor cleaning	Wash distribution	Dishwasher spray arm WPW10491331

Why it matters

Dishwashers like the Kenmore 66513269K112 depend on correct utility placement, proper door tension, and rinse aid to wash and dry efficiently. Fixing the root cause (hose routing, fill, drain, heat, or spray) prevents repeat clogs, leaks, and cycle failures.
