Whirlpool WDF760SADW2 dishwasher Parts

On the Whirlpool WDF760SADW2 dishwasher, an F7 code points to a water fill or flow problem. The dishwasher is not sensing the expected water coming in, so the cycle may stop, drain, or wash poorly.

What to check first (fast, no tools)

• Confirm the water shutoff valve under the sink is fully open.
• Straighten any kinks or pinches in the water supply line.
• Make sure the dishwasher door is fully closed and you press START/RESUME to continue a paused cycle (as described in the WDF760SADW2 user guide).
• Run the kitchen faucet until water is hot, then start the cycle (helps initial fill and wash performance).
• If the unit recently moved, verify it is level and not pulling on the supply line.

Likely causes and the parts that fix them

If the basics look good, these are the most common fixes for an F7-type fill/flow issue:

• Restricted incoming water (partially closed valve, clogged screen at the valve, low household pressure)
• Failed inlet valve: the dishwasher cannot open the valve to fill
• Control not detecting proper fill (less common; usually after ruling out water supply and valve)

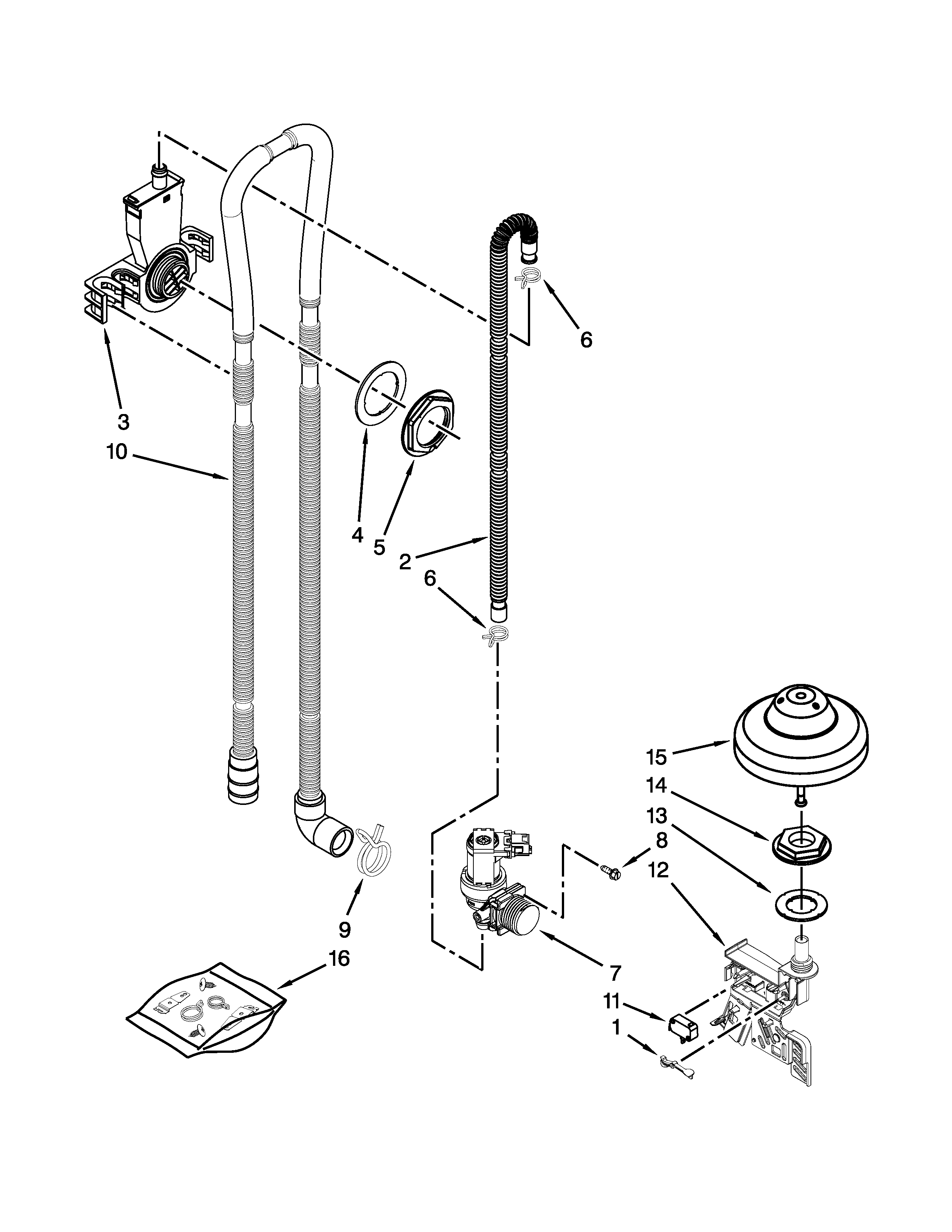

If you suspect the valve, the model-correct replacement is the dishwasher water inlet valve WPW10327249.

Quick symptom guide

What you notice	What it usually means	Best next step
No water sound at start	Not filling	Check shutoff valve, supply line, then inlet valve
Hums but little water enters	Restricted flow	Clean/inspect inlet valve screen; verify pressure
Stops early, dishes dirty	Underfilling	Confirm hot water to sink; check inlet valve
Fills then drains right away	Fill not detected or drain issue	Check fill first; then review error code details

Why it matters

A fill/flow fault prevents proper spray pressure and heating performance, so you can get poor cleaning, longer cycles, or the dishwasher stopping mid-cycle.

For code-specific interpretations and what the lights mean on Whirlpool models, use our Whirlpool dishwasher error codes.

Last updated: February 2026

On the Whirlpool WDF760SADW2, leaking at the bottom of the door is usually caused by oversudsing, a door that is not closing and latching evenly, or a worn lower door seal that lets wash water escape during the cycle. Start by correcting suds and confirming the door closes squarely.

Quick checks that fix most bottom-of-door leaks

• Stop using hand-washing soap or laundry detergent; use only automatic dishwasher detergent.
• If you recently filled rinse aid, make sure the cap is installed tightly.
• Open and re-close the door firmly to confirm it latches; a weak latch can let water push past the seal.
• Inspect the lower edge of the inner door for food debris or detergent buildup; wipe it clean.
• Verify the dishwasher is level and secured; a tilted tub can direct water toward the door.

Door tension and alignment (installation-related)

If the door drops open or won’t stay in position when unlatched, the door springs can be out of adjustment. The installation instructions for this model describe adjusting spring tension by moving the tensioner screw to different numbered holes, and keeping both sides set the same. Use the WDF760SADW2 installation guide for the exact procedure and safety steps.

What to look for

What you see	Likely cause	What to do
Lots of foam, water dribbling from bottom	Oversudsing	Switch detergent, run rinse/drain cycles to clear suds
Leak only during wash, no foam	Door not sealing evenly	Clean sealing surfaces, check level, check door tension
Persistent seep at very bottom edge	Worn lower door seal	Replace the seal if it’s split, hardened, or deformed

Parts that commonly solve this symptom

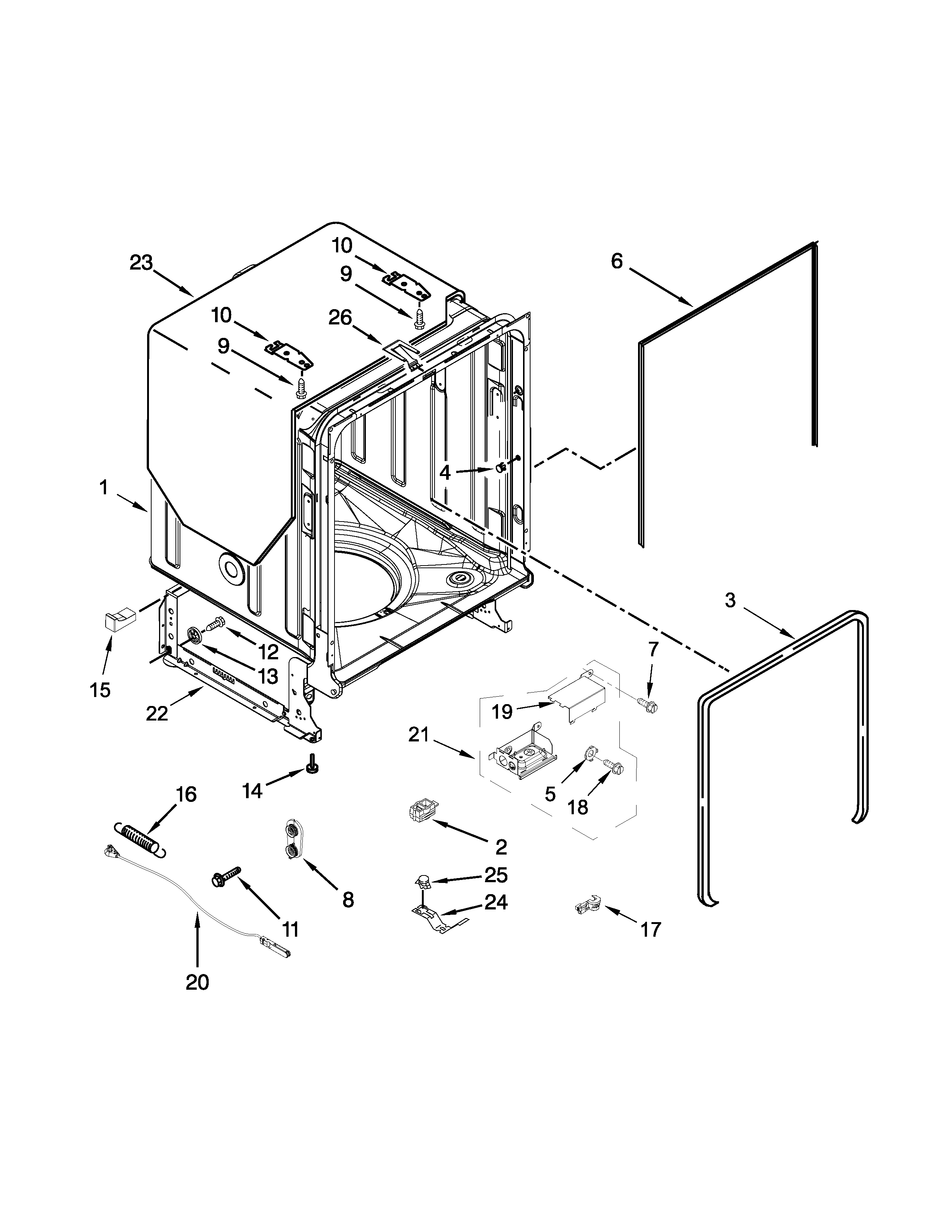

• If the rubber at the bottom of the door is damaged or flattened, replace the dishwasher door seal, lower W10909089.
• If the door does not stay balanced or feels “pulled,” inspect the door balance hardware; a stretched/broken link can affect how the door closes.

Why it matters

A bottom-of-door leak can soak the toe-kick area and cabinet base, and it often gets worse over time as suds, misalignment, or a deformed seal keeps forcing water past the door.

Last updated: February 2026

For your Whirlpool WDF760SADW2 dishwasher, we troubleshoot most common problems by confirming the cycle actually finished, then checking for drain restrictions (filter area, disposer connection, drain hose kinks) and basic power and detergent issues. Use the WDF760SADW2 owner's manual for model-specific checks and button sequences.

Quick checks we recommend first

• Confirm the cycle is complete (look for the Clean indicator); if not, close the door and press Start/Resume.
• Check for standing water and clear any food debris in the sump and drain path.
• Inspect the drain hose for kinks or crushing behind the unit.
• If connected to a food waste disposer, make sure the disposer inlet knockout plug was removed.
• Verify the correct detergent type (automatic dishwasher detergent only) and avoid overfilling.
• If you see suds, stop and correct the detergent issue (hand soap and laundry detergent cause oversudsing).

Symptom-based troubleshooting

Symptom	Most common cause	What to do next
Won’t start or stops	Door not fully latched, cycle not resumed, power issue	Latch the door firmly; press Start/Resume; check breaker/fuse
Not draining	Clog, disposer plug, kinked hose, weak drain pump	Clear obstructions; verify hose routing; consider dishwasher drain pump WPW10348269
Poor cleaning	Loading blocks spray, old detergent, overlapping dishes	Load soiled surfaces down/inward; don’t block dispenser; use fresh detergent
Suds/overflow	Wrong detergent or too much detergent	Switch to dishwasher detergent; reduce amount; ensure rinse aid cap is installed

Why loading and detergent matter (more than most people think)

The WDF760SADW2 cleans best when water can circulate freely. Overlapping bowls, blocking the detergent dispenser, or placing plastics incorrectly can reduce wash pressure at the spray arms and leave residue. Fresh automatic dishwasher detergent (often tablets or packs) also helps reduce filming over time.

When a part is likely involved

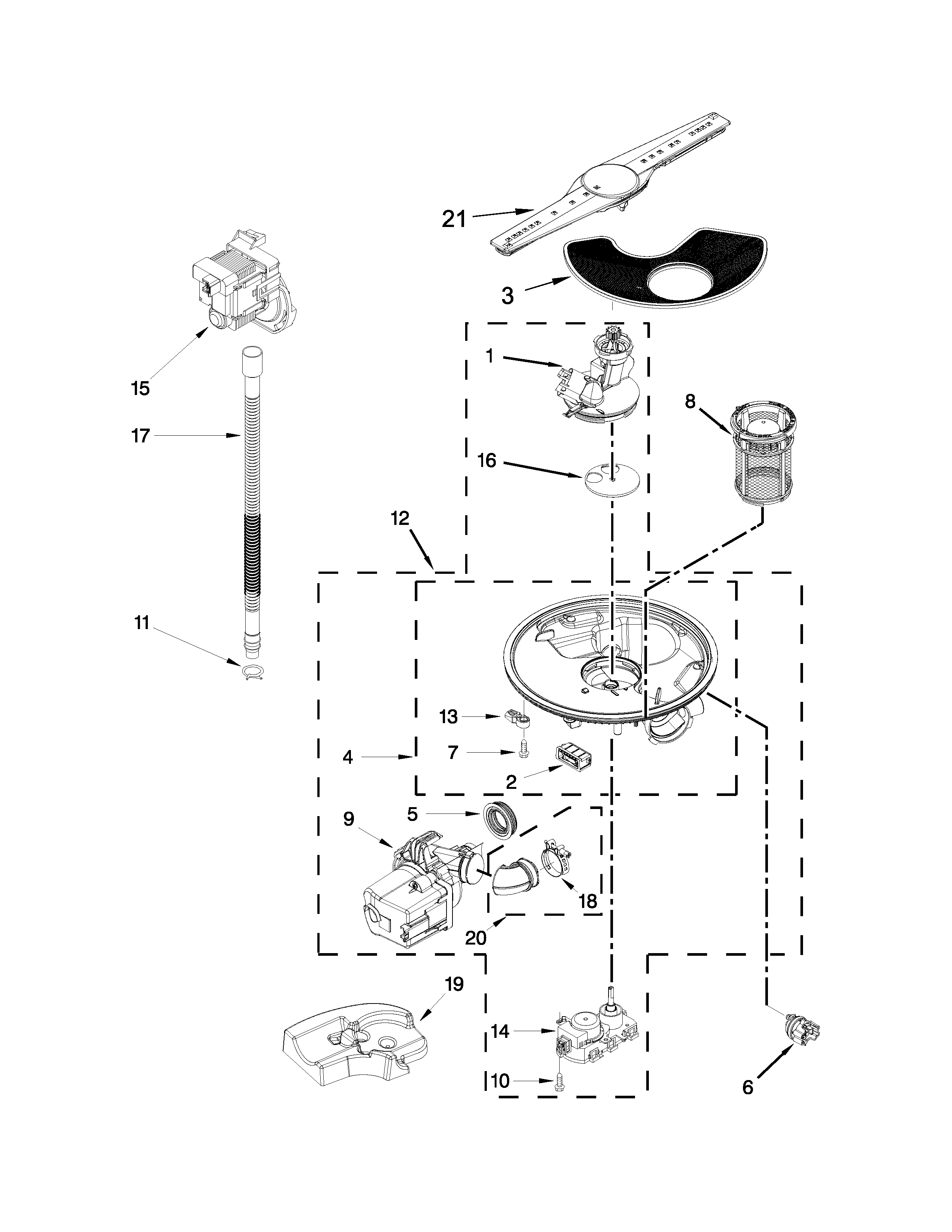

If you’ve cleared clogs and the dishwasher still leaves water in the tub, the drain system is the next focus. A failing drain pump can sound strained, hum without moving water, or drain very slowly. For this model, the correct replacement is the dishwasher drain pump WPW10348269.

Helpful DIY references

• Use how to reset a Whirlpool dishwasher when the control seems stuck or a cycle will not resume.
• Use dishwasher not draining video if you need a step-by-step visual for hose and drain-path checks.

Last updated: February 2026

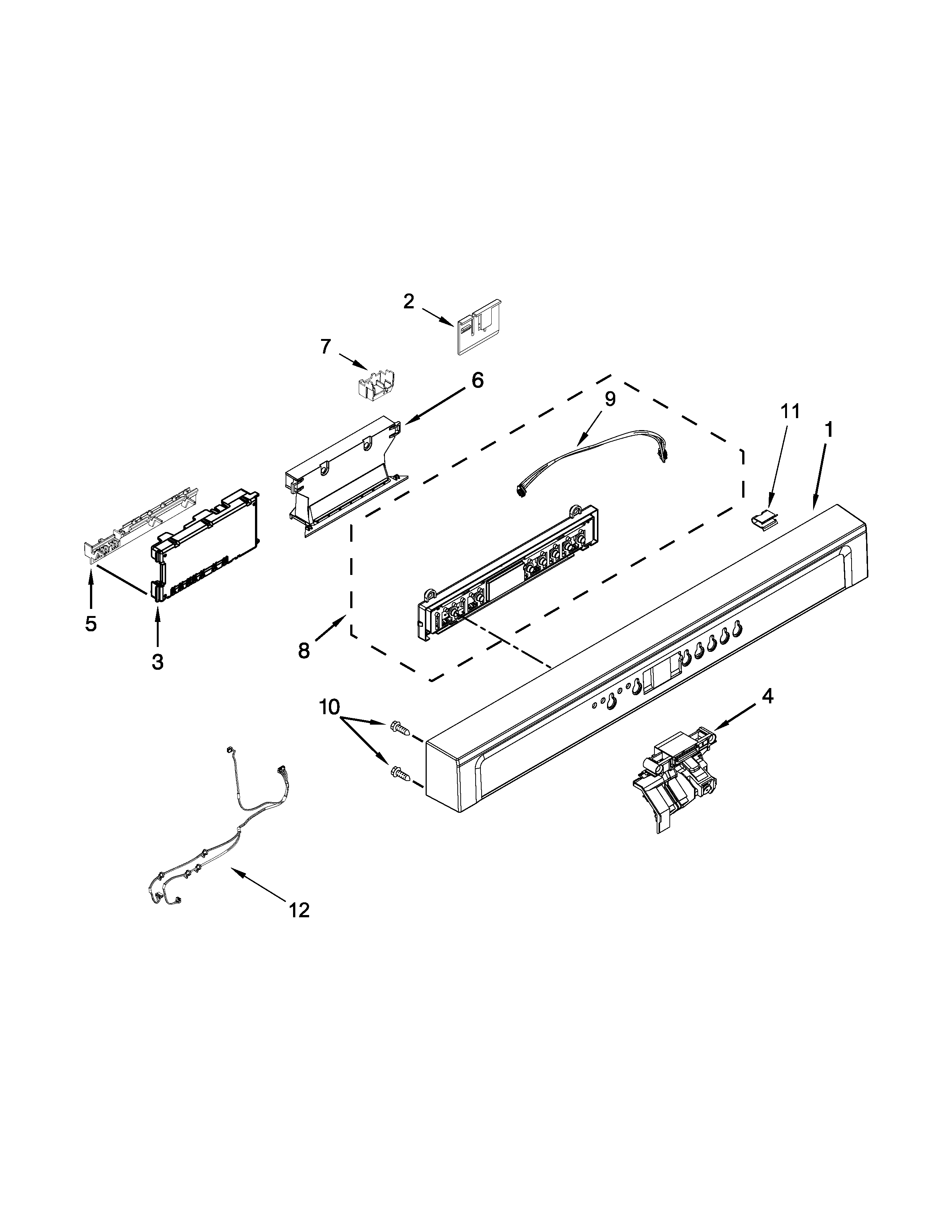

For the Whirlpool WDF760SADW2 dishwasher, the total cost to replace the control panel depends on which console assembly your model uses and whether you do it yourself or hire service. Expect to pay for the part plus a service call and labor if a technician installs it.

What drives the total cost

Control panel pricing varies by finish, button layout, and whether you need the full console assembly or a separate electronic control.

• Part selection: some versions use a complete console assembly, others also involve a separate control board
• Labor: service call plus installation time (often 1 hour or more)
• Diagnosis: a “dead” panel can be power, latch, or wiring, not the console itself
• Extras: damaged connectors or a harness issue can add parts and time

Cost component	What it includes	What changes the price most
Control panel/console part	The user interface and trim/console assembly	Color/finish, exact console version
Labor	Disassembly, swap, reassembly, testing	Local rates, minimum trip charge
Diagnosis	Verifying the failure before replacing parts	Symptoms, error codes, intermittent issues

Before you buy a control panel

We recommend confirming the basics first so you do not replace the wrong part.

• Check the breaker and confirm the dishwasher has power
• Make sure the door closes fully and latches firmly
• Try the reset steps in the WDF760SADW2 owner’s manual
• Look for fault indicators and match them to Whirlpool dishwasher error codes
• If the unit will not start, test the door latch function before blaming the console

Parts commonly involved on this model

If the dishwasher will not start because the door is not registering closed, the latch is often the more direct fix.

• Console assembly W10810489: console/control panel assembly option used on WDF760SADW2 variants
• Dishwasher door latch WPW10653840: helps when the dishwasher will not run due to a door-closed sensing problem

Why it matters

The control panel is expensive compared with many other dishwasher parts; confirming power, latch operation, and error codes first prevents repeat repairs and unnecessary parts costs.

Last updated: February 2026
