Model # DV42H5000GW/A3-03 Official Samsung dryer

Here are the diagrams and repair parts for Official Samsung DV42H5000GW/A3-03 dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

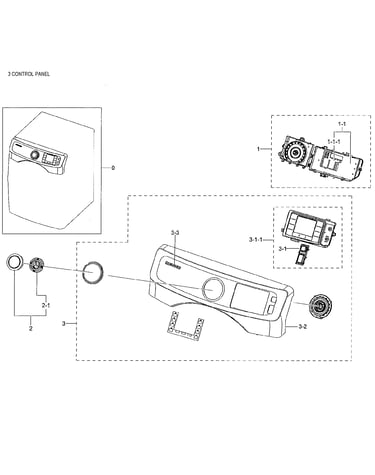

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forDV42H5000GW/A3-03 Dryer

  • Samsung Dryer Drum Support Roller DC97-16782A
    Samsung dryer drum support roller

    Part #DC97-16782A

    BEST SELLER
    $42.23 |
    12% OFF Phone Price : $48.23
    In Stock
  • Dryer Main Pcb DC92-01606C
    #7-2

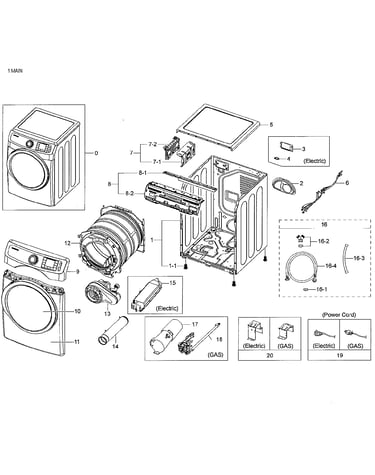

    Main asy diagram

    Dryer main pcb

    Part #DC92-01606C

    Replaced by #DC92-00669Y

    ?
    Manufacturer substitution
    This part replaces DC92-01606C. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $267.68 |
    $12.00 OFF Phone Price : $279.68
    In Stock
  • Samsung Dryer Electronic Control Board DC92-01596D
    #7

    Main asy diagram

    Samsung dryer electronic control board

    Part #DC92-01596D

    Replaced by #DC92-00669Y

    ?
    Manufacturer substitution
    This part replaces DC92-01596D. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $267.68 |
    $12.00 OFF Phone Price : $279.68
    In Stock
  • Dryer Door Switch DC64-00828B
    #2-6

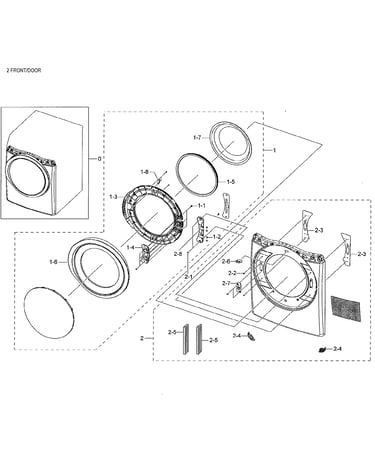

    Frame front & door diagram

    Dryer door switch

    Part #DC64-00828B

    BEST SELLER
    $40.04 |
    13% OFF Phone Price : $46.04
    In Stock
  • Dryer Drum Seal DC97-07618A
    #2-11

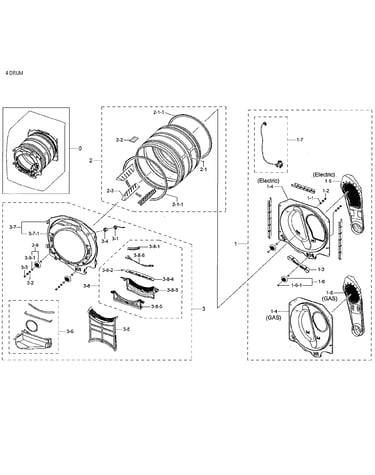

    Drum diagram

    Dryer drum seal

    Part #DC97-07618A

    BEST SELLER
    $128.68 |
    9% OFF Phone Price : $140.68
    In Stock
  • Dryer Burner Igniter DC47-00022A
    #3

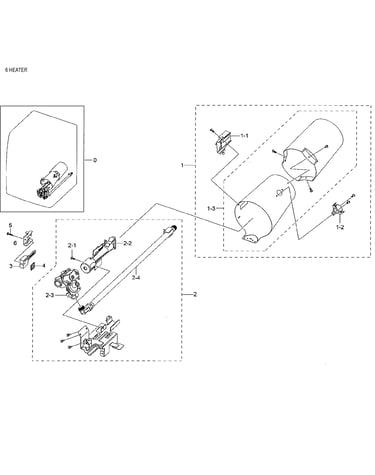

    Duct & burner diagram

    Dryer burner igniter

    Part #DC47-00022A

    BEST SELLER
    $149.49 |
    7% OFF Phone Price : $161.49
    In Stock
  • Dryer Idler Assembly DC96-00882F
    #2-87

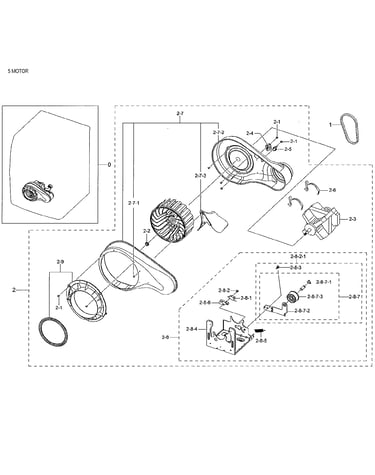

    Motor duct diagram

    Dryer idler assembly

    Part #DC96-00882F

    BEST SELLER
    $114.58 |
    9% OFF Phone Price : $126.58
    In Stock
  • Dryer Moisture Sensor DC61-02627A
    #3-81

    Drum diagram

    Dryer moisture sensor

    Part #DC61-02627A

    BEST SELLER
    $11.57 |
    15% OFF Phone Price : $13.57
    In Stock
  • Dryer Wire Harness DC96-00766A
    #3-86

    Drum diagram

    Dryer wire harness

    Part #DC96-00766A

    BEST SELLER
    This item is not returnable
    $14.38 |
    12% OFF Phone Price : $16.38
    In Stock
  • Refrigerator Screw 6002-000213
    #NI

    Main asy diagram

    Refrigerator screw

    Part #6002-000213

    BEST SELLER
    This item is not returnable
    $25.54
    In Stock
