How to order Whirlpool parts?
You can order replacement Whirlpool parts for your LSW9245EQ0 washer directly from the parts list for this model on Sears PartsDirect. Start by confirming your model number, then choose the exact part you need (for example, a drain pump, inlet valve, or motor coupling) and place your order.
- Find the part you need in the model’s parts list (match by part name and diagram location).
- Confirm the part fits Whirlpool LSW9245EQ0 before checkout.
- Order the part and keep your order confirmation for reference.
- If you are unsure which part fixes the symptom, use a troubleshooting guide first.
| Symptom | Common part to check | Example part on this model |
|---|---|---|
| Won’t drain | Drain pump or blockage | Washer drain pump WP3363394 |
| Won’t fill | Water inlet valve or screens | Washer inlet valve 285805 |
| Won’t spin or agitates poorly | Motor coupling or agitator components | Coupling 285753A |
- Use the full model number: LSW9245EQ0 (letters and numbers matter).
- Compare your old part to the listing: mounting points, electrical connectors, and hose sizes.
- If the washer has multiple symptoms, start with the simplest checks (hoses, clogs, loose connections) before ordering.
- For fill or drain problems, follow a proven diagnostic path first: troubleshooting a direct drive top load washer that wont fill video or troubleshooting a top load washer that wont drain or spin video.
Ordering the exact part designed for Whirlpool LSW9245EQ0 helps prevent fit issues, repeat repairs, and return delays, especially on high-impact items like the drain pump, inlet valve, and drive coupling.
Last updated: February 2026
Are Whirlpool washer parts interchangeable?
Some Whirlpool washer parts are interchangeable across multiple models, but we always match parts by your exact model number (LSW9245EQ0) because fit, electrical connectors, and drive-system design can vary. The safest approach is to use the parts listed for LSW9245EQ0 to avoid repeat failures.
Parts can be interchangeable only when the design specs match (mounting points, shaft size, voltage, and wiring). Even within Whirlpool top-load washers, small revisions can change compatibility.
Common examples where compatibility matters:

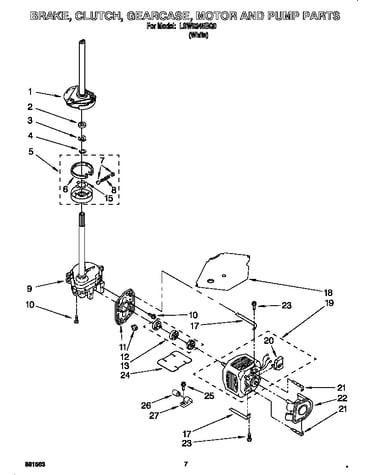

- Drive system parts (motor coupling, clutch, gearcase) must match the transmission and motor design.

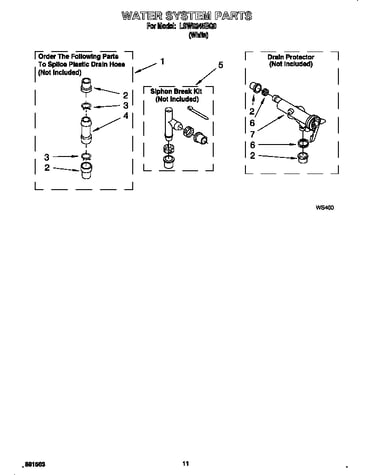

- Water system parts (inlet valve, drain pump) must match hose ports and electrical terminals.

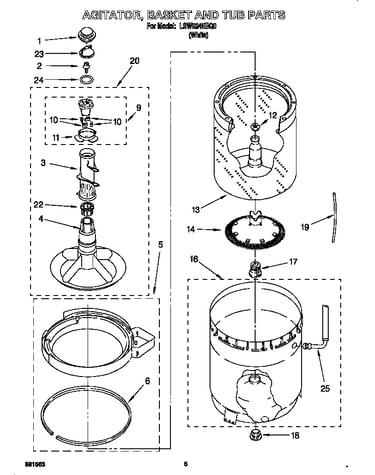

- Agitation parts (agitator, agitator dogs) must match the agitator style and spline.
- Suspension parts must match tub size and cabinet geometry.
Use the model-specific parts list first, then confirm the part number and any notes on the part page.
Good “starting point” parts for common symptoms on this Whirlpool washer:
- No agitation or weak agitation: agitator dog 80040
- Won’t spin or makes grinding noises: coupling 285753A
- Won’t drain: washer drain pump WP3363394
- Won’t fill or fills slowly: washer inlet valve 285805
- Confirm the model number is exactly LSW9245EQ0.
- Compare the part number on the old part (if readable) to the replacement listing.
- Match electrical terminals (shape and count) on pumps, valves, and switches.
- Match mounting and port orientation (especially on pumps and valves).
- If the failure is mechanical, inspect related wear items (coupling, clutch, drive block).
Using a “close enough” part can cause leaks, no-spin/no-agitate problems, excessive vibration, or premature wear. Matching parts to LSW9245EQ0 protects performance and helps the repair last.
| If your washer symptom is | Often involved part type | Example part for LSW9245EQ0 |
|---|---|---|
| Won’t drain | Drain pump | Washer drain pump WP3363394 |
| Won’t fill | Inlet valve | Washer inlet valve 285805 |
| Agitates poorly | Agitator dogs | Agitator dog 80040 |
| No spin/no agitate | Motor coupling | Coupling 285753A |
Last updated: February 2026
What is the most common problem with Whirlpool washers?
The most common Whirlpool washer problems are draining or spinning issues (clothes stay wet), water leaks, and agitation problems. On the Whirlpool LSW9245EQ0, these symptoms often trace back to a worn drain pump, a failing lid switch, or a worn drive system part such as the motor coupling.
- Won’t drain or won’t spin: clogged or failing pump, kinked drain hose, lid switch not closing
- Clothes still wet after cycle: pump not moving water fast enough, drive system not shifting into spin
- Leaks: loose fill hoses, inlet valve seepage, pump leak, tub gasket seepage
- Won’t agitate or weak agitation: worn agitator dogs, stripped agitator components
- Loud noise in spin: worn clutch or gear case components, basket drive wear
- Confirm the lid closes firmly; if the washer stops when you lift the lid, the lid switch circuit is critical.
- Check the drain hose for kinks and make sure it is not shoved too far down the standpipe.
- Run a drain and spin with an empty tub; listen for the pump running and watch for strong discharge.
- Look underneath for drips during fill and drain to pinpoint whether the leak is at the valve, pump, or tub.
- If agitation is weak, inspect the agitator for worn internal “dogs.”
| Symptom | Common fix | Part to consider |
|---|---|---|
| Won’t drain / won’t spin | Replace drain pump | Washer drain pump WP3363394 |
| Won’t start or stops when lid opens | Replace lid switch | Switch 3949247V |
| Motor runs but washer won’t agitate/spin | Replace motor coupling | Coupling 285753A |
| Agitator slips or “ratchets” | Replace agitator dogs | Agitator dog 80040 |
| Leaks during fill | Replace inlet valve | Washer inlet valve 285805 |
Drain, spin, and agitation problems can look similar, but the fix is very different. Matching the symptom to the right system (pump, lid switch, coupling, or agitator) prevents repeat breakdowns and avoids replacing expensive assemblies unnecessarily.
Last updated: February 2026
How much does it cost to repair a Whirlpool washing machine?
For a Whirlpool LSW9245EQ0 washer, most repairs land in the $150 to $400 range when you include a service call, labor, and a common replacement part. Bigger jobs (drive system, gearcase, basket) often run $400 to $800+, mainly due to labor time and higher-cost components.
These are common price bands we see for top-load direct-drive style washers like the LSW9245EQ0.
- Service/diagnostic visit: $75 to $150
- Simple mechanical fix (30 to 60 minutes labor): $150 to $300
- Drain or fill problem repair: $200 to $450
- No spin / loud noise drive system repair: $300 to $700+
- Major rebuild (gearcase, basket, tub work): $500 to $900+
| Repair type | Common symptom | Example part on this model | Part cost impact |
|---|---|---|---|
| Agitation issue | Agitator moves poorly or not at all | Agitator dog 80040 | Low |
| Won’t drain | Water left in tub | Washer drain pump WP3363394 | Low to medium |
| Won’t fill | No water or slow fill | Washer inlet valve 285805 | Low to medium |
| No spin / grinding | Tub won’t spin, loud noise | Coupling 285753A | Low |
| Leaks at tub | Water under washer | Washer tub gasket W10814296 | Low |
Repair totals vary because labor and access time can change a lot from one failure to the next.
- Which system failed: drain, fill, drive, suspension, or tub
- Labor time: simple under-cabinet parts cost less to install than basket or gearcase work
- Multiple worn parts: common on older washers (coupling plus clutch, for example)
- Condition of fasteners and corrosion: can add time
- Whether the repair is DIY or technician-installed
If the washer is otherwise in good shape, repairs under 50% of the cost of a comparable replacement washer are usually worth doing. If the basket, outer tub, and gearcase are all involved, replacement often makes more sense.
Knowing the likely cost range helps you decide whether to start with a quick, high-success repair (like a pump, inlet valve, or coupling) before committing to major drive or tub work.
Last updated: February 2026
