Model # WF42H5000AW/A2-00 Official Samsung washer

Here are the diagrams and repair parts for Official Samsung WF42H5000AW-A2-00 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

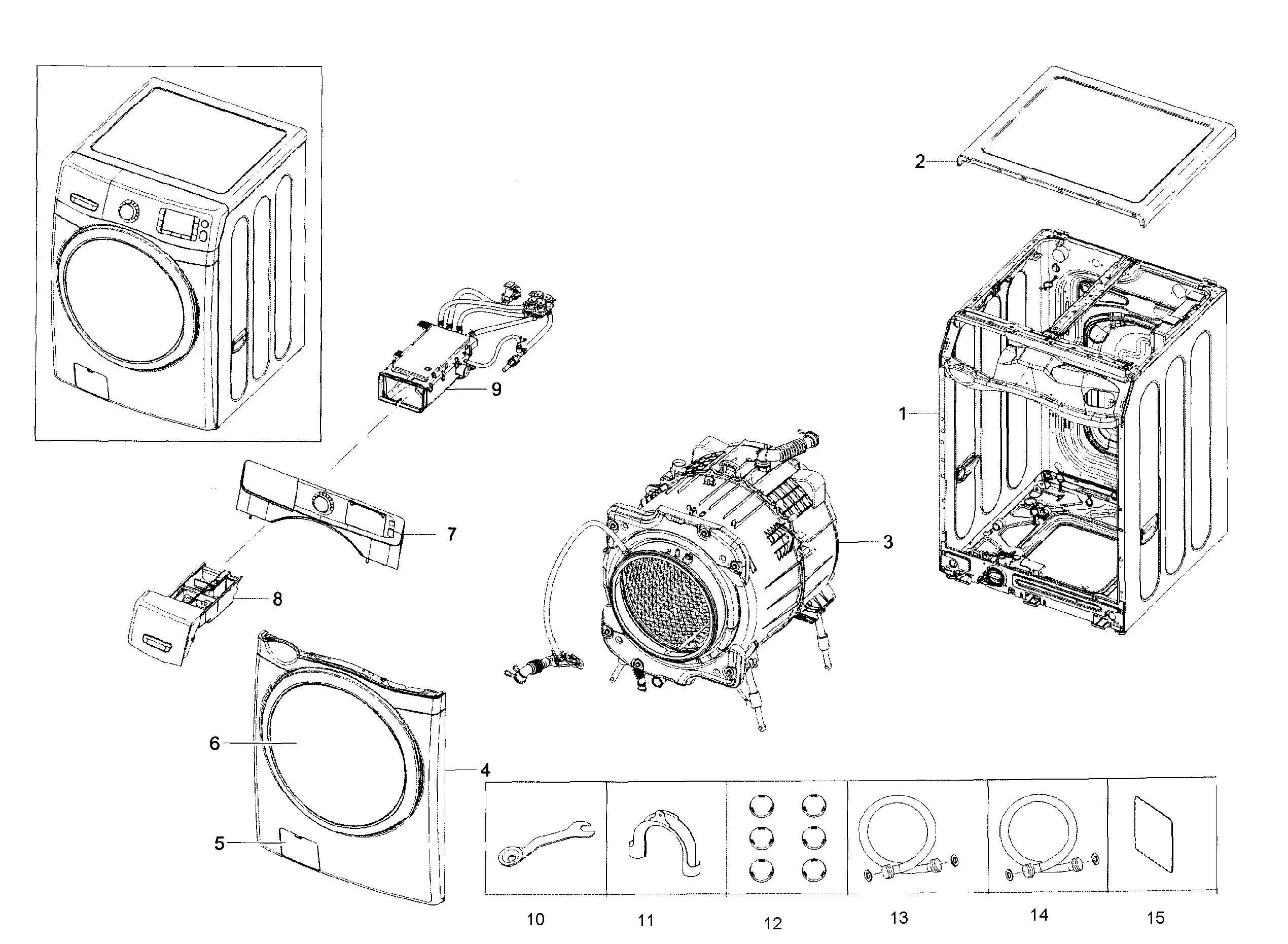

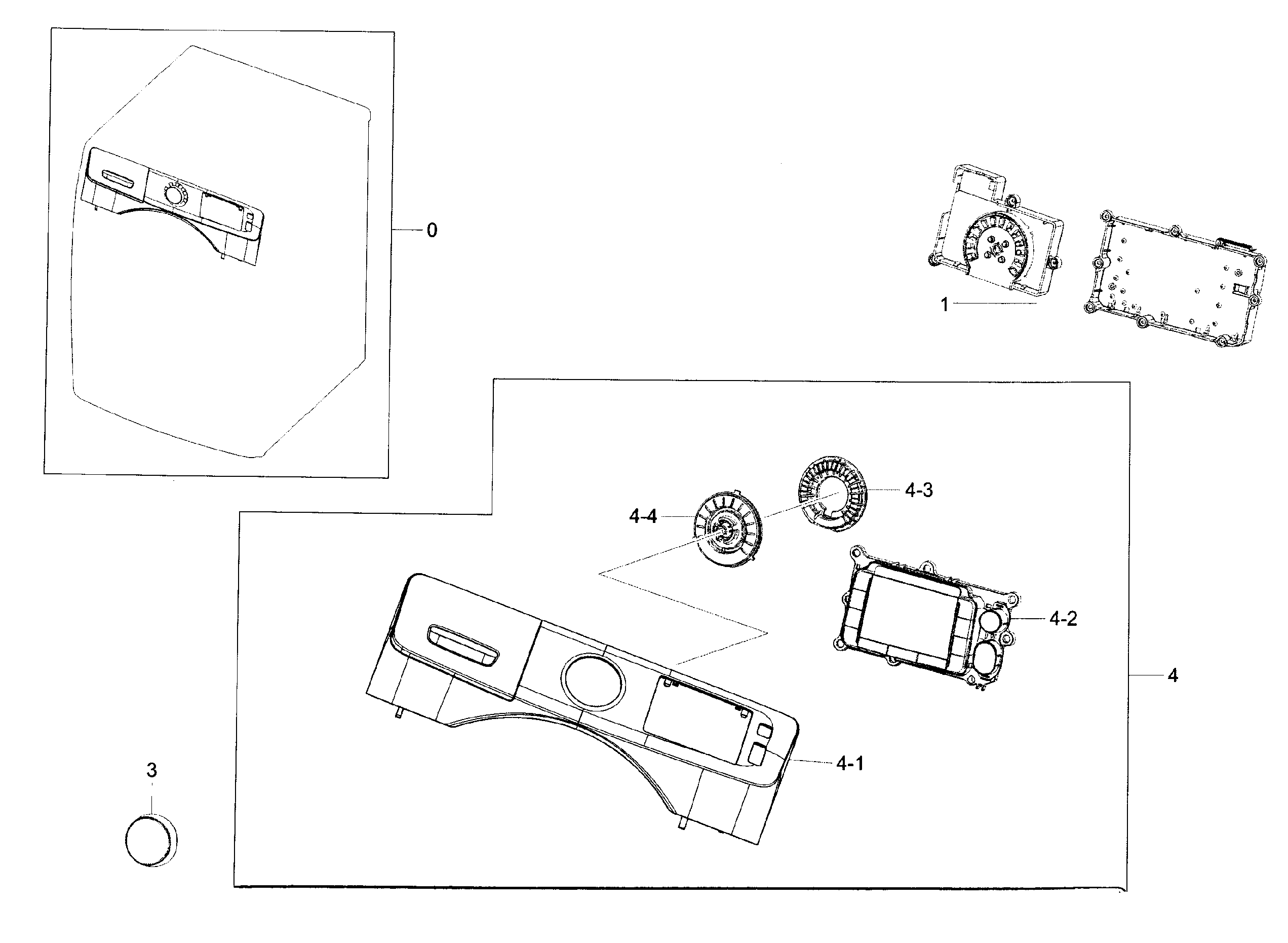

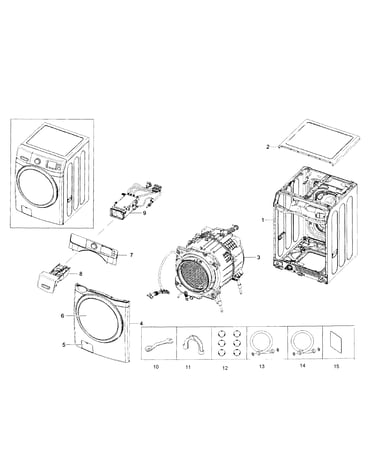

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |

Washer Shock Absorber (replaces Dc66-00650c) DC66-00470B
Washer shock absorber (replaces dc66-00650c)

Part #DC66-00470B

BEST SELLER
$30.91
14% OFF Phone Price : $35.91
In Stock
Washer Drain Pump Motor And Impeller DC31-00178A
#11-2

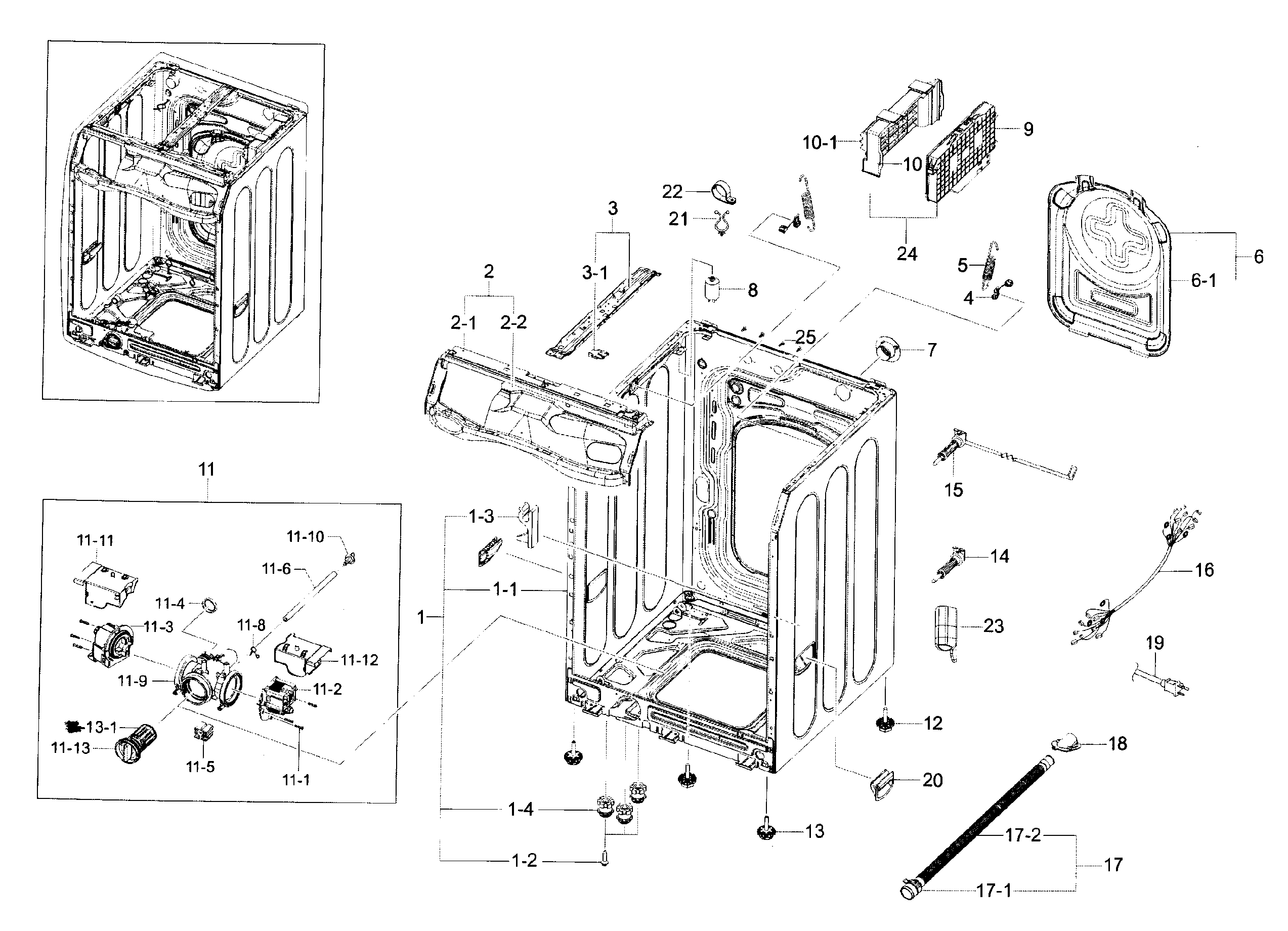

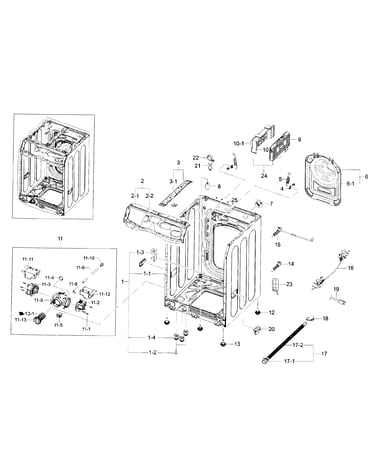

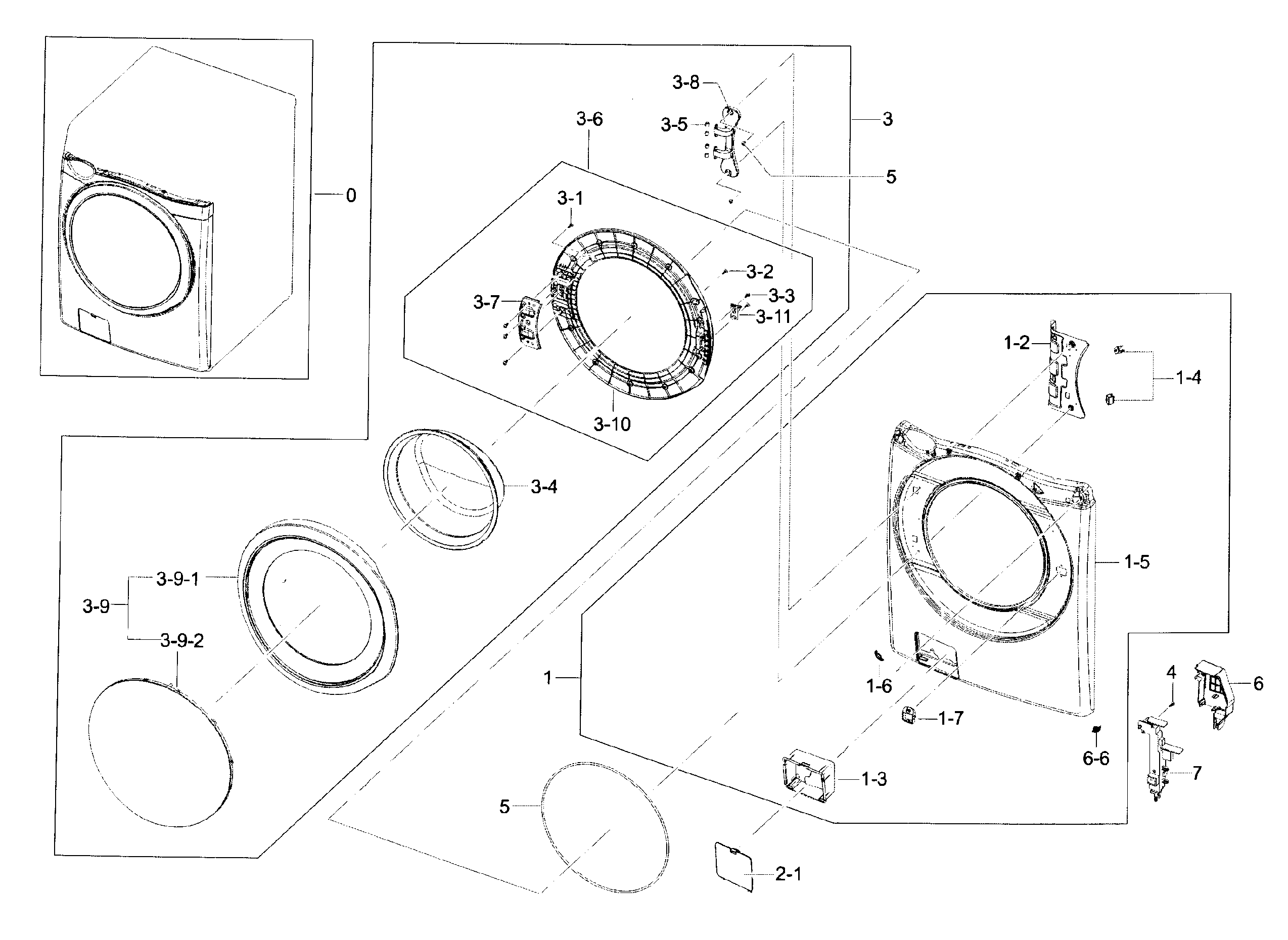

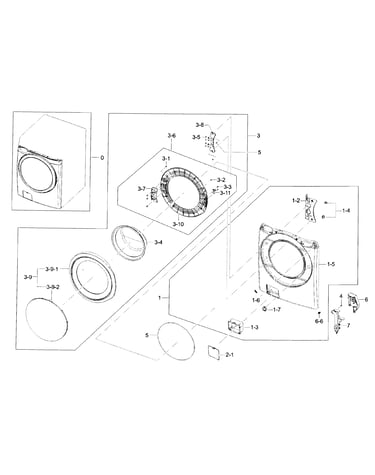

Frame & cover parts diagram

Washer drain pump motor and impeller

Part #DC31-00178A

The manufacturer no longer makes this part, and there's no substitute part

Washer Water Inlet Valve (replaces Dc62-30314h) DC62-30314K
#2

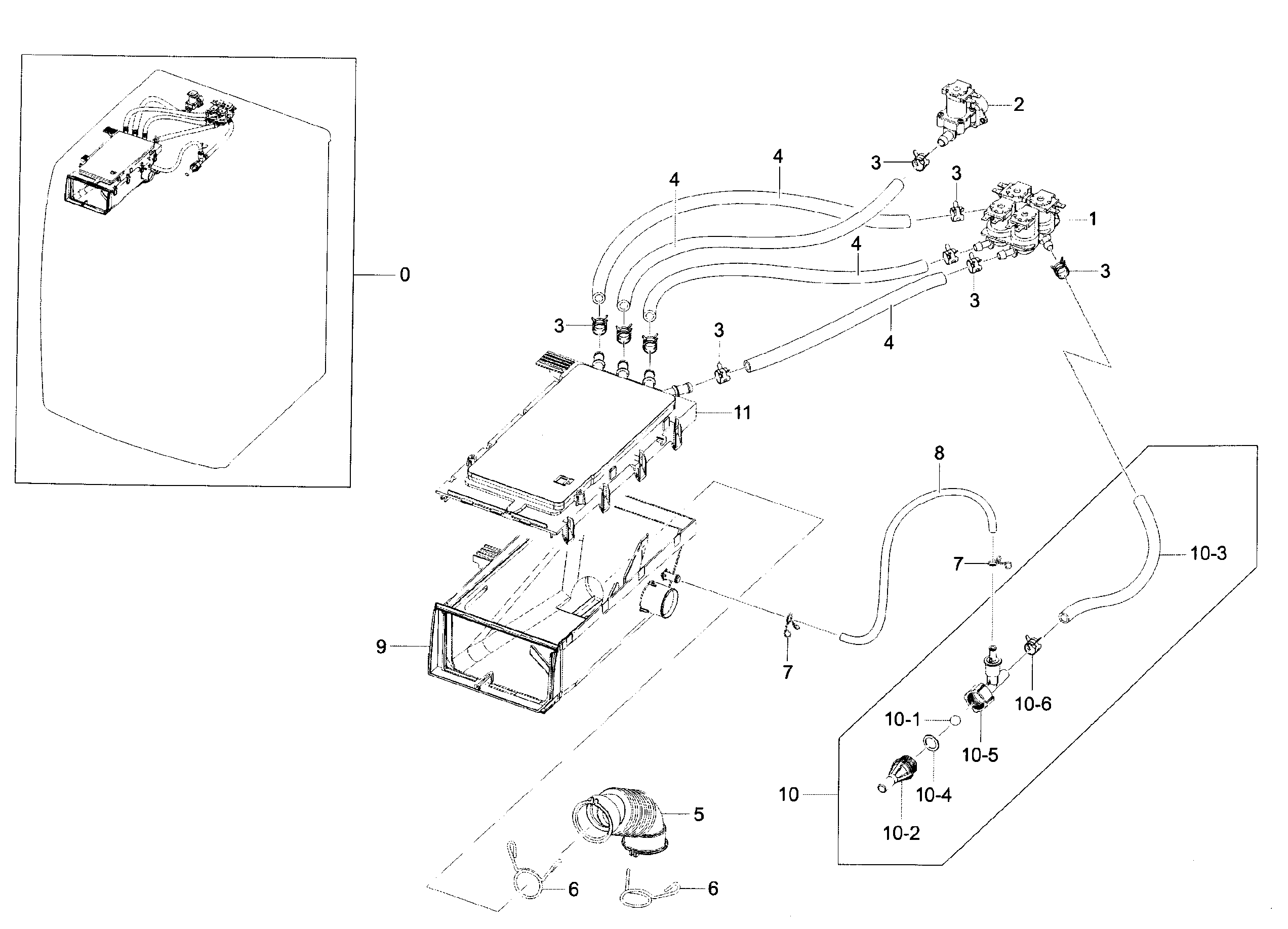

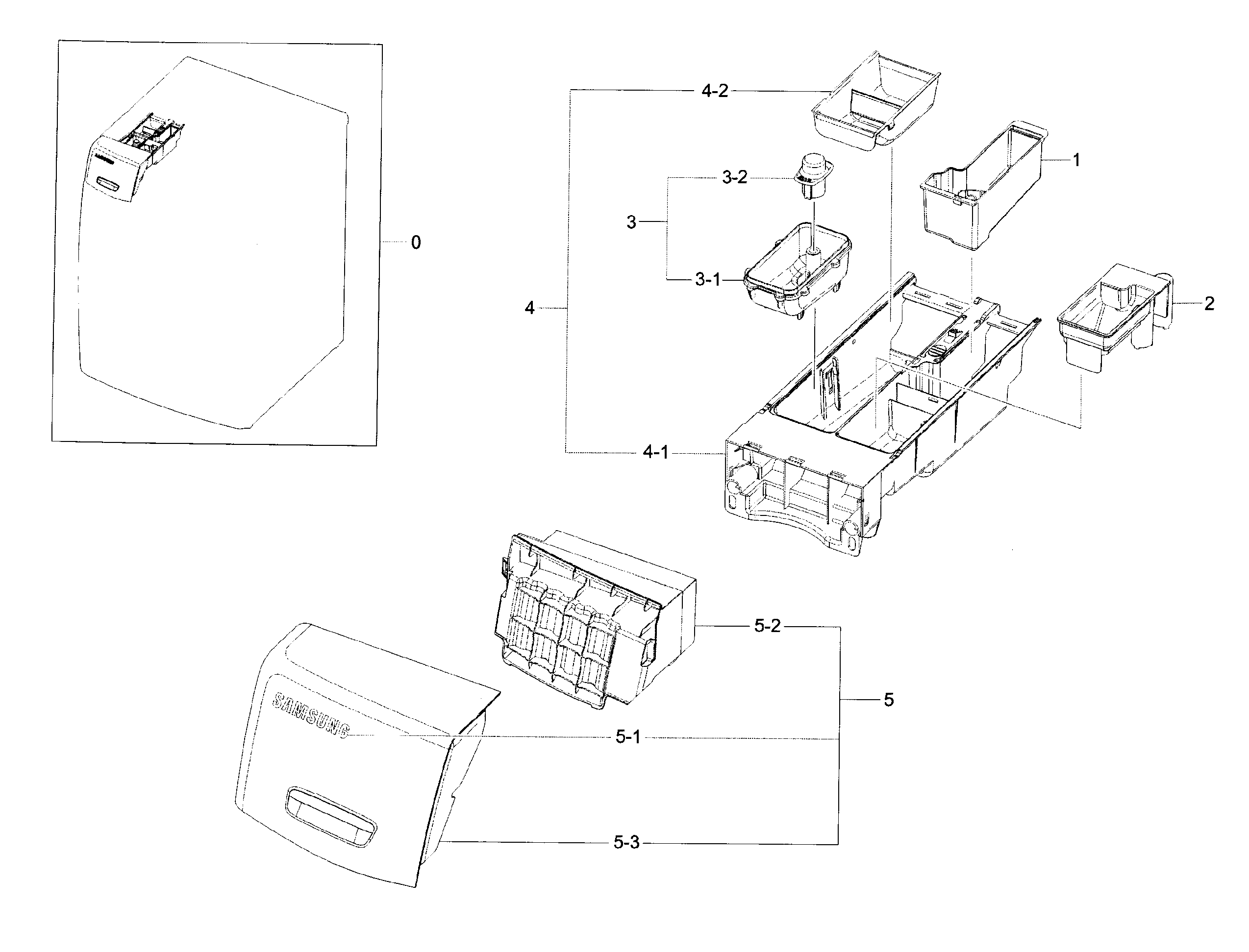

Drawer housing diagram

Washer water inlet valve (replaces dc62-30314h)

Part #DC62-30314K

BEST SELLER
$75.24
6% OFF Phone Price : $80.24
In Stock
Washer Vent Bellows DC67-00275A
#11

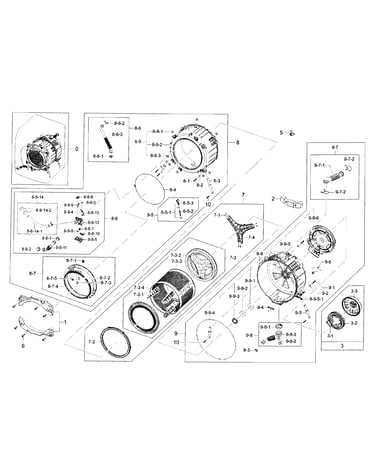

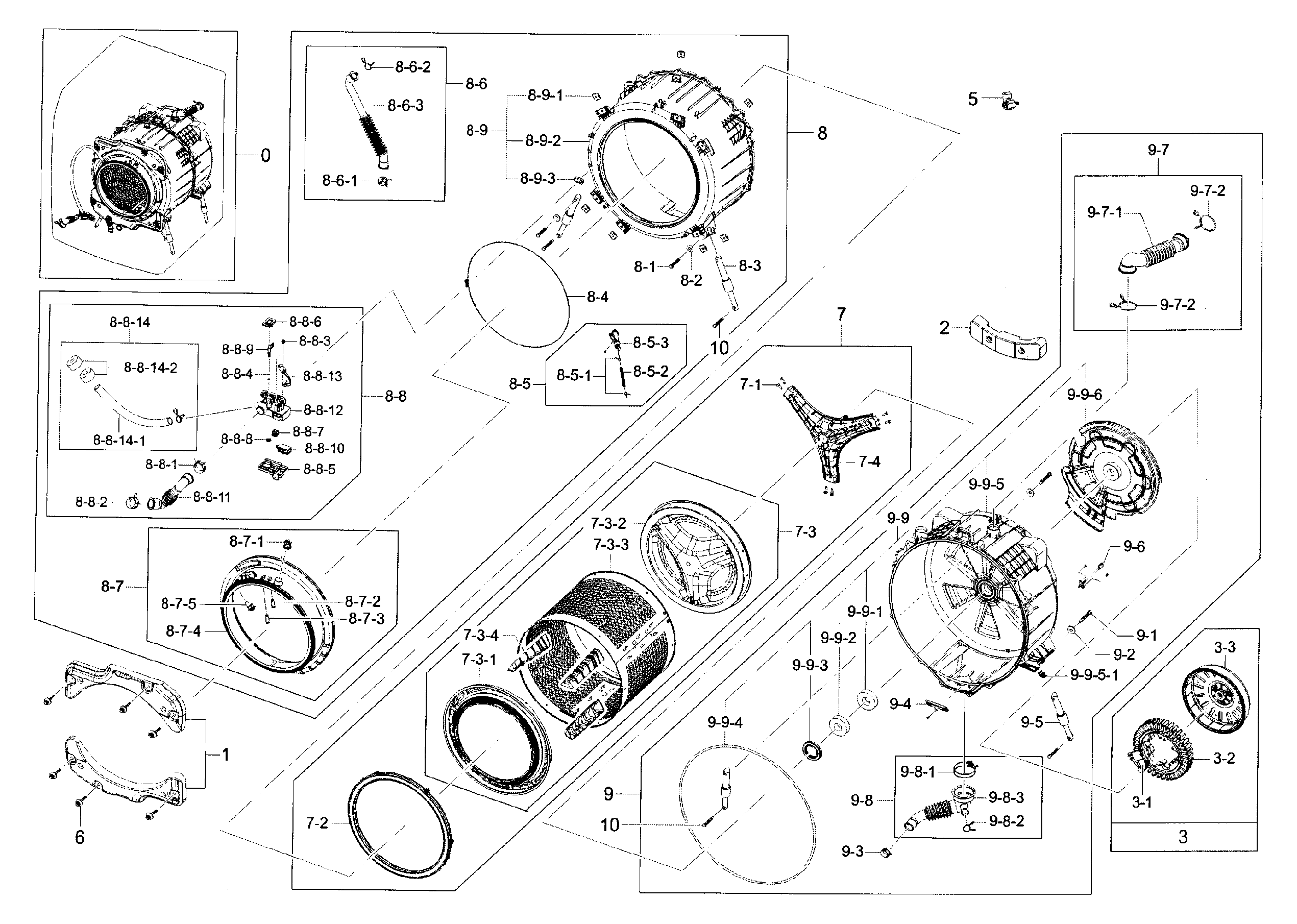

Tub & drum diagram
