Craftsman
Gas Snowblower

Model #536886260 Craftsman snow thrower

Here are the diagrams and repair parts for Craftsman 536886260 snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

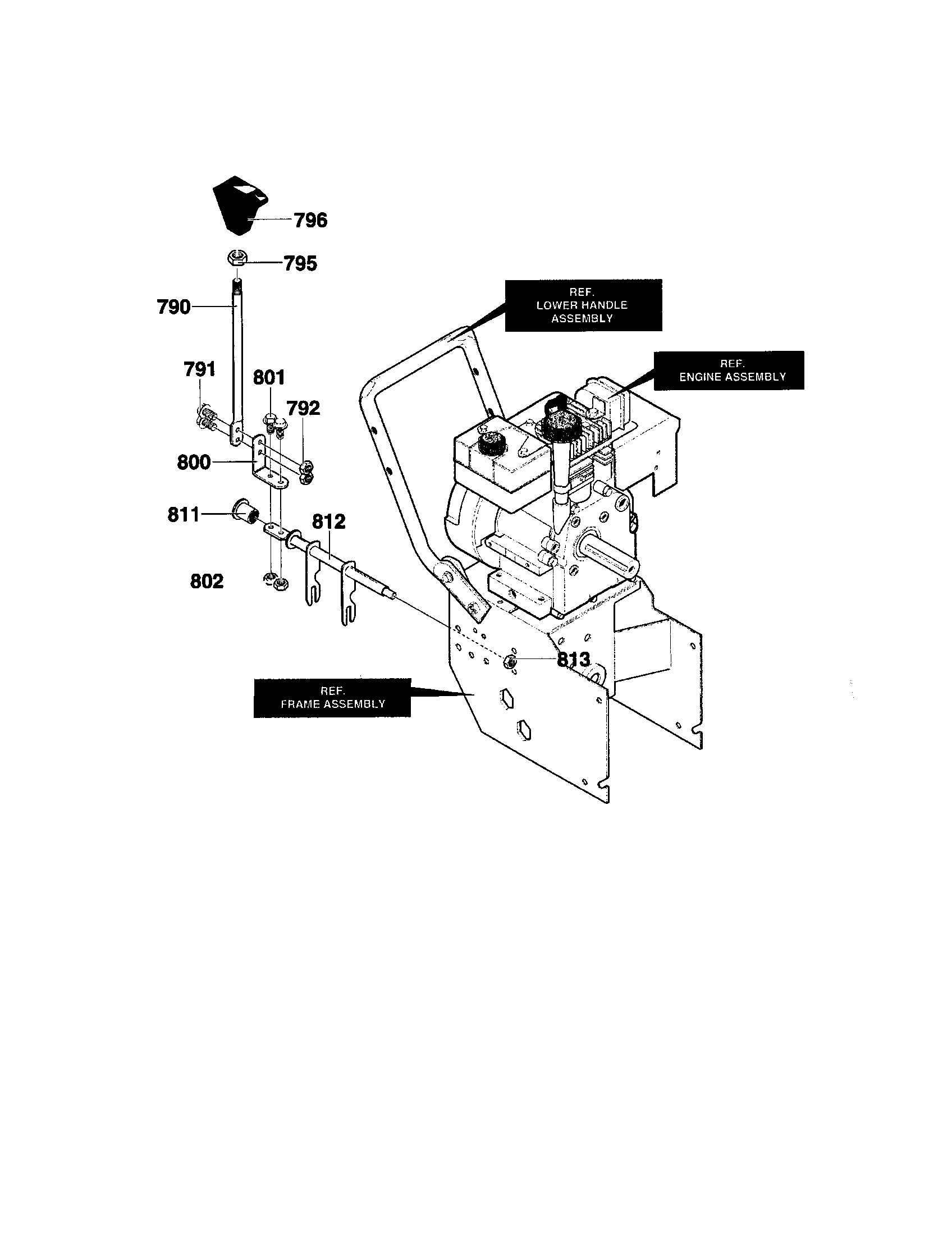

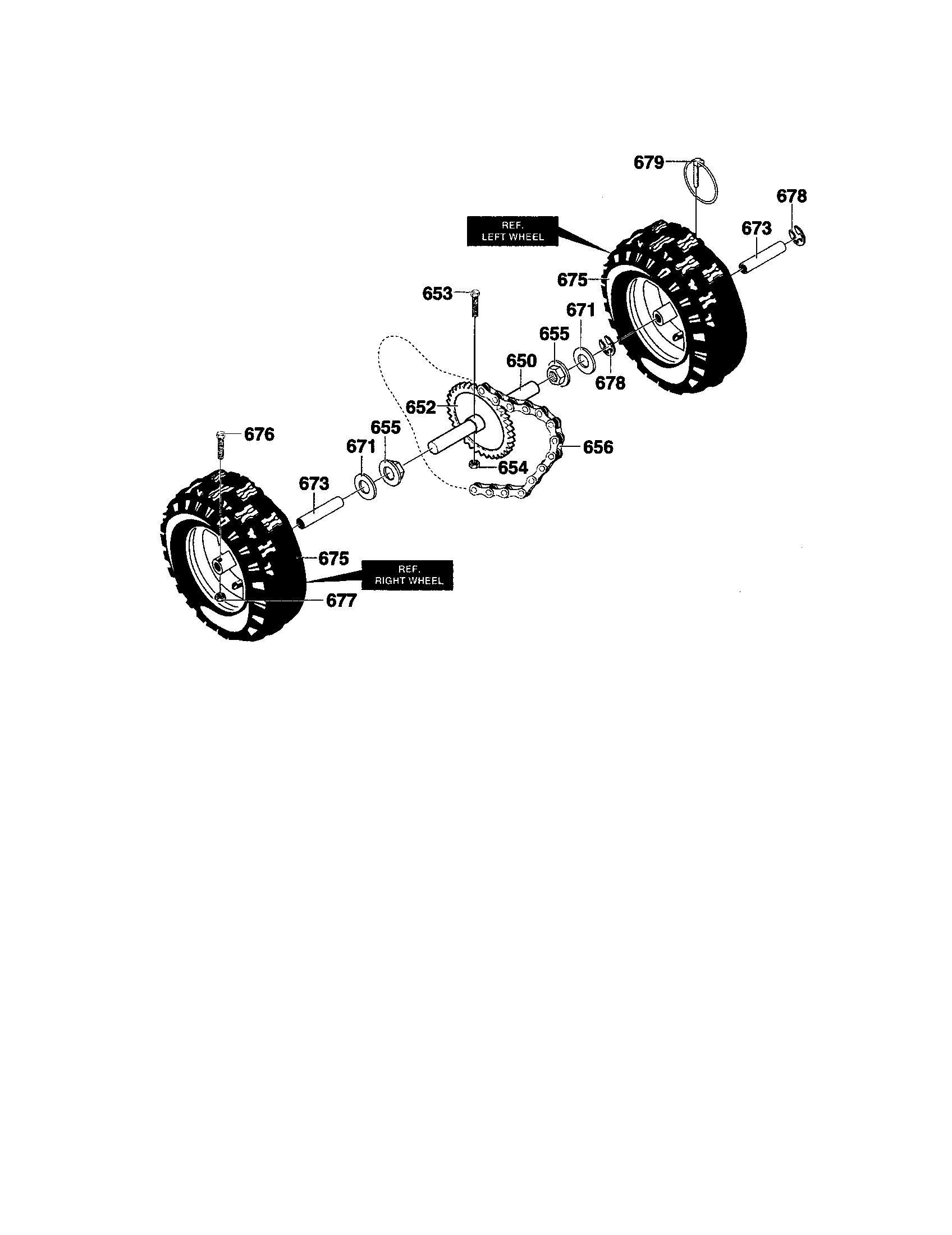

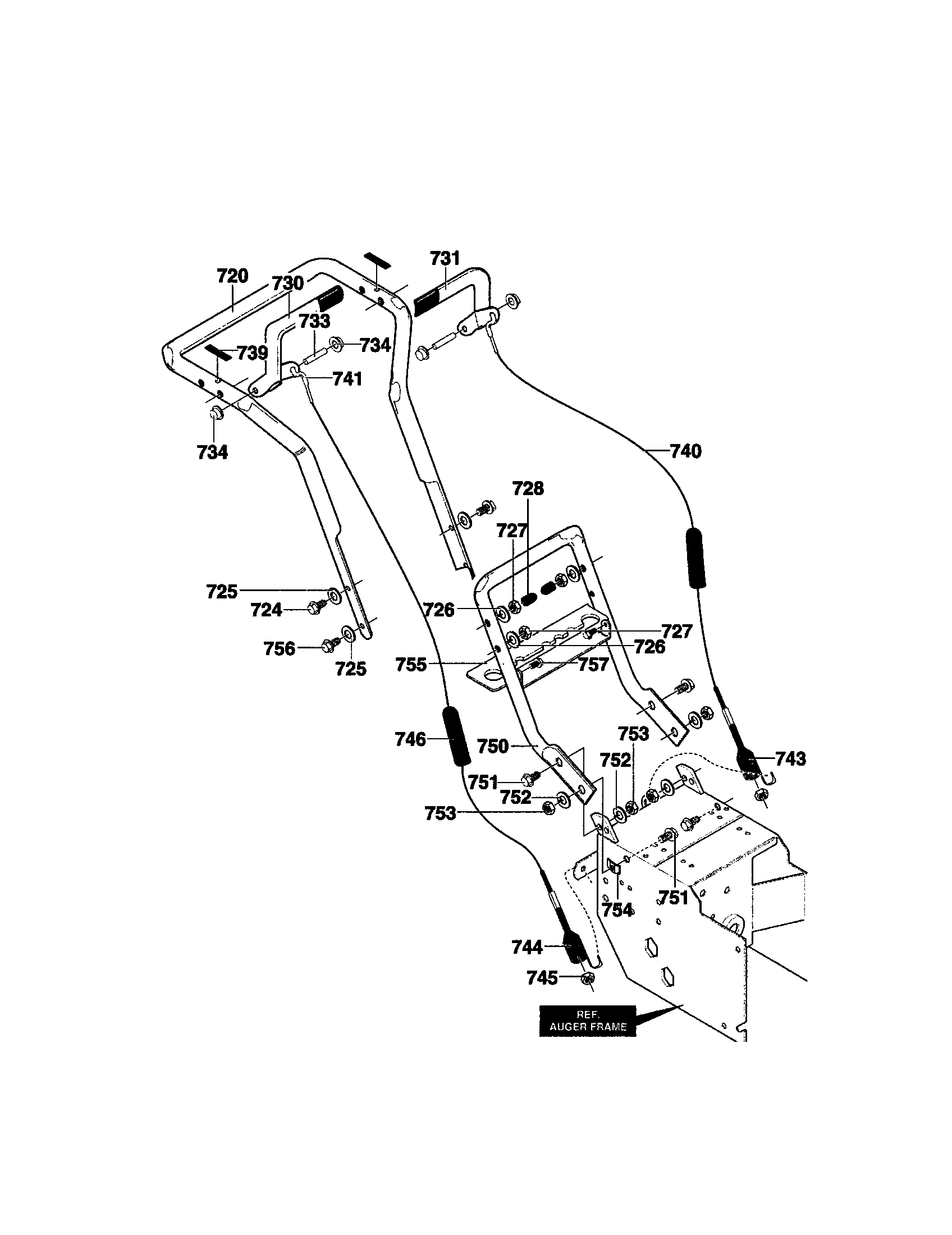

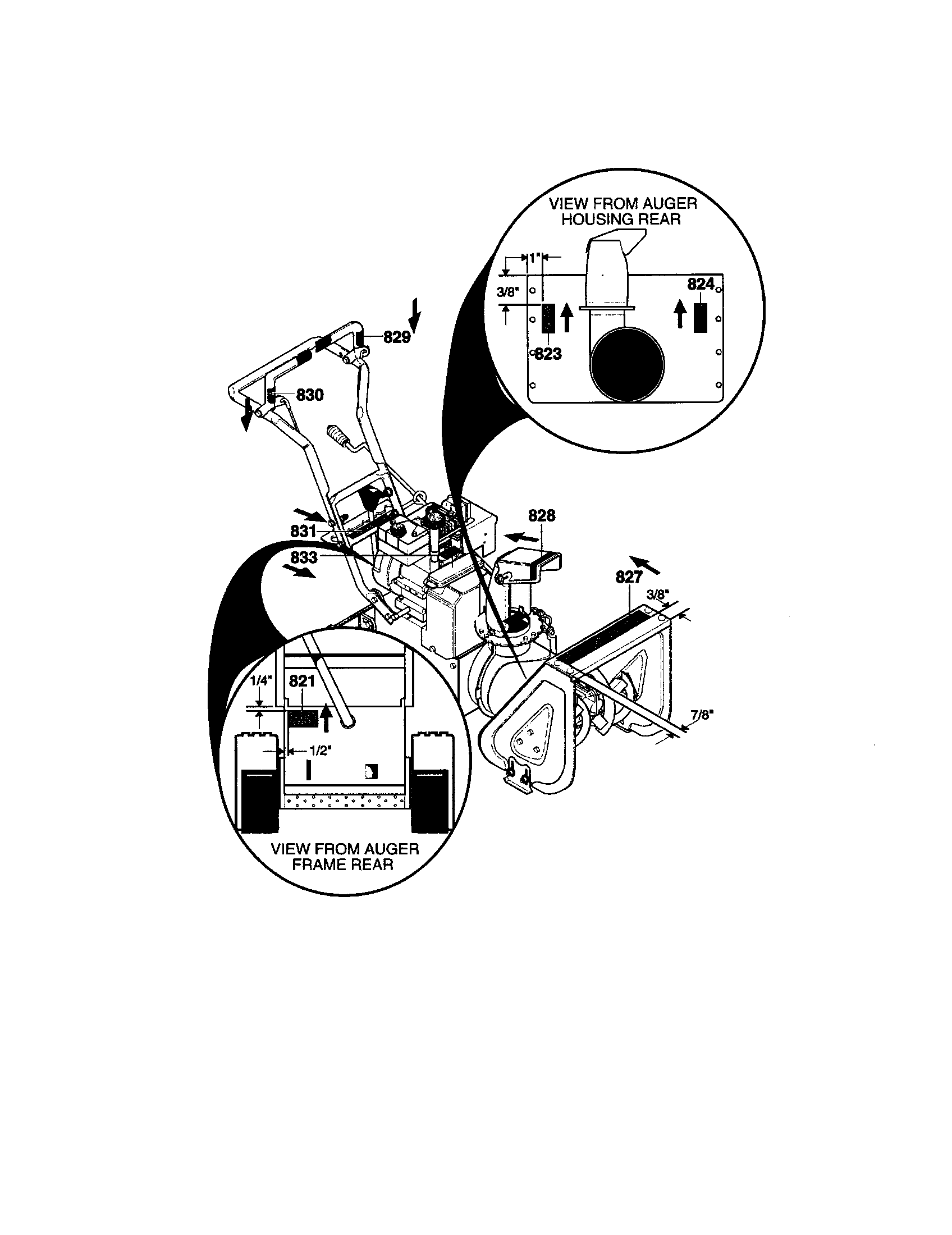

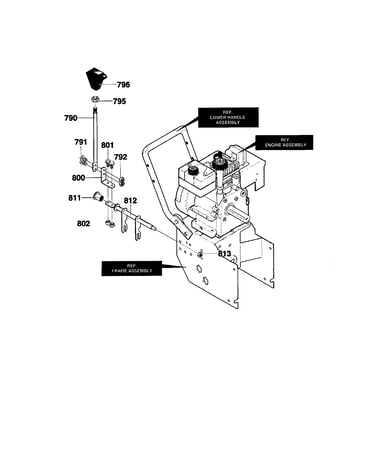

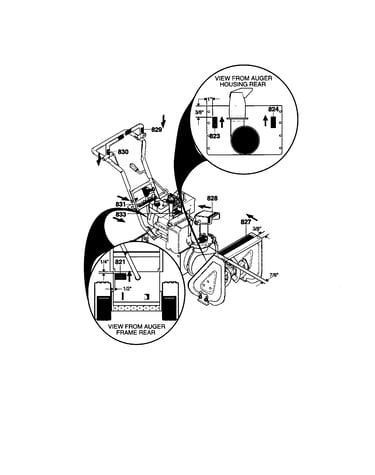

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 395 parts

    Snowblower Ground Drive Belt, 3/8 x 33-1/16-in#57

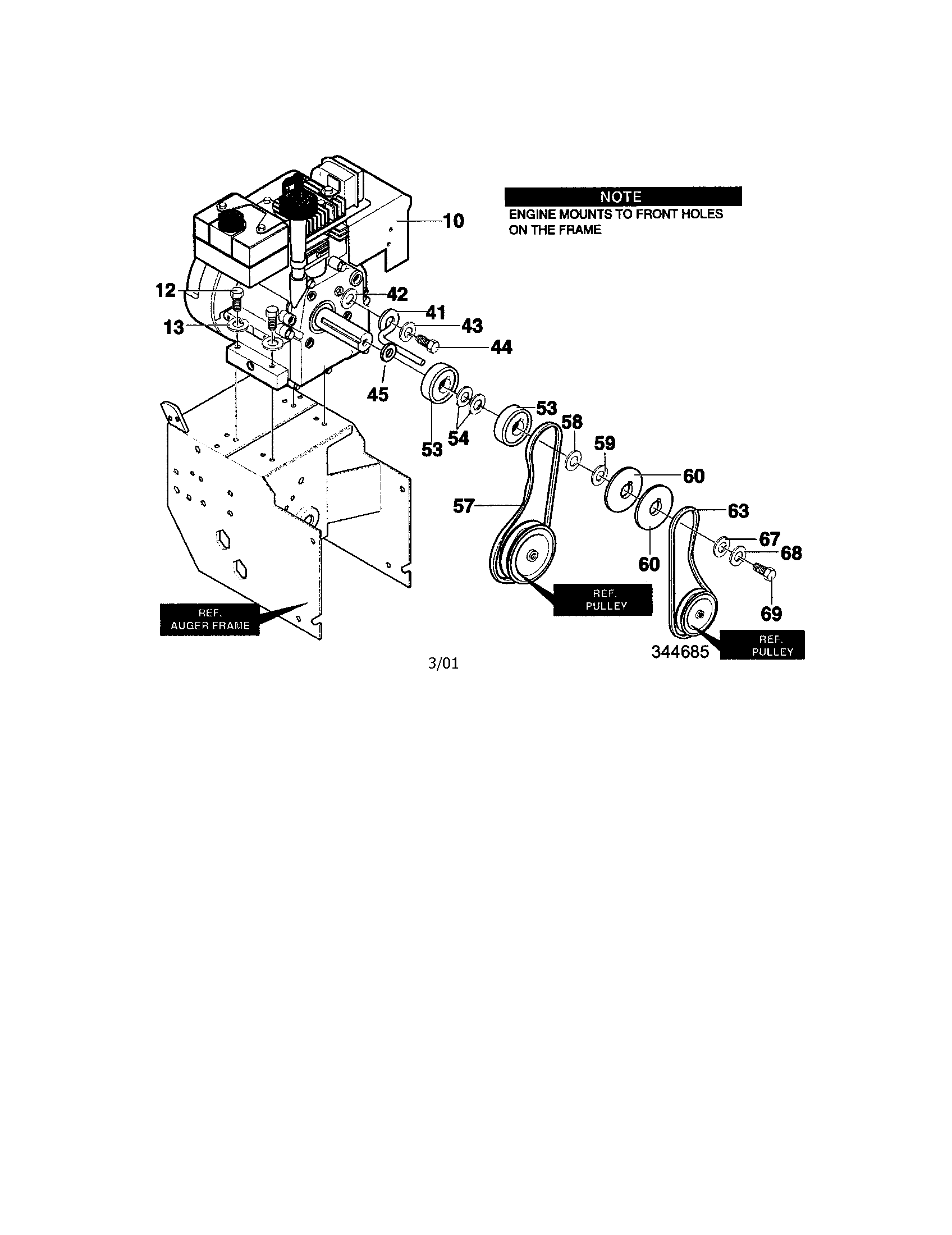

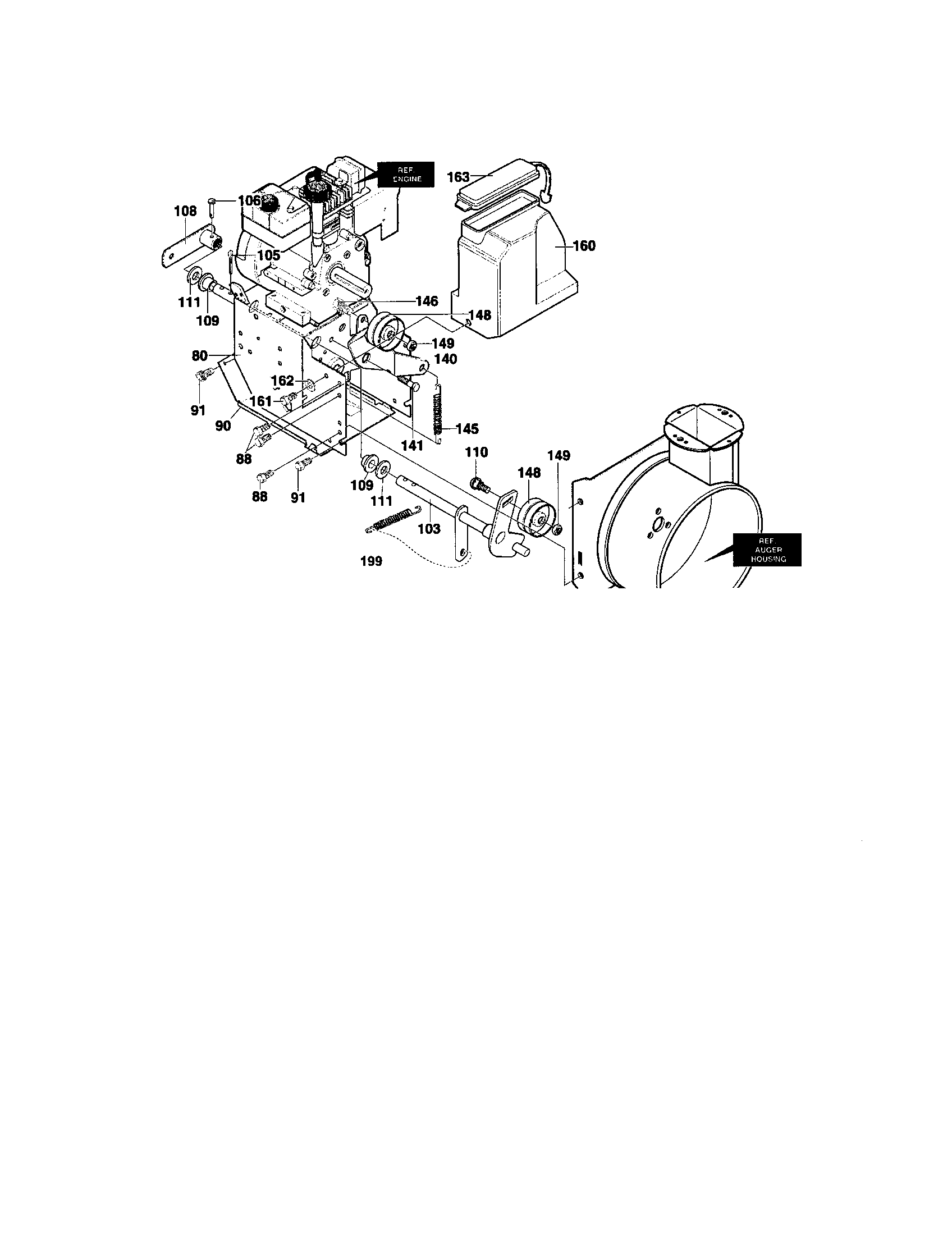

    Frame assembly Diagram

    Snowblower drive belt

    Part #579932
    Replaced by #1733324SM
    ?
    Manufacturer substitution
    This part replaces 579932. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $17.69 |
    12% OFF
    MSRP: $20.00
    Snowblower Auger Drive Belt, 7/16 x 35-1/2-in#63

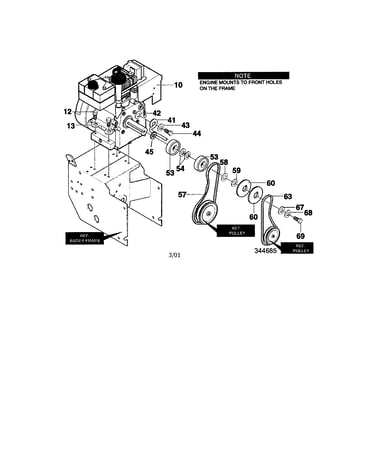

    Frame assembly Diagram

    Auger belt

    Part #581264
    Replaced by #37X120MA
    ?
    Manufacturer substitution
    This part replaces 581264. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $26.59
    Snowblower Friction Wheel Assembly#246

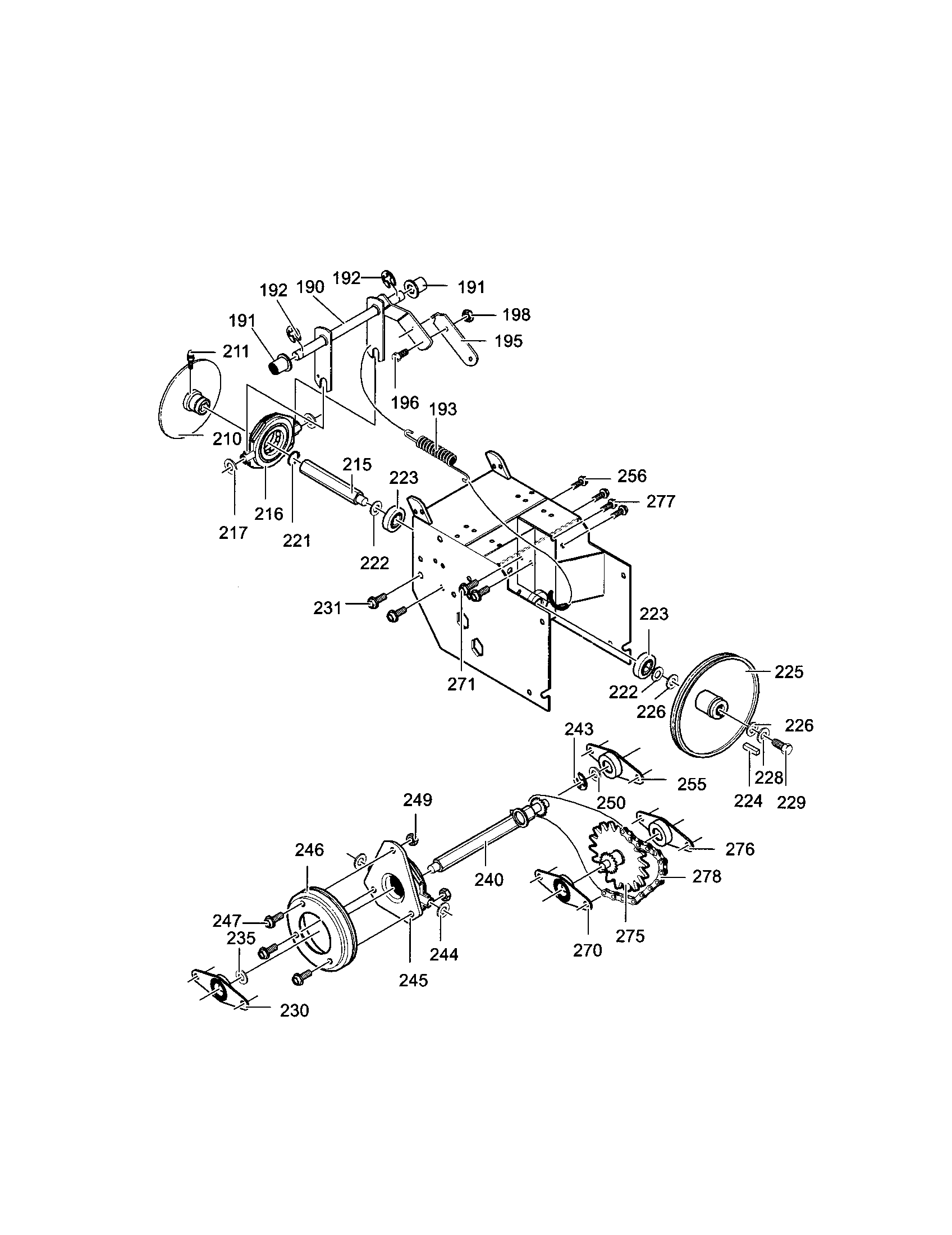

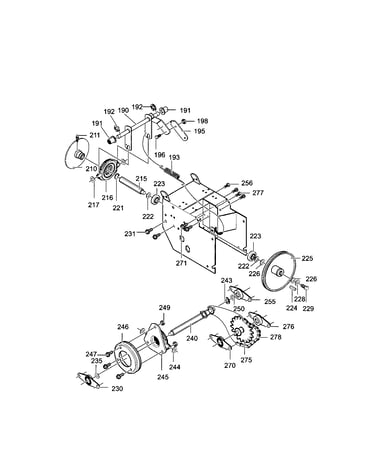

    Drive components Diagram

    Disc wheel

    Part #53830
    Replaced by #1501435MA
    ?
    Manufacturer substitution
    This part replaces 53830. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $25.79 |
    8% OFF
    MSRP: $28.00

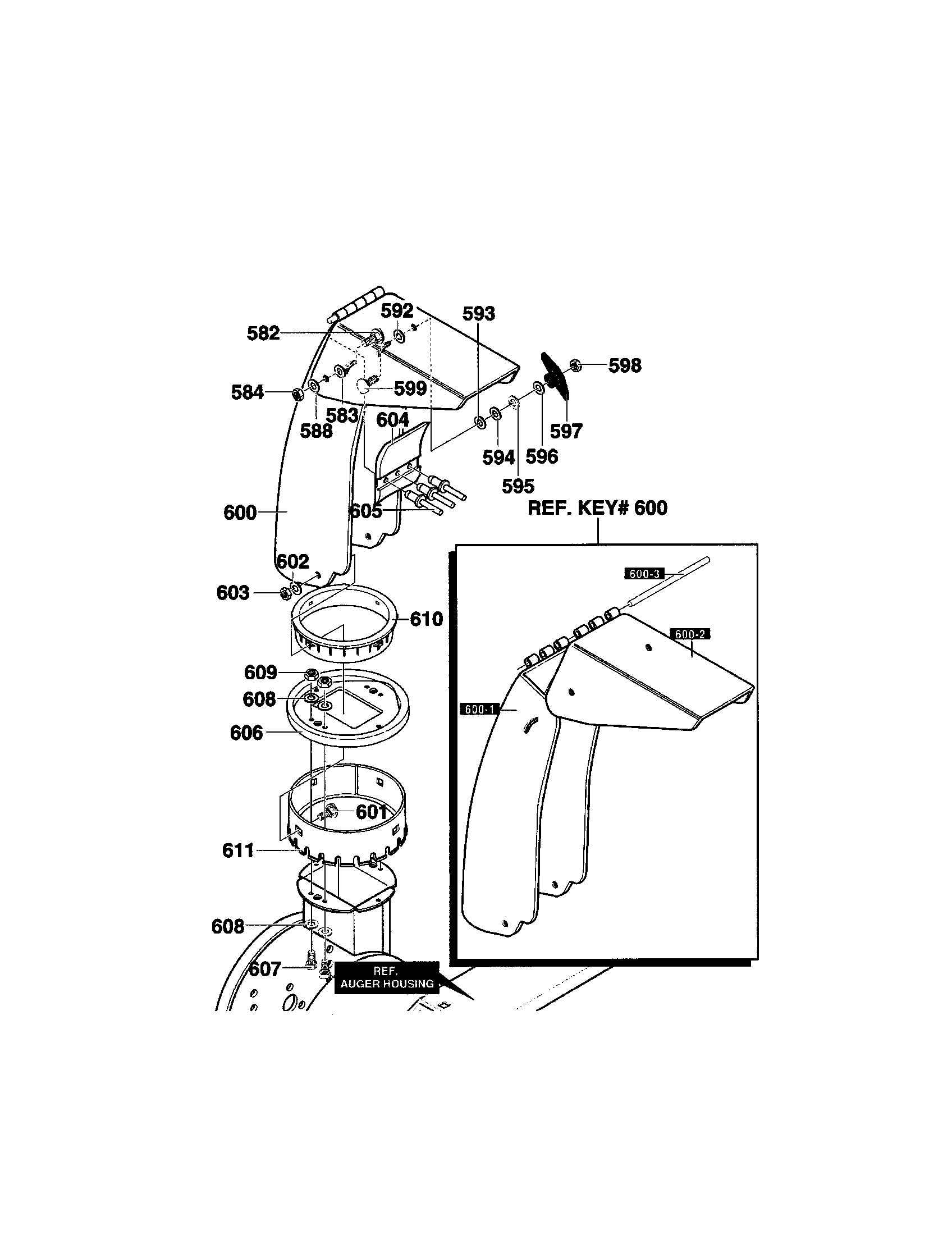

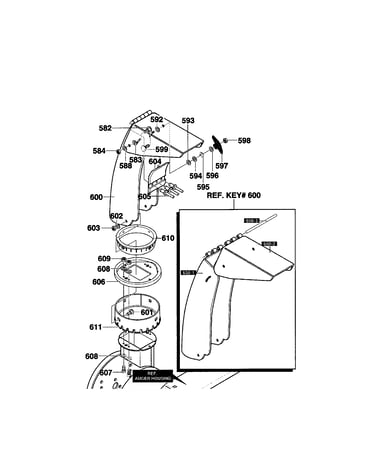

    Snowblower Chute Control Worm Gear Bracket#870

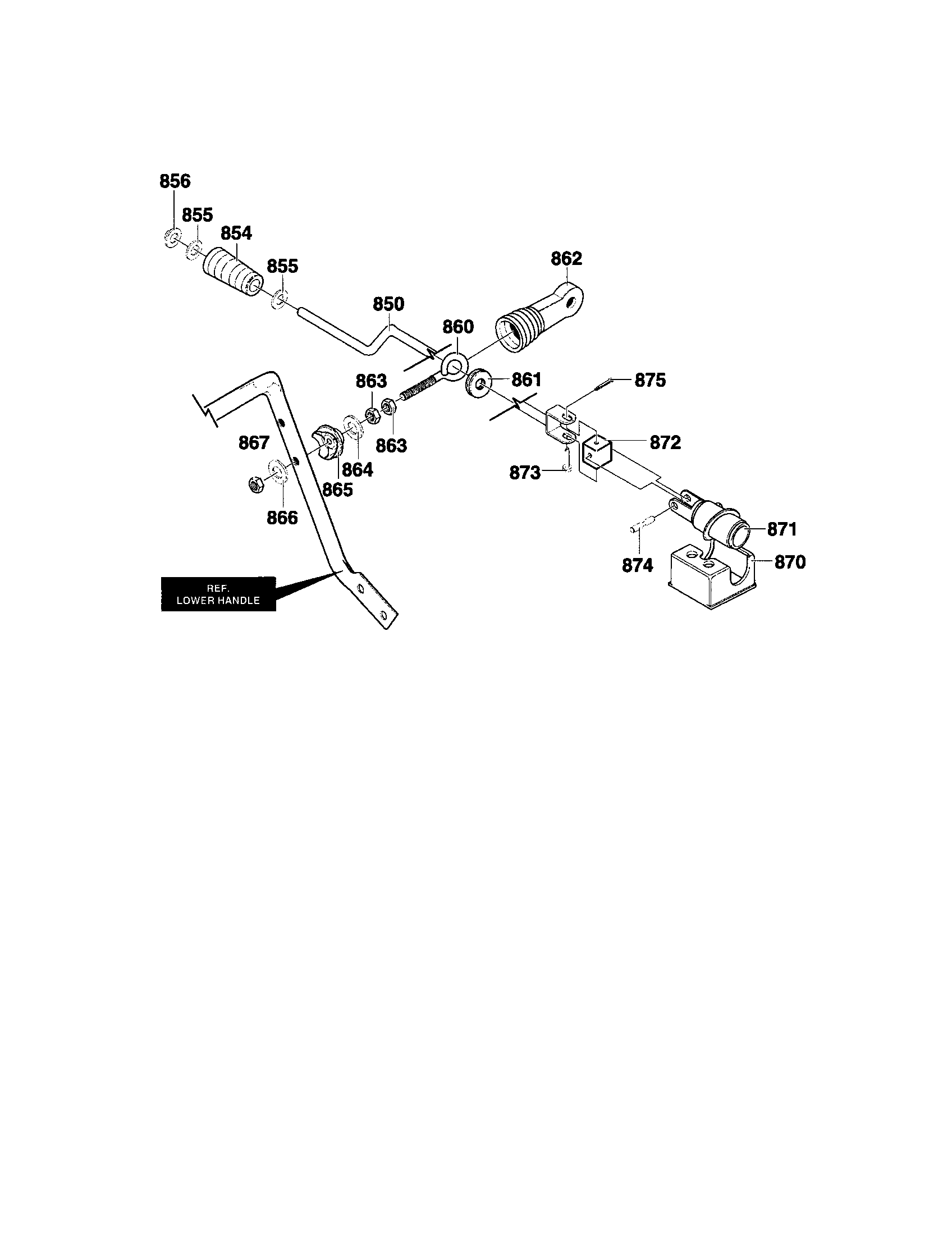

    Chute control rod assembly Diagram

    Bracket

    Part #585195
    Replaced by #585195MA
    ?
    Manufacturer substitution
    This part replaces 585195. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $10.89 |
    22% OFF
    MSRP: $14.00
    Snowblower Skid Shoe#540

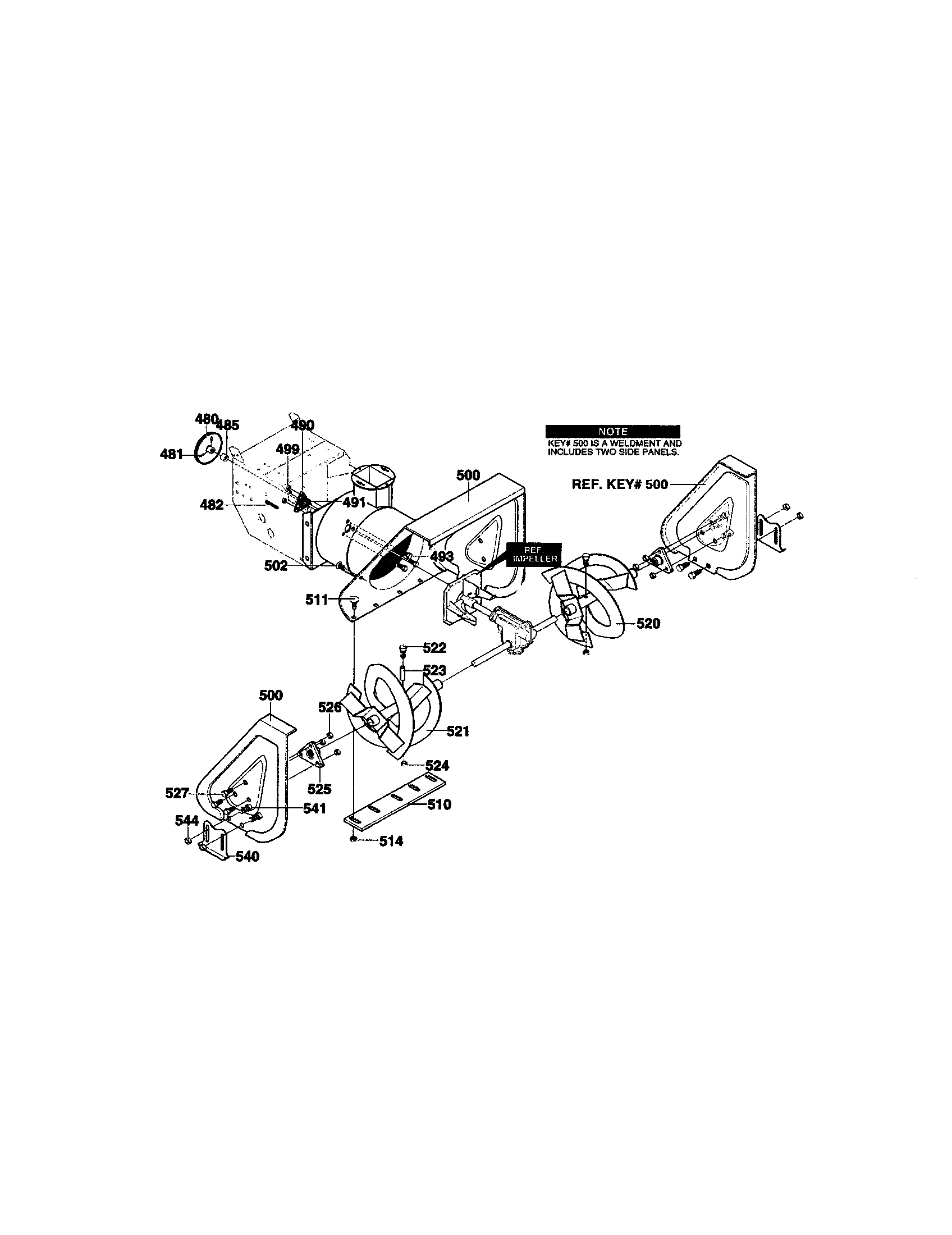

    Auger housing assembly Diagram

    Height adjustment lift

    Part #301380-853
    Replaced by #1740718AYP
    ?
    Manufacturer substitution
    This part replaces 301380-853. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $14.39
    Snowblower Auger Shear Bolt Sleeve#523

    Auger housing assembly Diagram

    1/4" spacer

    Part #3943
    Replaced by #703058
    ?
    Manufacturer substitution
    This part replaces 3943. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $6.49 |
    15% OFF
    MSRP: $7.60
    Snowblower Nut

    See All Related Diagrams

    Lock nut

    Part #73826
    Replaced by #703251
    ?
    Manufacturer substitution
    This part replaces 73826. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $3.89 |
    22% OFF
    MSRP: $5.00
    Snowblower Engine Starter Kit#6

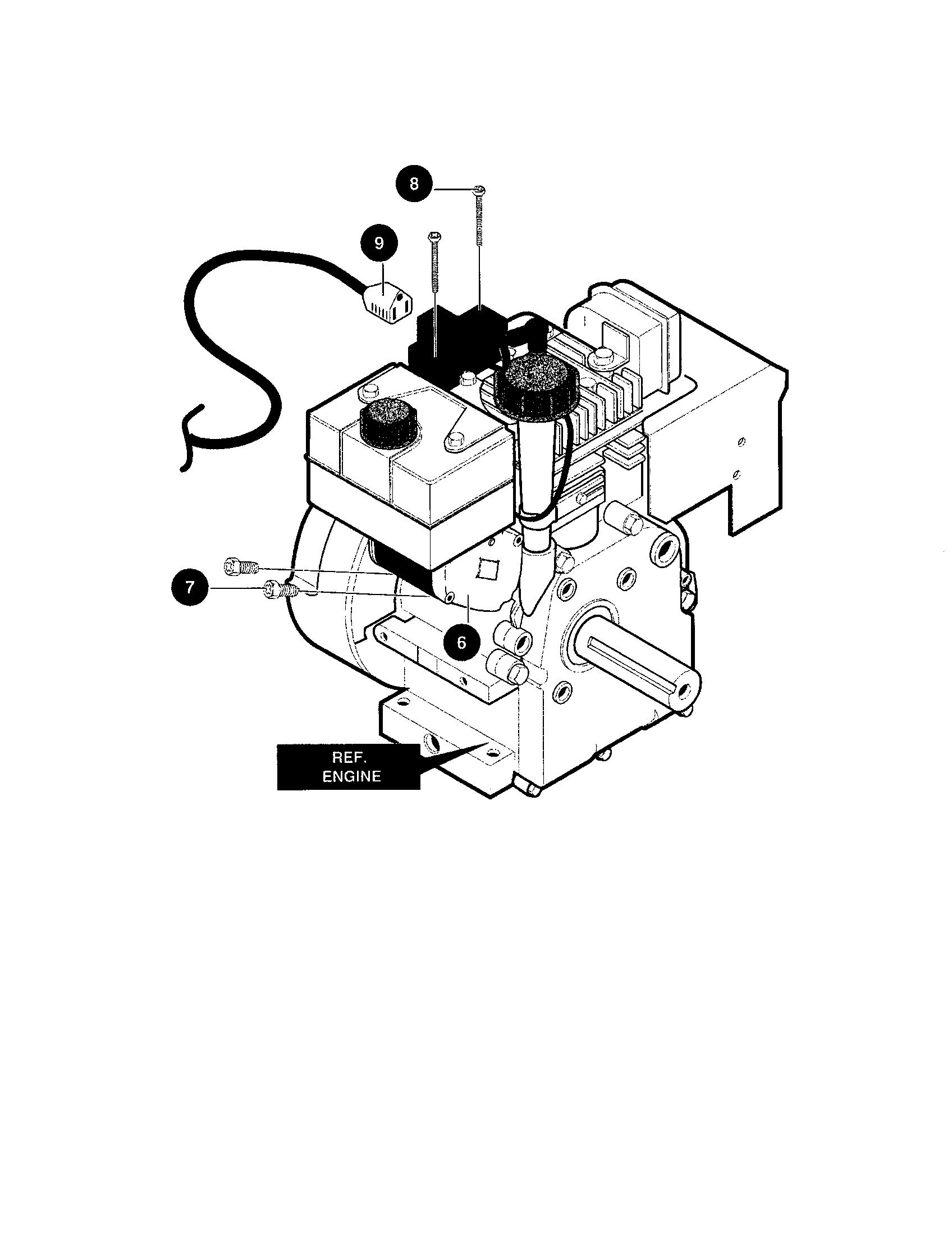

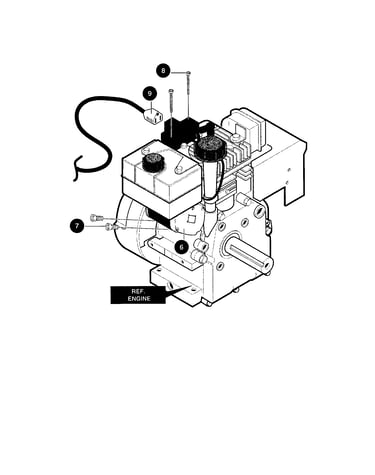

    Electric start assembly Diagram

    Screw

    Part #6218
    Replaced by #33-738
    ?
    Manufacturer substitution
    This part replaces 6218. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $193.49 |
    19% OFF
    MSRP: $240.00
    Snowblower Auger Worm Gear#315

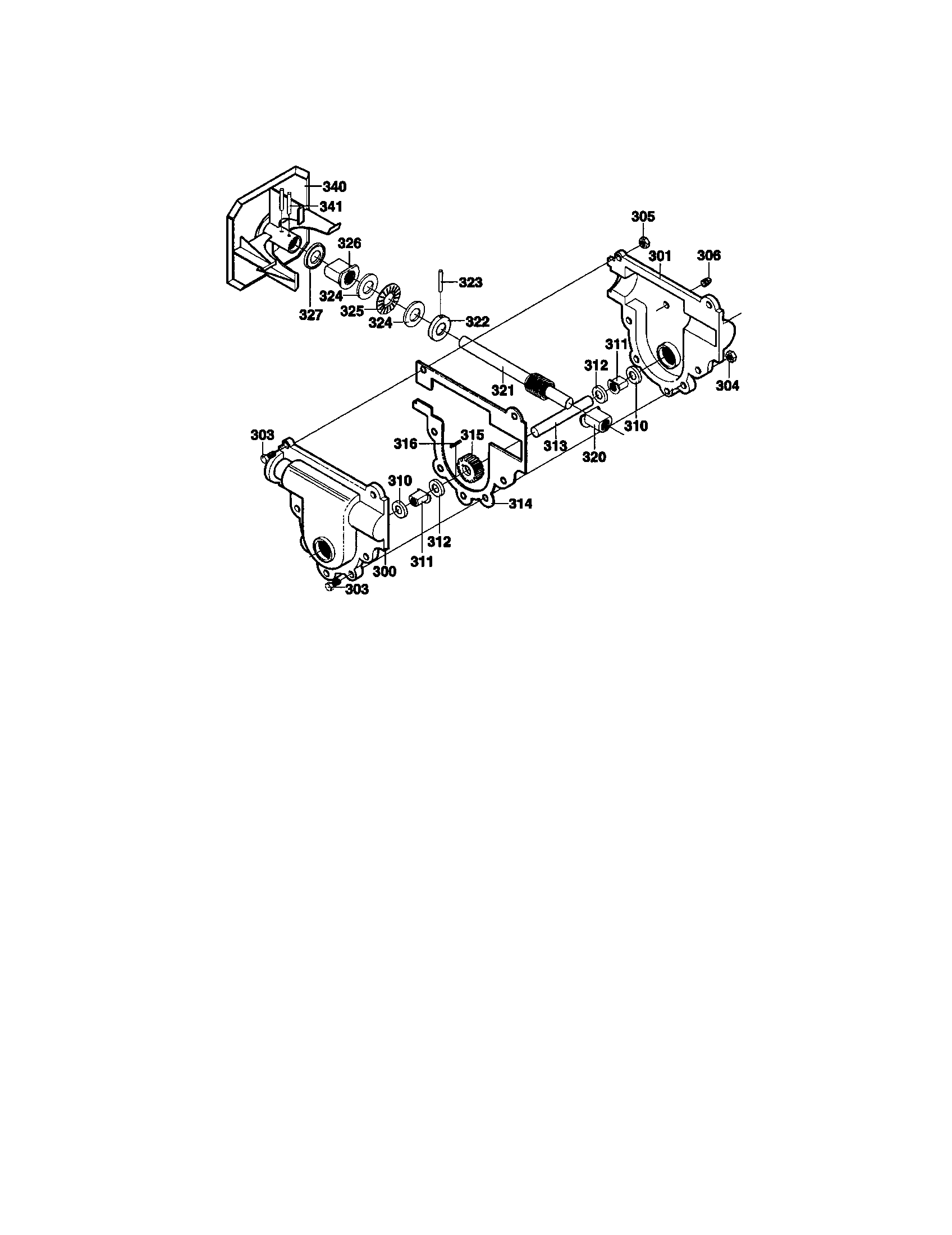

    Gearcase assembly Diagram

    Worm gear

    Part #51405
    Replaced by #51405MA
    ?
    Manufacturer substitution
    This part replaces 51405. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $86.89 |
    7% OFF
    MSRP: $93.00
    Snowblower Idler Pulley#148

    Frame assembly Diagram

    Idler pulley

    Part #50793
    Replaced by #1502120MA
    ?
    Manufacturer substitution
    This part replaces 50793. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $22.19 |
    15% OFF
    MSRP: $26.00

    Symptoms for gas snowblowers

    Choose a symptom to see related snowblower repairs.

    Things to do: replace the spark plug, change the oil, rebuild the carburetor, adjust valve lash, adjust or replace the belts
    Main causes: punctured tire, damaged rim
    Main causes: dirty carburetor, clogged fuel filter, dirty spark plug, incorrect valve lash, leaky engine gaskets
    Main causes: clogged chute, damaged auger blades, broken shear pins, worn auger belt, damaged gear case, engine problems
    Main causes: stale gas, clogged carburetor, clogged or broken fuel line, dirty spark plug, bad rewind starter, incorrect valve lash
    Main causes: clogged chute, snow build-up in auger housing, broken auger shear pins, auger drive belt needs adjustment, auger cable problems
    Main causes: loose drive clutch cable, damaged drive clutch cable, worn friction disc, scraper blade scraping the ground, engine problems
    Main causes: snow build-up in chute, chute drive mechanism failure, bad chute control assembly

    Repair guides for gas snowblowers

    These step-by-step repair guides will help you safely fix what’s broken on your snowblower.
