Kenmore Elite 10657789704 side-by-side refrigerator Parts

Common problems on the Kenmore Elite side-by-side refrigerator model 10657789704 include not cooling well, frost buildup, dispenser or ice maker issues, and unusual noises. Most causes trace back to airflow restrictions, a defrost-system fault, or a failing fan or control component; the troubleshooting section in the 10657789704 owner's manual helps narrow it down fast.

Most common symptoms and what they usually mean

• Not cooling or warm temperatures: poor air circulation, dirty condenser area, evaporator fan problem, or sealed-system/compressor issue
• Heavy frost or ice on the back wall: defrost heater, defrost thermostat, or airflow blocked by ice
• No ice or slow ice production: ice maker problem, water supply issue, or inlet valve not opening fully
• Water dispenser weak or not dispensing: filter housing/cap issue, frozen water line, or inlet valve problem
• Buzzing, clicking, or humming: fan blade hitting ice, failing start components, or compressor-related noise

Quick checks we recommend before replacing parts

1. Confirm vents are not blocked and allow space for proper air circulation.
2. Listen for the evaporator fan running; a stalled fan often causes warm temps and odd noises.
3. Check door sealing and closing; air leaks drive frost and temperature swings.
4. If ice or water is affected, verify the household shutoff valve is fully open and the supply line is not kinked.
5. If frost is heavy, unplug and fully defrost (24 hours with doors open) to restore airflow, then monitor.

Common problem-to-part matchups (for this model)

Symptom	Likely system	Example part used on 10657789704
Frost buildup, warm fridge	Defrost system	Refrigerator defrost heater WP2323198
Frost buildup after defrost	Defrost sensing	Refrigerator bi-metal thermostat WPW10225581
No ice or weak water flow	Water fill system	Refrigerator water inlet valve assembly WPW10159839

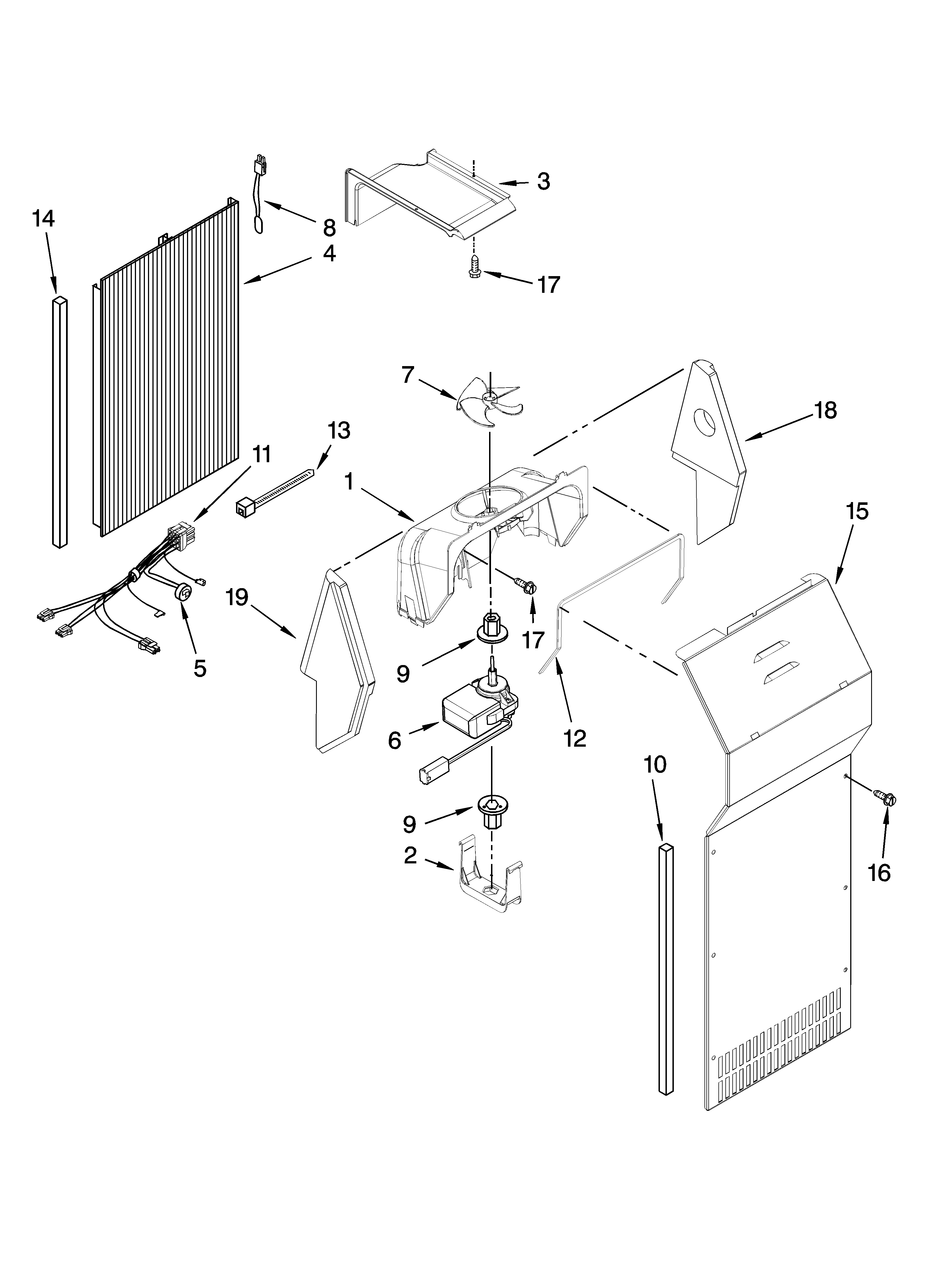

Loud fan noise, poor airflow	Evaporator fan	Refrigerator evaporator fan motor WP2315549

Why it matters

Cooling complaints on a side-by-side refrigerator are often airflow-related; fixing the root cause (fan operation, defrost performance, and door sealing) prevents food spoilage, repeat icing, and extra compressor run time.

Last updated: January 2026

Most Kenmore Elite refrigerators average 10 to 15 years of service life with normal use and basic maintenance. For the Kenmore Elite 10657789704 side-by-side refrigerator, keeping airflow clear and the water system maintained (as outlined in the 10657789704 owner's manual) helps you get the full expected lifespan.

Typical lifespan and what affects it

A refrigerator’s life depends more on operating conditions and maintenance than the badge on the door.

• Condenser coil cleanliness (dust buildup raises compressor workload)
• Door seal condition (air leaks force longer run times)
• Stable temperatures (avoid frequent warm-ups from propped doors)
• Water and ice system upkeep (clogs and leaks create secondary damage)
• Ventilation space around the cabinet (supports proper air circulation)

What “end of life” usually looks like

These symptoms often show up as a refrigerator approaches the end of its practical life.

Symptom	Common cause	Typical next step
Warm fridge or freezer	Sealed system or airflow problem	Diagnose cooling system and airflow
Loud humming/clicking	Compressor start components or compressor strain	Test start components, then compressor
Frost buildup, poor cooling	Defrost system issue	Check heater and defrost controls
Water leaking or no ice	Water supply/valve/tubing issue	Inspect tubing and inlet valve

Maintenance that helps you reach 10 to 15 years

We recommend these habits for Kenmore side-by-side refrigerators.

• Vacuum condenser area every 6 to 12 months
• Keep door gaskets clean; confirm a tight seal all the way around
• Maintain clear vents inside so air can circulate properly
• Replace worn water components promptly (for example, a cracked refrigerator water tube 8201597)
• If you see heavy frost, address defrost issues early (a failed refrigerator defrost heater WP2323198 is a common culprit)

Why it matters

A refrigerator that runs longer than necessary uses more energy and puts extra stress on the compressor and controls. Simple upkeep reduces run time, stabilizes temperatures, and helps prevent expensive cooling-system failures.

Last updated: January 2026

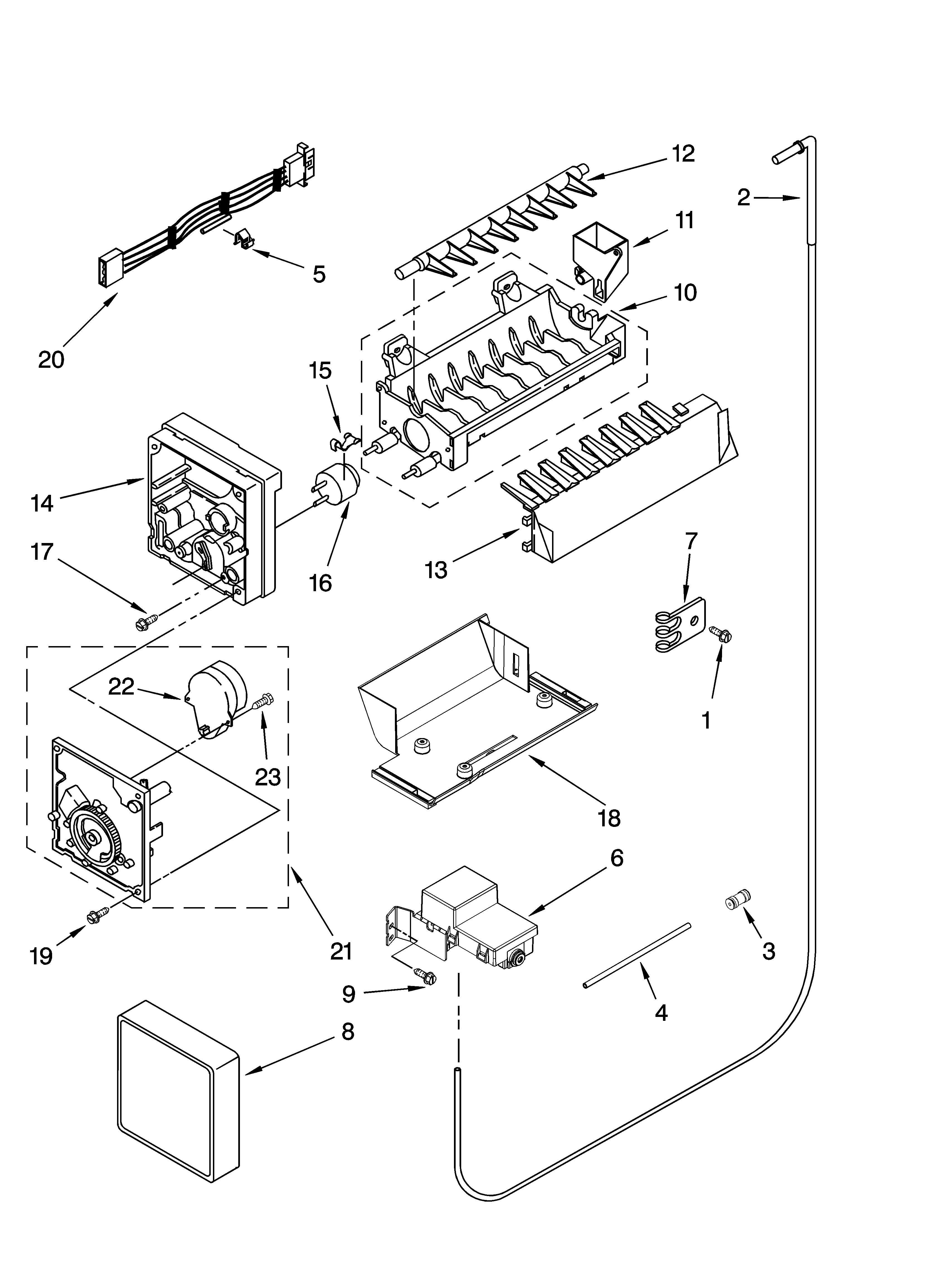

If your Kenmore Elite refrigerator model 10657789704 ice maker is not working, the most common causes are the ice maker being switched OFF, the freezer not cold enough yet, or a water supply issue. After turning the ice maker ON, allow 24 hours for the first ice and up to 72 hours for full production (especially after installation or service). See the 10657789704 owner's manual for the exact ice maker ON/OFF switch location and operating notes.

Quick checks we recommend first

• Confirm the ice maker switch is set to ON (some versions place it behind the ice maker cover door).
• Make sure the freezer door closes fully; the dispenser system will not operate with the door open.
• Verify the ice storage bin is installed firmly and seated correctly.
• If this is a new install or the ice maker was recently turned on, wait 24 to 72 hours.
• Discard the first three batches of ice after installation or water system work.

Water supply and fill problems

If the ice maker is ON but the mold is dry or cubes are tiny, focus on water flow.

Common causes:

• Kinked or pinched water line
• Low household water pressure
• Frozen fill tube (often from a slow drip at the valve)
• A failing inlet valve

Part to consider when water is not filling correctly:

• Refrigerator water inlet valve assembly WPW10159839

Symptom	Most likely area	What to do next
No ice at all, mold is dry	Water supply or inlet valve	Check line for kinks; test/replace valve
Small/hollow cubes	Low water flow	Check pressure; inspect valve and tubing
Ice clumps or jams in bin	Melt/refreeze or bin not seated	Reseat bin; clear chute with plastic utensil

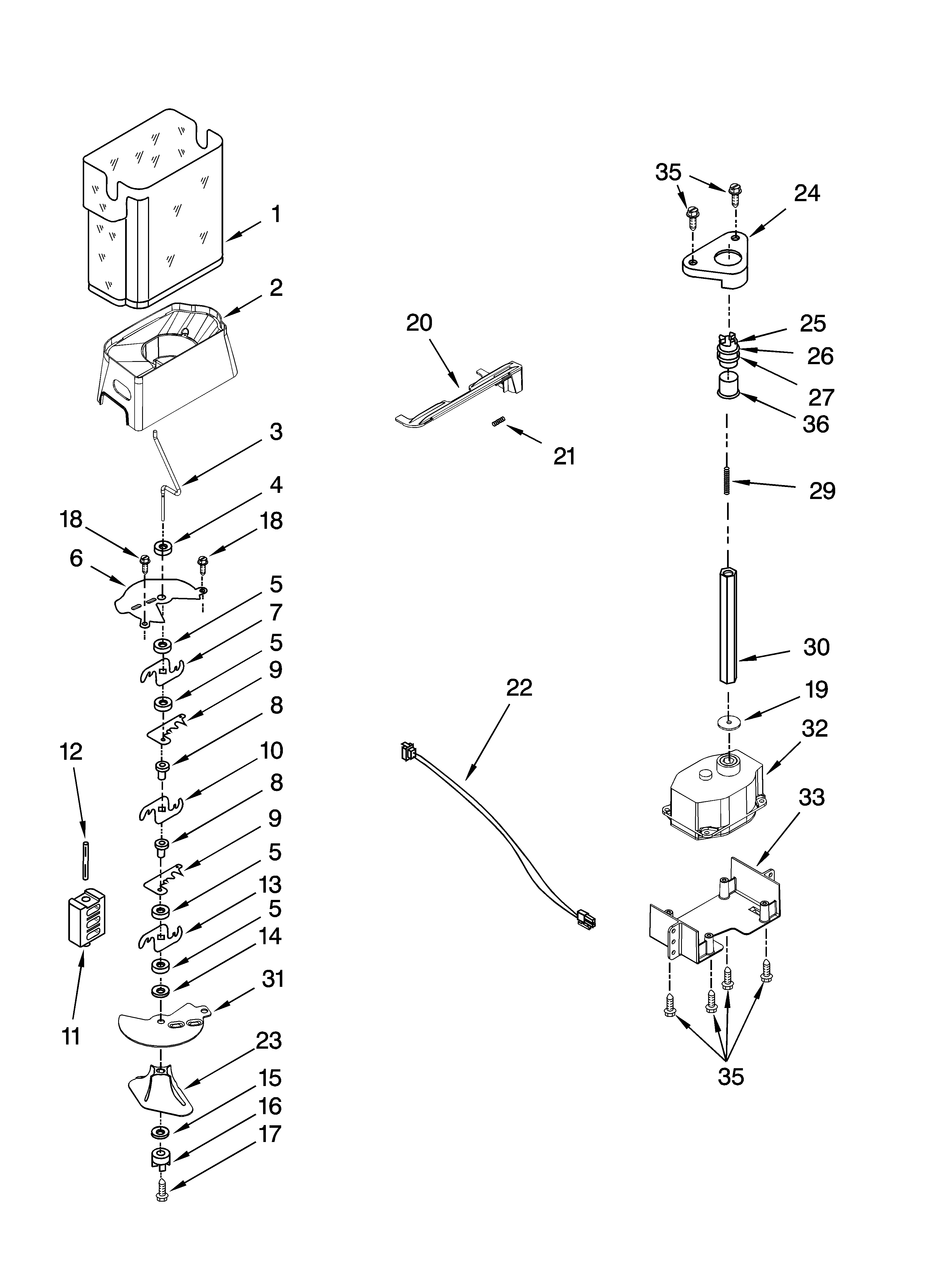

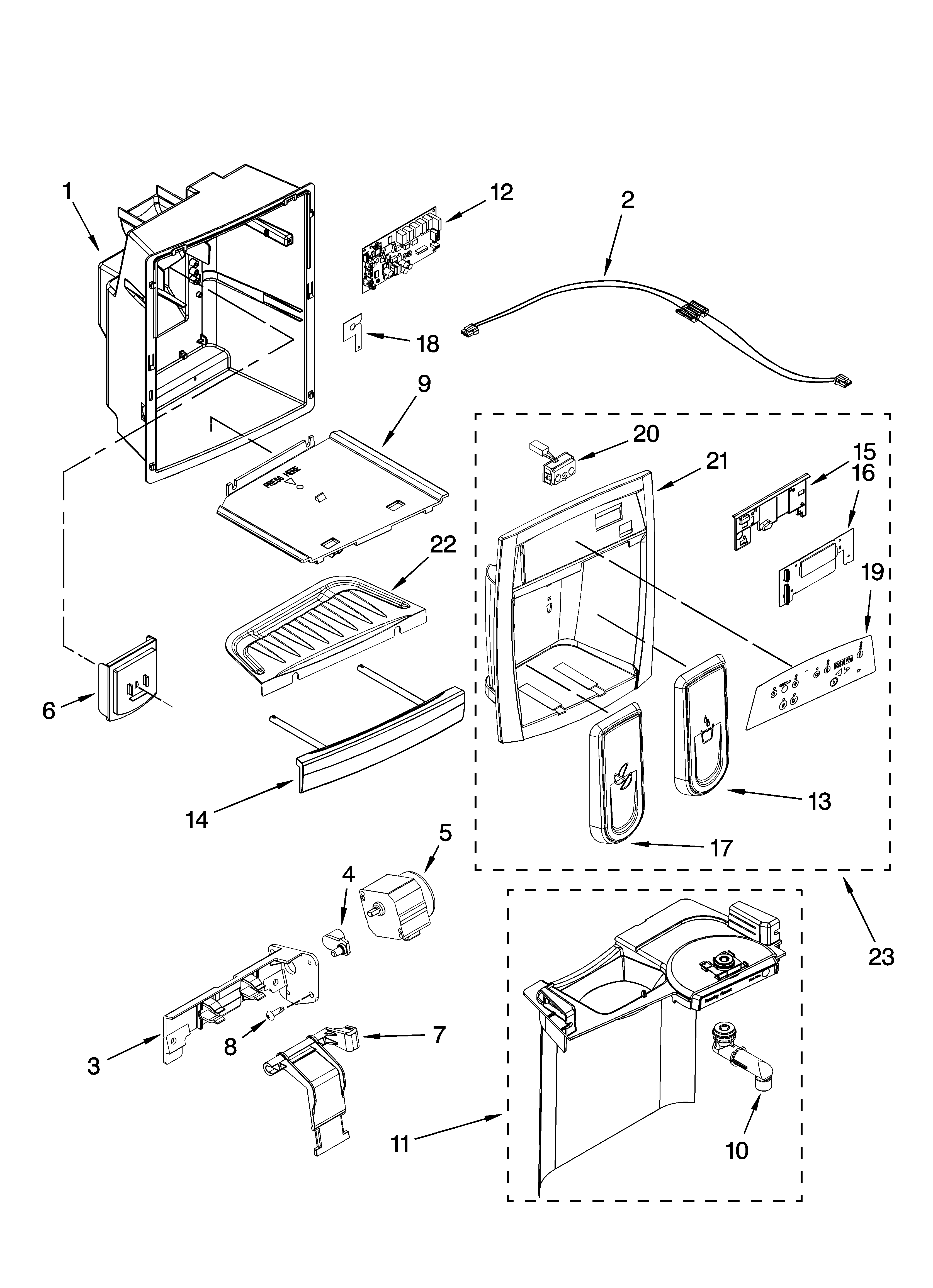

Ice bin, chute, and dispenser issues

If the ice maker makes ice but the dispenser will not deliver it:

• Clear ice stuck in the delivery chute using a plastic utensil.
• Use only cubes made by the current ice maker (mixed ice types can jam the auger).
• Remove and reinstall the bin so it locks in place.

Why it matters

An ice maker depends on three things working together: freezer temperature, water flow, and bin sensing. A small issue like a mis-seated bin or a slow-filling valve can stop ice production or make dispensing unreliable.

Last updated: January 2026

Your Kenmore Elite refrigerator model 10657789704 has 25.6 cu. ft. of total capacity (about 15.4 cu. ft. fresh food plus 10.2 cu. ft. freezer). You can confirm these specs in the 10657789704 owner's manual.

Capacity breakdown for model 10657789704

Here is the typical way the total is split between compartments:

Compartment	Capacity (cu. ft.)	What it’s used for
Refrigerator (fresh food)	15.4	Everyday refrigerated items
Freezer	10.2	Frozen foods and ice storage
Total	25.6	Overall interior volume

How to verify the capacity on your refrigerator

Use these checks to match the published capacity to your exact unit:

• Look for the model and serial tag inside the fresh food section; it confirms you have model 10657789704.
• Check the specifications section in the 10657789704 owner's manual.
• If you are comparing similar Kenmore models, match the full model number; small digit changes can mean a different cabinet size.
• If you are ordering accessories, confirm fit by model, not by capacity alone (for example, parts like the refrigerator water inlet valve assembly WPW10159839 are model-specific).

Why it matters

Cubic-foot capacity helps you compare refrigerator sizes and plan food storage, but shelf layout and door bins can change how much you can actually fit day to day.

Last updated: January 2026
