Model # DW80F600UTS/AA-00 Official Samsung dishwasher

Here are the diagrams and repair parts for Official Samsung DW80F600UTS-AA-00 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

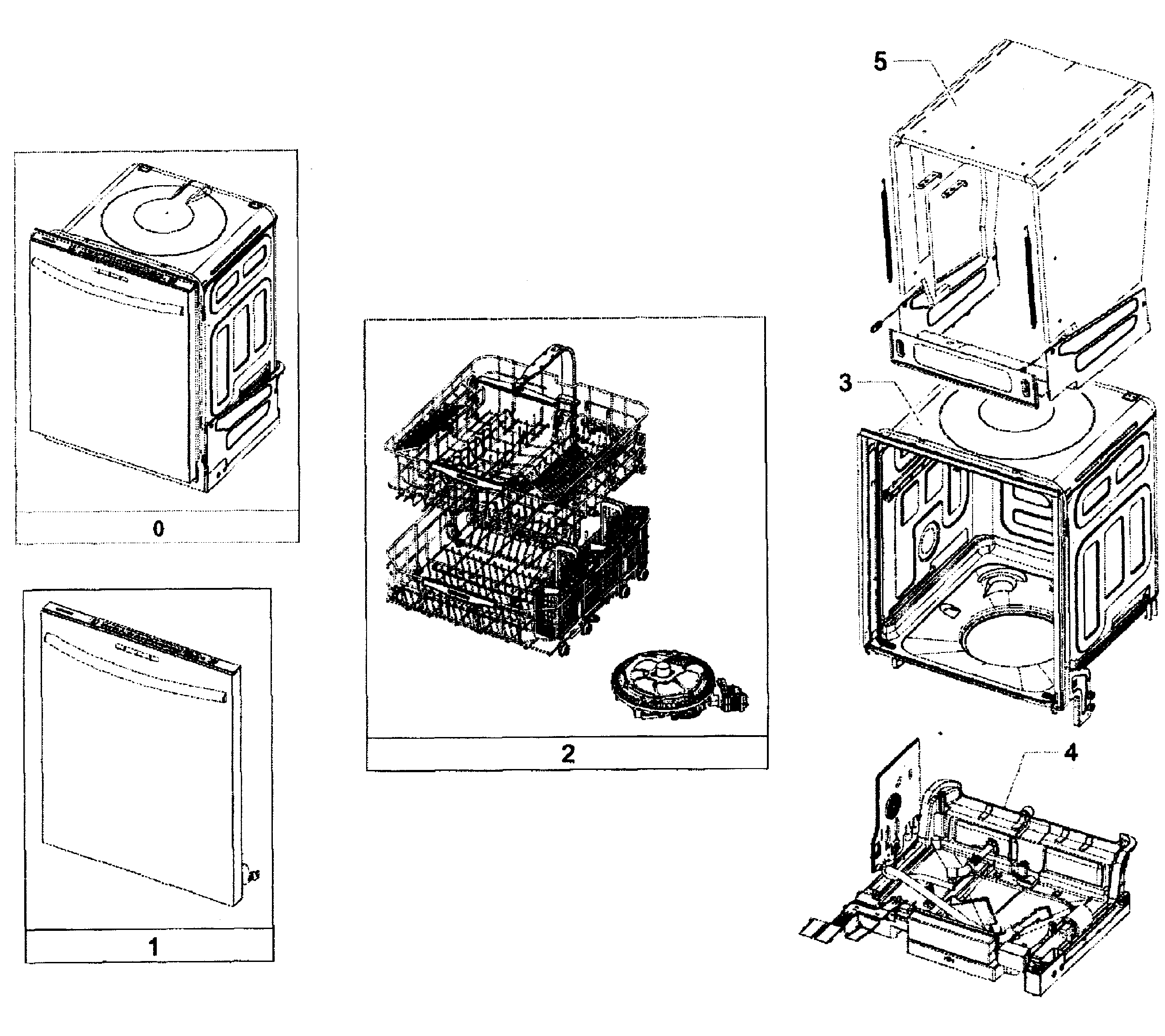

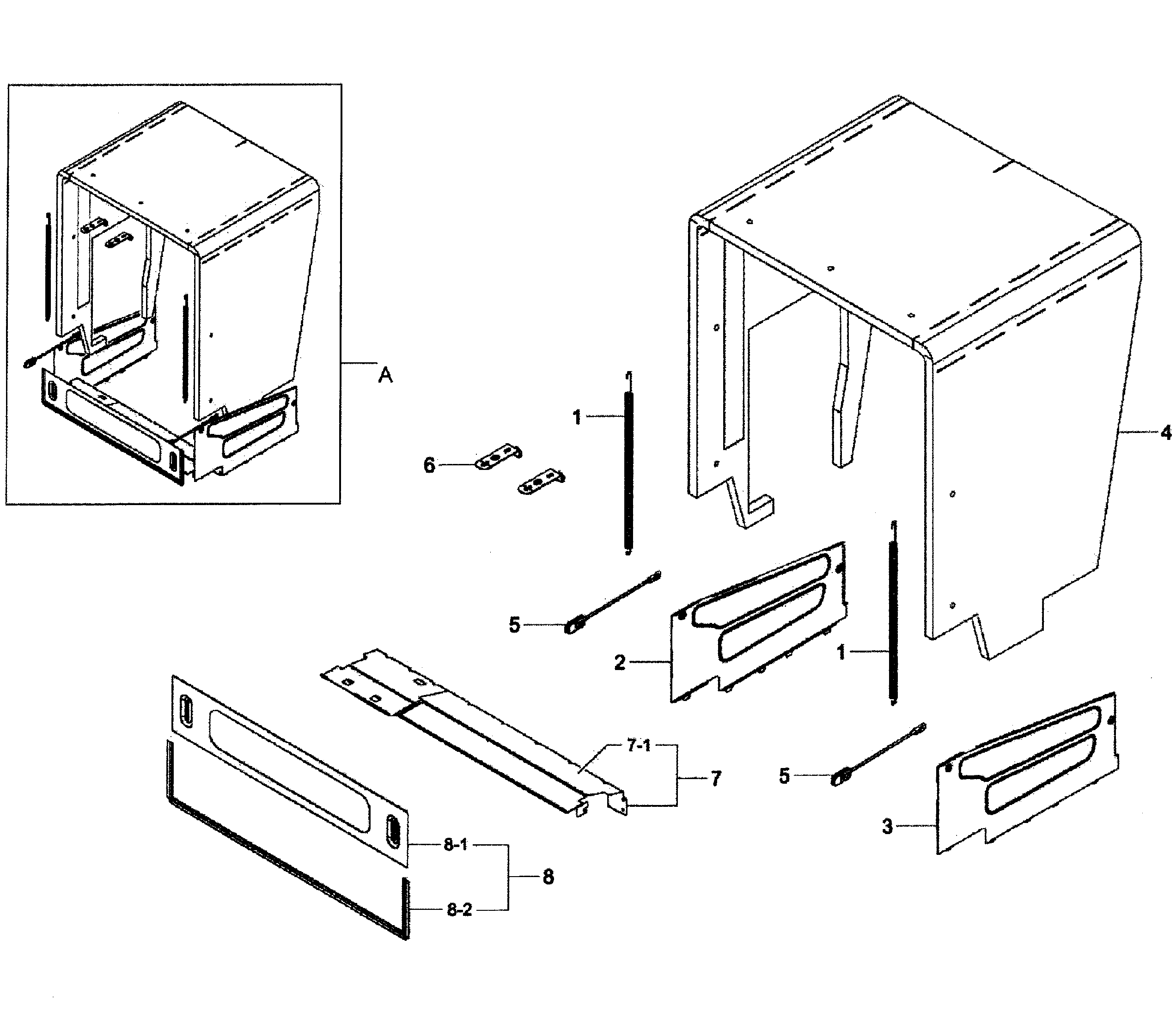

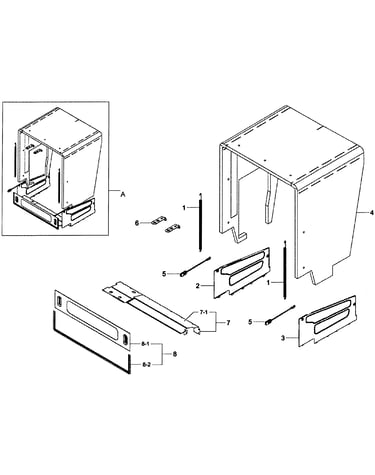

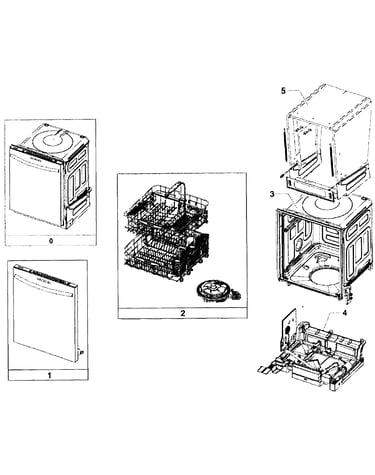

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |

Dishwasher Sump Gasket DD62-00050A
#3

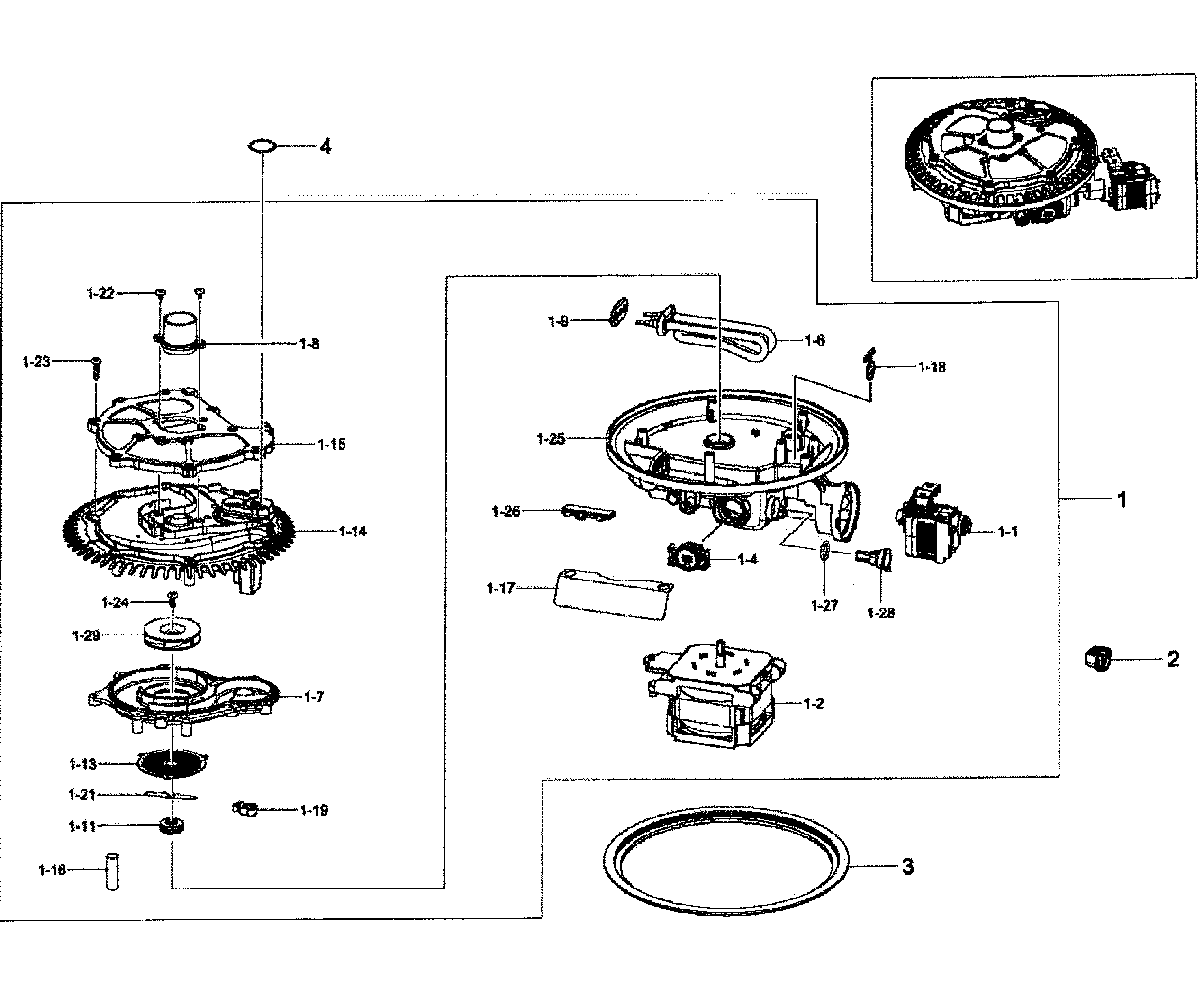

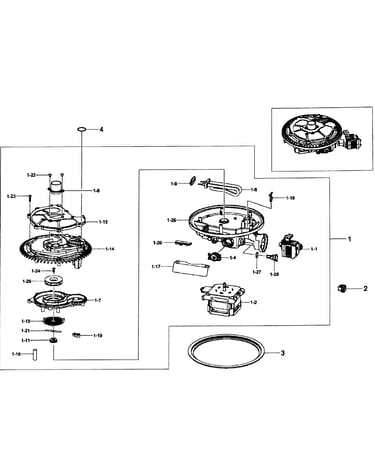

Pump assy diagram

Dishwasher sump gasket

Part #DD62-00050A

BEST SELLER
$140.79
7% OFF Phone Price : $150.79
In Stock
Dishwasher Leak Detector Sensor DD94-01062A
#18

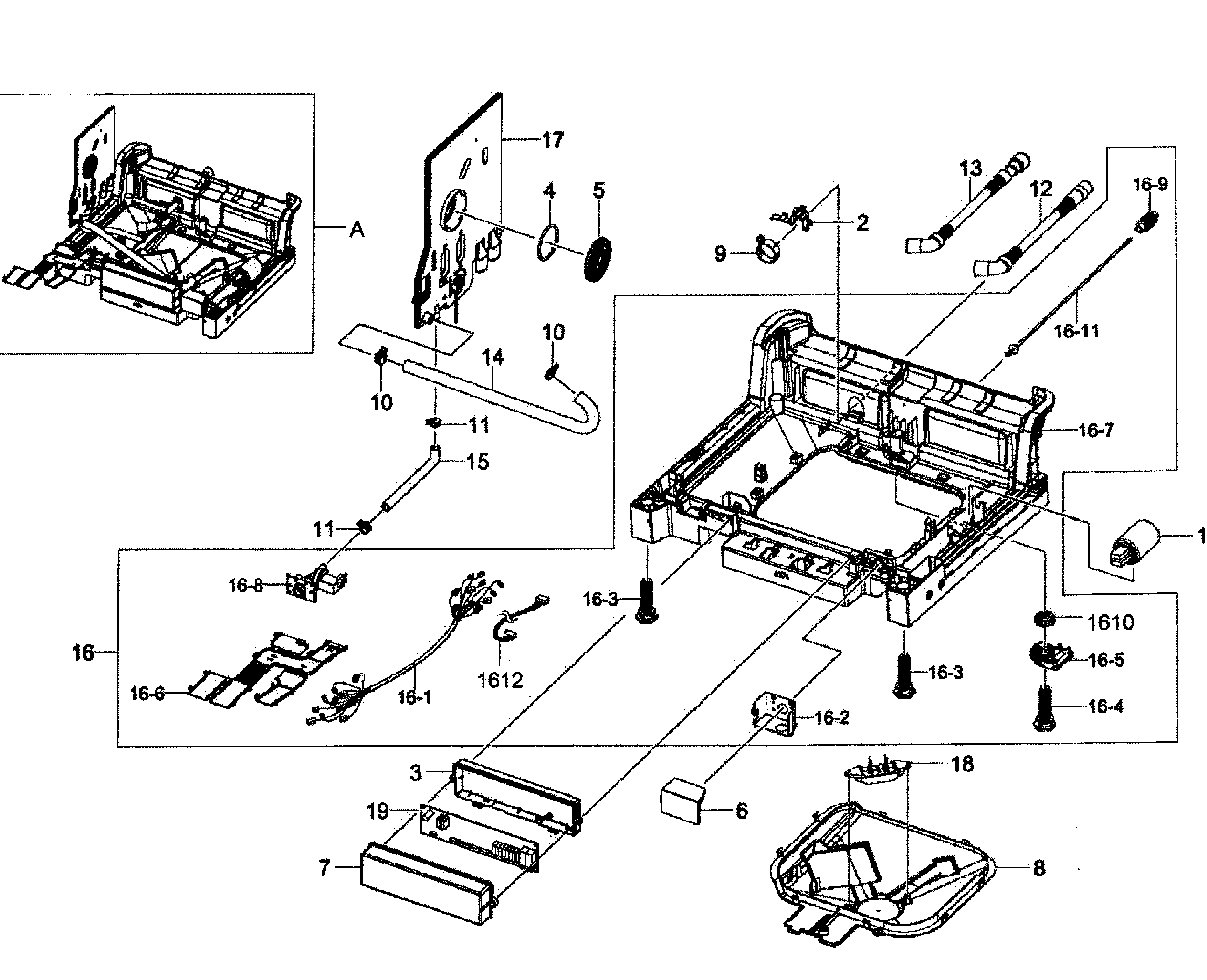

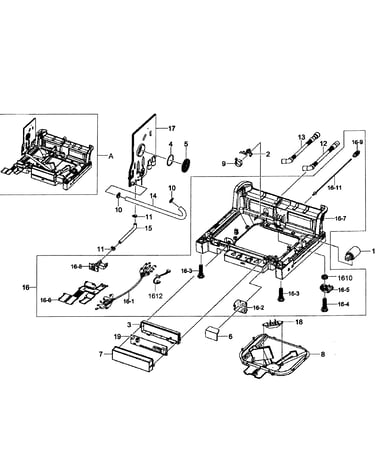

Base assy diagram

Dishwasher leak detector sensor

Part #DD94-01062A

BEST SELLER
$37.32
12% OFF Phone Price : $42.32
In Stock
Dishwasher Door Hinge Arm Link Guide DD61-00207A
#16

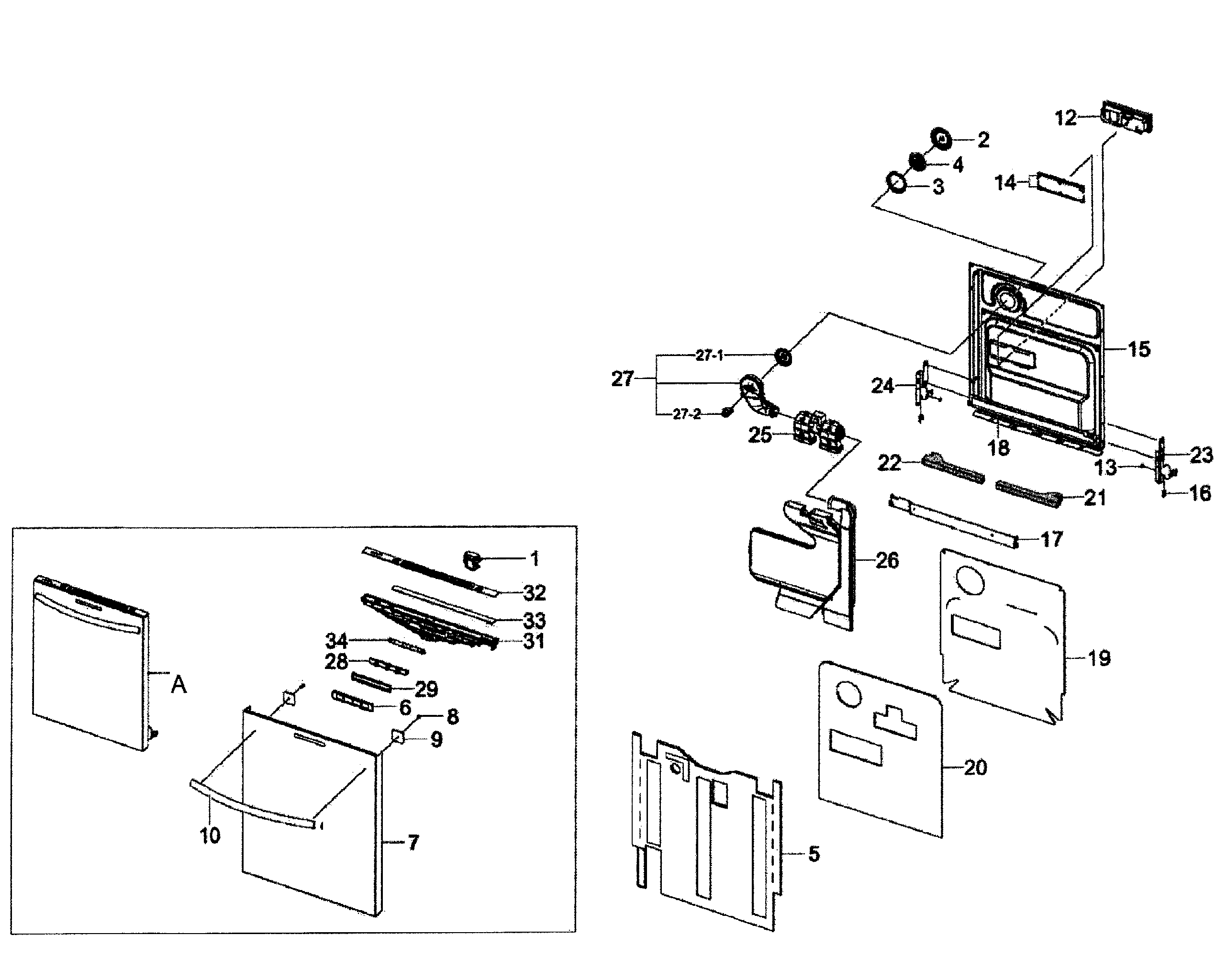

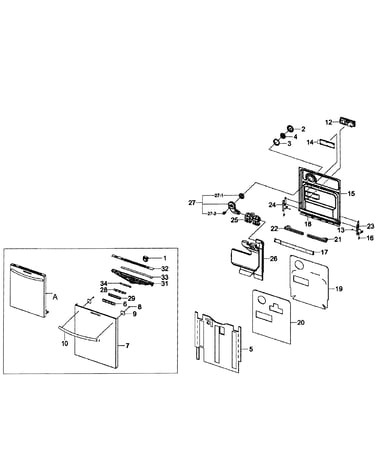

Door assy diagram

Dishwasher door hinge arm link guide

Part #DD61-00207A

BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Dishwasher Middle Spray Arm Manifold DD82-01064A
#1-10

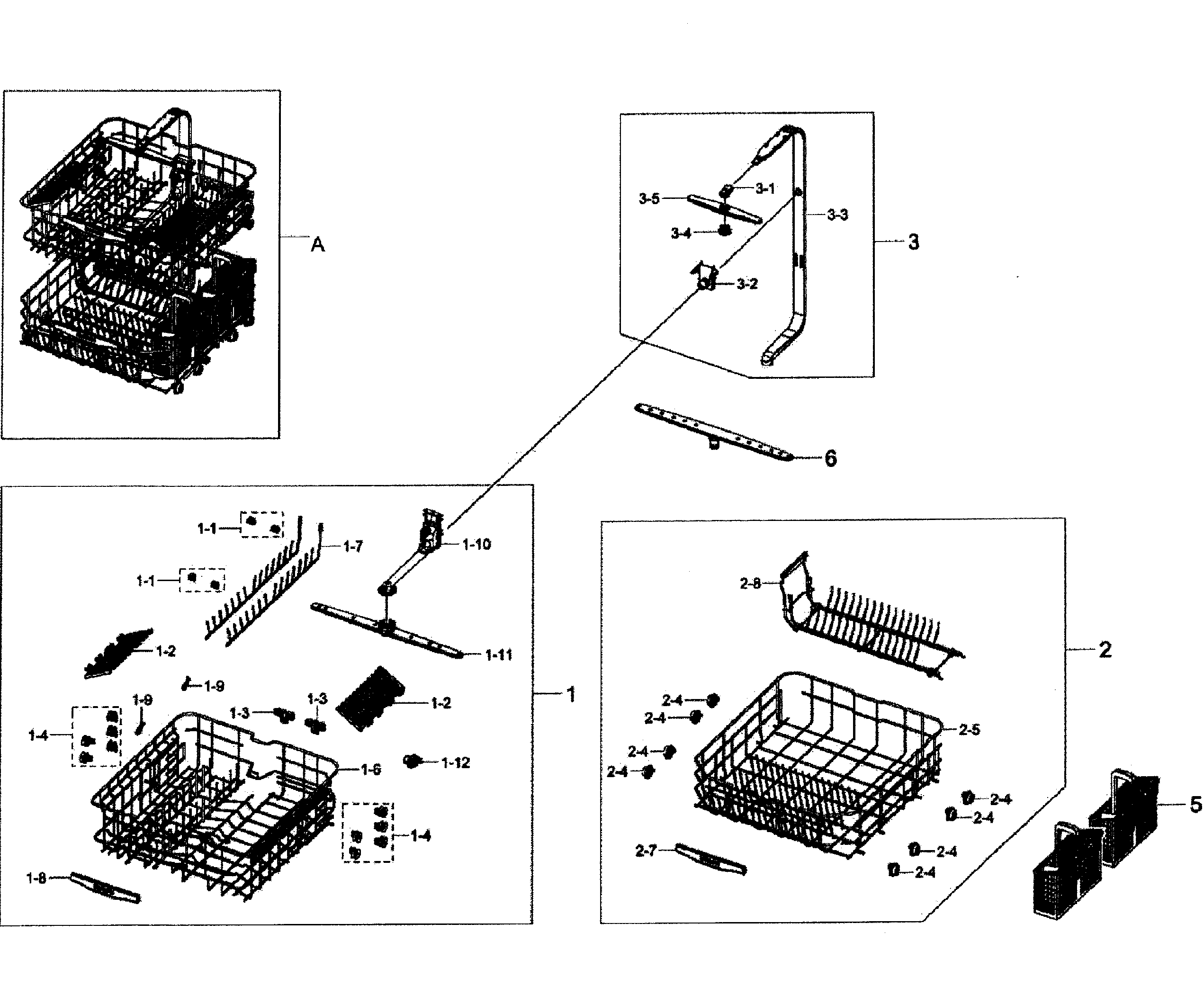

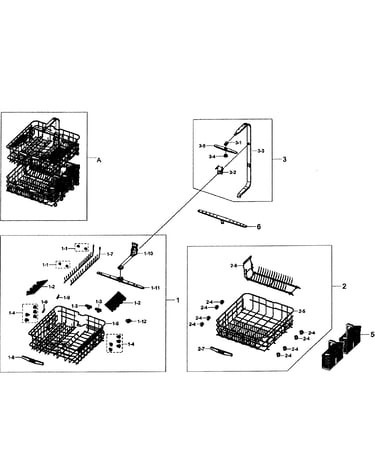

Wash assy diagram

Dishwasher middle spray arm manifold

Part #DD82-01064A

BEST SELLER
$105.84
9% OFF Phone Price : $115.84
In Stock
Dishwasher Inner Drain Hose DD81-01502A
#13

Base assy diagram

Dishwasher inner drain hose

Part #DD81-01502A

BEST SELLER
$90.79
5% OFF Phone Price : $95.79
In Stock
Dishwasher Electronic Control Board DD92-00033C
#19

Base assy diagram

Dishwasher electronic control board

Part #DD92-00033C

This item is not returnable
$185.89
5% OFF Phone Price : $195.89
In Stock
Dishwasher Pump Impeller DD94-01003A
#1-29

Pump assy diagram

Dishwasher pump impeller

Part #DD94-01003A

$22.29
18% OFF Phone Price : $27.29
In Stock
Dishwasher Detergent Dispenser Assembly DD59-01001A
#12

Door assy diagram

Dishwasher detergent dispenser assembly

Part #DD59-01001A

$110.69
8% OFF Phone Price : $120.69
In Stock
Dishwasher Dishrack Roller And Stud DD61-00222A
#1-12

Wash assy diagram

Dishwasher dishrack roller and stud

Part #DD61-00222A

This item is not returnable
$4.59
18% OFF Phone Price : $5.59
In Stock
Dishwasher Tub Screw Cap DD67-00040A
#8

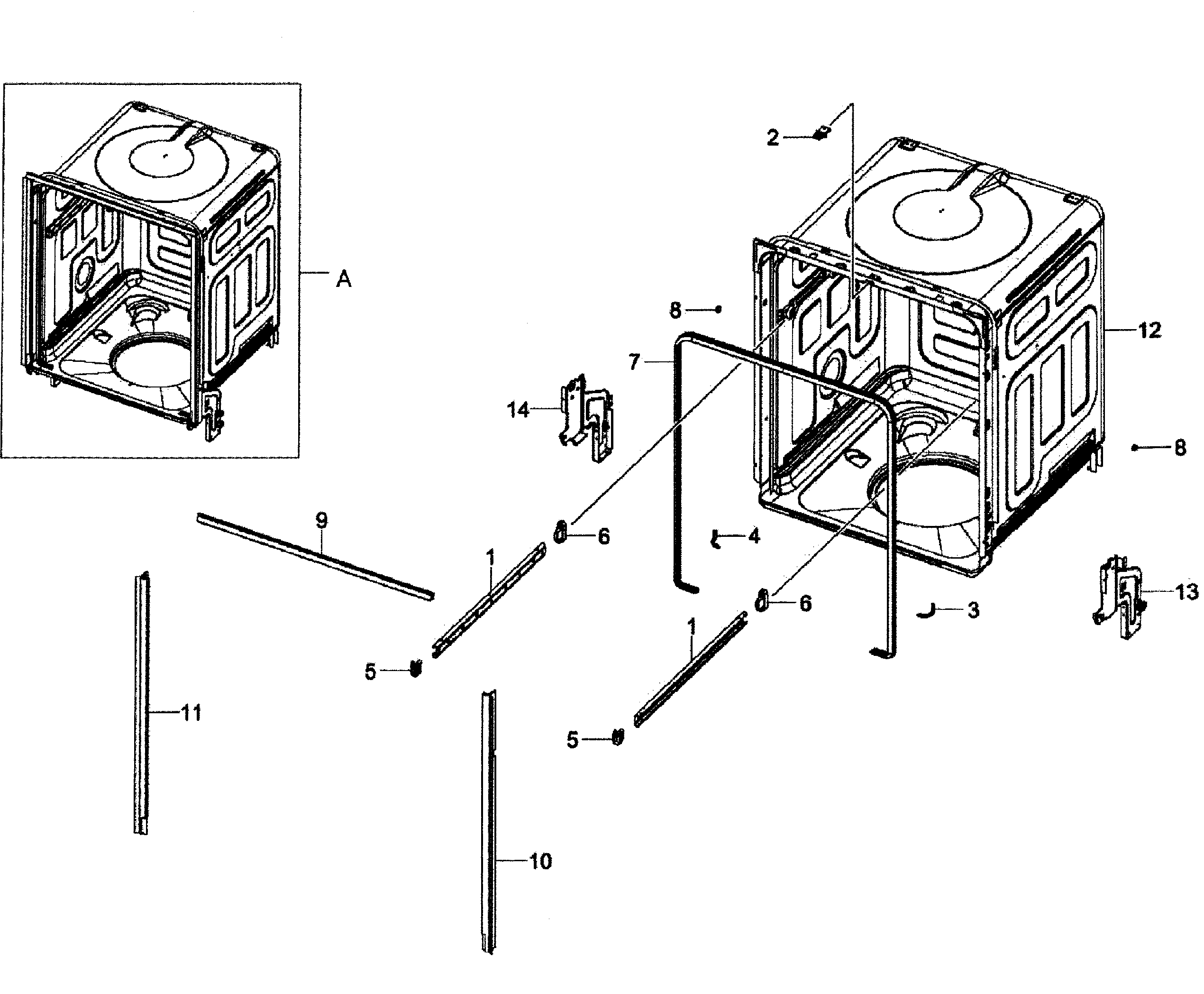

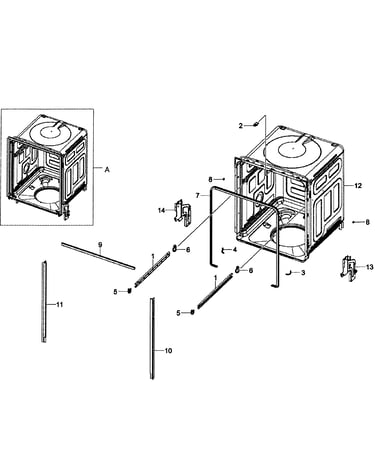

Tub assy diagram

Dishwasher tub screw cap

Part #DD67-00040A

This item is not returnable
In Stock
