To reset your Kenmore Elite refrigerator model 79574025412, we recommend doing a power reset: unplug the refrigerator for a few minutes, then plug it back in and set the temperature controls back to your normal settings. See the 79574025412 owner's manual for control and display details.

Quick reset steps (power reset)

• Unplug the refrigerator from the wall outlet (or switch the circuit breaker OFF).
• Wait 3 to 5 minutes to let the control board fully power down.
• Restore power.
• Reset your temperature settings (refrigerator and freezer controls) to the desired setting.
• Give the unit time to stabilize; cooling performance typically normalizes over the next 24 hours.

If the controls are set to OFF

On this model family, setting the controls to OFF can stop cooling but it does not remove power to all circuits (such as the light circuit). For a true reset, we use the unplug or breaker method, then restore power and re-set the controls.

What to check after the reset

What you notice	What it usually means	What we recommend
Display is unresponsive	Control lock or power interruption	Check Control Lock; then do the power reset again
Fridge warm, freezer OK	Airflow issue in fresh food section	Confirm vents are not blocked; listen for fan operation
Ice maker not making ice	Ice maker was turned off or needs time	Confirm ice maker is ON; allow 24 hours
Water tastes/flows poorly	Filter is restricted or needs flushing	Replace the filter and flush water lines

Water and ice issues after a reset

If you reset the refrigerator because the dispenser or ice maker is acting up, a clogged filter is a common cause. For this model, the genuine Kenmore refrigerator water filter 9690 AGF80300801 is a frequent replacement part. We also recommend following the steps in how to replace the water filter in a Kenmore refrigerator to flush air and carbon fines after installation.

Why it matters

A reset clears minor control glitches and restores normal operation after a power event. Resetting the controls and allowing time for temperatures to stabilize helps prevent unnecessary part replacement (such as a control board, fan motor, or ice maker).

Last updated: February 2026

Your Kenmore Elite 79574025412 refrigerator’s cubic-foot capacity is the interior storage volume, not a simple depth times height calculation. The most accurate way is to use the model’s published capacity in the 79574025412 owner's manual; if you’re measuring, use interior dimensions (in inches) and convert to cubic feet.

Quick ways to find the correct cubic feet

1) Use the published capacity (best option)

The capacity is typically listed in the specifications section of the 79574025412 owner's manual. This is the number to use for shopping, fit, and storage comparisons.

2) Measure interior space (good estimate)

If you need an estimate, measure usable interior space (not the outside cabinet):

• Empty the section you’re measuring (fresh food or freezer)
• Measure interior width (left wall to right wall)
• Measure interior height (floor to ceiling of that compartment)
• Measure interior depth (back wall to inside front edge, not the door)
• Multiply: W × H × D = cubic inches
• Convert: cubic inches ÷ 1,728 = cubic feet

Example conversion table

What you have	Formula	Result
Interior measurements in inches	W × H × D	Cubic inches
Cubic inches	÷ 1,728	Cubic feet
Total refrigerator capacity	Fresh food + freezer	Total cu ft

Why the “depth × height” method is wrong

Outside dimensions include insulation, walls, and non-storage areas, so they overstate usable volume. Also, you must include width to calculate volume.

Related tip for performance and space

If you’re checking capacity because the fridge feels crowded or airflow seems weak, replacing filters on schedule helps keep the compartment fresher and airflow cleaner; see the lg refrigerator air filter ADQ73214408 and the how to install refrigerator air filter guide.

Last updated: February 2026

If your Kenmore Elite refrigerator model 79574025412 is not cooling and the compressor runs almost constantly, gets unusually hot, or trips the breaker, the compressor system may be failing. First rule out common causes like warm room conditions, frequent door openings, and a clogged condenser cover.

Quick checks before blaming the compressor

These items commonly make the compressor run longer even when it is still good:

• Confirm both doors close fully and seal tightly (no gaps, no “pop open”).
• Reduce door openings and avoid adding large amounts of warm food at once.
• Check room temperature; compressors run more in warm kitchens (the refrigerator should not be operated above 110°F).
• Clean dust from the condenser cover and vents using a vacuum attachment (do not remove the panel covering the condenser coil area).
• Give the refrigerator time after a power outage; it can take hours to pull temperatures back down.

For model-specific operating guidance and troubleshooting steps, use the 79574025412 owner's manual.

Signs the compressor is likely the problem

If the quick checks above do not change anything, these symptoms point more strongly to a compressor or sealed-system issue:

• Refrigerator and freezer temperatures stay warm even though the unit is running.
• You hear repeated clicking (start attempt) followed by the compressor stopping.
• The compressor is extremely hot and the refrigerator still will not cool.
• The breaker trips when the compressor tries to start.

Compressor vs. “not cooling” look-alikes

What you notice	More likely cause	What to do next
Runs a lot but temps are close to normal	Heavy use, warm room, dirty condenser cover	Clean vents, reduce door openings
Runs a lot and temps are high	Airflow problem or sealed-system issue	Check for blocked vents, listen for fan operation
Clicks on/off repeatedly	Start device, compressor, or control issue	Schedule service level diagnosis

Why it matters

A true compressor or sealed-system failure is a major repair. Doing the airflow and usage checks first prevents replacing expensive parts when the real issue is a dirty condenser cover, door not sealing, or heavy door openings.

Parts that may be involved in compressor-related repairs

If a technician confirms a compressor or sealed-system problem, these model-matched parts are commonly referenced during diagnosis:

• Refrigerator compressor TCA38091801 (compressor itself)
• Refrigerator condenser coil ACG73645004 (heat rejection; restricted airflow can mimic compressor trouble)

Last updated: February 2026

If your Kenmore Elite refrigerator model 79574025412 is struggling to keep steady temperatures, leaking water, or running louder and longer than normal, those are common signs it is failing. Some noises are normal during defrost and cooling cycles, so we recommend comparing what you hear to the 79574025412 owner's manual.

Common warning signs to watch for

• Food spoils faster than usual in the fresh food section
• Freezer temperature rises, soft ice cream, or frequent thawing
• Water leaks or puddles under or inside the refrigerator
• Excess frost or ice buildup (especially if airflow seems weak)
• Doors do not seal well, condensation forms, or the unit runs constantly
• Back of the refrigerator feels unusually hot for long periods
• New or worsening noises (grinding, loud buzzing, repeated clicking)

Noises: what is normal vs. a problem

Your 79574025412 can make several normal operating sounds, including clicking (defrost control cycling), whooshing (evaporator fan moving air), gurgling (refrigerant flow), and sizzling (water dripping on the defrost heater). If the sound is new, very loud, or paired with warm temperatures, treat it as a service symptom.

Symptom	Often normal	Often a problem
Clicking	Defrost cycle starts and ends	Rapid clicking with no cooling
Whooshing	Fan circulating air	Fan hitting ice or failing
Gurgling	Refrigerant moving	Cooling is weak or uneven
Vibrating	Unit touching cabinet or wall	Leveling legs not set, unit unstable

Quick checks we recommend before replacing parts

1. Confirm settings and temps; target about 37°F fresh food and 0°F freezer.
2. Make sure the refrigerator is level and not vibrating against cabinets or the wall.
3. Check door gaskets for dirt or stickiness; clean and ensure full contact.
4. Verify airflow is not blocked by overpacked shelves or frozen vents.
5. If odors are strong or airflow seems stale, replace the air filter (see air filter ADQ73214408).

Why it matters

Catching early symptoms helps prevent food loss and can point to a fixable issue (door seal, airflow restriction, fan problem) before major sealed-system components are stressed.

Last updated: February 2026

Common problems we see on the Kenmore Elite 79574025412 refrigerator include weak or uneven cooling, frost buildup from defrost issues, water or ice dispenser troubles, and door sealing problems that cause temperature swings. Many of these are resolved with cleaning, airflow checks, and targeted part replacement using the 79574025412 owner's manual.

Most common symptoms and what usually causes them

• Not cooling or warm sections: dirty condenser coil, failed fan motor, or sealed system/compressor trouble
• Frost buildup or ice on the back wall: defrost sensor/heater/control issue, blocked airflow

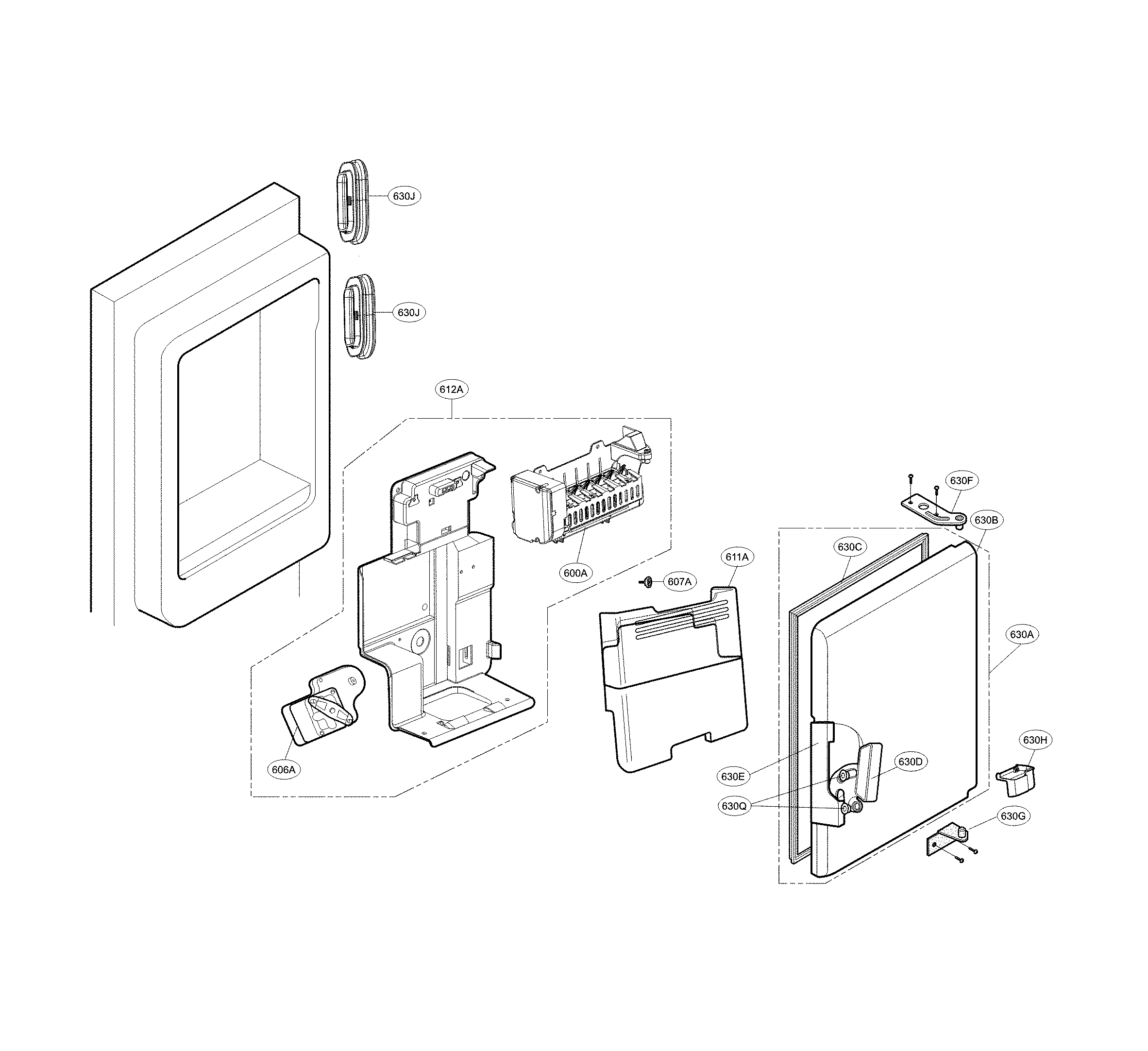

• Ice maker not making ice: restricted water supply, clogged filter, ice maker failure, dispenser chute issues
• Water leaking or puddles: clogged/iced drain, loose water line connection, door left ajar
• Odors: overdue air filter, spills in hidden areas, poor airflow

Quick checks we recommend first (no parts needed)

• Confirm controls are set correctly and vents are not blocked by food packages.
• Clean dust from the condenser area; restricted airflow is a top cause of poor cooling.
• Check door closure: look for gaps, torn gasket areas, or doors that sit uneven.
• If ice is clumping in the bin, dump old ice and verify the dispenser door closes fully.
• Replace consumables on schedule (water filter, air filter) to prevent flow and odor issues.

Parts that commonly fix these problems on model 79574025412

Symptom	Common fix	Example part for this model
Bad-tasting water, slow dispense, small cubes	Replace water filter	Genuine Kenmore refrigerator water filter 9690 AGF80300801
Odors in fresh food section	Replace air filter	Lg refrigerator air filter ADQ73214408
Frost issues, erratic temps	Test/replace defrost sensor	Refrigerator defrost sensor assembly 6615JB2005R
Ice maker not producing	Replace ice maker	Lg refrigerator ice maker AEQ73130004
Warm temps, long run times	Clean/inspect condenser coil	Refrigerator condenser coil ACG73645004

Why it matters

Cooling, ice, and odor complaints often share the same root causes: restricted airflow, dirty heat-exchange surfaces, or a small failure in the defrost or dispensing system. Fixing the underlying cause protects food temperatures and reduces compressor run time.

Helpful DIY guides

• Use how to replace the water filter in a Kenmore refrigerator when you are changing filters or troubleshooting slow water flow.

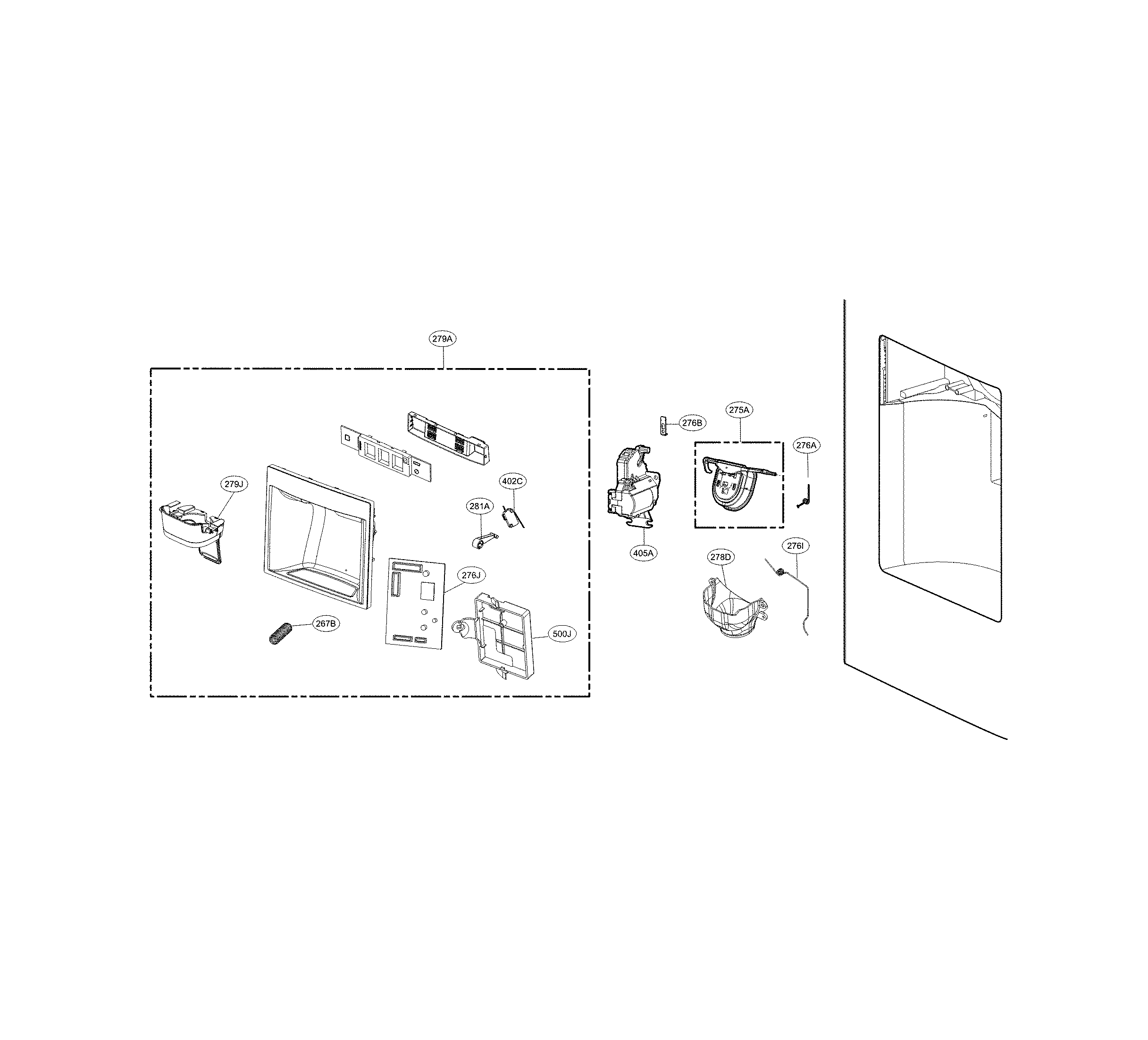

• If the dispenser area needs service, follow how to disassemble a Kenmore refrigerator dispenser to avoid breaking trim pieces.
• If you see a code or flashing display, check Kenmore 795 model bottom freezer refrigerator error codes for the most relevant code list for this model family.

Last updated: February 2026

A Kenmore Elite refrigerator like model 79574025412 typically lasts 10 to 15 years. With consistent maintenance (good airflow, clean condenser area, tight door seals, and timely filter changes), it commonly reaches the upper end of that range.

What affects lifespan the most

• Condenser cleanliness and airflow: Dust buildup makes the compressor work harder.
• Door seal condition: Air leaks cause longer run times and temperature swings.
• Ice maker and dispenser use: Heavy use increases wear on moving parts.
• Water quality and filter changes: Reduces clogs and protects the water system.
• Room conditions: Hot garages and tight enclosures shorten component life.

Maintenance checklist (simple, high impact)

Use the steps and intervals in the 79574025412 owner's manual.

• Vacuum and brush the condenser area every 6 to 12 months
• Keep vents inside the fresh food and freezer sections unblocked
• Confirm doors close fully and the gasket seals all the way around
• Replace the water filter on schedule (often about every 6 months)
• Replace the air filter when odors linger or airflow is reduced

Common “repair vs. replace” guide

If your refrigerator is…	What we recommend	Why
Under 10 years old	Repair is usually worth it	Most major components still have good remaining life
10 to 15 years old	Compare repair cost to value	Multiple wear items can start stacking up
Over 15 years old	Replace if major sealed-system work is needed	Compressor and refrigerant-system repairs are high cost

Parts that often matter as the unit ages

If performance drops, these are common wear items we see customers replace:

• Refrigerator condenser coil ACG73645004 (heat removal and efficiency)

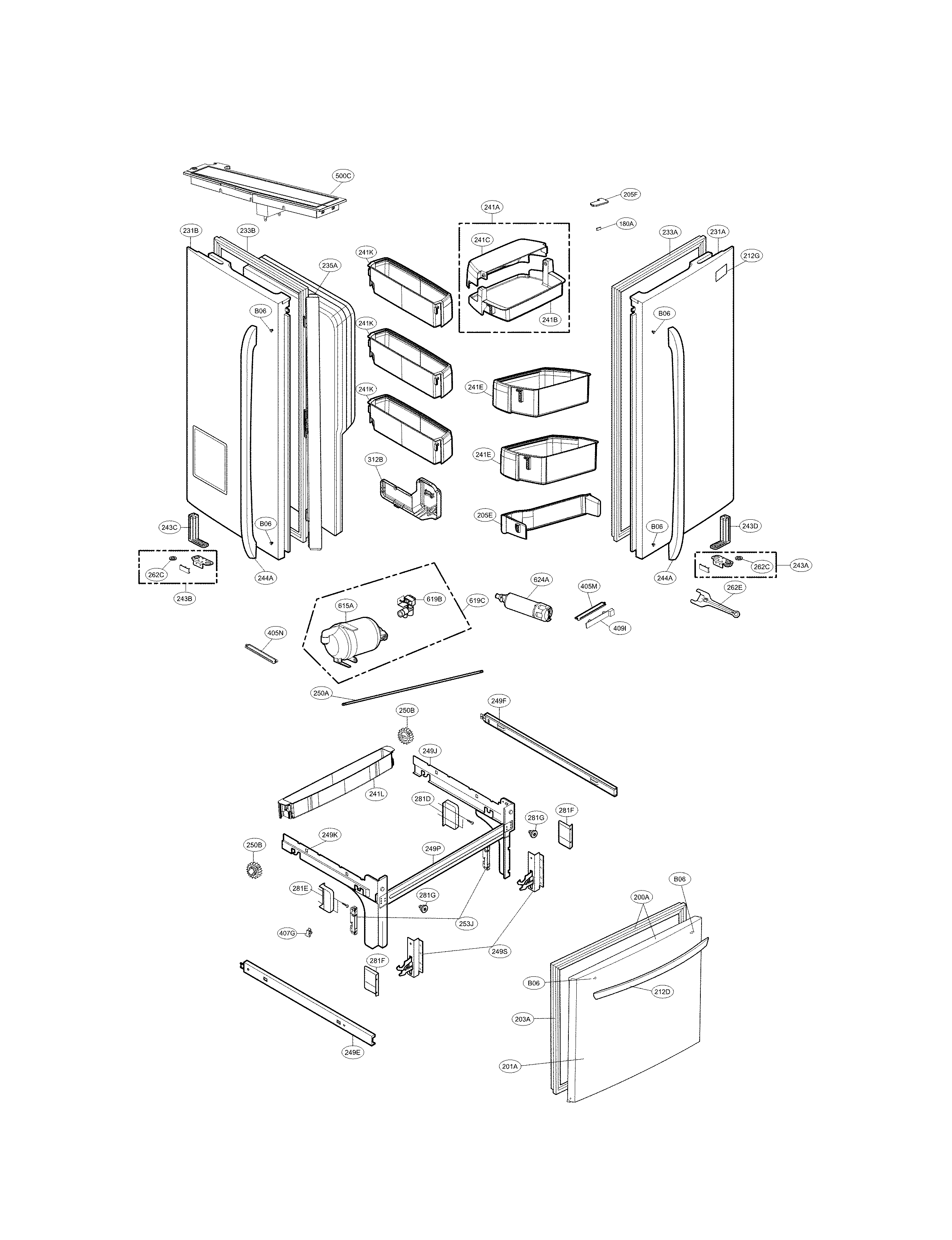

• Refrigerator door gasket, right ADX72930461 (prevents warm air leaks)
• Genuine Kenmore refrigerator water filter 9690 AGF80300801 (water flow and taste)

Why it matters

A refrigerator that runs longer to hold temperature uses more energy and puts extra load on the sealed system (compressor, evaporator, condenser). Basic upkeep helps your Kenmore Elite 79574025412 cool more efficiently and last longer.

Last updated: February 2026

On Kenmore Elite model 79574025412, the water filter is located inside the fresh food (refrigerator) compartment. Open the refrigerator door and look for the filter housing in the upper interior area; the exact spot is shown in the 79574025412 owner's manual.

How to find the correct filter quickly

Use these checks to confirm you are looking at the water filter (not the air filter):

• Look inside the refrigerator section, not behind the unit
• Look for a water filter housing/cover (often near the top interior)
• Keep a towel handy; a small amount of water can drip when you remove a filter
• If you see a round cover that twists on the wall, that is commonly the air filter location
• Match the part to your model before ordering to avoid fit issues

Water filter vs. air filter (common mix-up)

This model also uses an air filter, and the manual notes the air filter cover detaches by turning left and reattaches by turning right. Use this table to avoid replacing the wrong item.

Filter type	What it affects	Typical location	Common clue
Water filter	Water dispenser and ice maker water quality/flow	Inside refrigerator compartment	Connected to water system; may drip on removal
Air filter	Odors in fresh food section	Inside refrigerator compartment wall cover	Cover twists off; “Front” marking on filter

If you are replacing the water filter

For this model, a commonly used replacement is the genuine Kenmore refrigerator water filter 9690 AGF80300801. After installation, dispense water for a few minutes to clear air and carbon fines.

• Turn off the ice maker while purging air (if your model allows)
• Dispense and discard several cups of water until flow is steady
• Check the filter area for leaks after the first few uses
• If water flow is weak, confirm the filter is fully seated and the housing is locked

Why it matters

A correctly installed water filter helps protect water taste and can prevent low-flow issues at the dispenser and ice maker. Knowing the exact filter location also reduces the chance of damaging the housing or spilling water inside the refrigerator.

Last updated: February 2026

Kenmore Elite is a Sears house brand, and the appliances are manufactured by different OEM companies depending on the model. For Kenmore Elite refrigerator model 79574025412, the design and parts sourcing align with LG-built Kenmore 795-series refrigerators, so you will commonly see LG-style components and part numbering.

How to tell who made your specific Kenmore Elite refrigerator

We recommend using your model number and the identification label to confirm the OEM family and match the right parts.

• Use the full model number 79574025412 when shopping for parts and manuals
• The 795 prefix is widely associated with LG-manufactured Kenmore refrigerators
• Compare the parts you need (water filter, air filter, ice maker) to the parts list for your model
• Check the product label inside the fresh food compartment for the model and serial information
• Use the troubleshooting section in the 79574025412 owner's manual to match symptoms to the correct system (cooling, ice, dispenser)

Common OEM clues you will see on this model

Many Kenmore Elite 795 models use LG-sourced components. Here are a few examples from the parts commonly used on 79574025412:

System	Example part you may replace	What it suggests
Water filtration	Genuine Kenmore refrigerator water filter 9690 AGF80300801	Kenmore-branded consumable made for this platform
Air filtration	Lg refrigerator air filter ADQ73214408	LG-style air filter and housing
Ice maker	Lg refrigerator ice maker AEQ73130004	LG ice maker design used in many 795 units

Why it matters

The manufacturer behind the Kenmore Elite badge affects part compatibility, service procedures, and troubleshooting steps. Using the exact model number (79574025412) and the correct OEM-style parts helps prevent fit issues and repeat failures.

Helpful related DIY content

If you are diagnosing a display code or performance issue, use Kenmore 795 model bottom freezer refrigerator error codes to narrow the problem to the right system before ordering parts.
