Model #KUCS03FTSS1 Official KitchenAid trash compactor

Here are the diagrams and repair parts for KitchenAid KUCS03FTSS1 trash compactor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

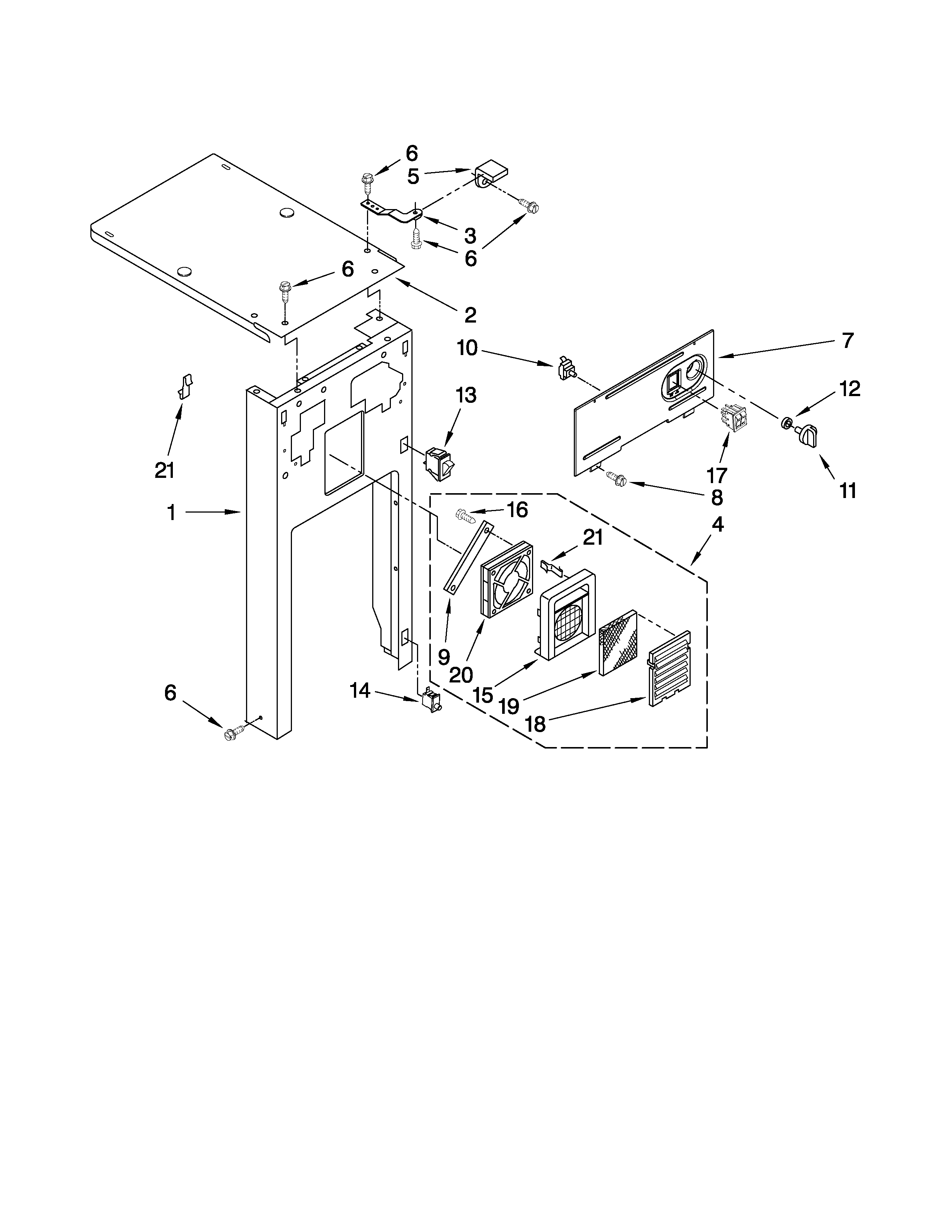

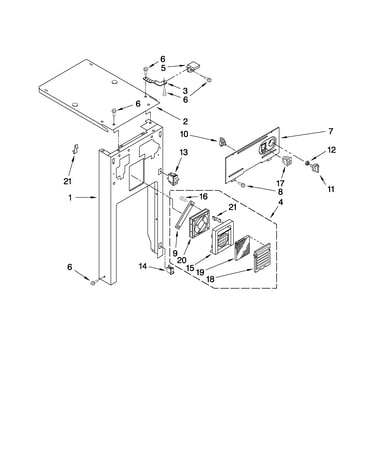

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 142 parts

Trash Compactor Drive Gear Kit (replaces 41001084, 4149667, 777124, W10451279, Y4149667, Y776839, Y777124)#10

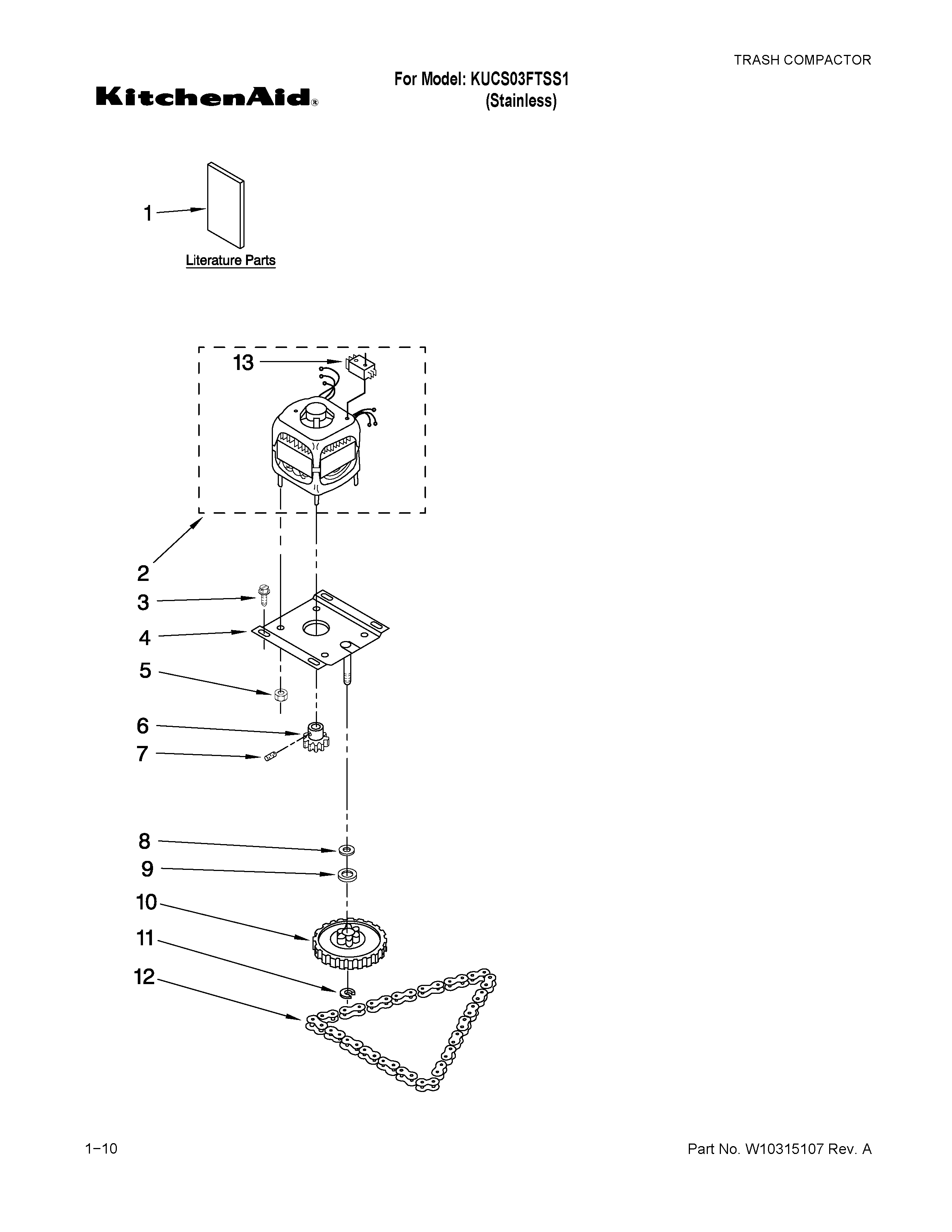

Motor and drive parts Diagram

Gear

Part #777124
Replaced by #882699
?
Manufacturer substitution
This part replaces 777124. Substitute parts can look different from the original.
BEST SELLER
In Stock
$53.25 |
9% OFF
Phone Price: $58.25
Trash Compactor Drive Gear Kit (replaces 41001084, 4149667, 777124, W10451279, Y4149667, Y776839, Y777124)#6

Motor and drive parts Diagram

Drive gear

Part #4149667
Replaced by #882699
?
Manufacturer substitution
This part replaces 4149667. Substitute parts can look different from the original.
BEST SELLER
In Stock
$53.25 |
9% OFF
Phone Price: $58.25
Appliance Touch-Up Paint, 0.6-oz (White) (replaces 21020, 72017R, 8006, W10813125, Y058028)#10A

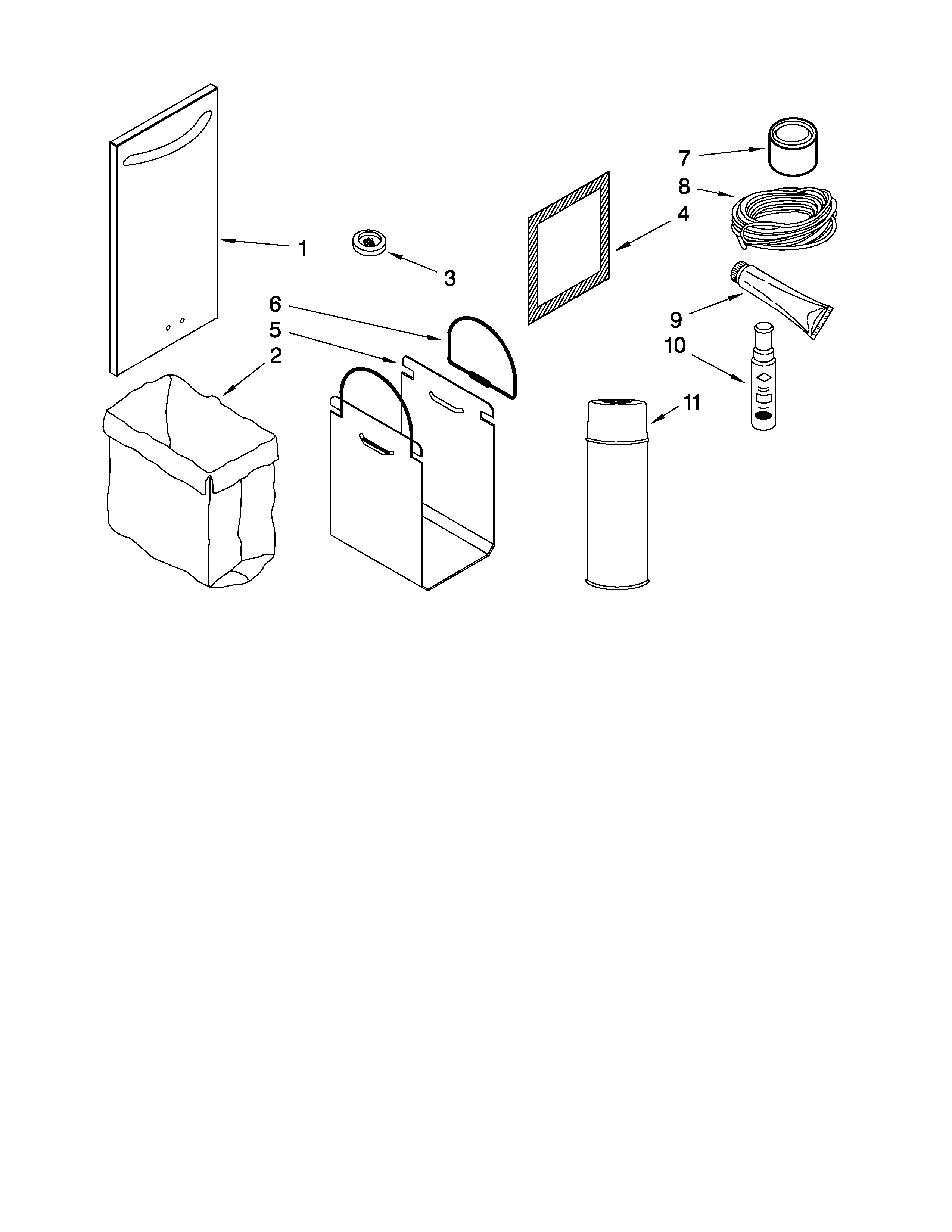

Accessory parts Diagram

In Stock
$8.29 |
11% OFF
Phone Price: $9.29
Trash Compactor Bag, 15-pack (replaces 14200764, 14208575, 41001001, 4318921RP, 4318921RPCA, 4319250)#2

Accessory parts Diagram

Trash compactor bag, 15-pack

Part #4318921
Replaced by #W10165295RP
?
Manufacturer substitution
This part replaces 4318921. Substitute parts can look different from the original.
BEST SELLER
Back Order
$18.12 |
10% OFF
Phone Price: $20.12
Appliance Touch-Up Paint, 0.6-oz (Black) (replaces 20001009, 72032P, 72032R, W10831982)#10B

Accessory parts Diagram

In Stock
$4.89 |
38% OFF
MSRP: $7.90
Trash Compactor Top Limit and Directional Switch (replaces 777811)#16

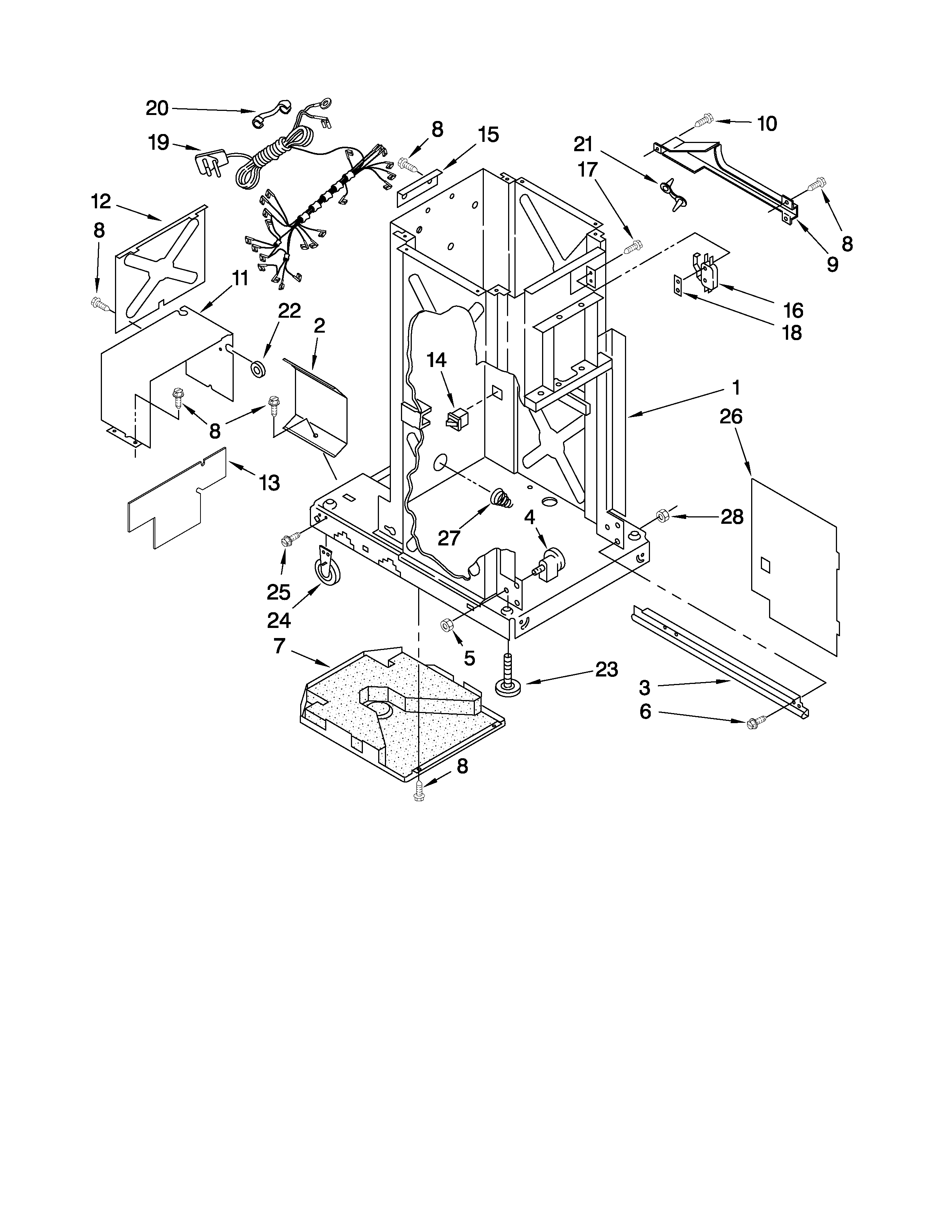

Frame parts Diagram

Trash compactor top limit and directional switch

Part #777811
Replaced by #WP777811
?
Manufacturer substitution
This part replaces 777811. Substitute parts can look different from the original.
BEST SELLER
In Stock
$39.77 |
11% OFF
Phone Price: $44.77
Appliance Touch-Up Paint, 0.6-oz (Almond) (replaces 72107)#10

Accessory parts Diagram

Touch-up paint

Part #72107
Replaced by #WP72107
?
Manufacturer substitution
This part replaces 72107. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$5.39 |
16% OFF
Phone Price: $6.39
Trash Compactor Screw#7

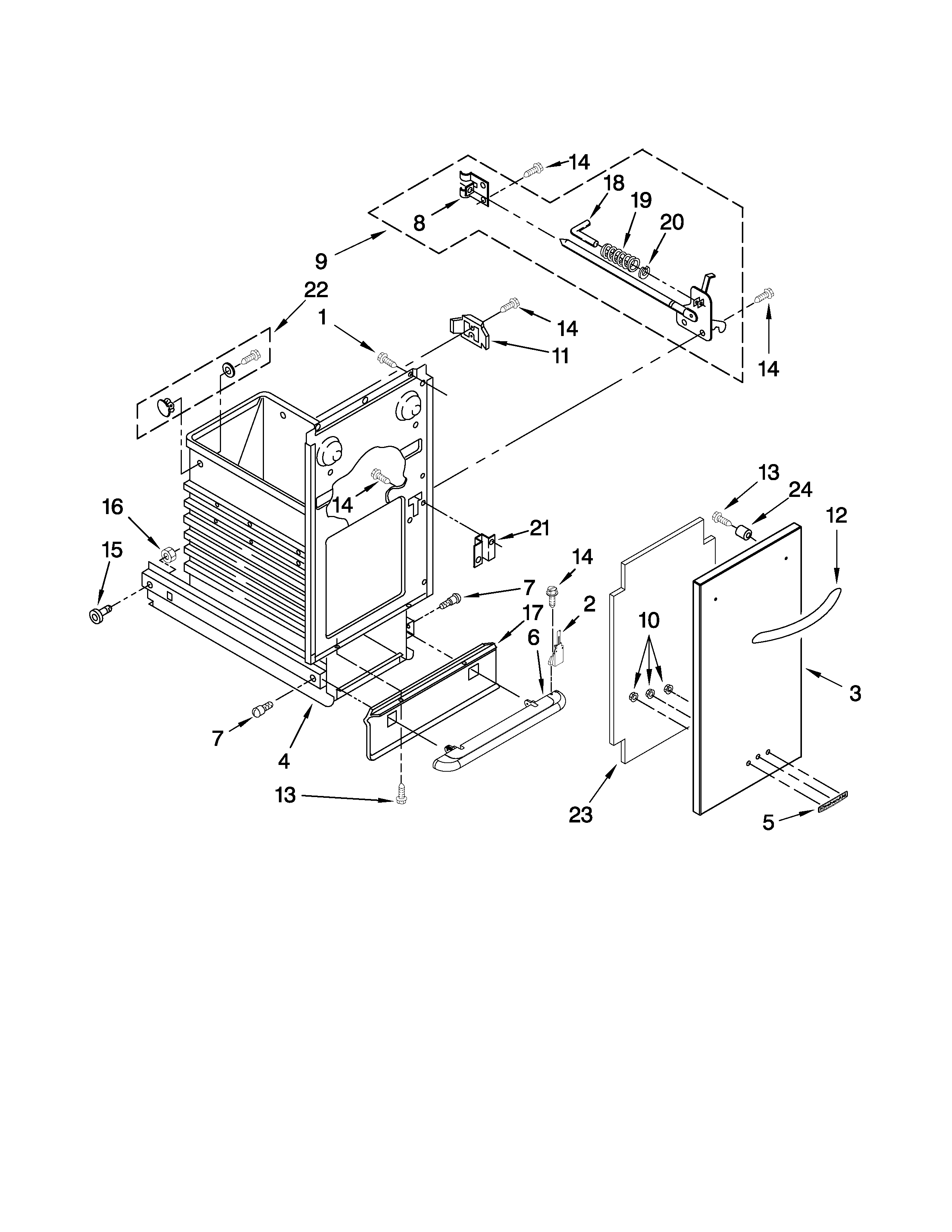

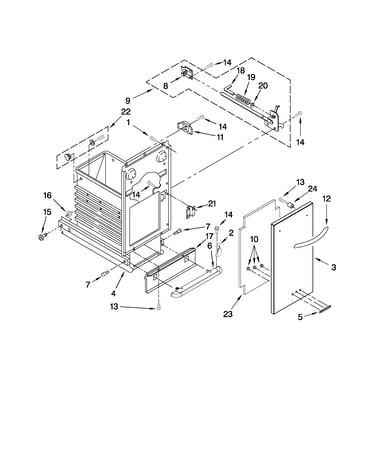

Container parts Diagram

Screw

Part #780263
Replaced by #WP780263
?
Manufacturer substitution
This part replaces 780263. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$4.39 |
19% OFF
Phone Price: $5.39
Trash Compactor Power Nut (replaces 9870163)#12

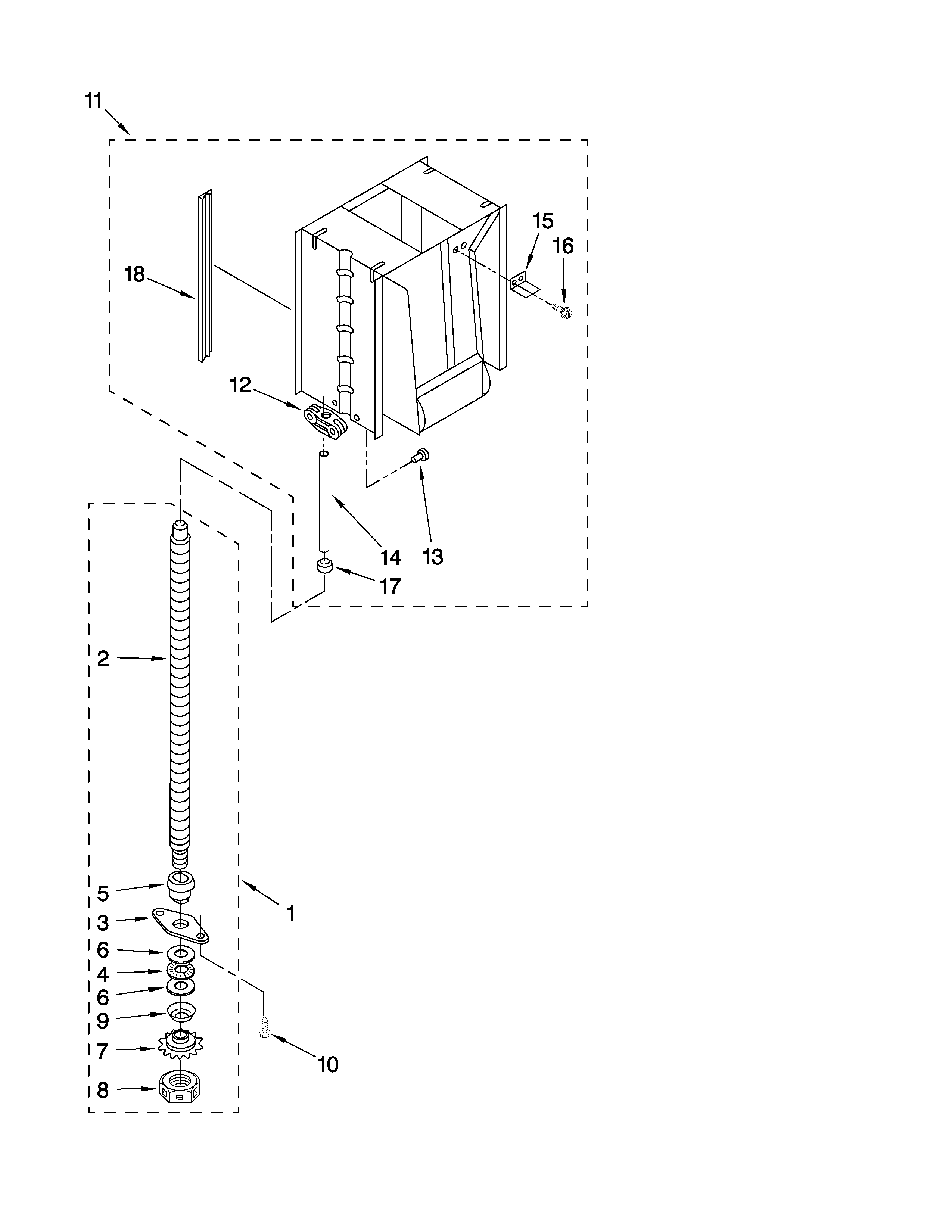

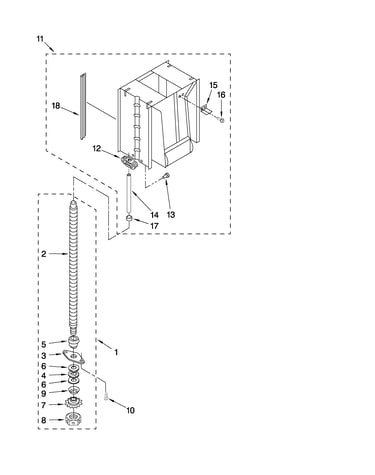

Powerscrew and ram parts Diagram

Trash compactor power nut

Part #9870163
Replaced by #WP9870163
?
Manufacturer substitution
This part replaces 9870163. Substitute parts can look different from the original.
BEST SELLER
In Stock
$30.59 |
14% OFF
Phone Price: $35.59
Trash Compactor Frame Roller, 2-pack#4

Frame parts Diagram

Bearing

Part #4153788
Replaced by #882688
?
Manufacturer substitution
This part replaces 4153788. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$21.69 |
19% OFF
Phone Price: $26.69
