Model #DLEX3370W/00 Official LG dryer
Here are the diagrams and repair parts for LG DLEX3370W-00 dryer, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:

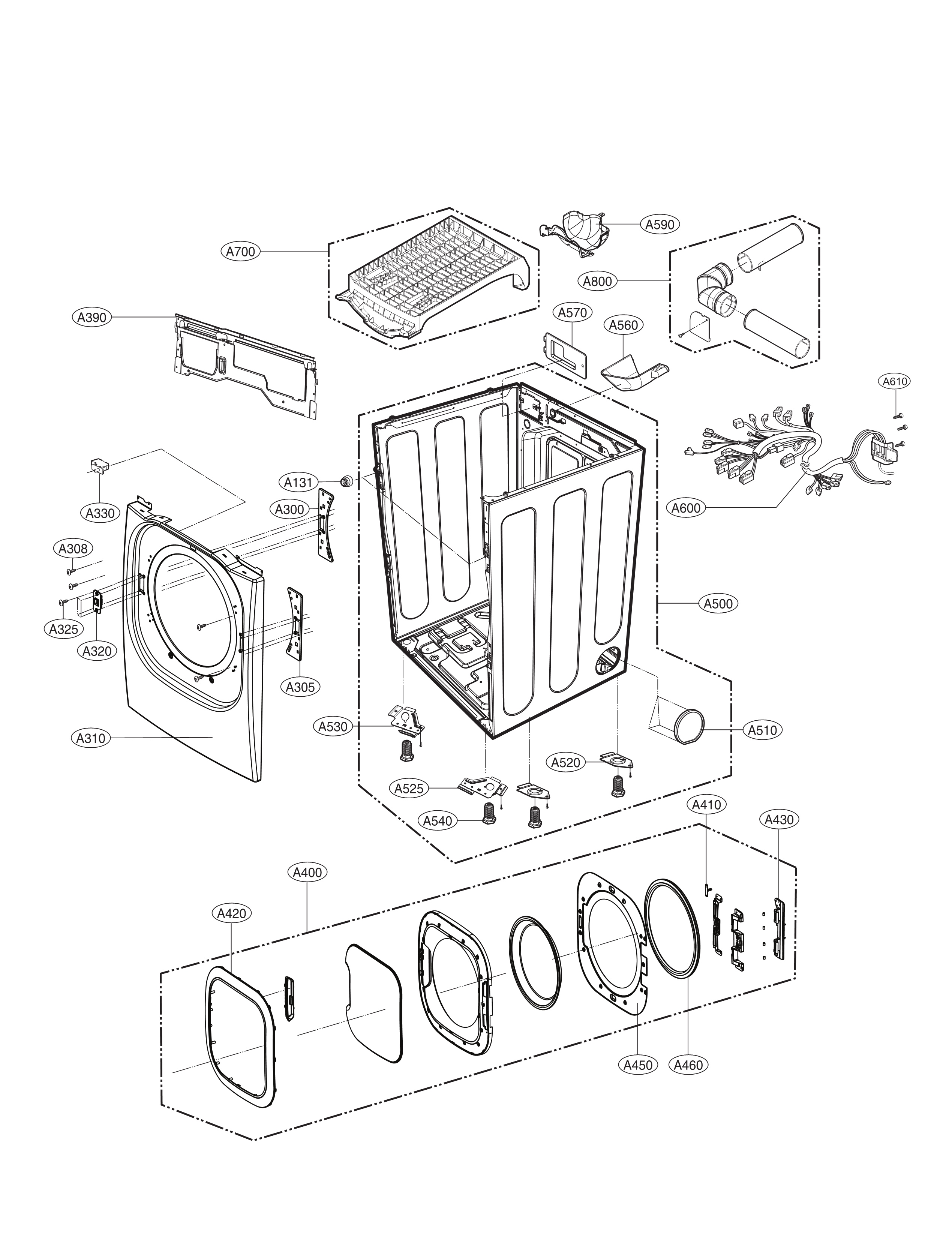

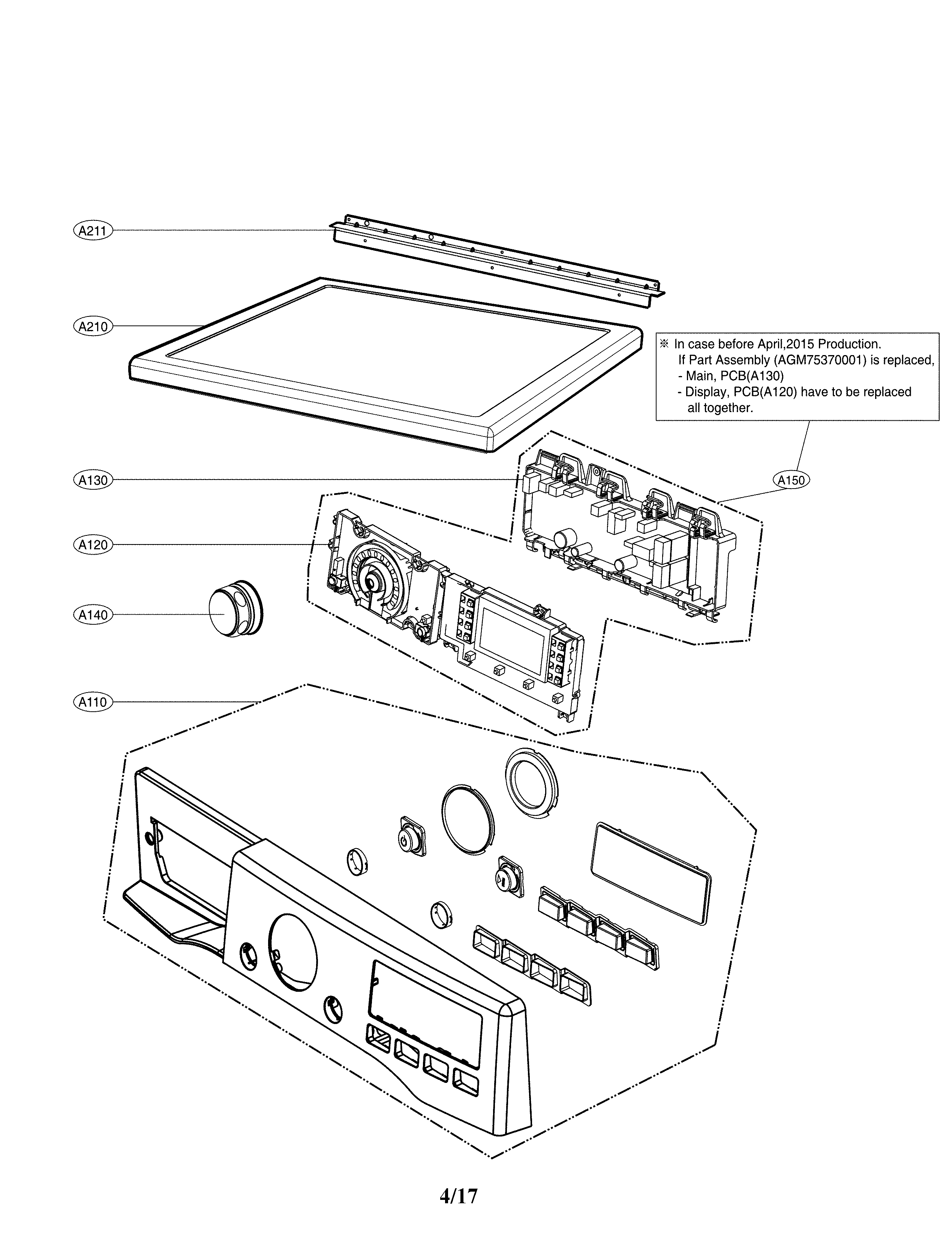

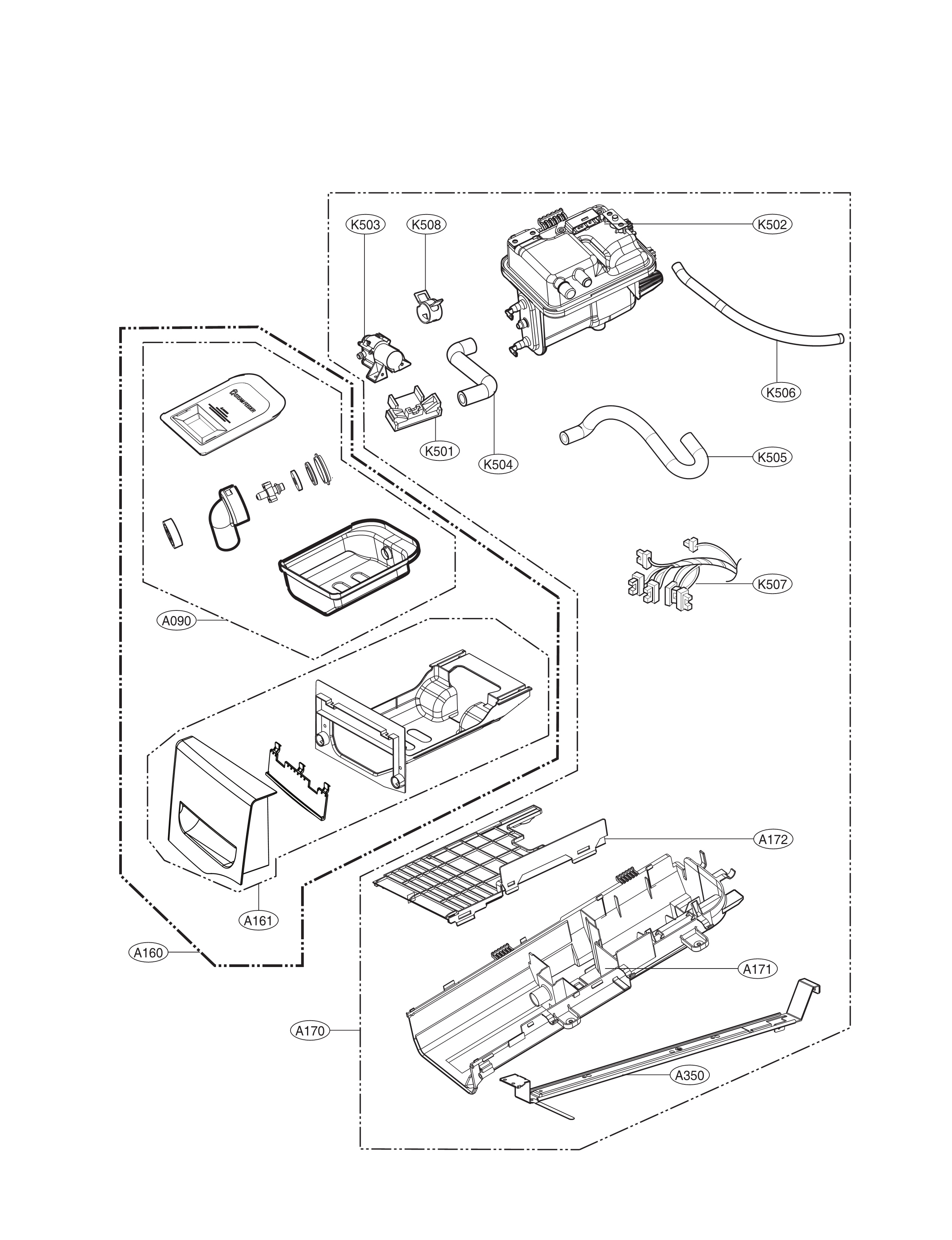

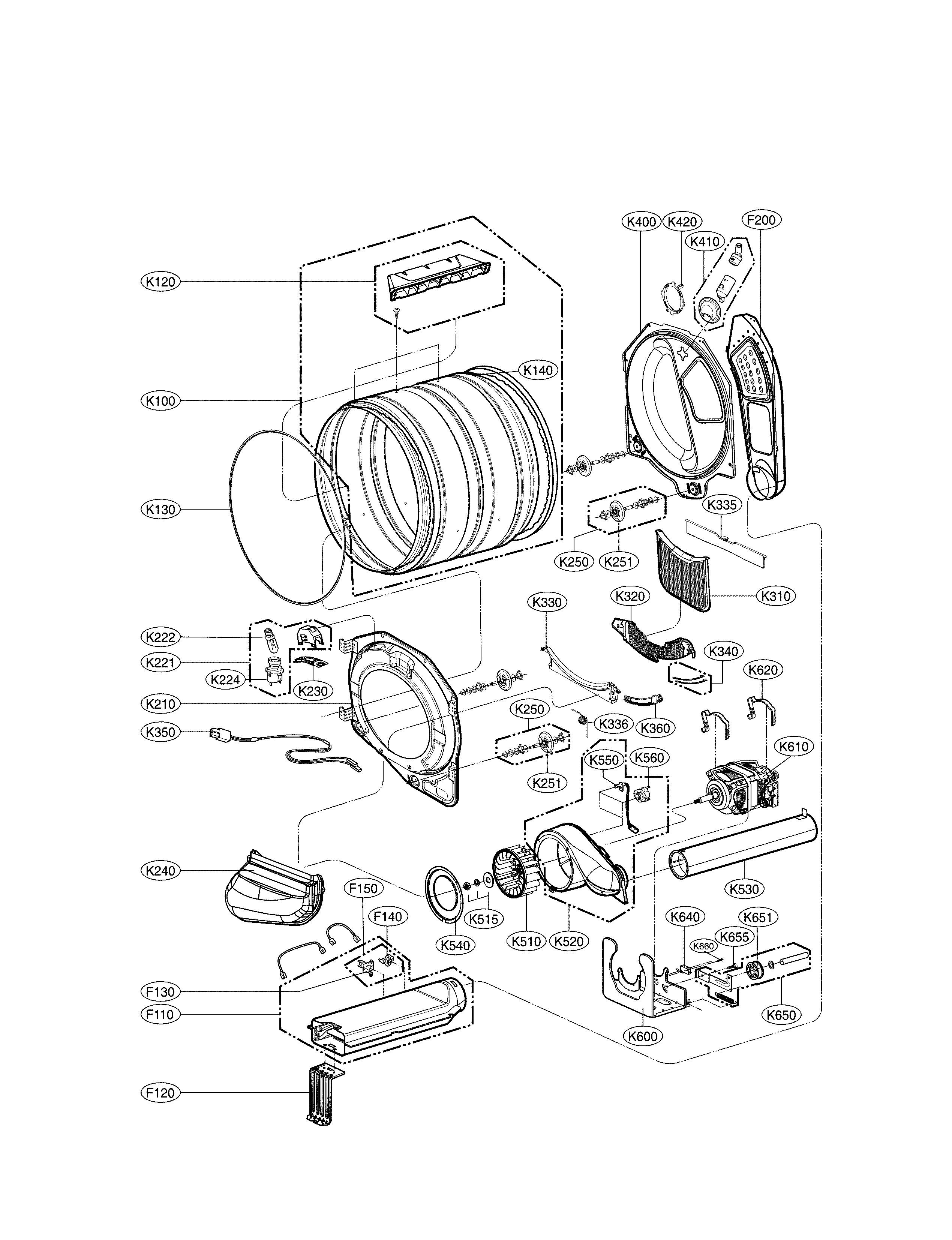

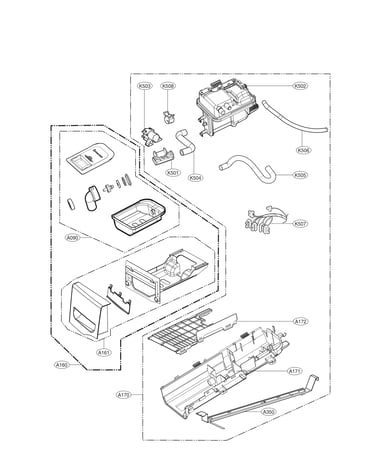

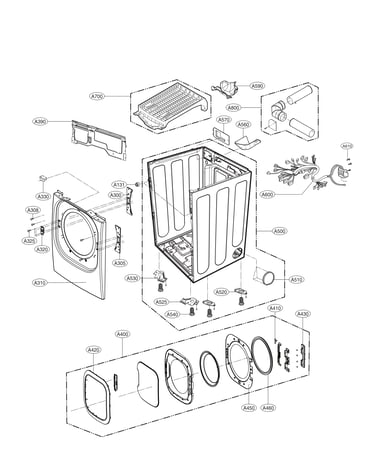

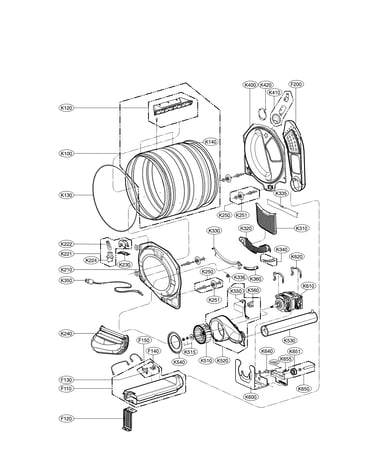

- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 94 parts
Dryer lint screen
Part #ADQ56656401
In Stock
$53.63 |
9% OFF
Phone Price: $58.63
Dryer lint screen housing
Part #MCK49049101
In Stock
$45.81 |
10% OFF
Phone Price: $50.81
Dryer drum belt
Part #4400EL2001A
Replaced by #4400EL2001F
?
Manufacturer substitution
This part replaces 4400EL2001A. Substitute parts can look different from the original.
In Stock
$20.20 |
20% OFF
Phone Price: $25.20
Dryer high-limit thermostat (replaces f1306931el3003d)
Part #6931EL3003D
In Stock
$16.36 |
11% OFF
Phone Price: $18.36
Dryer drum support roller assembly
Part #4581EL2002C
Replaced by #AGM75510755
?
Manufacturer substitution
This part replaces 4581EL2002C. Substitute parts can look different from the original.
In Stock
$74.50 |
6% OFF
Phone Price: $79.50
Dryer blower thermostat (replaces 6931el3002a)
Part #6931EL3002M
In Stock
$37.89 |
12% OFF
Phone Price: $42.89
Dryer idler pulley (replaces 4561el3002b)
Part #4561EL3002A
In Stock
$46.54 |
10% OFF
Phone Price: $51.54
Dryer thermistor
Part #6323EL2001B
In Stock
$28.34 |
15% OFF
Phone Price: $33.34
Dryer moisture sensor
Part #6500EL3001A
In Stock
$20.72 |
19% OFF
Phone Price: $25.72
Dryer idler pulley
Part #4560EL3001A
In Stock
$19.50 |
9% OFF
Phone Price: $21.50
Recommended maintenance parts and accessories
In Stock
$31.43 |
14% OFF
Phone Price: $36.43
In Stock
$61.29 |
8% OFF
Phone Price: $66.29
In Stock
$54.12 |
8% OFF
Phone Price: $59.12
Symptoms common to all dryers
Main causes: bad timer or electronic control board, door switch failure
Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
Main causes: damaged door strike, worn door catch
Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
Repair guides common to all dryers
If your dryer thumps or squeals, replace the drum support roller to restore quiet to your home.
Repair difficulty
Time required
90 minutes or less
The thermistor senses the air temperature in the dryer. If your dryer overheats or doesn't heat at all, the thermistor could be the problem.
Repair difficulty
Time required
30 minutes or less
The idler pulley exerts pressure keeps the drive belt tight so it can rotate the drum. A worn idler pulley squeals or squeaks when the dryer is running. Follow these instructions to replace it.
Repair difficulty
Time required
90 minutes or less
Articles and videos common to all dryers
Get advice on simple DIY fixes for appliances that you can safely do on your own.
Learn how to replace a Maytag dryer heating element
Learn how to decipher symbols so you can buy the right part for your problem.
