For a Whirlpool electric dryer like model WED95HEDC1, the most reliable reset is a power reset: turn the dryer off, unplug it (or switch the breaker off) for 2 minutes, then restore power and start a new cycle. Use the WED95HEDC1 owner's manual for the exact button sequence on your control panel.

• Press Power/Cancel to stop the current cycle.
• Unplug the dryer for 2 minutes (or turn both dryer breakers off).
• Restore power.
• Select a fresh cycle and press Start.
• If the controls are unresponsive, try holding Control Lock (or the lock icon button) for 3 seconds.

These checks solve most “won’t start” or “stuck” situations after a reset:

• Confirm the dryer has 240V power (electric dryers often run the drum on 120V but need 240V to heat).

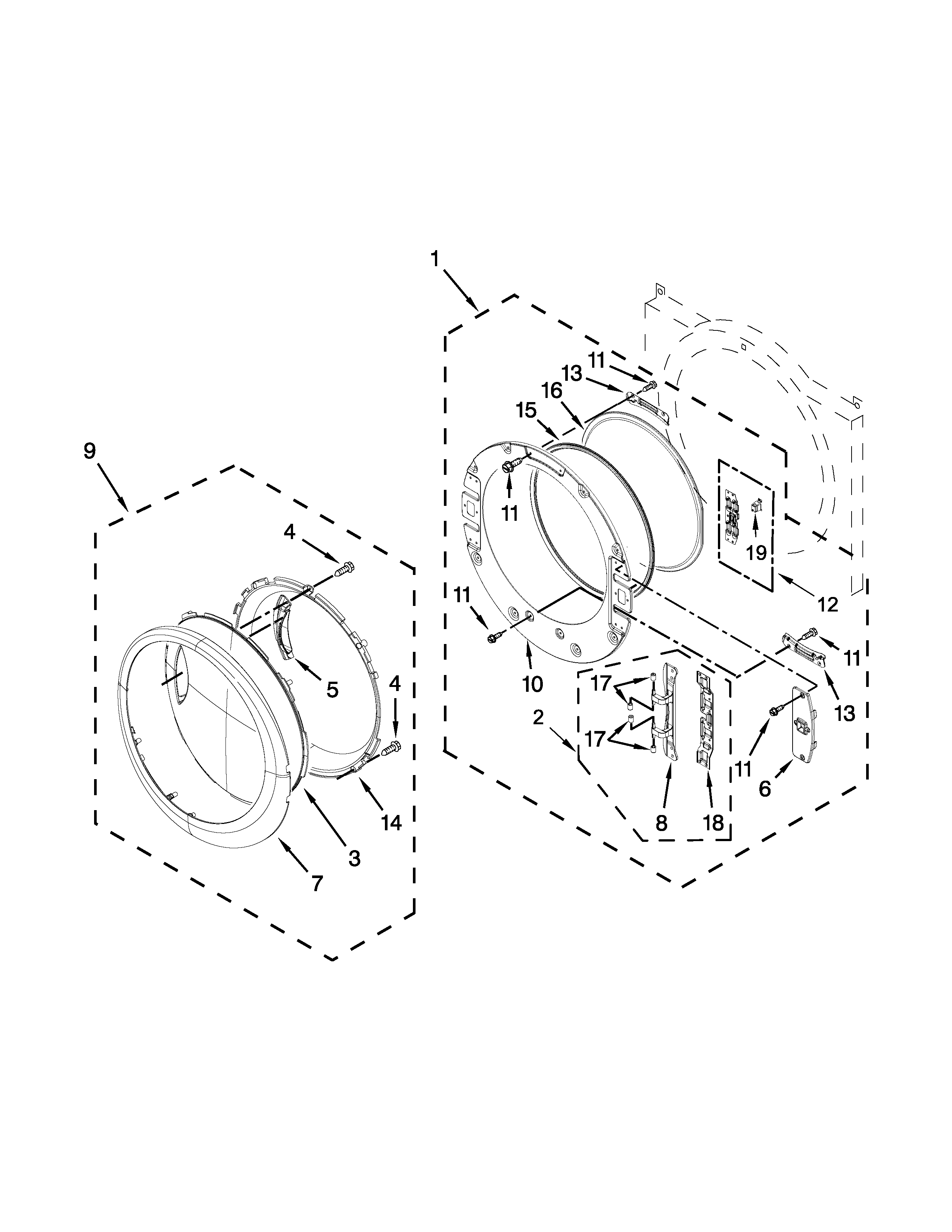

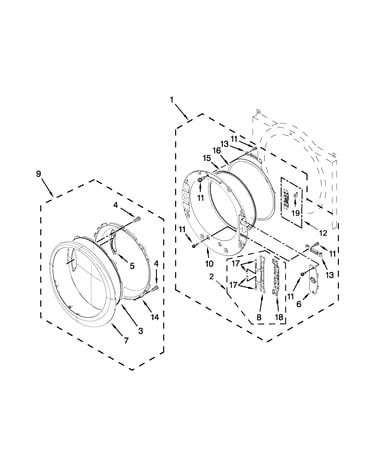

• Make sure the door is fully closed and the door switch clicks.
• Clean the lint screen and verify strong airflow at the vent outlet.
• If the dryer overheated, a blown thermal fuse can prevent starting; on this model, a common replacement is the thermal fuse W10909685.
• If drying is erratic or shuts off early, the dryer thermistor WP8577274 and moisture sensor circuit are common items to inspect.

A reset is a safe first step because it clears temporary electronic control issues without replacing parts. If the problem returns immediately, focus next on airflow, power supply, and safety devices such as the thermal fuse.

Last updated: January 2026

On the Whirlpool WED95HEDC1 electric dryer, an F3 E1 code points to a problem with temperature sensing or airflow that makes the dryer think it cannot read temperature correctly. We start by resetting power, then checking venting and the thermistor circuit per the WED95HEDC1 owner's manual.

• Unplug the dryer (or switch off the breaker) for 5 minutes, then restore power.
• Clean the lint screen completely; wash it with warm water if you use dryer sheets.
• Check the exhaust duct for kinks, crushing, or heavy lint buildup.
• Confirm the outside vent hood opens freely and is not blocked.
• Run a timed dry cycle and verify you have strong airflow at the outside vent.

F3 E1 is commonly triggered by a temperature-sensing issue (thermistor circuit) or overheating from restricted airflow.

If airflow is good and the code returns, we focus on the temperature sensor and safety devices.

• Dryer thermistor WP8577274: If it reads out of range or is open/shorted, the control can throw F3 E1.
• Thermal fuse W10909685: If the dryer overheated, this safety fuse can open and create additional symptoms.
• Dryer high-limit thermostat WP8557403: Can trip or fail if the heater area runs too hot.

When airflow is restricted, an electric dryer can overheat, trip safety devices, and keep throwing error codes. Fixing venting first prevents repeat failures of the heating element, thermostat, and thermistor.

For code lookups and what the control is detecting, use our Whirlpool duet dryer error codes guide.

Last updated: January 2026

Common problems on Whirlpool Duet-style steam dryers like model WED95HEDC1 include long dry times from restricted airflow, no-heat or overheating from failed temperature-safety parts, and steam issues caused by water supply or mineral buildup. We start by checking venting, power supply, and sensor cleanliness, then test components.

• Takes too long to dry: crushed/long vent run, clogged lint screen, blocked blower housing, weak airflow
• No heat or low heat: heating circuit issue, failed thermal fuse, high-limit thermostat, or heating element
• Stops mid-cycle or won’t start: door switch, control issue, motor problem, or overheating shutdown
• Steam feature acts up (no steam or keeps trying to steam): water supply valve closed, kinked fill hose, mineral scale in steam system
• Clothes feel damp at end of sensor cycles: dirty moisture sensor bars or moisture sensor failure

1. Confirm proper power: electric dryers typically need 240V (a tripped breaker can leave you with 120V and no heat).
2. Check airflow: disconnect the vent and run a timed dry test; strong airflow at the outlet points to a vent restriction.
3. Clean the lint screen and housing: wash the screen with warm water and a soft brush if fabric softener residue is present.
4. Clean moisture sensors: wipe sensor bars with rubbing alcohol to remove waxy buildup.
5. Review steam setup: verify the water valve is open and the fill hose is not kinked; follow the WED95HEDC1 owner's manual for steam cycle use and care.

If your display shows an error, use our Whirlpool duet dryer error codes guide to narrow the problem to areas like the thermistor, moisture sensing, or electronic control.

Steam and sensor cycles depend on accurate temperature sensing and strong airflow. A partially blocked vent can cause long dry times, overheating, nuisance shutdowns, and repeated failures of safety parts like thermal fuses.
