Model #25370313211 Official Kenmore refrigerator
Here are the diagrams and repair parts for Kenmore 25370313211 refrigerator, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

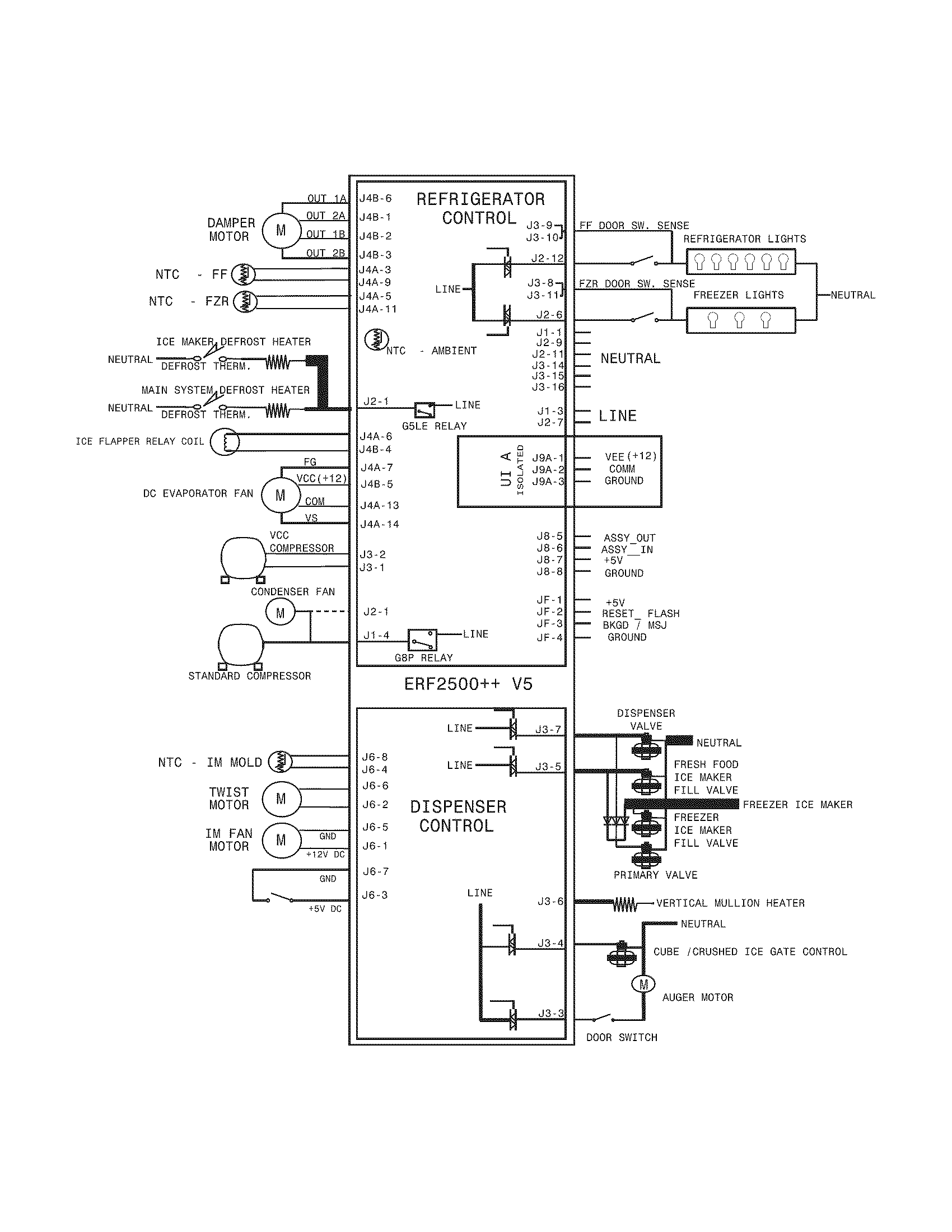

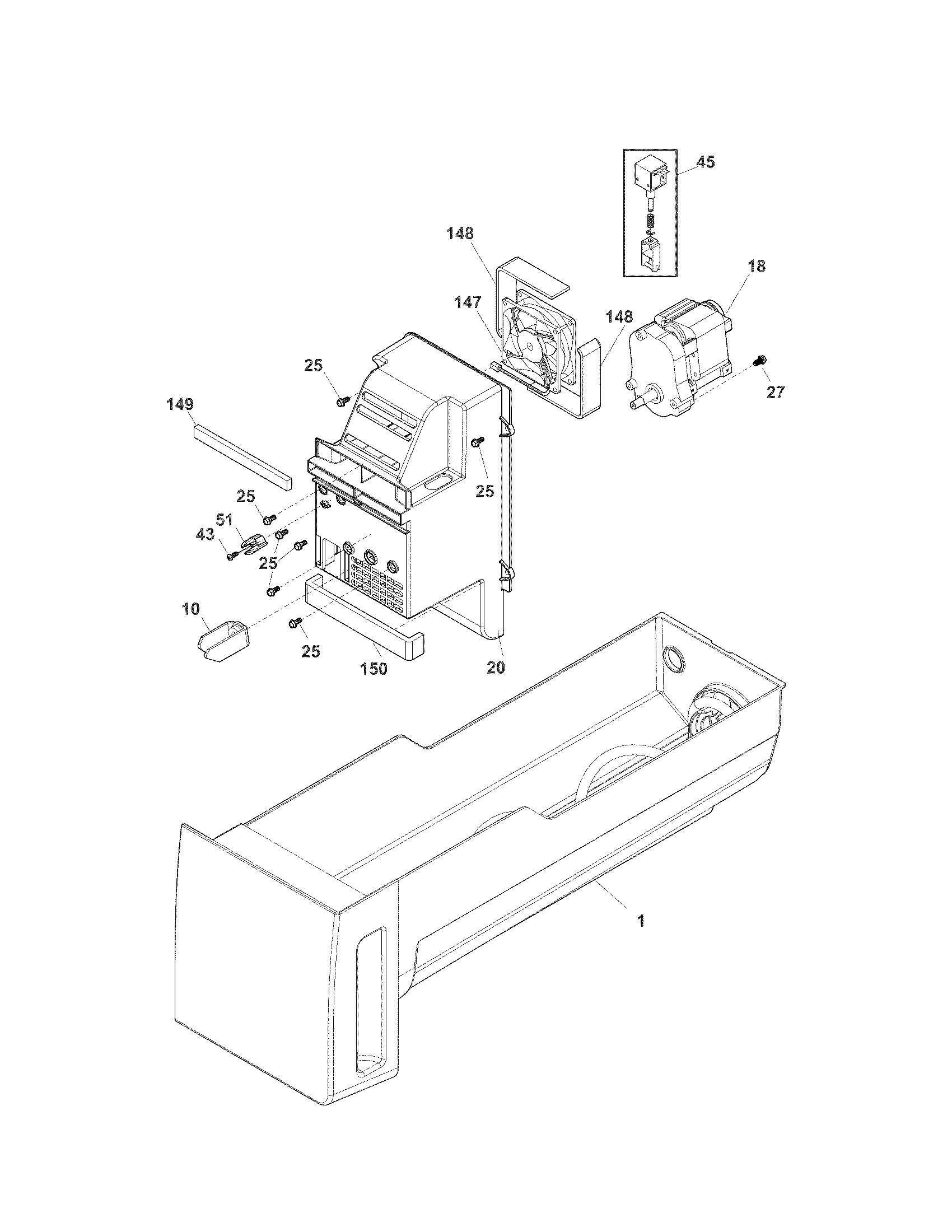

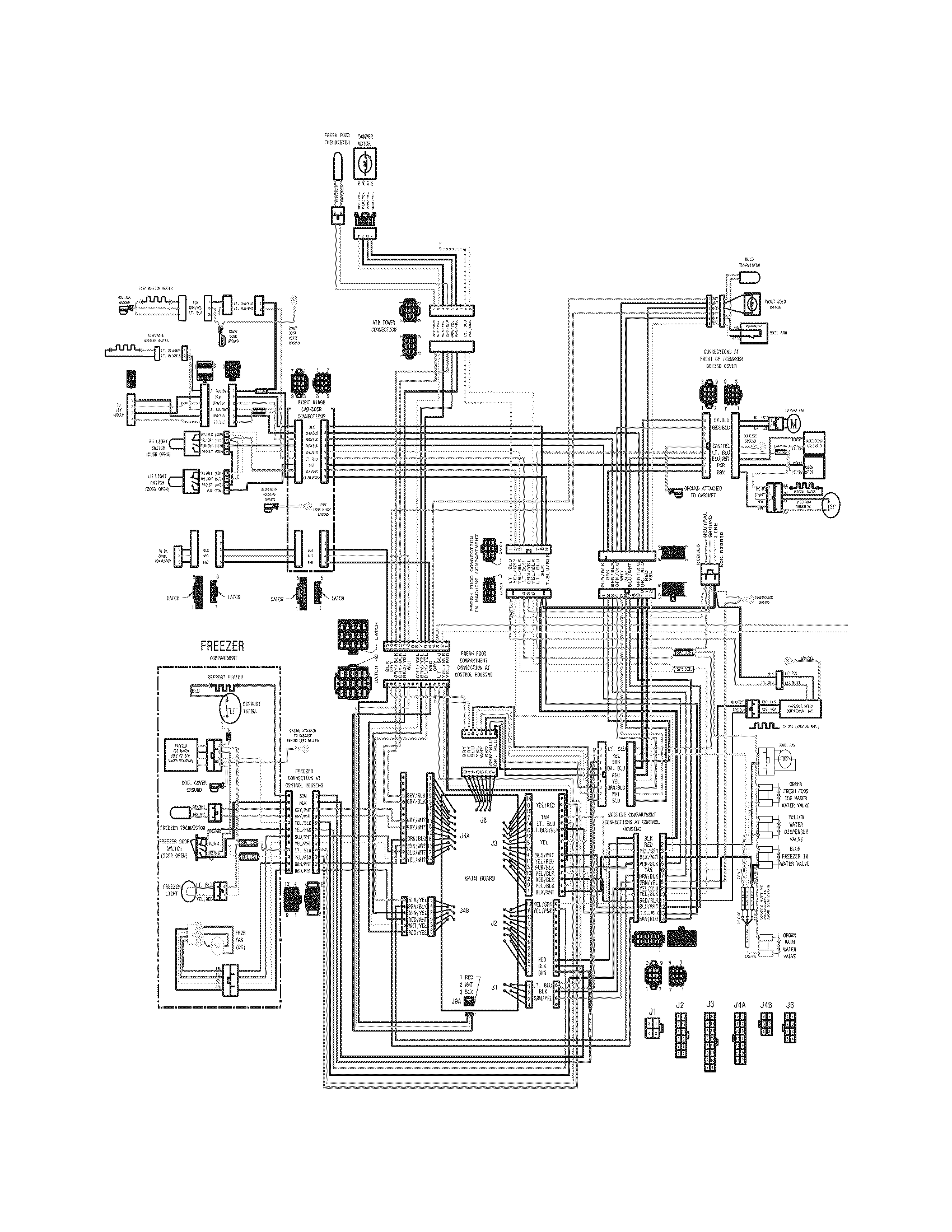

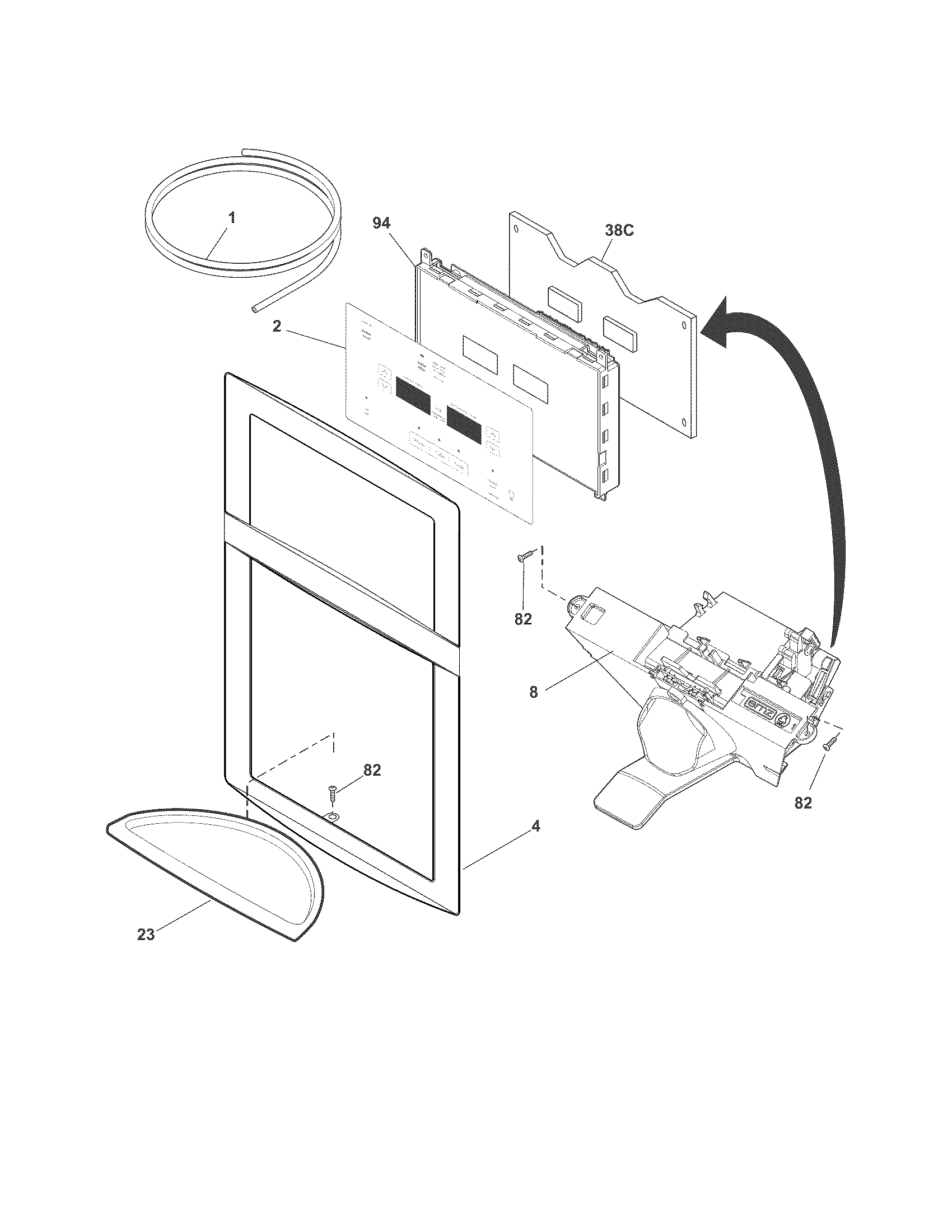

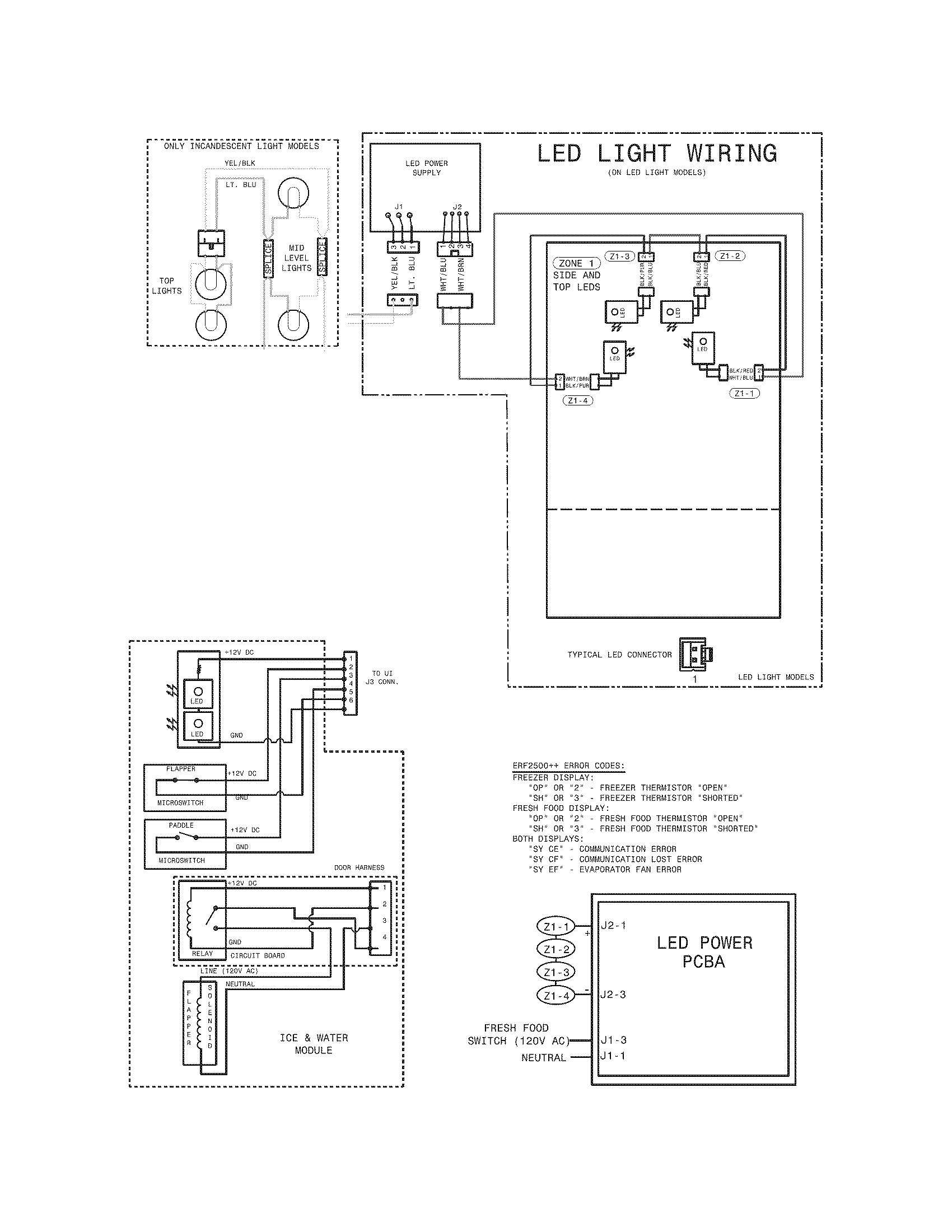

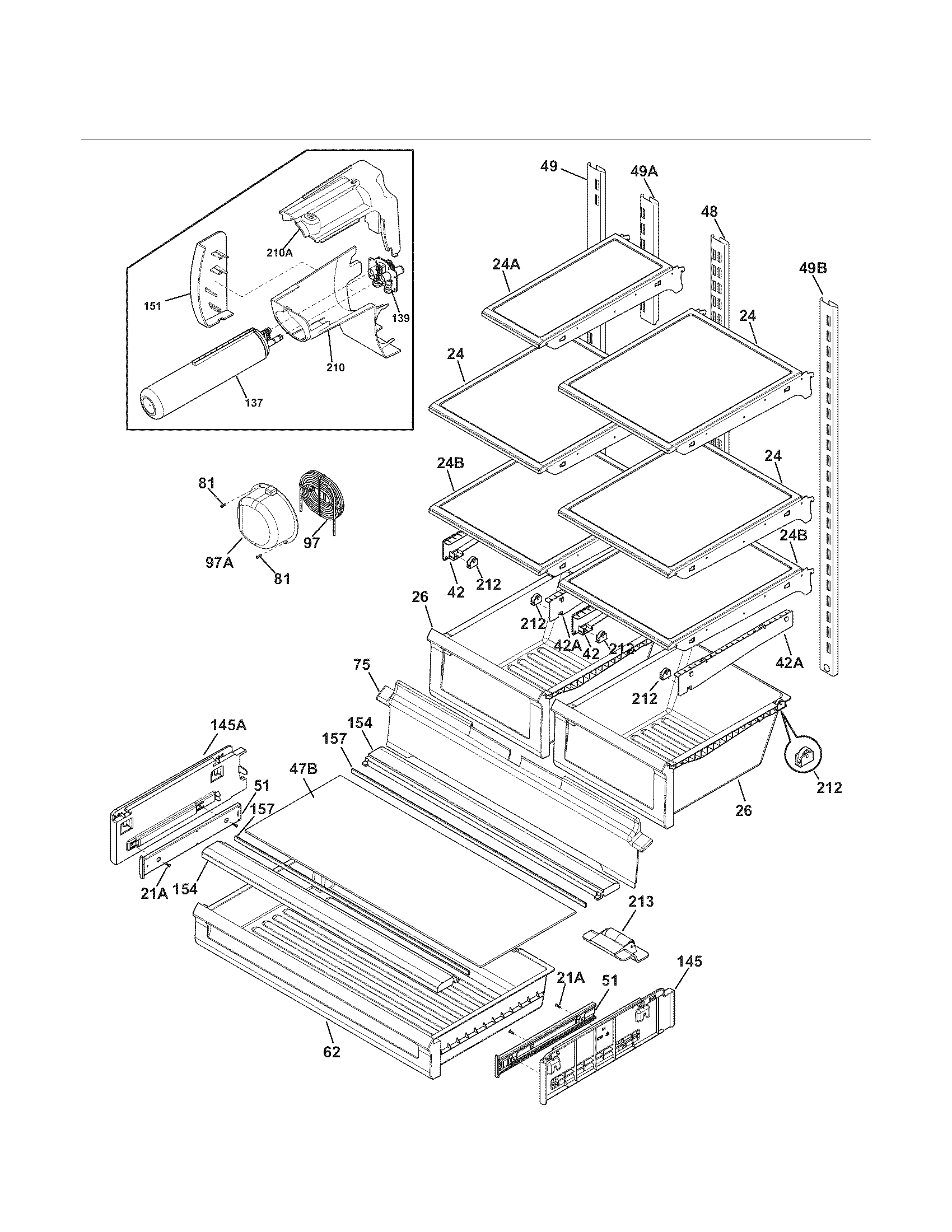

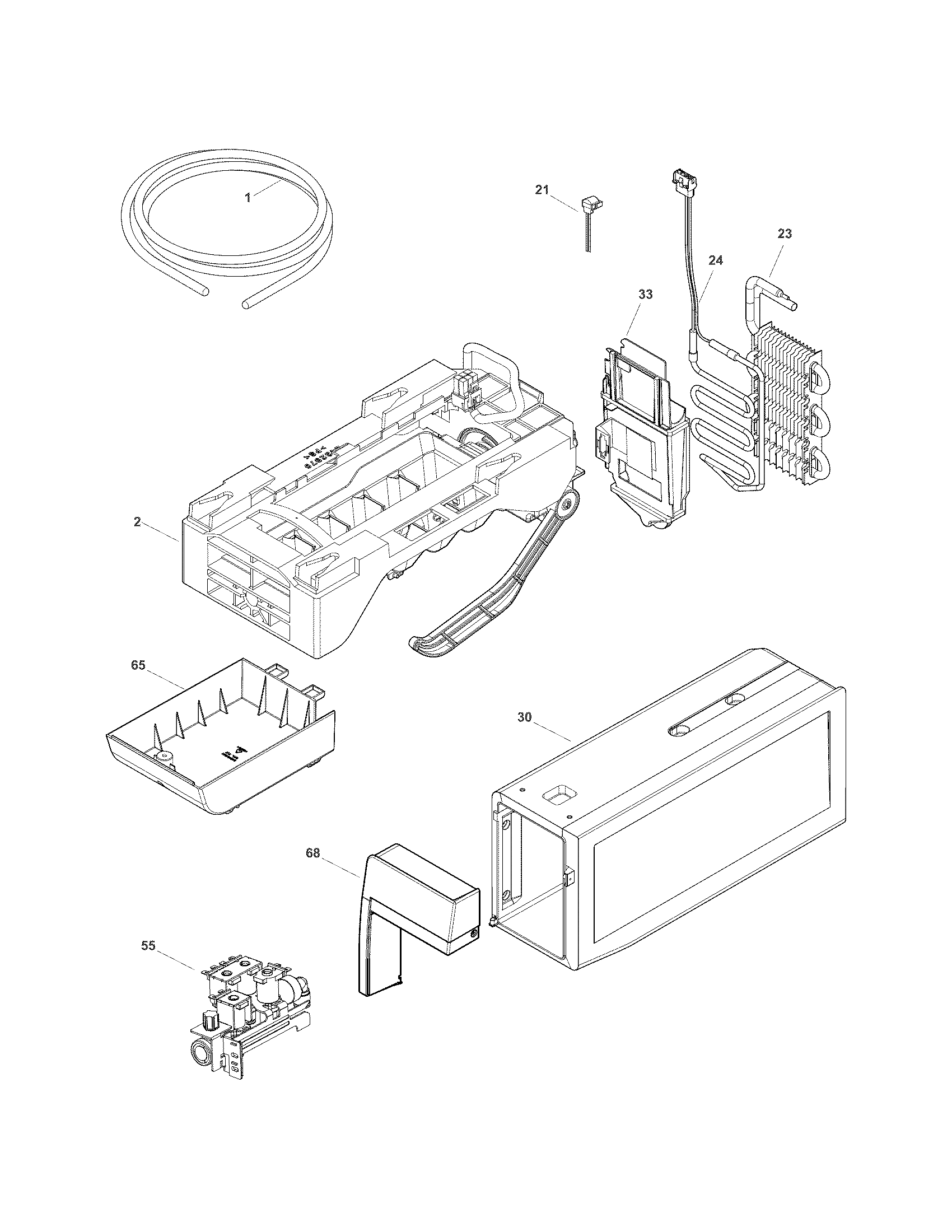

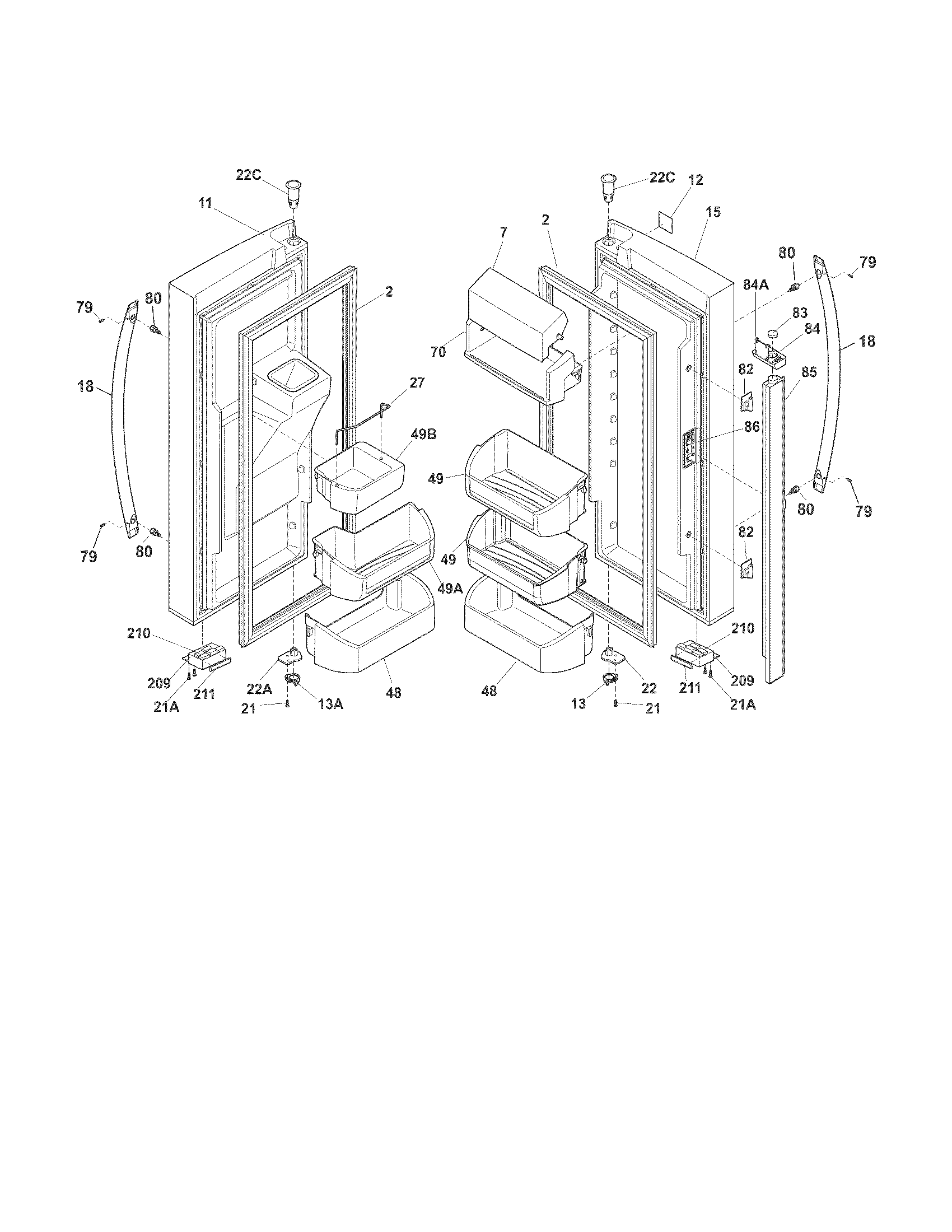

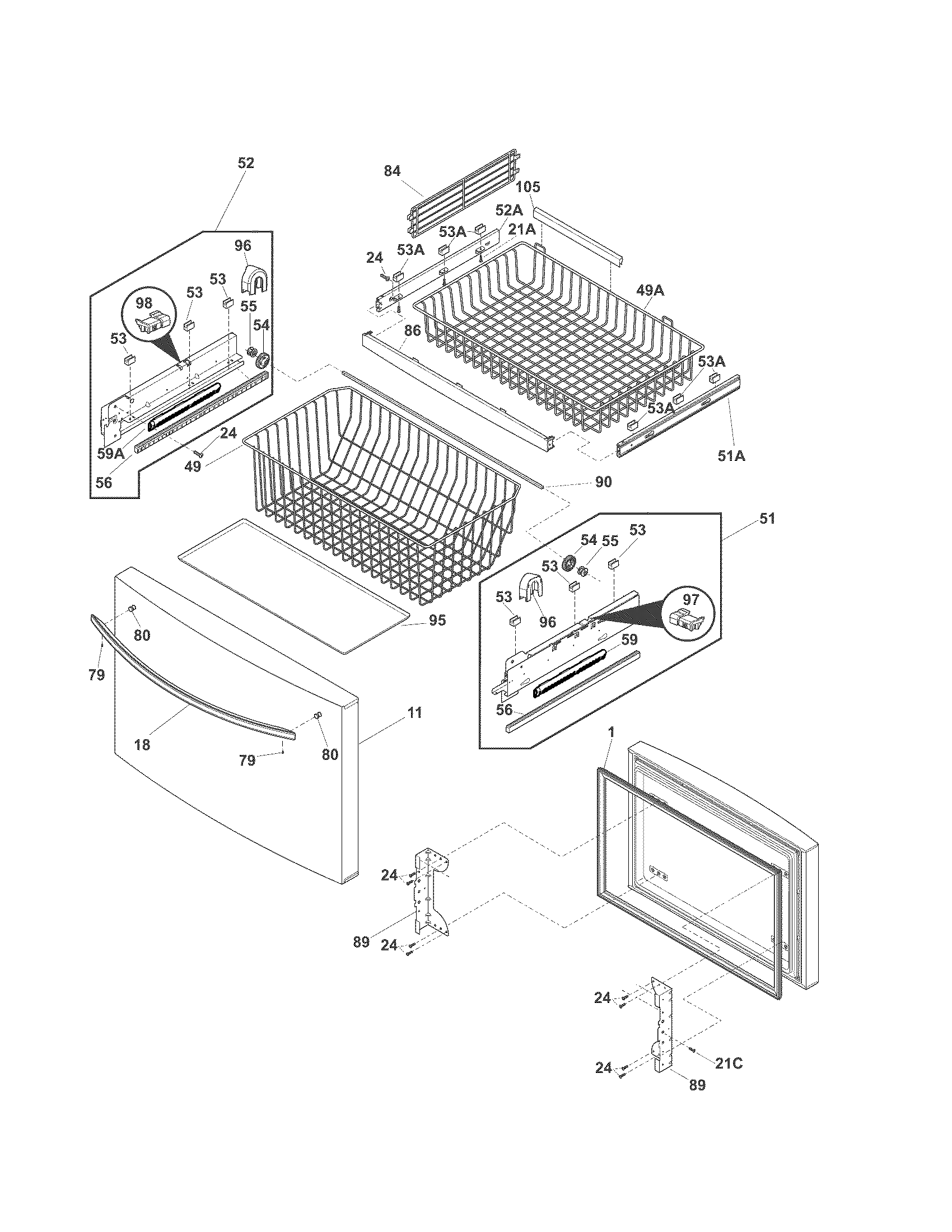

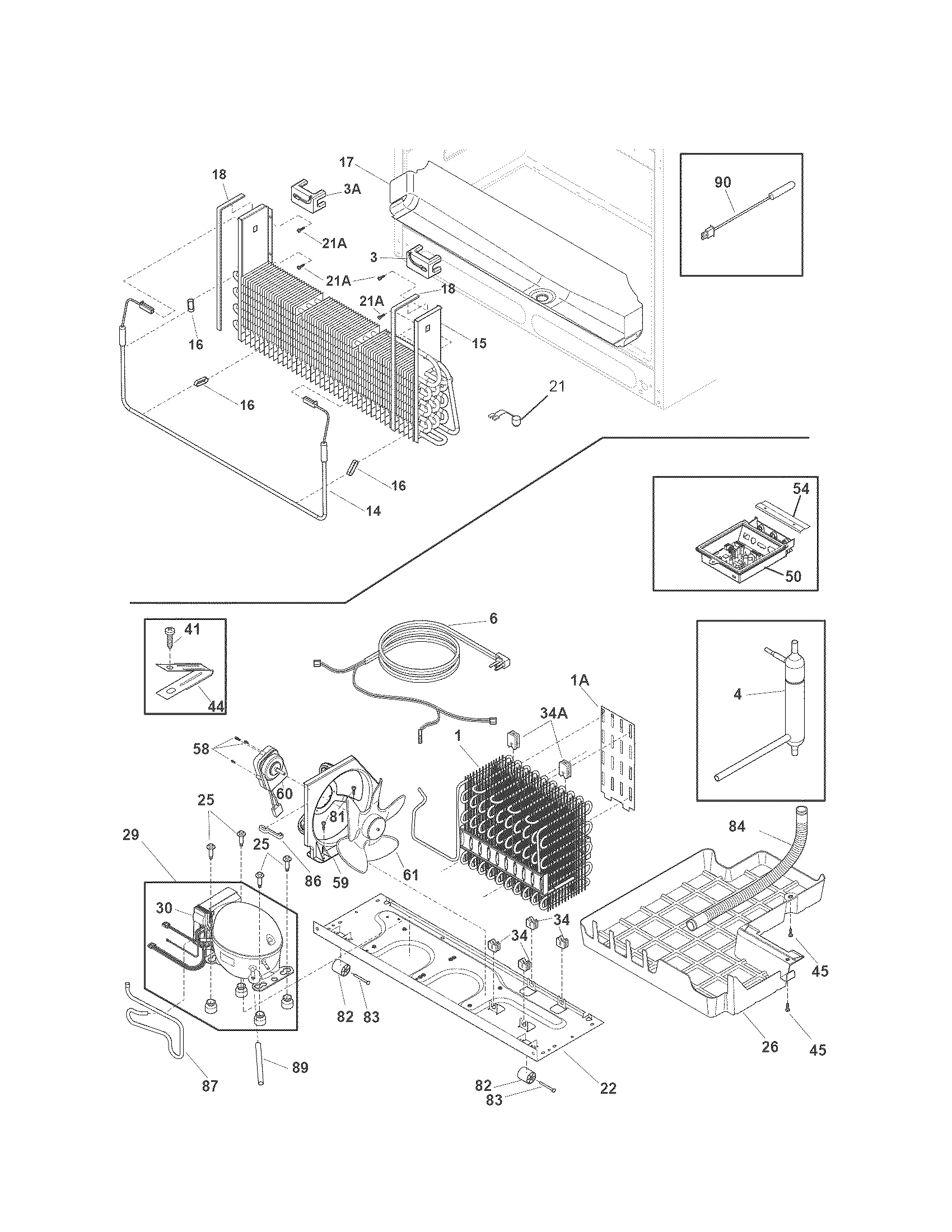

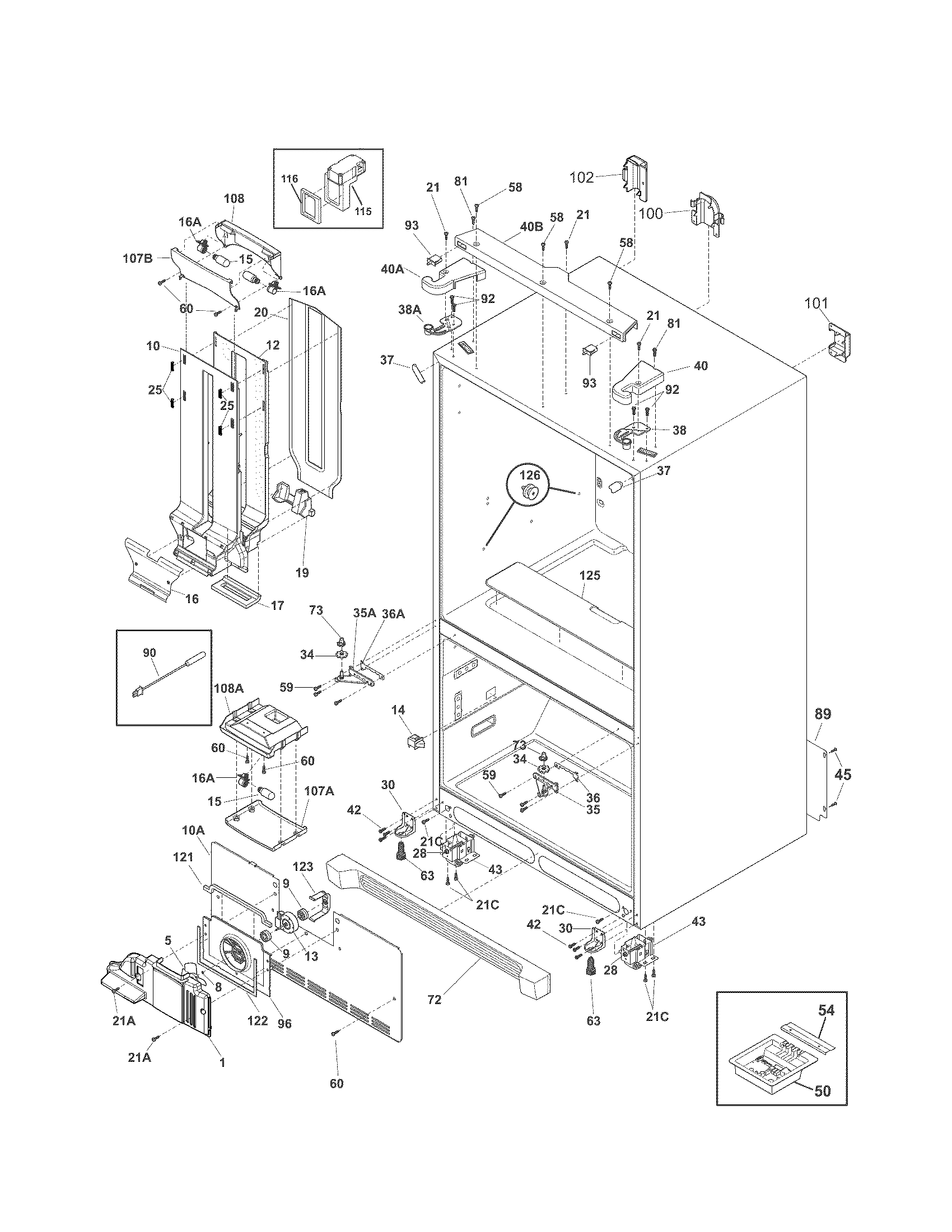

Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 316 parts
Genuine kenmore refrigerator water filter (replaces 242294404)
Part #9999
Get free shipping with Automatic Reorder
In Stock
$69.98 |
26% OFF
MSRP: $93.99
Refrigerator door bin
Part #242011501
Back Order
$60.38 |
8% OFF
Phone Price: $65.38
See All Related Diagrams
In Stock
$9.24 |
10% OFF
Phone Price: $10.24
Refrigerator crisper drawer
Part #241801808
Back Order
$152.72 |
6% OFF
Phone Price: $162.72
Refrigerator door bin
Part #242071301
In Stock
$70.05 |
7% OFF
Phone Price: $75.05
Refrigerator evaporator fan blade
Part #5308000010
In Stock
$39.39 |
11% OFF
Phone Price: $44.39
Refrigerator ice maker assembly
Part #243297603
Replaced by #243297613
?
Manufacturer substitution
This part replaces 243297603. Substitute parts can look different from the original.
In Stock
$89.50 |
11% OFF
MSRP: $100.00
Refrigerator gasket
Part #242146001
Replaced by #5303918784
?
Manufacturer substitution
This part replaces 242146001. Substitute parts can look different from the original.
In Stock
$60.24 |
8% OFF
Phone Price: $65.24
See All Related Diagrams
Refrigerator ice maker gasket kit
Part #242095404
Replaced by #5303918784
?
Manufacturer substitution
This part replaces 242095404. Substitute parts can look different from the original.
In Stock
$60.24 |
8% OFF
Phone Price: $65.24
Refrigerator gasket
Part #242095403
Replaced by #5303918784
?
Manufacturer substitution
This part replaces 242095403. Substitute parts can look different from the original.
In Stock
$60.24 |
8% OFF
Phone Price: $65.24
Recommended maintenance parts and accessories
In Stock
$17.00 |
11% OFF
Phone Price: $19.00
In Stock
$60.79 |
8% OFF
Phone Price: $65.79
In Stock
$18.20
Symptoms common to all refrigerators
Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freezer not cold enough
Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer or control board
Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan not running
Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost timer problems
Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubing, leaking door seal
Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, clean the drain pan
Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, sensor problems
Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condenser fan not working
