Craftsman
Gas Walk-Behind Mower

Model # 917376741 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917376741 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

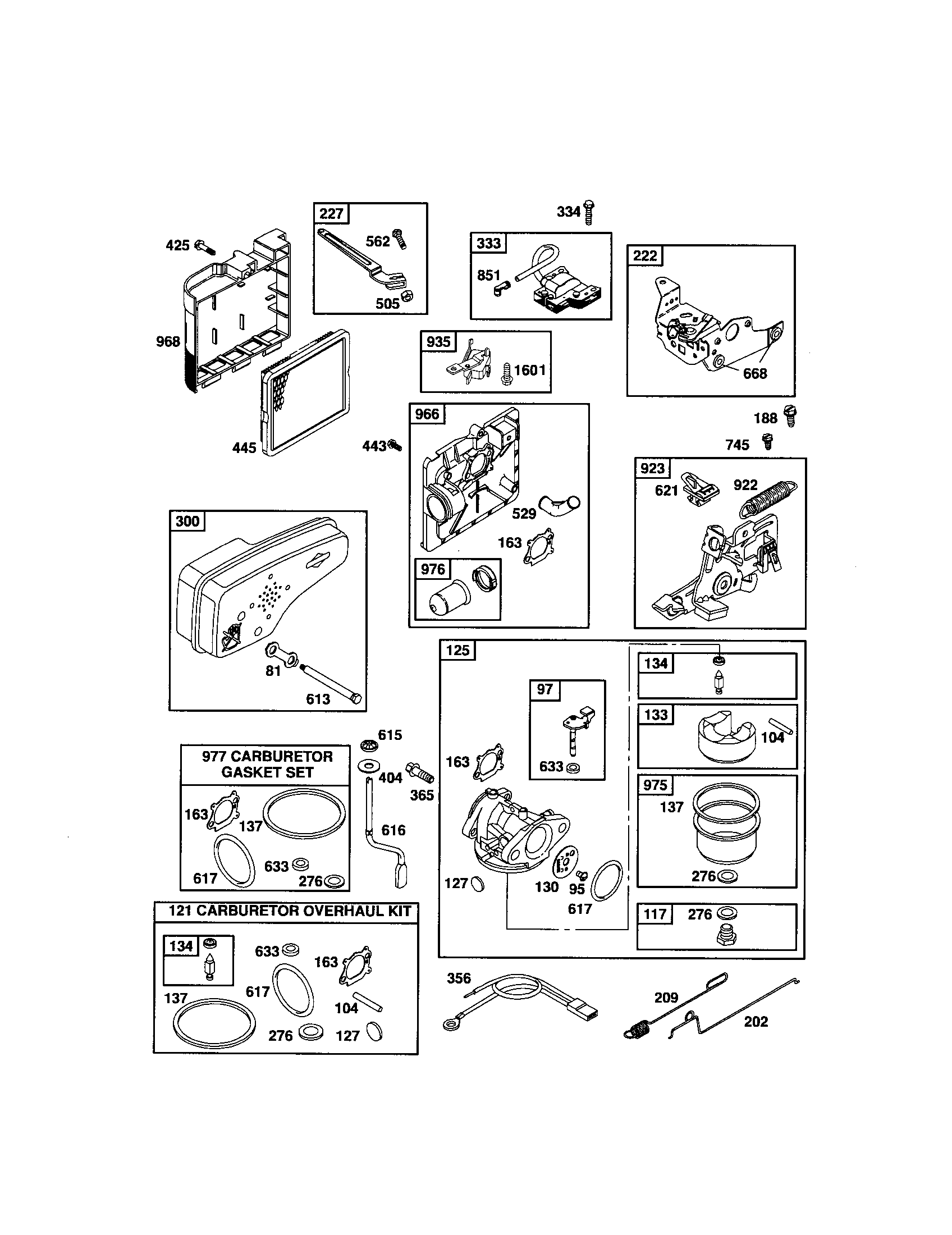

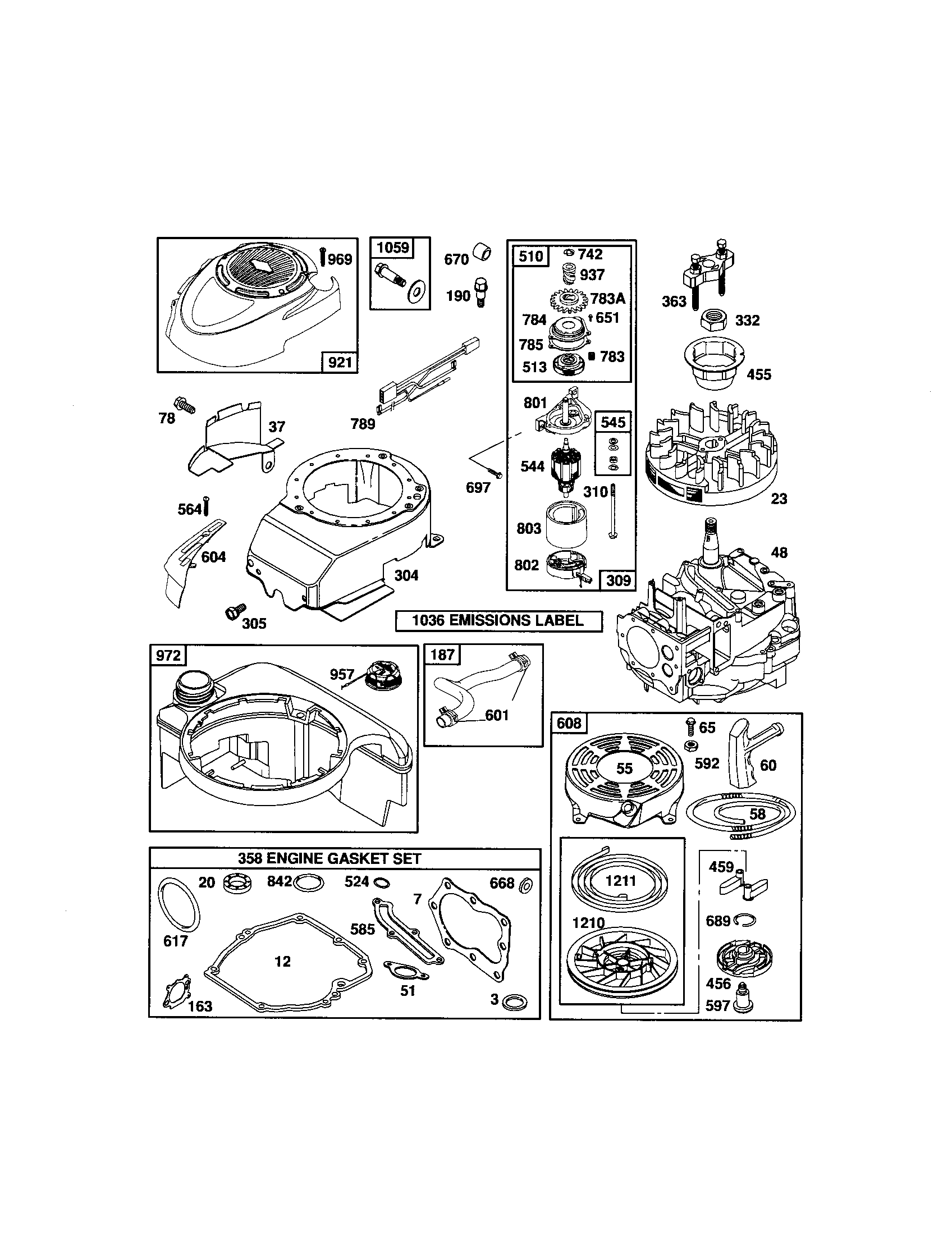

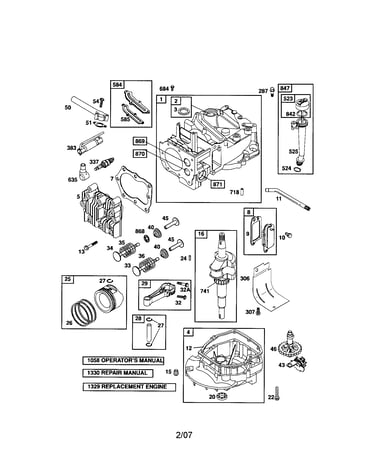

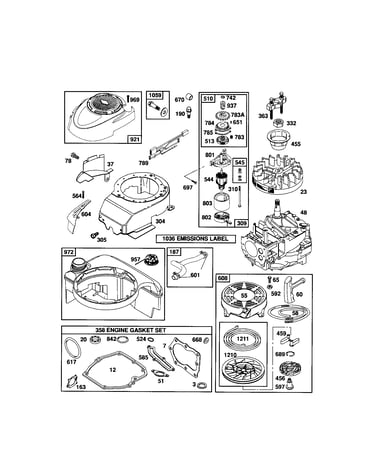

  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 280 parts  |
Lawn Mower Lock Nut, 3/8-in (replaces 409149, 532409148)
#25

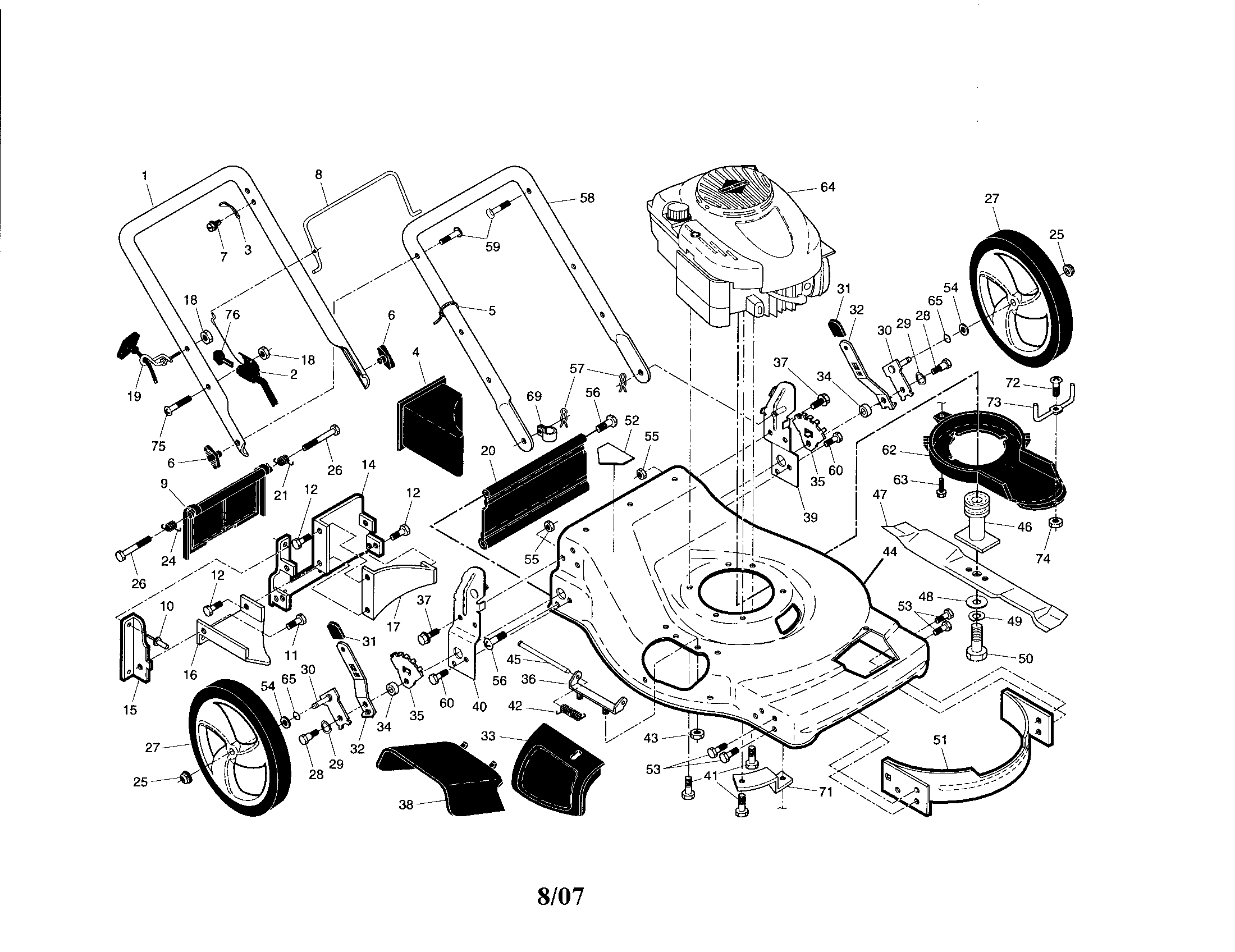

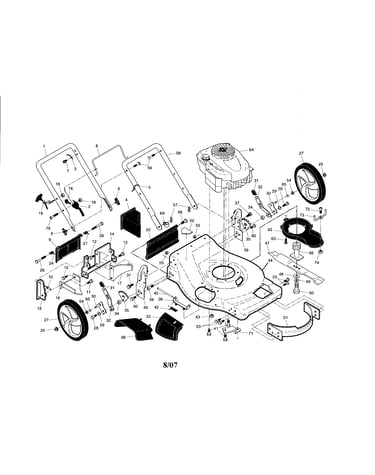

Engine/housing/handle diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.64 |
20% OFF Phone Price : $5.78
In Stock
Lawn Mower Lock Nut, 3/8-in (replaces 409149, 532409148)
#9

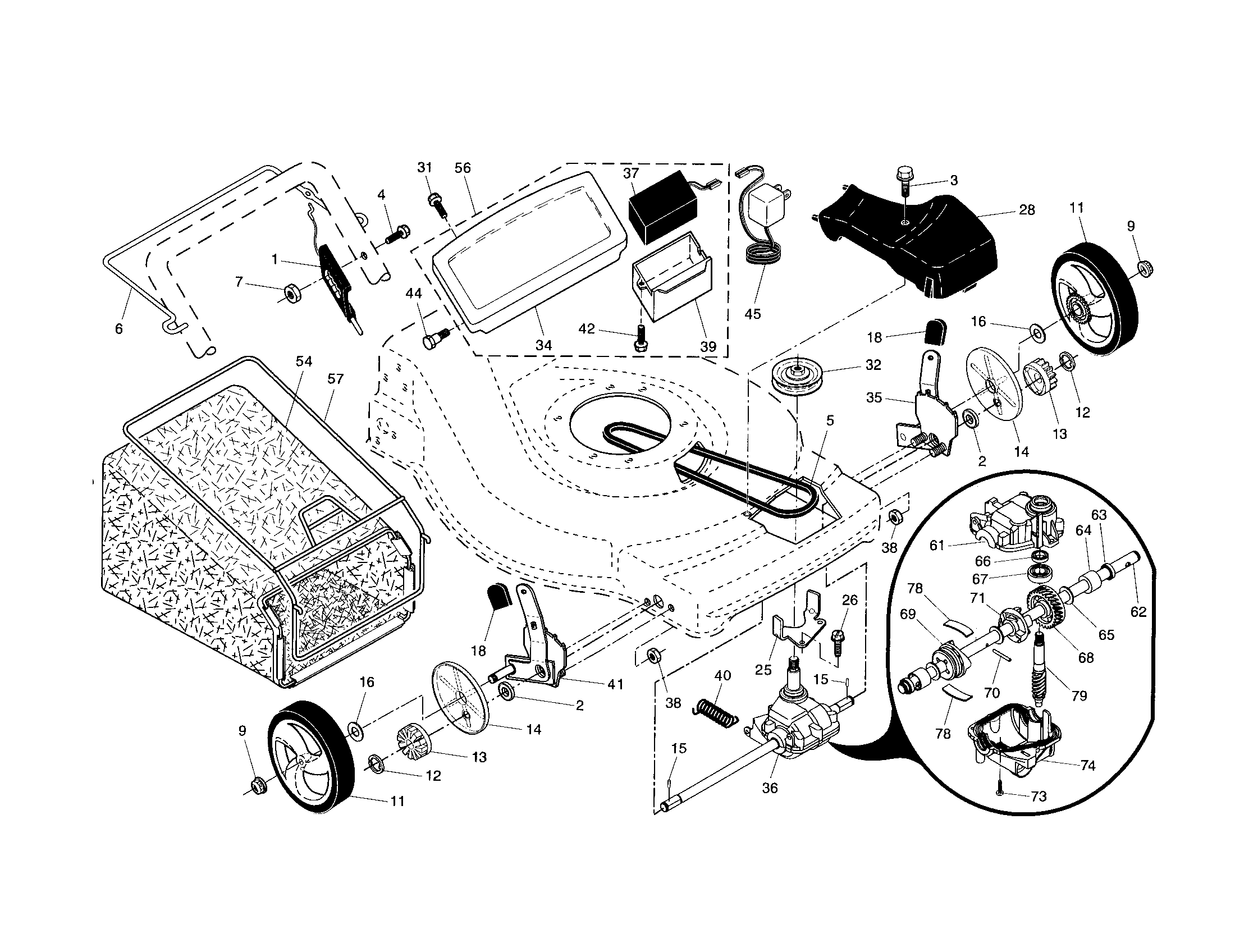

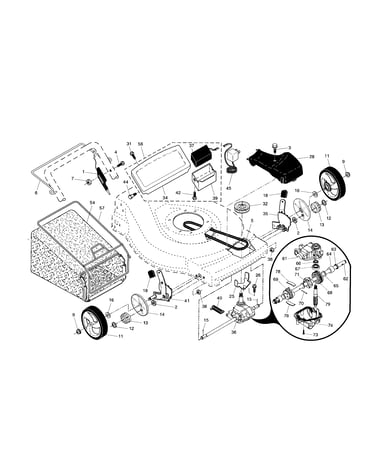

Drive control/gear case/wheels diagram

Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.64 |
20% OFF Phone Price : $5.78
In Stock
Lawn Mower Rear Skirt (replaces 188987, 189008, 532413160, 5324131-60)
#20

Engine/housing/handle diagram

Skirt

Part #189008

Replaced by #413160

?
Manufacturer substitution
This part replaces 189008. Substitute parts can look different from the original.
BEST SELLER
$9.60 |
20% OFF MSRP : $12.00
In Stock
Lawn Mower Handle Knob (replaces 180453, 189713X418, 442571X428)
#6

Engine/housing/handle diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Mower Wheel Dust Cover (replaces 189403, 532189403, 5321894-03)
#14

Drive control/gear case/wheels diagram

Lawn mower wheel dust cover

Part #189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 189403. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.89 |
20% OFF Phone Price : $4.89
Back Order
Lawn Mower Drive Control Assembly (replaces 407816)
#1

Drive control/gear case/wheels diagram

Lawn mower drive control cable

Part #407816

Replaced by #532407816

?
Manufacturer substitution
This part replaces 407816. Substitute parts can look different from the original.
BEST SELLER
$32.96 |
11% OFF Phone Price : $37.00
Back Order
Lawn Mower Wheel, Front (replaces 407755X460, 583743501)
#11

Drive control/gear case/wheels diagram

Lawn mower wheel assembly, front

Part #407755X427

Replaced by #583743601

?
Manufacturer substitution
This part replaces 407755X427. Substitute parts can look different from the original.
BEST SELLER
$42.21 |
13% OFF Phone Price : $48.52
In Stock
Lawn Mower Wheel, Front (replaces 407755X460, 583743501)
#11A

Drive control/gear case/wheels diagram

Lawn mower wheel assembly, front

Part #407755X460

Replaced by #583743601

?
Manufacturer substitution
This part replaces 407755X460. Substitute parts can look different from the original.
BEST SELLER
$42.21 |
13% OFF Phone Price : $48.52
In Stock
Lawn Mower Wheel Assembly, Rear
#27

Engine/housing/handle diagram

Lawn mower wheel assembly, rear

Part #407773X427

The manufacturer no longer makes this part, and there's no substitute part

Wheel.12x2.h
#27A

Engine/housing/handle diagram

Wheel.12x2.h

Part #407773X460

The manufacturer no longer makes this part, and there's no substitute part
