The Kenmore 11072822100 uses a mechanical timer and PUSH TO START design, so it typically does not have an electronic control lock. If your dryer seems “locked,” it is usually a door switch or timer position issue; reset by opening and firmly closing the door, then press PUSH TO START again (with the timer set to a drying cycle). See the 11072822100 owner's manual for the exact control layout.

Quick checks that fix most “lock mode” complaints

• Turn the Cycle Selector (timer) to a drying setting (not OFF).
• Open the door fully, then close it firmly until it latches.
• Press PUSH TO START (opening the door stops the dryer and it will not restart until the door is closed and you press start again).
• Verify power: the dryer is plugged into a grounded outlet and the breaker is not tripped.
• If the console is unresponsive, unplug the dryer for 1 minute, plug back in, then try again.

If the dryer still will not start

A “locked” symptom often points to a failed door switch or a safety device opening.

Most common parts involved (by symptom)

Symptom	What it usually means	Common part to check
Drum light works but dryer will not run when you press start	Door not proving closed	Dryer door switch WP3406107
Dryer runs but shuts off quickly or overheats	Airflow restriction or temperature safety issue	Operating thermostat, high-limit thermostat
Dryer runs but no heat (gas model)	Ignition or gas valve components	Igniter, valve coils, radiant sensor

Why it matters

When the door switch is intermittent, the dryer can act like it is “locked out” because the motor circuit will not energize. Fixing the real cause prevents repeated no-starts and reduces wear on the timer and motor.

Last updated: February 2026

Your Kenmore dryer’s model number is printed on the model and serial number plate. On Kenmore model 11072822100, that plate is the official identifier we use to match the correct parts, features, and operating instructions.

Where to find the model number plate

Check these common locations on Kenmore dryers:

• Inside the dryer door opening (on the cabinet frame)
• On the back panel of the dryer cabinet
• Near the lint screen housing area (depending on the design)
• On a metal plate or durable sticker labeled “Model” and “Serial”

For the exact plate location and how it’s labeled on this dryer, use the 11072822100 owner's manual.

How to read the number (and why it matters)

Kenmore model numbers often start with a 3-digit prefix that helps identify the manufacturing source and ensures you get the right replacement parts.

• Write down the full model number exactly as shown
• Record the serial number too (it helps with production variations)
• Use the full number when ordering parts like a belt, door switch, or thermostat

Quick guide

What to record	Example	What we use it for
Model number	11072822100	Correct parts list and diagrams
Serial number	(varies)	Version and production run details
Purchase date	(your date)	Maintenance and service history

If the label is hard to read

A worn plate is common on older dryers. These steps usually solve it:

• Wipe the plate gently with a damp cloth and mild soap
• Use a flashlight at an angle to make faint printing stand out
• Take a close-up photo and zoom in
• Check the door opening area first (most common)

Why it matters

Using the exact model number prevents ordering the wrong Kenmore dryer parts and helps us match model-specific items like the correct dryer door switch WP3406107 or dryer drum belt 341241.

Last updated: February 2026

To hard reset your Kenmore dryer model 11072822100, unplug it (or switch the breaker off) for 1 to 5 minutes, then restore power and try a normal start. This clears many temporary control and start-up issues and is the safest first step before testing parts.

Hard reset steps (safe and effective)

• Turn the dryer OFF.
• Unplug the power cord (or turn the circuit breaker OFF).
• Wait 1 to 5 minutes.
• Restore power.
• Set the timer/cycle back to an ON position.
• Close the door firmly and press PUSH TO START.

If it still will not start after the reset

The 11072822100 uses a straightforward start sequence: door closed, controls set to ON, then PUSH TO START. If any of those inputs are missing, the dryer will not run.

• Confirm the outlet has power; a tripped breaker or blown fuse can stop the dryer.
• Make sure the door is fully closed; a failed door switch can prevent starting.
• Press PUSH TO START firmly and re-check that the timer is not set to OFF.
• If the drum does not move but you hear the motor hum, inspect the belt and idler system.

Parts that commonly relate to “won’t start” symptoms

Symptom after reset	Common cause	Example part for this model
No response when door closes	Door switch not closing	Dryer door switch WP3406107
Motor runs but drum will not turn	Broken/slipping belt	Dryer drum belt 341241
Loud squeal, poor drum movement	Worn idler pulley	Idler pulley WP691366

Why it matters

A hard reset rules out a temporary control state and helps you avoid unnecessary part replacement. If the dryer still will not run, the next fastest path is verifying power, door-switch operation, and the basic drive components.

For model-specific operating steps and troubleshooting tables, use the 11072822100 owner’s manual.

Last updated: February 2026

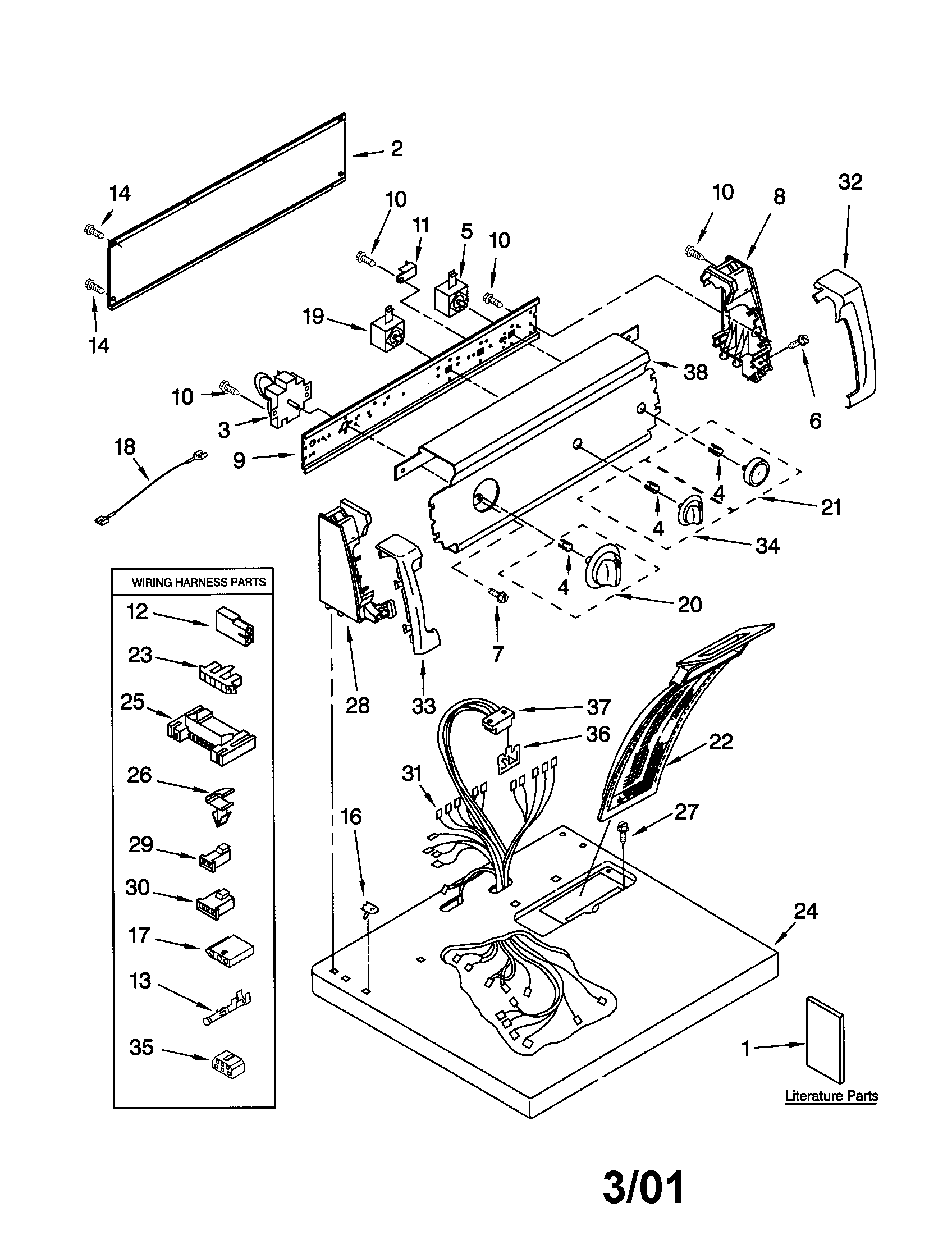

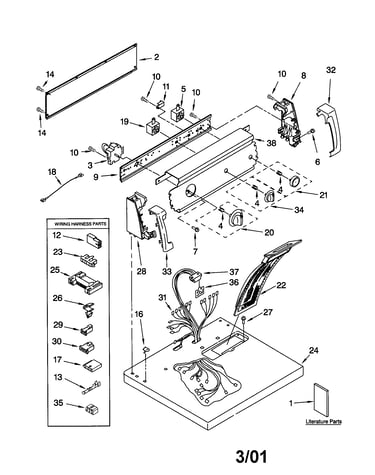

To open the control panel on your Kenmore dryer model 11072822100, unplug the dryer first, then remove the screws that secure the control console and tilt the console up and back to access the controls and wiring. Use the steps and screw locations shown in the 11072822100 owner's manual.

Before you start (safety and prep)

• Unplug the dryer (or switch off the breaker) before removing any panels
• If it is a gas dryer, close the gas shut-off valve before moving the dryer
• Pull the dryer forward enough to work comfortably without straining the vent
• Keep a cup or magnetic tray for screws so none fall into the cabinet
• Take a quick photo of wire connections before disconnecting anything

How we open the control panel (typical Kenmore 110-style console)

1. Disconnect power.
2. Remove the console mounting screws. On many Kenmore 110-style dryers, these are at the back of the console or under end caps (depending on the console design).
3. Tilt the console up and back. Lift the rear edge, slide it slightly if needed, then tip it back to expose the timer, push-to-start switch, and harness connections.
4. Support the console. Rest it against the rear panel so it does not hang by the wiring.

What you will usually see once it is open

Component	What it does	Common reason you are opening the console
Timer	Advances cycles and controls run time	Dryer will not advance or runs inconsistently
Push-to-start switch	Starts the motor circuit	Dryer will not start
Harness connectors	Carry power/signals to components	Loose connection, intermittent operation

If you are opening it for a “won’t start” problem

These checks are fast and often solve the issue without deeper disassembly:

• Confirm the door fully closes and the strike is not loose
• Check the door switch for a firm click; replace if it tests bad (see dryer door switch WP3406107)
• Verify the cycle selector is on a dry setting (not OFF)
• Close the door and press and hold start for a moment
• If the drum light works but the dryer will not run, inspect console connections and the start circuit

Why it matters

Opening the control panel is the first step for diagnosing start and control issues because it gives direct access to the timer, push-to-start switch, and wiring connections that commonly cause “no start” symptoms.

Last updated: February 2026

Kenmore “80 Series” is a marketing series name, not a size by itself; the actual size depends on the exact model number. Your Kenmore model 11072822100 is a 29-inch wide gas dryer, and the manual provides the dimension diagram and minimum installation clearances. See the 11072822100 owner's manual.

What we can confirm for Kenmore 11072822100

From the manual, this model is a 29-inch wide gas dryer and includes specific clearance guidance for venting and door opening.

• Cabinet width class: 29-inch wide
• Fuel type: gas dryer
• Clearance planning: allow space to fully open the door
• Venting: most installs need at least 5 inches behind the dryer for the exhaust vent and elbow
• Leveling: keeping the dryer level helps tumbling and sensor-cycle performance

Typical “full-size” Kenmore 80 Series size expectations

Many Kenmore 80 Series dryers are full-size units similar to this 29-inch platform; use your model’s manual for exact height and depth.

Spec customers mean by “size”	Typical for full-size Kenmore dryers	Best way to verify for your unit
Width	27 to 29 inches	Check the model’s dimension diagram in the manual
Height	About 38 inches	Measure floor to top; confirm with manual
Depth	About 30 to 32 inches (plus vent)	Measure including vent elbow clearance
Rear clearance	Often 4 to 6 inches	Follow the manual’s venting clearance guidance

Why it matters

Correct sizing prevents closet fit problems, crushed venting, and long dry times. Proper clearance also makes service easier and helps the dryer run at normal temperatures.

Quick measuring checklist

• Measure the opening width, height, and depth at the tightest point.
• Add space for the vent elbow and gas line connection.
• Confirm the door swing works for your laundry layout.
• Keep the dryer level after moving it.

Last updated: February 2026

A blown thermal fuse on a Kenmore dryer model 11072822100 typically stops the dryer from running at all because it opens the safety circuit to prevent overheating. On some designs, the drum may still tumble but the dryer will not heat, depending on which circuit the fuse protects.

What you’ll usually see (symptoms)

• Dryer will not start even though the door is closed
• Motor hums briefly, then stops (or nothing happens)
• Drum tumbles but there’s no heat (heat circuit interrupted)
• Cycle seems to run but clothes stay damp and cool
• Problem returns quickly after a reset if airflow is restricted

Quick checks before replacing parts

Start with the basics from the 11072822100 documentation and common dryer troubleshooting:

• Confirm the dryer is plugged into a grounded 3-prong outlet
• Check the house fuse or reset the circuit breaker (a blown house fuse can mimic a “dead” dryer)
• Make sure the door closes firmly and the start control is pressed fully
• Verify strong airflow at the outside vent hood; restricted venting is the most common reason a thermal fuse opens
• Let the dryer cool, then re-test operation

For control locations and access panels, use the 11072822100 owner's manual.

Why the thermal fuse blows (and why it matters)

The thermal fuse is a one-time safety device. If it opens, it is reacting to overheating, most often caused by poor airflow (lint buildup, crushed vent hose, blocked vent hood) or a failed temperature control.

Common causes vs. what to do

Likely cause	What to do first	What to inspect next
Blocked venting	Clean lint screen and vent path	Check blower housing and outside hood
Weak airflow inside dryer	Remove lint buildup inside cabinet	Inspect blower wheel for damage
Temperature control issue	Verify cycling behavior	Test/replace operating thermostat

If you’re also chasing overheating or no-heat symptoms, the dryer operating thermostat WP3387134 is a common related part to inspect on this model.
