Craftsman 917275284 garden tractor Parts

For Craftsman model 917275284, the engine oil capacity is 4.0 pints (2.0 quarts) with an oil filter change and 3.5 pints (1.75 quarts) without the filter. We recommend filling, then verifying the level on the dipstick as shown in the 917275284 owner's manual.

Oil capacity for model 917275284 (quick reference)

Service situation	Capacity (pints)	Capacity (quarts)
With oil filter	4.0	2.0
Without oil filter	3.5	1.75

Oil type to use

The manual lists these viscosity grades for this tractor:

• SAE 10W-30 for temperatures above 32°F
• SAE 5W-30 for temperatures below 32°F
• Use oil that meets API service SF through SJ

How we recommend filling it (to avoid overfilling)

• Park on a level surface and let the engine cool.
• If you are changing the filter, install the new filter first, then add oil.
• Add about 3/4 of the total capacity, wait a minute, then check the dipstick.
• Top off in small amounts until the oil reaches the FULL mark.
• Start the engine briefly, shut it off, recheck, and top off if needed.

Why it matters

Correct oil level protects the engine from accelerated wear. Underfilling can starve internal parts of lubrication; overfilling can cause foaming and oil carryover, which leads to poor performance and leaks.

Last updated: February 2026

Yes, replacing the engine on your Craftsman 917275284 front-engine lawn tractor is worth it when the tractor’s deck, steering, and transmission are solid and the engine is the main failure. If the total repair cost lands near half the price of a comparable replacement tractor, replacing the tractor is the better value.

Quick decision checklist

• The mower deck is not rusted through and cuts evenly after basic service
• The tractor still drives normally (no slipping or loss of drive)
• The frame, steering, and front axle are tight (no excessive play)
• You can do basic maintenance safely (blades are sharp; engine must be off for repairs)
• You want to keep your current attachments and setup

Cost and effort: engine swap vs. replace

Engine replacement can be a good investment, but it is still a project. Use this simple comparison to decide.

Option	Best when	What you gain	What to watch for
Replace engine	Chassis and drivetrain are in good shape	Fresh start on compression, oil control, and reliability	Labor time, wiring, throttle/choke linkages, belt alignment
Repair existing engine	Issue is maintenance-related	Lowest cost	Overheating damage, fuel contamination, recurring failures
Replace tractor	Multiple systems are worn	New warranty and updated features	Higher upfront cost, new accessories may be needed

Before you commit: rule out common “engine” problems

Many “bad engine” symptoms are caused by maintenance items called out in the manual.

• Check for a dirty fuel filter or stale fuel; replace the filter if fuel flow is restricted
• Inspect and service the air intake and cooling areas; blocked screens or dirty cooling fins can overheat and damage the engine
• Verify oil level and condition; low or dirty oil can cause power loss
• Replace the spark plug at the start of each season or every 100 hours
• Clean debris buildup under the mower housing; heavy buildup can bog the engine and affect cut quality

For the model-specific maintenance intervals and troubleshooting chart, use the 917275284 owner’s manual.

Why it matters

A replacement engine only pays off if the rest of the tractor can reliably support it. If the tractor also has drive issues (for example, a worn motion drive belt or idler problems), you can end up stacking repairs instead of solving the root problem.

Last updated: February 2026

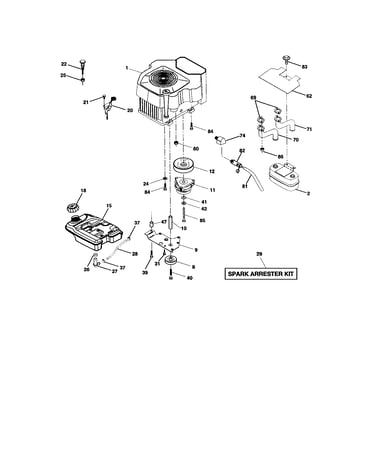

Craftsman riding mowers and garden tractors are commonly equipped with engines from major small-engine makers such as Briggs & Stratton, Kohler, and Kawasaki. For Craftsman model 917275284, the 917275284 owner's manual confirms it uses a 27.0 HP low-emission internal combustion engine, but it does not call out the engine brand in the excerpt we have.

How to identify the engine brand on model 917275284

Use the engine’s own ID tag, not the tractor model number. On most front-engine lawn tractors, the engine label is on the blower housing, valve cover area, or near the starter.

• Look for an engine brand logo (Briggs & Stratton, Kohler, Kawasaki, etc.)
• Write down the engine model, type/spec, and code/serial numbers
• Match those numbers to parts lists when ordering tune-up items (air filter, oil filter, spark plug)
• If the label is dirty, wipe it gently; avoid spraying water directly into the air intake
• Keep the tractor model number (917275284) handy for chassis and deck parts

What we can confirm from the manual

The manual excerpt for Craftsman 917275284 identifies the tractor and key engine-related specs.

Item	What it tells you	Where to use it
27.0 HP rating	Power class of the engine	Comparing to similar tractors, service expectations
Low-emission engine	May run differently than older designs	Following correct starting and maintenance steps
Spark arrester note	Exhaust system may require a spark arrester in some areas	Safe operation and compliance on certain land types

Why it matters

Engine brand and engine model numbers determine the correct maintenance parts and service procedures. The tractor model number (917275284) is essential for deck, steering, and drivetrain parts, but the engine tag is what prevents ordering the wrong filter or ignition parts.

Last updated: February 2026

A “Craftsman 6.75” is not one single model; 6.75 usually describes the engine rating used across multiple Craftsman walk-behind mowers. The correct model number is the one printed on your mower’s model tag, not the engine cover. For this page, the model is Craftsman 917.275284 (a garden tractor), as shown in the 917275284 owner's manual.

Where to find the mower’s model number

On most Craftsman walk-behind mowers, we find the model tag in one of these spots:

• Rear of the deck near the discharge chute
• On the back flap area behind the engine
• On the frame near the rear wheels
• Under the seat area (for riding mowers and tractors)
• On a sticker or metal plate with a long number starting with 917.

Why “6.75” is not enough

“6.75” is commonly used as an engine identifier (marketing/engine family rating), and the same engine rating can appear on many different mower builds. The mower model number is what we use to match the correct parts list (blade, drive belt, wheels, carburetor parts, and controls).

Quick ID checklist (what to write down)

Capture these details from the tag so we can match parts correctly:

• Full model number (often starts with 917.)
• Product type (walk-behind mower vs. riding mower)
• Deck size (example: 21 inch, 48 inch)
• Engine brand/model (example: Kohler, Briggs and Stratton)
• Serial number (helps with production changes)

Common examples (to avoid mix-ups)

What you see	What it usually means	What you should use for parts
“6.75” on the engine cover	Engine rating/series	Mower model number from the tag
“917.275284”	Craftsman tractor model	Tractor parts for 917275284
“21 inch”	Deck size	Still need the model number

Why it matters

Using the exact model number prevents ordering the wrong blade, belt, or PTO/electrical parts. Even small changes (deck style, transmission type, or year) can change which parts fit.

Last updated: February 2026

Craftsman model 917275284 was manufactured across multiple production runs, so there is not one single “made year” tied to the model number alone. The exact build date is identified on the tractor’s product/serial label (typically under the seat) and is often referenced in the 917275284 owner's manual.

How to find the exact year on your tractor

• Park on a flat surface, set the parking brake, and remove the key.
• Tilt the seat forward and look for the product label under the seat pan.
• Record the model number (917275284) and the serial number exactly as shown.
• Look for a date code or a manufacture date printed on the label.
• Use that serial/date information when ordering parts or checking specifications.

What you can confirm from the manual

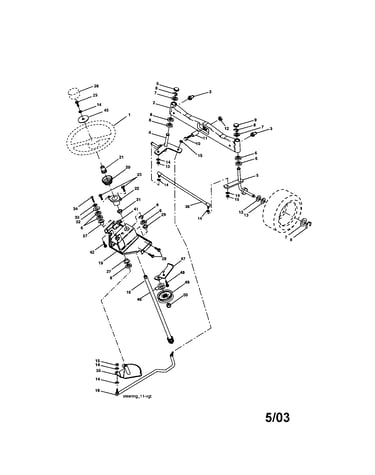

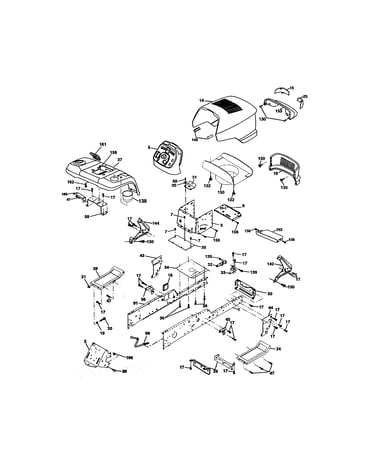

The documentation we have is a parts and breakdown manual that clearly identifies the tractor as MODEL NUMBER 917.275284 in multiple sections (chassis, steering, engine, lift assembly). That confirms the model family and component listings, but the build year is still determined by the unit’s serial/date label. Use the diagrams and lists in the 917275284 owner's manual to match assemblies (steering, engine, chassis) to your tractor.

Quick guide: model number vs. serial number

Identifier	What it tells you	Where to find it
Model number (917275284)	Which design and parts breakdown applies	Product label under seat
Serial number/date code	The specific production run and build timing	Same product label

Why it matters

Craftsman riding mowers and garden tractors can keep the same model number while parts change by production run. Using the serial/date information helps ensure you get the correct belt, pulley, steering, or PTO-related parts for your exact tractor.

Last updated: February 2026
