Model # DCS381 TYPE 2 Official DeWalt reciprocating saw

Here are the diagrams and repair parts for Official DeWalt DCS381-TYPE-2 reciprocating saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |

Shaft Seal 617060-00
#34

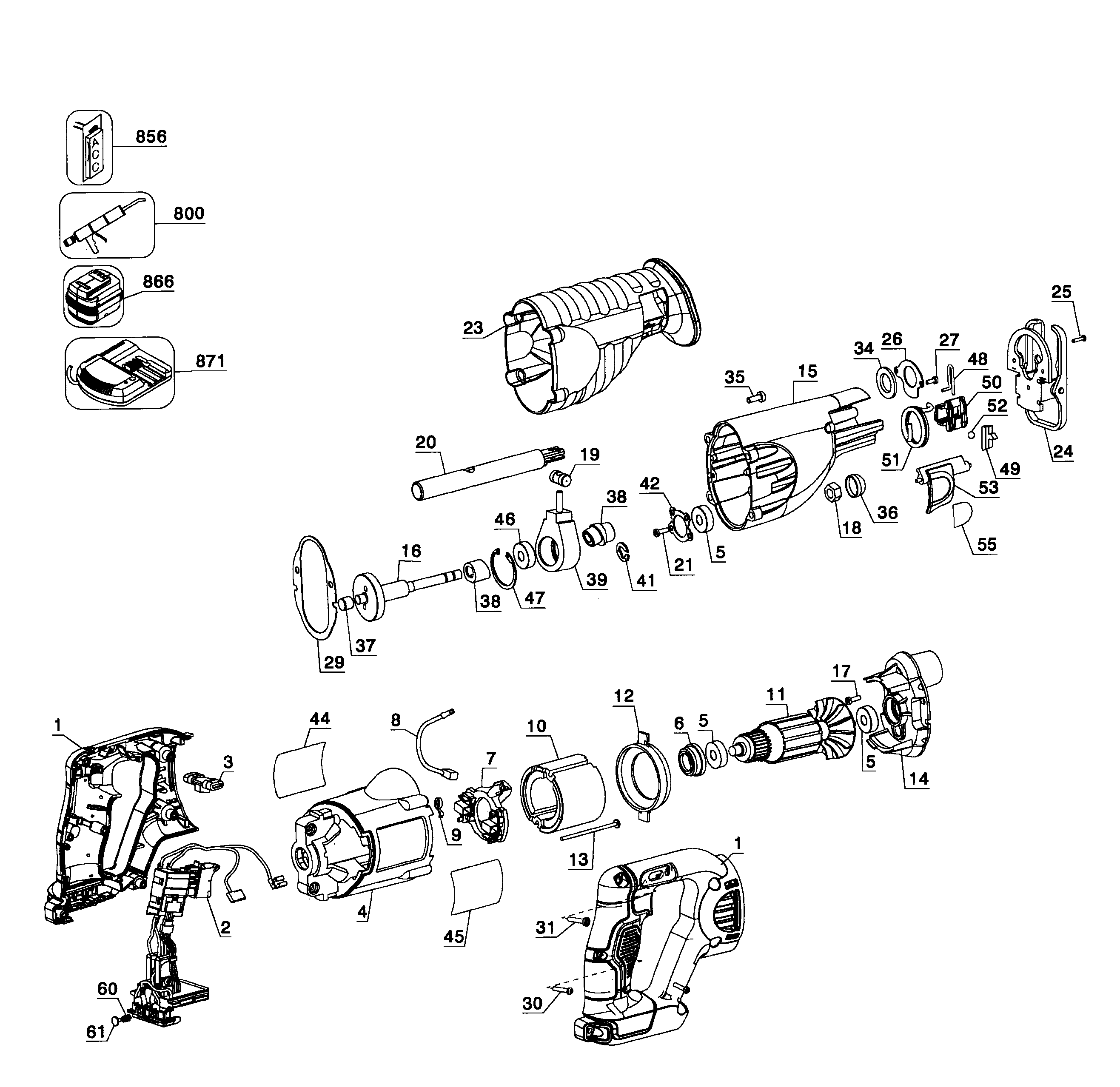

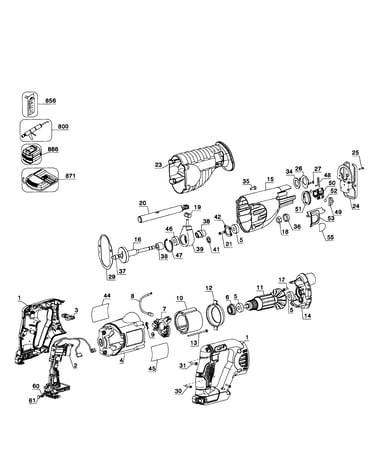

Saw assy diagram

Shaft seal

Part #617060-00

The manufacturer no longer makes this part, and there's no substitute part

Retainer 383668-00
#42

Saw assy diagram

Retainer

Part #383668-00

The manufacturer no longer makes this part, and there's no substitute part

Shoe Assembly 382191-01
#24

Saw assy diagram

Shoe assembly

Part #382191-01

The manufacturer no longer makes this part, and there's no substitute part

Retainer 387218-00
#26

Saw assy diagram

Retainer

Part #387218-00

The manufacturer no longer makes this part, and there's no substitute part

Clamshell N068958
#1

Saw assy diagram

Clamshell

Part #N068958

The manufacturer no longer makes this part, and there's no substitute part

Switch N102272
#2

Saw assy diagram

Switch

Part #N102272

The manufacturer no longer makes this part, and there's no substitute part

Sears Screw 448269-00
#13

Saw assy diagram

Sears screw

Part #448269-00

The manufacturer no longer makes this part, and there's no substitute part

Fan Baffle 392415-00
#12

Saw assy diagram

Fan baffle

Part #392415-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 604609-00
Screw

Part #604609-00

The manufacturer no longer makes this part, and there's no substitute part

Clamp Lever 616450-00
#53

Saw assy diagram

Clamp lever

Part #616450-00

The manufacturer no longer makes this part, and there's no substitute part
