Craftsman 917288280 tractor Parts

For Craftsman lawn tractor model 917288280, the most reliable way to identify the year is to read the date code on the product ID label (often on the frame under the seat or under the hood) and confirm the model/serial information against the identification details in the 917288280 operator's manual.

Where to look for the date information

On most Craftsman tractors like 917288280, you will typically find the model and serial label in one of these spots:

• Under the seat on the frame or fender pan
• On the frame rail near the engine
• Under the hood near the dash tower
• Near the rear drawbar area

If the label is dirty or faded, wipe it gently so you can read the full code.

How to interpret common Craftsman date codes

Some Craftsman labels include a 6-digit date code formatted like MMDDYY:

• First two digits = month
• Next two digits = day
• Last two digits = year

Example: 072811 = July 28, 2011.

Quick reference table

Code format	What it usually means	Example	Interprets as
MMDDYY	Month, day, year	072811	July 28, 2011
Serial only	Manufacturing sequence (date not obvious)	varies	Use model/serial to cross-reference

If you do not see a clear date code

For 917288280, the operator’s manual confirms the model family (917.28828) but it does not always print a single “manufactured in” year on the cover or spec pages. In that case, use the label’s serial/date information as your source of truth.

• Write down the full model and serial exactly as shown
• Look for any separate “date” or “DOM” style code on the same label
• If the label only shows a serial number, use that serial to narrow the production timeframe

Why it matters

Knowing the correct year helps us match the right Craftsman parts and diagrams for your exact build, especially for wear items like belts, blades, and safety switches.

Last updated: January 2026

For a Craftsman front-engine lawn tractor like model 917288280, we typically find the model number on the tractor frame under the seat, or on the underside of the seat itself. Once you have the full model number, we can match the correct diagrams and replacement parts for your exact tractor.

Where to look on model 917288280

Check these common ID-label locations first:

• On the frame rail directly under the seat
• On the underside of the seat pan (tilt the seat forward)
• Near the rear fender area close to the seat mounting points
• On a label near the engine compartment opening (less common)

For model-specific operating and safety details, use the 917288280 owner's manual.

Tips to make sure you copy the right number

Model numbers can be easy to misread, especially if the label is dirty or faded.

• Wipe the label clean and use a flashlight
• Write down the full model number exactly as shown
• Take a photo so you can zoom in later
• Look for a separate serial number; it is not the same as the model number

Model number vs. serial number

What you see	What it’s used for	Example
Model number	Identifies the correct parts and diagrams	917288280
Serial number	Identifies the production unit	Varies

Why it matters

Craftsman tractors often look similar across years, but small changes in the mower deck, belts, blades, and safety switches can affect fit. Using the exact model number helps prevent ordering the wrong part.

Last updated: January 2026

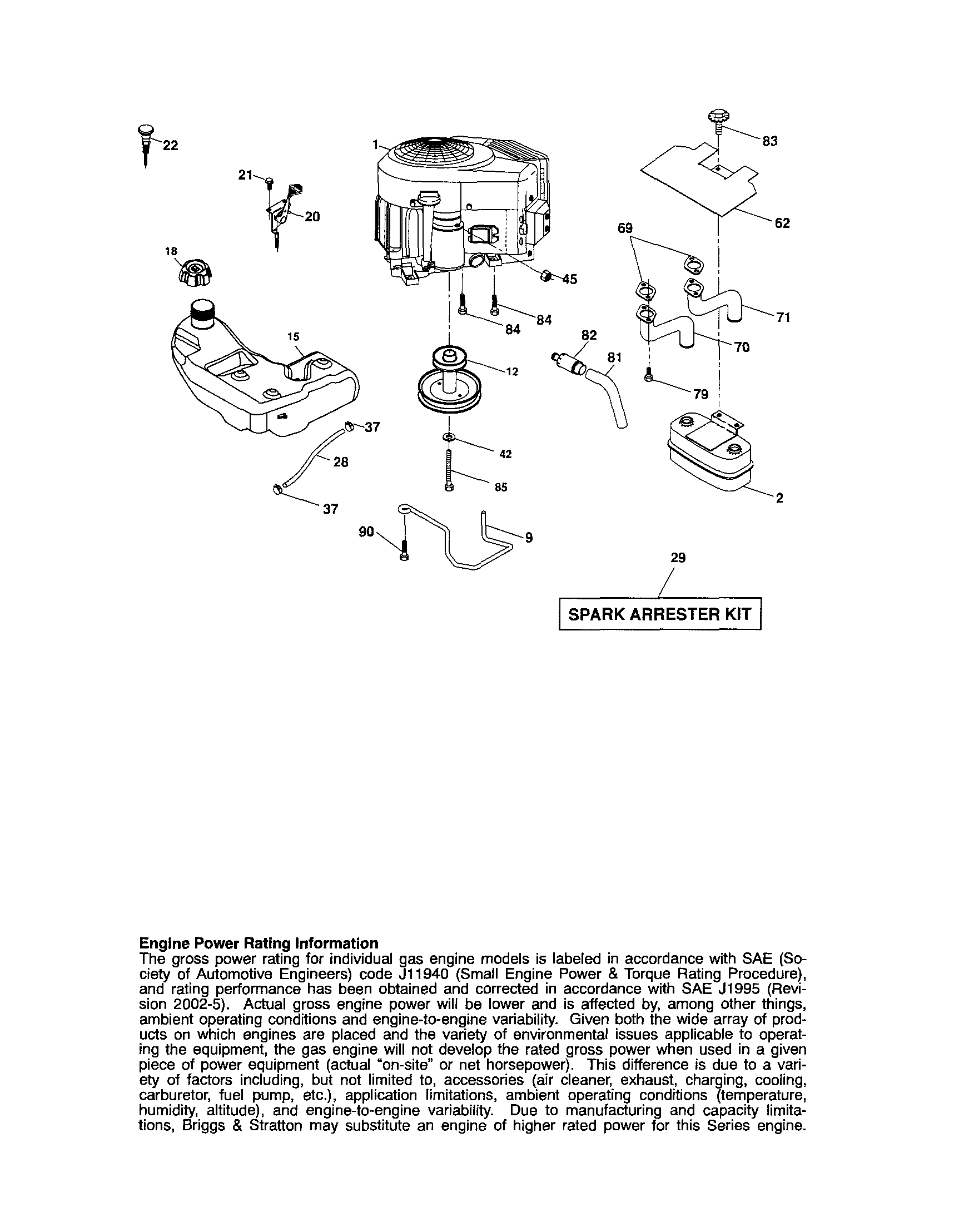

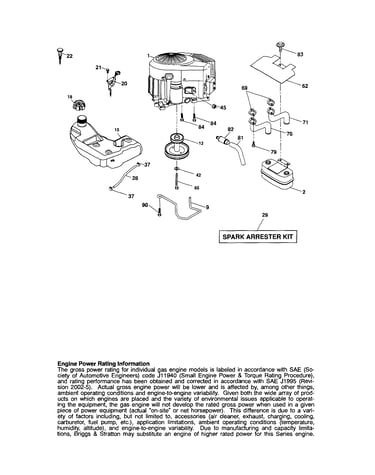

For the Craftsman 917288280 lawn tractor, the engine is made up of core internal parts (like the cylinder, piston, crankshaft, and valves) plus supporting systems for fuel, ignition, lubrication, cooling/airflow, and exhaust. For model-specific service points and maintenance intervals, use the 917288280 operator's manual.

Main tractor engine parts (what they do)

Most lawn tractor engines, including the one used on the Craftsman 917288280, are built around these major groups:

• Cylinder and cylinder head: form the combustion chamber where power is created
• Piston and piston rings: compress the air-fuel mix and transfer force to the crankshaft
• Connecting rod and bearings: link piston motion to the crankshaft smoothly
• Crankshaft: converts up-and-down piston motion into rotating power
• Camshaft, valves, and valve guides: control intake and exhaust timing
• Flywheel: stabilizes rotation and helps with ignition timing
• Lubrication system: oil sump, oil passages, and (on some engines) an oil filter
• Fuel and air system: fuel tank, fuel line, carburetor, air filter, intake manifold
• Ignition system: spark plug, ignition coil, wiring, safety interlocks
• Exhaust system: muffler and gaskets to route and quiet exhaust

Parts you will commonly service on this model

The manual for the Craftsman 917288280 calls out routine maintenance items such as oil checks/changes, air filter service, and spark plug replacement. Common service-related engine-area parts include:

• Spark plug
• Air filter (and pre-cleaner, if equipped)
• Fuel filter (if equipped)
• Engine oil (and oil filter, if equipped)
• Muffler and exhaust gasket

If you are chasing an exhaust leak or loud exhaust, a compatible option listed for this model is the muffler gasket 273485.

Quick reference: engine systems vs. what you notice

Engine system	Typical symptoms when there is a problem	Common first checks
Fuel/air	Hard starting, surging, loss of power	Fresh fuel, clean air filter, fuel flow
Ignition	No start, misfire, backfiring	Spark plug condition, safety switches
Lubrication	Knocking, overheating, rapid wear	Oil level, correct oil type
Exhaust	Loud running, fumes, popping	Muffler, gasket, loose fasteners

Why it matters

Knowing the major engine parts helps you troubleshoot faster and buy the right replacement parts. For example, “won’t start” usually points to fuel/air or ignition, while “loud exhaust” often points to the muffler or gasket.

Last updated: January 2026

For Craftsman lawn tractor model 917288280, the operator’s manual identifies it as a 24.0 HP riding lawn tractor with a low-emission gasoline engine (the exact engine brand and model are not specified in the model-specific information we have). For full specs and service details, use the 917288280 operator's manual.

What we can confirm for model 917288280

From the model-specific manual, we can confirm these engine-related basics:

• Horsepower rating: 24.0 HP (as rated by the engine manufacturer)
• Fuel type: regular unleaded gasoline
• Fuel capacity: 3 gallons
• Spark plug: Champion QC12YC (gap .030")
• Oil type guidance: SAE 30 above 32°F; SAE 5W-30 below 32°F

What we cannot identify from the model-specific info

Some Craftsman tractors use Briggs & Stratton, Kohler, or other engines, but for 917288280 the manual text we have does not name the engine manufacturer or engine model.

That means we recommend confirming the exact engine make/model by checking the engine label (typically on the blower housing, valve cover, or near the starter) and matching it when ordering tune-up parts.

Quick reference table (engine basics)

Item	Model 917288280 spec	What to look for on the engine
Horsepower	24.0 HP	Engine model/type code label
Fuel	Regular unleaded	Fuel shutoff (if equipped), fuel filter type
Spark plug	Champion QC12YC	Plug cross-reference by engine model
Oil viscosity	SAE 30 / SAE 5W-30	Oil filter part (if equipped)

Why it matters

The tractor model number (917288280) tells us the chassis and deck family, but the engine model number is what ensures you get the correct maintenance parts (spark plug, air filter, fuel filter) and the right service procedures.

Last updated: January 2026
