On LG model LMXS30776S, an F1 (often shown as ER F1) error typically points to a problem in the cooling-air circulation system, most commonly the evaporator fan circuit (fan motor, wiring, or feedback). It can also be triggered by a sensor or control issue that makes the refrigerator detect abnormal airflow or temperature response.

What to check first (safe, no-tools steps)

• Power reset: unplug the refrigerator (or turn off the breaker) for 5 minutes, then restore power.
• Make sure vents inside the fresh food section are not blocked by food packages.
• Listen for the evaporator fan: you should typically hear a steady fan sound when cooling is running.
• Check for heavy frost buildup on the rear interior panel (a sign airflow is being restricted).
• Confirm doors are closing fully and gaskets are sealing.

For control panel behavior and basic troubleshooting guidance specific to this model, use the LMXS30776S owner’s manual.

Likely causes and related parts for LMXS30776S

If the code returns after a reset, these are common repair paths on this model family:

Likely cause	What you may notice	Related part for this model

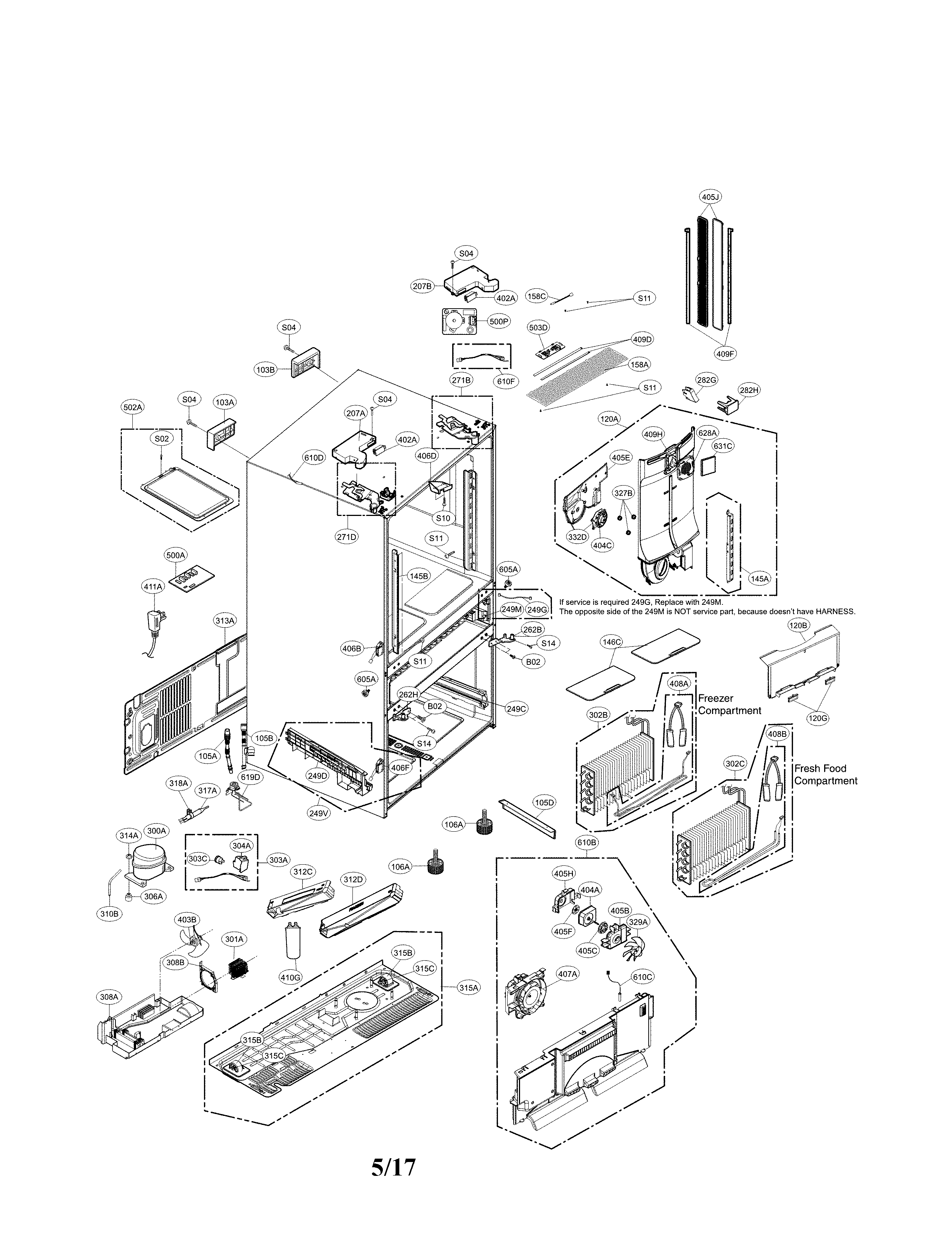

Evaporator fan motor not running or noisy	Warm refrigerator section, weak airflow, fan noise	Refrigerator evaporator fan motor EAU61524007
Fan area iced over (defrost/airflow issue)	Frost on back wall, intermittent cooling	(Defrost system inspection may be needed)
Temperature sensing problem	Temps swing, error returns without obvious frost	(Sensor testing may be needed)
Control board issue	Multiple odd symptoms, intermittent errors	(Board diagnosis may be needed)

A good next step is to follow a model-appropriate error-code workflow such as LG bottom freezer refrigerator error codes.

Why it matters

The evaporator fan moves cold air from the evaporator to the refrigerator compartments. When airflow drops, temperatures rise and food can spoil faster, even if the compressor is running.

Last updated: January 2026

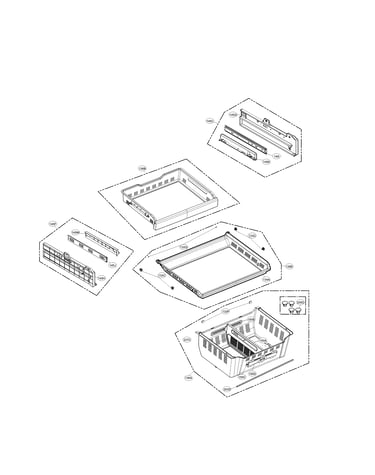

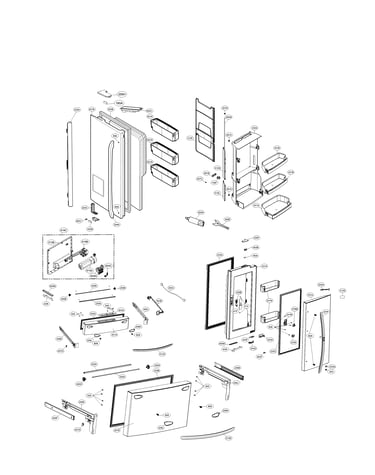

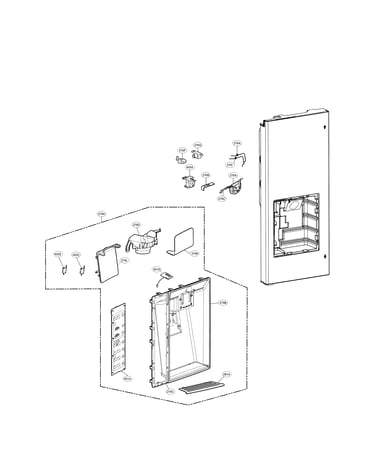

On the LG LMXS30776S refrigerator (a French door, bottom-mount style with a freezer drawer), the most common issue customers report is uneven cooling: the fresh food section warms up while the freezer stays cold. This is usually caused by airflow, fan, or temperature-sensing problems, not one single universal defect.

What to check first on LMXS30776S

Use the troubleshooting and component information in the LMXS30776S owner's manual before removing bins, covers, or drawers.

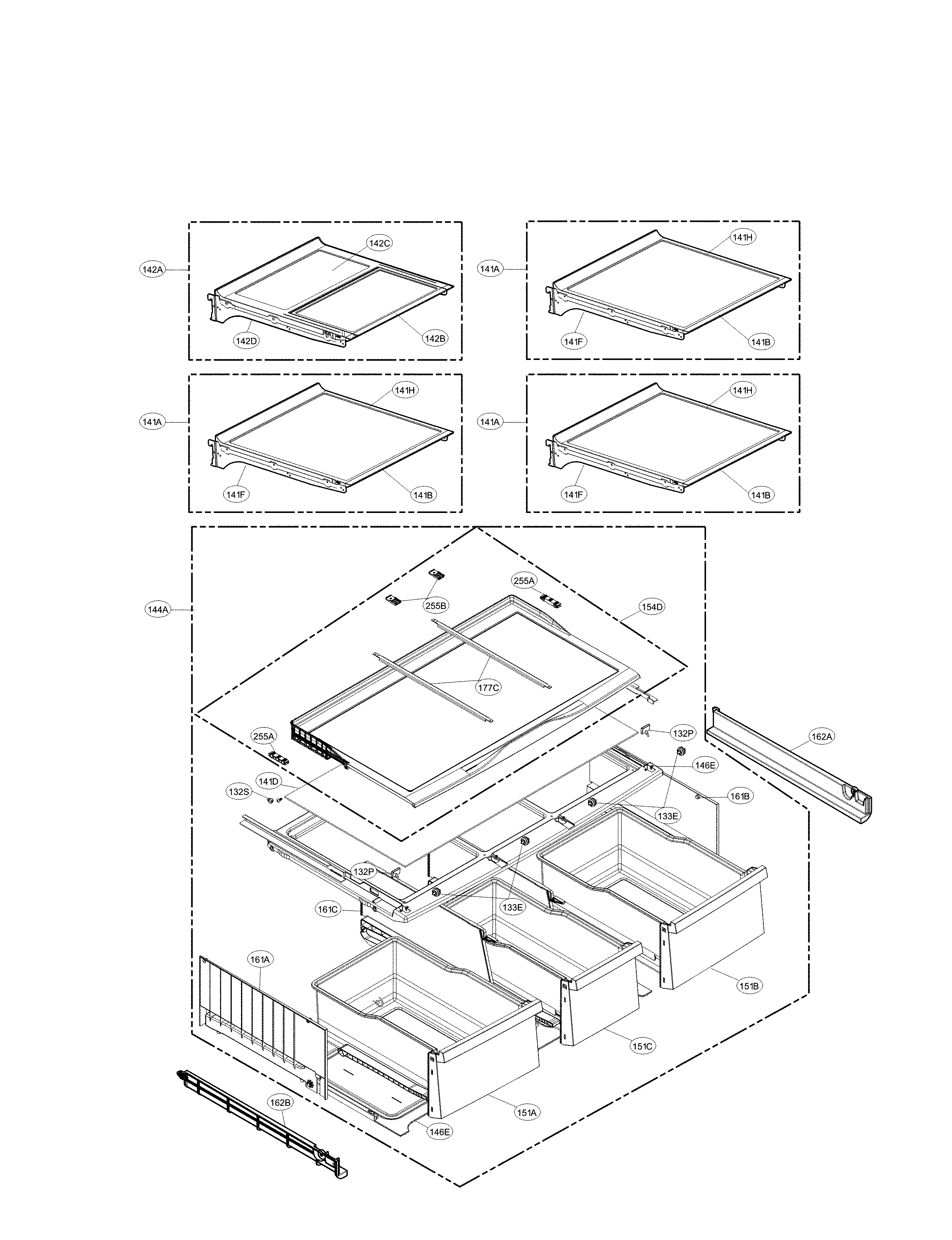

• Make sure interior air vents are not blocked by food packages

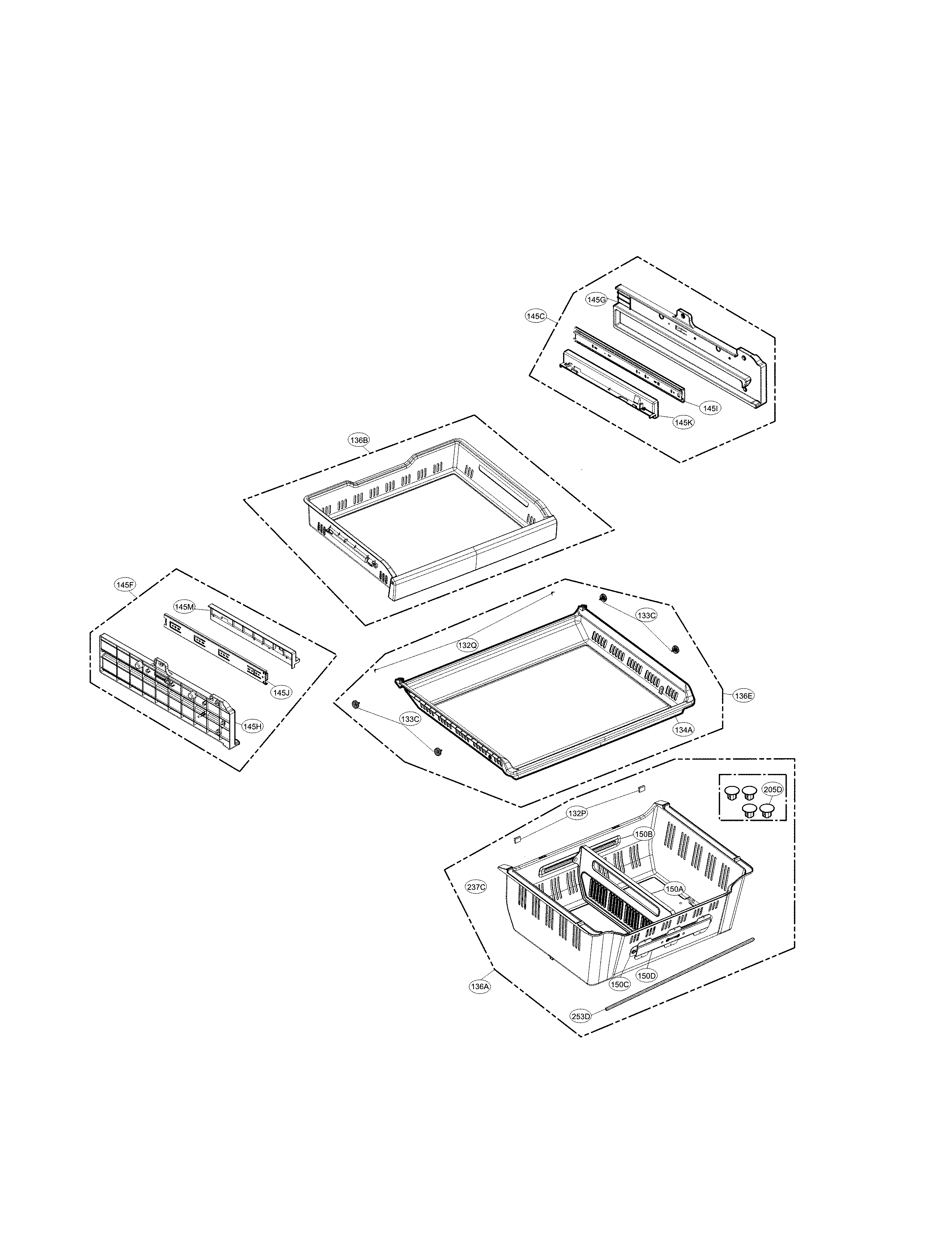

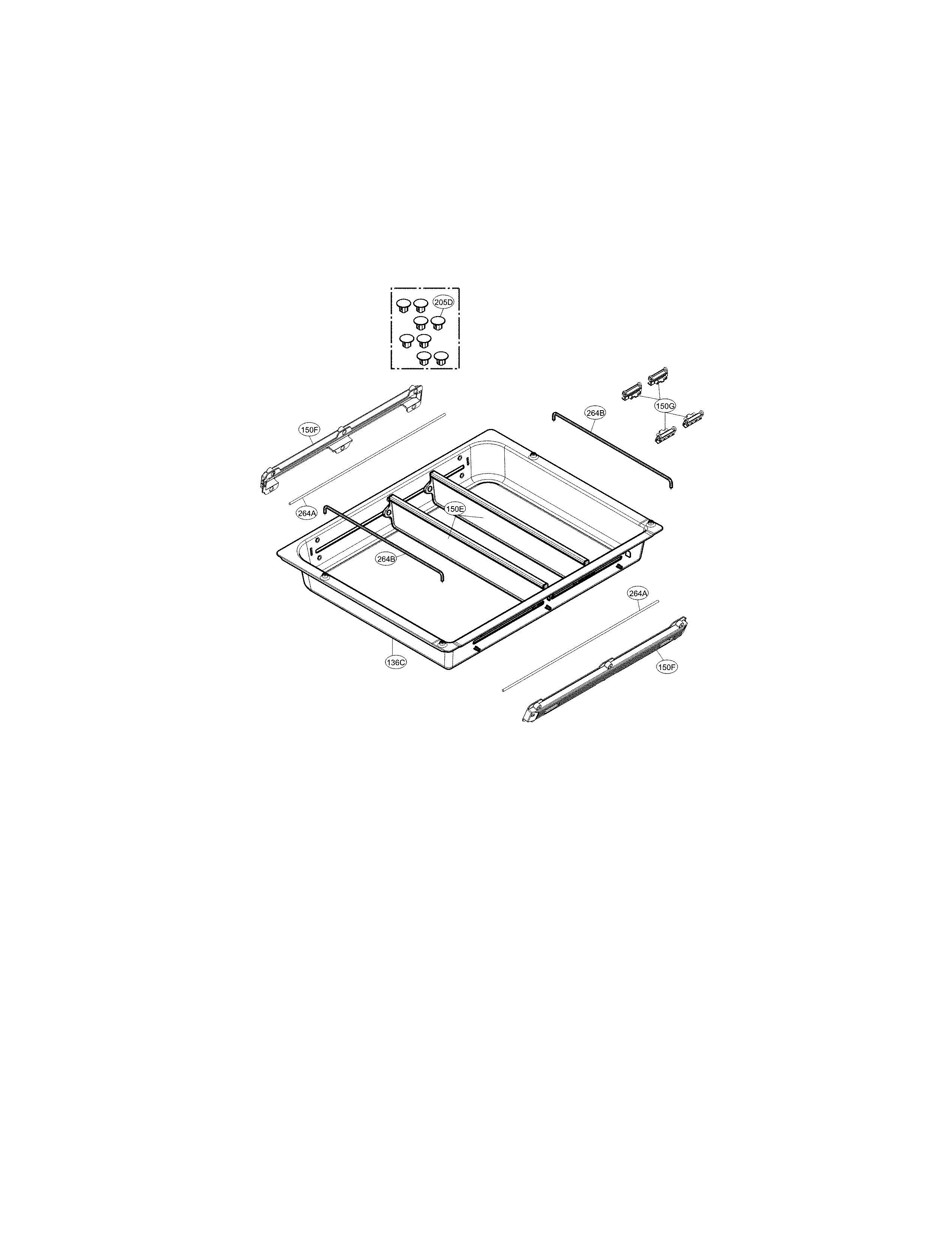

• Confirm both refrigerator doors and the freezer drawer close fully

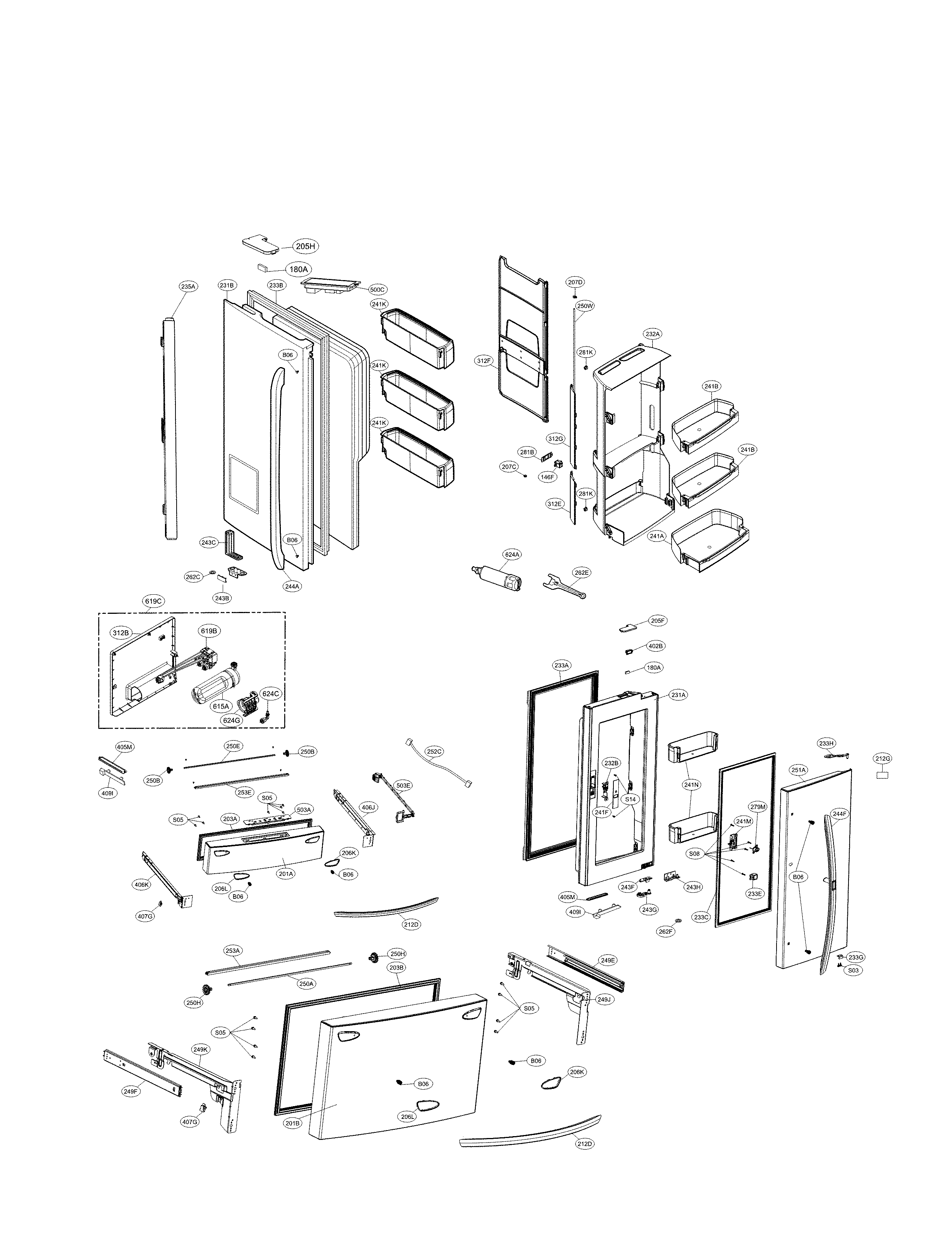

• Check door gaskets for gaps, tears, or areas not sealing
• Verify temperature settings and confirm Display Mode is not enabled
• Listen for the evaporator fan running (it moves cold air into the fresh food section)
• Look for heavy frost on the freezer back wall (often points to a defrost or airflow issue)

Parts that commonly relate to “freezer cold, fridge warm”

If settings and venting look good, these LMXS30776S-COMPATIBLE parts are often involved:

• Refrigerator evaporator fan motor EAU61524007 (circulates cold air from the evaporator into the refrigerator)
• Refrigerator temperature sensor 6500JB2002E (reports temperature to the control system)
• Refrigerator condenser coil ACG73645004 (restricted airflow or heavy dust can reduce overall cooling)

Quick symptom-to-likely-cause guide

What you notice	What it often points to	What to do next
Freezer OK, fridge warm	Airflow restriction or evaporator fan issue	Clear vents; check fan operation
Frost buildup on freezer panel	Defrost system problem	Defrost and airflow checks; inspect defrost components
Temps swing up and down	Sensor or airflow issue	Check sensor and venting; note any error codes
Runs a lot, weak cooling	Dirty condenser area or poor ventilation	Clean condenser area; confirm clearances

Why it matters

Uneven cooling can spoil food in the fresh food section even when the freezer seems fine. Catching airflow, fan, or sensor issues early helps stabilize temperatures and can reduce long run times.

Last updated: January 2026

For the LG LMXS30776S refrigerator, compressor warranty coverage is listed in your warranty documentation packet (often separate from the use and care guide). Use the LMXS30776S owner's manual to locate the model and serial label and confirm the correct warranty section to reference.

How to verify the compressor warranty for LMXS30776S

Use these checks to confirm the exact coverage (including labor timeframes):

• Locate the model and serial label inside the fresh food compartment
• Match the serial number to your purchase date and warranty start date
• Review the warranty section in your documentation packet (often separate from the use and care guide)
• If service is needed, have the serial number ready when you contact Sears PartsDirect support or a qualified technician
• Keep receipts; labor coverage depends on the in-warranty service date

Parts vs. labor: what to look for

When you verify coverage, separate “compressor part” from “labor to replace it.”

Warranty line item	What it usually means	What you should confirm
Compressor parts	Cost of the compressor itself	Years covered for the compressor part
Compressor labor	Technician labor to diagnose/replace	Years covered for labor (if any)
Sealed system	Other sealed components (varies)	Whether it includes refrigerant, drier, tubing

If you suspect a compressor problem

A warm refrigerator or clicking sound is not always a failed compressor. Before replacing major components, we typically rule out airflow and heat-removal issues.

• Make sure the condenser area is clean and unobstructed
• Confirm the condenser fan runs when the compressor is running
• Check for frost patterns and airflow from the vents
• Look for control symptoms that point to a sensor or board issue
• If replacement is confirmed, a compatible option listed for this model is the refrigerator compressor TCA38091801

Why it matters

Compressor and sealed-system repairs are among the highest-cost refrigerator fixes. Verifying the exact LMXS30776S compressor parts and labor coverage helps you decide whether to schedule service, troubleshoot further, or plan a repair.

Last updated: March 2026

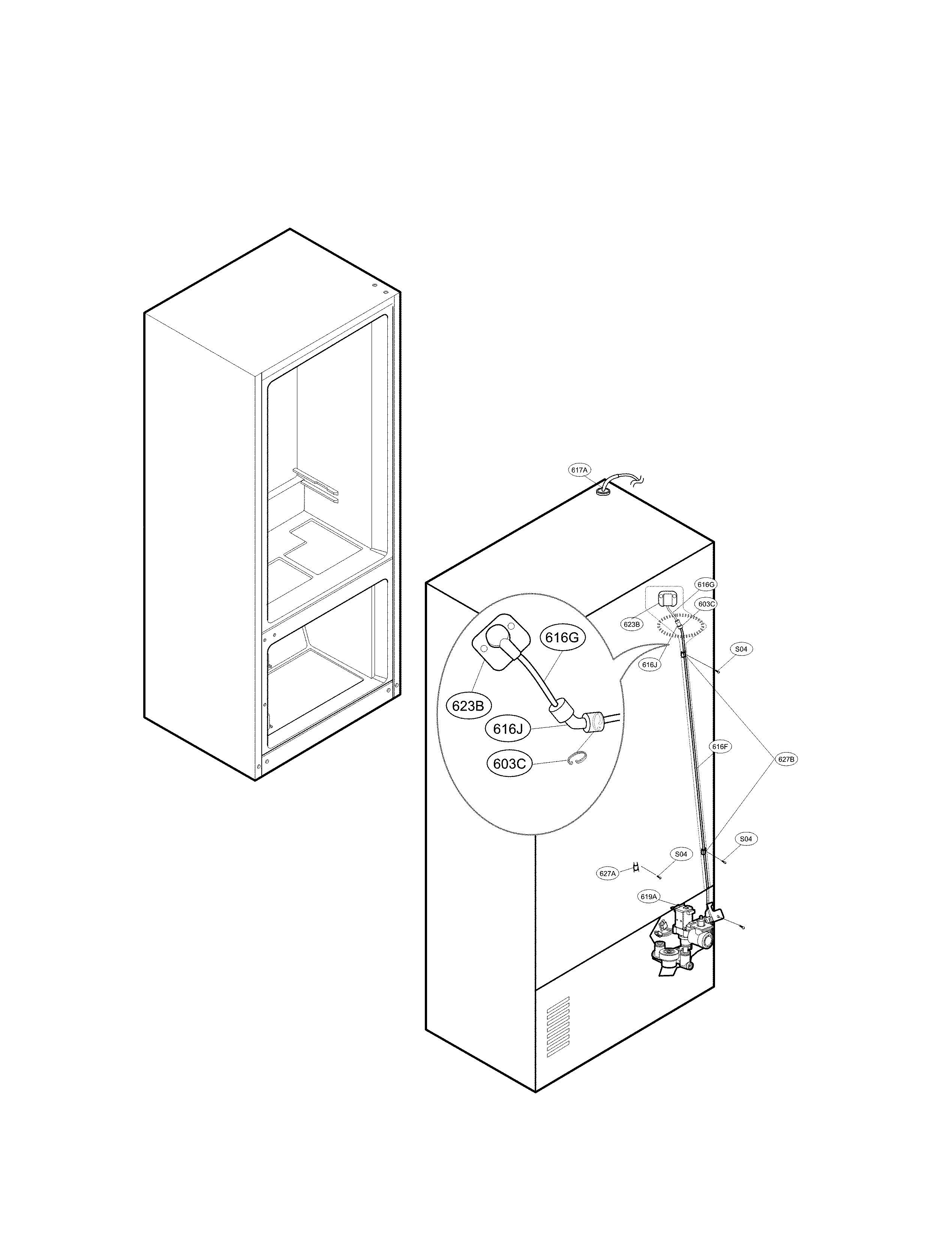

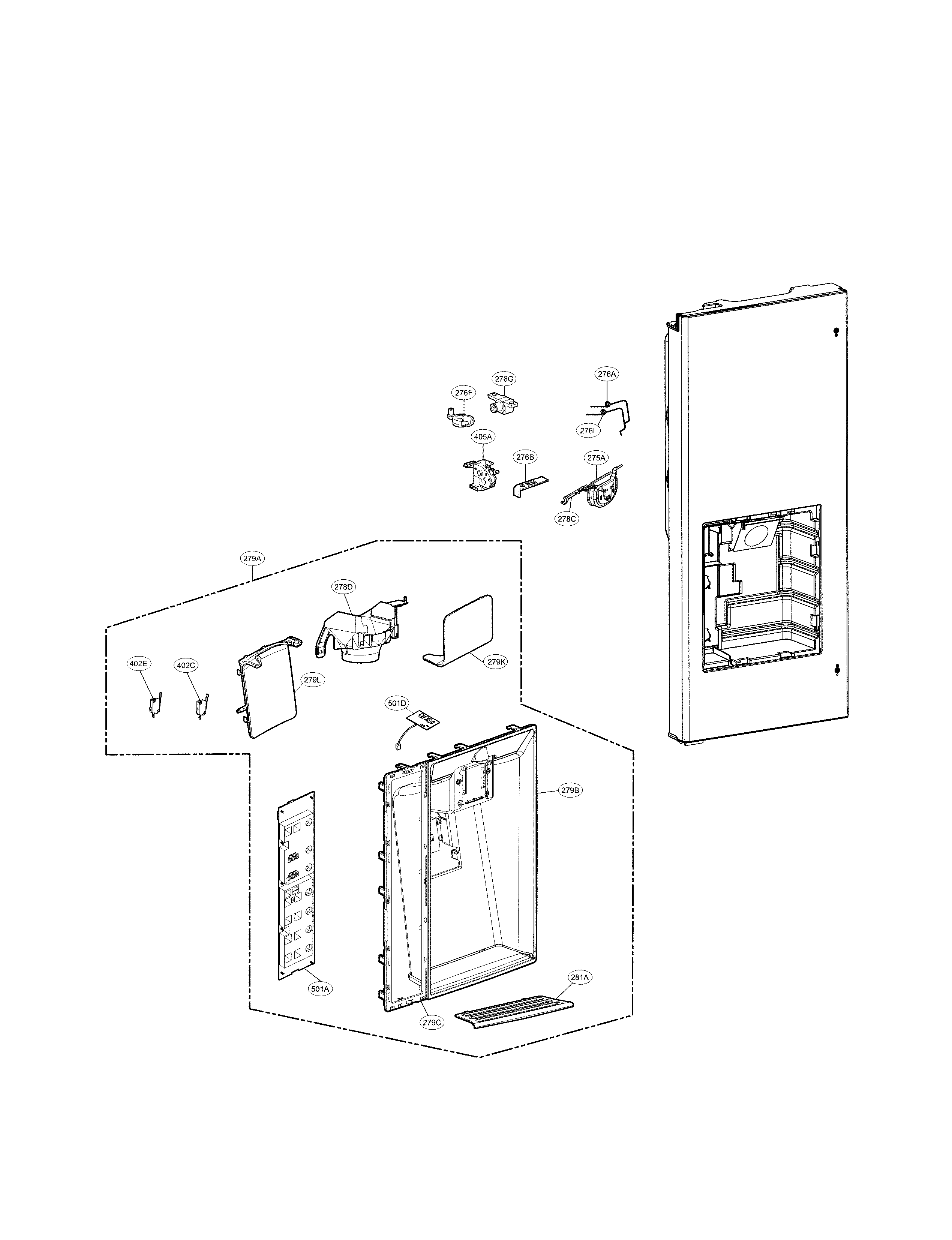

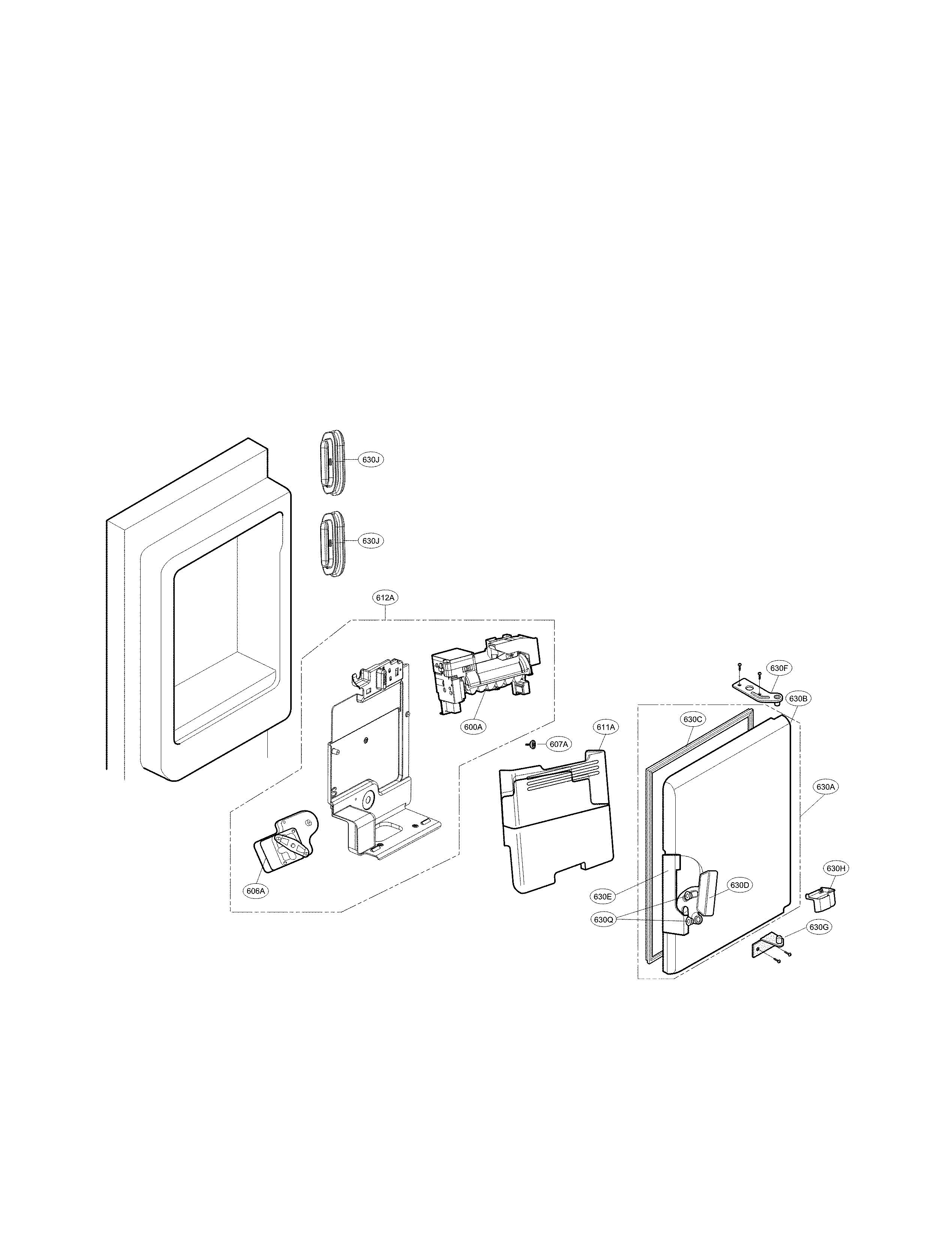

The LG LMXS30776S is a 36-inch-wide French door refrigerator. In the specifications for this model, the overall dimensions are 35 3/4 in. (W) x 38 1/8 in. (D) x 70 1/4 in. (H), with 48 1/8 in. depth when the door is open.

Model-specific dimensions (LMXS30776S)

These measurements come from the specifications section in the LMXS30776S owner's manual.

• Width: 35 3/4 in.
• Depth (doors closed): 38 1/8 in.
• Height: 70 1/4 in.
• Depth (door open): 48 1/8 in.

Quick size table

Measurement	Size
Width	35 3/4 in.
Depth (closed)	38 1/8 in.
Height	70 1/4 in.
Depth (door open)	48 1/8 in.

Why it matters

Getting the exact size for LMXS30776S helps you plan cabinet clearances, confirm the unit will fit through doorways, and avoid airflow issues that can reduce cooling performance.

Last updated: January 2026
