What is the bottom part of a refrigerator called?
The bottom part of a refrigerator is most commonly called the base grille (also called a toe grille or kick plate). On Kenmore model 79576202900, the owner's manual refers to this lower front cover as the base grille and explains how to remove it using the screws at the bottom.
- Base grille (most common)
- Toe grille
- Kick plate
- Lower front grille
- Bottom grille cover
The base grille covers the lower front area of the cabinet. It helps protect internal components from bumps and debris, and it provides airflow access for cooling on many refrigerator designs.
You typically remove the base grille when you need access for basic service tasks near the bottom front of the refrigerator.
- Cleaning dust and lint from lower vents
- Accessing leveling screws to help doors close properly
- Removing the refrigerator door on some models (as part of the procedure)
- Inspecting for water leaks or a clogged drain path
| What you’re looking at | Common name | What it’s for |
|---|---|---|
| Lower front cover at floor level | Base grille | Covers and protects; allows airflow access |
| Adjustable feet/bolts near the front | Leveling screws/legs | Helps level the cabinet and improve door closing |
| Bottom freezer section that pulls out | Freezer drawer | Stores frozen food; slides on rails |
Before removing covers or reaching near vents, we unplug the refrigerator or shut off power at the breaker to reduce shock risk.
Last updated: February 2026
Why is my Kenmore refrigerator leaking underneath?
A leak underneath your Kenmore refrigerator model 79576202900 is usually caused by defrost water not draining correctly (so it overflows into the base area) or by a water supply/ice maker leak. Start by checking the defrost drain path and the water line connections.
- Unplug the refrigerator before inspecting behind panels or near wiring.
- Look for water in the drain pan; some water there during defrost is normal, but overflow is not.
- Check if the leak happens only after ice maker use or water dispensing (points to a supply leak).
- Inspect door gaskets for gaps that can cause excess frost and heavy defrost water.
- Confirm the refrigerator is level; a tilt can affect how water flows to the drain.
When the defrost drain clogs, meltwater can back up and end up under the refrigerator.
- Clear visible ice around the drain opening (warm water and a turkey baster works well).
- Flush the drain with hot water until it flows freely to the drain pan.
- If the drain tube is split, loose, or restricted, replace it with the refrigerator drain tube 5251JA3003D.

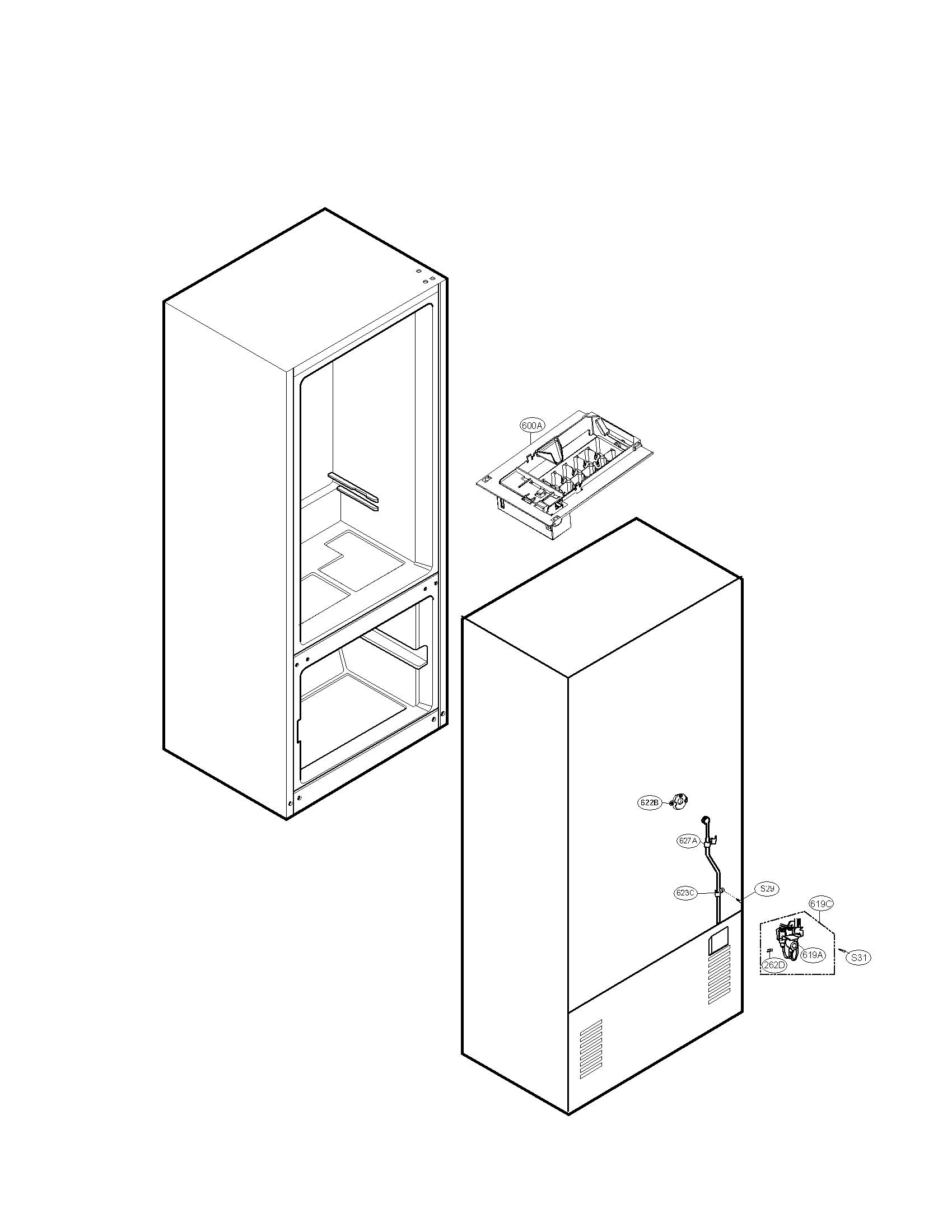

If your unit is connected to a household water supply, a small drip can run down and pool underneath.
- Check the water line fitting at the back of the refrigerator.
- Inspect the ice maker fill area for dripping or overfilling.
- If the ice maker assembly is leaking or not cycling correctly, the ice maker kit AEQ72909603 is the model-matched replacement.
| What you see | Likely meaning | Action |
|---|---|---|
| Small amount of water in drain pan | Normal defrosting | No repair needed |
| Water overflowing onto floor | Drain restriction or supply leak | Clear drain; check water line |
| Leak only when making ice | Ice maker or water supply issue | Inspect fittings; test ice maker |
Water under the refrigerator can damage flooring and can also lead to ice buildup in the freezer if the defrost drain is backing up. Fixing the drain path early prevents repeat leaks and cooling problems.
For panel locations, drain access, and care/cleaning steps for Kenmore 79576202900, use the 79576202900 owner's manual.
Last updated: February 2026
What is the code 5Y EF on a Kenmore refrigerator?
On Kenmore refrigerator model 79576202900, the 5Y EF (or SY EF) code points to a problem in the evaporator fan circuit, which affects airflow through the freezer and fresh food sections. In most cases, the issue is the evaporator fan motor, a wiring/connector problem, or a control-related fault.
- Make sure the doors close fully and the door gaskets seal all the way around.
- Listen for the evaporator fan: it should run when the compressor is running (often you can hear it with the freezer door switch held closed).
- Look for frost or ice buildup on the freezer back panel; heavy frost can block the fan.
- Confirm vents are not blocked by food packages or bins.
- Power reset: unplug the refrigerator for 5 minutes, then restore power and recheck.
| Likely cause | What you may notice | Typical fix |
|---|---|---|
| Evaporator fan motor issue | Warm refrigerator, weak airflow, fan noise or no fan sound | Replace the evaporator fan motor (model-specific part selection) |
| Ice buildup restricting fan | Rubbing/grinding noise, intermittent fan, frost on rear panel | Defrost and address defrost system issue (heater/sensor) |
| Defrost sensor or heater problem | Repeated frost return after manual defrost | Test/replace defrost components such as the refrigerator defrost sensor assembly 6615JB2005C or refrigerator defrost heater 5300JB1100J |
| Wiring/connector or control issue | Code returns quickly, fan tests good | Inspect harness connections; check control outputs |
The evaporator fan is what moves cold air through the refrigerator. When the fan circuit fails, temperatures rise, food spoils faster, and frost can build up, which can trigger more cooling problems.
- Use the 79576202900 owner's manual for control panel behavior, temperature setting ranges, and troubleshooting guidance.
- For Kenmore 795-series diagnostics, see Kenmore 795 model bottom freezer refrigerator error codes to compare symptoms and code behavior.
