Model # RH30WC40GSA Official Electrolux range hood

Here are the diagrams and repair parts for Official Electrolux RH30WC40GSA range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

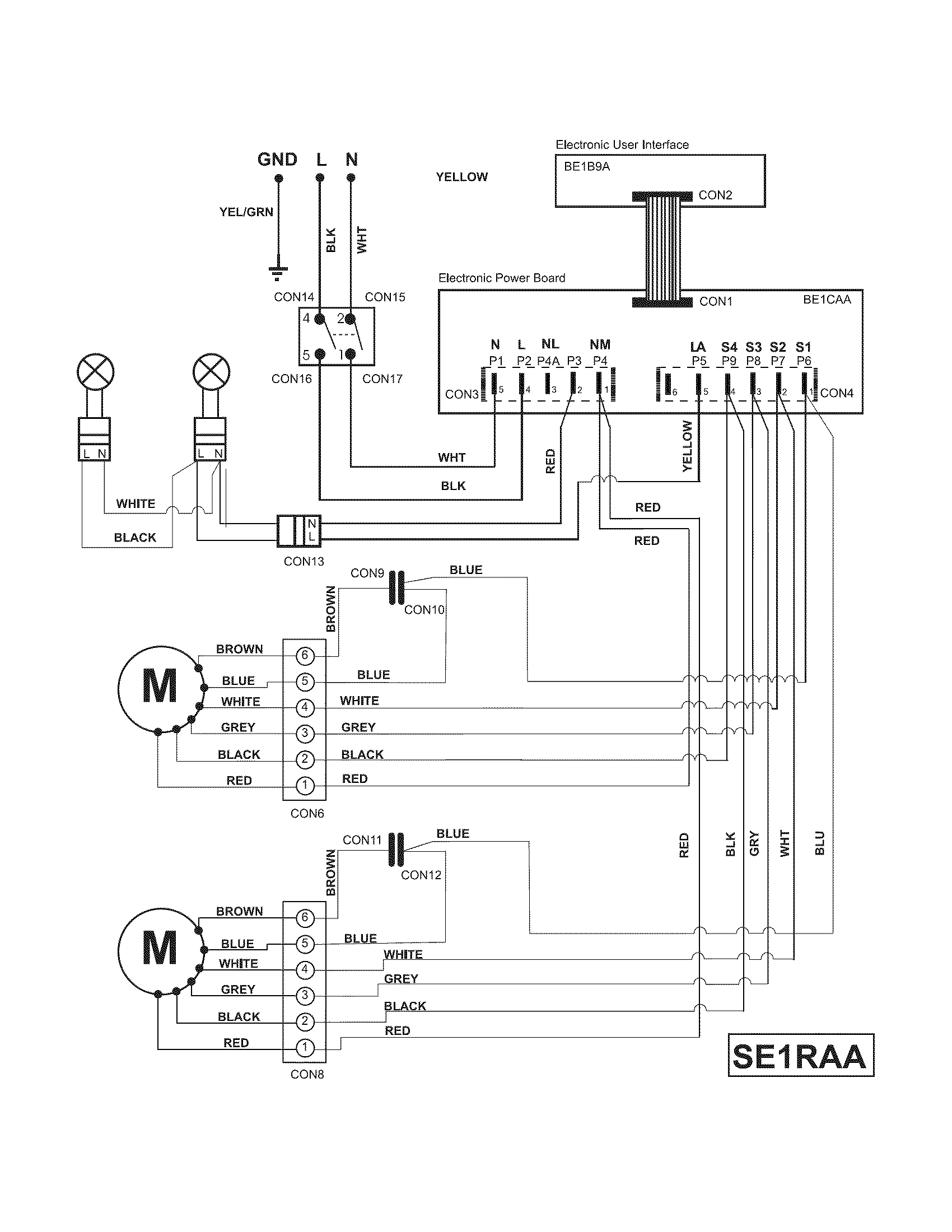

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |

Range Hood Electronic Control Board 5304464263
#6

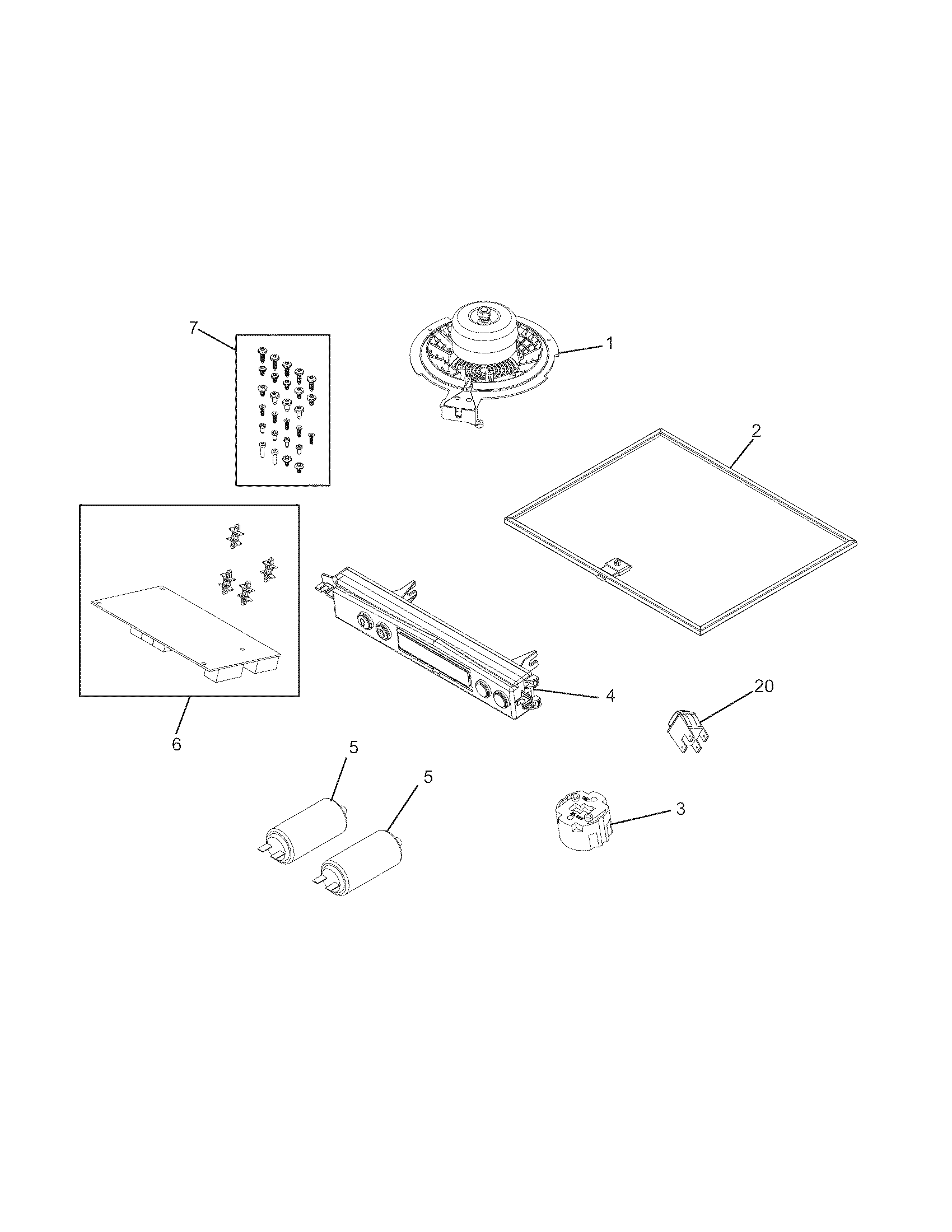

Replacement parts diagram

Range hood electronic control board

Part #5304464263

In Stock
Filter 5304464200
#2

Replacement parts diagram

Filter

Part #5304464200

In Stock
Range Hood Electronic Control Board 5304464201
#4

Replacement parts diagram

Range hood electronic control board

Part #5304464201

$241.82
$10.00 OFF Phone Price : $251.82
In Stock
"range Hood Grease Filter 36""" 5304466252
#2

Replacement parts diagram

"range hood grease filter 36"""

Part #5304466252

The manufacturer no longer makes this part, and there's no substitute part

Hardware Kit 5304464285
#NI

Replacement parts diagram

Hardware kit

Part #5304464285

The manufacturer no longer makes this part, and there's no substitute part

Kit Screw 5304466254
#7

Replacement parts diagram

Kit screw

Part #5304466254

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Switch 5304472119
#20

Replacement parts diagram

Range hood blower switch

Part #5304472119

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 5304464202
#5

Replacement parts diagram

Capacitor

Part #5304464202

The manufacturer no longer makes this part, and there's no substitute part

Lamp Holder 5304466253
#3

Replacement parts diagram

Lamp holder

Part #5304466253

The manufacturer no longer makes this part, and there's no substitute part

Recirculation 5304466742
#NI

Replacement parts diagram

Recirculation

Part #5304466742

The manufacturer no longer makes this part, and there's no substitute part
