Craftsman 917271821 lawn tractor Parts

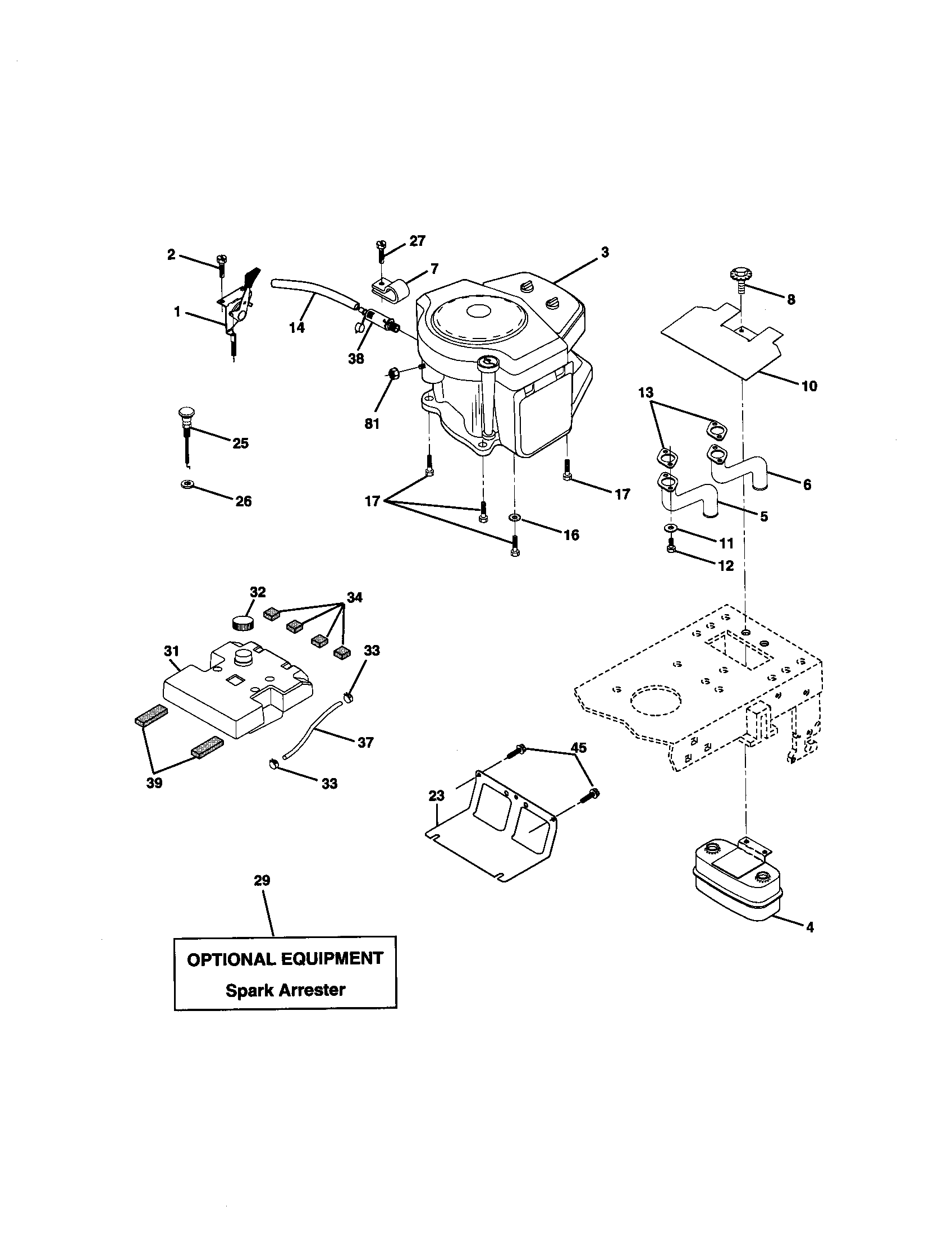

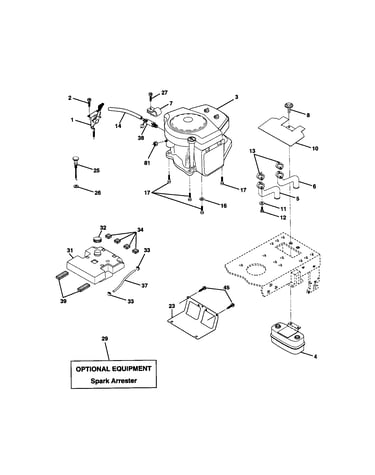

Yes, many Craftsman mowers and lawn tractors use Briggs and Stratton engines. For Craftsman lawn tractor model 917271821, the parts diagram in the 917271821 owner's manual identifies a Briggs & Stratton engine (model 461707, type 0147-E1).

What this means for parts and service

Engine brand matters because tune-up parts and engine diagrams are typically organized by the engine’s model and type, not just the tractor model.

• Use the tractor model 917271821 to find chassis, deck, steering, and drive parts.
• Use the Briggs & Stratton 461707-0147-E1 identification to match engine parts (spark plug, air filter, gaskets, fuel pump kit).
• Check the engine shroud label (or manual diagram) before ordering engine parts.
• If your Craftsman mower is a different model, it may use a different engine brand (Briggs & Stratton, Kohler, or others depending on the unit).

Quick ID guide: tractor model vs. engine model

What you’re identifying	Where to look	Example for this unit
Tractor model number	Frame tag, under seat, or fender area	917271821
Engine model and type	Engine shroud/blower housing label; also shown in diagrams	461707, type 0147-E1

Why it matters

Ordering the correct maintenance and repair parts depends on matching the right system: the tractor model controls the mower deck and drivetrain, while the engine model controls ignition, fuel, and air intake components.

Last updated: January 2026

The most common issues we see on the Craftsman lawn tractor model 917271821 involve the mower deck drive system (belt, idlers, mandrels), blade engagement, steering wear, and starting problems such as a worn key or loose electrical connections. Use the 917271821 owner's manual to match symptoms to the correct adjustment or part.

Common problems and what they usually point to

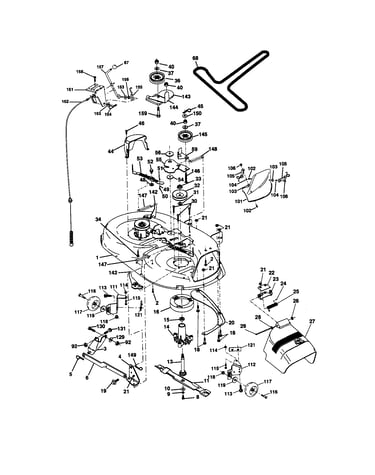

• Deck will not engage or cuts unevenly: worn or stretched deck/drive belt, weak idler spring, worn mandrel bearings
• Squealing, burning rubber smell, or belt keeps coming off: misrouted belt, damaged idler pulley, bent pulley bracket
• Vibration while mowing: bent blade, loose blade hardware, failing mandrel assembly

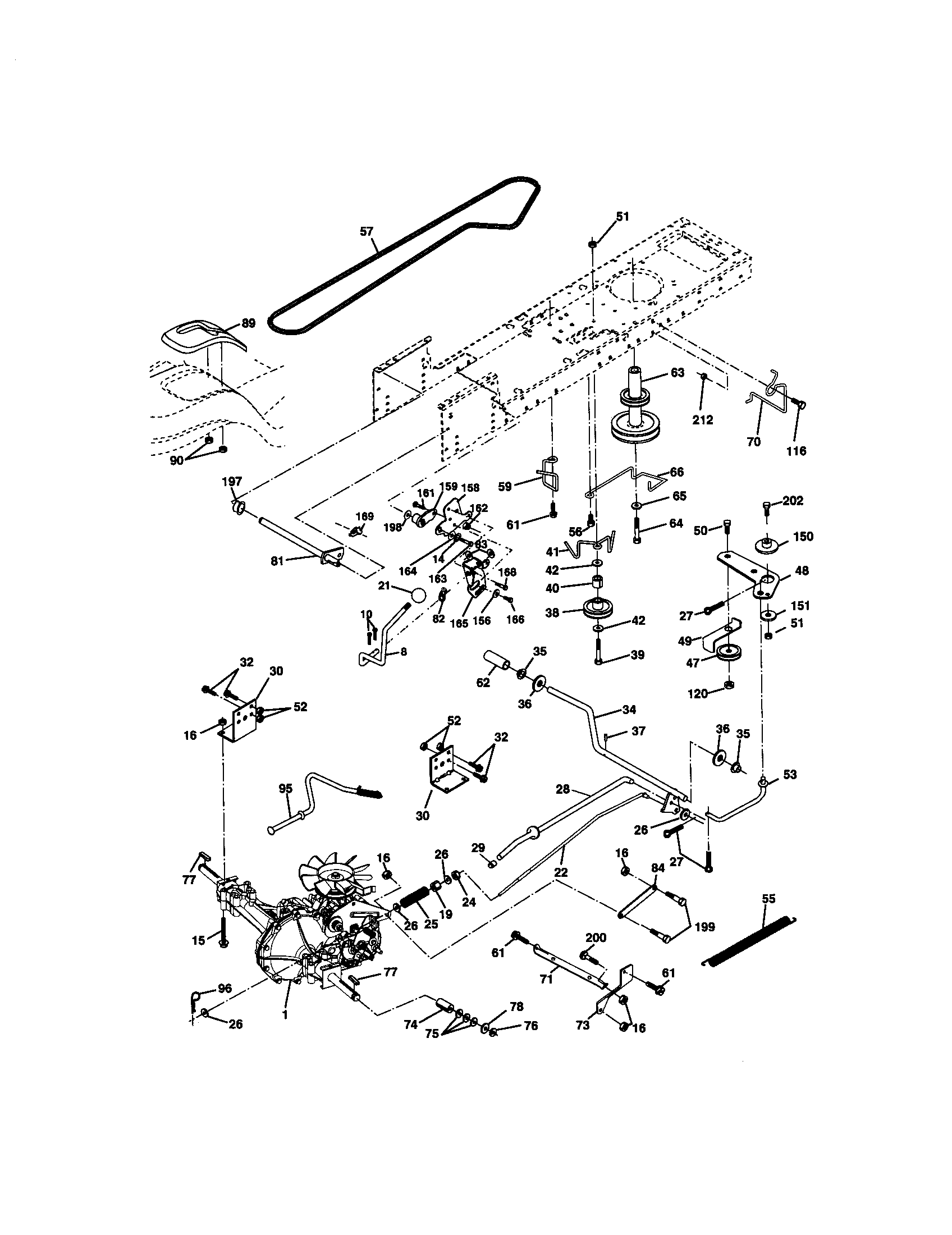

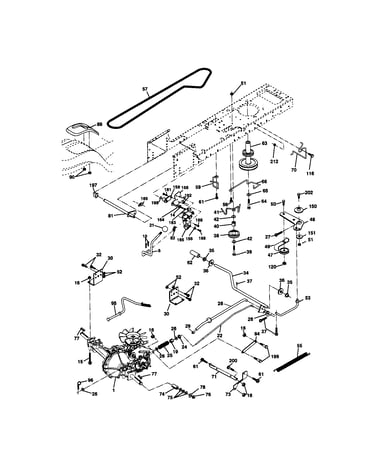

• Tractor creeps or will not move well: worn ground drive belt, idler issues, linkage adjustment

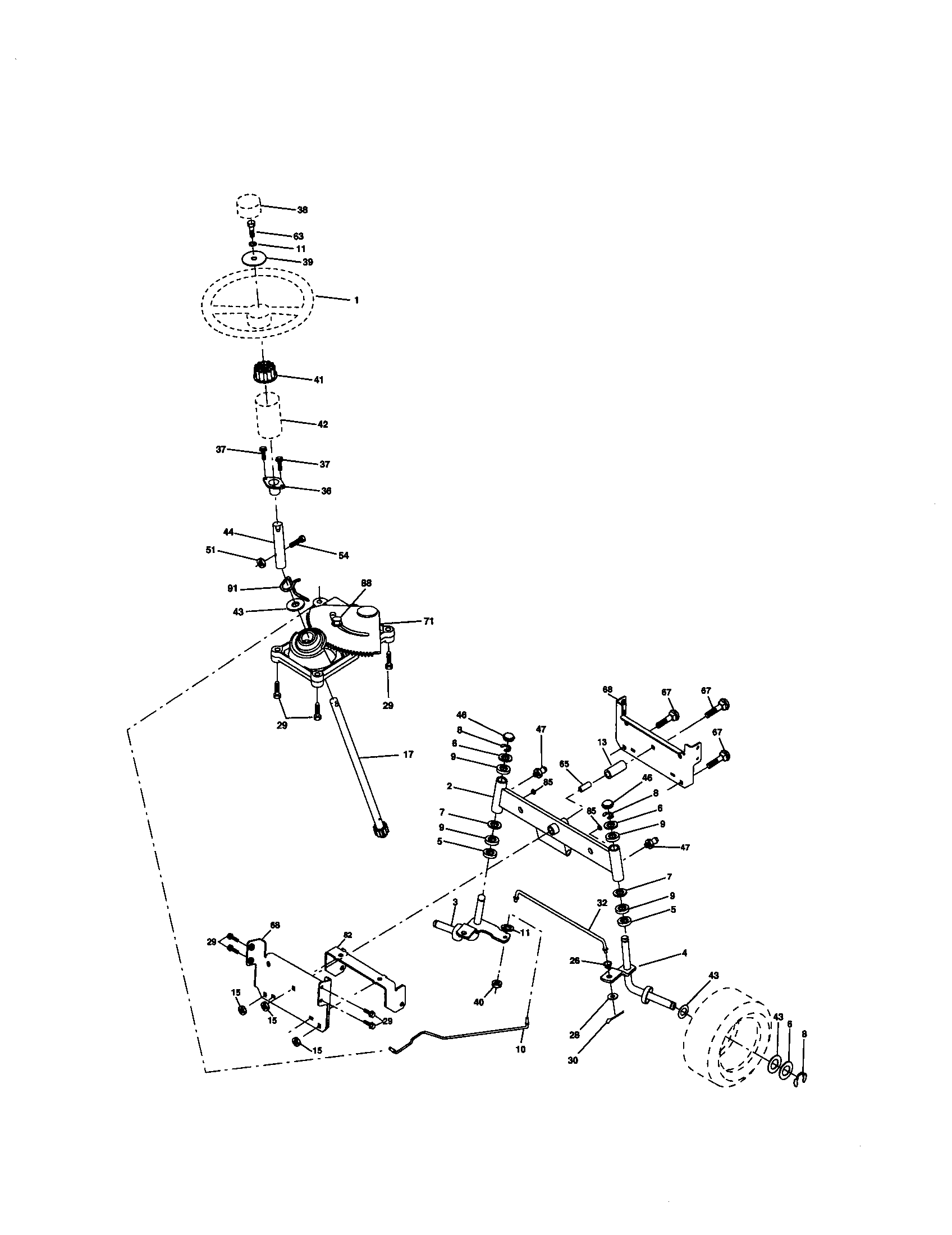

• Hard steering or excessive play: worn steering sector gear, drag link wear, front axle wear points

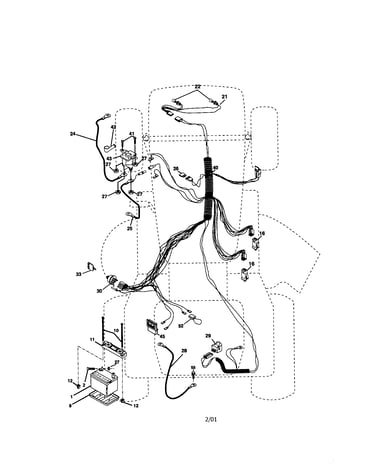

• No crank or intermittent start: worn ignition key, loose battery cables, safety switch or wiring issue

Quick checks we recommend before buying parts

1. Park on level ground, set parking brake, remove the key, and disconnect the spark plug wire.
2. Inspect belts for glazing, cracks, fraying, or a “narrowed” look.
3. Spin idler pulleys by hand; they should turn smoothly and quietly.
4. Check blades for bends and confirm blade bolts are tight.
5. Look for loose connectors or rubbed-through wiring near the frame and engine.

Parts that commonly solve these symptoms (when worn)

Symptom	Likely wear item	Example part for 917271821
Poor drive or slipping	Ground drive belt	Lawn tractor ground drive belt, 1/2 x 82-in 532140294
Deck noise or vibration	Mandrel wear	Husqvarna lawn tractor mandrel assembly 532130794
Deck won’t stay tensioned	Weak spring	Lawn tractor blade idler spring 532169022
Intermittent start	Worn key	Molded ignition key 532140403

Why it matters

Catching belt, pulley, and mandrel wear early prevents repeated belt failures, protects the mower deck housing, and keeps blade speed consistent for a clean cut.

Last updated: March 2026

The model number is on the tractor’s model and serial number label. On Craftsman riding lawn tractors like model 917271821, that label is typically on the frame under the seat area or along the rear fender or footrest frame rail. Use the owner's manual to confirm the exact label location for your tractor.

What to look for on the label

You want the full model number and the serial number; both help ensure correct parts fit.

• A model number formatted like 917.271821 (often shown with a dot)
• A serial number (longer number, sometimes with letters)
• Brand name (Craftsman)
• Sometimes an engine model/type code (useful for engine parts)

Quick steps to find it

1. Park on a flat surface, set the parking brake, and remove the key.
2. Lift the seat and inspect the frame and seat pan area.
3. Check the rear fender area and the frame rails near the footrests.
4. Wipe dirt and grass off the label so all digits are readable.
5. Write the number exactly as shown (include dots and all digits).

Why the exact model number matters

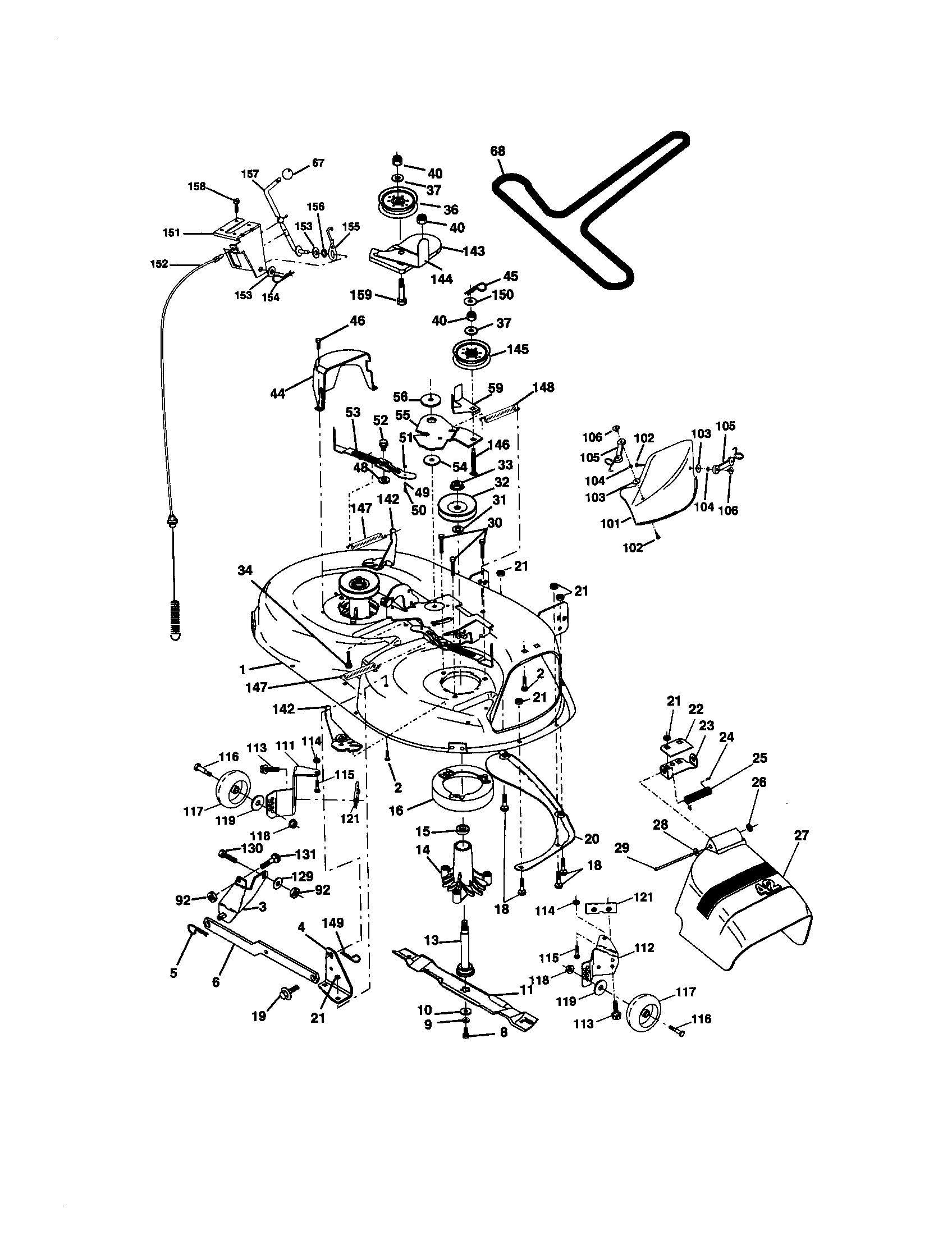

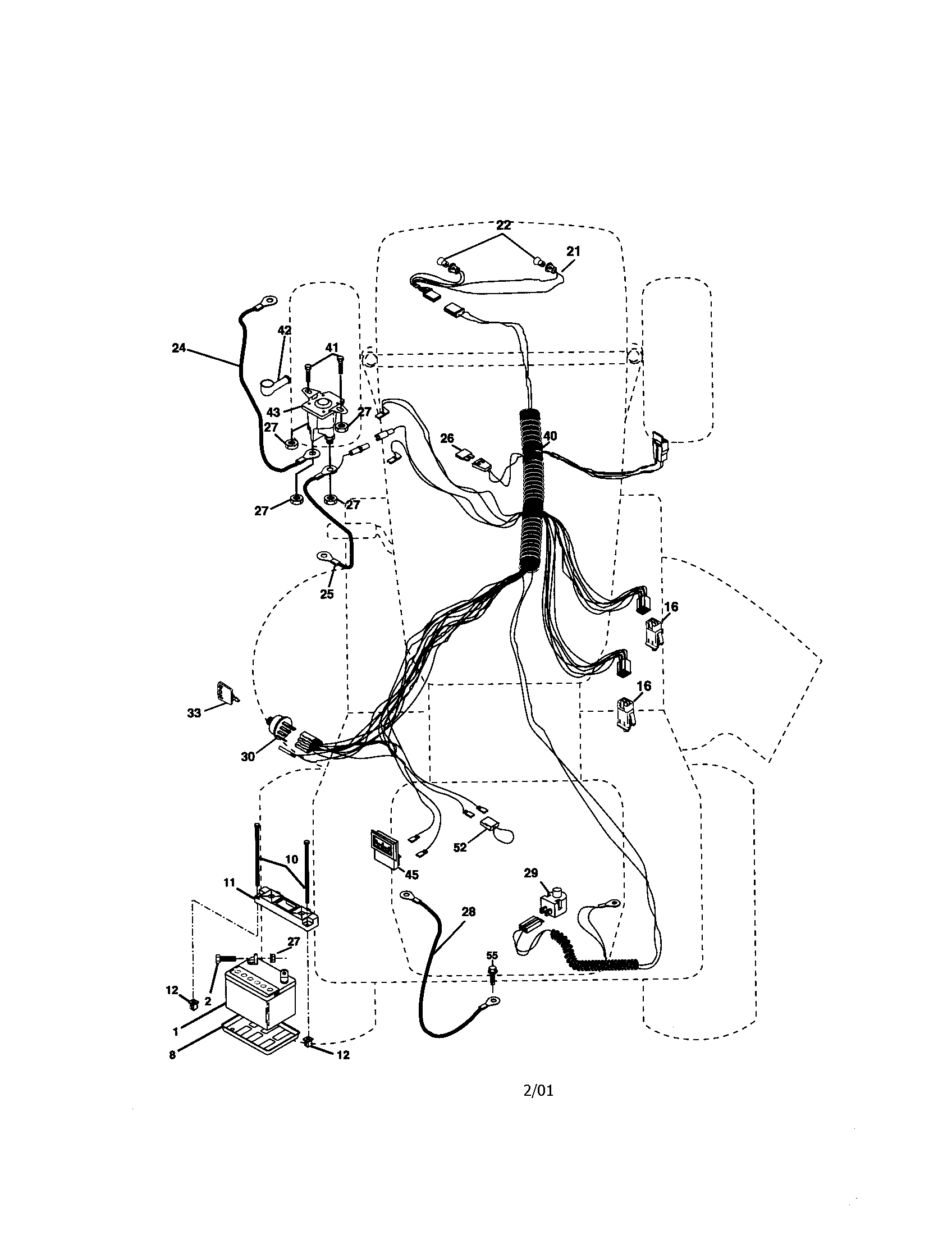

Craftsman tractors can look similar but use different mower deck, ground drive, and electrical parts. The manual diagrams for TRACTOR, MODEL NUMBER 917.271821 show that parts are organized by systems (electrical, ground drive, mower deck), so matching the model number prevents ordering the wrong belt, blade, or pulley.

Common label locations (most Craftsman riders)

Area to check	What you might see	Tip
Under the seat on the frame	Model/serial sticker or plate	Use a flashlight
Rear fender area	Sticker near seat hinge	Clean with a damp rag
Frame rail by footrest	Plate riveted to frame	Look from the side

Last updated: March 2026
