Kenmore 66513409N410 dishwasher Parts

Yes. We still supply replacement parts for many Kenmore dishwashers, including model 66513409N410. The key is matching parts by the full model number so you get the correct fit for items like the drain pump, water inlet valve, racks, and door latch; our 66513409N410 owner's manual also helps you identify features and maintenance needs.

How to make sure you order the right part

Use your complete model number (66513409N410) and match the part by name and ID.

• Confirm the model tag (typically on the tub frame near the door opening).
• Compare the part description to the symptom (drain issue, fill issue, rack problem).
• Check whether the part is a kit (often includes multiple pieces and instructions).
• Replace worn mounting clips, grommets, or hoses at the same time when they are disturbed.
• After any repair, run a short cycle and confirm the unit fills and drains normally.

Common parts customers replace on 66513409N410

These are frequent fixes for performance and usability problems:

Symptom	Likely area	Example part for this model

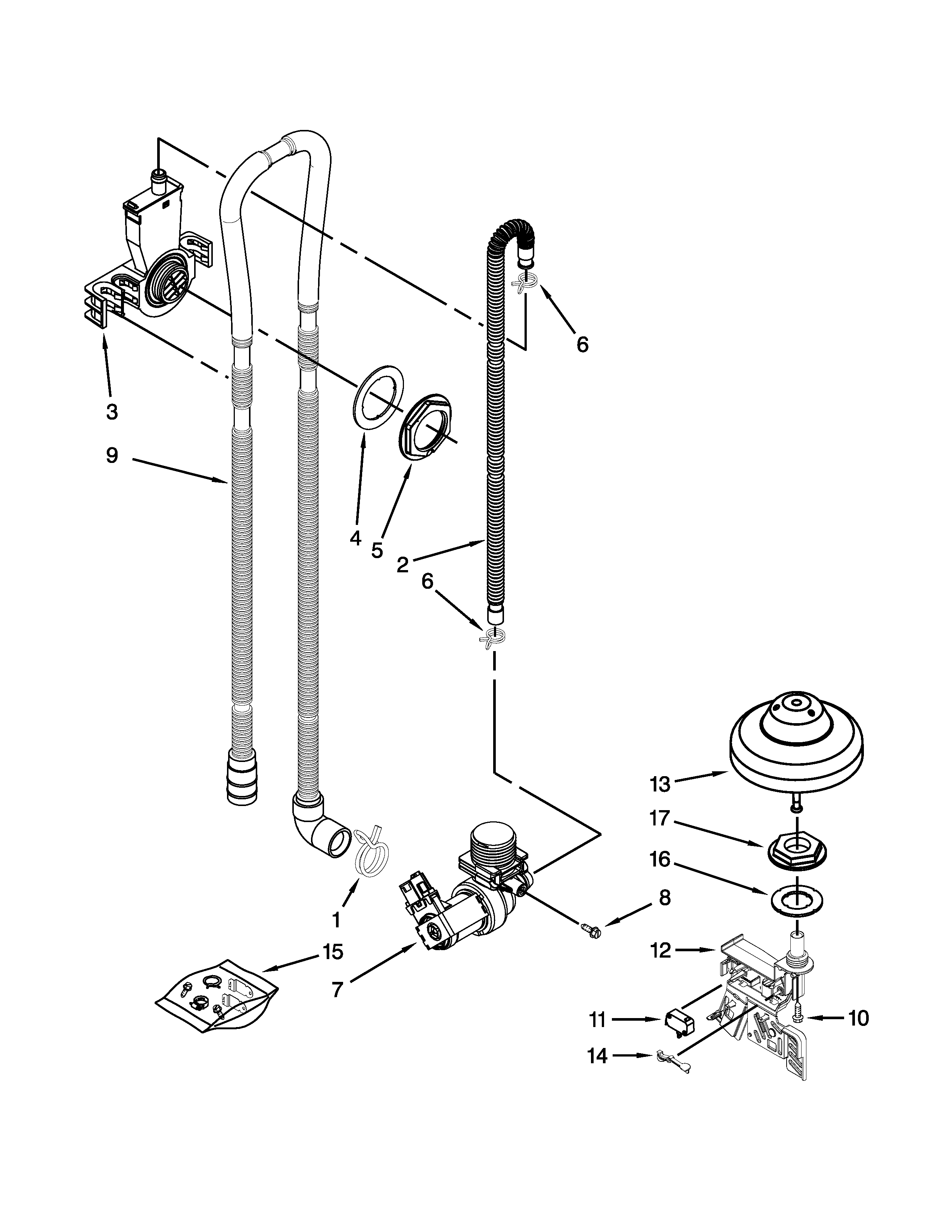

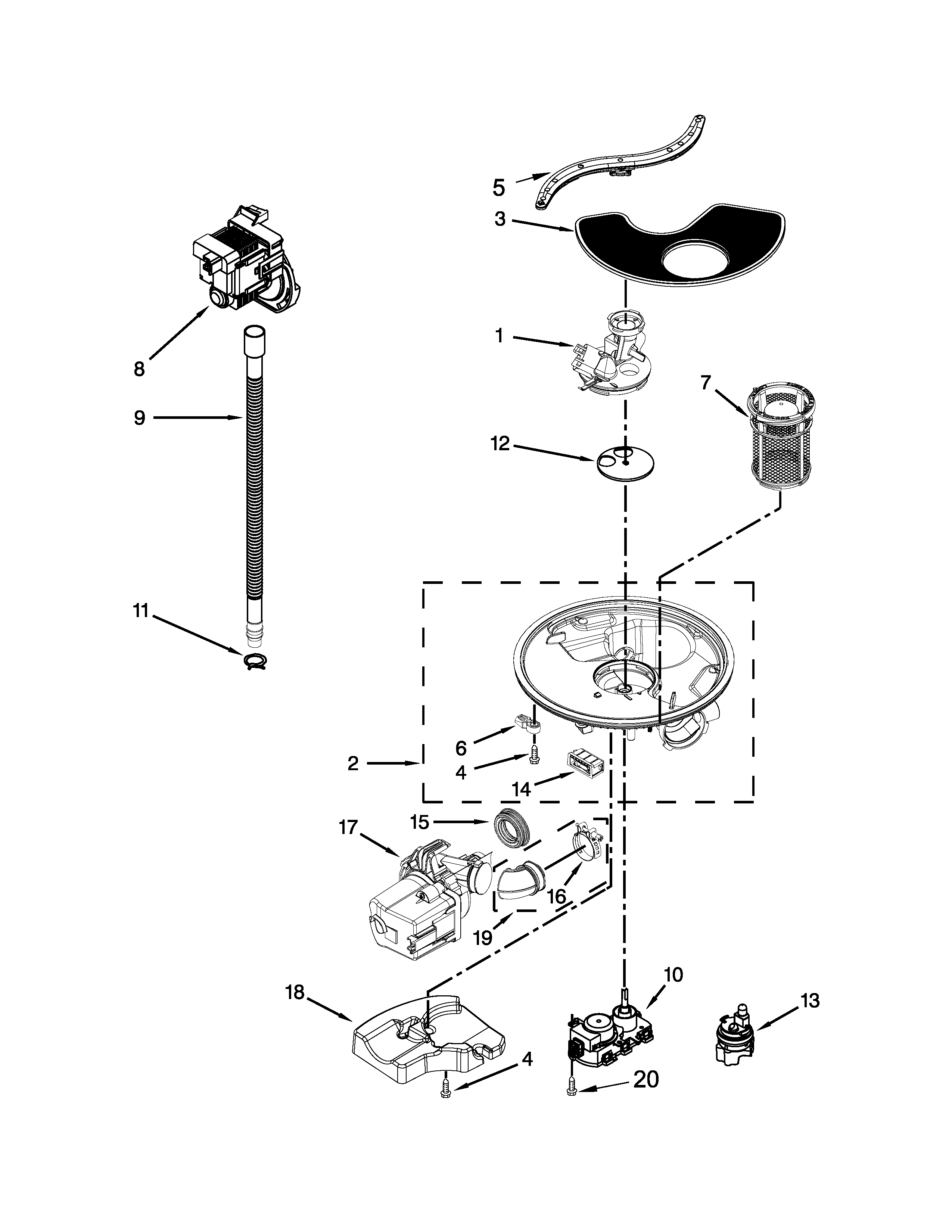

Won’t drain or drains slowly	Drain system	Dishwasher drain pump WPW10348269
Won’t fill or fills poorly	Water supply	Dishwasher water inlet valve W11175771

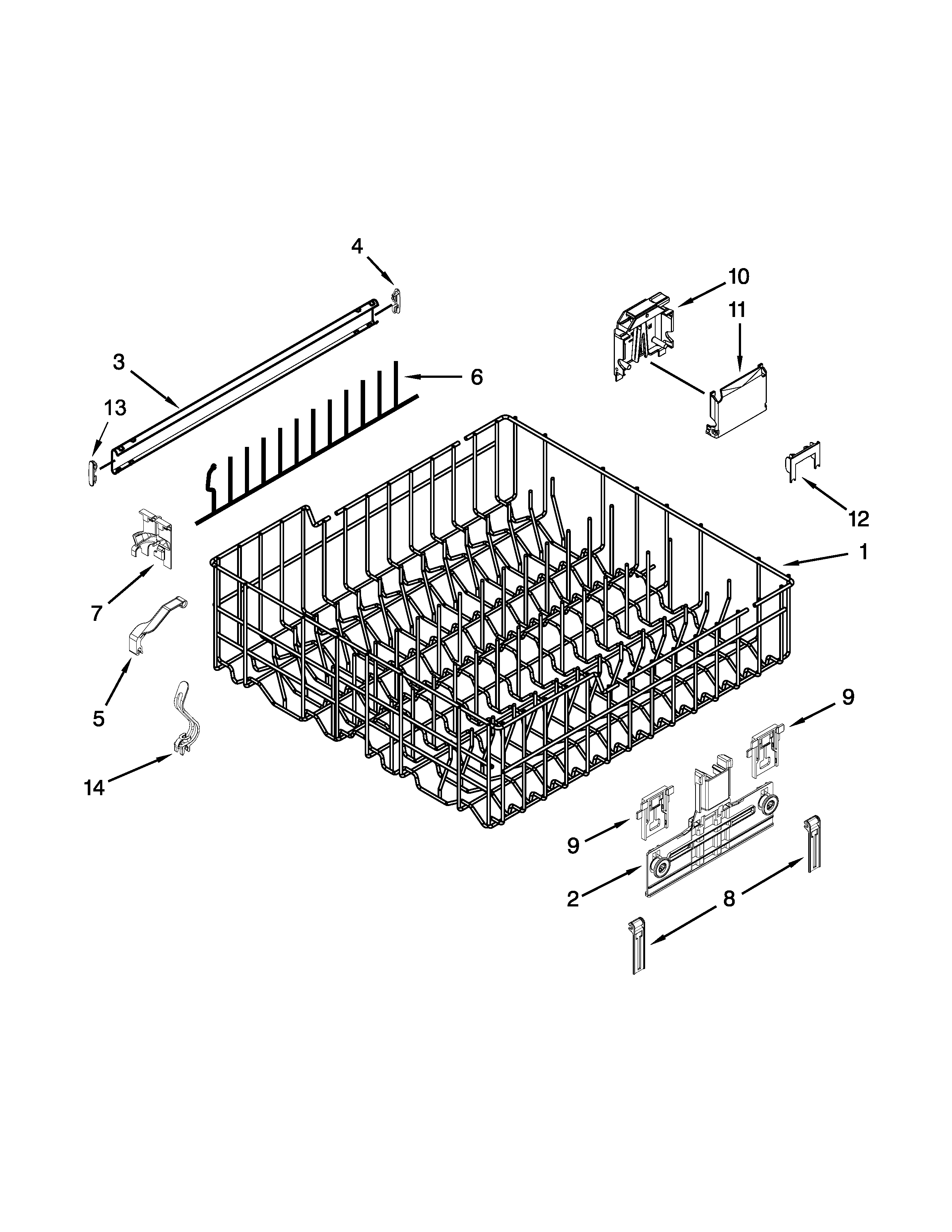

Upper rack won’t adjust or sags	Rack hardware	Dishrack adjuster kit - dishwasher rack component by whirlpool W10712395

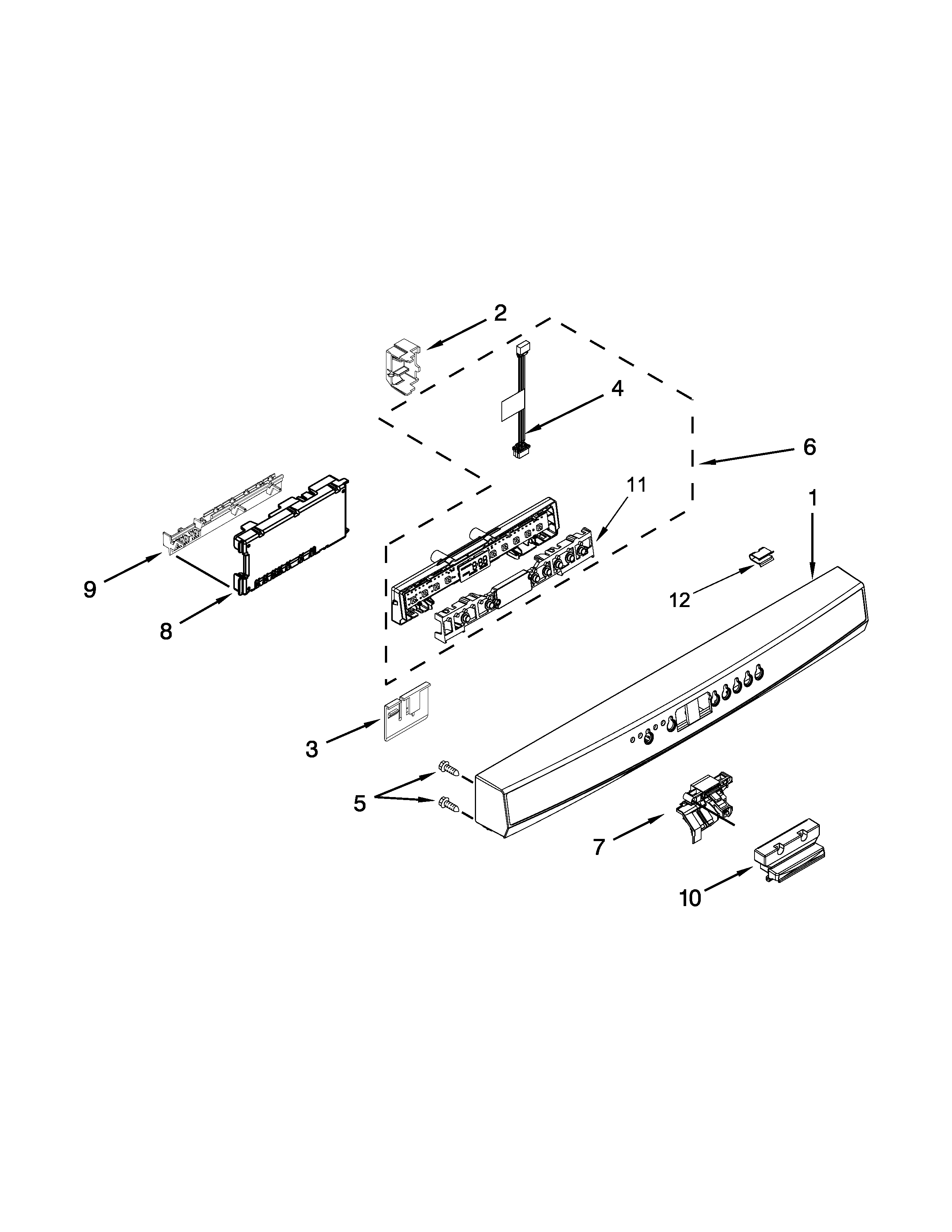

Door won’t latch or won’t start	Door switch/latch	Dishwasher door latch WPW10653840

Why it matters

Ordering by model number prevents returns and repeat repairs. Kenmore dishwashers are commonly built with components shared across platforms, so the correct cross-referenced part is the one listed for 66513409N410, not just “Kenmore” in general.

Helpful DIY guidance

If your issue is related to a flashing code or beeping, use our Kenmore 665 model dishwasher error codes to narrow the failure to a specific system (drain, fill, heating, or door).

Last updated: February 2026

To take your Kenmore dishwasher model 66513409N410 out of Lock (Control Lock) mode, press and hold SANI RINSE for 3 seconds until the Lock indicator light turns off. The door still opens normally while the controls are locked (only the buttons are disabled).

Quick steps to unlock

• Make sure the dishwasher door is fully closed.
• Press and hold SANI RINSE for 3 seconds.
• Watch for the Lock indicator to turn off.
• If you press a button while locked, the Lock light typically flashes (this is normal).
• Try starting a cycle again with START/RESUME.

If it still seems locked

These checks fix most “won’t start” situations that look like Lock mode:

• Close and latch the door firmly; a partially latched door can prevent starting.
• If START/RESUME is blinking, close the door and press START/RESUME, or press START/RESUME and close the door within about 3 seconds.
• If you opened the door during a Delay start, press START/RESUME again to resume.
• Confirm the Lock indicator is actually off after holding SANI RINSE.
• Check household power (breaker or fuse) if the display is dead.

What “Lock mode” does (and does not do)

Feature	What happens in Lock mode	What still works
Control buttons	Disabled	None of the cycle/option pads respond
Door	Not locked	You can open and close the door
Starting a cycle	Blocked	Dishwasher will not start until unlocked

Why it matters

Lock mode prevents accidental button presses between cycles. If the Lock indicator is lit, the dishwasher cannot start, so unlocking is the fastest first step before troubleshooting parts like the dishwasher door latch WPW10653840.

For the exact button layout and indicator behavior on your control panel, follow the 66513409N410 owner’s manual.

Last updated: February 2026

Your Kenmore dishwasher model number is usually printed on a rating label inside the door opening. On Kenmore models like 66513409N410, we most often see the label on the inner door frame (left or right side), along the top edge of the door, or on the tub wall near the door.

Where to look first (fastest checks)

• Open the door and inspect the inner door frame on both sides
• Check the top edge of the door (near the latch area)
• Look on the tub wall just inside the opening
• Wipe the area with a damp cloth; soap film can hide the print
• Use a flashlight and look for a sticker or metal plate

If you still cannot find it

These spots are less common, but worth checking:

• Along the lower edge of the door (near the hinges)
• On the side of the tub behind the front gasket area
• On the back of the unit (if the dishwasher has been pulled out)
• In your paperwork: the 66513409N410 owner’s manual

What the model number looks like (Kenmore)

Many Kenmore dishwashers use a model format that starts with 665 (often shown with a dot in some manuals, like 665.xxxx). For parts lookup, enter the full model exactly as shown on the label.

What you see	What it means	Why we need it
Model number	Identifies the exact dishwasher design	Ensures correct parts fit
Serial number	Identifies the production unit	Helps with service history and dating

Why it matters

The model number is the key to matching the correct parts and troubleshooting steps. For example, rack hardware can vary by revision; using the right model helps you choose the correct rack components such as the dishrack adjuster kit - dishwasher rack component by whirlpool W10712395.

Last updated: February 2026

On the Kenmore 66513409N410 (Quiet Guard Deluxe), the most reliable “reset” is canceling the current cycle and forcing a drain: press and hold START/RESUME for 3 seconds, then close the door so the drain can run. See the exact steps in the 66513409N410 owner's manual.

Quick reset options (what to try first)

• Cancel/Drain reset: Press and hold START/RESUME for 3 seconds, then close the door to start draining.
• Control lock reset (buttons don’t respond): Press and hold SANI RINSE for 3 seconds to toggle the lock off.
• Start/Resume light blinking: Close the door and press START/RESUME, or press START/RESUME and close the door within 3 seconds.
• Delay setting “stuck”: Keep pressing DELAY until the desired delay time shows.
• Cycle restart: Cancel/Drain first, confirm the detergent door is closed, then select a new cycle and press START/RESUME.

Step-by-step: cancel and reset the dishwasher

1. Open the door slightly and wait for spraying to stop.
2. Press and hold START/RESUME for 3 seconds.
3. Close the door within 3 seconds so the drain cycle can begin.
4. Let it drain completely (the Cancel/Drain indicator typically turns off after about 2 minutes).

If the buttons still won’t work

Use this quick check to pinpoint the cause:

Symptom	Most common cause	What we do next
Lock light on, no buttons work	Control lock enabled	Hold SANI RINSE 3 seconds
Start/Resume blinking	Door not fully latched	Close and latch door, press START/RESUME
Unit dead, no lights	Power issue	Check breaker, outlet, wiring
Door won’t latch	Latch problem	Inspect/replace dishwasher door latch WPW10653840

Why it matters

A proper Cancel/Drain reset clears the current selection, stops a stuck cycle, and drains standing water. If the controls are locked or the door is not latched, the dishwasher will not start even though it has power.

Last updated: February 2026

Common Kenmore dishwasher problems (including model 66513409N410) are poor cleaning, not draining, not starting, blinking lights, and leaking. Many issues come down to loading, water temperature, a clogged filter, or a failing pump, valve, or latch; our 66513409N410 owner's manual walks through the built-in troubleshooting checks.

Most common symptoms and what they usually point to

• Not cleaning well: clogged filter, blocked spray arm, low water temperature, or overloading
• Not draining: drain hose restriction, air gap clog, or a weak drain pump
• Won’t start or stops mid-cycle: door not fully latched, Control/Lock enabled, or power issue
• Blinking Start/Resume light: door not closed in time after pressing Start/Resume
• Cloudy or spotted dishes: hard water, not enough rinse aid, or incorrect detergent amount
• Leaking: door seal/sump seal issues, loose hose connections, or overfill float problems

Quick checks we recommend first (fast, no parts)

• Confirm the door closes and latches firmly; large items can interfere with the wash system at the back.
• If Start/Resume is blinking, press START/RESUME and close the door within 3 seconds.
• Verify hot water supply; set the water heater to 120°F (49°C) for best wash and dry results.
• Use rinse aid (even with pods) to reduce spotting and improve drying.
• Clean the filter area and check the lower spray arm for debris.

Common part-related fixes for this model

If the quick checks do not solve it, these parts are frequent culprits on 665-series Kenmore dishwashers:

Symptom	Part to suspect	Example part for 66513409N410
Not draining / water left in tub	Drain pump, drain hose	Dishwasher drain pump WPW10348269, dishwasher drain hose 8269144A
Not filling / weak fill	Water inlet valve	Dishwasher water inlet valve W11175771
Won’t start / stops when door moves	Door latch	Dishwasher door latch WPW10653840

Why it matters

Dishwashers pause and restart normally during a cycle, but repeated no-start, no-drain, or leaking problems can lead to poor cleaning, standing water odors, and water damage. Catching a clogged filter, incorrect loading, or a weak drain pump early prevents bigger repairs.

For model-specific cycles, options, and troubleshooting tables, use the 66513409N410 owner's manual.

Last updated: February 2026

On the Kenmore dishwasher model 66513409N410, an E09 code points to a heating problem, most commonly the heating circuit or heating element not warming the water as expected. Start by resetting power, then check for heating-related symptoms and wiring issues before replacing parts.

What to check first (fast, no tools)

• Turn the dishwasher off at the breaker for 1 minute, then restore power and retry a cycle.
• Confirm the cycle uses heated options (some cycles heat later in the wash).
• Run hot water at the sink for 30 to 60 seconds before starting the dishwasher.
• Make sure the door closes and latches fully; a poor latch can interrupt heating.
• Check that the tub is filling to a normal level (low fill can look like a heating failure).

Likely causes and the most common fixes

E09 is typically tied to the heater circuit. On this Kenmore design, the most common culprits are the heater itself, wiring connections, or a control issue.

Symptom you notice	Most likely area	What we usually do next
Water stays cool, poor drying	Heating element / heater circuit	Inspect heater and connections; test heater continuity
Stops mid-cycle or shows code early	Control sensing a heat fault	Check wiring, then control diagnostics per manual
Fills poorly and cleans poorly	Water inlet / fill system	Verify fill and inlet valve operation

Parts that commonly relate to heating and fill

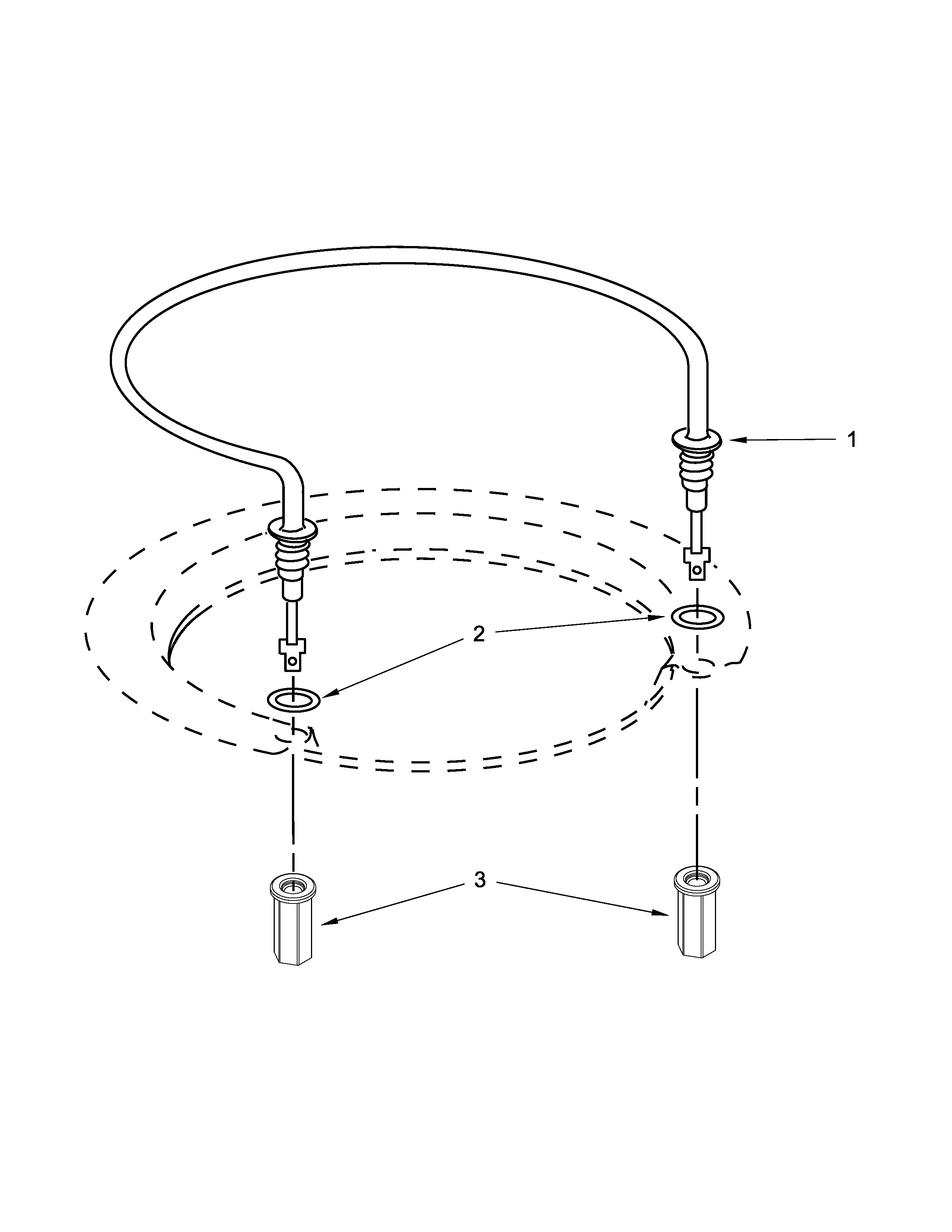

• Element assembly W10703867 (heater not warming water, poor drying)
• Dishwasher water inlet valve W11175771 (low fill can prevent proper heating)
• Whirlpool dishwasher electronic control board W10751502 (heater circuit control issues)

Where to find model-specific diagnostics

Use the tech and troubleshooting sections in the 66513409N410 owner’s manual to confirm what the display code means for your exact control panel and to follow the correct diagnostic steps.

Why it matters

If the dishwasher cannot heat water to the target temperature, you can get cloudy dishes, leftover soil, and weak drying. Fixing the heater circuit restores cleaning performance and helps prevent cycles from stalling.

Last updated: February 2026

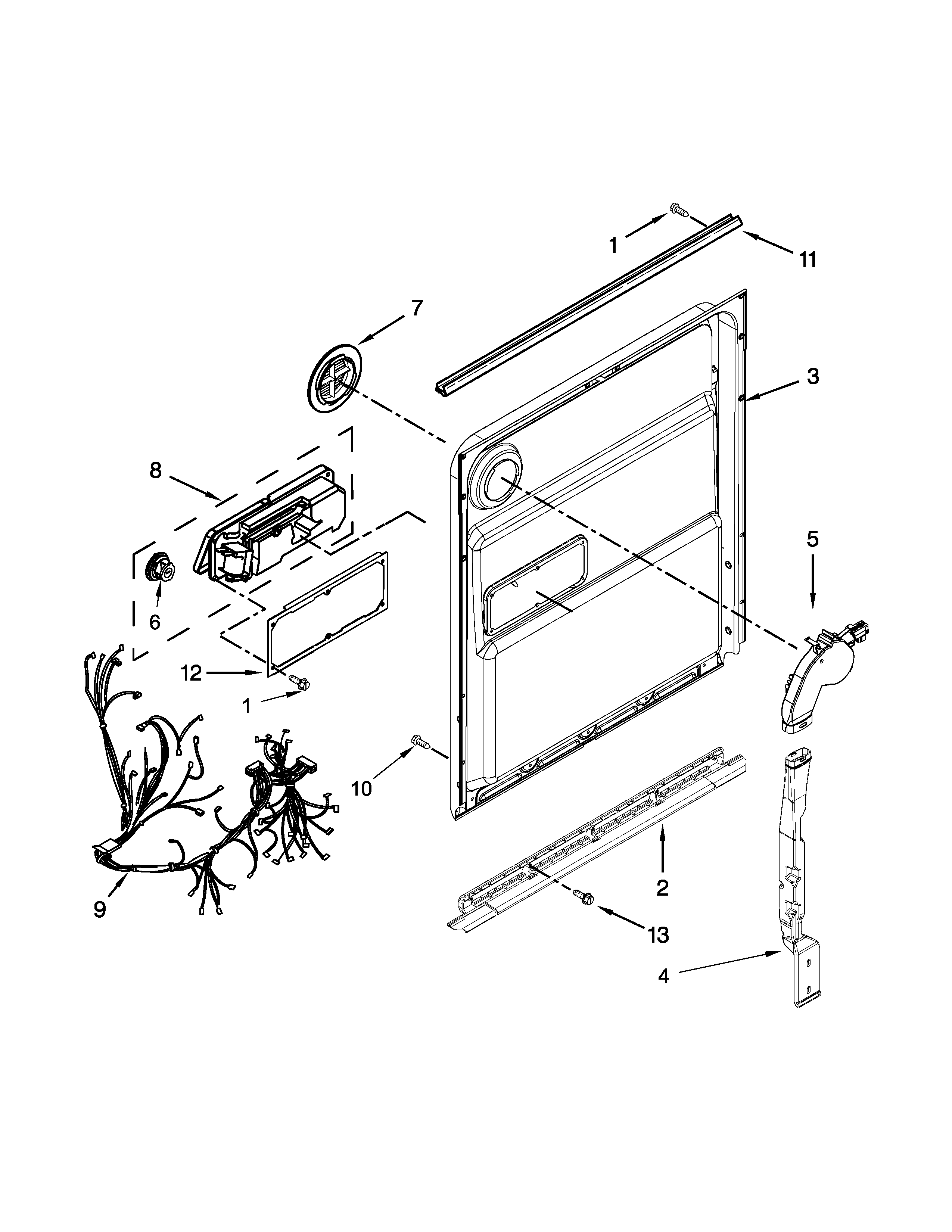

A bottom-front door leak on your Kenmore dishwasher model 66513409N410 is usually caused by a dirty, damaged, or mis-seated door seal, a door that is not latching tightly, or excess suds pushing water past the door. Start by cleaning the sealing surfaces and confirming the door closes firmly.

Quick checks we recommend first

• Turn off power at the breaker before inspecting the door area.
• Wipe the inner door edge and tub lip where the gasket seals; remove grease, detergent residue, and food debris.
• Check that the door closes evenly and you feel a solid “click” when it latches.
• Look for items (tall pans, cutting boards) that can interfere with closing or cause spray to deflect toward the door.
• If you see foam or bubbles during a wash, switch to automatic dishwasher detergent only and reduce detergent amount.

Most common causes and what to do

What you notice	Likely cause	What to do next
Drips from center bottom of door	Door not fully latched or latch misalignment	Inspect strike/latch alignment; replace the latch if it feels loose or inconsistent (dishwasher door latch WPW10653840).
Water trails from corners	Door seal not sealing (debris, warp, damage)	Clean sealing surfaces; inspect gasket for tears, flattening, or gaps; replace the seal if damaged (see 66513409N410 owner’s manual for care and cleaning guidance).
Leak happens early in cycle with lots of foam	Oversudsing	Run a rinse/drain, then a short cycle with no detergent; use rinse aid and correct detergent type/amount.
Leak increases when opening the door	Dishwasher not secured/level, door shifts	Confirm the unit is level and secured to the cabinet; the install steps call out checking level and securing brackets (see 66513409N410 installation guide).

Why it matters

A door-area leak can look minor, but it can wet the toe-kick area, damage flooring, and lead to repeated cycle interruptions. Fixing latch, alignment, and cleaning issues early also improves wash performance and drying.

If you need a repair part

These parts commonly help with door-leak symptoms on this platform:

• Dishwasher door latch WPW10653840 (door not closing or popping open)

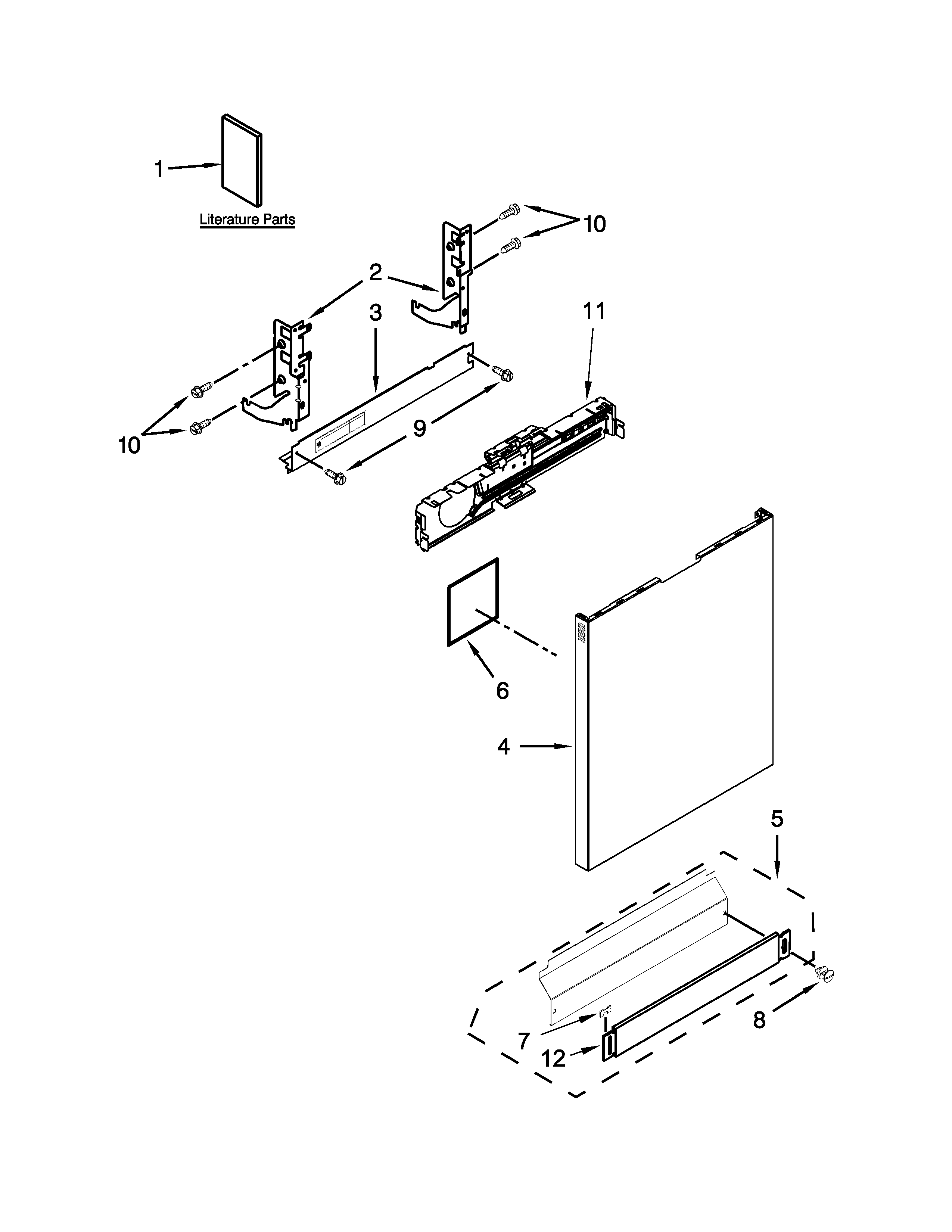

• Dishwasher door balance link 8194001 (door dropping fast can affect closing consistency)

Last updated: February 2026
