Amana AFI2539ERM01 refrigerator Parts

A refrigerator with the freezer on the bottom is called a bottom-mount (also commonly called a bottom-freezer) refrigerator. Your Amana AFI2539ERM01 is a bottom-mount style, meaning the fresh food section is on top and the freezer is below, usually as a pull-out drawer.

Common names you will see

• Bottom-mount refrigerator
• Bottom-freezer refrigerator
• Freezer drawer refrigerator (common description)
• French door bottom-freezer (if it has two upper doors)

How bottom-mount compares to other common styles

Refrigerator style	Fresh food location	Freezer location	Typical access
Bottom-mount (bottom-freezer)	Top	Bottom	Pull-out drawer or lower door
Top-freezer	Bottom	Top	Swing door
Side-by-side	Left or right	Left or right	Two swing doors

Why it matters

Knowing the style helps when you are shopping for parts, checking fit, or following service steps. For example, bottom-mount models often use freezer slide rails, a damper control assembly to balance airflow, and door gaskets that are specific to the door layout.

Helpful next steps for AFI2539ERM01 owners

• Use the AFI2539ERM01 owner's manual to confirm your exact door and drawer configuration.
• If you are troubleshooting warm temperatures in the fresh food section, check for airflow issues related to the damper.
• If the freezer drawer is hard to open or doesn’t close smoothly, inspect the rails and drawer alignment.
• If you notice moisture or frost around the doors, inspect the door gasket sealing surfaces.

Last updated: February 2026

No. Refrigerators are not all 70 inches high; many popular full-size models land around the upper-60s to about 70 inches, but plenty of units are shorter or taller. For your Amana AFI2539ERM01, we recommend confirming the exact cabinet and hinge height in the AFI2539ERM01 owner's manual.

Typical refrigerator height ranges (what we see most often)

Refrigerator height varies by style, capacity, and whether you measure the cabinet only or include the top hinges.

• Top-freezer models are often in the low-to-mid 60-inch range
• Bottom-mount and French door models commonly fall in the upper-60s to around 70 inches
• Counter-depth models can be similar in height but differ more in depth
• Built-in refrigerators are frequently taller and can exceed 80 inches
• Hinges and leveling legs can add noticeable height compared to the cabinet

How to measure height the right way

Use a tape measure and check both the refrigerator and the opening.

What to measure	Where to measure	Why it matters
Cabinet height	Floor to top of case	Helps confirm basic fit
Height to top of hinge	Floor to highest point	Prevents “it fits on paper” surprises
Opening height	Floor to underside of cabinet/trim	Ensures clearance for installation
Clearance space	Above and behind unit	Supports airflow and door swing

Fit tips for a bottom-mount refrigerator like AFI2539ERM01

• Measure in two spots (left and right); floors can slope
• Confirm the unit can be tilted/rolled in without hitting cabinets
• Plan for door swing clearance so bins and drawers open fully
• Leave room for airflow so cooling stays efficient
• If you have an ice maker or water dispenser, allow space for the water line

Why it matters

A refrigerator that is even 1 inch too tall can prevent proper installation, restrict ventilation, and make door alignment harder. Verifying height to the hinge and required clearances helps avoid returns and cooling performance issues.

Last updated: February 2026

Top-mount refrigerators put the freezer on top and the fresh-food section below; the biggest disadvantages are less convenient access to everyday items, fewer organization options, and fewer built-in dispenser features compared with many bottom-mount designs like the Amana AFI2539ERM01. For model-specific features and care tips, use the AFI2539ERM01 owner's manual.

Common disadvantages of a top-mount refrigerator

• You bend more often: fresh food is lower, so you reach down for the items you use most.
• Less flexible storage: many top-mount units have fewer adjustable bins, drawers, and wide shelves.
• Fewer premium features: external water and ice dispensers are less common on top-mount models.
• Freezer crowding: the upper freezer can feel tight when storing bulky items.
• Temperature swings with frequent freezer use: opening the top freezer often can let warm air in, which can affect freezer performance.

Top-mount vs. bottom-mount: quick comparison

Feature	Top-mount fridge	Bottom-mount fridge (like AFI2539ERM01)
Fresh-food access	Lower, more bending	Higher, easier daily access
Freezer access	Eye level	Lower drawer style
Organization	Often simpler	Often more flexible
Dispenser options	Less common	More common on many models

If you are deciding based on daily use

We recommend thinking about what you access most:

• If you use fresh food more than frozen, bottom-mount layouts usually feel easier day to day.
• If you want a simpler, often lower-cost layout and do not mind bending, a top-mount can still be a solid choice.
• If you rely on ice and water, confirm whether the specific model includes a dispenser and filtration setup.

Why it matters

Layout affects comfort and food freshness. When fresh-food items are easier to reach and organize, you tend to keep doors open for less time, which helps temperature stability and efficiency.

Last updated: February 2026

If your Amana refrigerator model AFI2539ERM01 is failing, you will usually notice temperature problems first (food spoiling or freezer thawing), then symptoms like unusual noises, water leaks, heavy frost, or a hot cabinet. Use the AFI2539ERM01 owner's manual to confirm normal operation and control settings.

Common warning signs to watch for

• Food spoils too fast in the fresh food section (weak cooling)
• Freezer softens or thaws, or ice cream stays mushy
• Loud or new noises (buzzing, clicking, grinding, rattling)
• Water leaking under the refrigerator or inside the fresh food section
• Excess frost/ice buildup in the freezer (defrost or airflow issue)
• Doors not sealing (warm air intrusion, condensation)
• Back or side walls feel unusually hot for long periods

Quick checks we recommend before replacing parts

1. Confirm temperature settings; target 37°F fresh food and 0°F freezer.
2. Make sure vents are not blocked by food packages.
3. Check door closing and gasket contact all the way around.
4. Clean dust from the condenser area (restricted airflow raises temps).
5. Listen for the evaporator fan; if airflow is weak, follow how to fix your evaporator cooling fan.

Symptom-to-likely-cause guide

Symptom	Most common cause	What to do next
Warm fridge, freezer OK	Airflow/damper issue	Check for blocked vents; consider refrigerator damper control assembly WPW10196393 if the damper is stuck
Warm freezer and fridge	Sealed system or compressor issue	Verify condenser is clean; if still warm, professional service is typically needed
Clicking, no cooling	Start device/control or compressor struggling	Unplug 5 minutes, retry; if repeated, service is recommended
Water on floor	Drain restriction or water line issue	Inspect drain path; check supply line and fittings

Why it matters

Catching these signs early helps prevent food loss and can limit secondary damage (like water damage from leaks or strain on the compressor). It also helps you narrow the problem to airflow, defrost, water system, or controls before ordering parts.

Last updated: February 2026

Bottom-mount refrigerators are better for many households because the fresh-food section sits at eye and waist level, so you reach everyday items (milk, produce, leftovers) without bending. For the Amana AFI2539ERM01, this layout typically improves convenience and organization compared with top-freezer designs.

What “better” usually means with a bottom-mount design

• More ergonomic access to fresh food (less bending for daily items)
• Wider shelves and door storage in the refrigerator section for meal prep and beverages
• Drawer-style freezer helps keep frozen foods grouped and easier to sort
• Better visibility of fresh items, which can reduce forgotten food
• Good fit for cooks who use refrigerated ingredients more often than frozen

When a bottom-mount might not be the best choice

Bottom-mount is not automatically the best for every kitchen. Here are common tradeoffs:

• You may bend more for freezer access, especially for heavy items
• Freezer drawers can feel deeper and more “stacked” than a swing-door freezer
• Some kitchens need more clearance for the refrigerator doors and freezer drawer to open fully

Quick comparison: bottom-mount vs top-freezer

Feature	Bottom-mount refrigerator	Top-freezer refrigerator
Fresh-food access	Easier (at eye level)	Requires more bending
Freezer access	Lower drawer	Upper door
Organization style	Drawer bins, stacked zones	Shelves and door bins
Best for	Frequent fresh-food use	Frequent freezer use, simple layout

Why it matters

Most people open the refrigerator section far more often than the freezer. A bottom-mount layout puts the most-used space where it is easiest to reach, which improves day-to-day comfort and can help you keep food more organized.

Helpful next steps for your AFI2539ERM01

• Confirm door swing and drawer clearance using the AFI2539ERM01 owner's manual
• Set temperatures for best performance (typical targets: 37°F fresh food, 0°F freezer)
• Keep vents clear so the damper can move air properly; a sticking damper can affect temps (see refrigerator damper control assembly WPW10196393 if you are troubleshooting uneven cooling)

Last updated: February 2026

Most Amana refrigerators, including the Amana AFI2539ERM01 bottom-mount model, typically last 10 to 15 years with normal household use. Consistent cleaning, correct temperature settings, and keeping airflow clear help you reach the high end of that range; see the maintenance guidance in the AFI2539ERM01 owner's manual.

Typical lifespan and what affects it

A refrigerator’s life depends more on operating conditions and maintenance than brand name alone.

• Usage and door openings: frequent openings make the compressor run more
• Condenser cleanliness: dusty coils raise operating temperature and wear
• Ventilation: tight cabinets reduce heat removal
• Water and ice system care: clogged filters and low water flow strain components
• Door seal condition: air leaks cause longer run times and frost

What “end of life” usually looks like

These symptoms often show up as a refrigerator approaches the end of its service life:

• Food temperatures drift above safe ranges
• Compressor runs almost constantly
• Frost buildup returns quickly after defrosting
• Water leaks or recurring ice maker issues
• Unusual fan or compressor noise

Quick symptom guide

Symptom	Most common cause	First thing we check
Warm fresh food section	Airflow problem	Damper operation and vents
Frost on back wall	Defrost/airflow issue	Door seal and evaporator airflow
Poor ice production	Water supply restriction	Filter, line, inlet flow
Constant running	Heat removal problem	Condenser cleanliness and airflow

Maintenance that extends lifespan

These steps reduce run time and stress on major parts like the compressor.

• Set refrigerator to 37°F to 40°F and freezer to 0°F
• Vacuum dust from the condenser area every 6 to 12 months
• Keep interior vents unblocked (avoid packing items against vent towers)
• Replace the water filter on schedule; follow how to replace the water filter in an Amana refrigerator
• Inspect and clean door gaskets; use the steps in how to fix a fridge door seal

Why it matters

A refrigerator that runs hotter or longer than normal wears out expensive components faster (compressor, control boards, fans). Basic airflow and sealing checks often prevent “premature aging” and help you get the full 10 to 15 years.

Last updated: February 2026

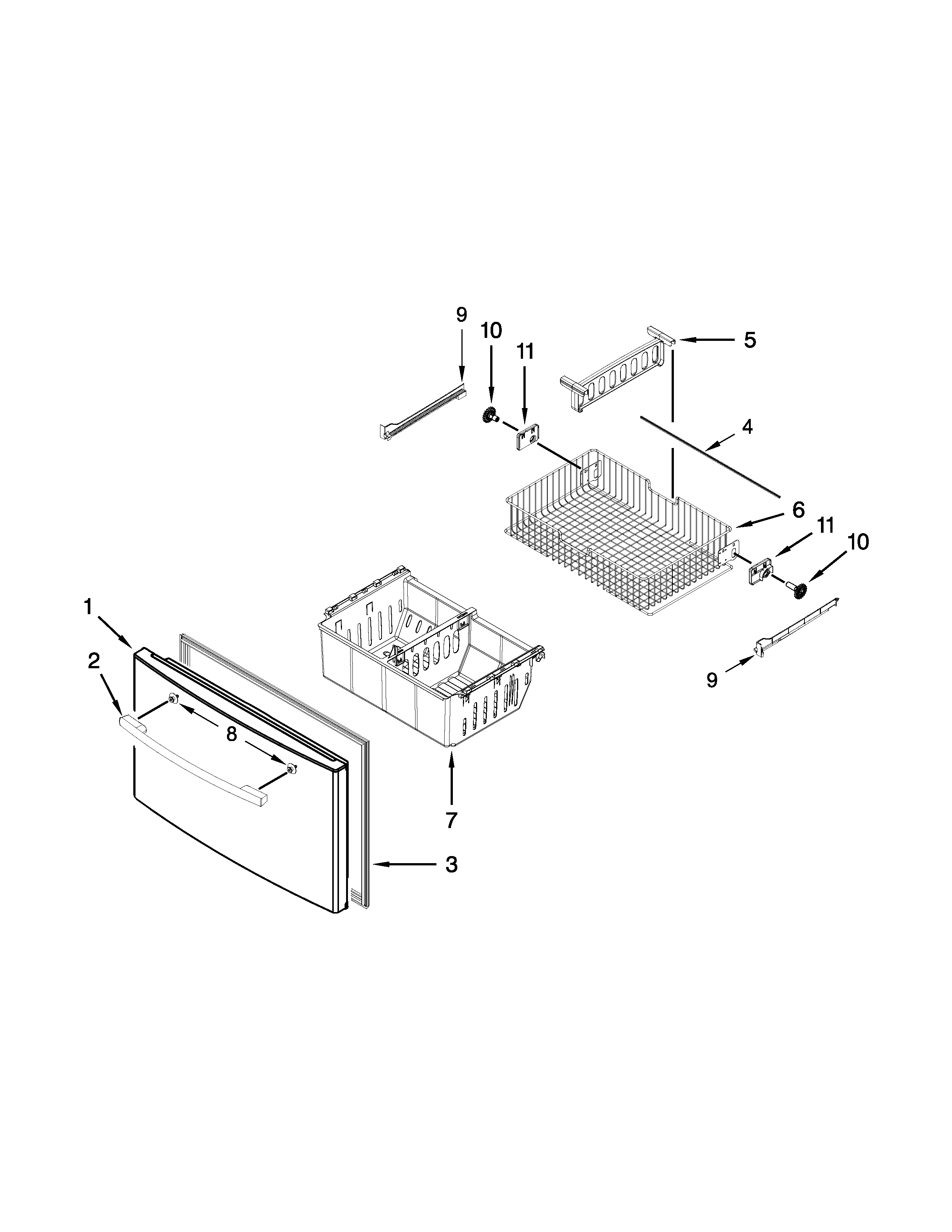

To realign the bottom freezer drawer on your Amana AFI2539ERM01, make small, even adjustments to the left and right drawer-front alignment screws, then close the drawer and recheck the gaps. Use the diagrams in the AFI2539ERM01 manual to identify the exact adjustment points on your drawer hardware.

Quick alignment steps (safe, typical method)

• Empty the freezer drawer while adjusting; food weight can hide a tilt.
• Pull the drawer open and look for the left and right adjustment screws on the drawer brackets (often behind the lower basket).
• Adjust one side at a time in small increments (about 1 to 2 turns), then recheck.
• If one side is low, turn that side’s screw counterclockwise to raise it (common on many bottom-mount designs).
• Close the drawer fully after each change; confirm it closes smoothly and sits level.
• Repeat until the left and right gaps look even and the drawer front is square.

What to check if the drawer still looks crooked

• Freezer slide rails are fully seated and moving evenly on both sides
• Drawer basket is installed correctly and not cocked on the rails
• Cabinet is level front-to-back and side-to-side (leveling legs/rollers)
• Door gasket is fully seated and not folded or torn (see refrigerator door gasket, left (gray) W10830055 if yours is damaged)

Alignment checklist

Symptom	Most common cause	What to do
One side gap larger	Drawer front needs leveling	Adjust the screw on the wide-gap side, then recheck
Drawer rubs or pops	Rails binding or drawer skewed	Verify rails and basket seating, then readjust
Frost near one corner	Gasket not sealing evenly	Warm/reshape gasket, confirm even contact

Why it matters

A square, level freezer drawer seals evenly, which prevents warm air leaks, reduces frost buildup, and helps the compressor maintain steady temperatures efficiently.

Last updated: February 2026
