Are Whirlpool washer parts interchangeable?
Whirlpool washer parts are sometimes interchangeable across similar designs, but we recommend matching parts to your exact model, LA5558XTW0, before you buy. Whirlpool used different drive systems, mounting styles, and electrical connectors over the years, so the “same-looking” part can still fit or function differently.
Parts interchangeability depends on the design family (direct-drive vs belt-drive), revision changes, and how the part interfaces with the washer’s transmission, motor, pump, or wiring.
Common examples where exact matching matters:
- Drive system parts: couplers, clutches, gearcase components
- Water handling parts: pumps, inlet valves, drain hose connections

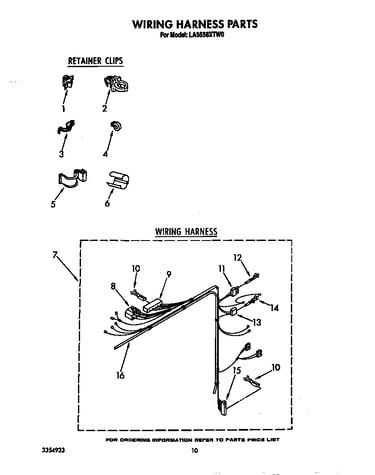

- Safety and control parts: lid switches, wiring harness connectors
- Mechanical fit: shaft diameters, splines, mounting holes
Use this checklist to avoid a wrong-fit replacement:
- Confirm the full model number is LA5558XTW0 (not a close variant)
- Compare the part’s mounting points and connector style to your original
- Match the part by the model’s parts list, not by appearance alone
- If your symptom is “won’t spin” or “won’t drain,” verify the failure first so you replace the right component
These are examples of model-matched parts customers often replace when symptoms point to them:
| Symptom | Common suspect part | Example model-matched part |
|---|---|---|
| Agitator won’t move properly | Agitator drive wear | Agitator dog 80040 |
| Won’t drain or drains slowly | Drain pump issue or blockage | Water pump WP3363394 |
| Won’t spin, loud grinding | Drive coupling wear | Coupling 285753A |
| Won’t start or stops when lid opens | Lid switch problem | Switch W10820036 |
Using a part that is not matched to LA5558XTW0 can cause poor performance (no spin, weak agitation, leaks), repeat failures, or damage to related components like the drive motor or gearcase.
If you’re troubleshooting symptoms before choosing a part, use troubleshooting a top load washer that wont drain or spin video to narrow down whether the pump, coupling, clutch, or switch is the most likely cause.
Last updated: February 2026
What is the most common problem with Whirlpool washers?
The most common Whirlpool washer problem is a no-drain or no-spin condition. On the Whirlpool LA5558XTW0 top-load washer, this is usually caused by a failed lid switch, a clogged or failing drain pump, or a worn drive system component such as the motor coupling.
- Make sure the lid closes fully and the lid strike lines up with the switch.
- Redistribute the load; a heavy, off-balance load can stop or slow spinning.
- Confirm the drain hose is not kinked and the standpipe is not backing up.
- Listen during drain: a steady hum with little water flow points to a pump or blockage.
- If the washer fills but will not agitate or spin, suspect the drive system.
| Symptom | What it usually means | Common fix for LA5558XTW0 |
|---|---|---|
| Won’t spin, won’t drain | Safety circuit not closing | Replace switch W10820036 |
| Won’t drain, water left in tub | Pump jammed or worn | Check/replace water pump WP3363394 |
| Motor runs but won’t agitate/spin | Drive connection slipping | Replace coupling 285753A |
| Spins weakly or slips under load | Worn clutch | Replace clutch 285785 |
A washer that cannot drain or spin leaves clothes soaking wet and can overheat the drive motor. Fixing the root cause early also prevents secondary damage to the transmission, basket drive, and suspension.
- You smell burning rubber or see smoke.
- The washer leaks heavily during drain.
- The tub will not spin by hand (with power unplugged) or makes grinding noises.
Last updated: February 2026
Where is the drain pump filter on a Whirlpool washer?
On the Whirlpool LA5558XTW0 top-load washer, there typically is not a user-accessible drain pump filter like you see on many front-load washers. If you have a drain or spin problem, we focus on checking the drain hose and inspecting the pump inlet for debris at the water pump WP3363394.
Many Whirlpool front-load washers have a small clean-out filter behind a lower access panel. The LA5558XTW0 is a direct-drive top-load design, so clogs are usually found in the pump inlet, pump housing, or drain hose rather than a twist-out filter.
- Drain hose at the standpipe or laundry tub (kinked, crushed, or blocked)
- Drain hose where it connects to the pump
- Pump inlet (coins, socks, lint, small items)
- Tub-to-pump hose (if equipped on your configuration)
- Standpipe itself (slow household drain can mimic a washer problem)
- Unplug the washer.
- Confirm the drain hose is not pushed too far down the standpipe (it can siphon or restrict flow).
- Run a drain/spin cycle and listen: a humming pump with little or no water flow points to a blockage.
| Symptom | Most likely cause | What we usually do |
|---|---|---|
| Hums but will not drain | Debris in pump or hose | Inspect pump inlet and hoses; replace pump if damaged |
| Drains slowly | Partial clog or restricted standpipe | Clear hose/standpipe; verify hose routing |
| Drains but will not spin | Lid switch or drive issue | Check lid switch function; then drive components |
If the washer will not drain or spin, our video guide troubleshooting a top load washer that wont drain or spin video walks through the most common checks in the right order.
Looking for a “filter” on a top-load direct-drive washer can waste time. On the LA5558XTW0, clearing the pump inlet and drain path restores draining faster and helps prevent pump damage and repeat clogs.
Last updated: February 2026
