Kenmore 79578306802 refrigerator Parts

For Kenmore model 79578306802, the most reliable way to get cubic feet is to look up the capacity in the specifications section of the 79578306802 owner's manual. Model numbers can hint at a series, but they do not consistently encode the exact cubic-foot capacity.

Fast ways to find the capacity

• Check the specifications pages in the 79578306802 owner's manual (often listed as “capacity” or “total volume”).
• Look for the model and serial label inside the fresh food compartment; many refrigerators list capacity on or near the rating information.
• If you are comparing similar Kenmore 795-series bottom-mount units, use the manual specs to confirm you are matching the same configuration (ice maker, dispenser, and interior layout can vary by version).

If you only have the model number

Kenmore model numbers are best for identifying the correct parts and documentation, not for calculating volume. For example, 795.7830_ in the manual indicates a model family, but the cubic feet still comes from the published specifications for that exact model.

What not to do

• Do not estimate cubic feet by exterior dimensions; insulation thickness and internal ducting (like multi-airflow channels) change usable space.
• Do not assume two “795” models have the same capacity; interior features and liner design can differ.

Why it matters

Cubic-foot capacity affects how you plan food storage, shelf/bin fit, and airflow clearance. It also helps when ordering organization parts such as a replacement refrigerator door deep bin 5005JJ2022A or confirming drawer and shelf layouts.

Quick reference table

Method	What you need	Accuracy
Manual specifications	Model number	High
Rating plate/label	Access to inside label	High
Exterior measurement estimate	Tape measure	Low

Last updated: February 2026

On Kenmore refrigerators like model 79578306802, dH typically indicates a defrost heating issue (often shown as Er dH). The refrigerator may stop responding to buttons until the underlying defrost or airflow problem is corrected; use the troubleshooting steps in the owner's manual.

What dH usually points to

A dH-related code is most often tied to the defrost system not warming the evaporator area as expected, or the unit not sensing the expected temperature change during defrost.

Common causes include:

• Heavy frost buildup restricting airflow between freezer and fresh food sections
• A failed defrost sensor or wiring connection
• A control problem that is not initiating or completing defrost
• Doors not sealing or closing fully, letting moist air in and creating excess frost

Quick checks we recommend first

Before replacing parts, do these basic checks (power off the refrigerator before inspecting internal components):

• Make sure both doors close completely and seal all the way around
• Confirm vents are not blocked by food packages (air must circulate between sections)
• Check for excessive frost on the freezer back wall (a strong clue of a defrost problem)
• Clean condenser coils if they are dusty (dirty coils can worsen cooling performance)
• Reset by unplugging for 5 minutes, then restore power and monitor for the code returning

Parts that commonly relate to dH symptoms

If the code returns after the checks above, these model-compatible parts are often involved in defrost and temperature sensing issues:

Symptom you notice	What it often indicates	Example part for this model
Frost buildup, warming temps	Defrost sensing problem	Refrigerator defrost sensor assembly 6615JB2005C
Temps swing, odd readings	Temperature sensor issue	Thermistor (match by diagram and location in the manual)
Buttons/display act up with errors	Control or communication issue	Refrigerator electronic control board EBR41531305

Why it matters

When defrost heat is not working correctly, frost can block airflow. That makes the freezer and refrigerator compartments warm up, increases run time, and can lead to water leaks as ice melts unevenly.

Last updated: February 2026

On Kenmore refrigerator model 79578306802, the drain pan (defrost pan) collects water during defrost; cleaning it means safely unplugging the refrigerator, emptying the pan, washing it with mild detergent and warm water, drying it completely, then reinstalling it so it can evaporate water normally. See the 79578306802 owner's manual for care and cleaning guidance.

Before you start (safety and access)

• Unplug the refrigerator or disconnect power before reaching near the compressor area.
• Remove the lower rear access panel if your setup uses one (some versions allow pan access from the back).
• Have towels ready; a small amount of water in the pan is normal.
• Use only mild detergent and warm water; avoid abrasive or harsh cleaners.
• Dry parts thoroughly before reinstalling.

Step-by-step: clean the drain pan

1. Unplug the refrigerator.
2. Locate the drain pan near the bottom of the cabinet (typically by the compressor and condenser area).
3. Slide the pan out carefully and pour water into a sink or bucket.
4. Wash the pan using a soft cloth or sponge with mild detergent in warm water.
5. Rinse and dry the pan completely.
6. Reinstall the pan fully seated, then restore power.

What to use (and what to avoid)

Item	Use it?	Why
Mild dish detergent + warm water	Yes	Cleans without damaging plastic surfaces
Soft sponge or cloth	Yes	Prevents scratches
Abrasive pads or powders	No	Can scratch and damage surfaces
Harsh cleaners or solvents	No	Can damage plastic and leave odors

Why it matters

A clean drain pan helps prevent odors and reduces the chance of residue buildup. Also, water in the defrost pan is normal during defrost cycles; in hot or humid conditions it can take longer to evaporate.

When cleaning is not enough

If you keep finding water under the refrigerator or heavy slime returns quickly, the defrost drain may be restricted. A common fix is clearing the drain path and checking the drain tube; the refrigerator drain tube 5251JA3003D is a listed replacement part for this model.

Last updated: February 2026

If your Kenmore 79578306802 bottom-mount refrigerator freezer is not freezing, the most common causes are blocked airflow (items covering vents), temperature controls not set correctly, or warm air leaking in through a door that is not sealing or closing fully. Start with airflow and control settings before testing parts.

Quick checks we recommend first

• Confirm the freezer control is set to 0°F (-18°C) and leave it unchanged for 24 hours to stabilize.
• Make sure air vents are not blocked by packages; cold air must circulate from the top of the freezer down and back up through the refrigerator.
• Check that the freezer drawer closes tightly and nothing is holding it open.
• Look for frost or ice crystals on food; frequent opening or a poor seal lets humid air in and reduces freezing performance.
• If the door is hard to open or “pops” back, clean sticky gaskets and the surfaces they touch.

Airflow and settings: what “normal” looks like

Your model uses a multi-flow air circulation pattern; when vents are blocked, the freezer can run warm even if the compressor is running.

What you notice	Likely cause	What to do next
Freezer warm, vents covered	Airflow blocked	Move items away from vents; recheck in 24 hours
Ice slow to form after changes	Temps not stabilized	Keep settings steady for 24 hours
Frost buildup on packages	Door not sealing or opened often	Reduce door openings; inspect gasket contact

When it points to a part problem

If airflow is clear, the door seals well, and temperatures still will not recover after 24 hours, a failed cooling component is likely.

Common part-related suspects include:

• Condenser fan not running (poor heat removal, weak cooling)
• Defrost system issue (ice buildup restricting airflow)
• Sealed system/compressor problem (no effective cooling)
• Control problem (not driving fans/defrost correctly)

Parts on this model that can be involved in these symptoms include the refrigerator condenser fan motor EAU61644105, refrigerator defrost sensor assembly 6615JB2005C, and refrigerator electronic control board EBR41531305.

Why it matters

A freezer that is even 5 to 10 degrees too warm can stop ice production and soften frozen food. Restoring airflow and a tight door seal often fixes “not freezing” complaints without replacing parts.

For control locations, recommended settings, and airflow diagrams, use the owner's manual.

Last updated: February 2026

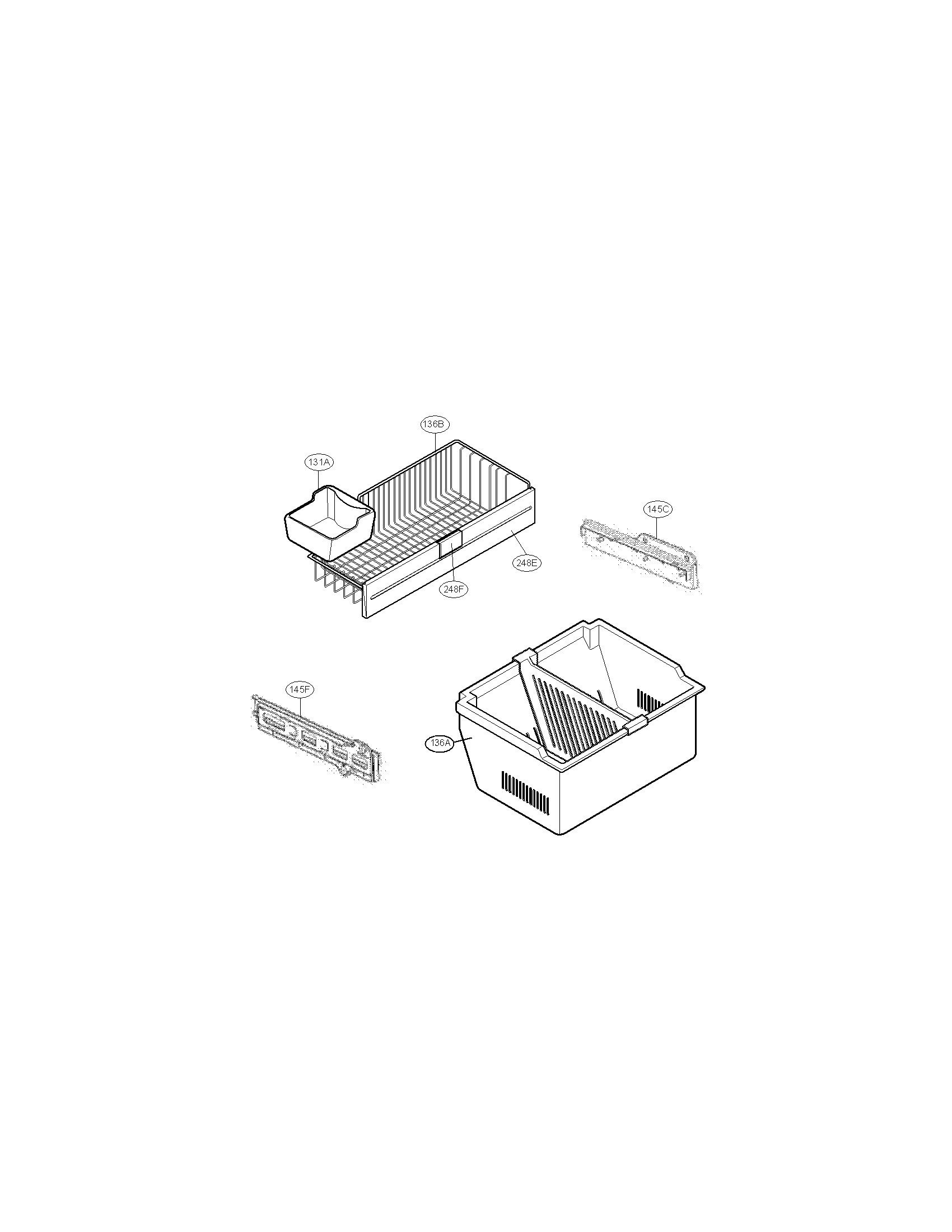

In a Kenmore bottom-mount refrigerator like model 79578306802, the “bottom compartment” usually refers to the freezer compartment (the lower drawer area). If you mean the lower bins inside the fresh-food section, those are typically crisper drawers used for produce; see the 79578306802 owner's manual for the exact compartment names.

Common names for “the bottom compartment”

Depending on what you’re pointing to, you’ll hear different terms:

• Freezer compartment: the bottom drawer section on a bottom-mount refrigerator
• Freezer drawer: the pull-out drawer that holds baskets and frozen food

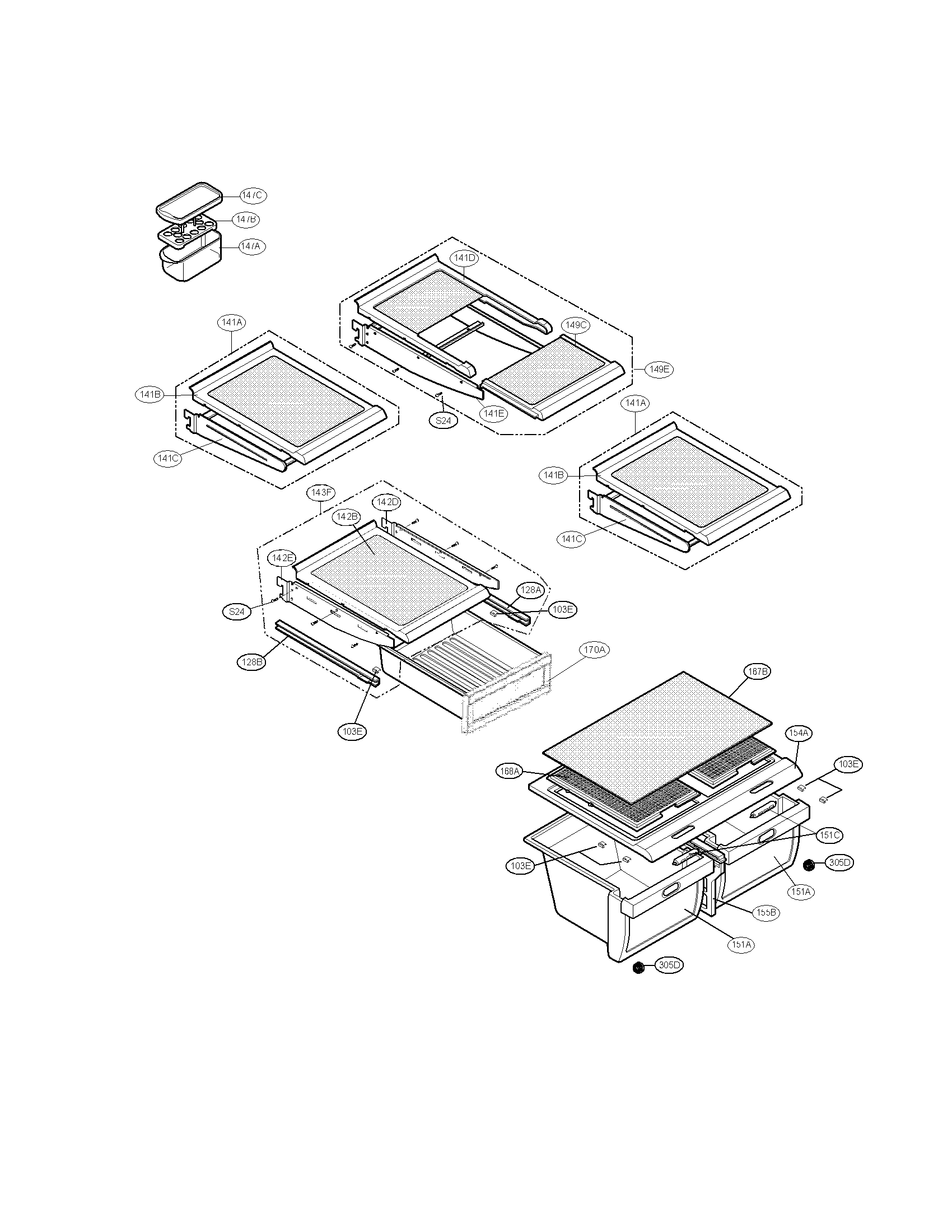

• Crisper drawer: the lower produce bin(s) inside the refrigerator section
• Pan or crisper pan: another common name for a crisper drawer
• Lower bin: a general term for any bottom storage bin

Quick identification guide

Use this to match the name to the location and purpose.

What you see	Most common name	What it’s for
Large pull-out drawer at the very bottom	Freezer drawer / freezer compartment	Frozen food storage
Bottom bins behind the refrigerator doors	Crisper drawer(s)	Produce humidity control
Bottom area behind a snap-on front panel	Base grille area	Airflow access and service clearance

Why the name matters (parts and troubleshooting)

Using the right term helps you find the correct diagram and replacement part for your Kenmore 79578306802.

• Door not closing or light staying on often points to a door switch like the lg refrigerator door switch 6600JB1010A
• Water pooling can relate to a clogged drain system and may involve the refrigerator drain tube 5251JA3003D
• Warm temperatures can be caused by blocked vents; the manual notes airflow must circulate between sections

Tips when describing the compartment

• If it’s below the doors and pulls out, call it the freezer drawer.
• If it’s inside the refrigerator section at the bottom, call it a crisper drawer.
• If you’re removing the front panel near the floor, that’s the base grille area (use care around moving parts and wiring).

Last updated: February 2026
