How big is the Whirlpool model ED5FVGXWS05?
The Whirlpool ED5FVGXWS05 is a full-size side-by-side refrigerator. Most Whirlpool side-by-sides in this series are about 35 1/2 inches wide, around 70 inches tall, and about 33 to 35 inches deep (depth varies depending on whether you include handles). For the exact dimensions and capacity for ED5FVGXWS05, use the ED5FVGXWS05 owner's manual.
When you are measuring a cutout or planning a move, these are the ranges that fit most side-by-side units like ED5FVGXWS05:
- Width: 35 to 36 inches
- Height: 69 to 71 inches
- Depth (cabinet only): 29 to 32 inches
- Depth (with doors/handles): 33 to 35 inches
- Recommended clearance: 1 inch top, 1 inch back, 1/8 to 1/4 inch each side (adjust as needed for door swing)
Use a tape measure and record all three depths so you do not get surprised at install time:
- Measure width at the widest point (often the hinge side trim)
- Measure height from floor to top hinge cover area
- Measure depth three ways: cabinet only, to door front, and to handle front
- Confirm door swing clearance for drawers and crisper access
- Check water line space behind the unit if you have an ice maker/water dispenser
| What you’re planning | Measurement that matters most | What to watch for |
|---|---|---|
| Fitting in a cabinet opening | Width and height | Hinge-side clearance and trim width |
| Walking through doorways | Width and depth | Handles and doors can add inches |
| Flush look with counters | Depth | Handles and door thickness prevent true flush fit |
Accurate dimensions help prevent delivery day problems, protect flooring and cabinets, and ensure proper airflow for cooling performance. It also helps you plan for the water supply line if your ED5FVGXWS05 uses a dispenser or ice maker.
Last updated: February 2026
What is the most common problem with Whirlpool refrigerators?
The most common Whirlpool refrigerator problem is poor cooling, usually caused by restricted airflow (dirty condenser coils) or frost buildup from a defrost issue. On the Whirlpool ED5FVGXWS05 side-by-side, cooling complaints often show up as warm fresh food, soft ice, or temperature swings; start with basic airflow and defrost checks in the ED5FVGXWS05 owner's manual.
- Refrigerator warm, freezer OK: airflow problem between compartments, evaporator fan issue, or frost blocking the evaporator.
- Freezer warm, refrigerator warm: dirty condenser coils, condenser fan problem, or sealed system/compressor start issue.
- Ice maker not making ice: water supply restriction, frozen fill tube, or a failed ice maker.
- Water under the fridge: clogged/iced defrost drain or a leaking water line/valve.
- Door not closing or sweating around the door: gasket not sealing or door alignment/hinge wear.
- Clean condenser coils (unplug first). Poor heat release is a top cause of weak cooling.
- Confirm airflow: vents inside must be clear; avoid packing items tight against air returns.
- Listen for fans: you should typically hear an evaporator fan in the freezer and a condenser fan near the compressor area.
- Check for frost buildup on the freezer back wall; heavy frost points to a defrost problem.
- Verify temperatures: target about 0°F in the freezer and 37°F in the refrigerator.
| Problem area | Common culprit | Example part for this model |
|---|---|---|
| Water leaks or no ice/water | Water inlet not opening/closing correctly | Refrigerator water inlet valve W10408179 |
| Frost buildup, warm temps | Defrost system not stopping ice buildup | Refrigerator defrost heater WP2323198 and refrigerator defrost bi-metal thermostat WPW10225581 |
| Temperature control complaints | Control not regulating correctly | Refrigerator thermostat WP2198202 |

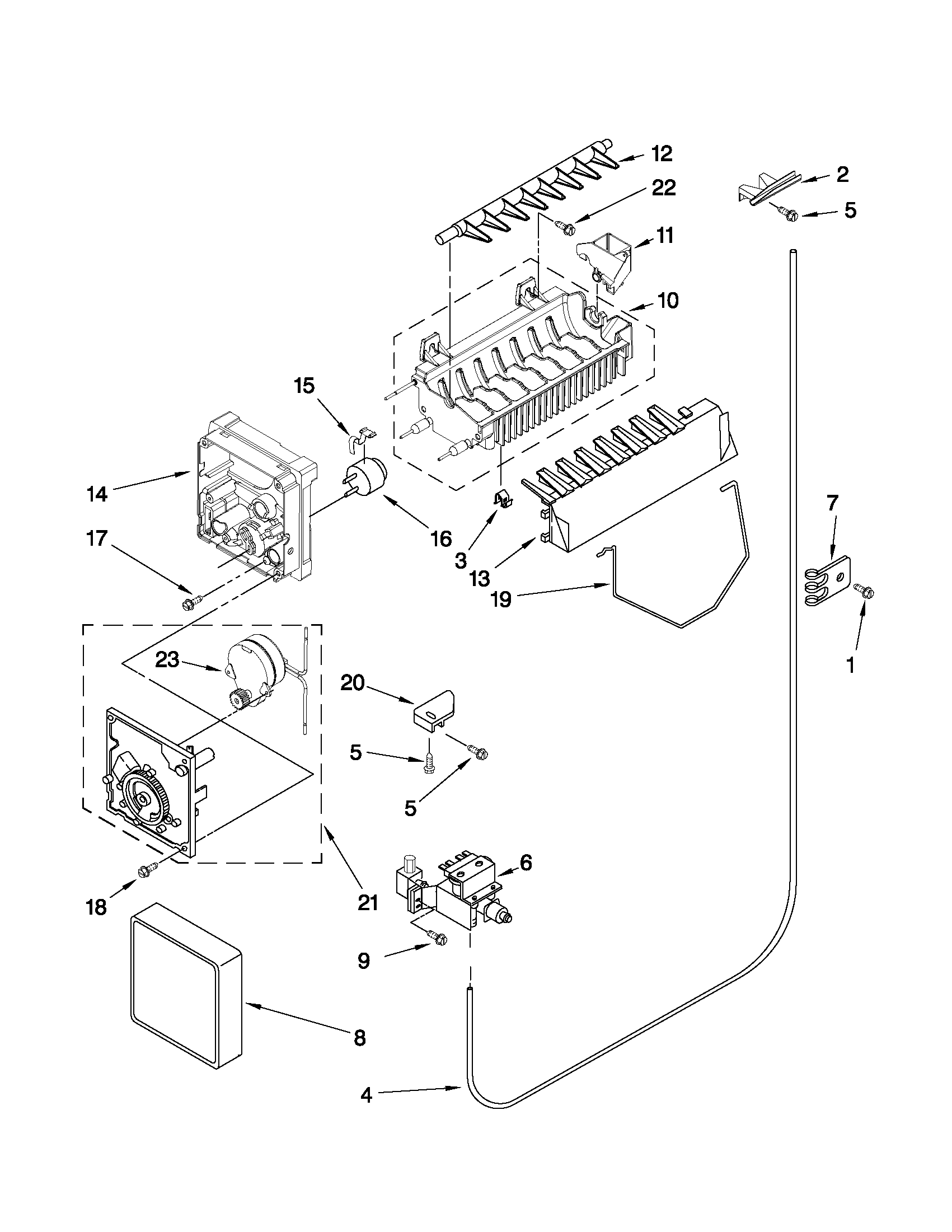

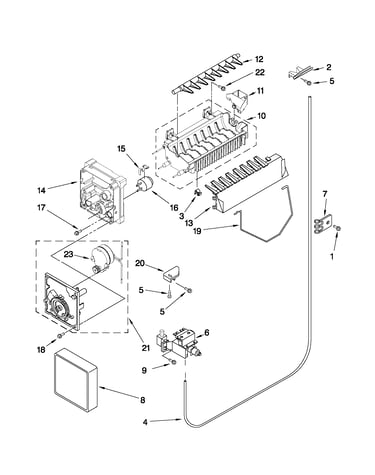

| No ice production | Ice maker failure | Refrigerator ice maker WPW10190965 |
Cooling and defrost problems tend to cascade: restricted airflow makes the compressor run longer, temperatures drift, ice production drops, and moisture can turn into leaks. Fixing the root cause early helps protect food quality and reduces wear on major components.
Last updated: February 2026
What's the average lifespan of a Whirlpool refrigerator?
Most Whirlpool refrigerators last 10 to 18 years on average. For a Whirlpool side-by-side like model ED5FVGXWS05, lifespan depends most on airflow, clean condenser coils, stable temperatures, and keeping the sealed system and ice and water components from being overworked; our maintenance steps below help you reach the high end of that range.
| Refrigerator type | Typical lifespan | What usually ends life first |
|---|---|---|
| Side-by-side (like ED5FVGXWS05) | 10 to 18 years | Compressor wear, defrost failures, airflow issues |
| Top-freezer | 12 to 20 years | Thermostat/control issues, door seal leaks |
| French door | 9 to 17 years | Ice maker and dispenser wear, control issues |
We recommend these habits because they reduce compressor run time and prevent frost and airflow problems.
- Vacuum and brush the condenser coil area regularly (more often with pets).
- Keep door gaskets clean and sealing; fix gaps quickly.
- Set stable temps (about 37°F fresh food, 0°F freezer) and avoid frequent changes.
- Leave ventilation space around the cabinet; avoid blocking vents inside.
- Replace the water filter on schedule to protect the valve and improve flow.
- Level the refrigerator so doors close fully and don’t hang open.
These parts do not set the lifespan by themselves, but when they fail they can cause warm temps, leaks, or heavy run time.
- Water filtration: refrigerator water filter EDR3RXD1
- Water supply control: refrigerator water inlet valve W10408179
- Defrost protection: refrigerator defrost bi-metal thermostat WPW10225581
A refrigerator that runs longer than necessary (dirty coils, air leaks, restricted water flow) wears the compressor faster and can create temperature swings that spoil food. Preventive care is usually cheaper than major cooling repairs.
For ED5FVGXWS05, use the maintenance and care schedule in the ED5FVGXWS05 owner's manual to match your exact configuration (filter location, temperature control style, and cleaning access points).
