Craftsman 917276820 tractor Parts

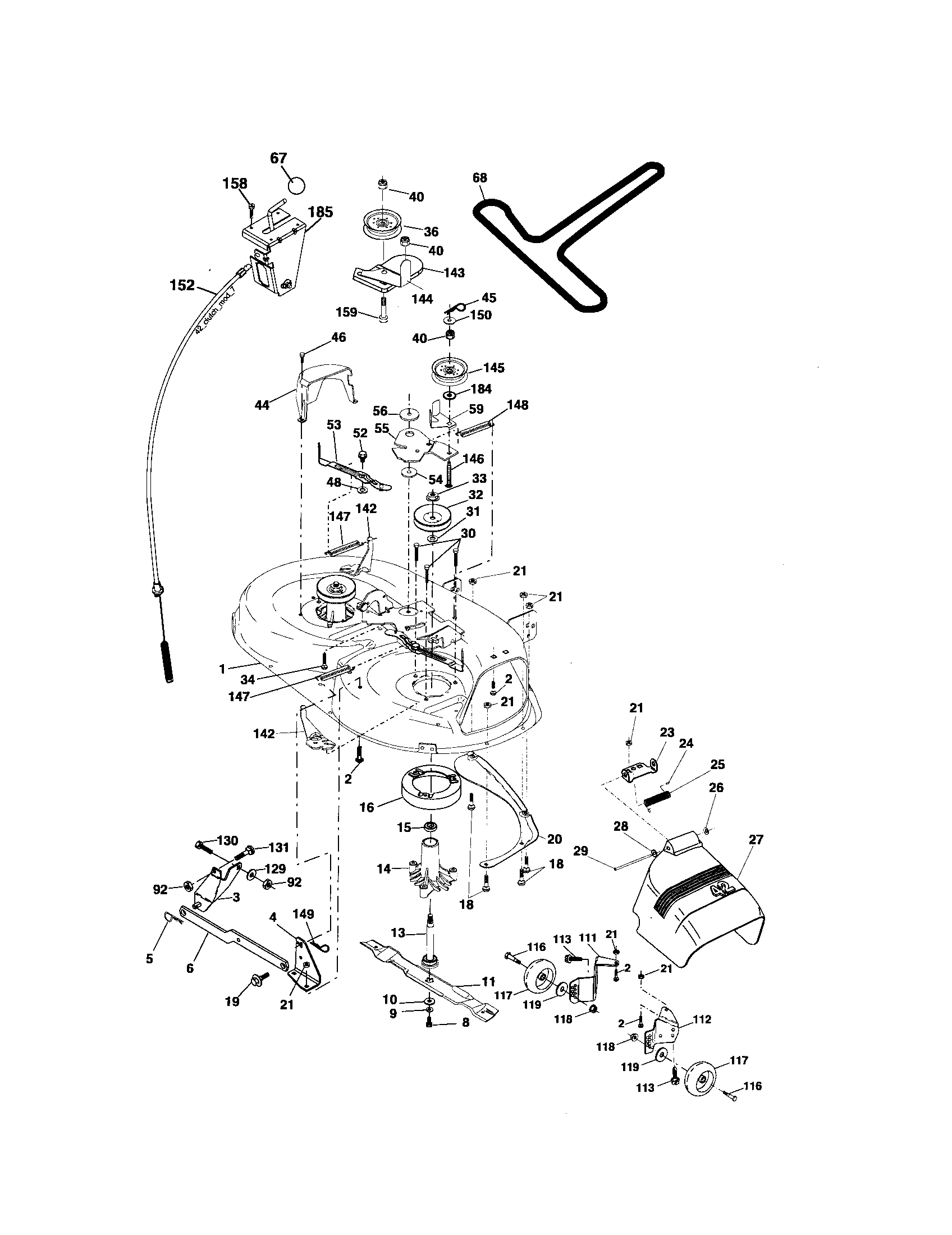

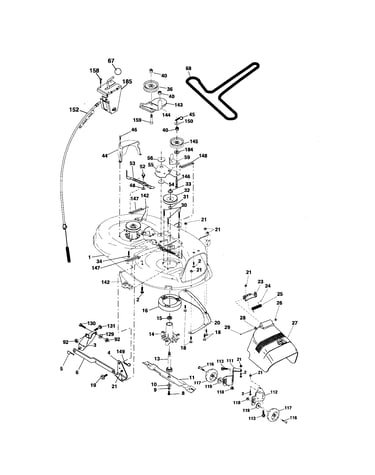

No. Craftsman mower blades are not all the same; the correct blade depends on your exact tractor model, deck setup, and the mandrel (spindle) mounting pattern. On Craftsman model 917276820, the blade’s center hole must align with the star on the mandrel assembly (see the 917276820 owner's manual).

What must match for a blade to fit

We match the blade to the tractor and deck, not just the Craftsman brand name:

• Deck size (this tractor uses a 42-inch mower deck)
• Center hole pattern (this model uses a star alignment on the mandrel)
• Blade type (mulching vs high-lift)
• Blade length and width (must match the original blade, not the deck width)
• Hardware stack-up (blade bolt, lock washer, flat washer)

Blade styles you may choose (if they fit)

Different blade styles can fit the same mandrel pattern but cut and discharge differently.

Blade style	Best for	Typical result
Mulching blade	Recycling clippings	Finer clippings, less discharge
High-lift blade	Bagging and strong discharge	More airflow and throw

For this model, examples of blade listings include the husqvarna lawn tractor mulching blade, 21-in 532134149 and the lawn tractor 42-in deck high-lift blade 532138971. The “42-in deck” wording refers to deck compatibility; always confirm the actual blade length and mounting pattern match your original blade.

Why it matters

A blade that does not match the correct length or star mounting pattern can cause poor cut quality, excess vibration, and damage to the deck or mandrel. The manual also warns to use a manufacturer-approved replacement blade for safe operation.

Quick install and safety checks

Follow the manual’s blade handling and installation guidance:

• Wear gloves; mower blades are sharp
• Raise the mower to the highest position for access
• Install with the trailing edge up toward the deck
• Verify the center hole aligns with the star on the mandrel
• Tighten the blade bolt securely (the manual specifies 27 to 35 ft-lb)

Last updated: February 2026

The most reliable way to tell the age of your Craftsman lawn tractor model 917276820 is to use the purchase date (receipt) or the date codes found on major components (especially the engine). Your 917276820 owner's manual helps you locate identification labels and keep records for service.

What to check first (fastest ways)

• Look up the purchase date on your receipt, invoice, or warranty paperwork.
• Find the tractor’s model and product/serial label (often under the seat or on the frame).
• Check the engine data plate (engine model, type, and code); the code commonly includes a build date.
• Compare dates across components; the newest date is usually closest to the tractor’s assembly date.
• Record the numbers for future parts matching and maintenance.

Where to find ID labels on a front-engine tractor

On Craftsman tractors like 917276820, identification labels are commonly found in these areas:

• Under the seat on the fender pan/seat deck
• On the frame rail near the engine compartment
• Near the rear axle area
• Near the footrest area

How date information is usually formatted

Different suppliers use different formats, so we use the code that is actually printed on your tractor or engine.

What you find	What it tells you	How we use it
Receipt date	In-service date	Best for true “age” in years
Engine code/date	Engine build date	Best estimate of tractor build timeframe
Tractor serial/product number	Production run identifier	Helps match parts and revisions

Why it matters

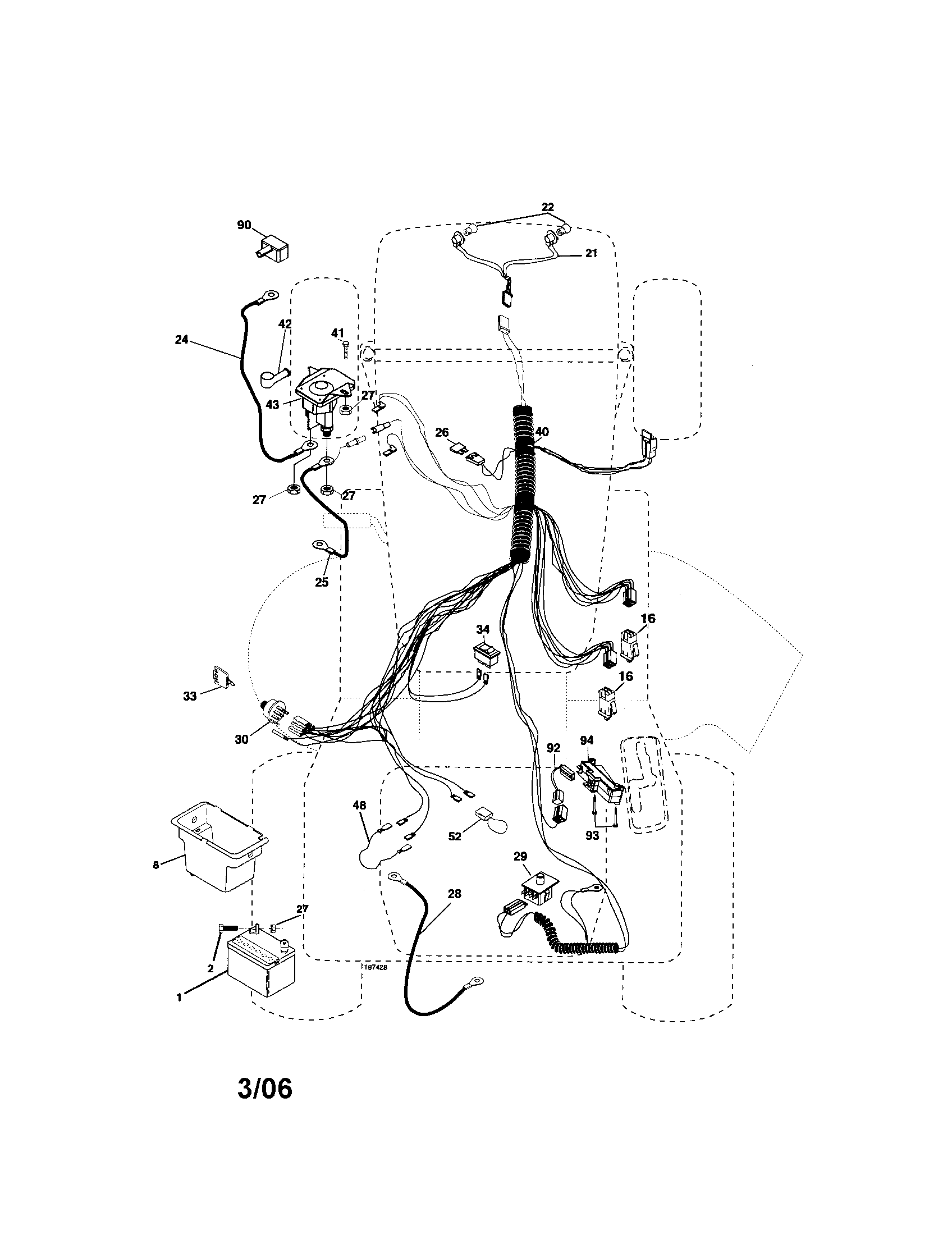

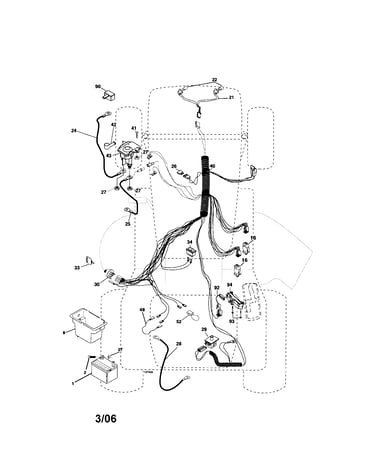

Knowing the correct build timeframe helps us match the right Craftsman parts and avoid fit issues when designs change mid-production (for example, belts, blades, or electrical components like a lawn tractor starter solenoid 582042802).

Last updated: February 2026

Yes, replacing the engine on your Craftsman lawn tractor model 917276820 is worth it when the tractor chassis, mower deck, and drive system are still solid and the total engine swap cost stays well below the cost of a comparable replacement tractor. If multiple major systems are worn out, replacement is the better value.

Quick decision checklist

• The mower deck housing is not cracked or severely rusted
• Steering and front axle feel tight (no excessive play)
• Transmission drives smoothly (no slipping, no loud whining)

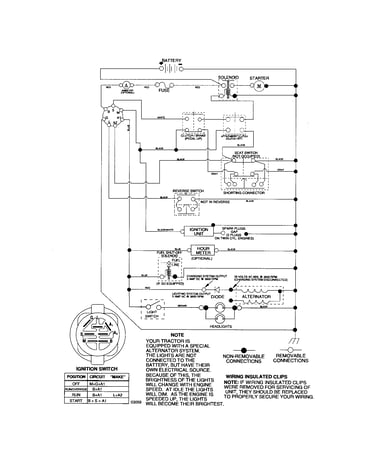

• Electrical system is in decent shape (key switch, wiring, safety switches)
• You can do basic mechanical work or have a shop that will install the engine
• The engine replacement cost is under about 50% of a similar new tractor

Cost and effort: what you are really comparing

Engine swaps are usually justified when you are buying years of additional service from a good platform.

Option	Best when	Typical downside
Replace engine (complete)	Deck and drivetrain are strong	Highest parts cost, still some labor
Short block swap	Top end is damaged but accessories are reusable	More teardown, more precision work
Buy a new tractor	Deck, belts, steering, and wiring are tired	Higher upfront cost, setup time

Before you spend money: inspect the tractor first

Use your 917276820 owner’s manual to review safety checks and service guidance, then do these practical inspections:

• Deck and blades: blades must be sharp and not bent; replace damaged blades (blade bolts tighten to 27 to 35 ft-lbs per the manual)
• Vibration: excessive vibration often points to a worn or bent blade or a bent mandrel
• Belts and pulleys: look for glazing, cracking, or fraying; a worn drive belt can mimic “engine weakness”
• Safety interlocks: seat switch and reverse operation system behavior should match the manual; misadjusted switches can cause stalling or no-start symptoms

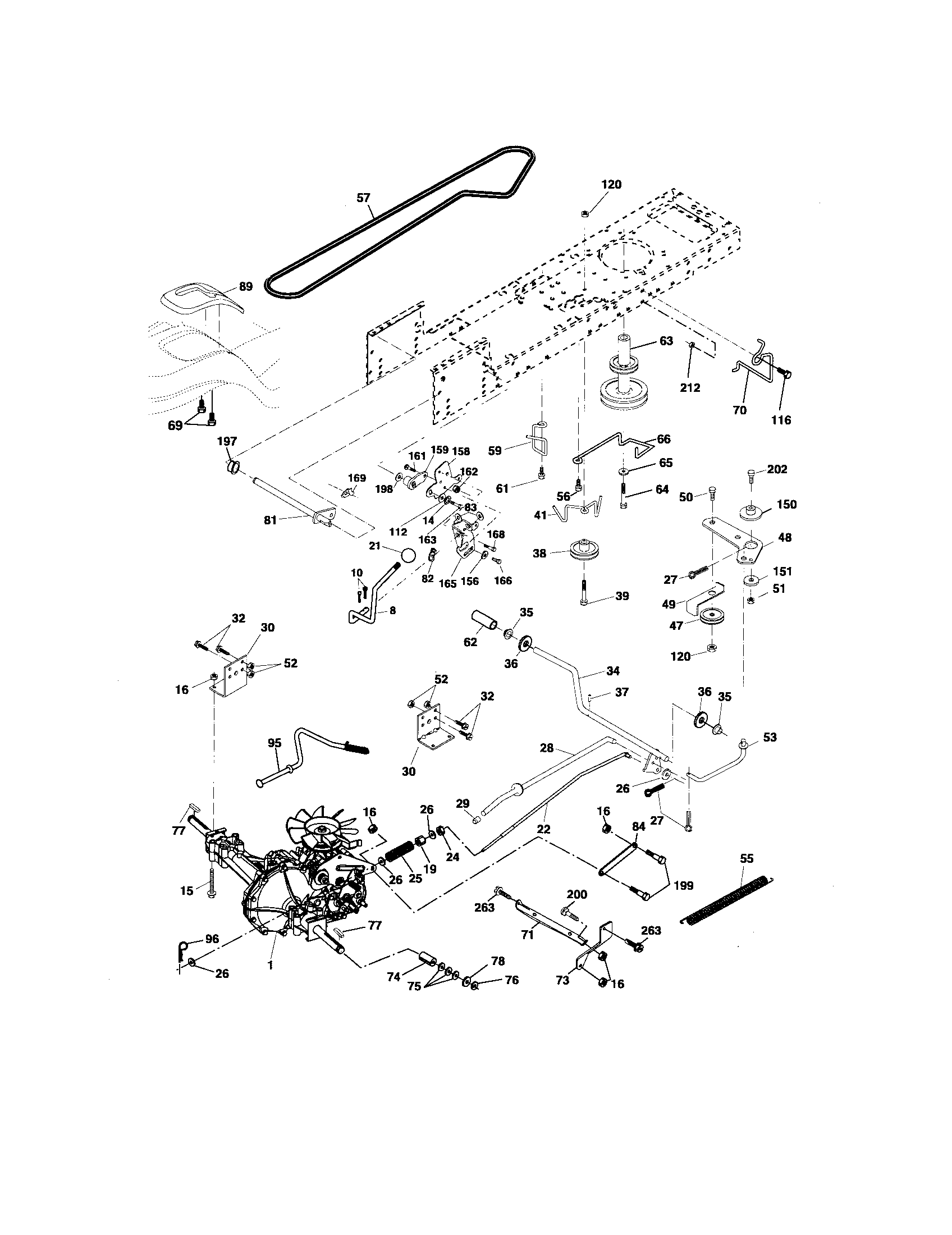

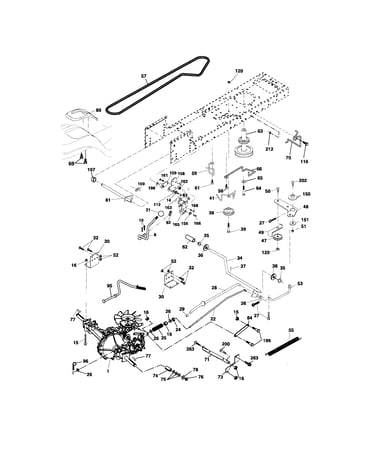

If you already need a major belt replacement, factor that into the decision; for example, the lawn tractor ground drive belt, 1/2 x 82-in 532140294 is a common wear item.

Why it matters

An engine is the single biggest repair on a riding mower. When the deck, mandrels, and drivetrain are healthy, an engine replacement restores reliability and avoids replacing a machine that is otherwise serviceable.

Last updated: February 2026

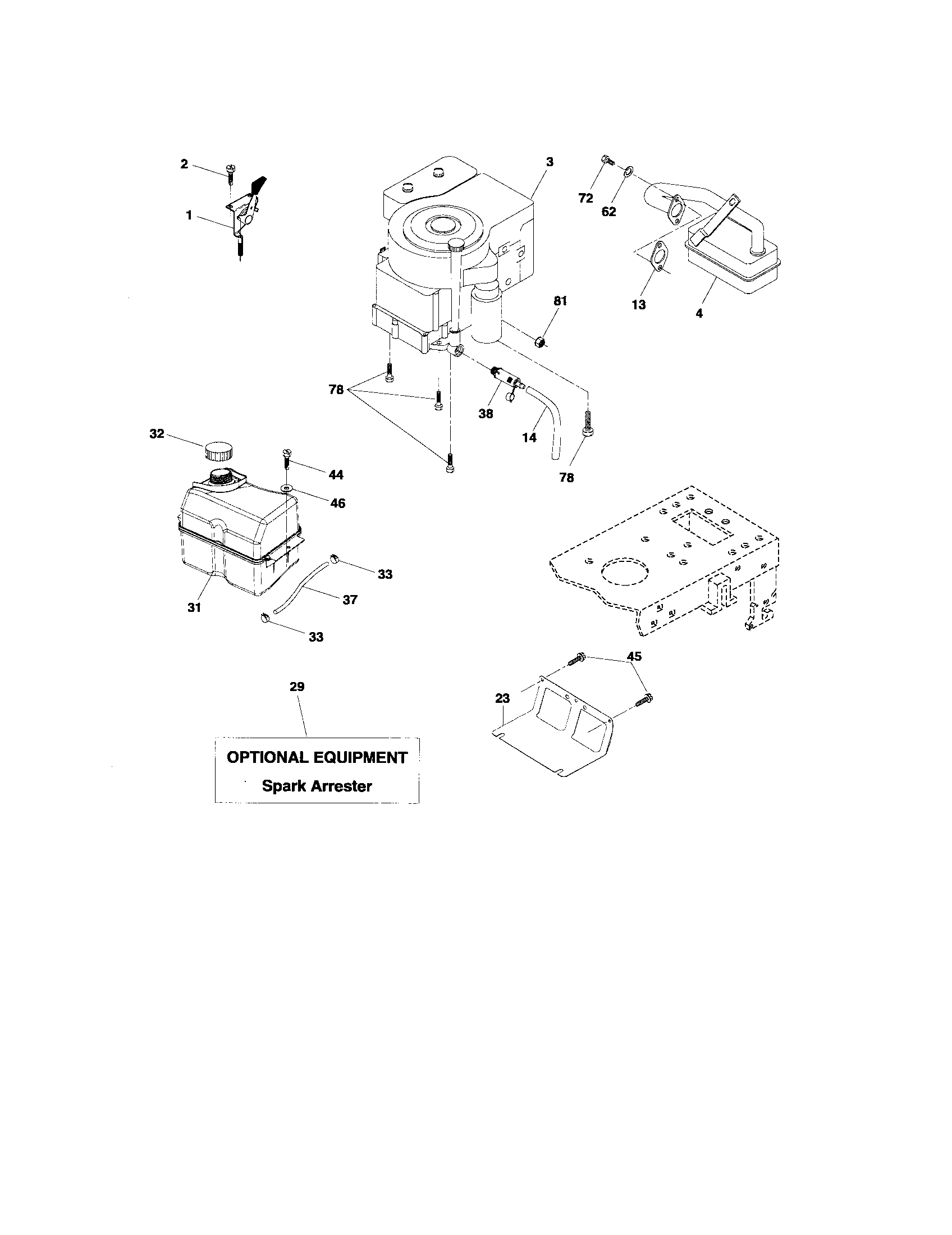

The Craftsman lawn tractor model 917276820 uses a low-emission gasoline engine and, per the operator documentation for this model, it is a 20.0 HP front-engine tractor with electric start and an automatic transmission. For operating and maintenance details, use the 917276820 owner's manual.

What we can confirm for model 917276820

From the model-specific operator manual, this tractor is identified as:

• 20.0 HP lawn tractor
• 42-inch mower deck
• Electric start
• Automatic transmission
• Low-emission engine (operates differently than some older designs)

What “what engine” usually means (and how to identify yours)

On riding mowers, “engine” can mean the horsepower rating, the engine brand, or the engine model/type (single-cylinder vs. V-twin). For 917276820, the manual confirms the horsepower and emissions type; the quickest way to confirm the exact engine make and model is to check the engine ID label.

• Look for the engine label on the blower housing, valve cover, or near the starter
• Record the engine model, type, and code (or spec number)
• Match those numbers when ordering engine-specific parts (air filter, spark plug, carburetor parts)

Quick reference: what you’ll see on the tractor

Item	What to look for	Why it helps
Engine ID label	Model/type/code	Identifies the exact engine family
Tractor model tag	917276820	Confirms the correct parts diagrams
Deck size	42-inch	Helps match blades, belts, and mandrel parts

Why it matters

The correct engine identification prevents wrong-part returns and speeds up repairs, especially for tune-up items and starting problems. If the engine cranks slowly or only clicks, we recommend following the steps in riding lawn mower engine clicks but doesnt turn over video.

Last updated: February 2026

For this Craftsman riding mower, the model number is 917276820. On most Craftsman riding mowers, you can confirm the model by locating the product identification label, then matching the full model number exactly as shown in the 917276820 owner's manual.

Where to find the model number on the tractor

Check these common label locations first (clean off grass and dirt so the print is readable):

• Under the seat (often on the underside of the seat pan or on the fender area beneath the seat)
• On the frame near the rear wheels
• Near the engine compartment or hood area
• On the left or right side of the chassis rail

What the model number should look like

For Craftsman tractors, the model number is typically a 9-digit number (often shown with a dot in printed manuals, like 917.276820). Use the digits without the dot when searching parts.

Where you see it	Example format	What to enter for parts lookup
Operator's manual cover	917.276820	917276820
Product ID label on tractor	917276820	917276820

Tips to avoid ordering the wrong parts

Parts like blades, belts, and mandrel components can vary by deck and configuration, so matching the model number exactly matters.

• Write down the full model number exactly as printed
• If the label is worn, take a clear photo and zoom in
• Match the deck size listed in the manual (this model is a 42-inch mower deck)
• Use the model number before choosing common wear parts like a blade or ground drive belt

Example parts that depend on the correct model

• Lawn tractor ground drive belt, 1/2 x 82-in 532140294
• Lawn tractor 42-in deck high-lift blade 532138971

Why it matters

The model number ties your tractor to the correct parts diagrams and specifications (engine, 42-inch mower deck, and transmission setup). Using the exact model number prevents fit issues and repeat repairs.

Last updated: February 2026
