Craftsman 917275760 lawn tractor Parts

For the Craftsman lawn tractor model 917275760, use SAE 30 4-cycle engine oil when temperatures are above 32°F, and SAE 5W-30 when temperatures are below 32°F. This matches the oil viscosity guidance in the 917275760 owner's manual.

The manual lists both the oil viscosity and the fill amount; use the chart below as a quick reference.

Always work on a level surface and let the engine cool.

• Park the tractor, set the parking brake, and remove the key
• Check the oil level with the dipstick before draining
• Drain oil into an approved container (warm oil drains faster, but avoid hot surfaces)
• Refill slowly, then recheck the dipstick and top off to the full mark
• Run the engine briefly, shut it off, and recheck the level

If you want a cleaner drain with less mess, many owners use an oil drain tube such as the husqvarna lawn tractor oil drain tube 532148456 (compatible options vary by configuration).

Using the correct viscosity helps your 4-cycle engine lubricate properly in your local temperatures. Too thick in cold weather can make starting harder; too thin in hot weather can increase wear.

For a step-by-step walkthrough, see how to change the oil in a riding lawn mower video.

Last updated: January 2026

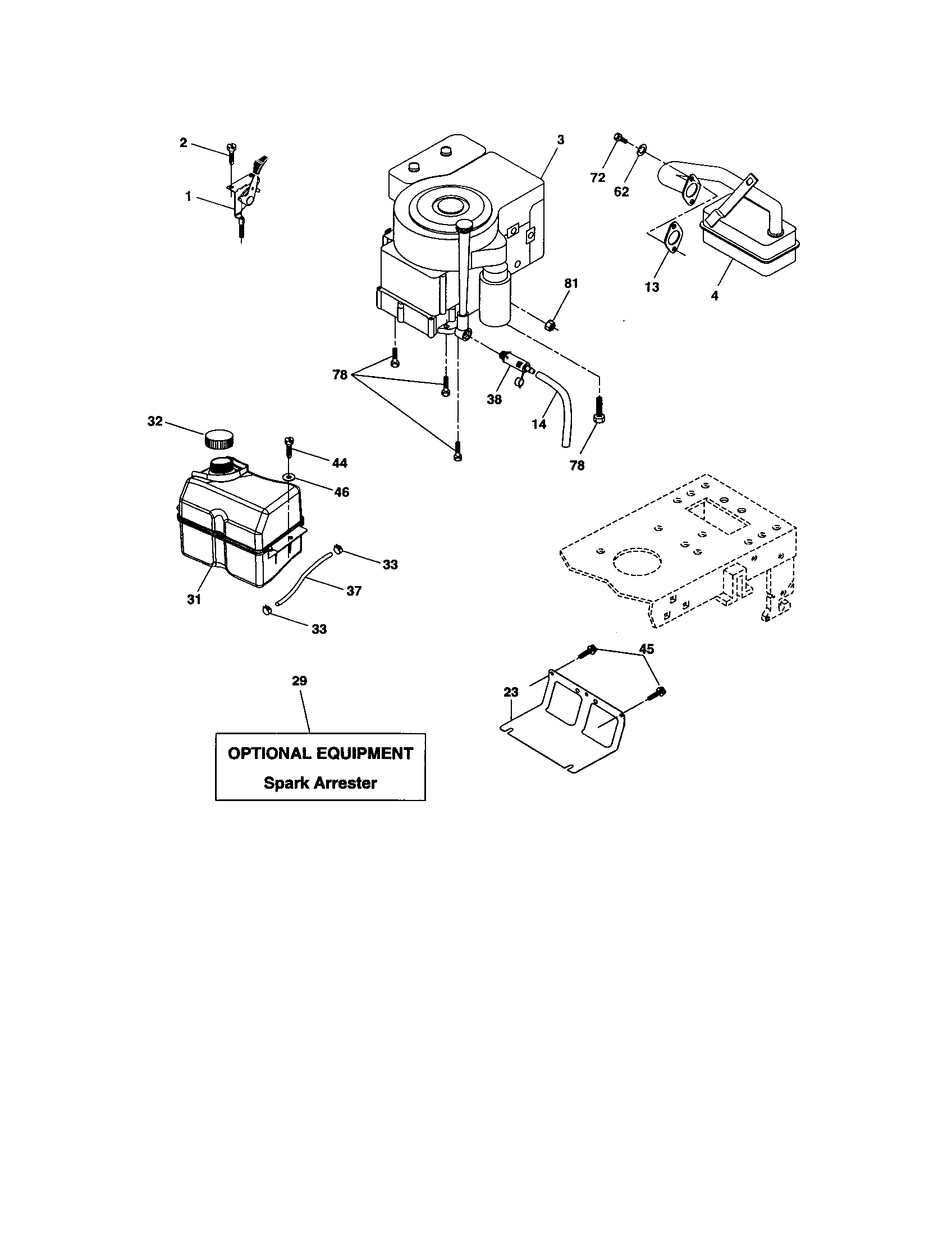

For Craftsman lawn tractor model 917275760, the owner’s manual identifies it as an 18.5 HP riding lawn tractor with a low-emission internal combustion engine. The manual does not specify the engine manufacturer (such as Briggs & Stratton) or the exact engine model; those details vary by production run and engine tag.

Use the engine’s ID label (usually on the blower housing, valve cover, or near the muffler) and match it to parts and service info.

• Look for engine model, type, and code numbers on the engine label
• Record the numbers exactly before ordering parts
• Check for a separate tractor product ID tag under the seat or on the frame
• Use the manual’s maintenance specs (oil type, spark plug type) as a cross-check
• If the label is missing, compare the engine’s physical features (air filter style, carburetor layout)

For operating and maintenance specs tied to this tractor, use the 917275760 owner’s manual.

Here are key engine-related specs listed for 917275760:

The engine brand and model determine the correct tune-up parts (air filter, fuel filter, starter parts) and the right service procedures. Using the tractor model number alone can point you to chassis and deck parts, but the engine tag is what locks in engine-specific parts.

Last updated: January 2026

Yes, replacing the engine can be worth it on Craftsman lawn tractor model 917275760 when the tractor’s deck, drive system, and steering are in good condition and the total engine-swap cost stays well below the cost of replacing the tractor. Use the 917275760 owner’s manual to confirm maintenance condition and basic checks before you commit.

• Compare total engine-swap cost (engine, mounts, fluids, labor) to the cost of a comparable replacement tractor.

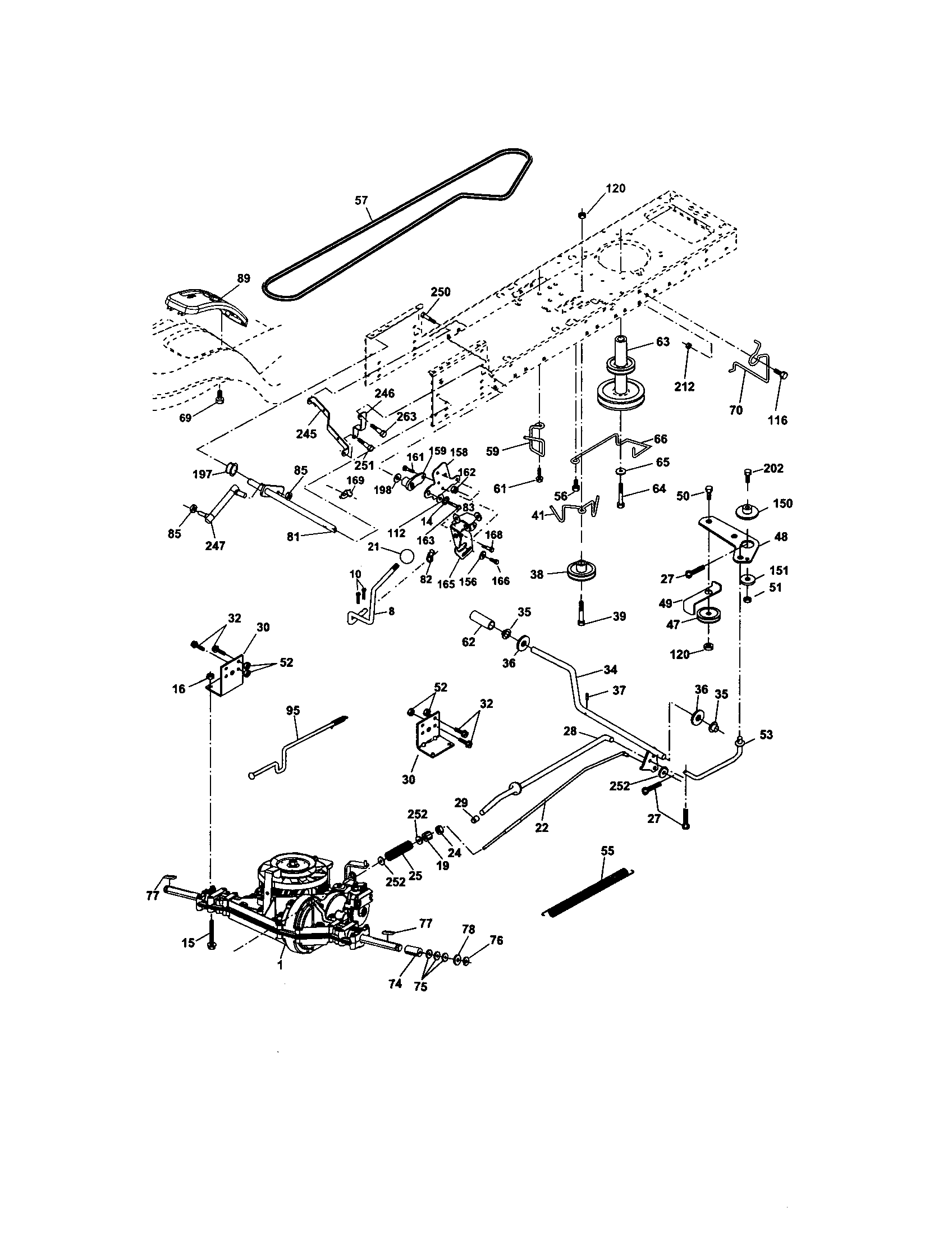

• Verify the tractor still moves properly: no slipping, loss of drive, or abnormal noises.
• Inspect the mower deck for structural issues: cracks, heavy rust-through, or bent components.
• Check for excessive deck vibration (often tied to blades, mandrels/spindles, or pulleys).
• Confirm routine maintenance has been kept up (oil changes, air filter, spark plug).

The 917275760 owner’s manual identifies this tractor as an 18.5 HP, 42-inch deck model and includes a troubleshooting section plus maintenance schedules. It does not list “common failure patterns,” so we base the decision on the tractor’s current condition and repair economics rather than assuming typical weak points.

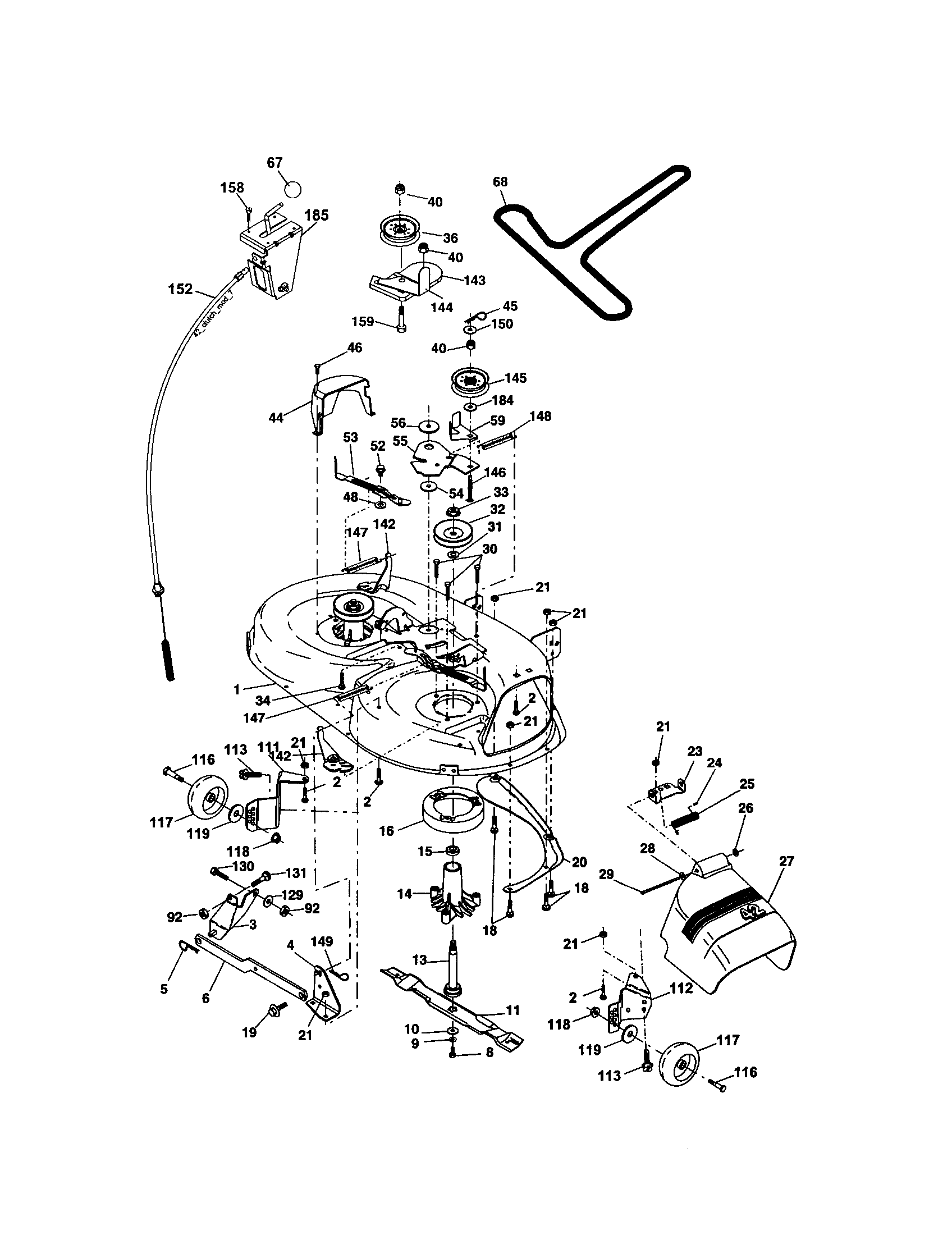

If your issue is poor cutting or vibration (not a seized engine), inspect the deck drive first. A worn blade-drive belt can mimic engine power problems; the lawn tractor v-belt 532144959 is one compatible blade drive belt used on this model.

We recommend replacing the tractor instead of the engine when the engine swap total is more than 50% of the cost of a comparable replacement tractor.

An engine replacement is one of the highest-cost repairs on a riding mower. Confirming the deck and drive system are sound helps ensure you are not investing heavily in a tractor that will need another major repair soon.

Last updated: January 2026
