Kenmore 11070022010 gas dryer Parts

Kenmore gas dryers like model 11070022010 use 120 volts (110/120V) for the motor, controls, and igniter; the heat comes from gas, not a 240V electric heater. You still need a properly installed gas supply and venting for safe, normal drying.

What power and hookups a gas dryer uses

• Electrical: Standard 120V, 60 Hz household outlet (typically a 3-prong grounded receptacle)
• Fuel: Natural gas or LP (propane) depending on how the dryer is set up
• Exhaust: A vent system to the outdoors (most gas dryers are vented)
• Location: Keep the area around the dryer clear for airflow and service access

For model-specific hookup details and clearances, follow the 11070022010 installation guide.

Quick comparison: gas vs. electric dryer power

Dryer type	Electrical supply	What makes the heat	Typical plug style
Gas dryer (like 11070022010)	120V	Gas burner assembly	Standard 120V plug
Electric dryer	240V	Electric heating element	3-wire or 4-wire 240V cord

Why it matters

Using the wrong outlet or wiring can prevent the dryer from running or heating correctly. On a gas dryer, the 120V supply powers key components like the drive motor and ignition system, while the gas system provides the heat.

If your gas dryer has power but will not heat

These are common checks we recommend before replacing parts:

• Confirm the gas shutoff valve is fully open
• Make sure the exhaust vent is not crushed, clogged, or excessively long
• Verify the cycle and temperature settings are appropriate

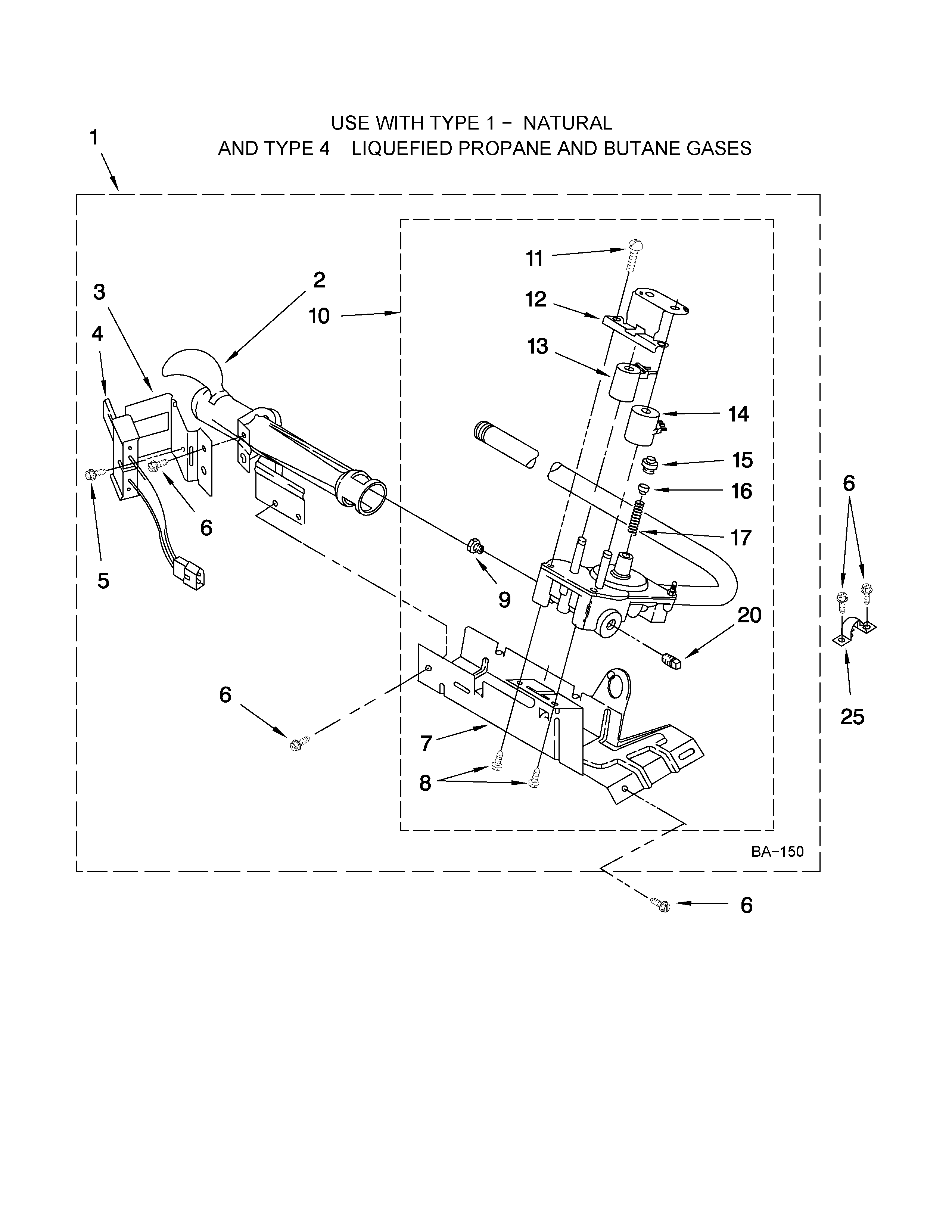

• If the igniter glows but the burner does not stay lit, the dryer valve coil kit 279834 is a common fix on many Kenmore gas dryers

Last updated: January 2026

The Kenmore gas dryer model 11070022010 is a full-size 27-inch class dryer. Most units in this platform measure about 27 inches wide, with overall height and depth varying slightly by leveling legs, door style, and vent hookup; confirm the exact dimensions in the 11070022010 owner's manual.

Typical dimensions and what affects them

For Kenmore 110-series 27-inch dryers like 11070022010, these are the most common size expectations:

• Width: ~27 inches (cabinet width)
• Height: typically ~38 to 44 inches (depends on legs and top design)
• Depth: typically ~27 to 30 inches (can increase with vent elbow and gas connector)
• Door swing clearance: plan extra space in front for loading
• Rear clearance: plan space for venting and gas line routing

Quick fit check for your laundry space

Use this checklist before you commit to an install location:

• Measure the opening width and compare to ~27 inches plus side clearance
• Measure floor to shelf/cabinet height above the dryer
• Measure back wall to front edge and add room for the door to open
• Confirm a safe path for the exhaust vent and gas supply line
• Make sure the dryer can be leveled so the drum and belt track correctly

Planning clearances (typical guidance)

Area	What to plan for	Why
Sides	Small clearance on each side	Reduces vibration contact
Rear	Extra space for vent and gas hookup	Prevents kinks and restrictions
Front	Door swing and loading space	Easier use and airflow

Why it matters

Correct sizing prevents crushed venting (long dry times), strained gas and vent connections, and vibration noise. It also helps protect wear parts like the drum belt and idler pulley from misalignment caused by poor leveling.

Last updated: January 2026

A PF code on your Kenmore gas dryer model 11070022010 means the dryer detected a power interruption during the cycle. Restore steady power, then press and hold Start to resume, or press Power/Cancel to clear the display and restart a new cycle (see the 11070022010 owner's manual).

Quick reset steps

• Make sure the dryer is plugged directly into a working wall outlet (avoid extension cords).
• Press Power/Cancel once to clear the PF display.
• Re-select your cycle and options.
• Press and hold Start until the dryer begins running.
• If PF returns, unplug the dryer for 1 minute, plug it back in, then try again.

What usually causes a PF code

A PF code is almost always about incoming power, not a failed heating part.

• Brief outage or flicker from the utility
• Loose plug in the outlet
• Tripped breaker or weak breaker
• Power strip or extension cord causing voltage drop
• Household circuit shared with other high-draw appliances

What to check if PF keeps coming back

Power and outlet checks

• Confirm the outlet is firmly gripping the plug (no wobble).
• Check the breaker panel; reset the dryer breaker fully OFF then back ON.
• Try a different known-good outlet (only if it matches the dryer’s plug type).

Door and start circuit basics

If the dryer will not restart after PF clears, check common “won’t start” items:

• Door fully closed and latch engaging
• Door switch operation (a failed switch can prevent restart)
• Push-to-start switch operation

Symptom after PF	Most likely area	What to do next
PF clears but dryer will not start	Start/door circuit	Inspect door switch WP3406105 and dryer push-to-start switch WP3977456 connections
PF returns during cycle	Incoming power	Check outlet, breaker, and avoid extension cords
Dryer runs but acts inconsistent	Power quality	Use a dedicated circuit; check for loose wiring at outlet/breaker

Why it matters

Repeated PF events can interrupt drying, increase cycle time, and point to a power supply issue that can also cause nuisance shutdowns or control problems.

Last updated: January 2026

To hard reset your Kenmore gas dryer model 11070022010, unplug it (or switch the breaker off) for 1 to 5 minutes, then restore power and try a normal cycle. This clears many temporary control glitches, but it will not fix airflow, heat, or safety-switch problems.

Hard reset steps (works for most Kenmore dryers)

• Turn the dryer OFF.
• Unplug the power cord (or turn the circuit breaker OFF).
• Wait 1 to 5 minutes.
• Restore power.
• Open and close the door once, then select a cycle and press Start.
• If the control is unresponsive, repeat the reset with a full 5-minute power-off.

If it still will not start after a reset

A “reset” often seems to work because the dryer cools down or a connection shifts; the real cause is usually a safety or start circuit issue.

Common checks:

• Confirm the door fully latches; a failed door switch can prevent starting.
• Check the lint screen and venting; restricted airflow can trigger overheating protection.
• Listen for a click/hum when you press Start; that can point to a motor or belt load issue.
• If the drum does not turn, inspect the belt and idler system.

Quick symptom-to-likely-cause table

What you see	What it usually means	What to check next
Nothing happens when you press Start	Start/door circuit not made	Door latch, door switch, push-to-start
Motor hums but drum will not turn	Drum drive problem	Belt, idler pulley, drum rollers
Starts then stops quickly	Overheat protection or airflow issue	Lint screen, vent, blower wheel

Parts that commonly relate to “won’t start” complaints

If your troubleshooting points to a failed component, these are common on this model family:

• Dryer push-to-start switch WP3977456
• Door switch WP3406105
• Belt 341241

Why it matters

A hard reset is a safe first step, but repeated shutdowns or no-start symptoms usually indicate a safety interlock or airflow restriction. Fixing the root cause helps prevent overheating, long dry times, and repeat failures.

For model-specific control and operating details, follow the steps in the 11070022010 manual.

Last updated: January 2026
