What is the advantage of a bottom mount fridge?
A bottom-mount refrigerator like the KitchenAid KBFN502EPA02 keeps the fresh-food compartment higher and the freezer lower, so you reach everyday items at a more comfortable height and bend less. It also helps keep refrigerated foods more visible and easier to organize.
Key advantages you will notice day to day
- Fresh foods sit at eye and waist level, so you do not crouch as often.
- Better visibility for produce, dairy, and leftovers, which reduces forgotten items.
- Freezer storage is still large, but used less frequently for many households.
- Built-in bottom-mount designs can support custom panel and grille configurations for a seamless kitchen look.
- Door swing and opening clearances can be planned precisely during installation.
Bottom-mount vs top-mount: quick comparison
| Feature | Bottom-mount refrigerator | Top-mount refrigerator |
|---|---|---|
| Most-used section height | Fresh food is higher | Fresh food is lower |
| Bending for daily items | Less | More |
| Freezer access | Lower drawer/door | Upper door |
| Best for | Frequent fresh-food use | Frequent freezer use |
Why it matters for KBFN502EPA02 installations

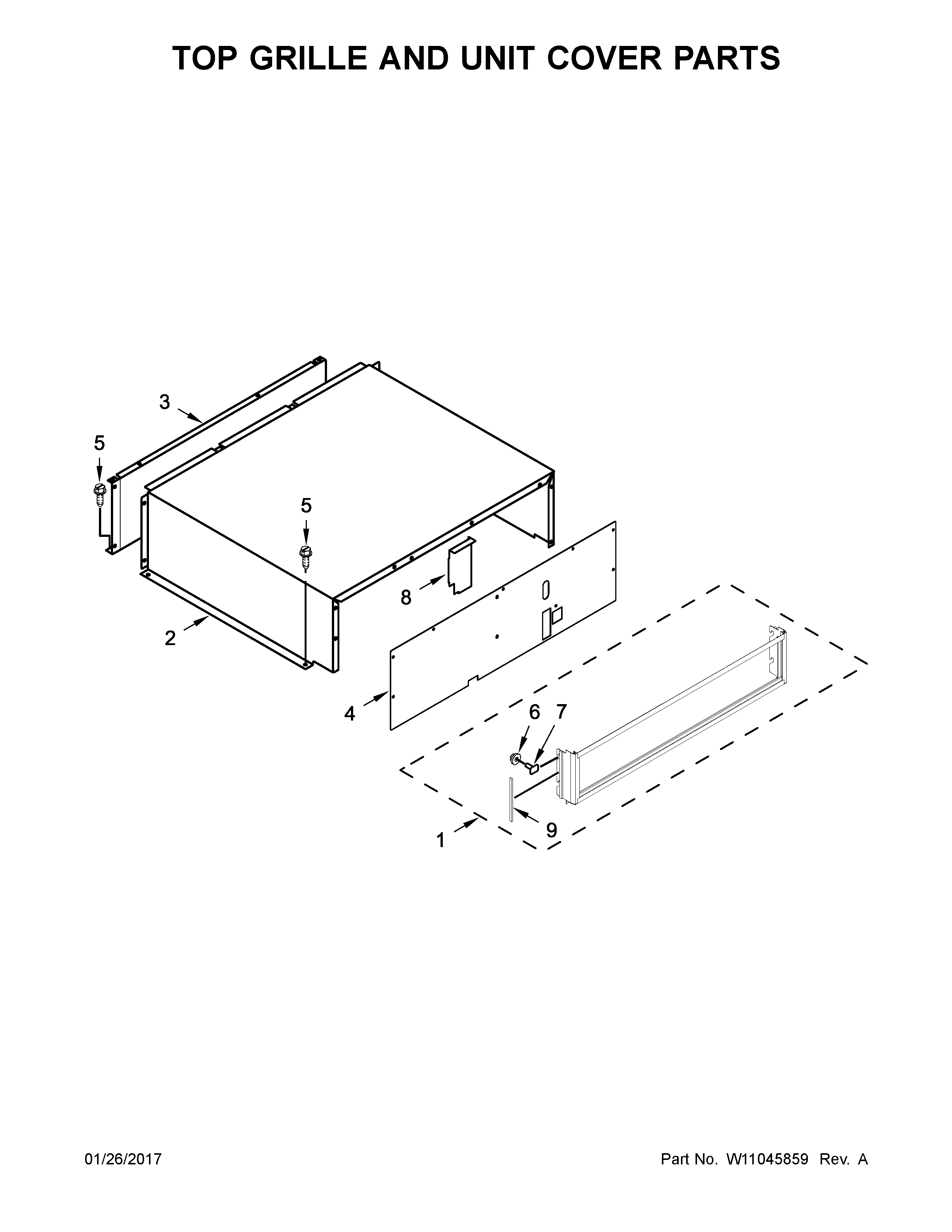

This KitchenAid built-in bottom-mount model has specific opening, door swing, and tipping-radius requirements. Planning those clearances up front prevents installation issues and helps ensure the doors open fully and the top grille can be removed for service.
Installation details to check
Use the installation guide to confirm these common fit and access items:
- Opening dimensions and required clearances
- Door swing dimensions for your cabinet layout
- Ceiling height and tipping radius (especially for moving the unit into the home)
- Anti-tip board requirements for safe, stable installation
- Water supply and grounded electrical outlet placement
Last updated: February 2026
What is the average lifespan of a KitchenAid refrigerator?
A KitchenAid refrigerator typically lasts 12 to 15 years on average, and 10 to 17 years is a normal overall range. For your KitchenAid KBFN502EPA02 built-in bottom-mount refrigerator, consistent maintenance (clean airflow paths, good door sealing, and timely filter changes) is what most directly extends service life.
Typical lifespan and what affects it
Most refrigerator life expectancy comes down to compressor workload, temperature control, and how well the sealed system and airflow stay clean.
Common factors that shorten lifespan:
- Dirty condenser area causing higher compressor run time
- Door not sealing well, leading to moisture and frost issues
- Overpacked compartments blocking vents and airflow
- Skipped water filter and air filter changes (can reduce performance and increase odors)
- Frequent warm-loads (hot food, repeated door openings)
Maintenance that helps you reach the high end of the range
We recommend these habits for KitchenAid built-in units like model KBFN502EPA02:
- Keep temperatures stable (avoid frequent setting changes)
- Confirm doors close fully and aren’t rubbing after installation or leveling
- Replace the water filter on schedule using the correct filter
- Replace the air filter regularly to reduce odors and keep airflow fresh
- Keep vents inside the refrigerator and freezer clear
Helpful references:
- Filter replacement steps: how to replace the water filter in a KitchenAid refrigerator
- Model-specific care and operating guidance: owner's manual
Parts that commonly impact performance over time
If cooling becomes inconsistent, these parts are often involved:
| Symptom | Common cause | Example part for KBFN502EPA02 |
|---|---|---|
| Water tastes/flows poorly | Clogged water filter | Refrigerator filter EDR3RXD1 |
| Food odors linger | Saturated air filter | Refrigerator air filter W10311524 |
| Warm refrigerator section | Airflow problem | Refrigerator evaporator fan motor W11396715 |
| Temps swing up and down | Sensor drift | Refrigerator thermistor W11724692 |
Why it matters
A refrigerator that is running longer than normal to hold temperature puts extra wear on the compressor and fans. Keeping airflow open and filters fresh reduces run time, improves temperature stability, and helps your KitchenAid refrigerator reach its expected lifespan.
Last updated: February 2026
What is the most common problem with KitchenAid refrigerators?
The most common KitchenAid refrigerator problems are cooling and ice maker performance issues. On your KitchenAid KBFN502EPA02 bottom-mount refrigerator, the most frequent root causes are restricted airflow (dirty coils or a weak evaporator fan), temperature-sensing problems, and water-system restrictions that slow ice production.
Most common symptoms we see
- Refrigerator not cooling evenly (warm spots in fresh food section)
- Freezer too warm or frost buildup
- Ice maker slow, small cubes, or no ice
- Water dispenser flow is weak (if equipped)
- Unusual fan noise or humming
- Water puddles inside or under the unit
What usually causes those problems
These are the most common culprits on built-in bottom-mount designs like the KBFN502EPA02:
- Airflow problems: blocked vents, overpacked shelves, or a failing evaporator fan motor
- Temperature feedback issues: a drifting sensor can cause wide temperature swings (see refrigerator thermistor W11724692)
- Water filtration restrictions: an overdue filter can reduce water flow to the ice maker (see refrigerator filter EDR3RXD1)
- Drain and defrost issues: a partially blocked drain can lead to ice buildup and leaks
Quick checks you can do first (no tools)
- Set temperatures to typical targets: 37°F fresh food, 0°F freezer
- Make sure interior vents are not blocked by food containers
- Listen for the evaporator fan running when the doors are closed
- If ice is slow, replace the water filter if it is older than 6 months
- Check door closing and gasket seal; poor sealing causes frost and warm temps
Symptom-to-likely-cause guide
| Symptom | Most likely cause | What to do next |
|---|---|---|
| Warm refrigerator, freezer OK | Evaporator fan airflow issue | Inspect fan area; consider refrigerator evaporator fan motor W11396715 |
| Slow or no ice | Filter restriction or water supply issue | Replace refrigerator filter EDR3RXD1; verify supply valve is fully open |
| Temps swing up and down | Sensor/thermistor issue | Test/replace refrigerator thermistor W11724692 |
| Water under fridge | Drain/defrost drain issue | Clear drain path; confirm unit is level per installation guide |
Why it matters
Cooling, ice maker, and leak complaints usually trace back to airflow, sensing, or water flow. Fixing the underlying cause protects food quality, prevents frost and puddles, and reduces compressor run time.
For model-specific setup, leveling, and door swing clearances, follow the installation guide.
Last updated: February 2026
Is KitchenAid considered high end?
Yes. KitchenAid is widely considered a premium (upper-mid to high-end) appliance brand; the KitchenAid KBFN502EPA02 built-in bottom-mount refrigerator line is positioned for customers who want pro-style design, strong performance, and long-term durability without stepping into ultra-luxury pricing.
What “high end” means for KitchenAid refrigerators
KitchenAid typically lands in the premium tier because you get built-in styling, higher-grade fit and finish, and features aimed at serious home kitchens.
Common “high-end” signals you will see with KitchenAid built-in refrigeration:
- Built-in installation options and trim/panel systems (including overlay-style custom panels)
- Strong temperature management and airflow design (evaporator fan driven cooling)
- Premium filtration options for water and fresh-food odor control
- Higher parts and service complexity compared to basic top-freezer models
How KitchenAid compares to other tiers
Use this quick comparison to set expectations when shopping, budgeting for parts, or planning a repair.
| Tier | Typical focus | What you usually trade off |
|---|---|---|
| Value / entry | Lowest upfront cost | Fewer features, simpler construction |
| Mainstream | Balanced price and features | Less built-in styling, fewer premium options |
| Premium (KitchenAid) | Design, performance, built-in options | Higher part costs, more complex installs |
| Ultra-luxury | Customization and brand prestige | Highest cost for purchase and ownership |
Why it matters for parts and maintenance
Premium refrigerators like the KBFN502EPA02 often use specialized components and filtration that help protect performance and food quality. Staying current on routine maintenance also helps prevent common issues like slow water flow, off tastes/odors, and temperature swings.
A practical maintenance baseline:
- Replace the water filter on schedule; a restricted filter can reduce dispenser flow and ice production
- Replace the air filter if your unit uses one; it helps reduce food odors in the fresh-food compartment
- Keep door seals clean and ensure doors close squarely to maintain stable temperatures
Parts that support “premium performance” on this model
If you are maintaining or troubleshooting your KitchenAid refrigerator, these model-compatible parts are commonly tied to premium features:
- Refrigerator filter EDR3RXD1 (water quality and flow)
- Refrigerator air filter W10311524 (odor control)
- Refrigerator evaporator fan motor W11396715 (air circulation and even cooling)
- Refrigerator thermistor W11724692 (temperature sensing)
Where to confirm model-specific features
For the exact configuration, installation requirements, and panel or trim details for your KBFN502EPA02, use the installation guide.
Last updated: February 2026
