Model #917270962 Craftsman 20.5-hp 42" mower lawn tractor

Here are the diagrams and repair parts for Craftsman 917270962 20.5-hp 42" mower lawn tractor, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 667 parts

|

Lawn Tractor Axle Flange Bearing

#7

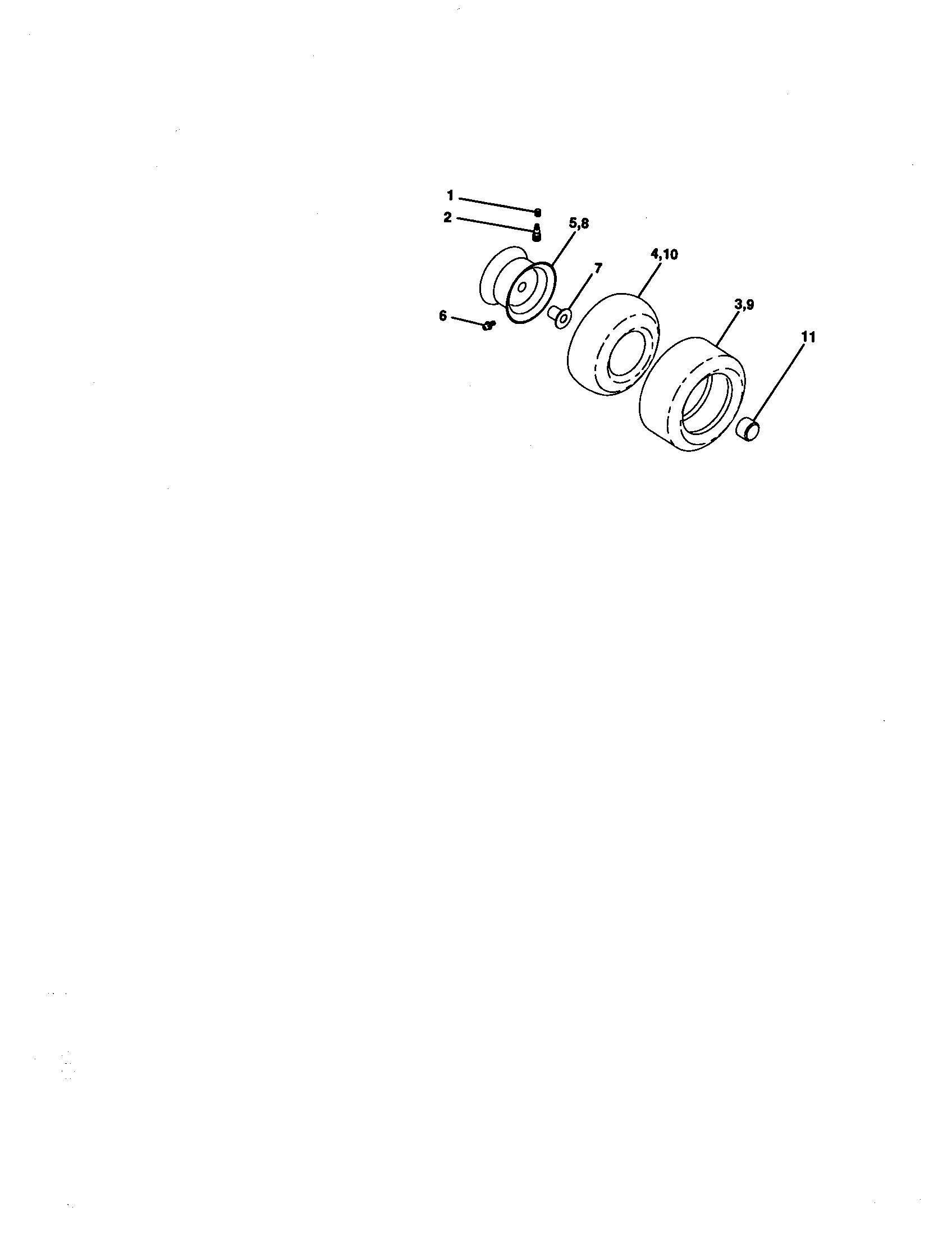

Wheels and tires Diagram

Lawn tractor axle flange bearing

Part #9040H
This item is not returnable
$4.39 |
49% OFF MSRP:$8.66

In Stock

Lawn Tractor Ring Clip

#8

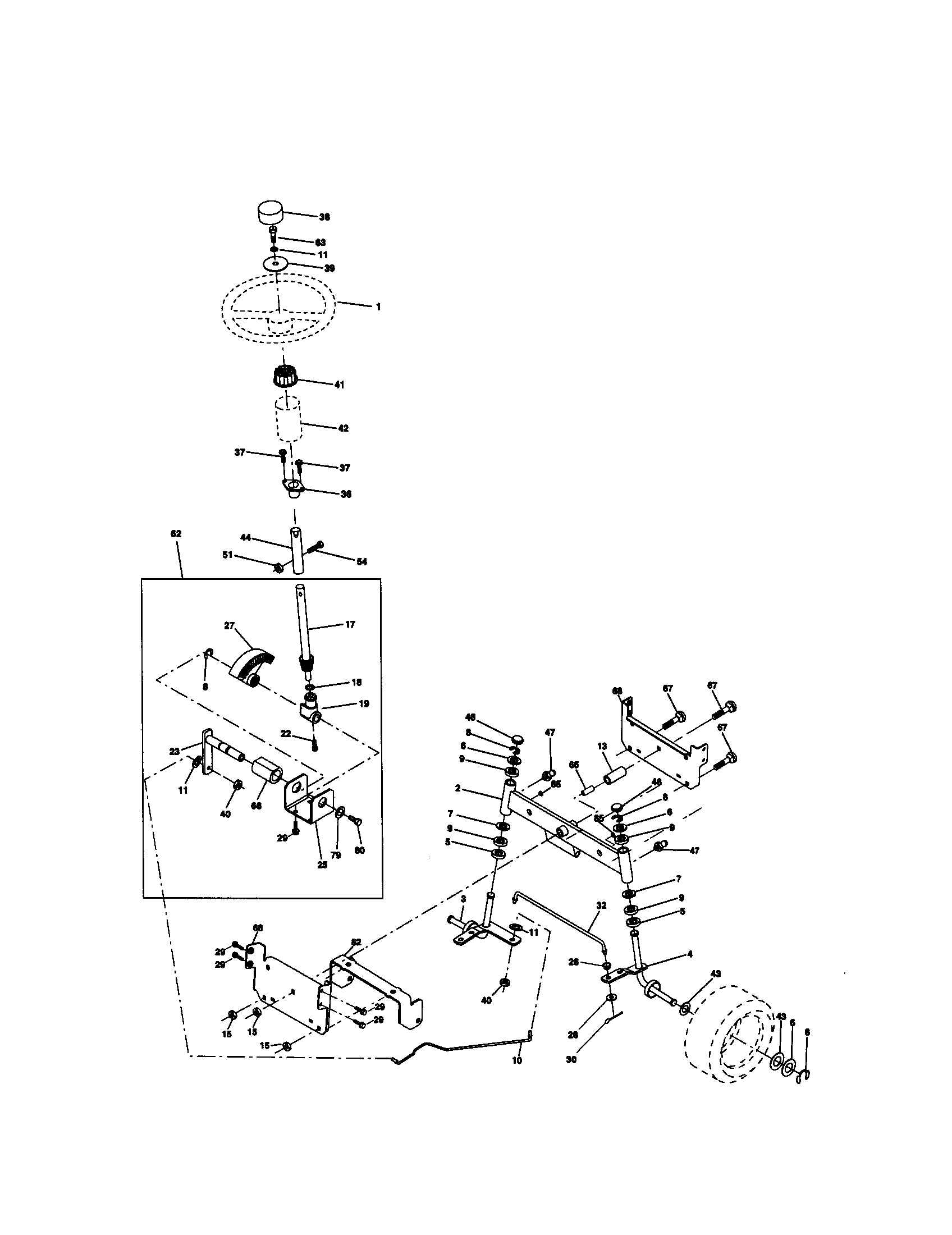

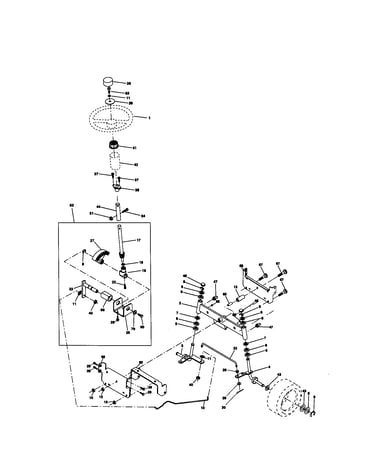

Steering assembly Diagram

Lawn tractor ring clip

Part #12000029
This item is not returnable
$6.19

In Stock

Lawn Tractor Mandrel Assembly

#NI

All parts Diagram

$55.12 |
13% OFF MSRP:$63.20

In Stock

Lawn Tractor Ground Drive Belt, 1/2 x 82-in

#57

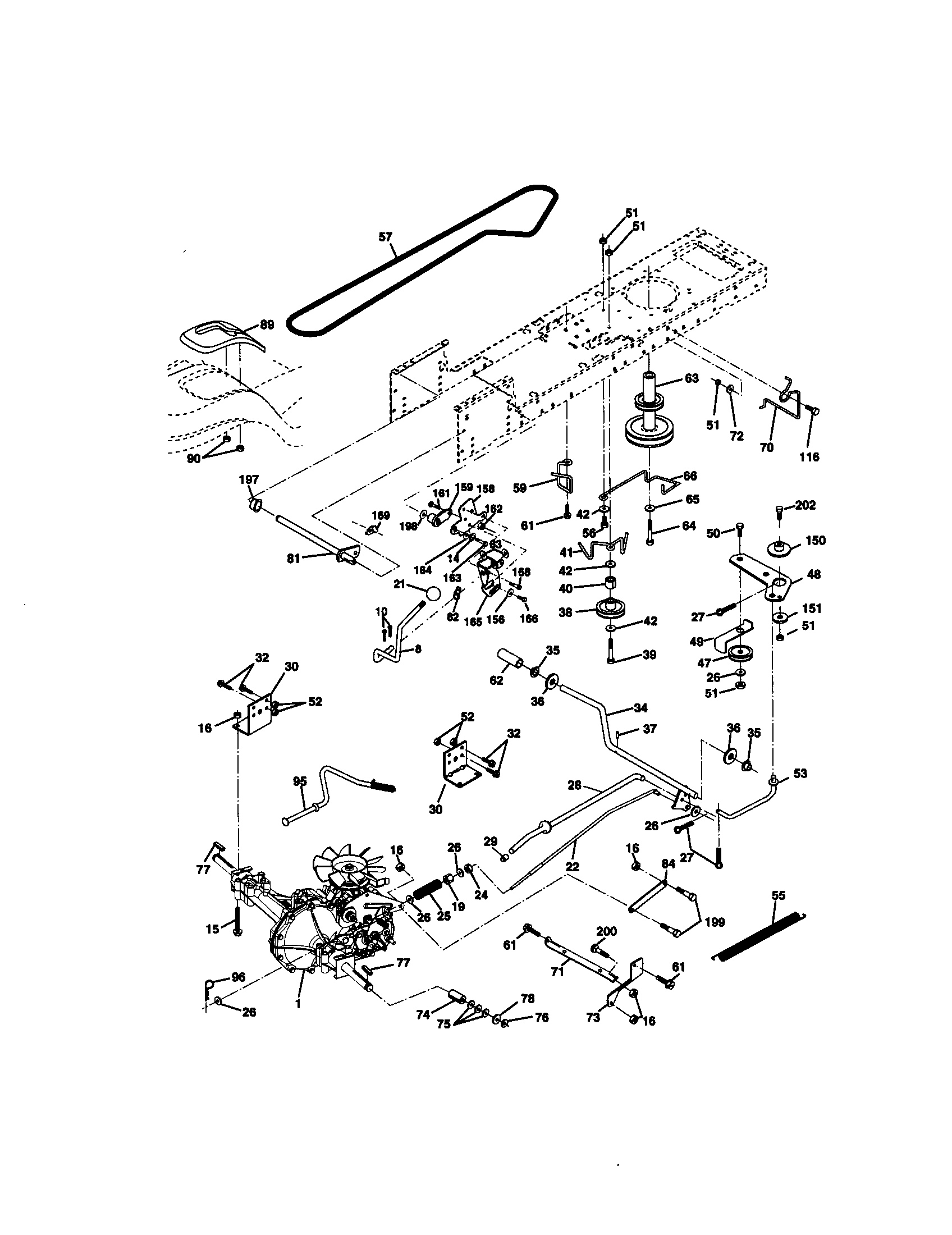

Ground drive Diagram

Lawn tractor ground drive belt, 1/2 x 82-in

Part #140294

Get free shipping with Automatic Reorder

$37.66

In Stock

Lawn Tractor Bagger Attachment Chute Strap

#105

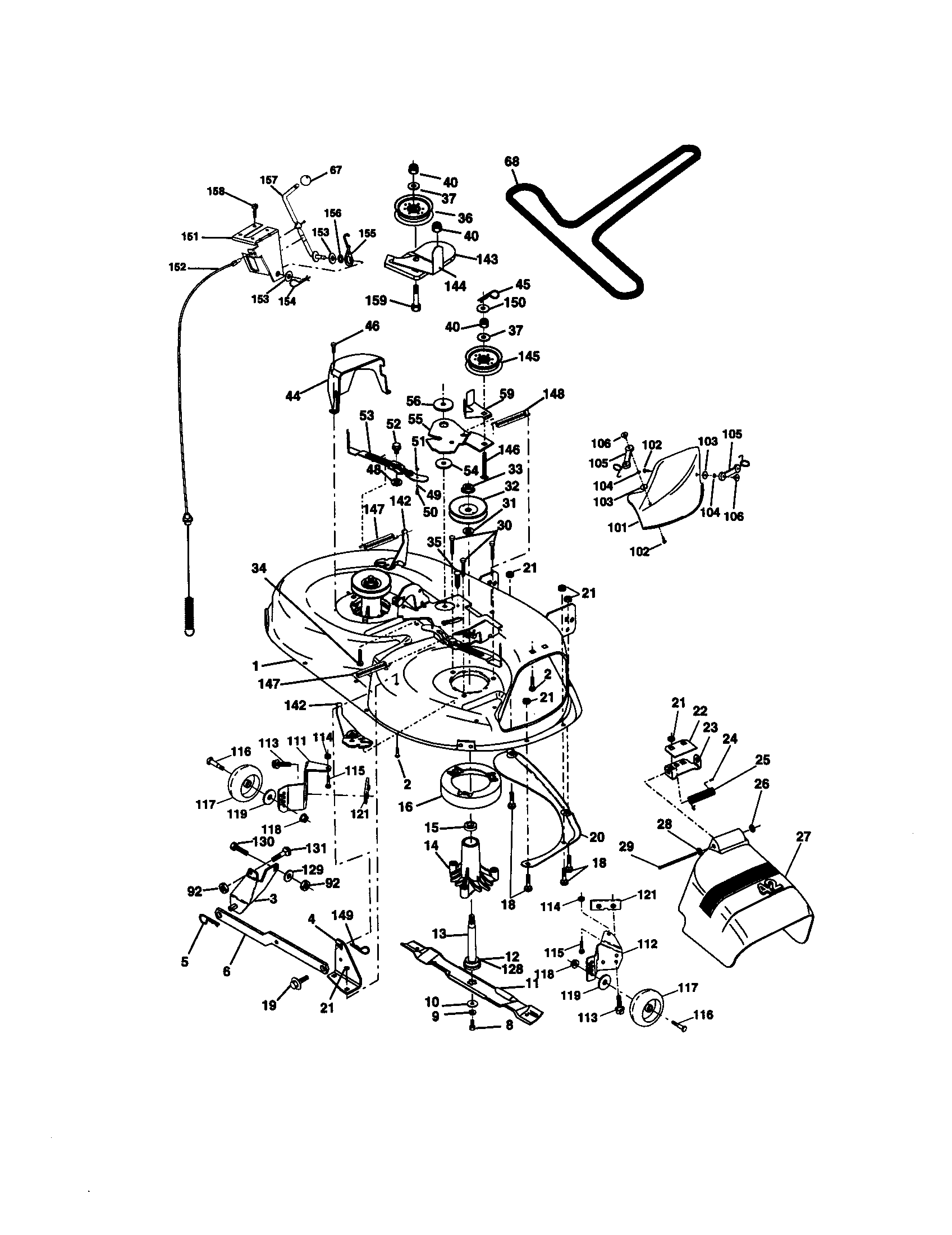

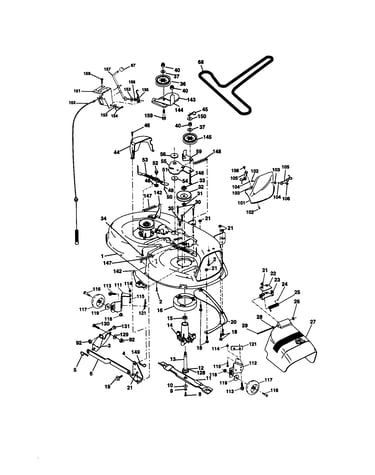

Mower deck Diagram

Lawn tractor bagger attachment chute strap

Part #160793
This item is not returnable
$7.48 |
6% OFF MSRP:$7.99

In Stock

Lawn Tractor Mandrel Bearing

#15

Mower deck Diagram

$9.14 |
38% OFF MSRP:$14.75

In Stock

Lawn Tractor Washer

#43

Steering assembly Diagram

Lawn tractor washer

Part #121749X
This item is not returnable
$2.44 |
18% OFF MSRP:$2.96

In Stock

Lawn Tractor Mandrel Housing

#14

Mower deck Diagram

$21.06 |
16% OFF MSRP:$24.99

In Stock

Lawn Tractor Push Nut

#50

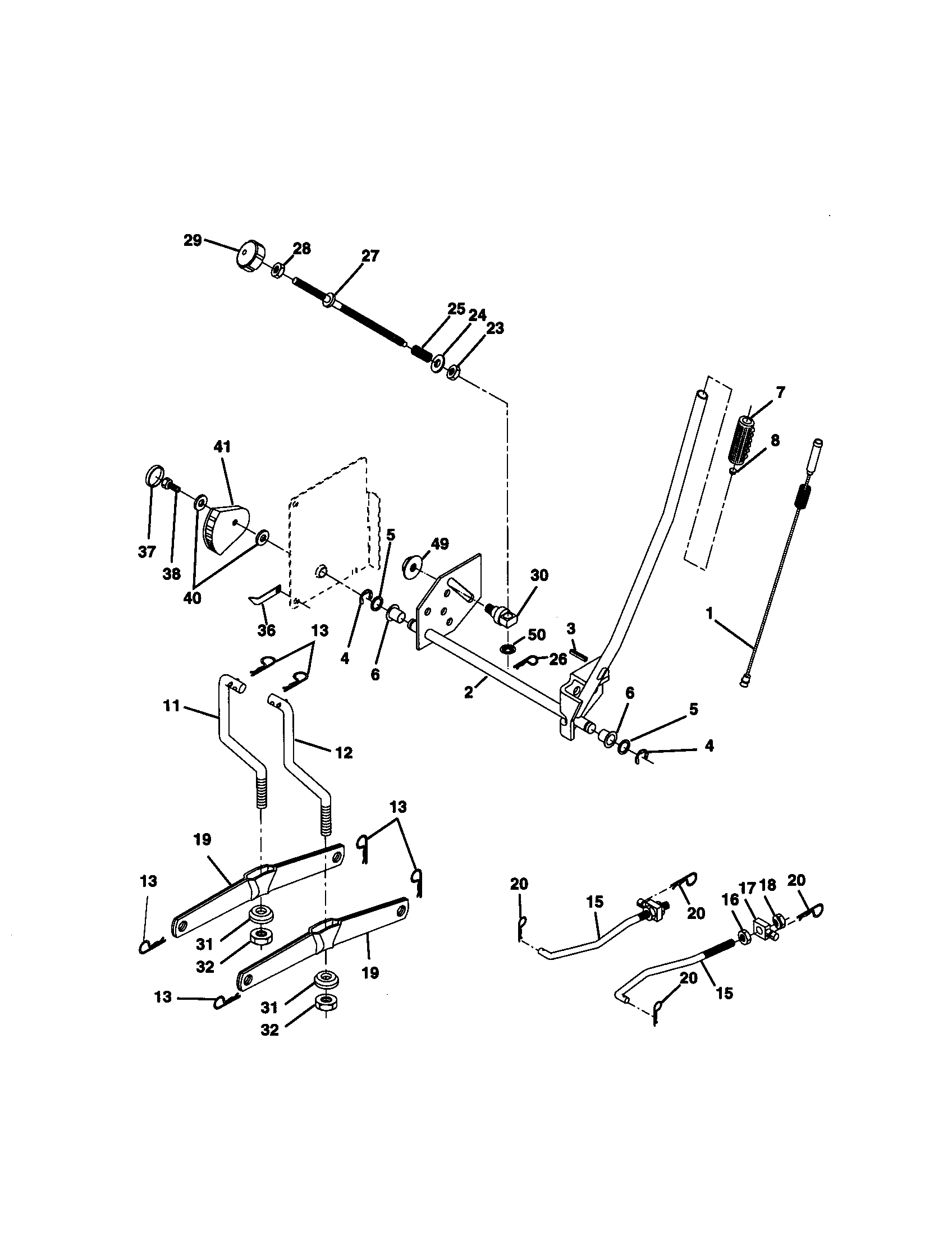

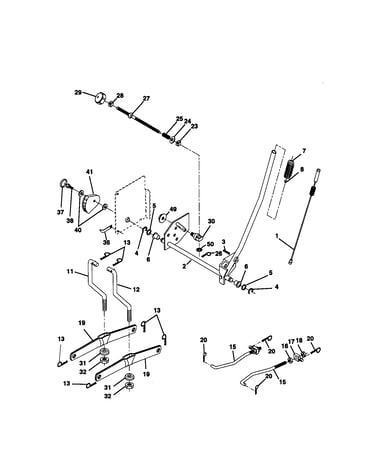

Lift assembly Diagram

Lawn tractor push nut

Part #110452X
This item is not returnable
$5.06

In Stock

Lawn Tractor Blade Idler Spring

#148

Mower deck Diagram

Lawn tractor blade idler spring

Part #169022
This item is not returnable
$3.69 |
5% OFF MSRP:$3.88

In Stock

Showing 10 of 667 parts
