Craftsman
Electric Line Trimmer

Model # 15130438 Official Craftsman trimmer

Here are the diagrams and repair parts for Official Craftsman 15130438 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Line Trimmer Cutting Head GE70DC.50.05.X1.02
#7

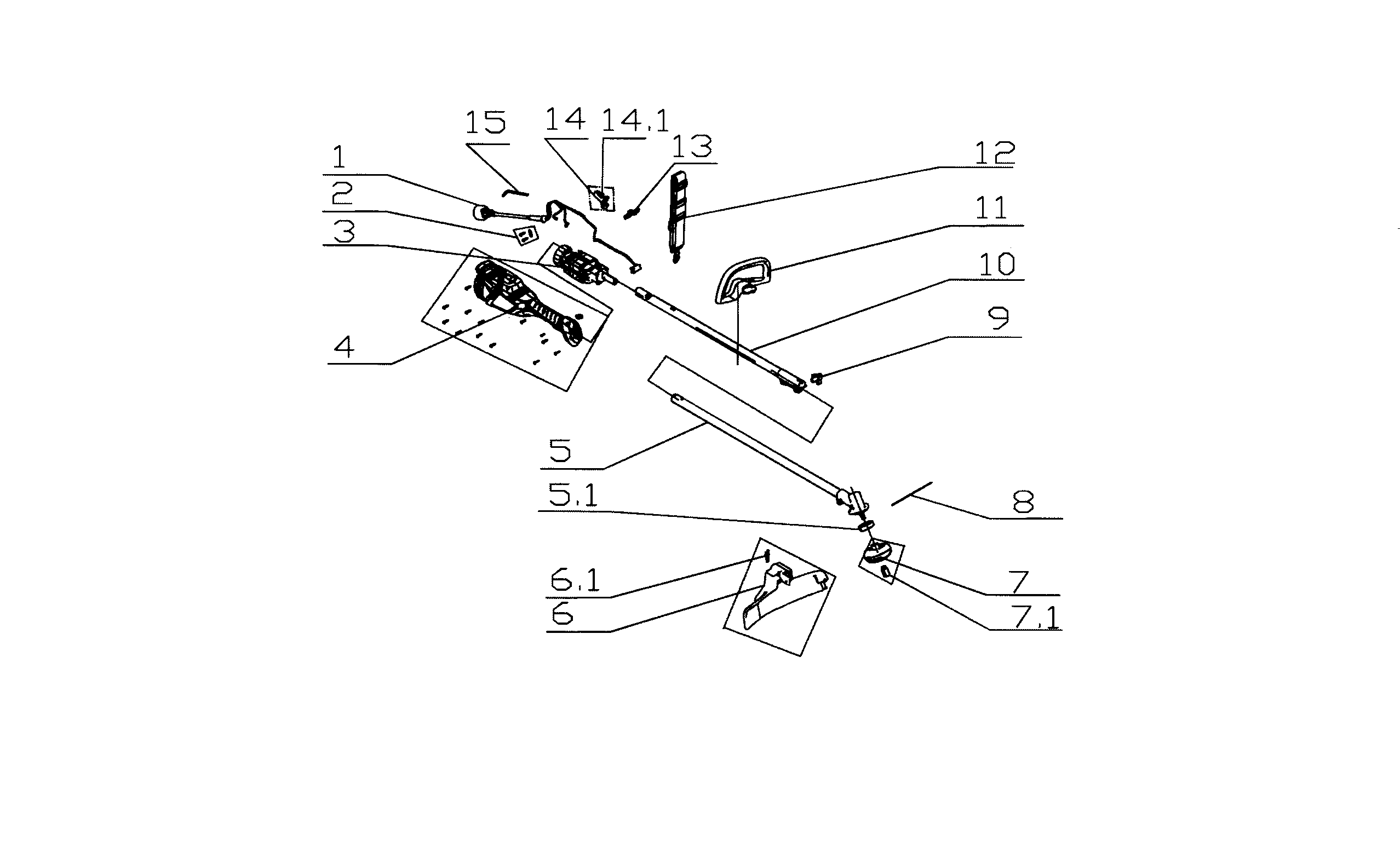

Main assy diagram

Line trimmer cutting head

Part #GE70DC.50.05.X1.02

The manufacturer no longer makes this part, and there's no substitute part

Lock Rod FG9201.04.01
#15

Main assy diagram

Lock rod

Part #FG9201.04.01

Replaced by #181005131

?
Manufacturer substitution
This part replaces FG9201.04.01. Substitute parts can look different from the original.
$7.71
In Stock
Line Trimmer Shoulder Strap FG1601.01.00
#12

Main assy diagram

Line trimmer shoulder strap

Part #FG1601.01.00

Replaced by #121017114

?
Manufacturer substitution
This part replaces FG1601.01.00. Substitute parts can look different from the original.
$15.43
In Stock
Line Trimmer Debris Shield GZ10MP.21.00.X1.01
#6

Main assy diagram

Line trimmer debris shield

Part #GZ10MP.21.00.X1.01

Replaced by #121017106

?
Manufacturer substitution
This part replaces GZ10MP.21.00.X1.01. Substitute parts can look different from the original.
$23.14
In Stock
Anti-lock Button GZ10MP.10.02.X1.01
#13

Main assy diagram

Anti-lock button

Part #GZ10MP.10.02.X1.01

The manufacturer no longer makes this part, and there's no substitute part

Press Board TOQTGX.04.YX.X2.01
#2

Main assy diagram

Press board

Part #TOQTGX.04.YX.X2.01

The manufacturer no longer makes this part, and there's no substitute part

Screw BOA4ZZ.06.20
#6.1

Main assy diagram

Screw

Part #BOA4ZZ.06.20

The manufacturer no longer makes this part, and there's no substitute part

Motor Housing GZ10MP.11.00.X1.01
#4

Main assy diagram

Motor housing

Part #GZ10MP.11.00.X1.01

The manufacturer no longer makes this part, and there's no substitute part

Spring TOTHYY.18.07
#14.1

Main assy diagram

Spring

Part #TOTHYY.18.07

The manufacturer no longer makes this part, and there's no substitute part

Power Cord With Plug TODXD1.58.UL.X1.01
#1

Main assy diagram

Power cord with plug

Part #TODXD1.58.UL.X1.01

The manufacturer no longer makes this part, and there's no substitute part
