Craftsman 917289900 tractor yt4500 Parts

For a Craftsman riding tractor like model 917289900, a full engine replacement typically runs about $260 to $1,800 installed, depending on the engine type, whether you reuse existing components, and local labor rates. Plan on around 6 hours of labor for a riding mower engine swap.

• Engine price (new vs. remanufactured; horsepower and shaft specs)
• Labor time (shop rate and any rusted or seized fasteners)
• Extra parts often replaced during the swap (belts, pulleys, wiring)
• Fuel system cleanup if old fuel or debris caused the failure
• Deck and drive condition (a worn drive system can feel like an “engine problem”)

Many “no power” or “won’t move” complaints on riding mowers trace back to the drive or deck system, not the engine. Your 917289900 manual troubleshooting section points to common causes like worn belts, frozen idler pulleys, and wiring or safety-switch problems.

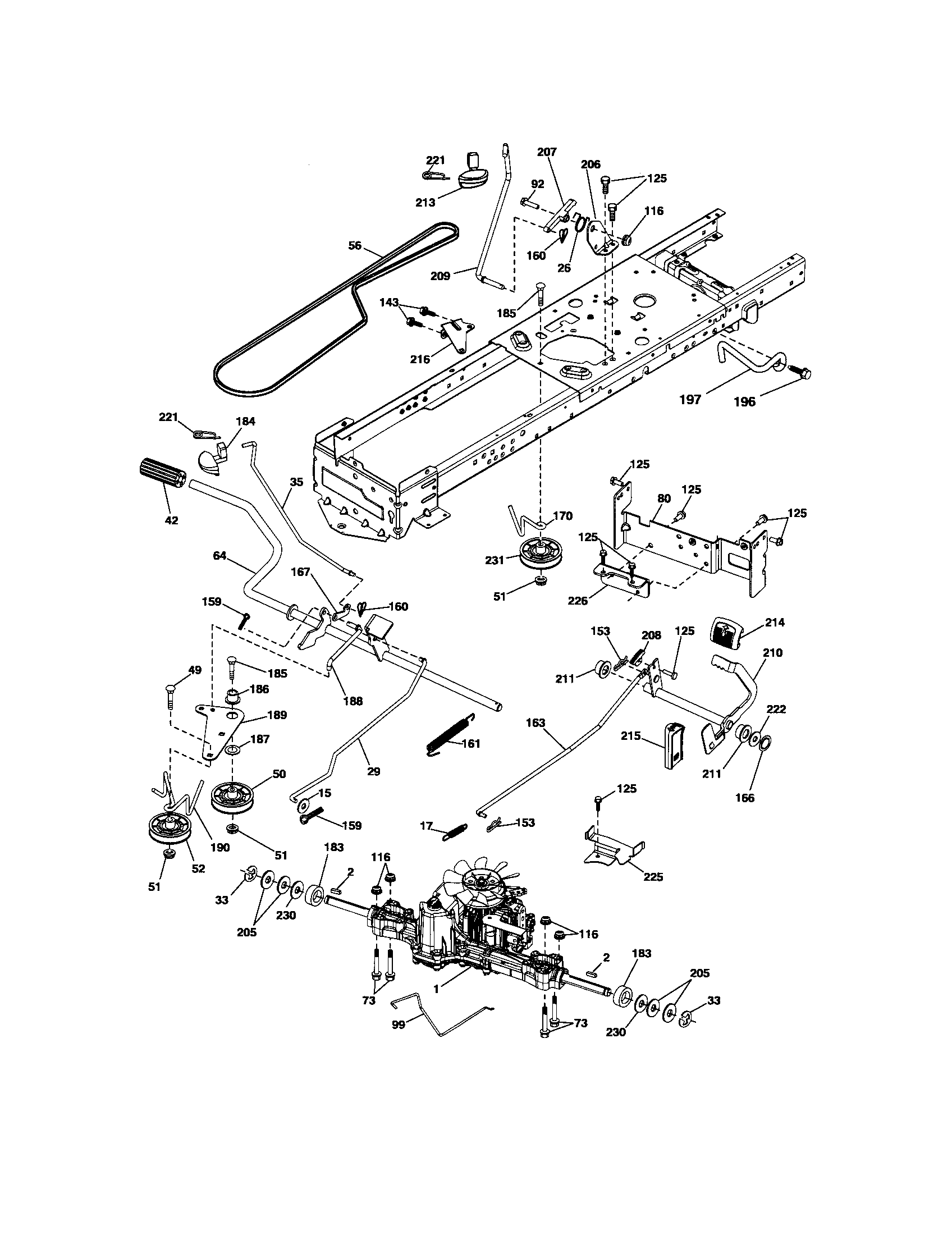

• Check the motion/ground drive belt for wear, glazing, or breakage (a common fix is the lawn tractor ground drive or blade drive belt, 1/2 x 92-2/5-in 592855201).
• Inspect idler pulleys for binding or seizure.

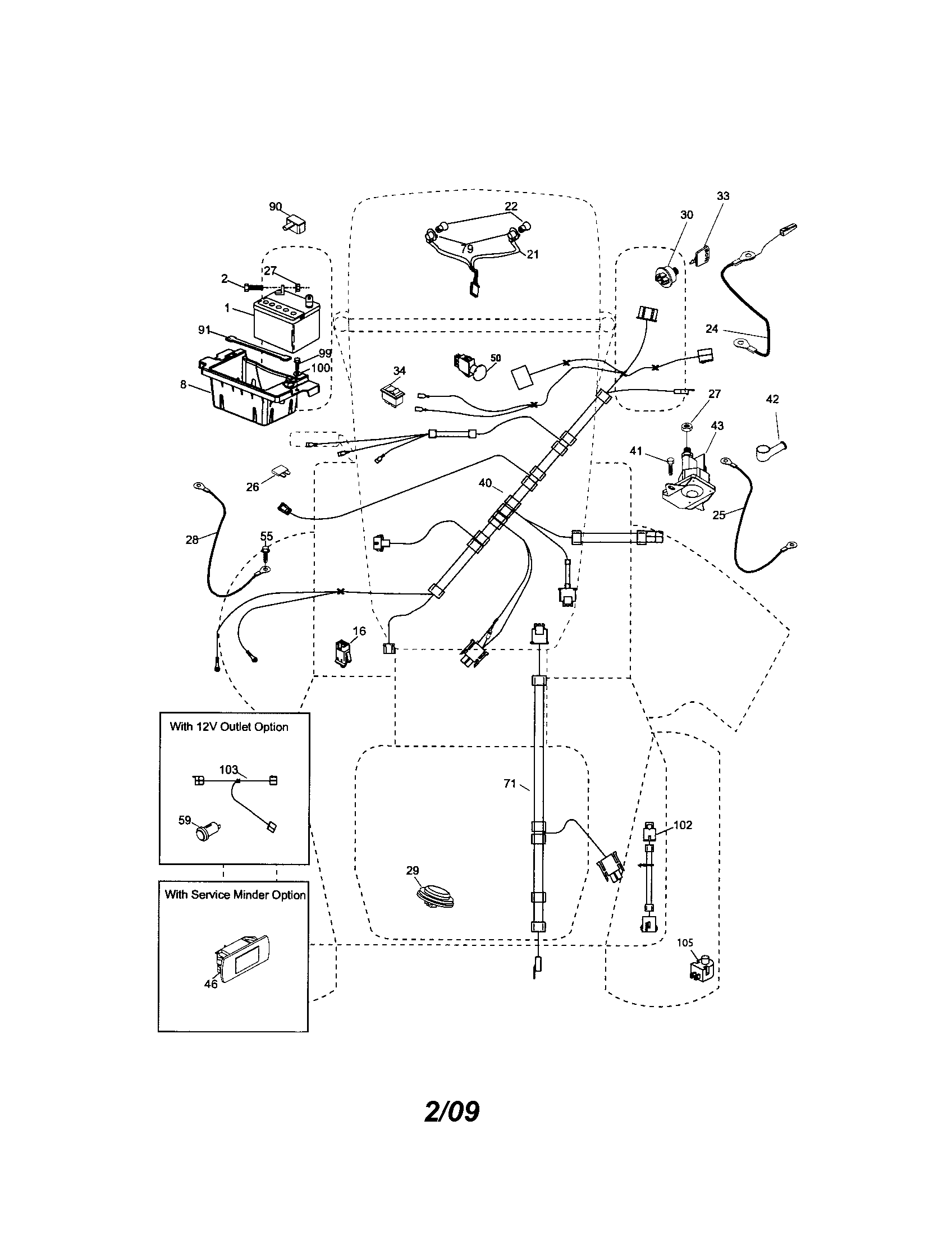

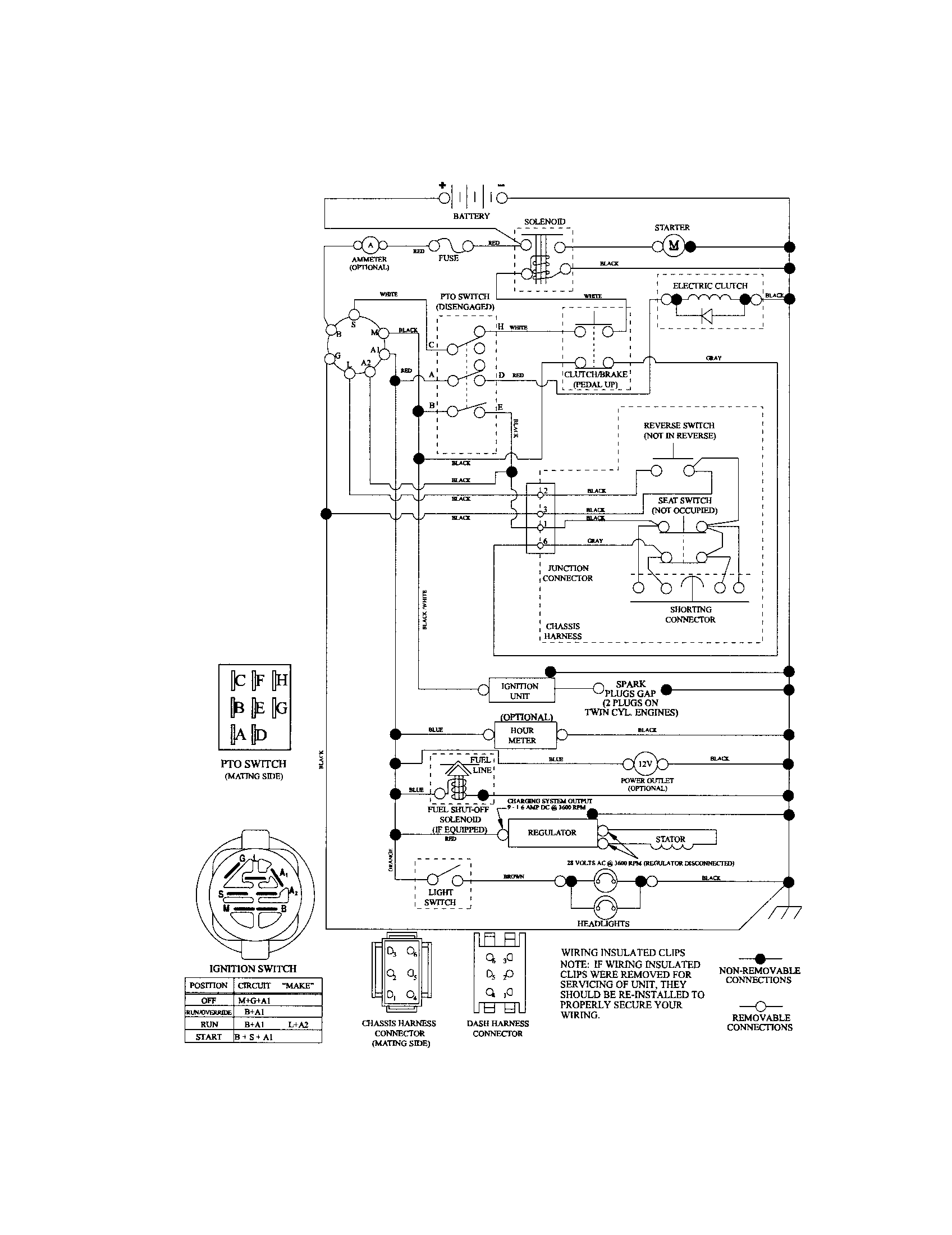

• Verify safety switches and wiring connections are intact.
• Check for debris buildup around moving parts and cooling fins.

An engine replacement is one of the highest-cost repairs on a riding mower. Spending a few minutes checking belts, pulleys, and safety circuits first can prevent replacing a good engine and can get your tractor back to mowing faster.

For model-specific maintenance intervals, safety steps, and troubleshooting flow, use the 917289900 owner’s manual.

Last updated: February 2026

The Craftsman 917289900 lawn tractor takes 64 oz (2 quarts) of engine oil when filled to the full mark on the dipstick. Use the oil type and fill procedure shown in the 917289900 owner's manual so you do not overfill.

Use these specs for normal service fills:

Checking oil correctly prevents hard starting, smoking, and engine wear.

• Park on a level surface and let the engine cool.
• Pull the dipstick, wipe it clean, then reinsert it resting the cap on the tube (do not thread it in while reading).
• Add oil slowly and recheck; stop at the FULL line.
• Tighten the cap securely when finished.
• If you changed the oil filter, recheck the level after the first start and a short idle.

Even though capacity is 64 oz, the amount you pour in can vary.

• Some oil remains in the engine if it was not fully drained.
• Oil trapped in the filter and passages changes the refill amount.
• The tractor is not perfectly level during filling.
• Overfilling was corrected by draining some oil.

Running low oil can damage internal engine parts quickly; overfilling can cause foaming, smoking, and leaks. Filling to the dipstick mark (not just a measured amount) is the most reliable way to protect the engine.

Last updated: February 2026

On the Craftsman riding lawn tractor model 917289900, the model number is typically printed on a product label on the frame under the seat or on the underside of the seat itself. Once you have the full model number, we can match the correct parts list and diagrams for your exact tractor.

Check these common label locations first:

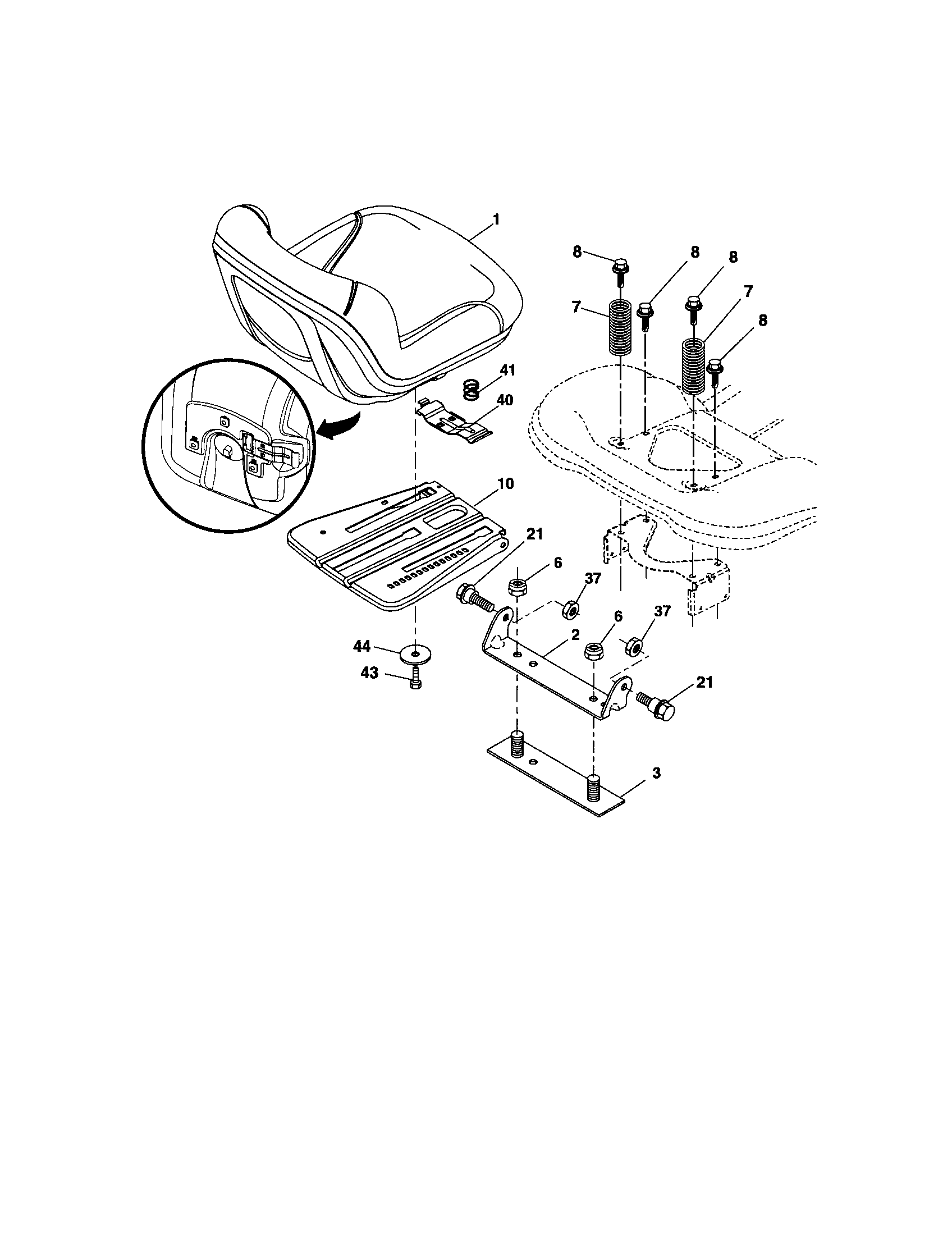

• Under the seat on the frame (lift the seat and look at the chassis rails)
• Underside of the seat pan (flip the seat up and look underneath)
• Rear fender area near the seat (some labels are on the fender deck)
• Near the engine compartment opening (less common, but worth a quick check)

Most Craftsman tractor labels include both a model number and a serial number.

If the label is dirty or faded, these steps usually help:

• Wipe the label with a damp rag and mild cleaner; dry it fully
• Use a flashlight at an angle to highlight faint printing
• Take a close-up photo and zoom in
• Write the number down exactly as shown (include dots or dashes if present)

Craftsman tractors can look similar across multiple model numbers, but parts like a ground drive belt, PTO switch, or mandrel assembly can vary by model. Using the exact model number helps ensure you get the right diagrams and the right replacement parts the first time.

For additional model identification details and operating information, use the 917289900 owner’s manual.

Last updated: February 2026

Yes, replacing the engine on your Craftsman 917289900 front-engine lawn tractor is worth it when the tractor’s deck, steering, and transmission are solid and the total engine-swap cost stays well below the cost of a comparable new rider. If multiple major systems are worn, replacement usually makes more sense.

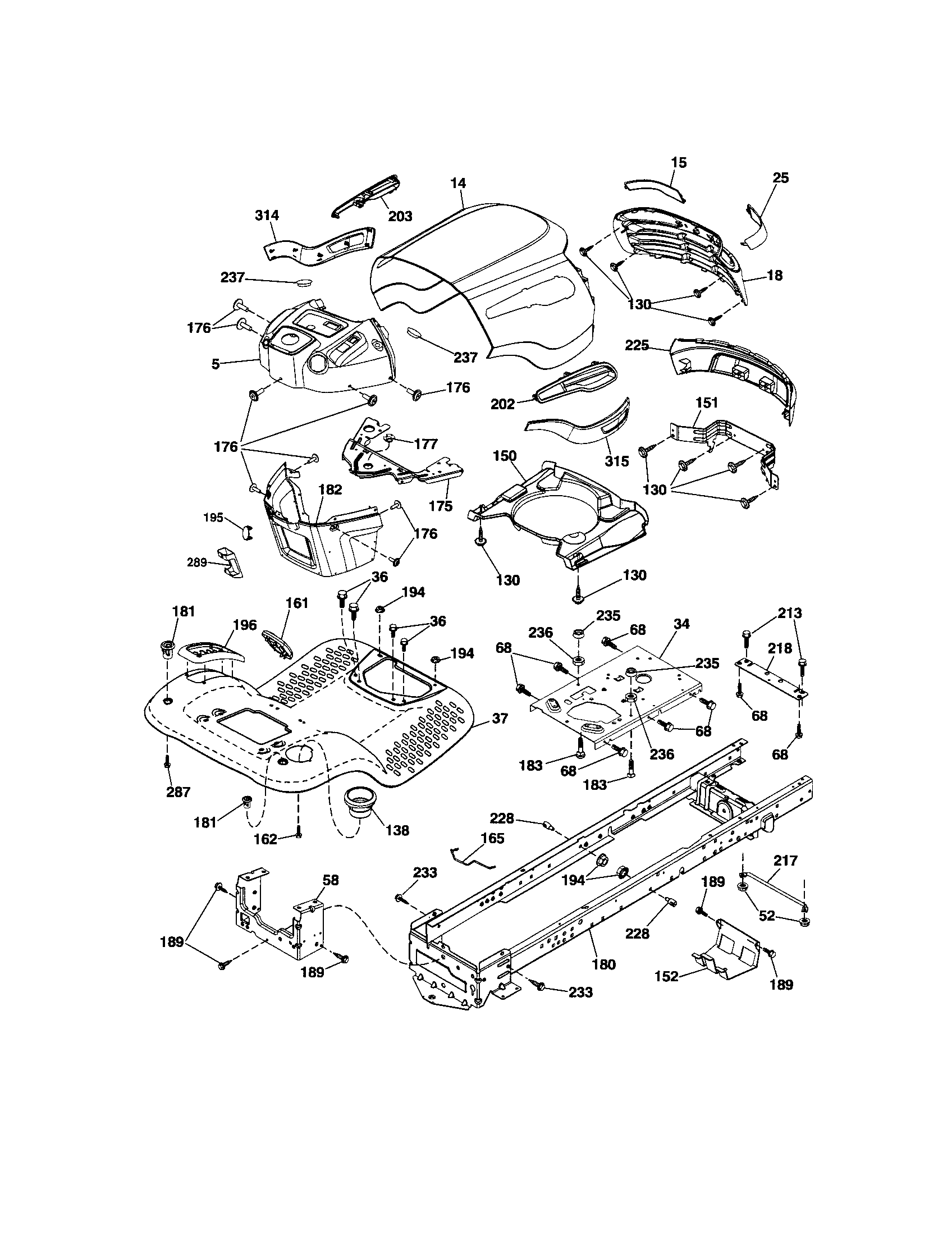

• Deck and frame are sound: no severe rust-through, cracks, or bent structure.

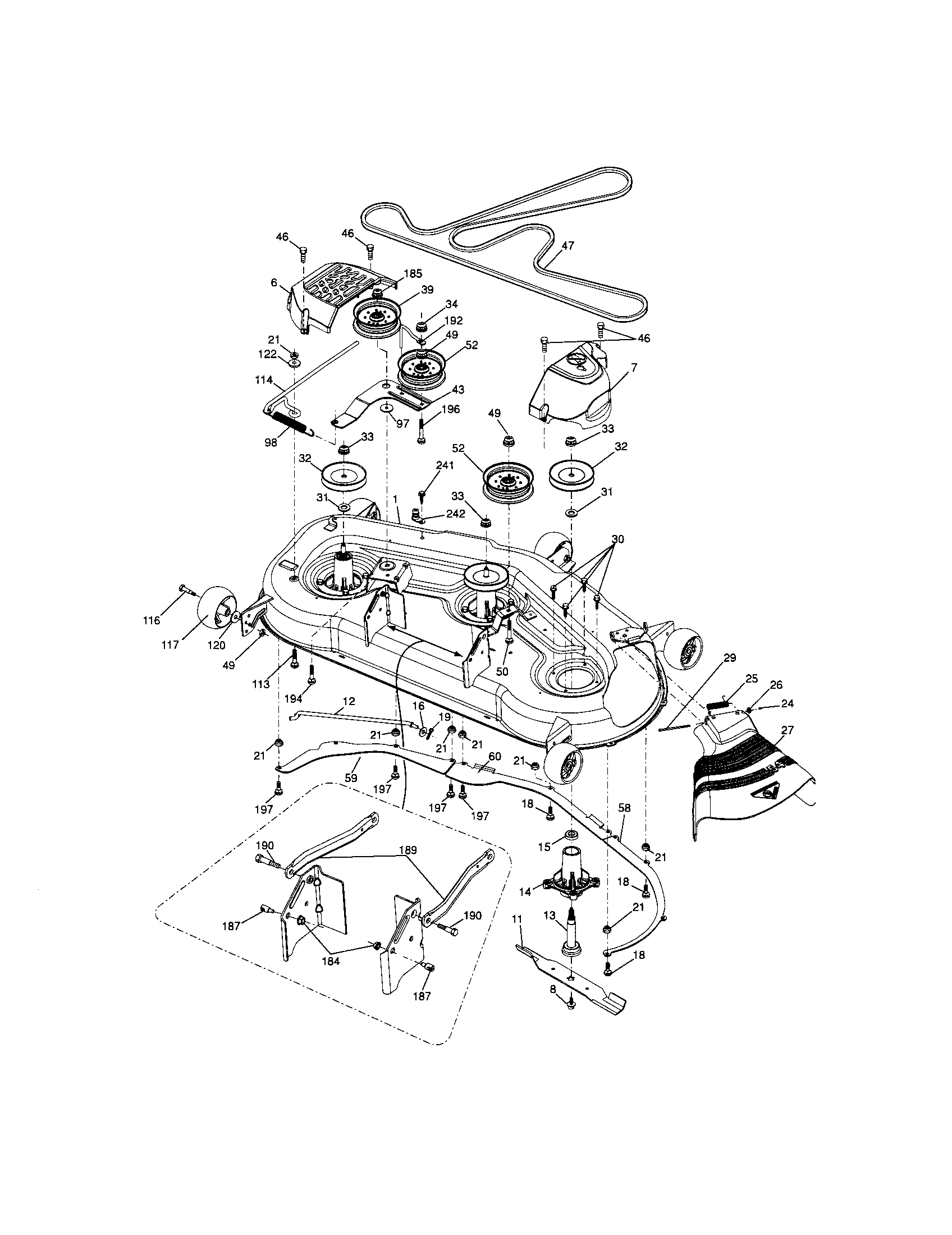

• Mowing system is healthy: mandrels spin smoothly and the deck vents are not constantly clogging.
• Drive system is reliable: it moves strongly forward and reverse without slipping.
• You can address common wear items: belts, pulleys, and electrical starting parts.
• Total repair cost target: keep the engine plus any must-do parts under about 50% of a comparable new tractor.

Use the troubleshooting and maintenance guidance in the 917289900 owner’s manual to evaluate the tractor’s overall condition and avoid putting a new engine on a machine with hidden problems.

Even when the engine is the main failure, we often see these items needed to restore reliable operation:

• Lawn tractor starter solenoid 582042802 if cranking is intermittent
• Lawn tractor ground drive or blade drive belt, 1/2 x 92-2/5-in 592855201 if the belt is worn, glazed, or stretched
• Husqvarna lawn tractor ground drive idler pulley 532194327 if the pulley is noisy, wobbly, or seized

A new engine only pays off if the tractor can safely operate afterward. The manual emphasizes keeping the machine clear of debris, avoiding adjustments with the engine running, and maintaining cooling surfaces to prevent overheating damage. Those same habits protect your investment after the swap.

Last updated: February 2026

For Craftsman model 917289900, the engine is a low-emission gasoline engine (engine details and ratings are provided by the engine manufacturer). For the exact engine family, displacement, and service specs for your tractor, use the identification and specifications sections in the 917289900 owner's manual.

We recommend confirming the engine by reading the engine ID label (not the tractor model tag). On most front-engine riding mowers, the engine label is on the blower housing, valve cover area, or near the starter.

• Find the engine model/type/code on the engine label
• Match that information to the engine maker's parts and service listings
• Use the tractor manual to confirm tune-up intervals and operating settings
• Record the engine ID before ordering ignition or fuel parts
• If the label is dirty, wipe it clean and take a photo for reference

The operator manual for model 917.28990 (same model family as 917289900) identifies it as a lawn tractor with an electric start and automatic transmission, and it notes the engine is a low-emission design that may operate differently than older engines.

Craftsman tractors can ship with different engine variants over a production run. Using the engine’s model/type/code prevents ordering the wrong tune-up parts and helps you follow the correct oil, air filter, and spark plug specifications.

Last updated: February 2026

Craftsman model 917289900 was made in the early 1990s; the most commonly cited production window for this tractor family is 1991 to 1993. For the best model-specific identifiers (specs, decals, and feature set), match your tractor to the details shown in the 917289900 owner's manual.

We use a few quick checks to narrow the build year when the model number alone spans multiple seasons:

• Check the product ID tag (often under the seat, on the frame rail, or near the rear fender pan)
• Look for a date code or serial number on the tag and compare it to the manual’s identification section
• Compare your mower deck size and configuration (this model is commonly shown with a 54-inch mower deck)
• Verify whether your tractor has automatic transmission and electric start (common identifiers for this model family)
• Match major assemblies (deck, steering, drive) to the illustrated parts breakdowns

The exact year affects small but important fit details, especially for wear items like belts, pulleys, and deck hardware. Confirming the build year helps ensure you order the correct Craftsman riding mower parts the first time.

Last updated: February 2026
