Poulan
Front-Engine Lawn Tractor

Model #PB195H46YT Poulan tractor

Here are the diagrams and repair parts for Poulan PB195H46YT tractor, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

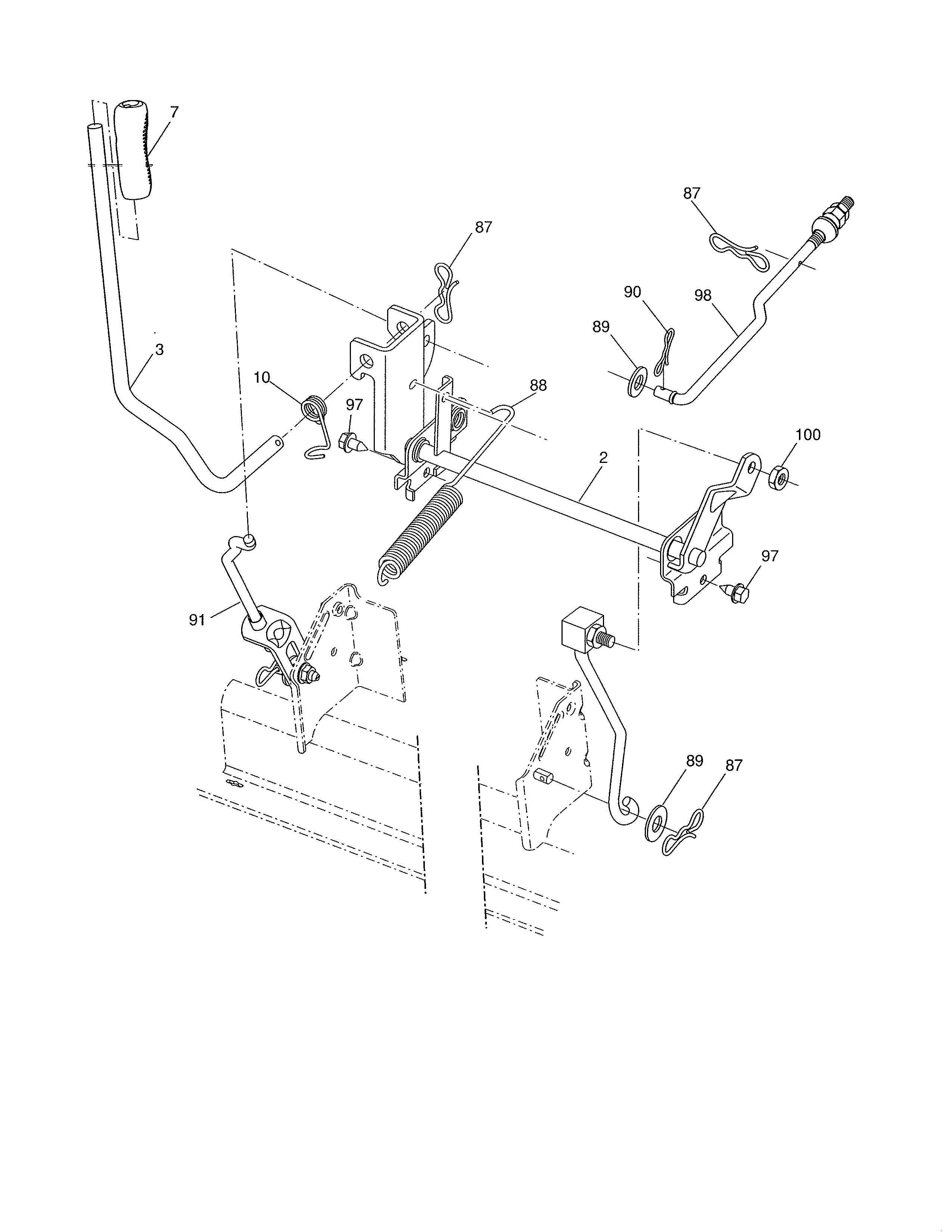

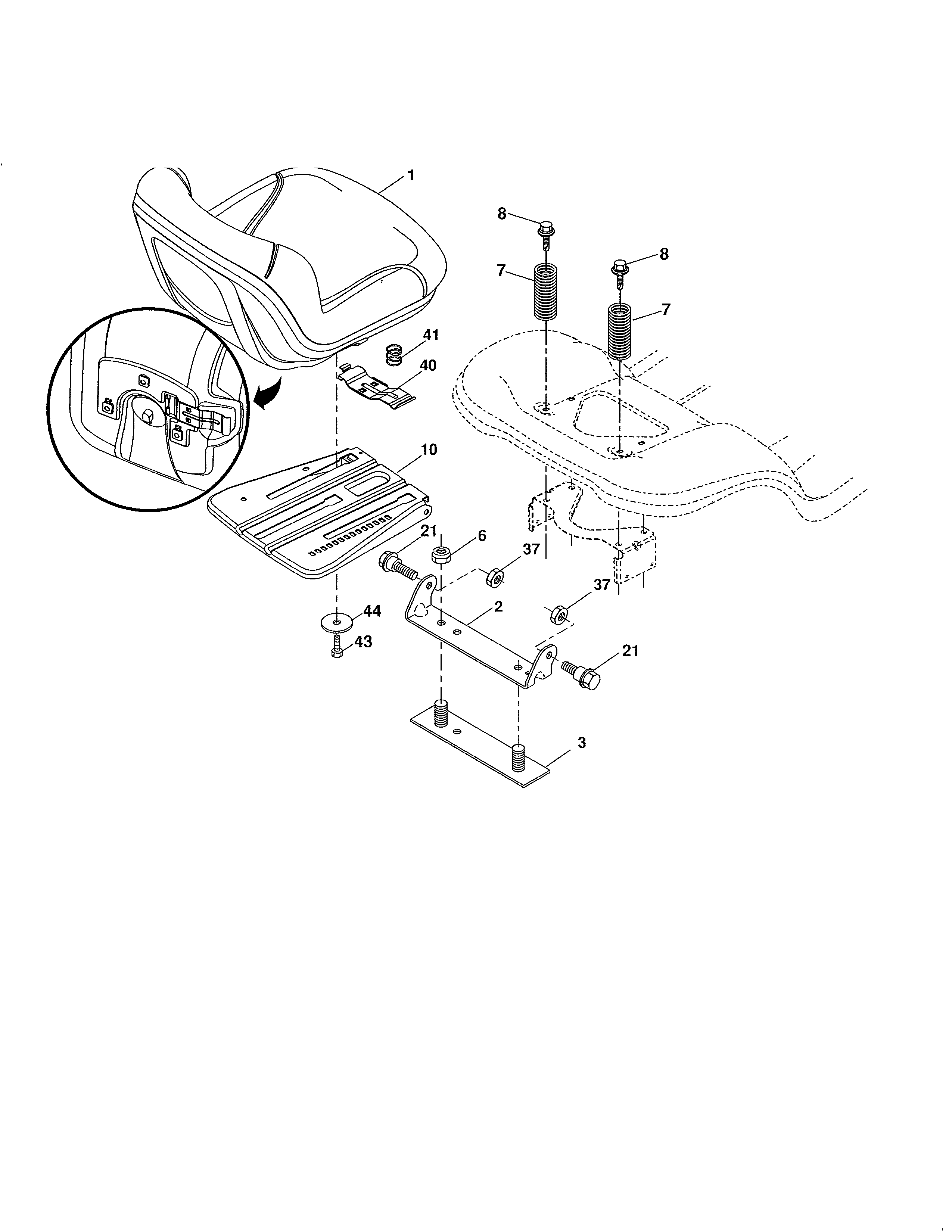

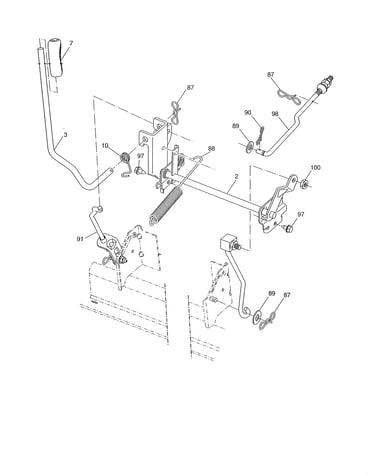

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 278 parts

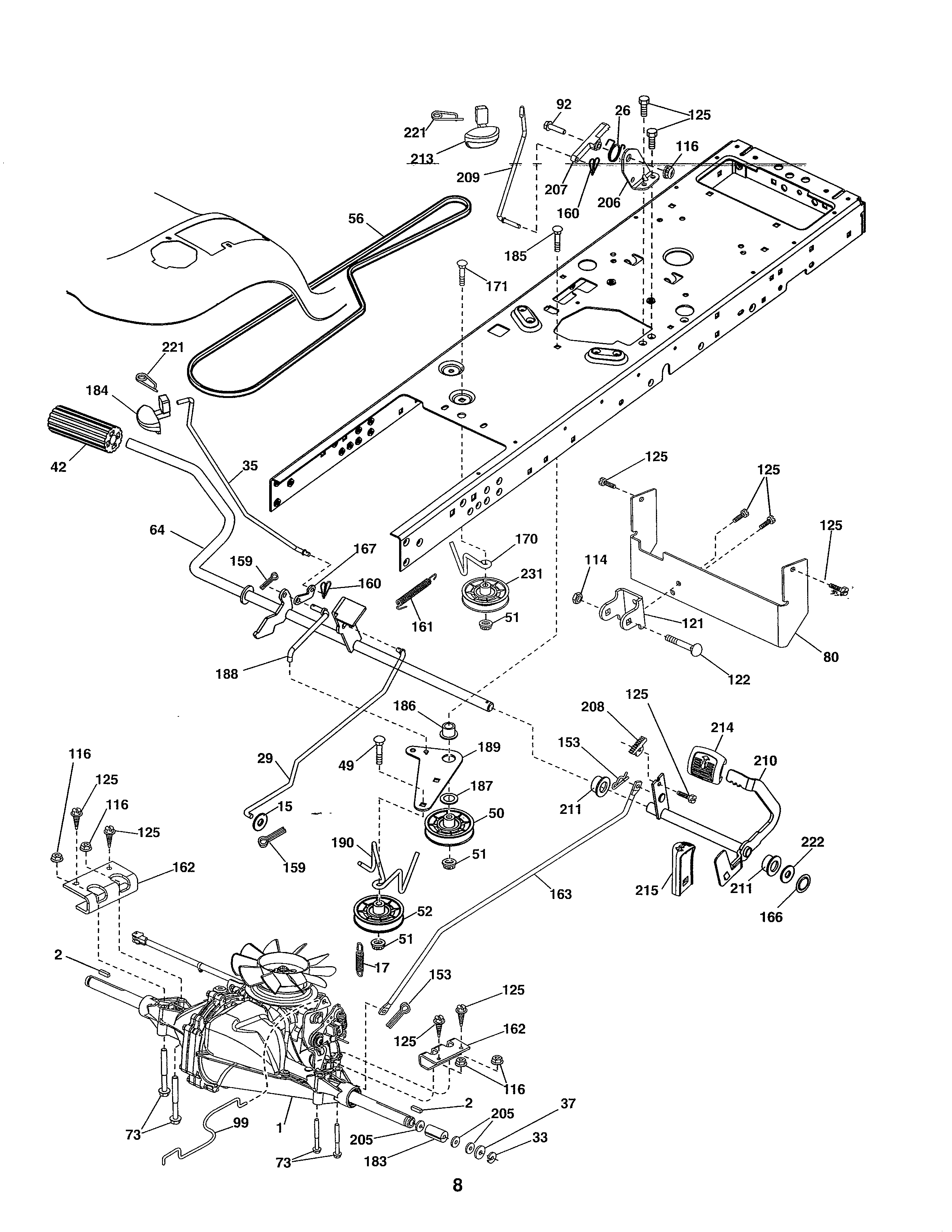

    Lawn Tractor Brake Latch

    #167

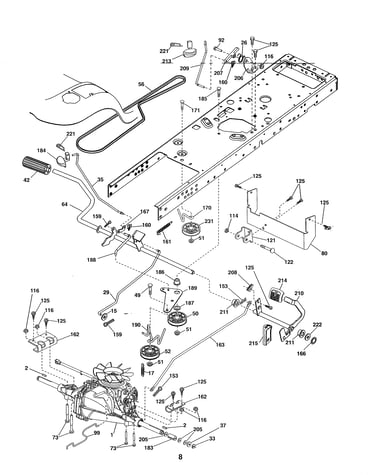

    Drive Diagram

    Lawn tractor brake latch

    Part #405257
    This item is not returnable
    $2.53 |
    16% OFF MSRP:$3.00

    In Stock

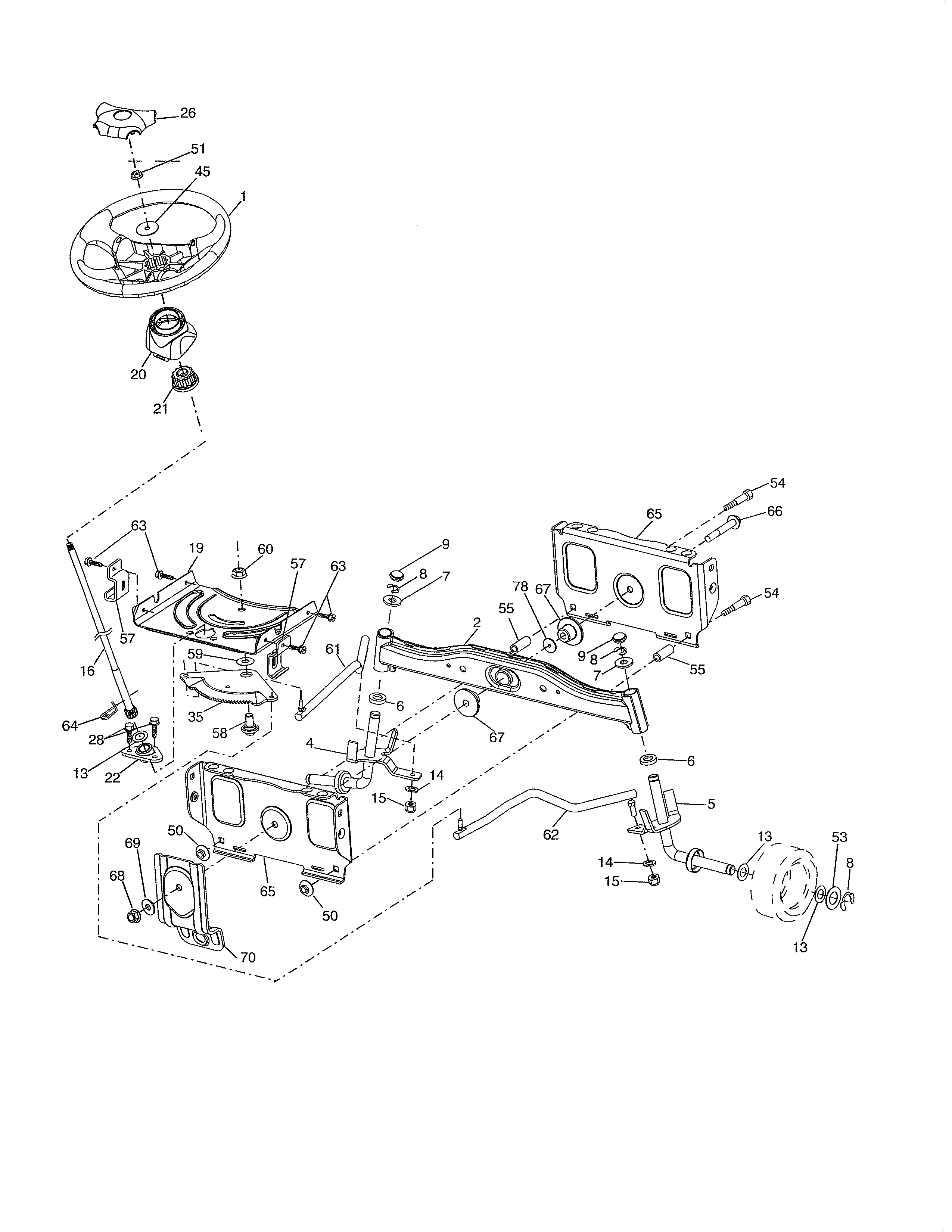

    BEARING, RACE THRUST HARDEN

    #6

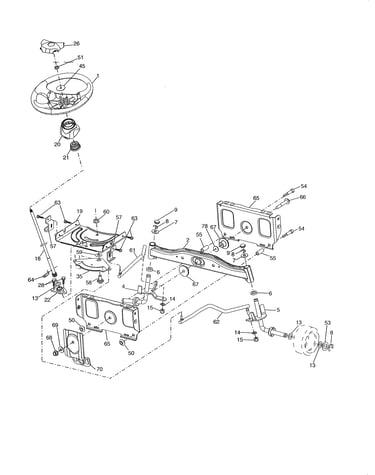

    Steering Diagram

    Bearing, race thrust harden

    Part #6266H

    The manufacturer no longer makes this part, and there's no substitute part

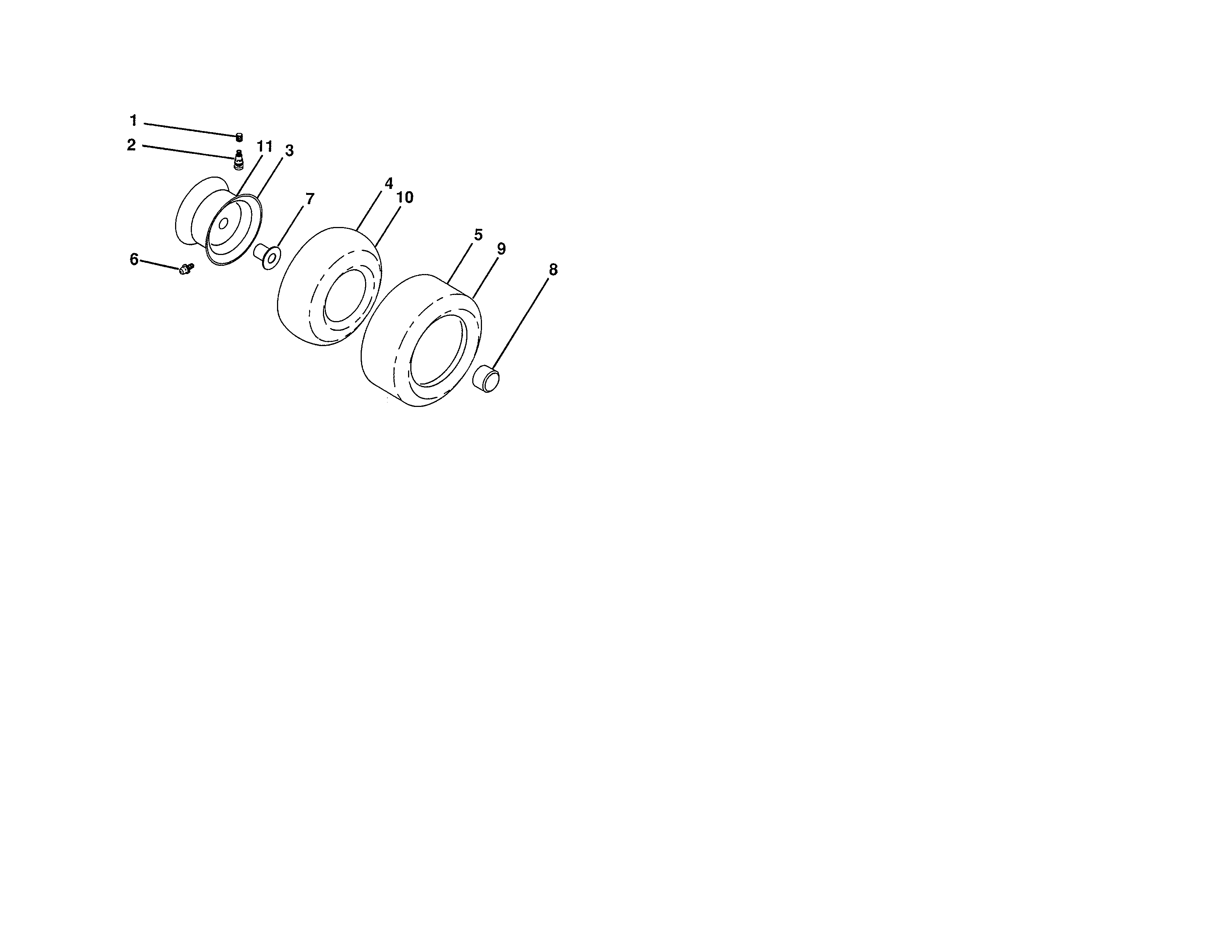

    Rim Assembly, Rear

    #11

    Wheels & tires Diagram

    Rim assembly, rear

    Part #106108X421

    The manufacturer no longer makes this part, and there's no substitute part

    Muffler

    #2

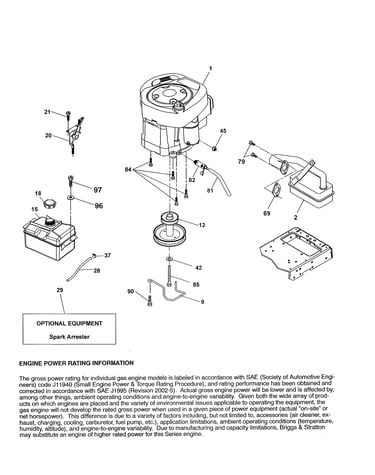

    Engine Diagram

    Muffler

    Part #137352

    The manufacturer no longer makes this part, and there's no substitute part

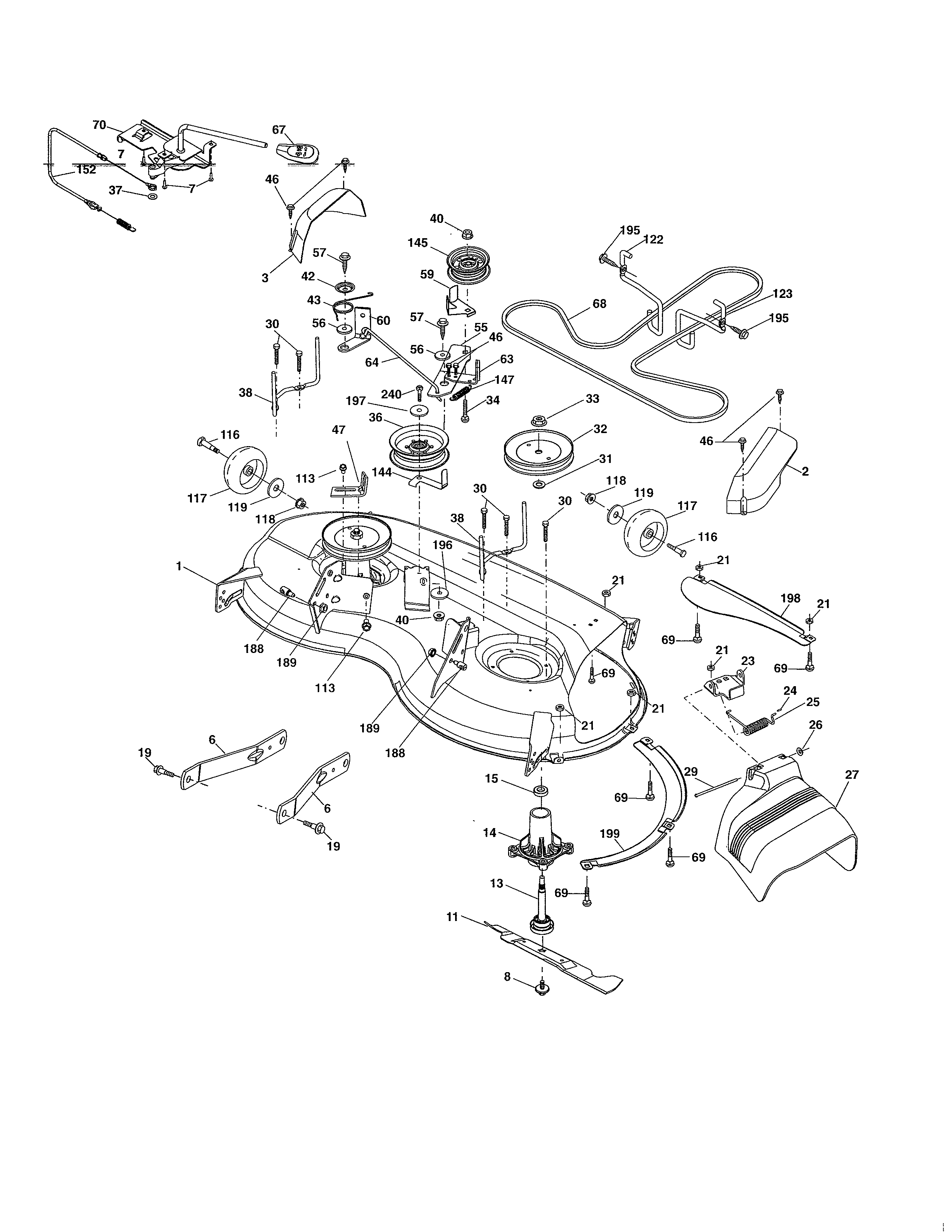

    GUARD, TUV IDLER (94)

    #59

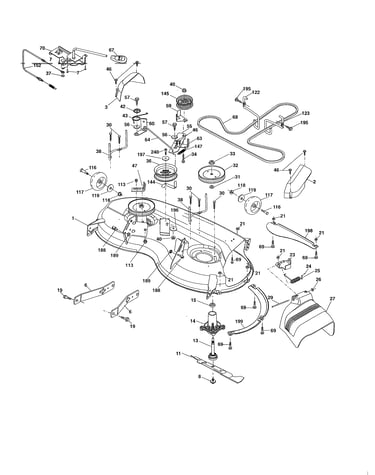

    Mower deck Diagram

    Guard, tuv idler (94)

    Part #141043

    The manufacturer no longer makes this part, and there's no substitute part

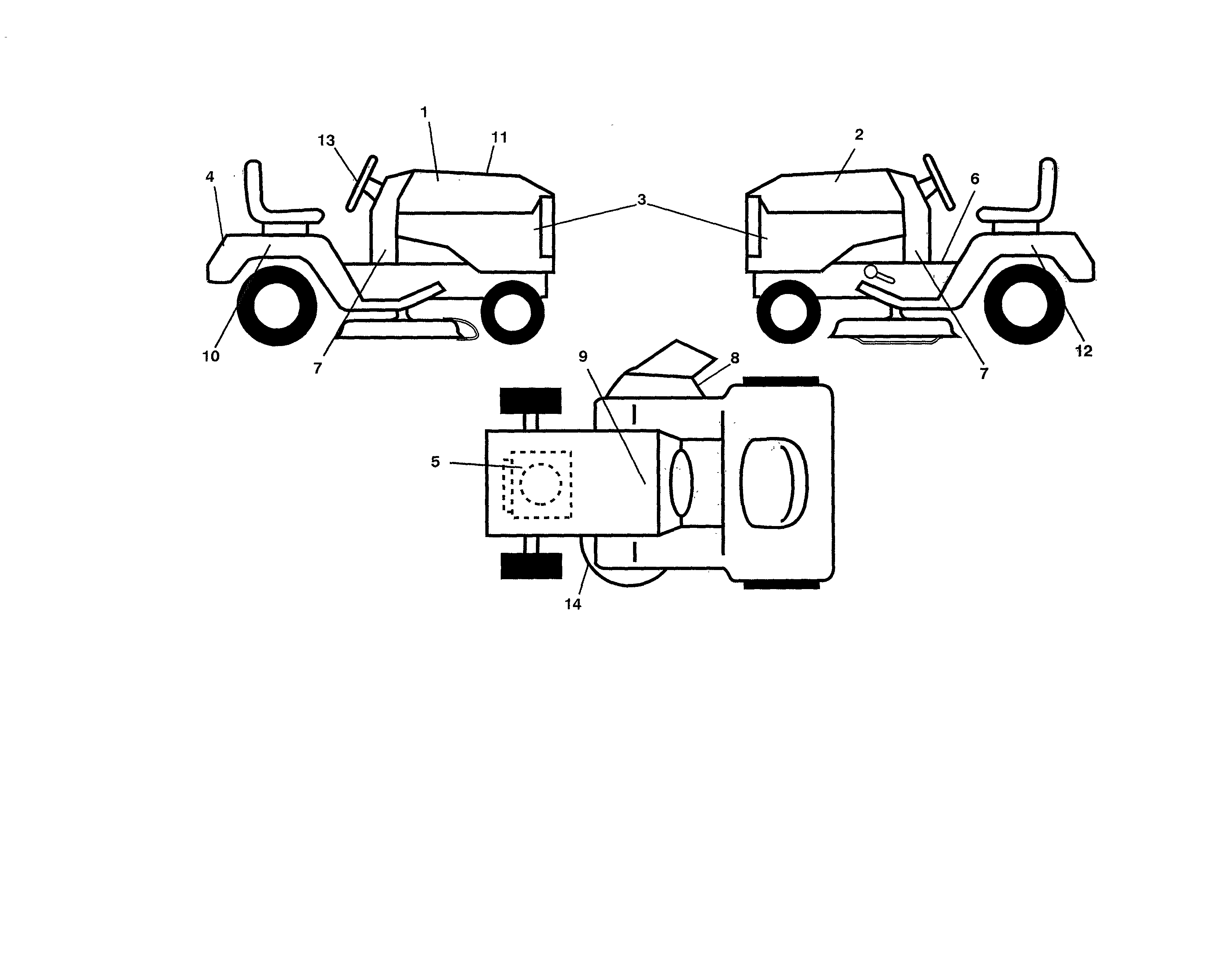

    DECAL, BATTERY DNGE/POI

    #9

    Decals Diagram

    Decal, battery dnge/poi

    Part #145005

    The manufacturer no longer makes this part, and there's no substitute part

    Axle Spacer

    #183

    Drive Diagram

    Axle spacer

    Part #156972

    The manufacturer no longer makes this part, and there's no substitute part

    Battery

    #1

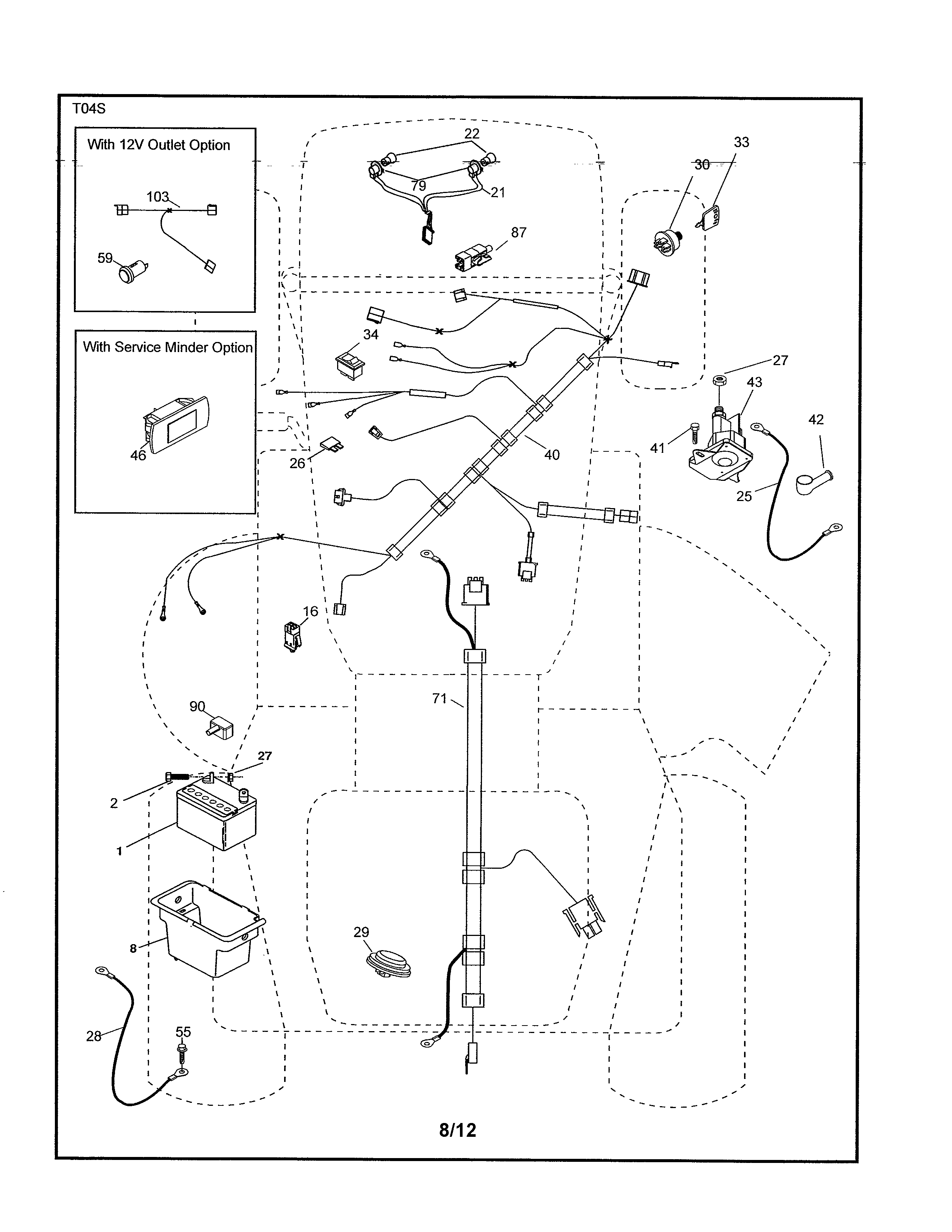

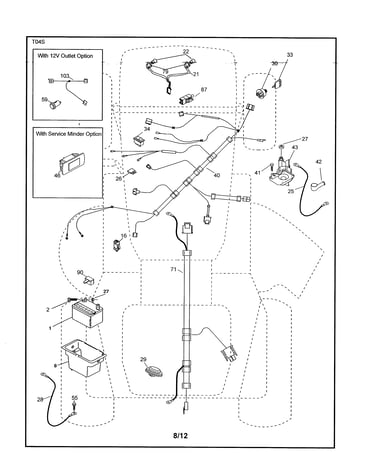

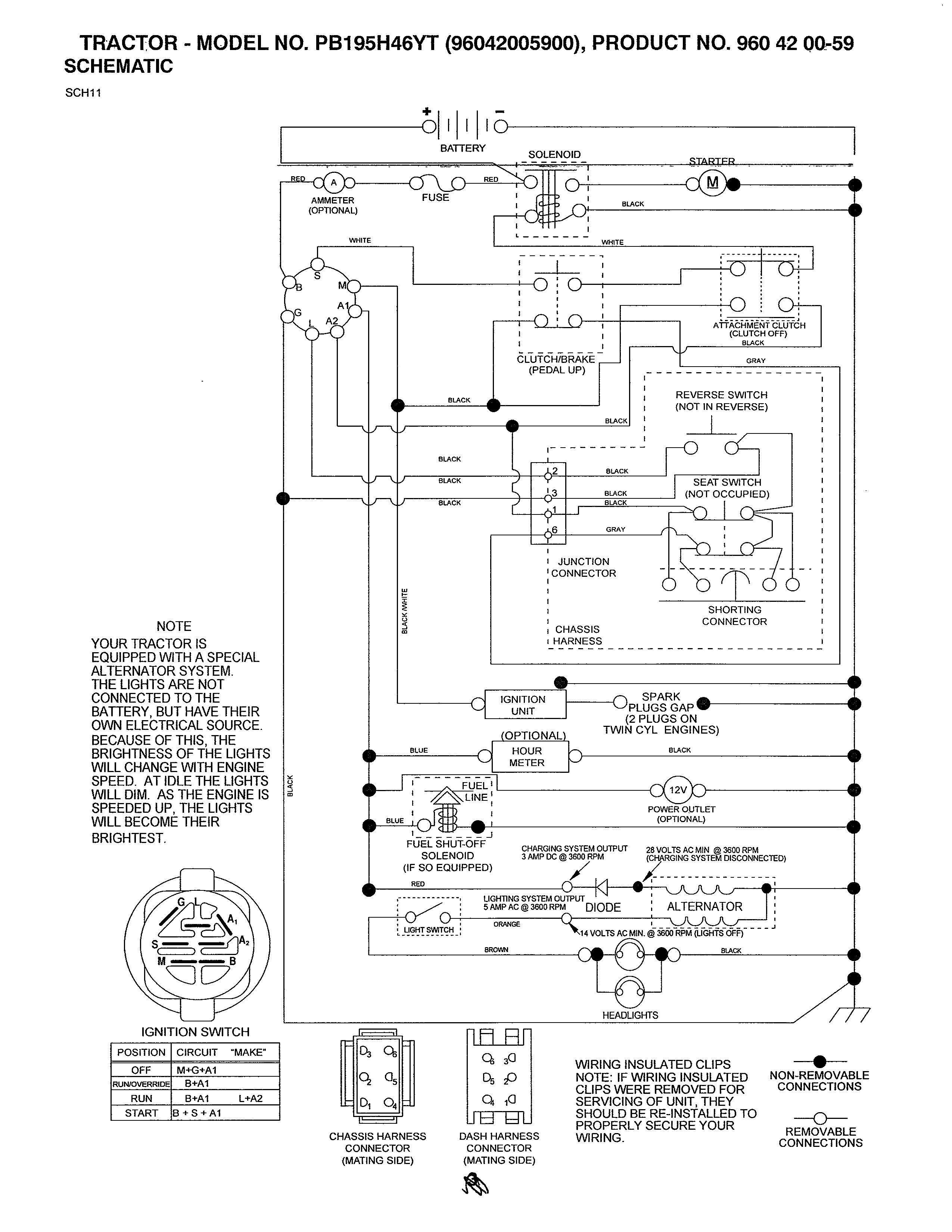

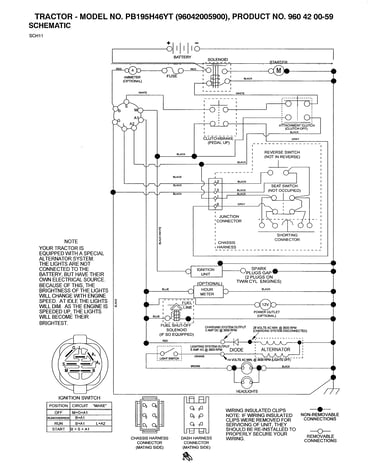

    Electrical Diagram

    Battery

    Part #163465

    The manufacturer no longer makes this part, and there's no substitute part

    Warning Decal

    #8

    Decals Diagram

    Warning decal

    Part #170563

    The manufacturer no longer makes this part, and there's no substitute part

    BOLT SHOULDER 5/16-18

    #230

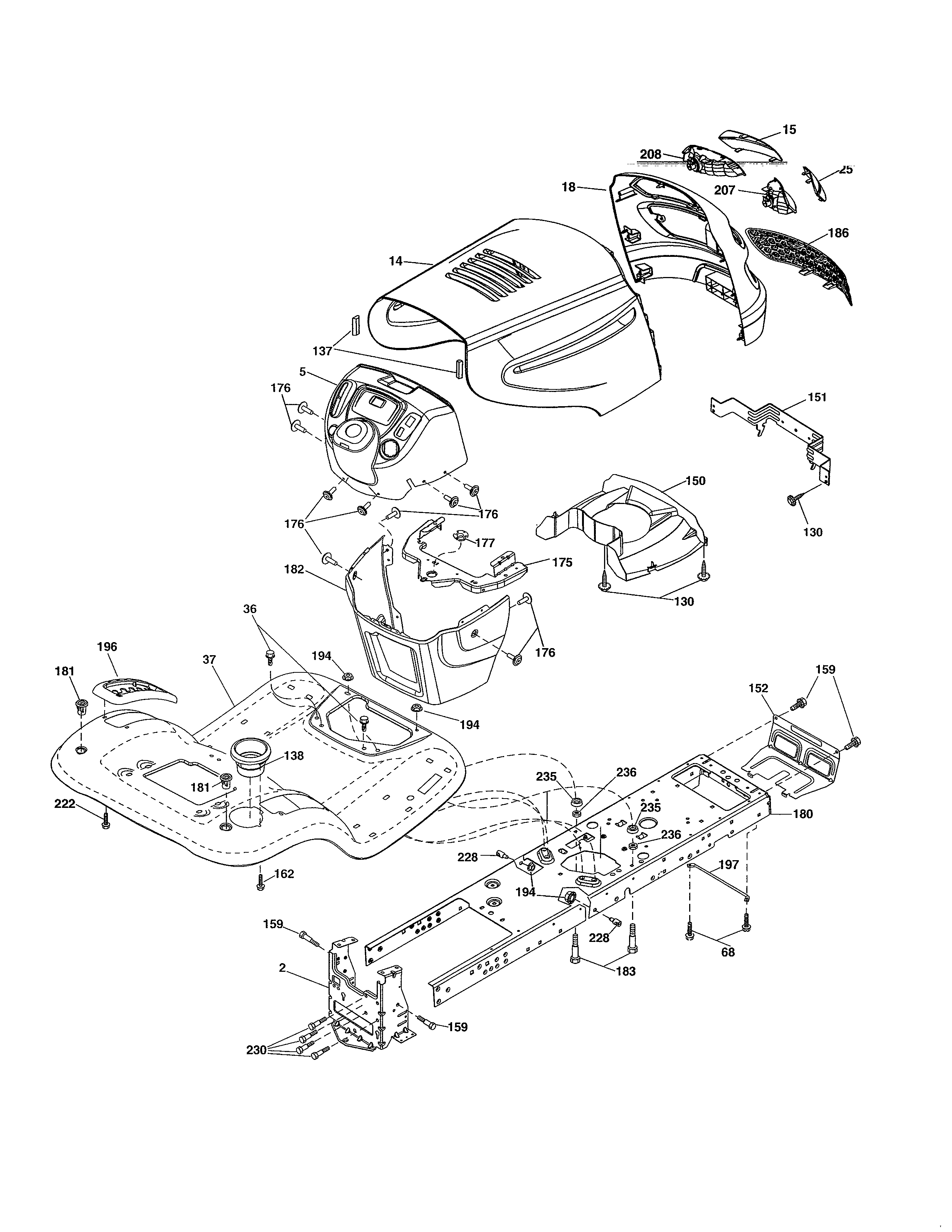

    Chassis Diagram

    Bolt shoulder 5/16-18

    Part #170165

    The manufacturer no longer makes this part, and there's no substitute part
